  1. Cocoon An XML Web Publishing Framework From the Apache Project Roland Schweitzer

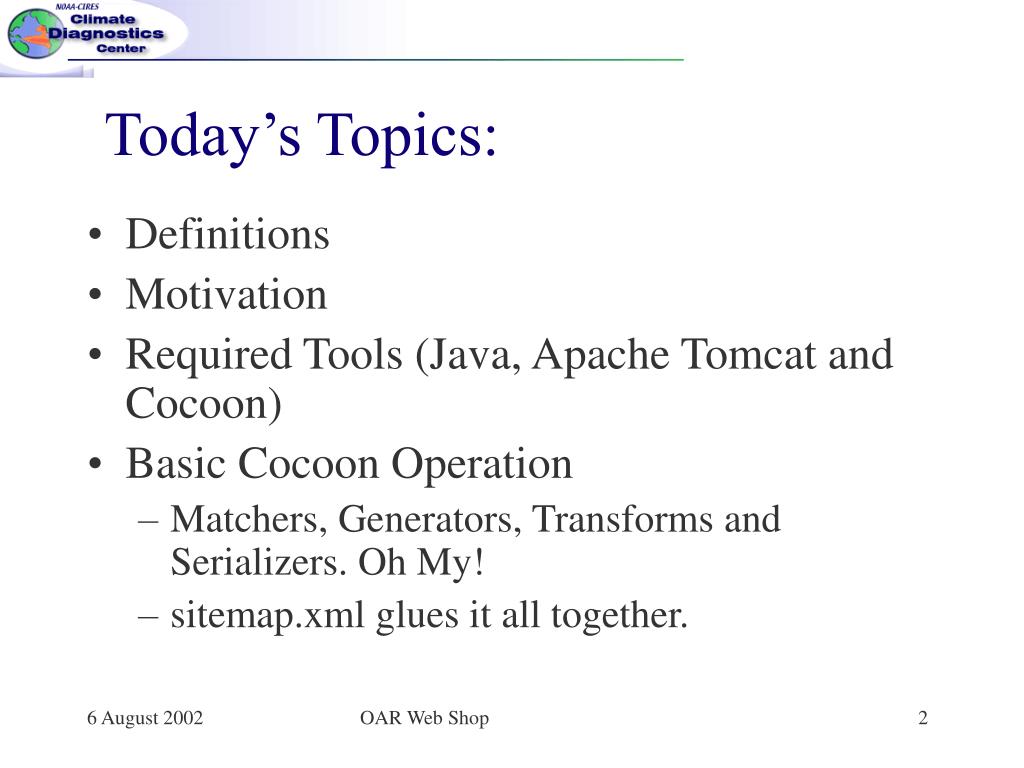

  2. Today’s Topics: • Definitions • Motivation • Required Tools (Java, Apache Tomcat and Cocoon) • Basic Cocoon Operation • Matchers, Generators, Transforms and Serializers. Oh My! • sitemap.xml glues it all together. OAR Web Shop

  3. Cocoon • An XML-based WWW publishing framework implemented as a Java Servlet. • Web site content stored in XML files (or RDBMS, LDAP Server or other source) is transformed (mostly via XSLT) into new XML files (to exclude certain info for example) and then serialized into human usable output (like an HTML or PDF file). OAR Web Shop

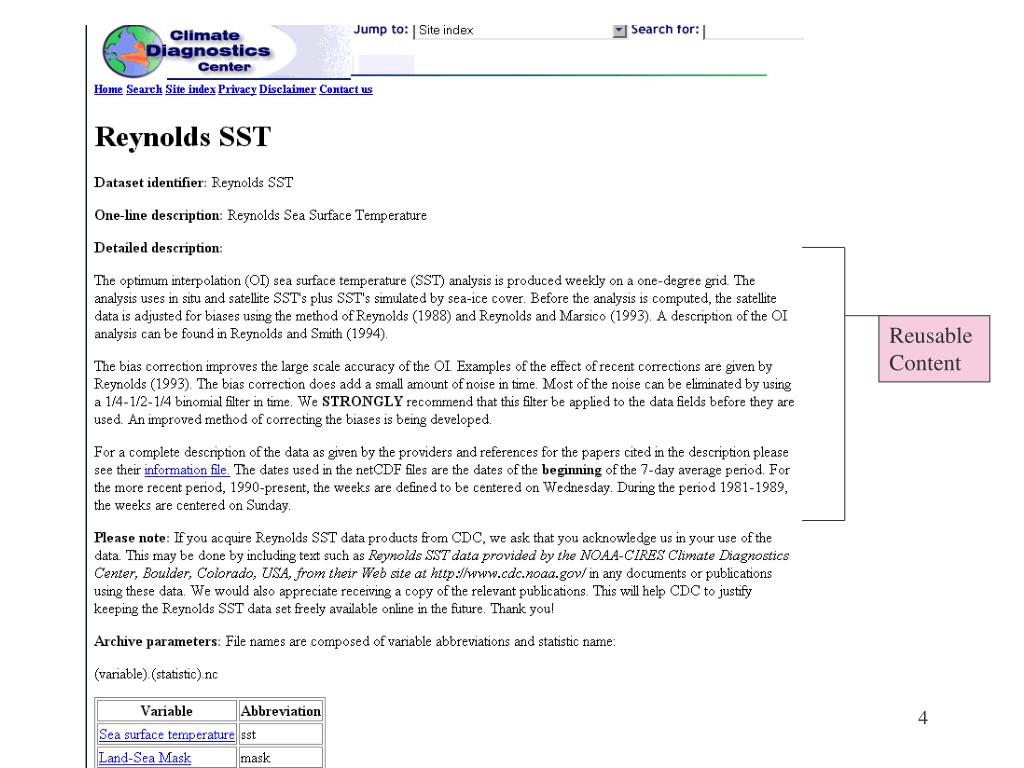

  4. Reusable Content OAR Web Shop

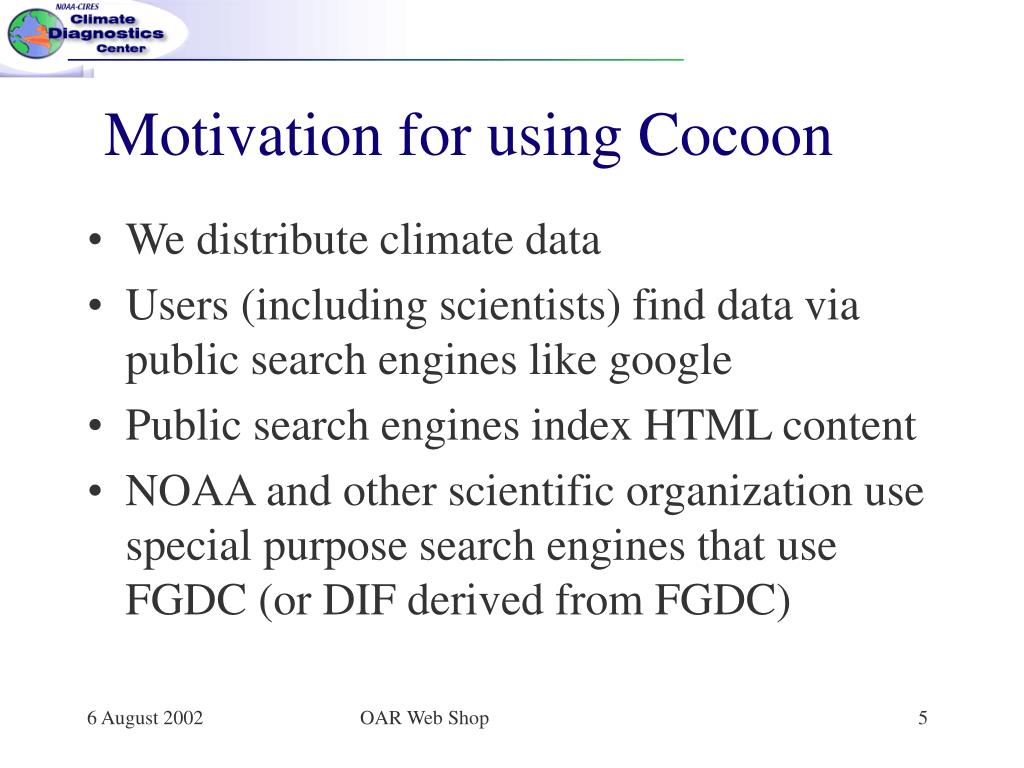

  5. Motivation for using Cocoon • We distribute climate data • Users (including scientists) find data via public search engines like google • Public search engines index HTML content • NOAA and other scientific organization use special purpose search engines that use FGDC (or DIF derived from FGDC) OAR Web Shop

  6. Motivation continued • These facts add up to maintaining separate “documents” for each purpose • XML and Cocoon offers a (yet another potential) way out of the morass of many special purpose document collections OAR Web Shop

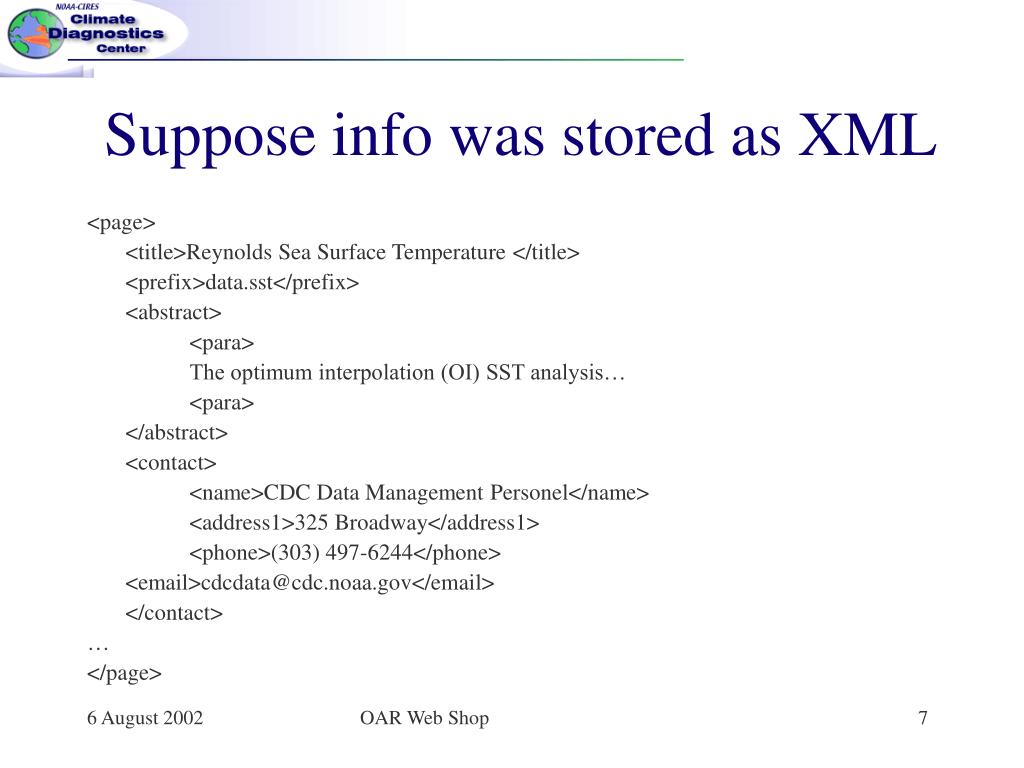

  7. Suppose info was stored as XML <page> <title>Reynolds Sea Surface Temperature </title> <prefix>data.sst</prefix> <abstract> <para> The optimum interpolation (OI) SST analysis… <para> </abstract> <contact> <name>CDC Data Management Personel</name> <address1>325 Broadway</address1> <phone>(303) 497-6244</phone> <email>cdcdata@cdc.noaa.gov</email> </contact> … </page> OAR Web Shop

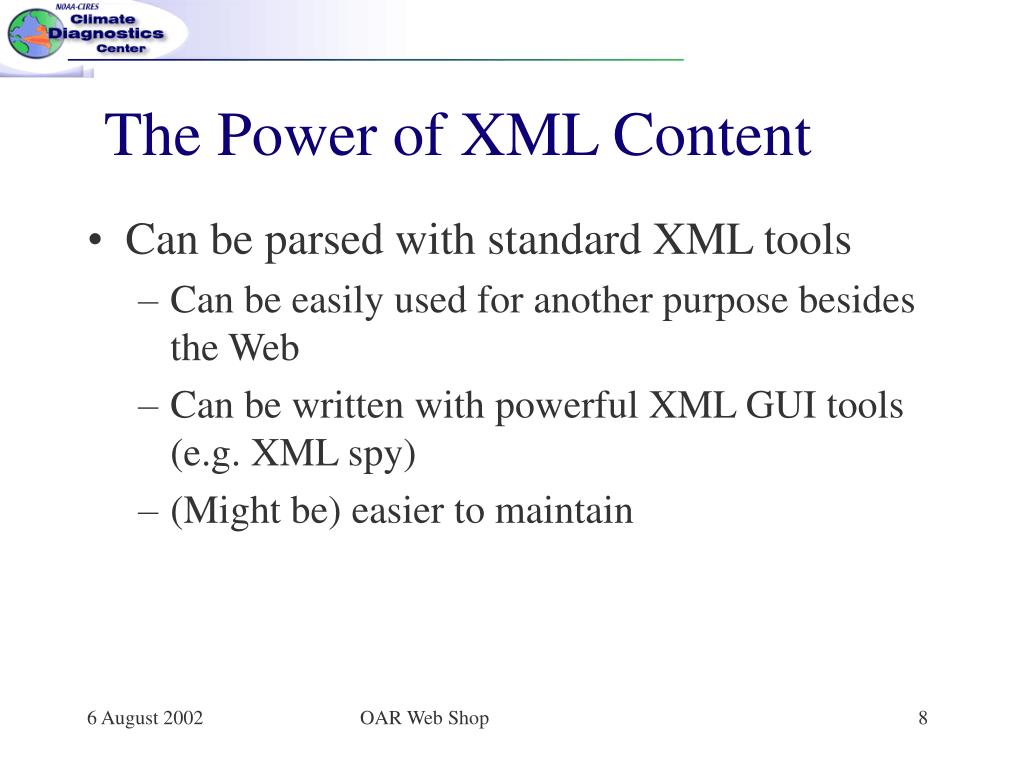

  8. The Power of XML Content • Can be parsed with standard XML tools • Can be easily used for another purpose besides the Web • Can be written with powerful XML GUI tools (e.g. XML spy) • (Might be) easier to maintain OAR Web Shop

  9. Reusable Content OAR Web Shop

  10. Cocoon Some other process Schematic of the Solution Using Cocoon OAR Web Shop

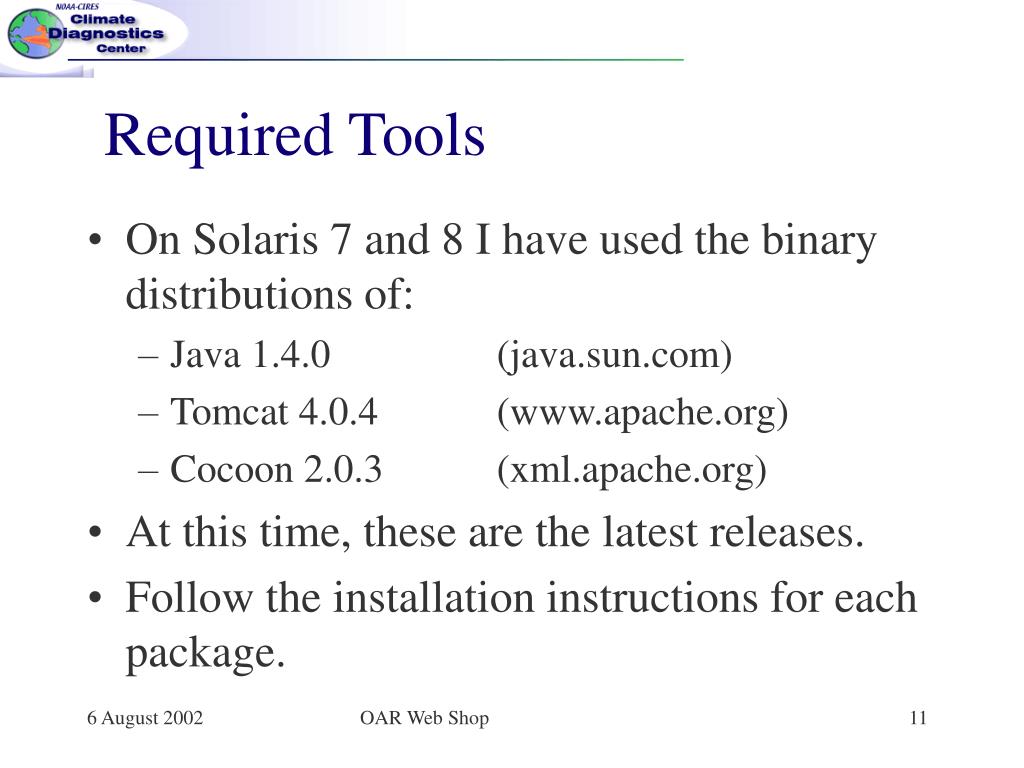

  11. Required Tools • On Solaris 7 and 8 I have used the binary distributions of: • Java 1.4.0 (java.sun.com) • Tomcat 4.0.4 (www.apache.org) • Cocoon 2.0.3 (xml.apache.org) • At this time, these are the latest releases. • Follow the installation instructions for each package. OAR Web Shop

  12. New XML File XML File A Bit of Software A Bit of Software A Bit of Software New XML File Basic Operation • Cocoon is based on pipelines: Info to client (e.g HTML to browser) OAR Web Shop

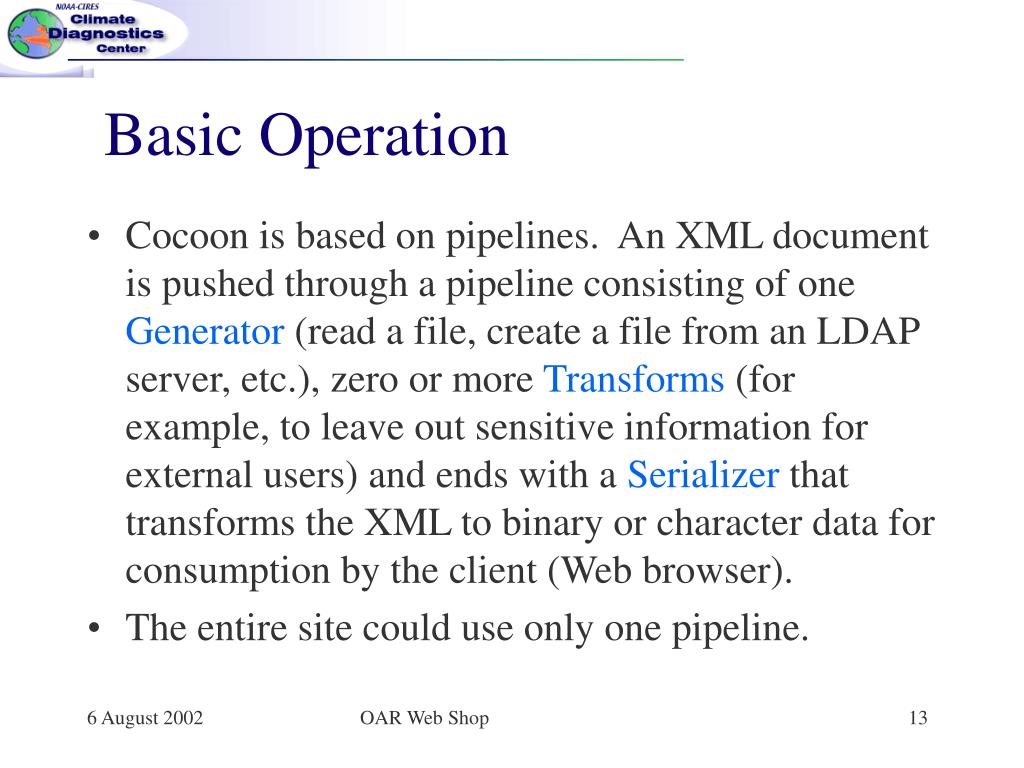

  13. Basic Operation • Cocoon is based on pipelines. An XML document is pushed through a pipeline consisting of one Generator (read a file, create a file from an LDAP server, etc.), zero or more Transforms (for example, to leave out sensitive information for external users) and ends with a Serializer that transforms the XML to binary or character data for consumption by the client (Web browser). • The entire site could use only one pipeline. OAR Web Shop

  14. Basic Operation • If you need more than one pipeline… • Matchers (wildcard and regular expression) and Selectors (Boolean expressions) can be used to control the pipeline used to process the XML content. OAR Web Shop

  15. Components • Matchers, Generators, Transforms and Serializers are all Cocoon Components. • Pipelines are build out of Components. • Components are declared and pipelines are constructed in the sitemap.xmap file. • The “Bit of Software” needed for each Component is provided by Cocoon or built by you. OAR Web Shop

  16. Components (Matchers) • Suppose you wanted these URI patterns to be handled by cocoon: • For example the wildcard patterns: • http://www.cdc.noaa.gov/cocoon/data/*.html and • http://www.cdc.noaa.gov/cocoon/data/*.pdf could result in two pipelines with two different outputs types. OAR Web Shop

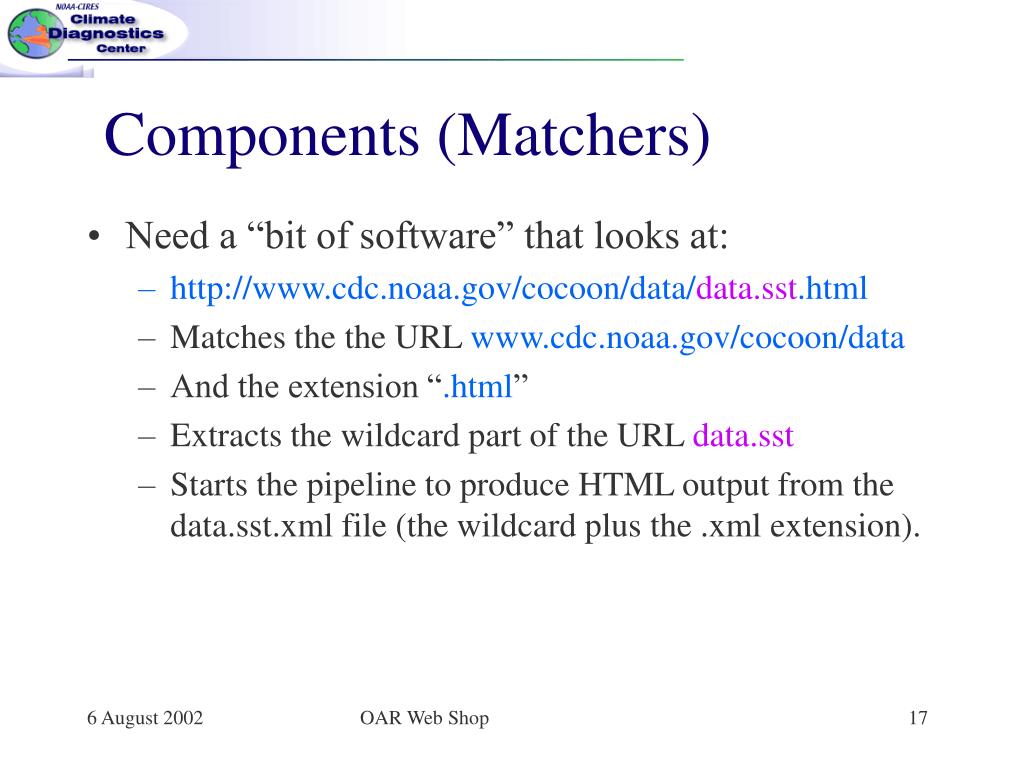

  17. Components (Matchers) • Need a “bit of software” that looks at: • http://www.cdc.noaa.gov/cocoon/data/data.sst.html • Matches the the URL www.cdc.noaa.gov/cocoon/data • And the extension “.html” • Extracts the wildcard part of the URL data.sst • Starts the pipeline to produce HTML output from the data.sst.xml file (the wildcard plus the .xml extension). OAR Web Shop

  18. The WildCard Matcher • We’re in luck! • A Matcher Component already exists in Cocoon to do what we want. • To use a Component we must declare it in the sitemap.xmap file that controls our Cocoon installation. OAR Web Shop

  19. Declare the WildCard Matcher In sitemap.xmap configuration file: <map:matchers default=“wildcard”> <map:matcher name=“wildcard” src= "org.apache.cocoon.matchingWildcardURIMatcher"/> … </map:matchers> OAR Web Shop

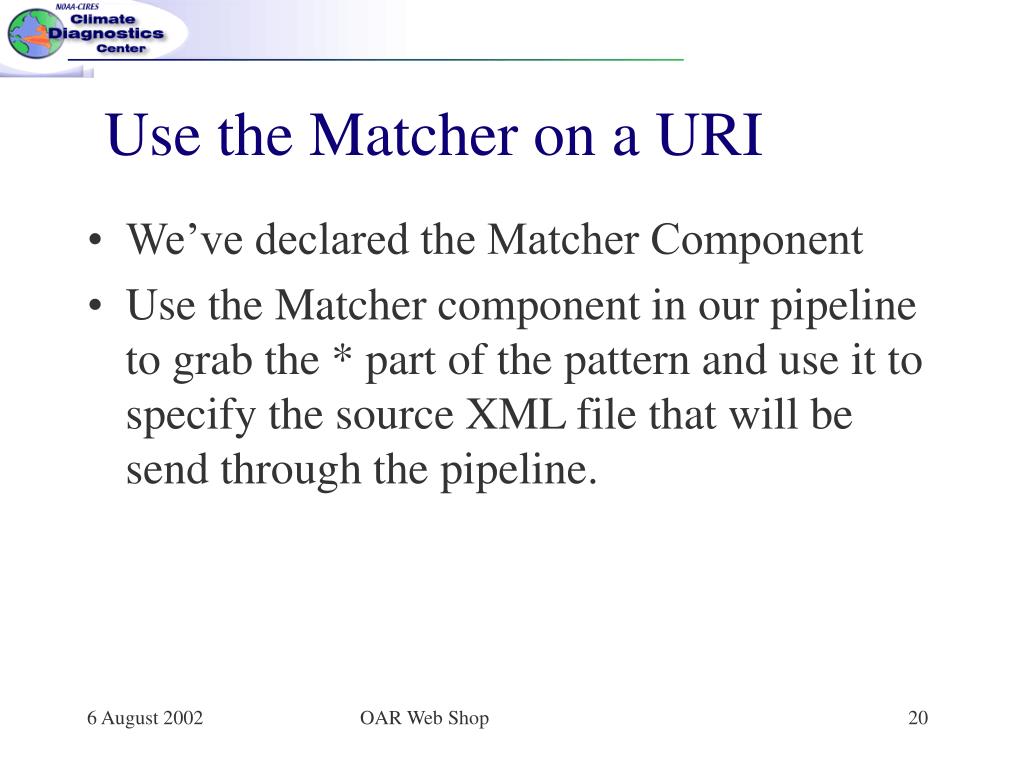

  20. Use the Matcher on a URI • We’ve declared the Matcher Component • Use the Matcher component in our pipeline to grab the * part of the pattern and use it to specify the source XML file that will be send through the pipeline. OAR Web Shop

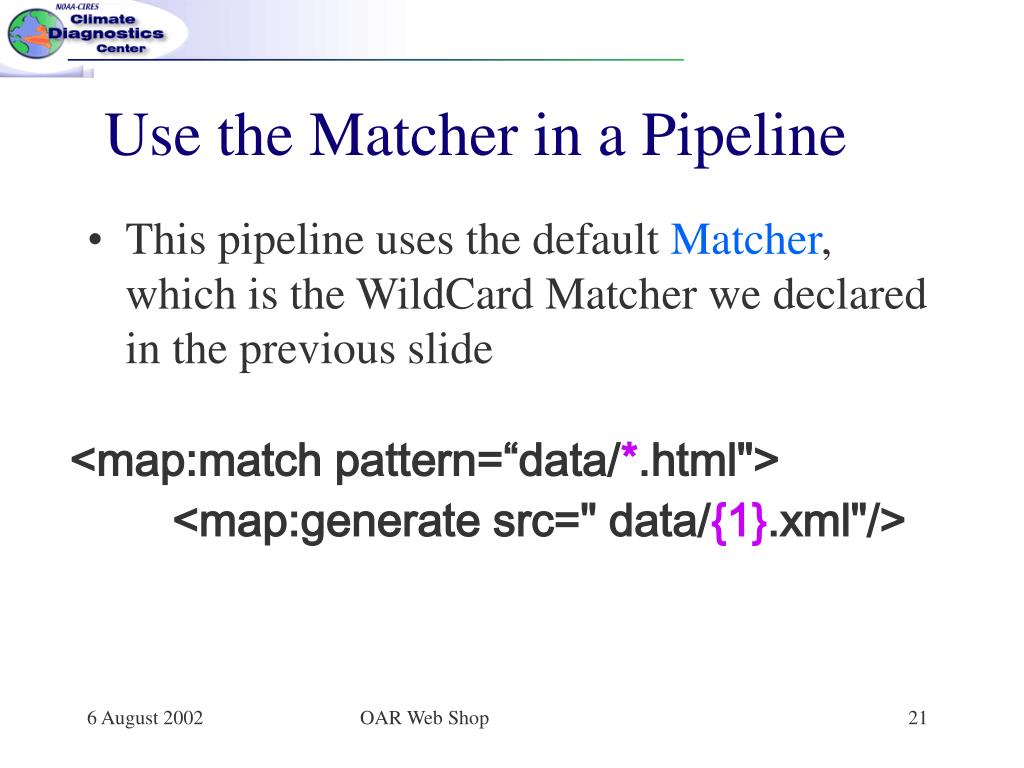

  21. Use the Matcher in a Pipeline • This pipeline uses the default Matcher, which is the WildCard Matcher we declared in the previous slide <map:match pattern=“data/*.html"> <map:generate src=" data/{1}.xml"/> OAR Web Shop

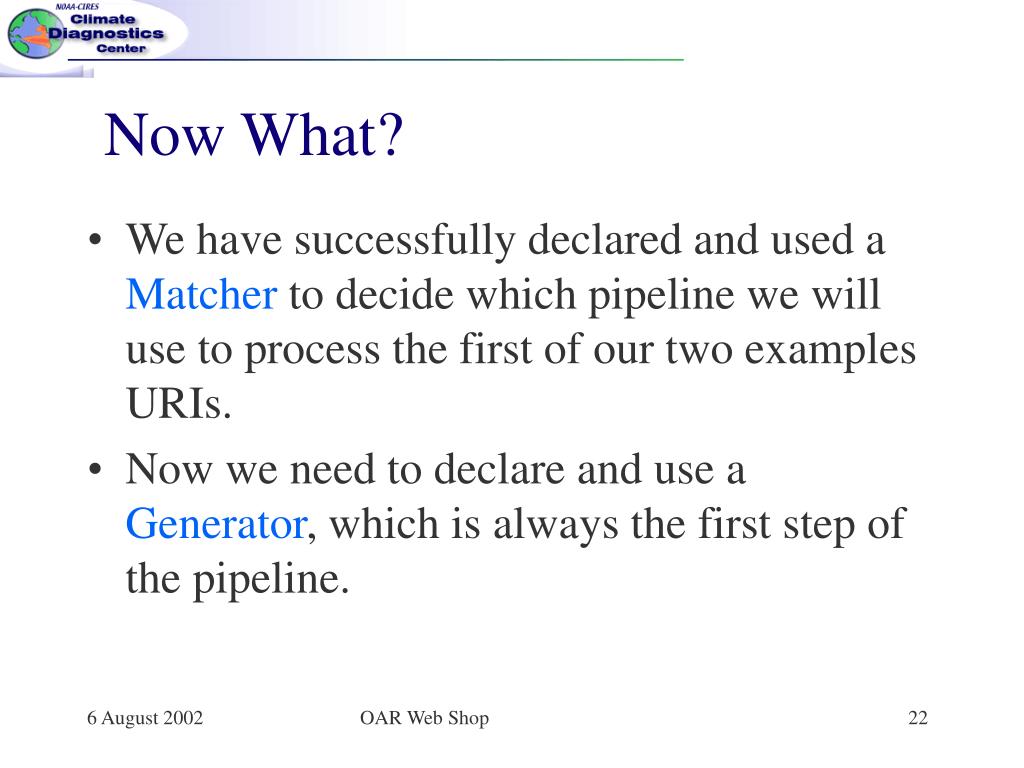

  22. Now What? • We have successfully declared and used a Matcher to decide which pipeline we will use to process the first of our two examples URIs. • Now we need to declare and use a Generator, which is always the first step of the pipeline. OAR Web Shop

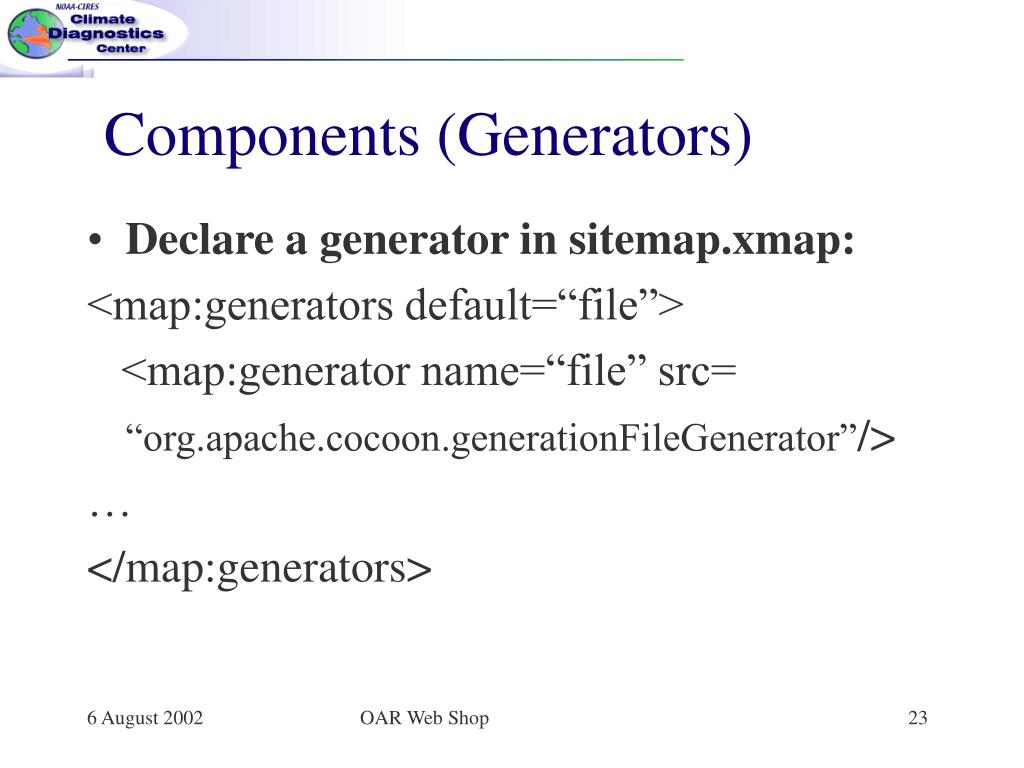

  23. Components (Generators) • Declare a generator in sitemap.xmap: <map:generators default=“file”> <map:generator name=“file” src= “org.apache.cocoon.generationFileGenerator”/> … </map:generators> OAR Web Shop

  24. Use the Generator in a Pipeline • The File Generator was declared as the default. • Its only job is to read the a file from the file system. <map:pipelines> <map:pipeline> <match pattern=“data/*.html”> <map:generate src=“data/{1}.xml”/> … OAR Web Shop

  25. Review: Matcher and Generator • Components (Matchers) • Need a “bit of software” that looks at: • http://www.cdc.noaa.gov/cocoon/data/data.sst.html • Matches the the URL www.cdc.noaa.gov/cocoon/data • And the extension “.html” • Extracts the wildcard part of the URL data.sst • Starts the pipeline to produce HTML output from the data.sst.xml file (the wildcard plus the .xml extension). OAR Web Shop

  26. Review: Pipeline Components • Conditional use of pipeline via the Matcher • One Generator (FileGenerator) • Zero or more Transforms (?) • Ends with a Serializer (?) OAR Web Shop

  27. Components (Transforms) • Declare a Transform: <map:transformers default="xslt"> <map:transformer name="xslt“ src="org. apache.cocoon.transformation.TraxTransformer"> <use-request-parameters> false </use-request-parameters> <use-browser-capabilities-db> false </use-browser-capabilities-db> </map:transformer> OAR Web Shop

  28. The XSLT Transformer • Different from previous declarations we’ve seen. • This declaration includes two additional configuration parameters. <use-request-parameters> <use-browser-capabilities-db> OAR Web Shop

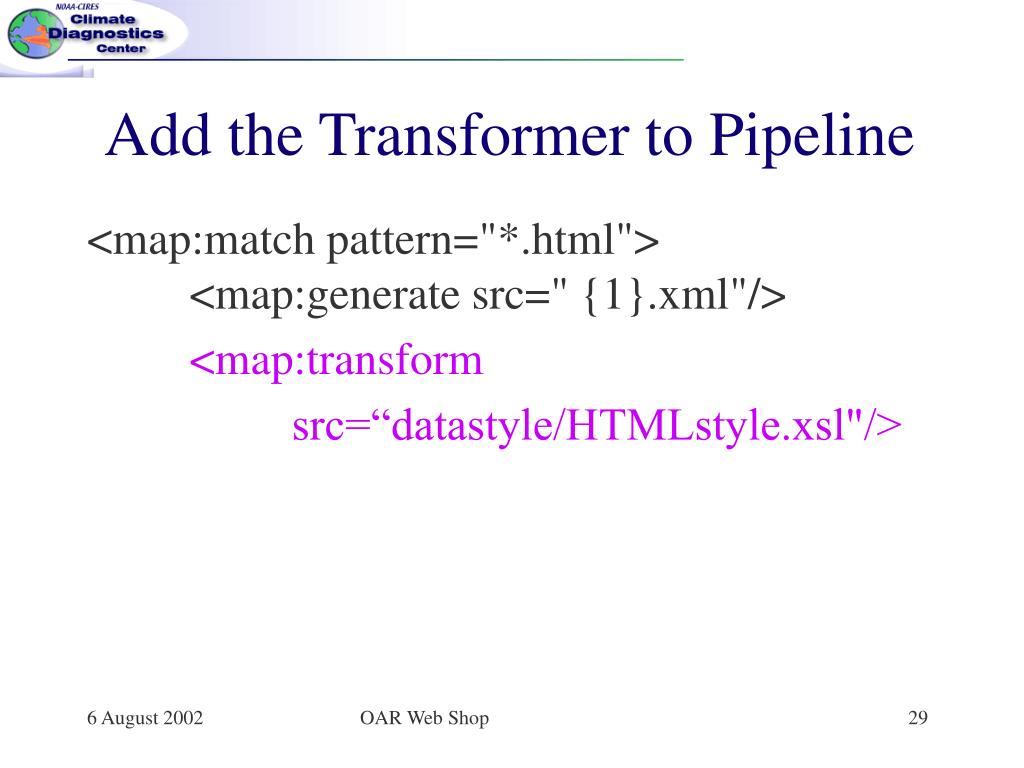

  29. Add the Transformer to Pipeline <map:match pattern="*.html"> <map:generate src=" {1}.xml"/> <map:transform src=“datastyle/HTMLstyle.xsl"/> OAR Web Shop

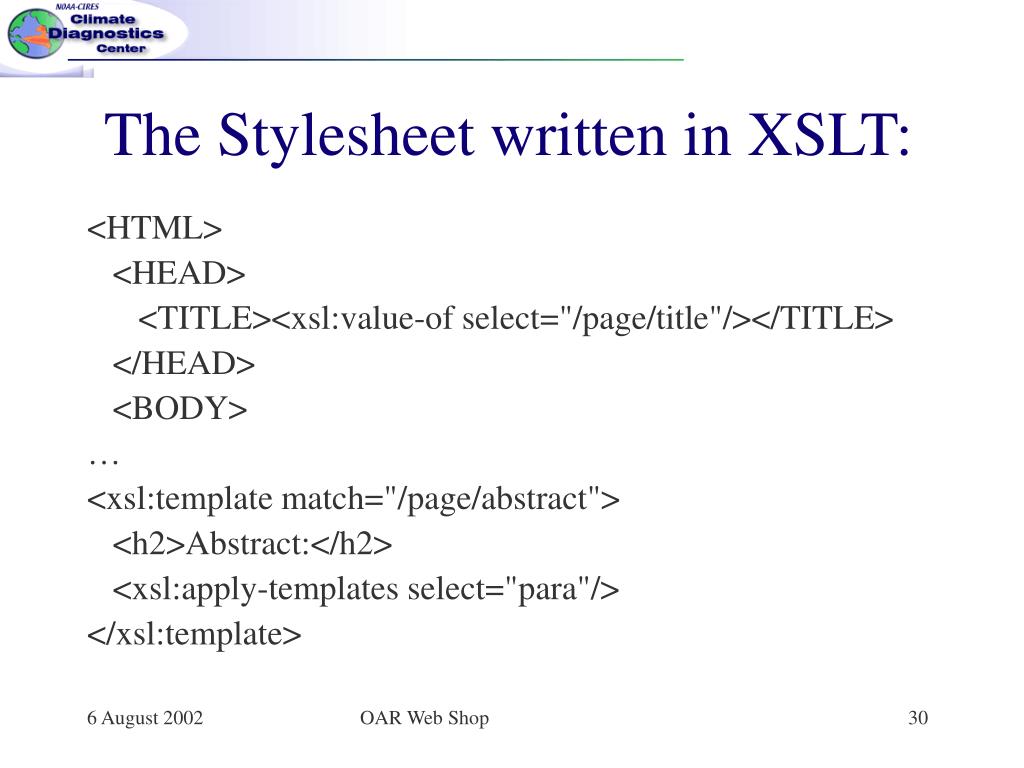

  30. The Stylesheet written in XSLT: <HTML> <HEAD> <TITLE><xsl:value-of select="/page/title"/></TITLE> </HEAD> <BODY> … <xsl:template match="/page/abstract"> <h2>Abstract:</h2> <xsl:apply-templates select="para"/> </xsl:template> OAR Web Shop

  31. Components (Serializers) • The last step of each Pipeline is a Serializer • It consumes XML (in the form of SAX events) and generates a character stream for a client (Web browser, Acrobat Reader, etc.). OAR Web Shop

  32. Declare the Serializer In sitemap.xmap: <map:serializers default="html"> <map:serializer mime-type="text/html" name="html" src=“...HTMLSerializer"> <buffer-size>1024</buffer-size> </map:serializer> OAR Web Shop

  33. The Completed Pipeline <map:match pattern=“data/*.html"> <map:generate src=“data/{1}.xml"/> <map:transform src=“datastyle/HTMLstyle.xsl"/> <map:serialize/> </map:match> OAR Web Shop

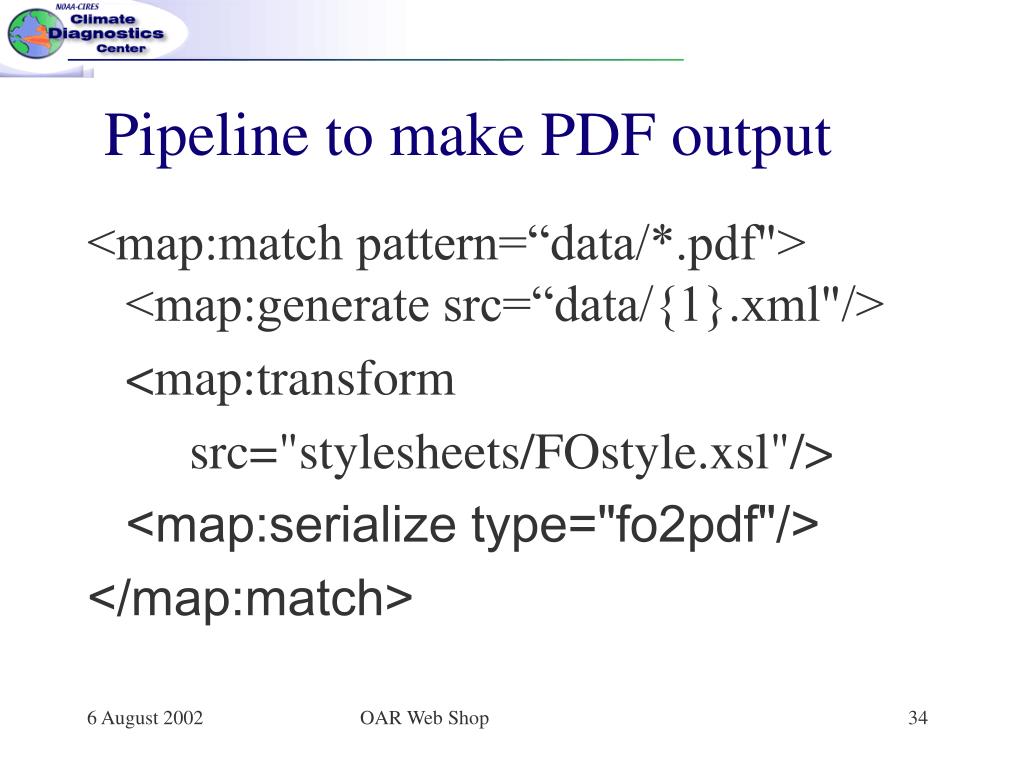

  34. Pipeline to make PDF output <map:match pattern=“data/*.pdf"> <map:generate src=“data/{1}.xml"/> <map:transform src="stylesheets/FOstyle.xsl"/> <map:serialize type="fo2pdf"/> </map:match> OAR Web Shop

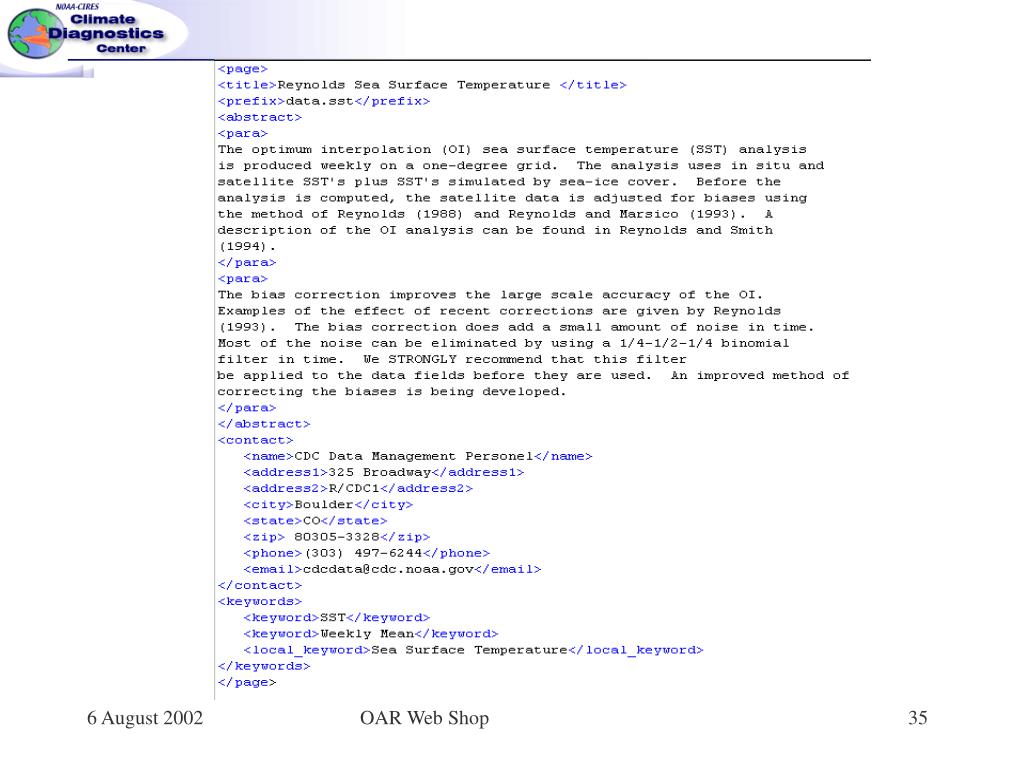

  35. OAR Web Shop

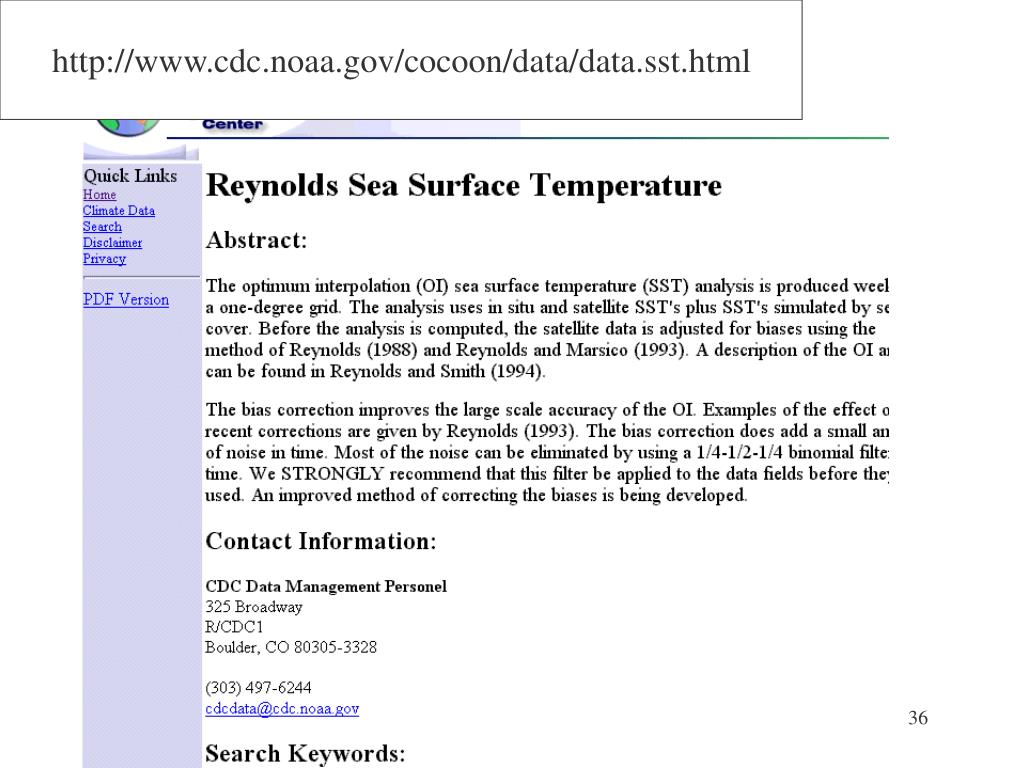

  36. http://www.cdc.noaa.gov/cocoon/data/data.sst.html OAR Web Shop

  37. http://www.cdc.noaa.gov/cocoon/data/data.sst.pdf OAR Web Shop

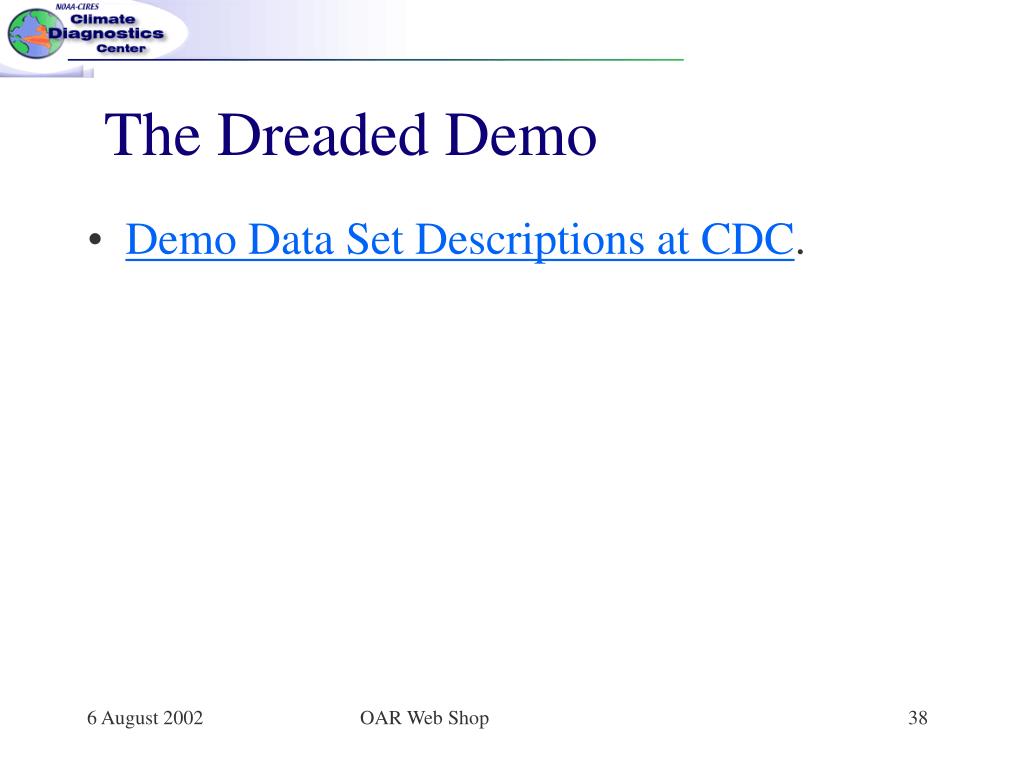

  38. The Dreaded Demo • Demo Data Set Descriptions at CDC. OAR Web Shop

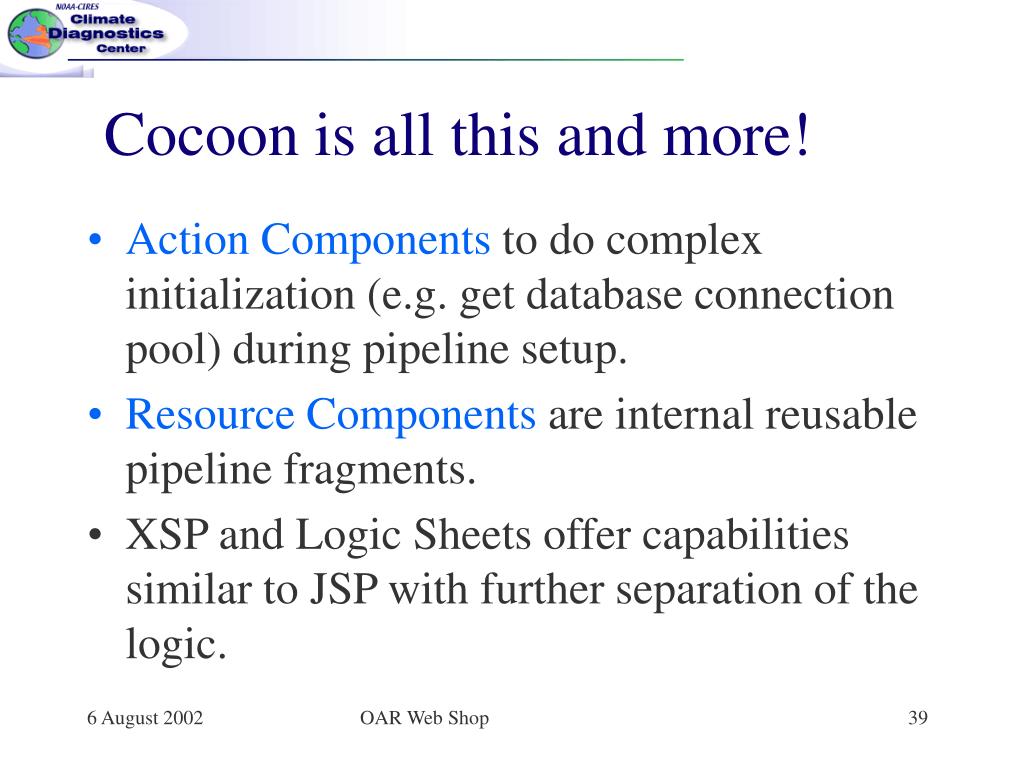

  39. Cocoon is all this and more! • Action Components to do complex initialization (e.g. get database connection pool) during pipeline setup. • Resource Components are internal reusable pipeline fragments. • XSP and Logic Sheets offer capabilities similar to JSP with further separation of the logic. OAR Web Shop

  40. Resources • www.apache.org • Inside XSLT by Steven Holzner (New Riders) • Java and XSLT by Eric M. Burke (O’Reilly) OAR Web Shop

  41. Reality Check! • We have not (yet) put this system in production. • Still designing the XML representation. • Still learning about using Cocoon with a relational database. • Considering using XSP pages. OAR Web Shop

  42. Conclusions • Cocoon offers the potential to use and reuse one bit of XML content for many purposes. • Most operations for Web hosting the XML content are built-in to Cocoon. • Unlimited customization by writing your own Components. • Content is easily maintained and separated from presentation. OAR Web Shop
