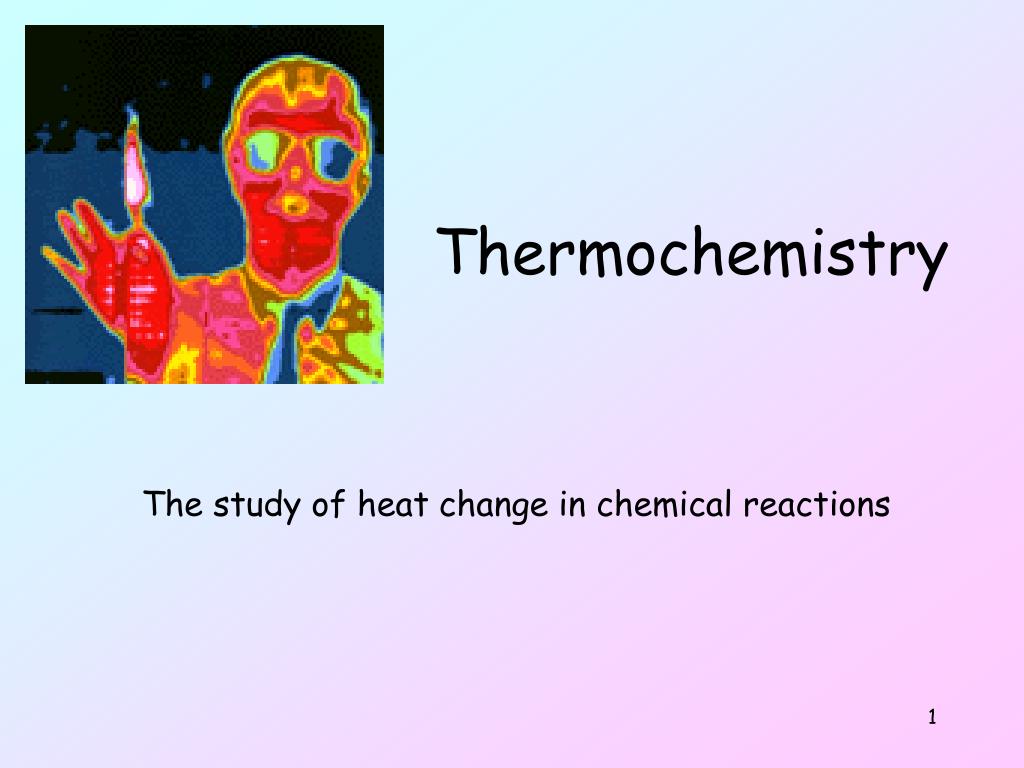

thermochemistry

Thermochemistry

The study of heat change in chemical reactions

slide2

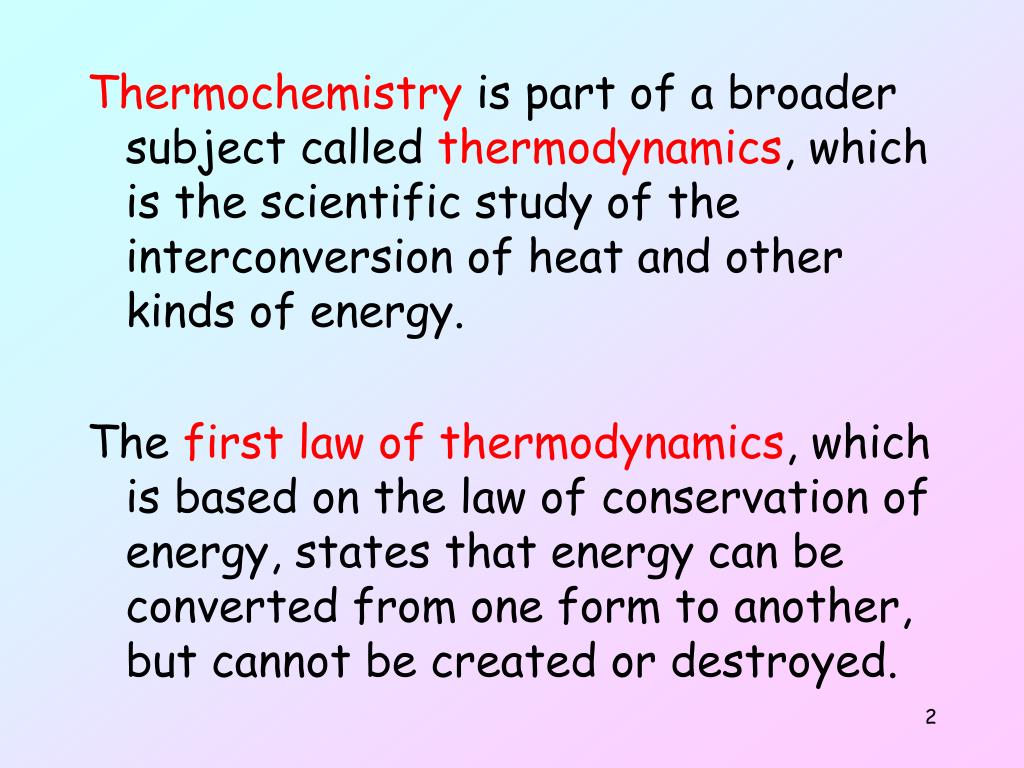

Thermochemistry is part of a broader subject called thermodynamics, which is the scientific study of the interconversion of heat and other kinds of energy.

The first law of thermodynamics, which is based on the law of conservation of energy, states that energy can be converted from one form to another, but cannot be created or destroyed.

types of energy
Types of Energy
  • Thermal energy - The energy associated with the random motion of atoms and molecules.
    • Temperature - the average kinetic energy of the particles in a sample of matter
    • Heat(q)- the total kinetic energy of the particles in a sample of matter
slide4

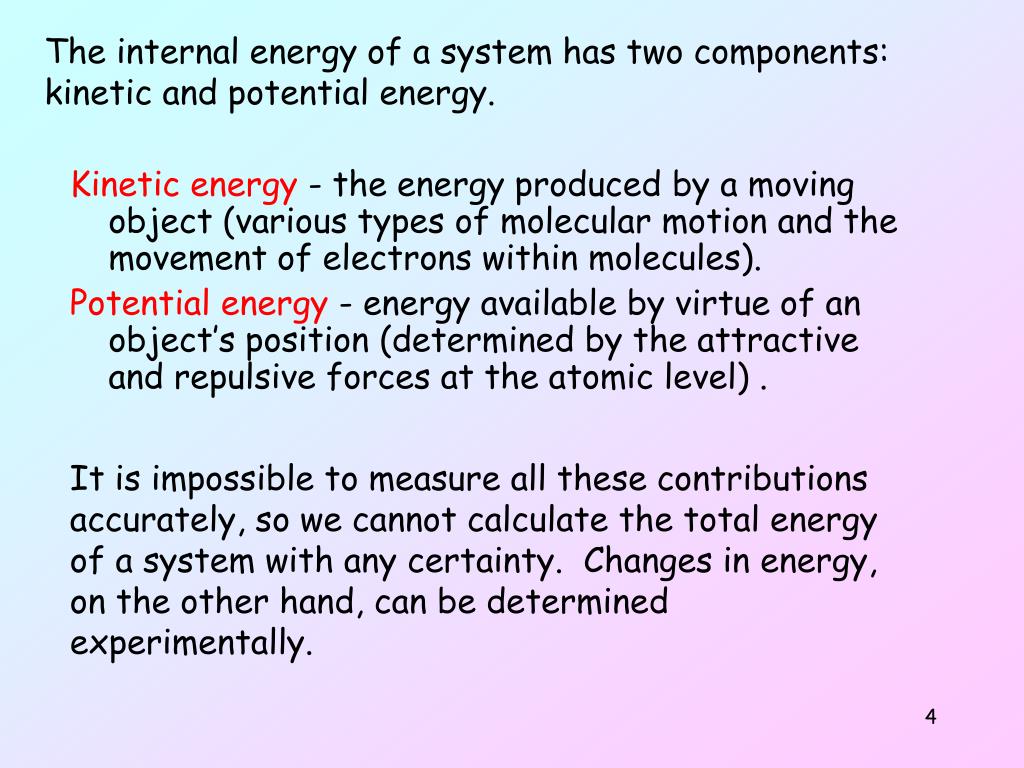

The internal energy of a system has two components: kinetic and potential energy.

Kinetic energy - the energy produced by a moving object (various types of molecular motion and the movement of electrons within molecules).

Potential energy - energy available by virtue of an object’s position (determined by the attractive and repulsive forces at the atomic level) .

It is impossible to measure all these contributions accurately, so we cannot calculate the total energy of a system with any certainty. Changes in energy, on the other hand, can be determined experimentally.

slide5

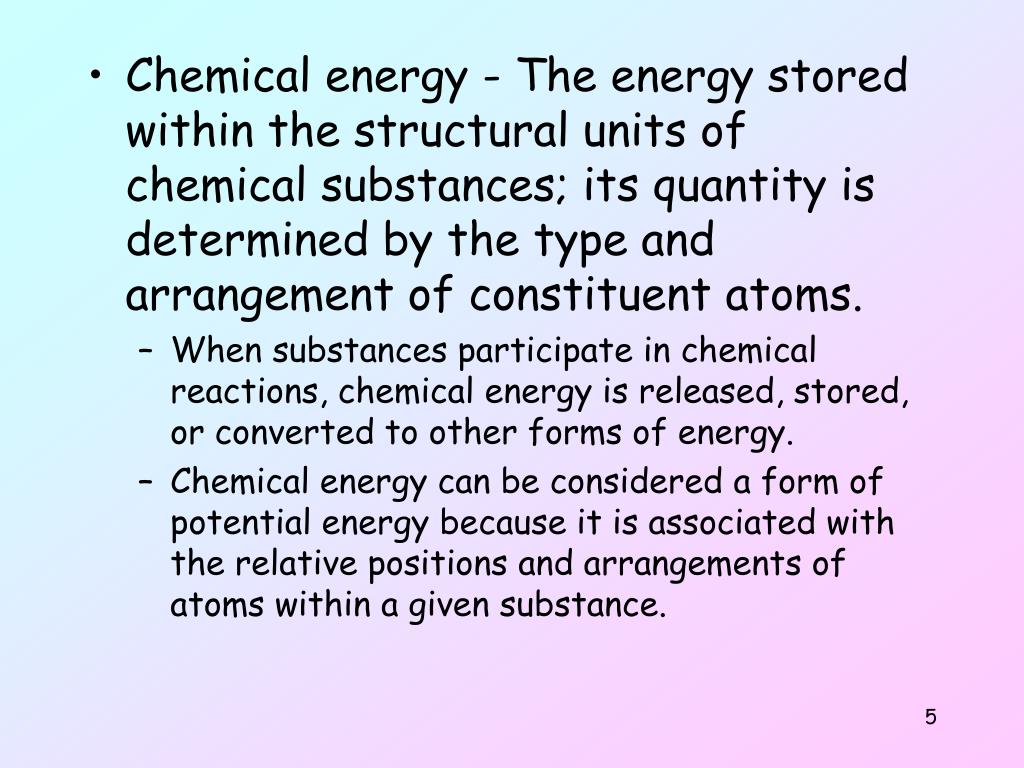

Chemical energy - The energy stored within the structural units of chemical substances; its quantity is determined by the type and arrangement of constituent atoms.
    • When substances participate in chemical reactions, chemical energy is released, stored, or converted to other forms of energy.
    • Chemical energy can be considered a form of potential energy because it is associated with the relative positions and arrangements of atoms within a given substance.
slide6
Energy can assume many different forms that are interconvertible. When one form of energy disappears, some other form of energy (of equal magnitude) must appear, and vice versa.
energy changes in chemical reactions
Energy Changes in Chemical Reactions

Almost all chemical reactions absorb or produce (release) energy, generally in the form of heat.

In order to analyze energy changes associated with chemical reactions we must first define the terms system and surroundings.

slide8

System - the specific part of the universe that is of interest to us. For chemists, systems usually include substances involved in chemical and physical changes.

  • Surroundings - the rest of the universe outside the system.
  • For example, in an acid-base neutralization experiment, the system would be the contents of the beaker, the 50.0 mL of HCl to which 50.0 mL of NaOH are added.
2h 2 g o 2 g 2h 2 o l energy

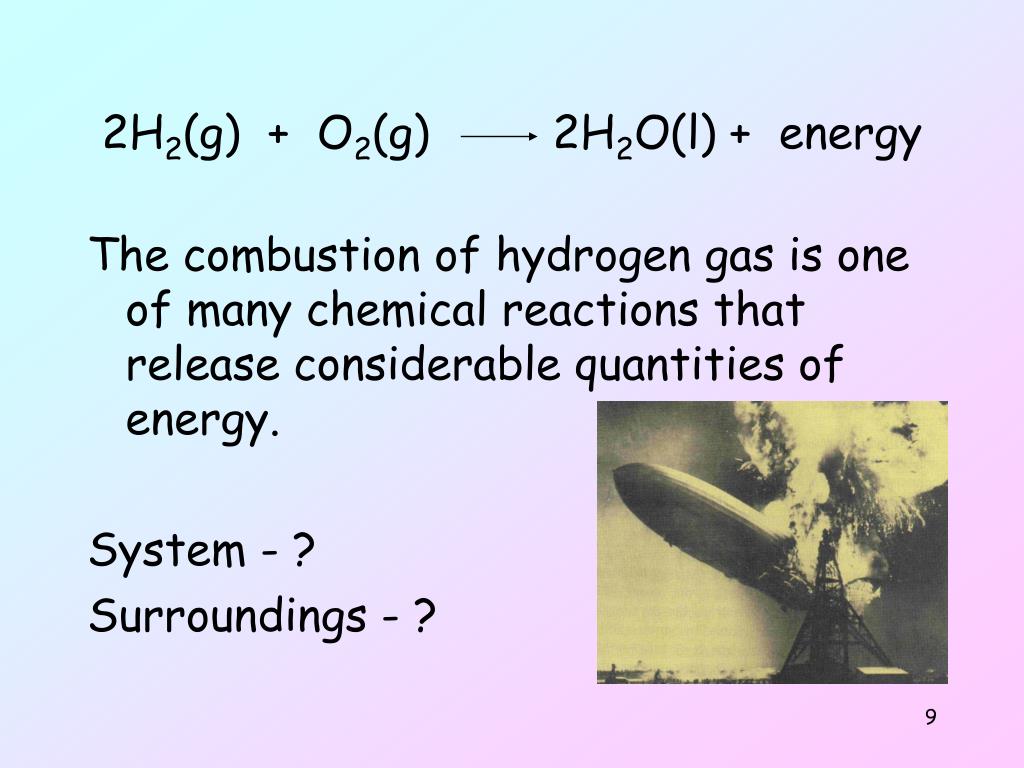

2H2(g) + O2(g) 2H2O(l) + energy

The combustion of hydrogen gas is one of many chemical reactions that release considerable quantities of energy.

System - ?

Surroundings - ?

slide10
Since energy cannot be created or destroyed, any energy lost by the system must be gained by the surroundings. Thus the heat generated by the combustion process is transferred from the system to its surroundings. This is an example of an exothermic process, which is any process which gives off heat - that is, transfers thermal energy to the surroundings.
heat 2hgo s 2hg l o 2 g
heat + 2HgO(s) 2Hg(l) + O2(g)

The decomposition of mercury (II) oxide is an endothermic process, in which heat has to be supplied to the system by the surroundings.

System - ?

Surroundings - ?

calorimetry
Calorimetry

Our discussion of calorimetry, the measurement of heat changes, will depend on an understanding of specific heat and heat capacity.

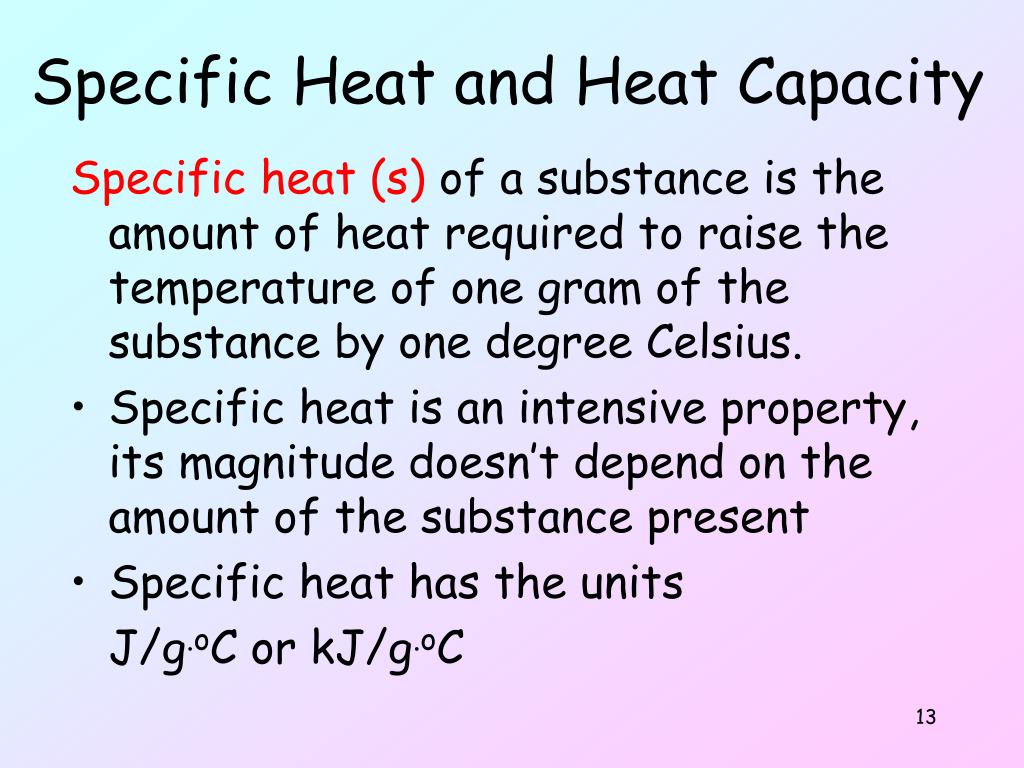

specific heat and heat capacity
Specific Heat and Heat Capacity

Specific heat(s) of a substance is the amount of heat required to raise the temperature of one gram of the substance by one degree Celsius.

  • Specific heat is an intensive property, its magnitude doesn’t depend on the amount of the substance present
  • Specific heat has the units

J/g.oC or kJ/g.oC

slide14

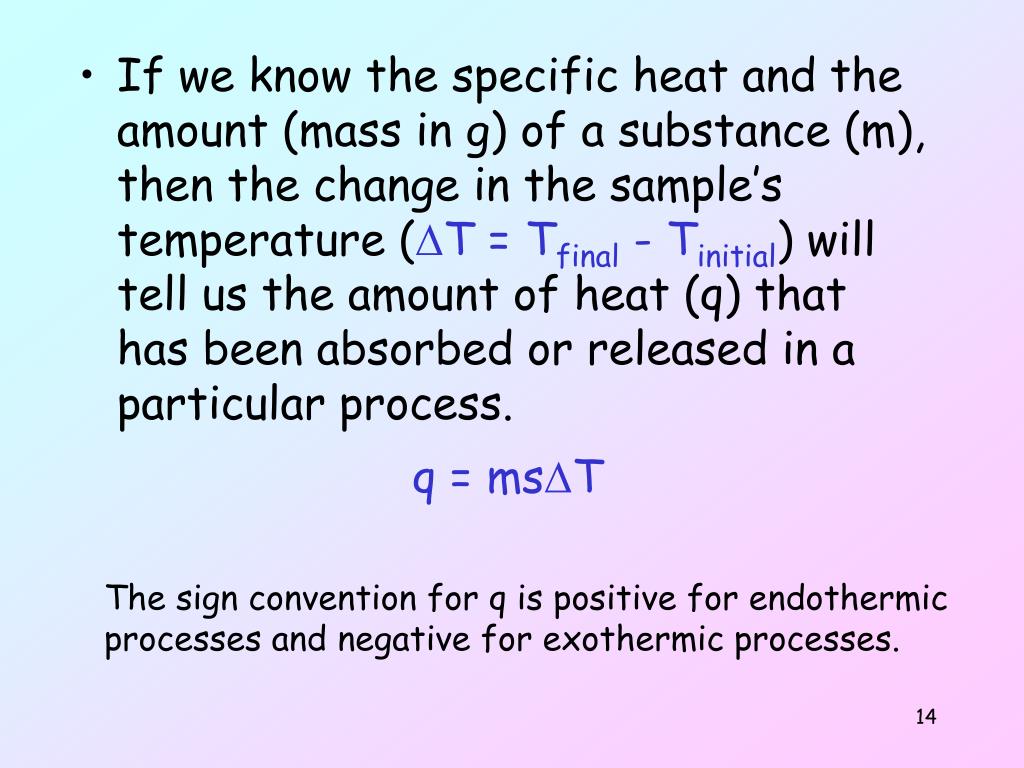

If we know the specific heat and the amount (mass in g) of a substance (m), then the change in the sample’s temperature (DT = Tfinal - Tinitial) will tell us the amount of heat (q) that has been absorbed or released in a particular process.

q = msDT

The sign convention for q is positive for endothermic processes and negative for exothermic processes.

slide15

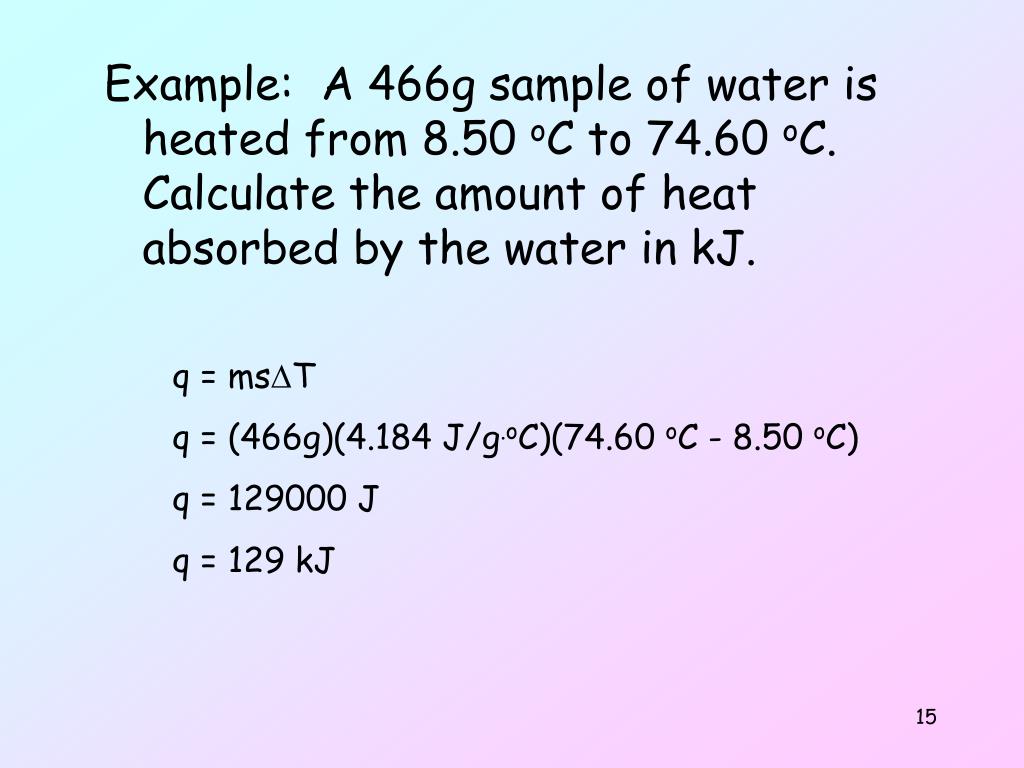

Example: A 466g sample of water is heated from 8.50 oC to 74.60 oC. Calculate the amount of heat absorbed by the water in kJ.

q = msDT

q = (466g)(4.184 J/g.oC)(74.60 oC - 8.50 oC)

q = 129000 J

q = 129 kJ

slide16
The heat capacity(C) of a substance is the amount of heat required to raise the temperature of a given quantity of the substance by one degree Celsius.
  • Heat capacity is an extensive property (it varies dependent on the amount of substance present).
  • Heat capacity has the units J/oC or kJ/oC
  • The relationship between the heat capacity and specific heat of a substance is

C = ms

slide17

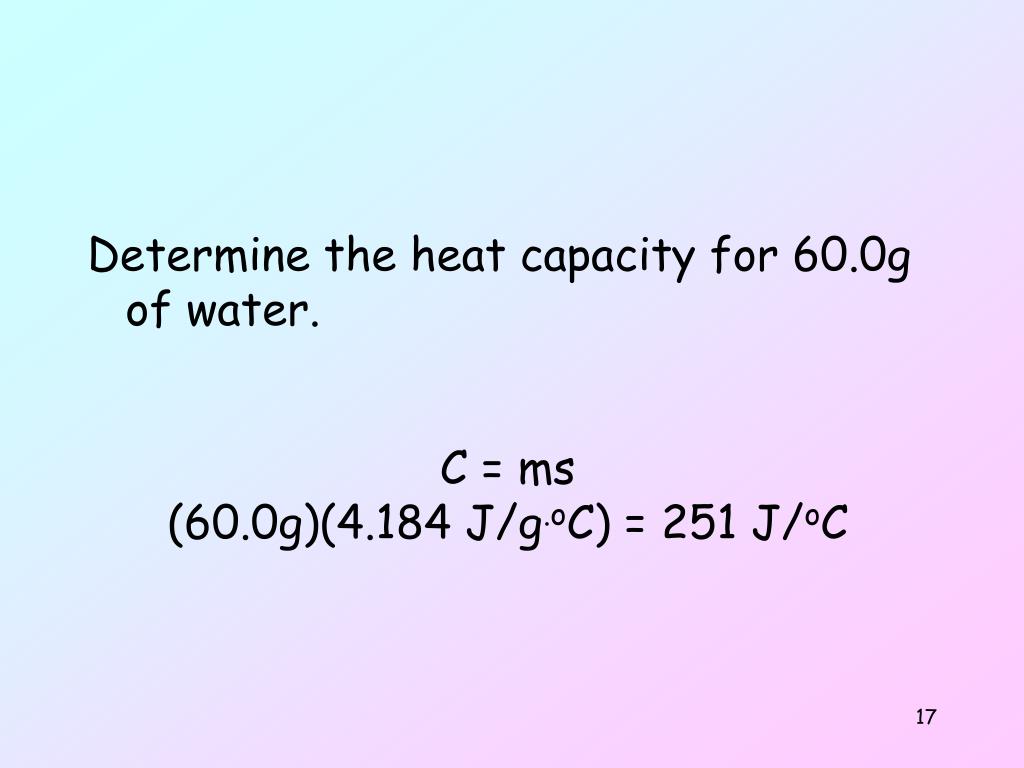

Determine the heat capacity for 60.0g of water.

C = ms

(60.0g)(4.184 J/g.oC) = 251 J/oC

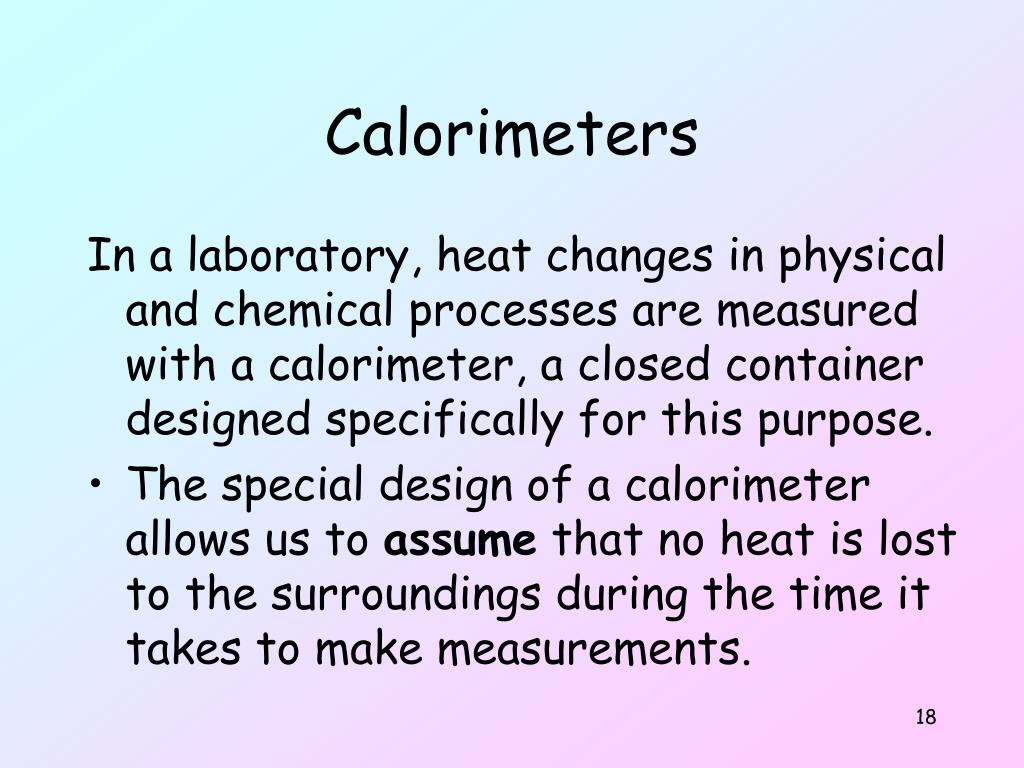

calorimeters
Calorimeters

In a laboratory, heat changes in physical and chemical processes are measured with a calorimeter, a closed container designed specifically for this purpose.

  • The special design of a calorimeter allows us to assume that no heat is lost to the surroundings during the time it takes to make measurements.
slide19
If we know the heat capacity,then the change in the sample’s temperature (DT = Tfinal - Tinitial) will tell us the amount of heat (q) that has been absorbed or released in a particular process.

q = CDT

slide20
A certain calorimeter has a heat capacity of 1.55 kJ/oC. Calculate the heat absorbed by a calorimeter in kJ that increases in temperature from 23.60 oC to 25.87 oC.

q = CDT

q = (1.55 kJ/oC)(25.87 oC - 23.60 oC)

q = 3.52 kJ

slide21

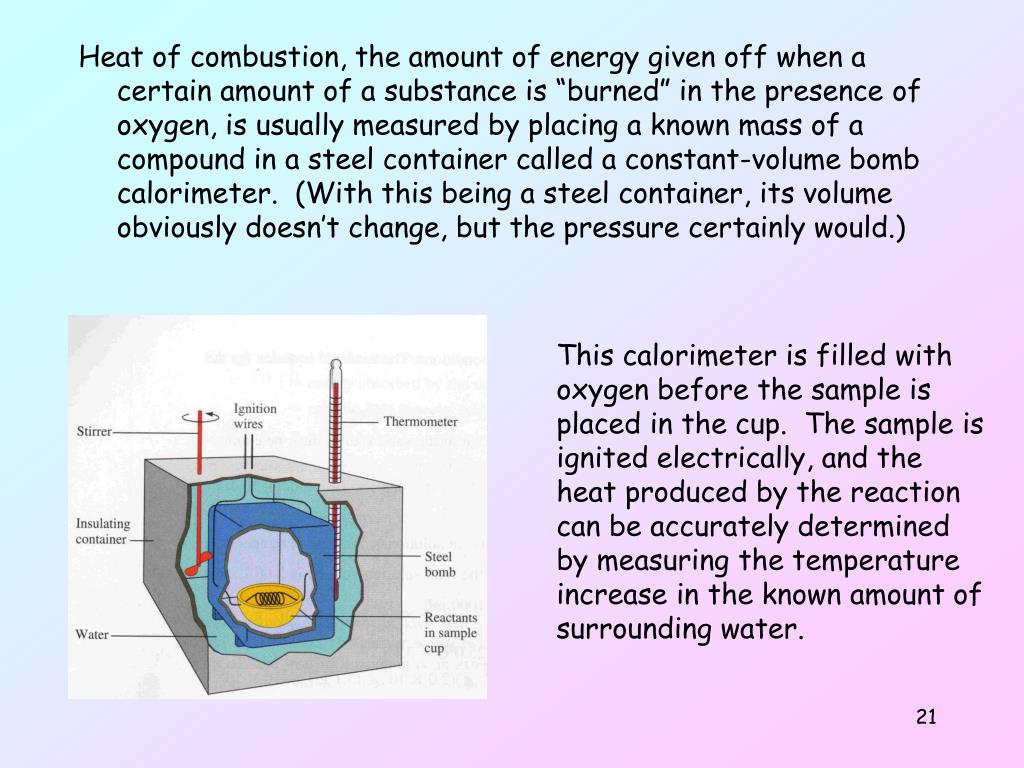

Heat of combustion, the amount of energy given off when a certain amount of a substance is “burned” in the presence of oxygen, is usually measured by placing a known mass of a compound in a steel container called a constant-volume bomb calorimeter. (With this being a steel container, its volume obviously doesn’t change, but the pressure certainly would.)

This calorimeter is filled with oxygen before the sample is placed in the cup. The sample is ignited electrically, and the heat produced by the reaction can be accurately determined by measuring the temperature increase in the known amount of surrounding water.

slide22

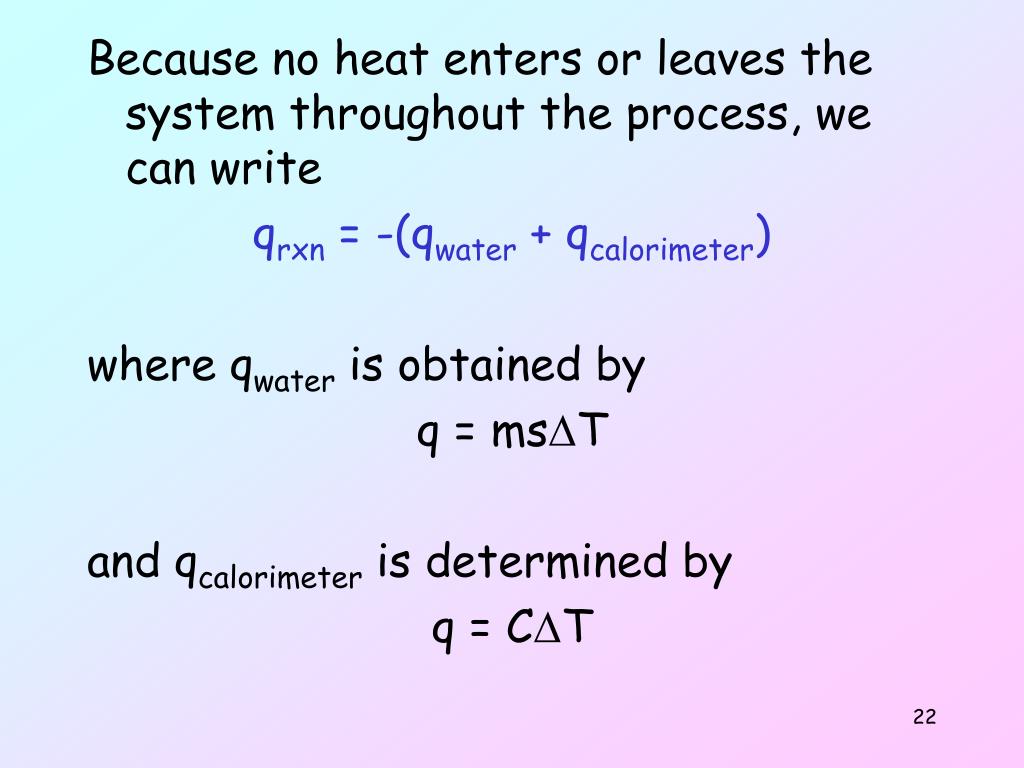

Because no heat enters or leaves the system throughout the process, we can write

qrxn = -(qwater + qcalorimeter)

where qwater is obtained by

q = msDT

and qcalorimeter is determined by

q = CDT

slide23

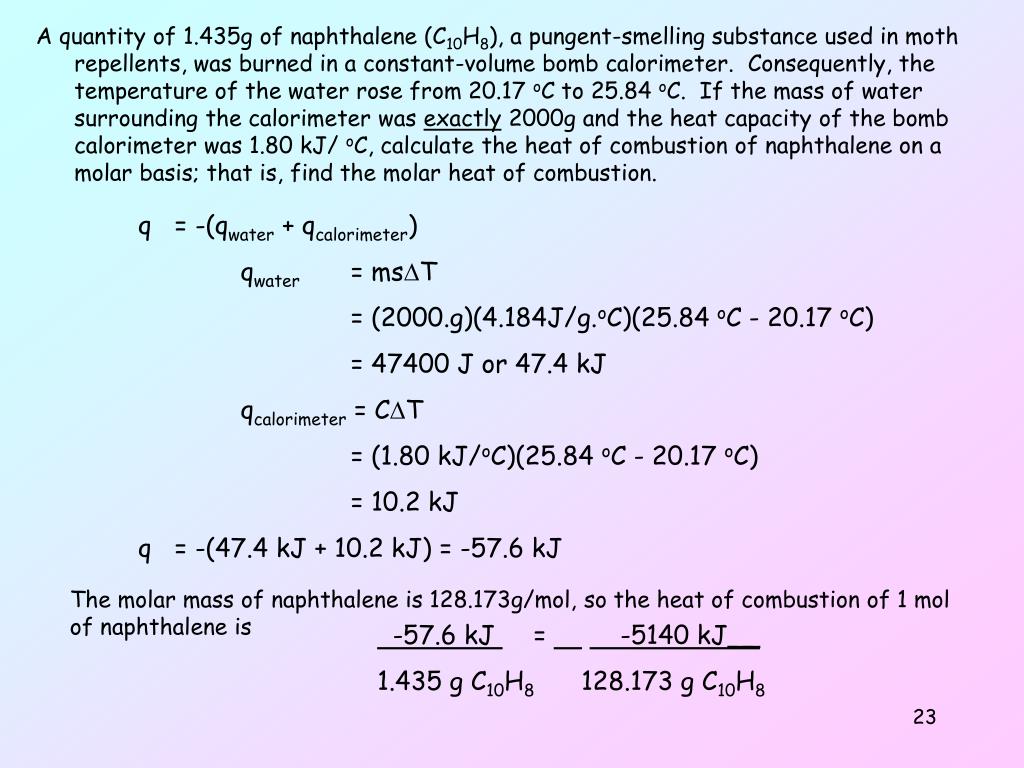

q = -(qwater + qcalorimeter)

qwater = msDT

= (2000.g)(4.184J/g.oC)(25.84 oC - 20.17 oC)

= 47400 J or 47.4 kJ

qcalorimeter = CDT

= (1.80 kJ/oC)(25.84 oC - 20.17 oC)

= 10.2 kJ

q = -(47.4 kJ + 10.2 kJ) = -57.6 kJ

A quantity of 1.435g of naphthalene (C10H8), a pungent-smelling substance used in moth repellents, was burned in a constant-volume bomb calorimeter. Consequently, the temperature of the water rose from 20.17 oC to 25.84 oC. If the mass of water surrounding the calorimeter was exactly 2000g and the heat capacity of the bomb calorimeter was 1.80 kJ/ oC, calculate the heat of combustion of naphthalene on a molar basis; that is, find the molar heat of combustion.

The molar mass of naphthalene is 128.173g/mol, so the heat of combustion of 1 mol of naphthalene is

-57.6 kJ = -5140 kJ__

1.435 g C10H8 128.173 g C10H8

slide24

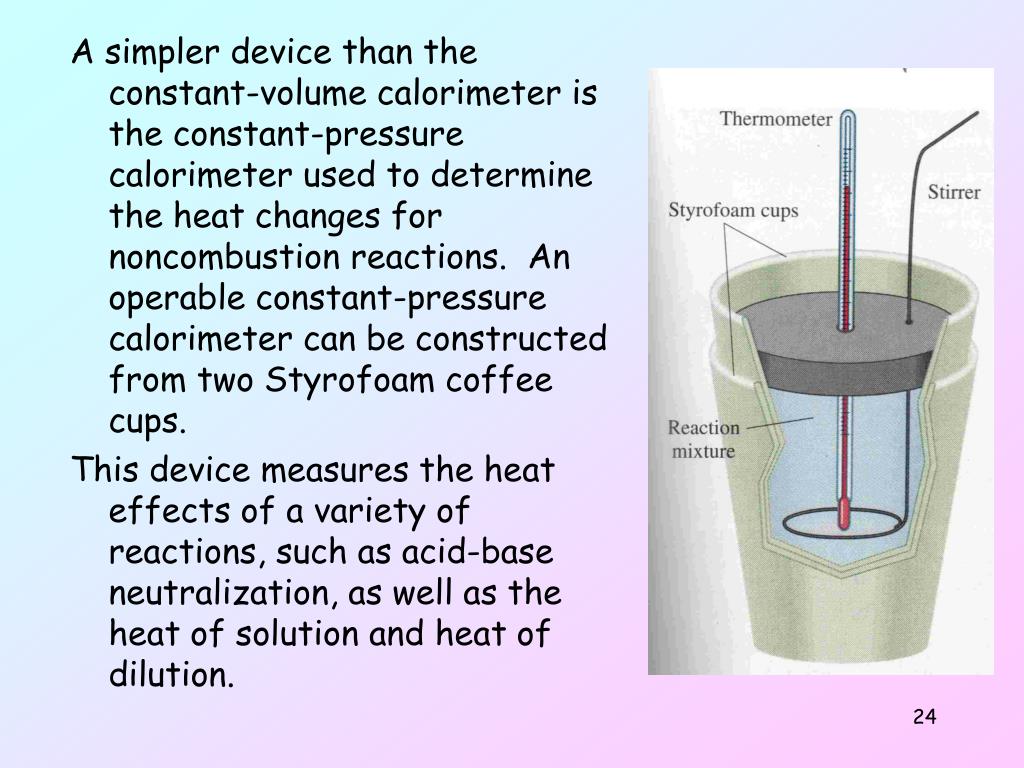

A simpler device than the constant-volume calorimeter is the constant-pressure calorimeter used to determine the heat changes for noncombustion reactions. An operable constant-pressure calorimeter can be constructed from two Styrofoam coffee cups.

This device measures the heat effects of a variety of reactions, such as acid-base neutralization, as well as the heat of solution and heat of dilution.

slide25

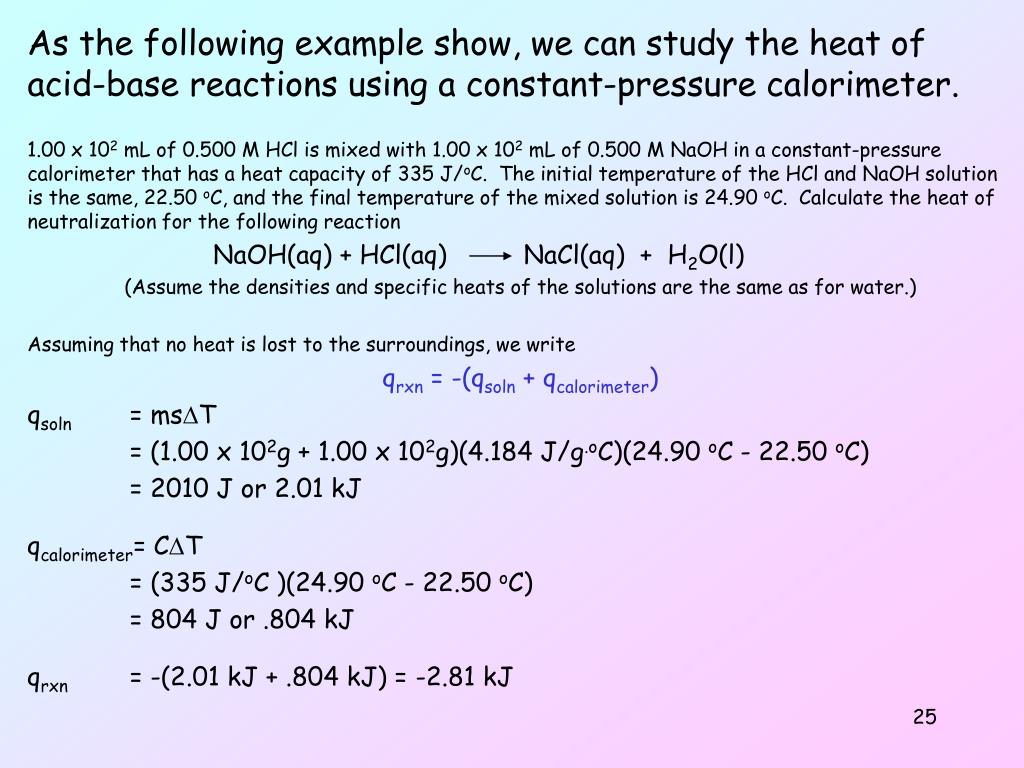

As the following example show, we can study the heat of acid-base reactions using a constant-pressure calorimeter.

1.00 x 102 mL of 0.500 M HCl is mixed with 1.00 x 102 mL of 0.500 M NaOH in a constant-pressure calorimeter that has a heat capacity of 335 J/oC. The initial temperature of the HCl and NaOH solution is the same, 22.50 oC, and the final temperature of the mixed solution is 24.90 oC. Calculate the heat of neutralization for the following reaction

NaOH(aq) + HCl(aq) NaCl(aq) + H2O(l)

(Assume the densities and specific heats of the solutions are the same as for water.)

Assuming that no heat is lost to the surroundings, we write

qrxn = -(qsoln + qcalorimeter)

qsoln = msDT

= (1.00 x 102g + 1.00 x 102g)(4.184 J/g.oC)(24.90 oC - 22.50 oC)

= 2010 J or 2.01 kJ

qcalorimeter= CDT

= (335 J/oC )(24.90 oC - 22.50 oC)

= 804 J or .804 kJ

qrxn = -(2.01 kJ + .804 kJ) = -2.81 kJ

slide26

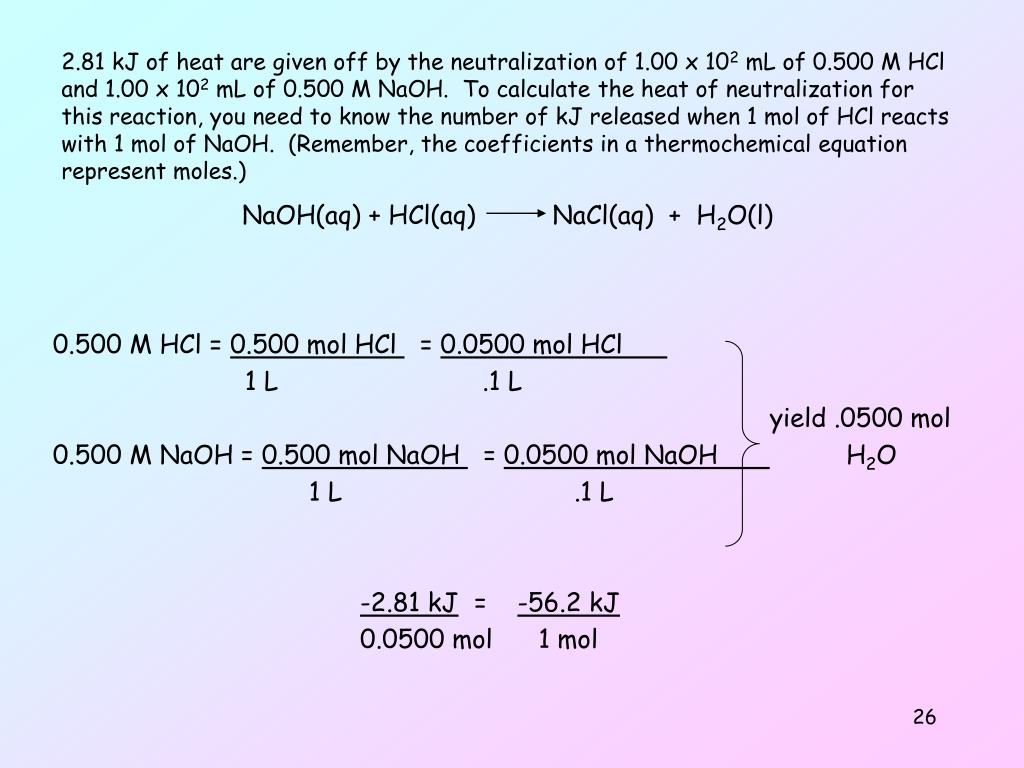

2.81 kJ of heat are given off by the neutralization of 1.00 x 102 mL of 0.500 M HCl and 1.00 x 102 mL of 0.500 M NaOH. To calculate the heat of neutralization for this reaction, you need to know the number of kJ released when 1 mol of HCl reacts with 1 mol of NaOH. (Remember, the coefficients in a thermochemical equation represent moles.)

NaOH(aq) + HCl(aq) NaCl(aq) + H2O(l)

0.500 M HCl = 0.500 mol HCl = 0.0500 mol HCl

1 L .1 L

yield .0500 mol

0.500 M NaOH = 0.500 mol NaOH = 0.0500 mol NaOH H2O

1 L .1 L

-2.81 kJ = -56.2 kJ

0.0500 mol 1 mol

enthalpy
Enthalpy

To quantify the heat flow into or out of a system, chemists use a property called enthalpy, represented by the symbol H. Enthalpy is an extensive property; its magnitude depends on the amount of the substance present.

slide28

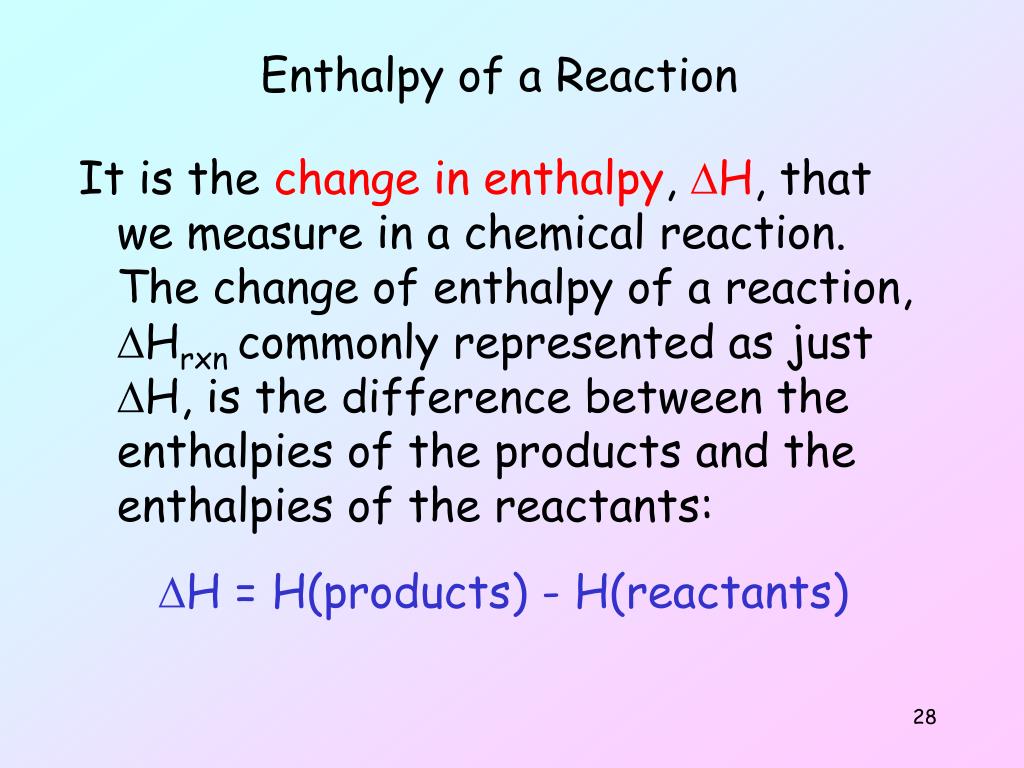

Enthalpy of a Reaction

It is the change in enthalpy, DH, that we measure in a chemical reaction. The change of enthalpy of a reaction, DHrxn commonly represented as just DH, is the difference between the enthalpies of the products and the enthalpies of the reactants:

DH = H(products) - H(reactants)

slide29

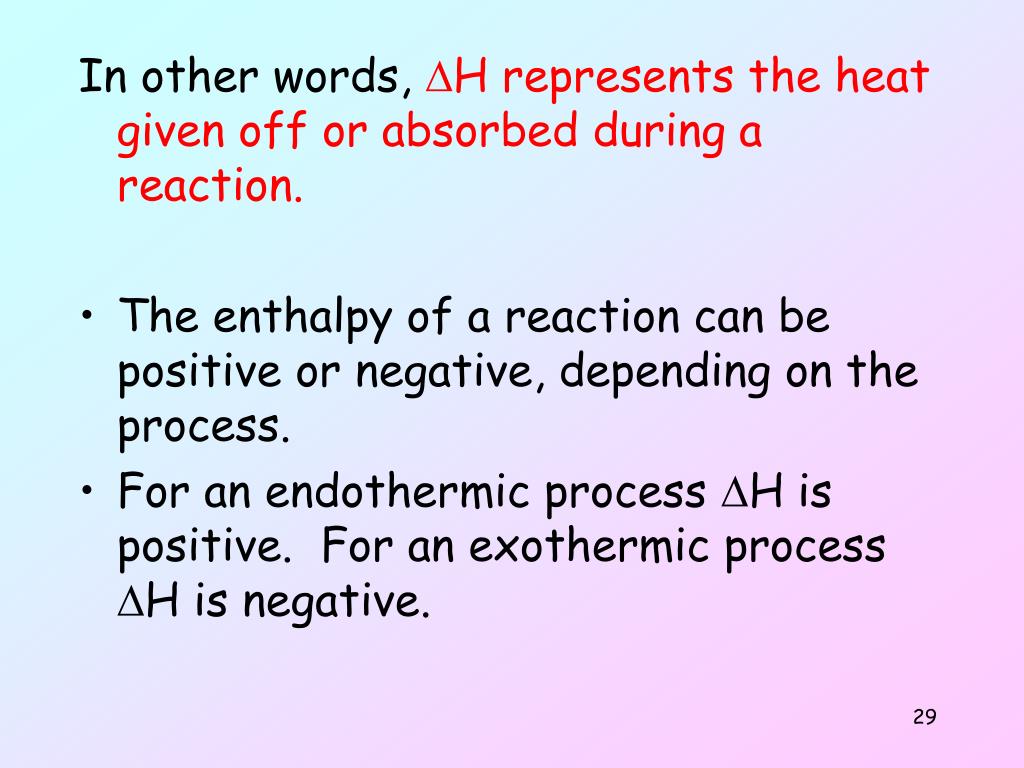

In other words, DH represents the heat given off or absorbed during a reaction.
  • The enthalpy of a reaction can be positive or negative, depending on the process.
  • For an endothermic process DH is positive. For an exothermic process DH is negative.

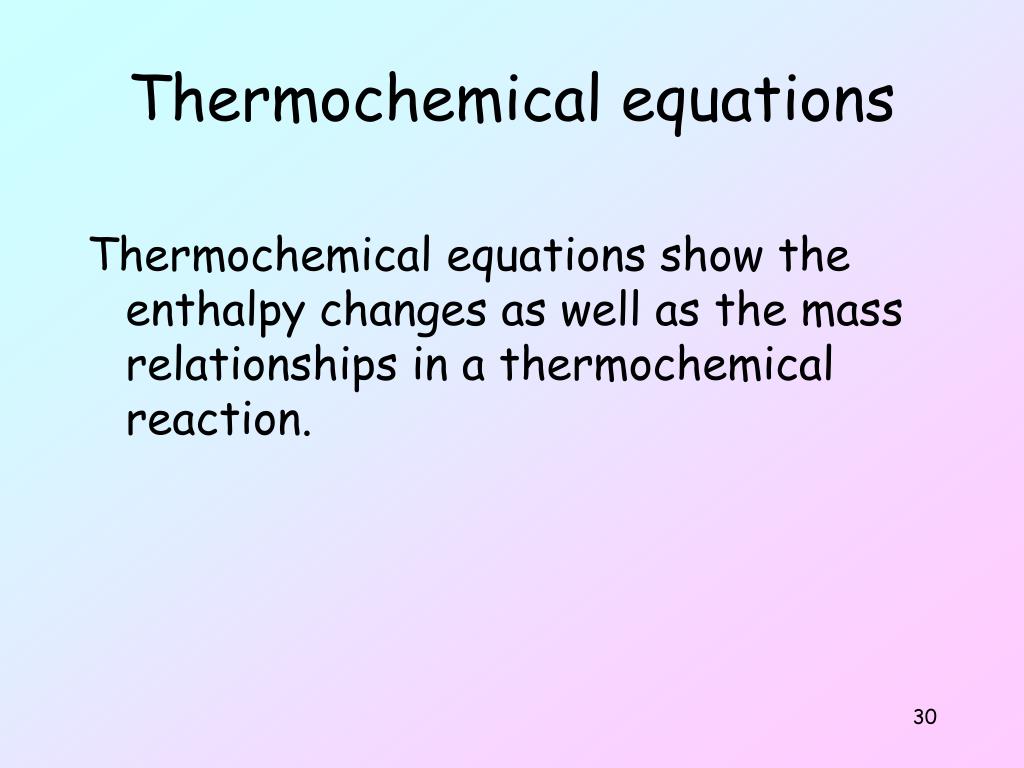

thermochemical equations
Thermochemical equations

Thermochemical equations show the enthalpy changes as well as the mass relationships in a thermochemical reaction.

slide31

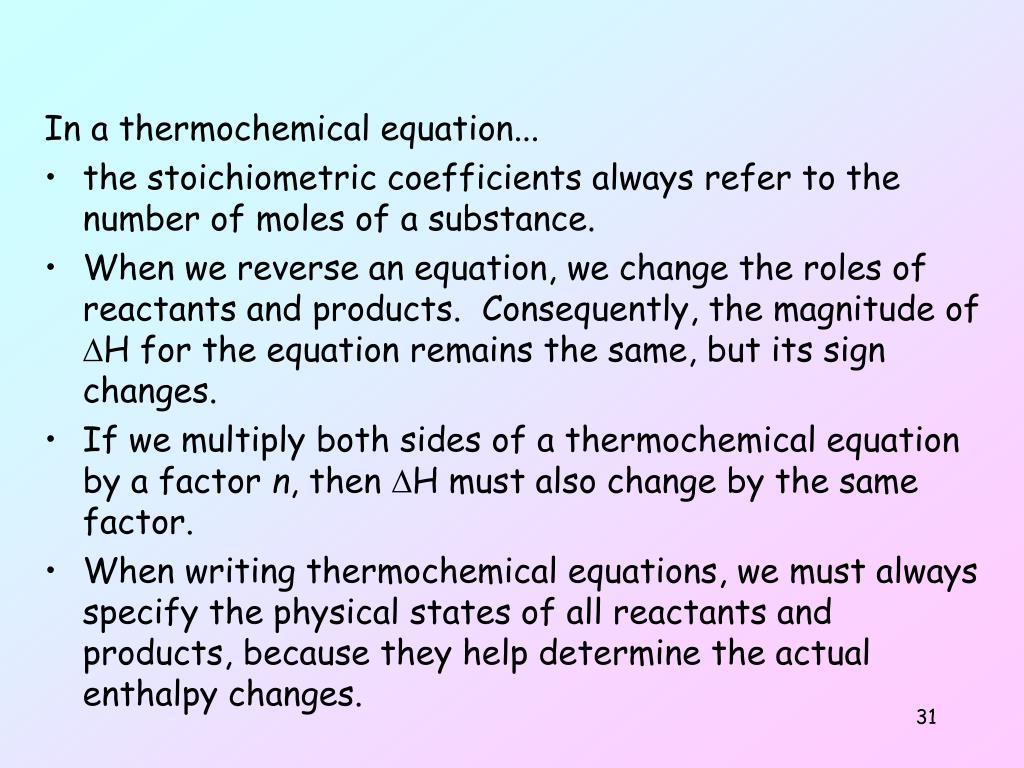

In a thermochemical equation...
  • the stoichiometric coefficients always refer to the number of moles of a substance.
  • When we reverse an equation, we change the roles of reactants and products. Consequently, the magnitude of DH for the equation remains the same, but its sign changes.
  • If we multiply both sides of a thermochemical equation by a factor n, then DH must also change by the same factor.
  • When writing thermochemical equations, we must always specify the physical states of all reactants and products, because they help determine the actual enthalpy changes.
examples of thermochemical equations

H2O(l) H2O(s) DH =

-6.01 kJ

2H2O(l) 2H2O(s) DH =

-12.02 kJ

Examples of thermochemical equations

H2O(s) H2O(l) DH =

6.01 kJ

Thermochemical equations show the enthalpy changes that occur in a physical or chemical process.

slide33

1 mol H2O

25.0 g H2O

x

=

1.39 mol H2O

18.02 g H2O

H2O(l) H2O(s) DH =

-6.01 kJ

1 mol H2O

-6.01 kJ

1.39 mol H2O

How much energy is absorbed or released when 25.0 g of water is frozen?

=

-8.35 kJ

slide34

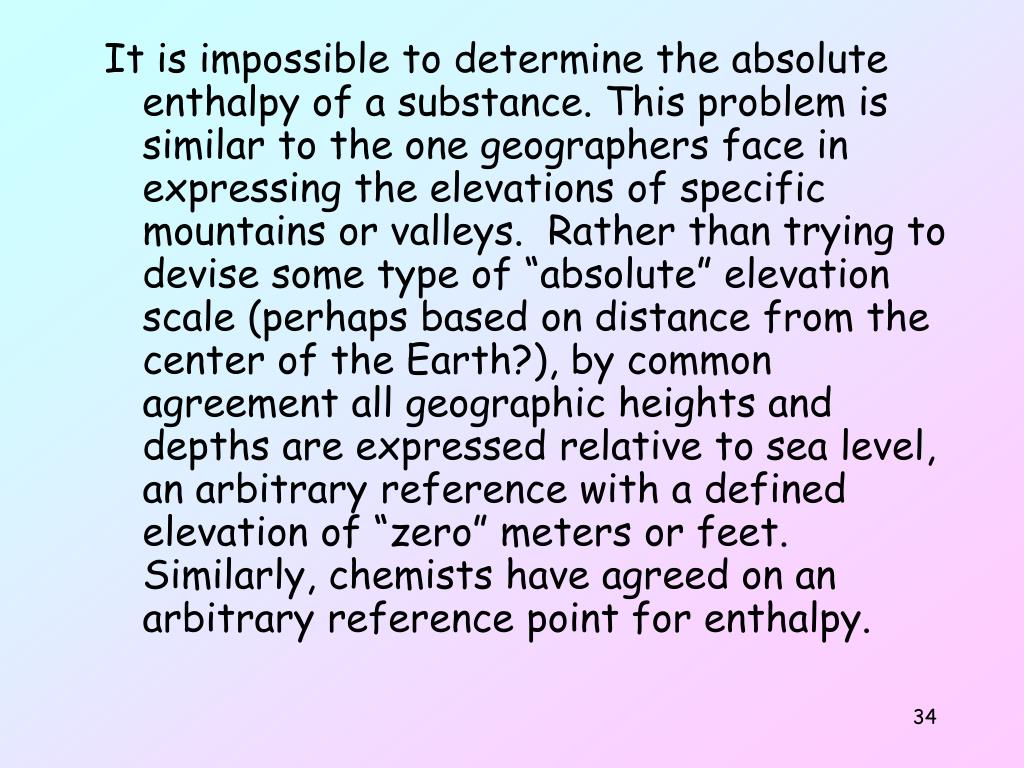

It is impossible to determine the absolute enthalpy of a substance. This problem is similar to the one geographers face in expressing the elevations of specific mountains or valleys. Rather than trying to devise some type of “absolute” elevation scale (perhaps based on distance from the center of the Earth?), by common agreement all geographic heights and depths are expressed relative to sea level, an arbitrary reference with a defined elevation of “zero” meters or feet. Similarly, chemists have agreed on an arbitrary reference point for enthalpy.
slide35

Enthalpy of Formation

The “sea level” reference point for all enthalpy expressions is called the standard enthalpy of formation,(DHof), which is defined as the heat change that results when one mole of a compound is formed from its elements at a pressure of 1 atm. Elements are said to be in the standard state at 1 atm, hence the term “standard enthalpy”. The superscript “o” represents standard-state conditions (1 atm), and the subscript “f” stands for formation. Although the standard state does not specify a temperature, we will always use DHof values measured at 25 oC.

slide36

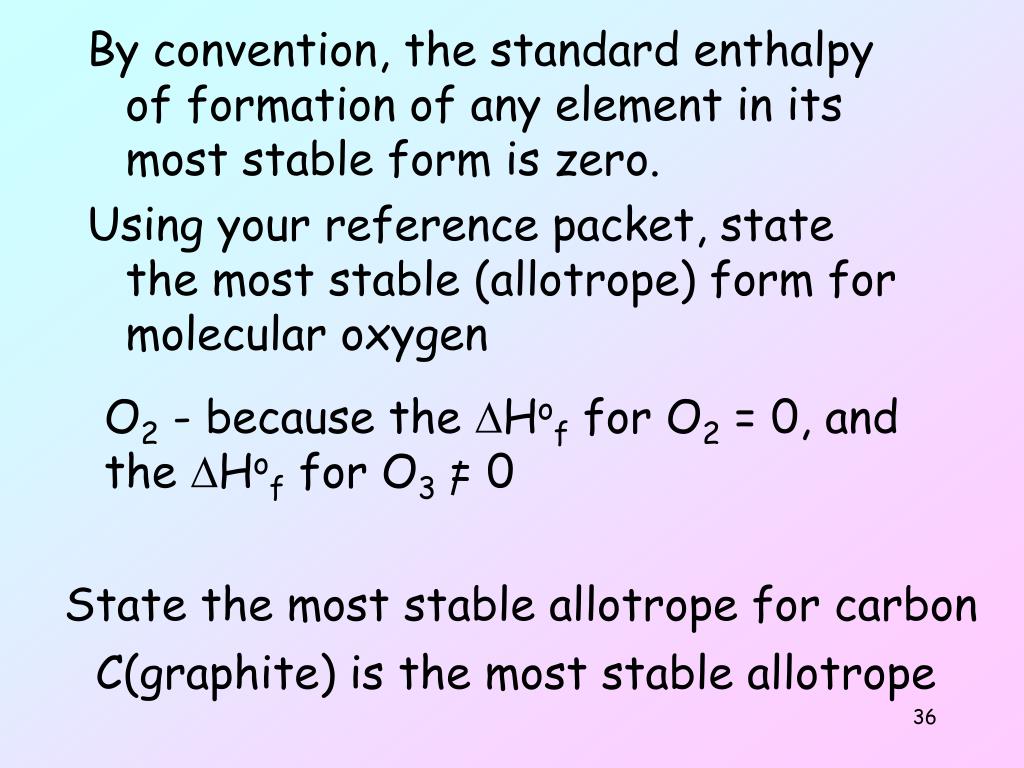

O2 - because the DHof for O2 = 0, and the DHof for O3 = 0

By convention, the standard enthalpy of formation of any element in its most stable form is zero.

Using your reference packet, state the most stable (allotrope) form for molecular oxygen

State the most stable allotrope for carbon

C(graphite) is the most stable allotrope

slide37
You can usually get DHf values for compounds from your thermochemistry reference packet.

DHf that aren’t listed in the reference packet can be determined in one of two ways, the direct method or the indirect method.

  • Both of these methods require an understanding of thermochemical equations.
slide38

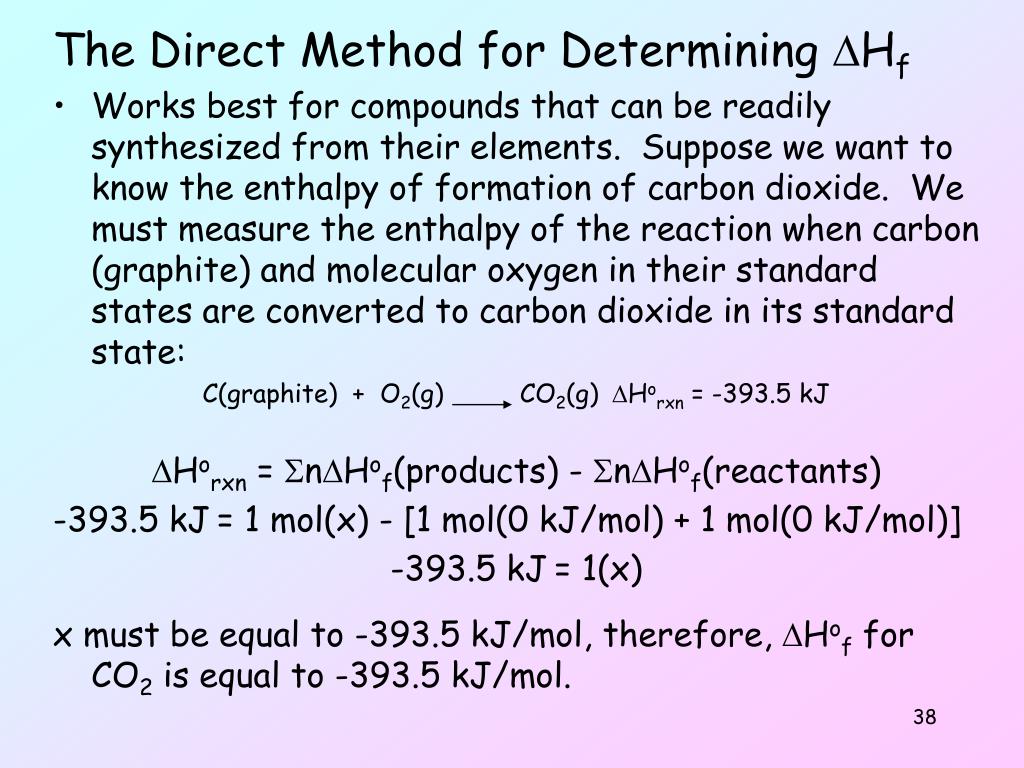

The Direct Method for Determining DHf
  • Works best for compounds that can be readily synthesized from their elements. Suppose we want to know the enthalpy of formation of carbon dioxide. We must measure the enthalpy of the reaction when carbon (graphite) and molecular oxygen in their standard states are converted to carbon dioxide in its standard state:

C(graphite) + O2(g) CO2(g) DHorxn = -393.5 kJ

DHorxn = SnDHof(products) - SnDHof(reactants)

-393.5 kJ= 1 mol(x) - [1 mol(0 kJ/mol) + 1 mol(0 kJ/mol)]

-393.5 kJ= 1(x)

x must be equal to -393.5 kJ/mol, therefore, DHof for CO2 is equal to -393.5 kJ/mol.

slide39

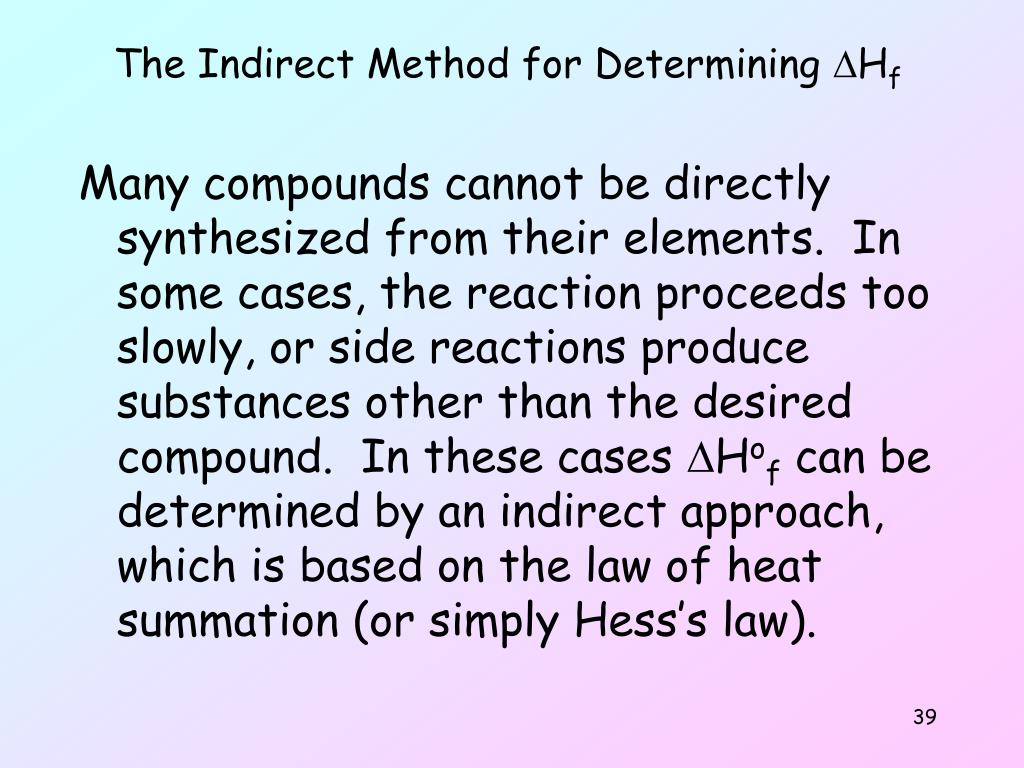

The Indirect Method for Determining DHf

Many compounds cannot be directly synthesized from their elements. In some cases, the reaction proceeds too slowly, or side reactions produce substances other than the desired compound. In these cases DHof can be determined by an indirect approach, which is based on the law of heat summation (or simply Hess’s law).

slide40
Hess’s law can be stated as follows: When reactants are converted to products, the change in enthalpy is the same whether the reaction takes place in one step or in a series of steps. In other words, if we break down the reaction of interest into a series of reactions for which DHorxn can be measured, we can calculate DHorxn for the overall reaction.
slide41

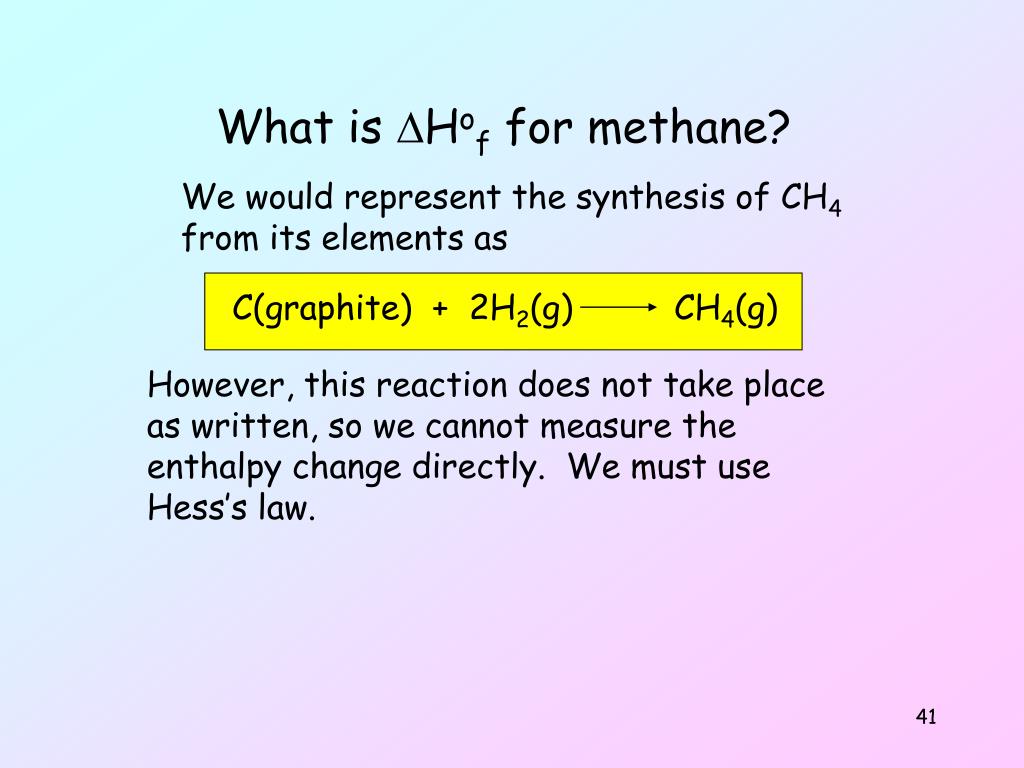

We would represent the synthesis of CH4 from its elements as

What is DHof for methane?

C(graphite) + 2H2(g) CH4(g)

However, this reaction does not take place as written, so we cannot measure the enthalpy change directly. We must use Hess’s law.

slide42
The following reactions involving C(graphite), H2(g) and CH4(g) with O2(g) have all been studied and the DHorxn values are accurately known

(a) C(graphite) + O2(g) CO2(g) DHorxn = -393.5 kJ

(b) 2H2(g) + O2(g) 2H2O(l) DHorxn = -571.6 kJ

(c) CH4(g) + 2O2(g) CO2(g) + 2H2O(l) DHorxn = -890.4 kJ

Remember, we are trying to determine the DHof for

C(graphite) + 2H2(g) CH4(g)

slide43

C(graphite) + 2H2(g) CH4(g) DHorxn = -74.7 kJ

As you can see, all the nonessential species (O2, CO2, and H2O) cancel in this operation. Because the above equation represents the synthesis of 1 mol of CH4 from its elements, we have DHof(CH4) = -74.7 kJ/mol.

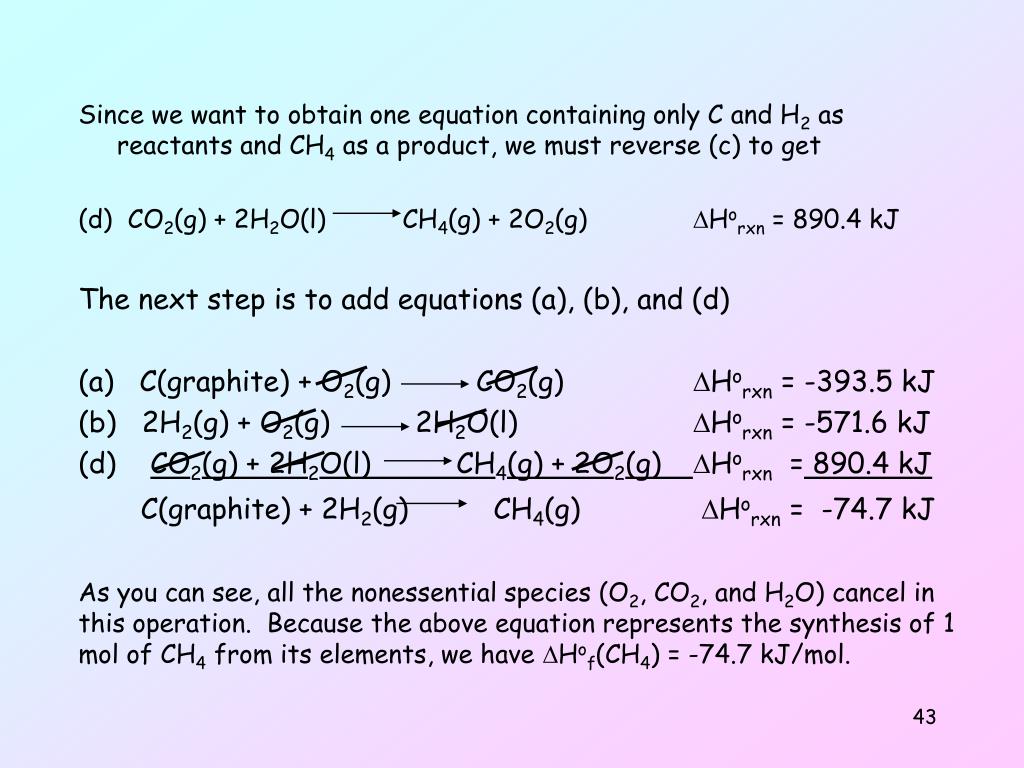

Since we want to obtain one equation containing only C and H2 as reactants and CH4 as a product, we must reverse (c) to get

(d) CO2(g) + 2H2O(l) CH4(g) + 2O2(g) DHorxn = 890.4 kJ

The next step is to add equations (a), (b), and (d)

(a) C(graphite) + O2(g) CO2(g) DHorxn = -393.5 kJ

(b) 2H2(g) + O2(g) 2H2O(l) DHorxn = -571.6 kJ

(d) CO2(g) + 2H2O(l) CH4(g) + 2O2(g) DHorxn = 890.4 kJ

slide44

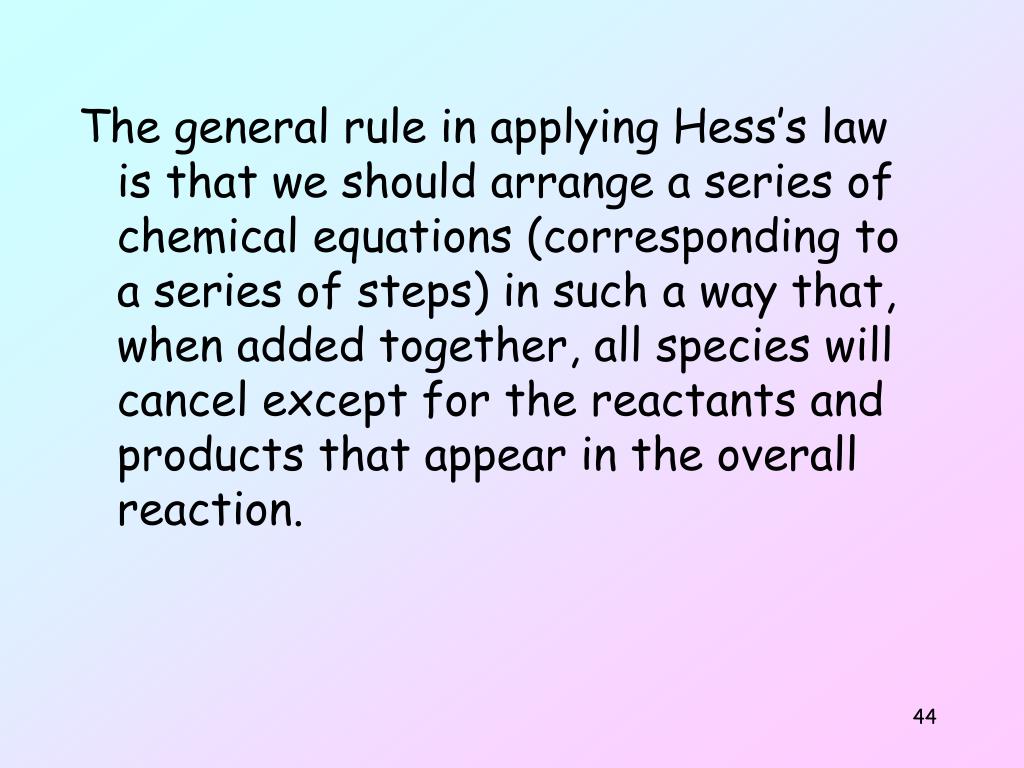

The general rule in applying Hess’s law is that we should arrange a series of chemical equations (corresponding to a series of steps) in such a way that, when added together, all species will cancel except for the reactants and products that appear in the overall reaction.
slide45

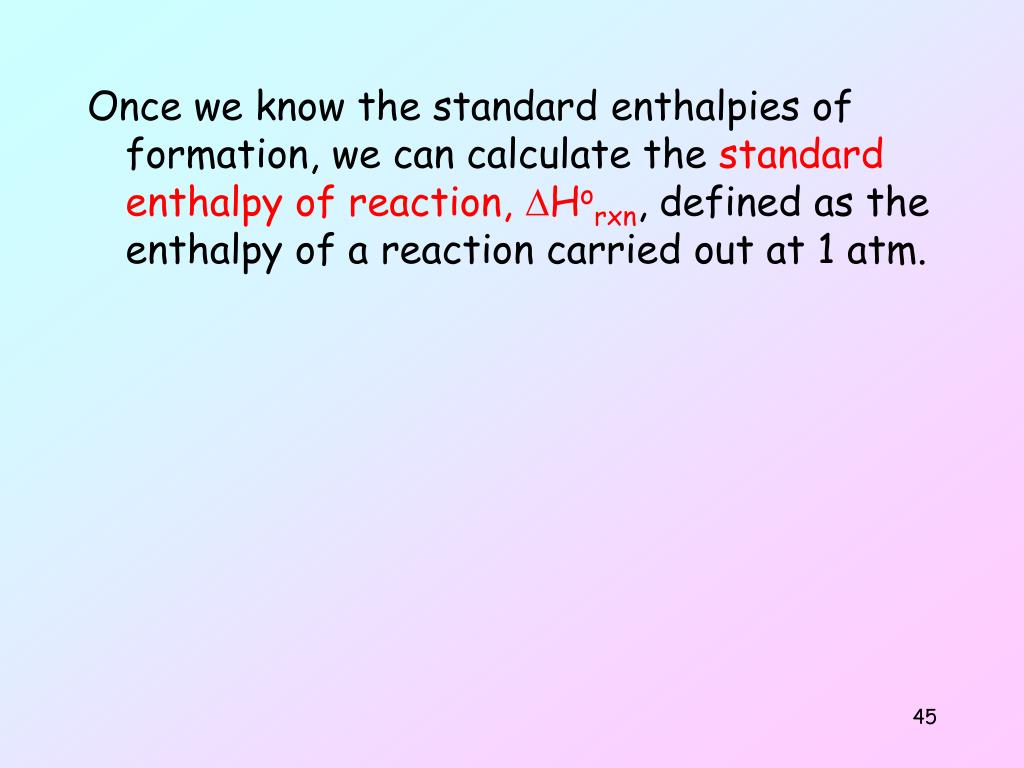

Once we know the standard enthalpies of formation, we can calculate the standard enthalpy of reaction, DHorxn, defined as the enthalpy of a reaction carried out at 1 atm.
slide46

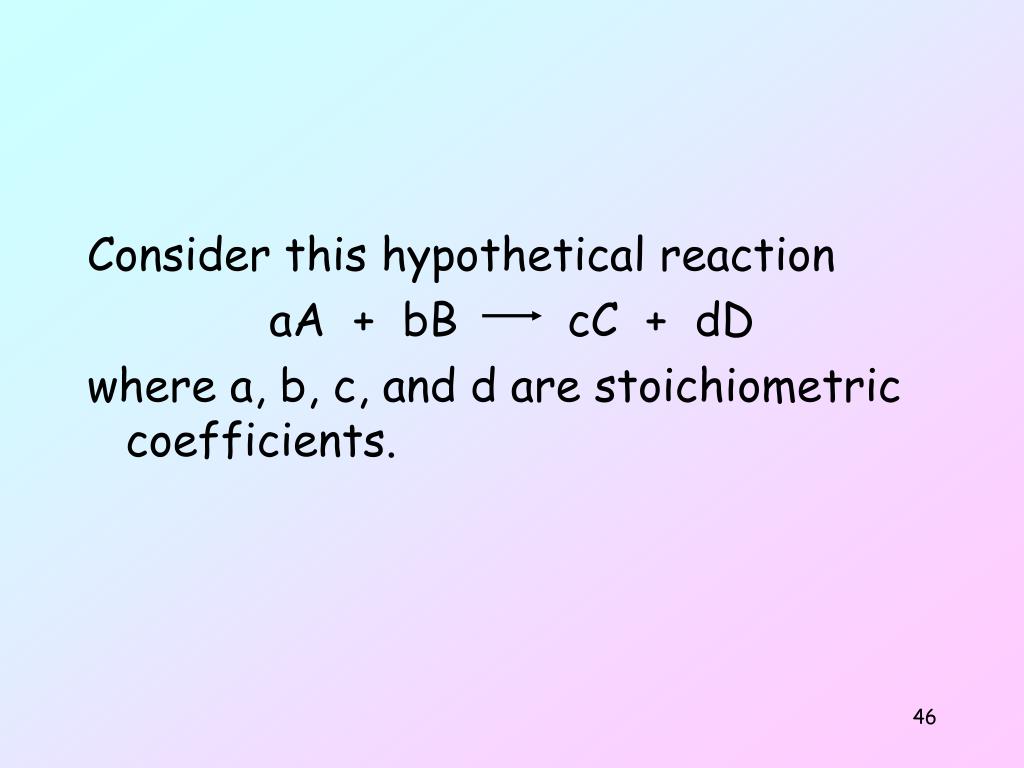

Consider this hypothetical reaction

aA + bB cC + dD

where a, b, c, and d are stoichiometric coefficients.

slide47
For this reaction DHorxn is given by

DHorxn = [cDHof(C) + dDHof(D)] - [aDHof(A) + bDHof(B)]

We can generalize this equation as:

DHorxn = SnDHof(products) - SnDHof(reactants)

where n denotes the stoichiometric coefficients for the reactants and products, and S (sigma) means “the sum of”.

slide48

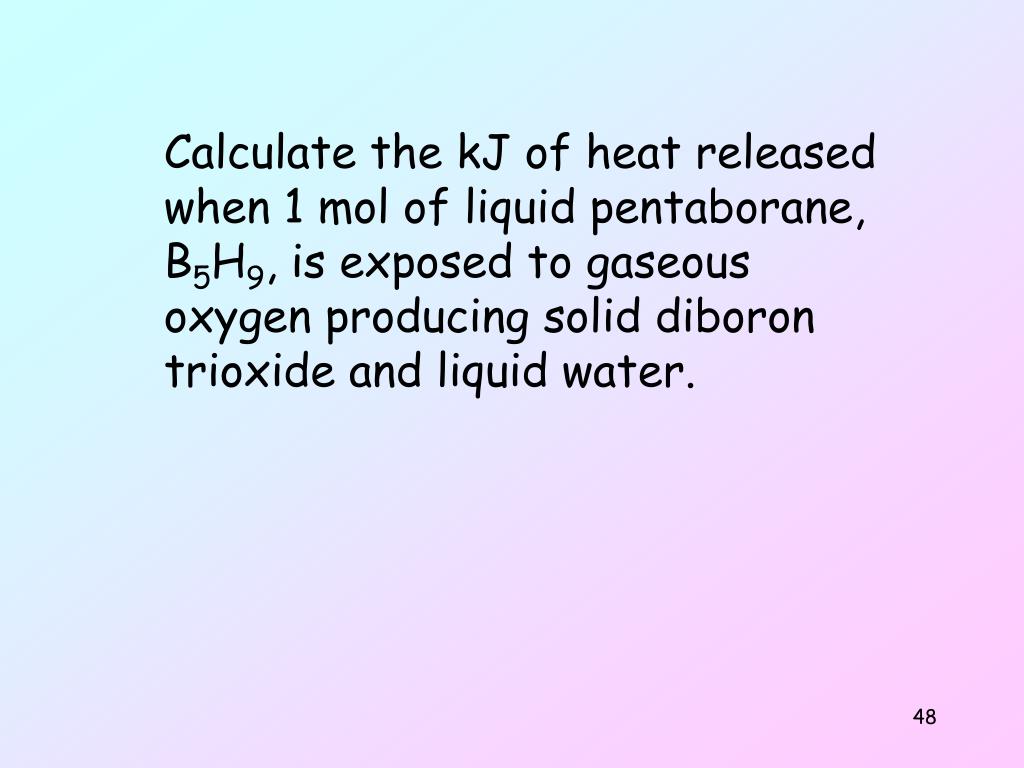

Calculate the kJ of heat released when 1 mol of liquid pentaborane, B5H9, is exposed to gaseous oxygen producing solid diboron trioxide and liquid water.

slide49

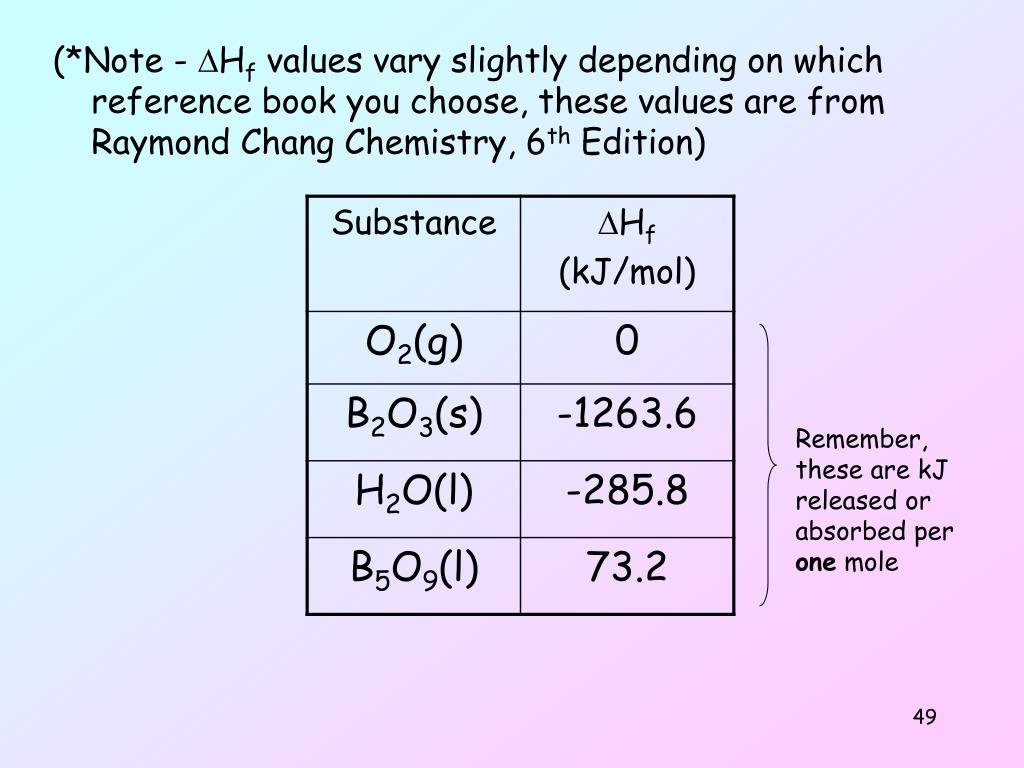

(*Note - DHf values vary slightly depending on which reference book you choose, these values are from Raymond Chang Chemistry, 6th Edition)

Remember, these are kJ released or absorbed per one mole

slide50

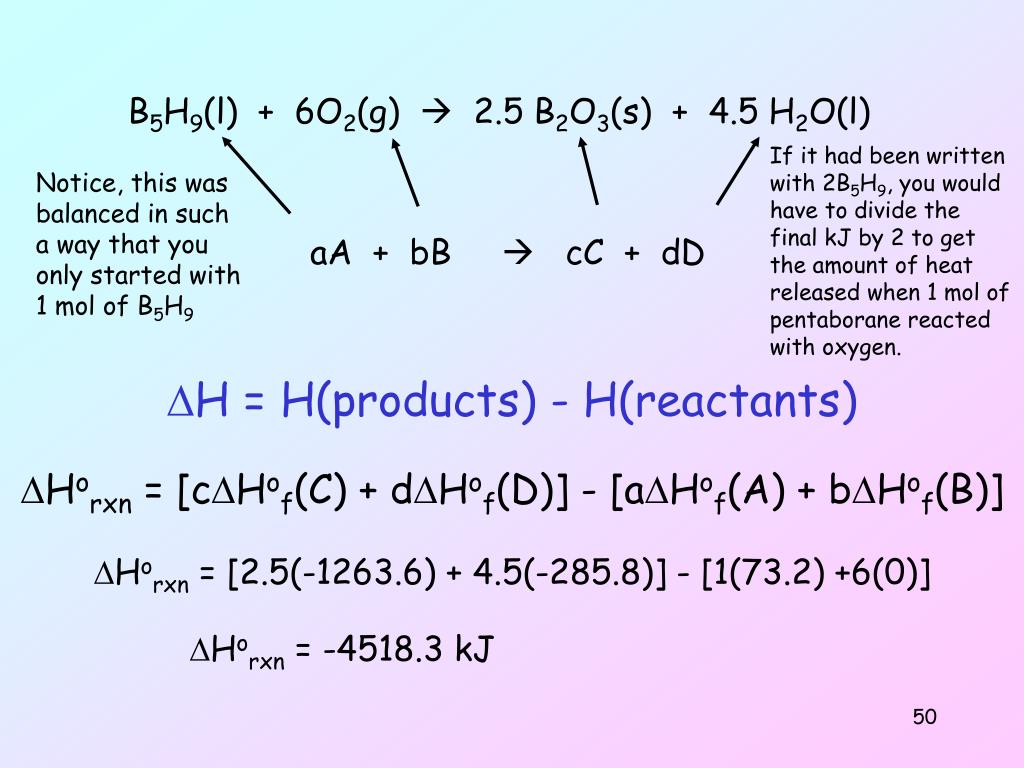

aA + bB  cC + dD

B5H9(l) + 6O2(g)  2.5 B2O3(s) + 4.5 H2O(l)

If it had been written with 2B5H9, you would have to divide the final kJ by 2 to get the amount of heat released when 1 mol of pentaborane reacted with oxygen.

Notice, this was balanced in such a way that you only started with 1 mol of B5H9

DH = H(products) - H(reactants)

DHorxn = [cDHof(C) + dDHof(D)] - [aDHof(A) + bDHof(B)]

DHorxn = [2.5(-1263.6) + 4.5(-285.8)] - [1(73.2) +6(0)]

DHorxn = -4518.3 kJ

slide51

Hess’s Law can also be used to calculate the change in enthalpy for a reaction. The following slide shows the steps involved in forming sodium chloride from elemental sodium and molecular chlorine.

slide53
Although we have focused so far on the thermal energy effects resulting from chemical reactions, many physical processes, such as the melting of ice or the condensation of a vapor, also involve the absorption or release of heat.
change of state processes for water
Change of State Processes for Water

Thermal energy increases the kinetic energy of molecules, allowing them to break free of intermolecular forces. With enough added thermal energy, molecules in a solid enter the liquid phase and molecules in a liquid enter the gas phase.

slide55

The added thermal energy not only causes a change of state but also increases the molar enthalpy of water.

Enthalpy changes dramatically during a change of state.

Water’s freezing point

_____ oC

_____ K

Water’s boiling point

_____ oC

_____ K

0

273

100

373

slide56
The molar enthalpy change that occurs during melting is called the molar enthalpy of fusion, or heat of fusion(DHfus). It is the difference between the enthalpy of 1 mol of a substance in its liquid and solid states.

Water’s DHfus equals 6.01 kJ/mol

Since DH is a positive value, this is an endothermic process, as expected for an energy-absorbing change of melting ice.

slide58

H2O(l) H2O(s) DH =

H2O(s) H2O(l) DH =

Note the sign change

-6.01 kJ

6.01 kJ

Use a ratio to determine the kJ of heat absorbed

6.01 kJ =

1 mol H2O 1.39 mol H2O

You need to reverse the equation to represent melting…

Example: Given the thermochemical equation:

Then determine the mol of H2O you are melting

25.0 g H2O x 1 mol H2O = 1.39 mol H2O

18.02 g

8.35 kJ

slide59
The molar enthalpy change that occurs during evaporation is called the molar enthalpy of vaporization, or heat of vaporization (DHvap). It is the difference between the enthalpy of 1 mol of a substance in its liquid and gaseous states.

Water’s DHvap equals 40.79 kJ/mol

heat of solution and dilution
Heat of Solution and Dilution

Enthalpy changes occur when a solute dissolves in a solvent or when a solution is diluted.

heat of solution
Heat of Solution

In the vast majority of cases, dissolving a solute in a solvent produces measurable heat change. At constant pressure, (coffee cup calorimeter) the heat change is equal to the enthalpy change. The heat change of solution , or enthalpy of solution,DHsoln, is the heat generated or absorbed when a certain amount of solute dissolves in a certain amount of solvent. The quantity DHsoln represents the difference between the enthalpy of the final solution and the enthalpies of its original components (solute and solvent) before they are mixed.

  • Like other enthalpy changes, DHsoln is positive for endothermic processes and negative for exothermic processes.
slide62
Consider the heat of solution of a process in which an ionic compound is the solute and water is the solvent. For example, what happens when solid NaCl dissolves in water? In solid NaCl, the Na+ and the Cl- ions are held together by strong positive-negative (electrostatic) forces, but when a small crystal of NaCl dissolves in water, the three dimensional network of ions breaks into its individual units.
slide63
The energy required to completely separate one mole of a solid ionic compound into gaseous ions is called lattice energy (U). The lattice energy of NaCl is 788 kJ/mol. In other words, we would need to supply 788 kJ of energy to break 1 mole of solid NaCl into 1 mole of Na+ and Cl- ions.

NaCl(s) Na+(g) + Cl-(g) U = 788 kJ

slide64
Next the separated Na+ and Cl- ions are stabilized in solution by their interaction with water molecules. These ions are said to be hydrated.
slide65
The enthalpy change associated with the hydration process is called the heat of hydration, DHhydr
  • Heat of hydration is a negative quantity for cations and anions.

H2O

Na+(g) + Cl-(g) Na+(aq) + Cl-(aq) DHhydr = -784 kJ

slide66

H2O

NaCl(s) Na+(aq) + Cl-(aq) DHsoln = ?

NaCl(s) Na+(g) + Cl-(g) U = 788 kJ

Na+(g) + Cl-(g) Na+(aq) + Cl-(aq) DHhydr = -784 kJ

NaCl(s) Na+(aq) + Cl-(aq) DHsoln = 4 kJ

H2O

H2O

Applying Hess’s law, it is possible to consider DHsoln as the sum of two related quantities, lattice energy (U) and heat of hydration (DHhydr):

Therefore, when 1 mol of NaCl dissolves in water, 4 kJ of heat will be absorbed from the surroundings

heat of dilution
Heat of Dilution

When a previously prepared solution is diluted, that is, when more solvent is added to lower the overall concentration of the solute, additional heat is usually given off or absorbed. The heat of dilution is the heat change associated with the dilution process.

slide69
Therefore, always be cautious when working on a dilution procedure in the laboratory. Because of its highly exothermic heat of dilution, concentrated sulfuric acid (H2SO4) poses a particularly hazardous problem if its concentration must be reduced by mixing it with additional water. The process is so exothermic that you must NEVER attempt to dilute the concentrated acid by adding water to it. The heat generated could cause the acid solution to boil and splatter.
  • The recommended procedure is to add the concentrated acid slowly to the water (while constantly stirring).

“Do as you oughter, add acid to water.”
