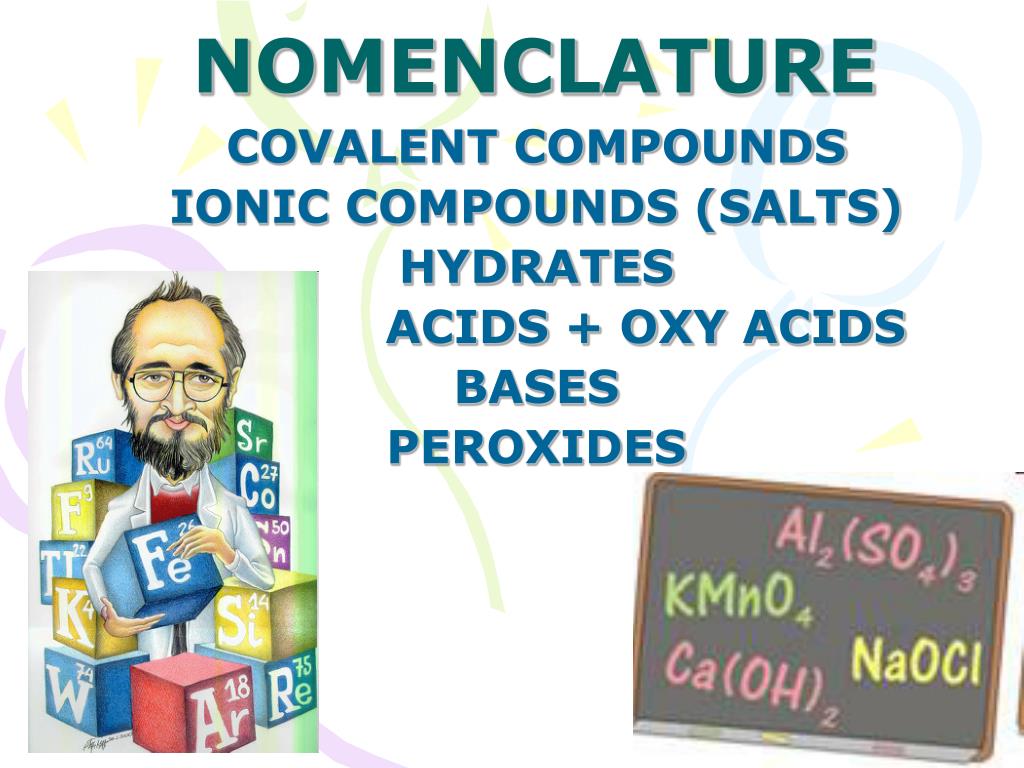

  1. NOMENCLATURE COVALENT COMPOUNDS IONIC COMPOUNDS (SALTS) HYDRATES ACIDS + OXY ACIDS BASES PEROXIDES

  2. COVALENT COMPOUNDS Formulas • IUPAC name: International Union of Pure and Applied Chemistry • Name using Prefixes b/c elements can combine in DIFFERENT ratios • 1- Mono 6- Hexa • 2- Di 7- Hepta • 3- Tri 8- Octa • 4- Tetra 9- Nona • 5- Penta 10- Deca

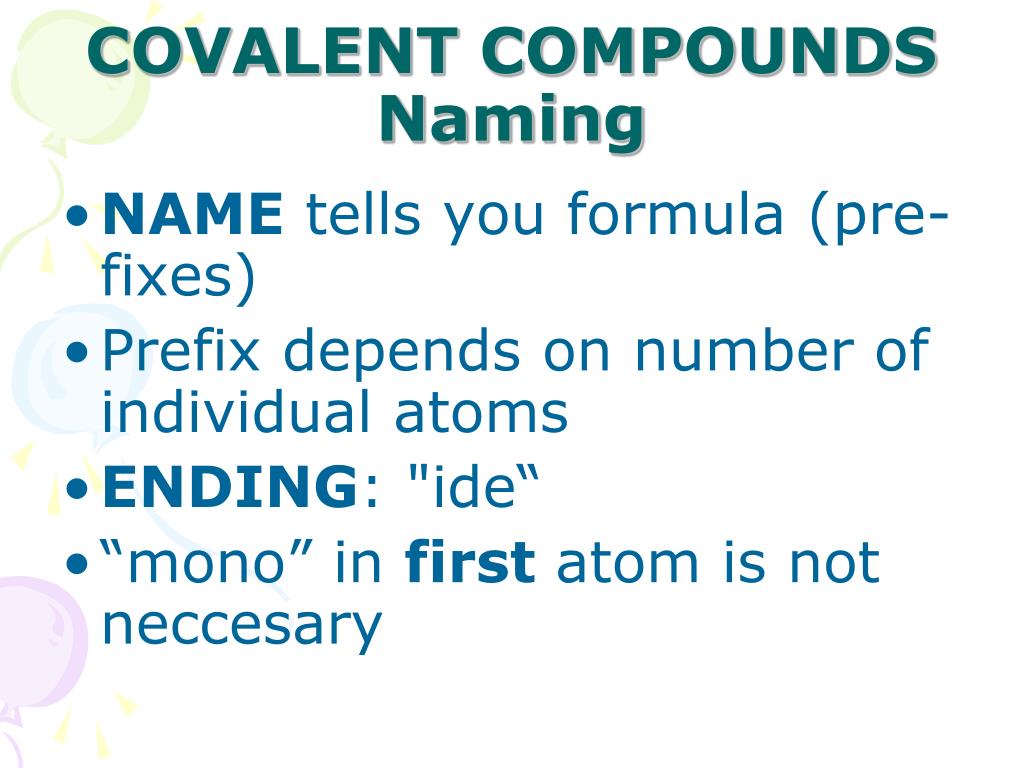

  3. COVALENT COMPOUNDS Naming • NAME tells you formula (pre-fixes) • Prefix depends on number of individual atoms • ENDING: "ide“ • “mono” in first atom is not neccesary

  4. no MONO for C COVALENT COMPOUNDS • N2O • Dinitrogen monoxide • N2O5 • Dinitrogen pentoxide • CO • Carbon monoxide • CO2 • Carbon dioxide • C2O2 • Dicarbon dioxide

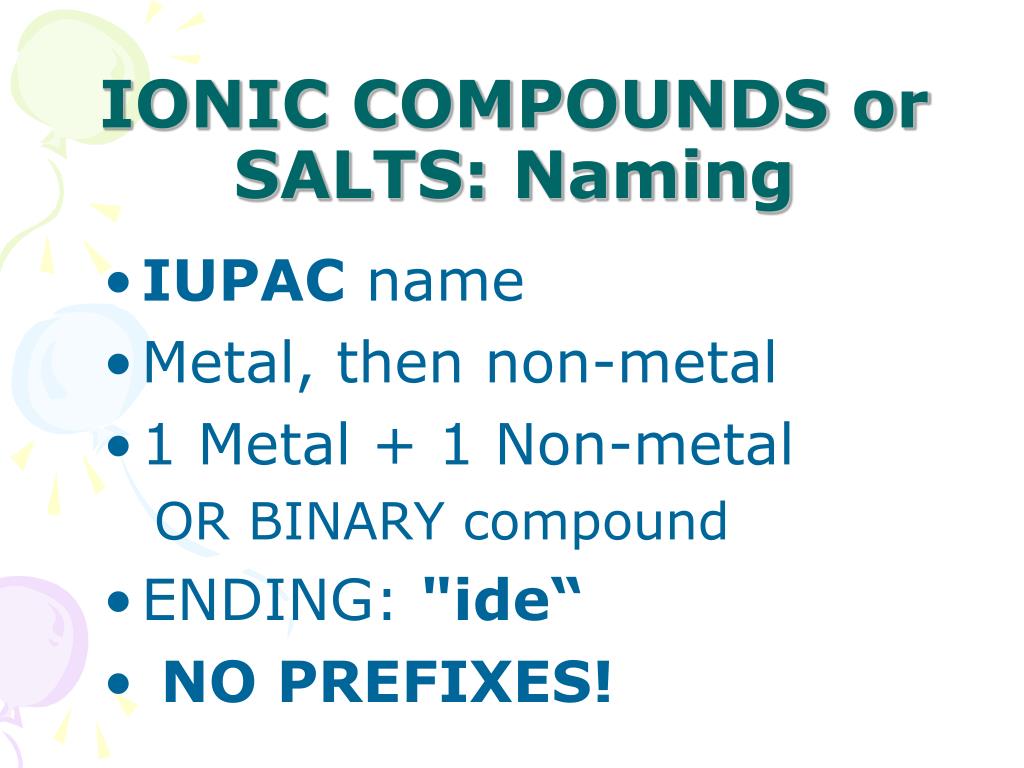

  5. IONIC COMPOUNDS or SALTS: Naming • IUPAC name • Metal, then non-metal • 1 Metal + 1 Non-metal OR BINARY compound • ENDING: "ide“ • NO PREFIXES!

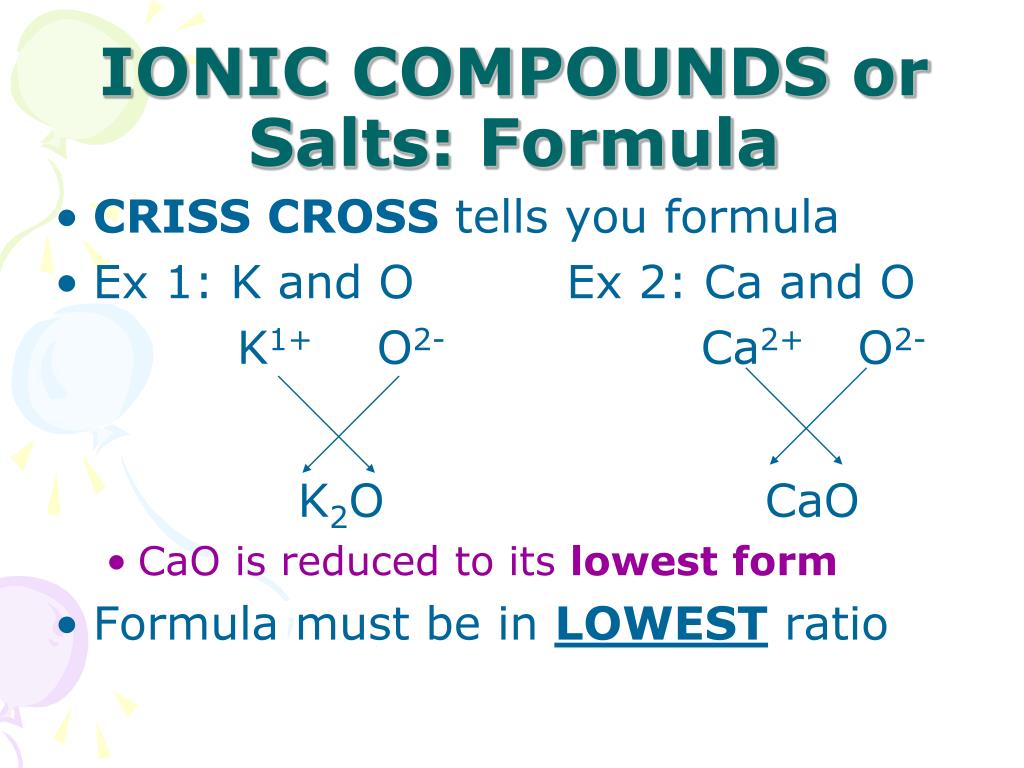

  6. IONIC COMPOUNDS or Salts: Formula • CRISSCROSS tells you formula • Ex 1: K and O Ex 2: Ca and O K1+ O2- Ca2+ O2- K2O CaO • CaO is reduced to its lowestform • Formula must be in LOWEST ratio

  7. POLYATOMIC IONS(IONIC: 1 metal + more than 1 NM) • Metal + group of non-metals • Non-metal group has overall charge • Ex: (CO3)2-is Carbonate • The CO3group likes to gain 2 electrons so, overall charge of -2 • Page 66 Table 2.4: Polyatomic Ions

  8. POLYATOMIC IONS • (NO31-) Nitrate • (ClO31- ) Chlorate • (HCO31-)Bicarbonate • (OH1-) Hydroxide • (CO32-) Carbonate • (SO42- )Sulphate /Sulfate • (PO43- )Phosphate • (NH41+) Ammonium

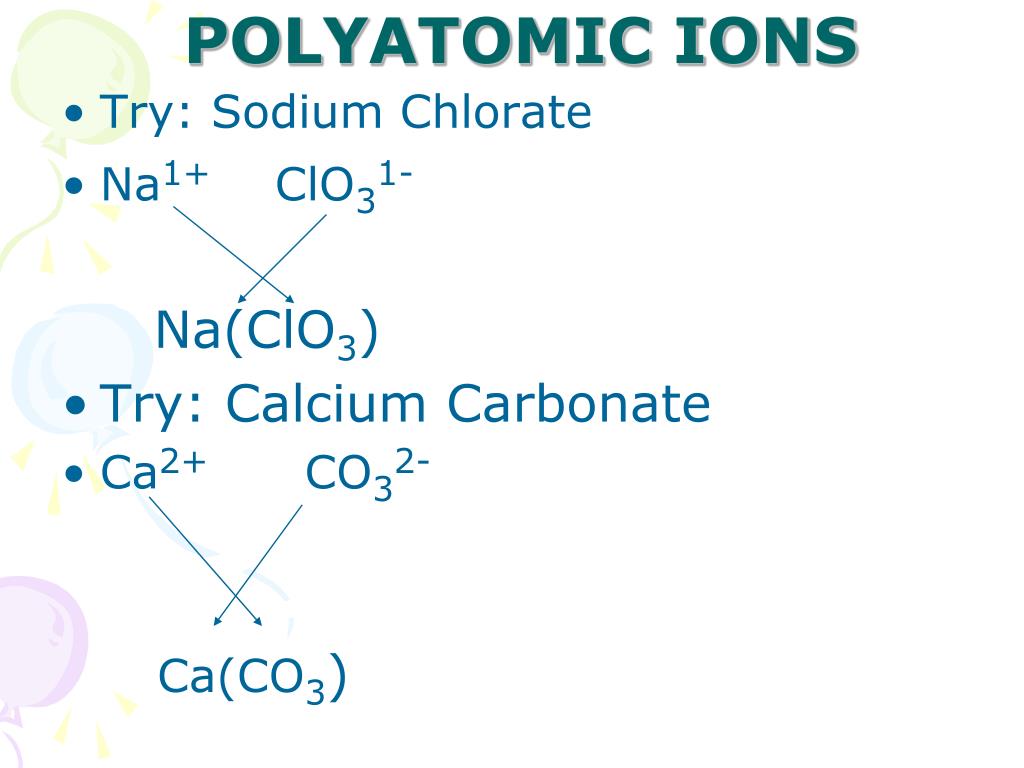

  9. POLYATOMIC IONS • Try: Sodium Chlorate • Na1+ ClO31- Na(ClO3) • Try: Calcium Carbonate • Ca2+ CO32- Ca(CO3)

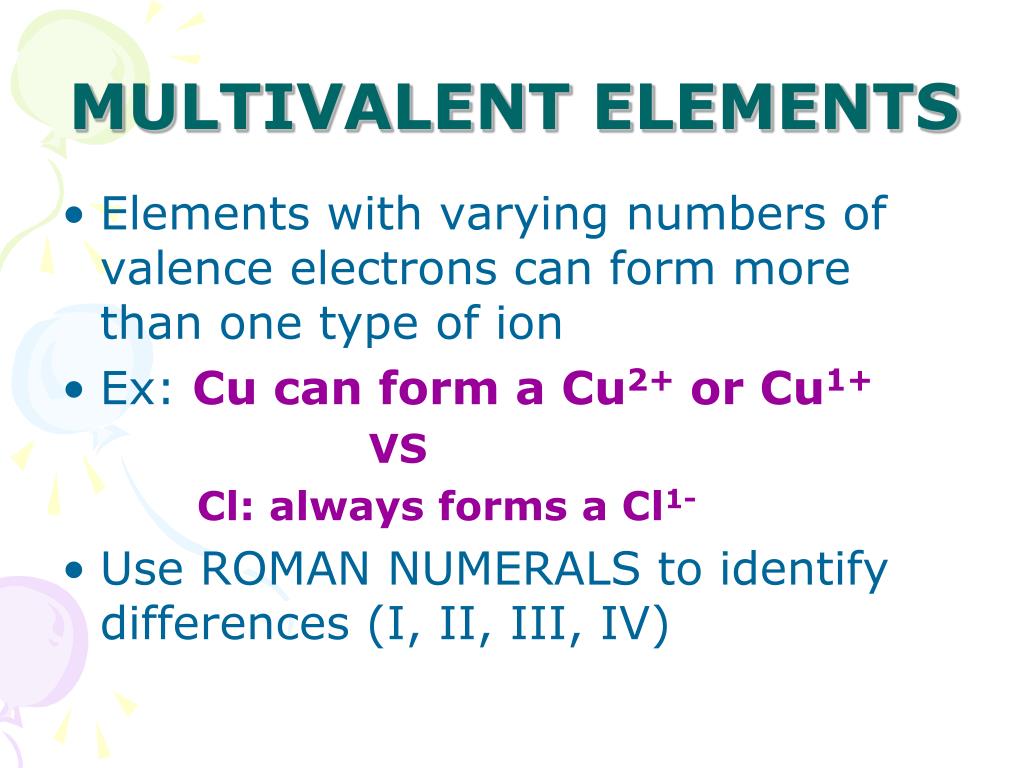

  10. MULTIVALENT ELEMENTS • Elements with varying numbers of valence electrons can form more than one type of ion • Ex: Cu can form a Cu2+ or Cu1+ VS Cl: always forms a Cl1- • Use ROMAN NUMERALS to identify differences (I, II, III, IV)

  11. MULTIVALENT ELEMENTS

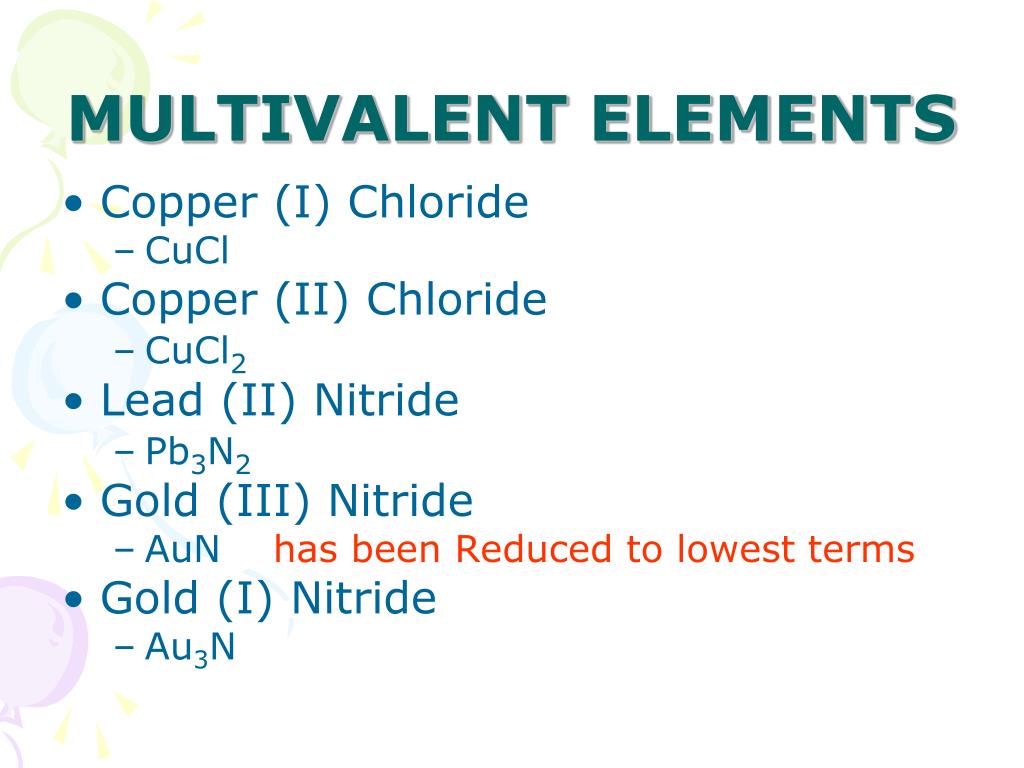

  12. MULTIVALENT ELEMENTS • Copper (I) Chloride • CuCl • Copper (II) Chloride • CuCl2 • Lead (II) Nitride • Pb3N2 • Gold (III) Nitride • AuN has been Reduced to lowest terms • Gold (I) Nitride • Au3N

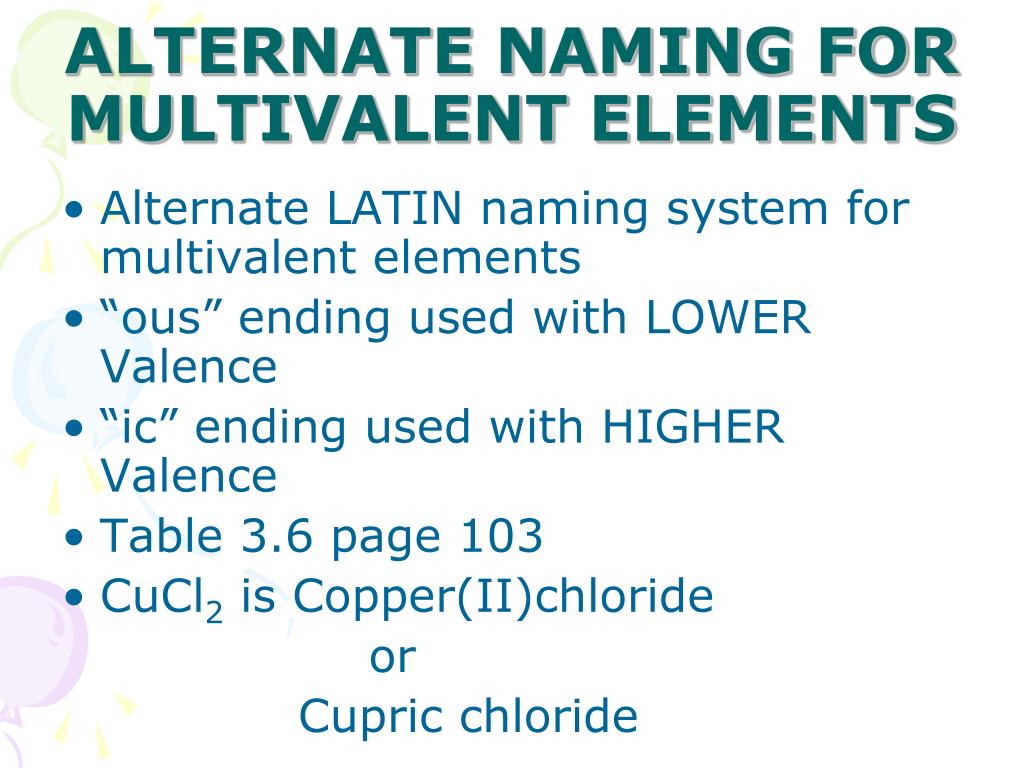

  13. ALTERNATE NAMING FOR MULTIVALENT ELEMENTS • Alternate LATIN naming system for multivalent elements • “ous” ending used with LOWER Valence • “ic” ending used with HIGHER Valence • Table 3.6 page 103 • CuCl2 is Copper(II)chloride or Cupric chloride

  14. ALTERNATE NAMING FOR MULTIVALENT ELEMENTS • CuCl2  Copper(II)chloride • Cupric Chloride • CuCl  Copper (I) chloride • Cuprous chloride

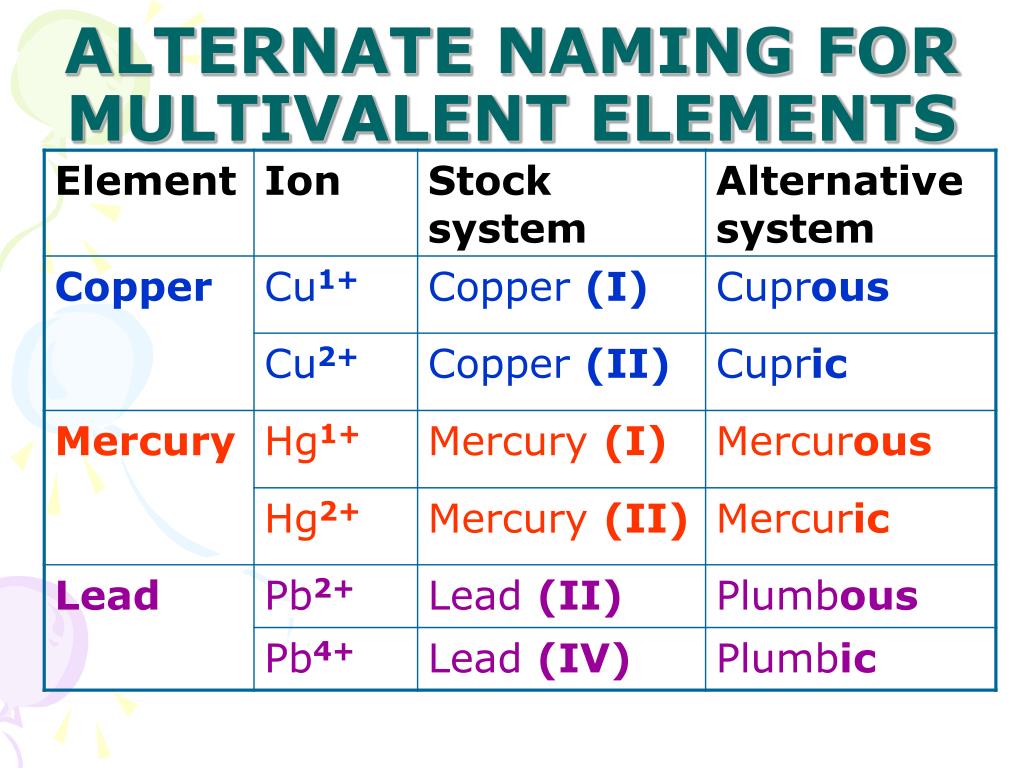

  15. ALTERNATE NAMING FOR MULTIVALENT ELEMENTS

  16. TEXTBOOK QUESTIONS: • Pg 70 • 7-9 (skip e,f), 10, 12 • Pg 73 • 1-10 • Pg 75 • 1-5 (skip g,h), 6 (skip c), 7-10 (skip g,h)

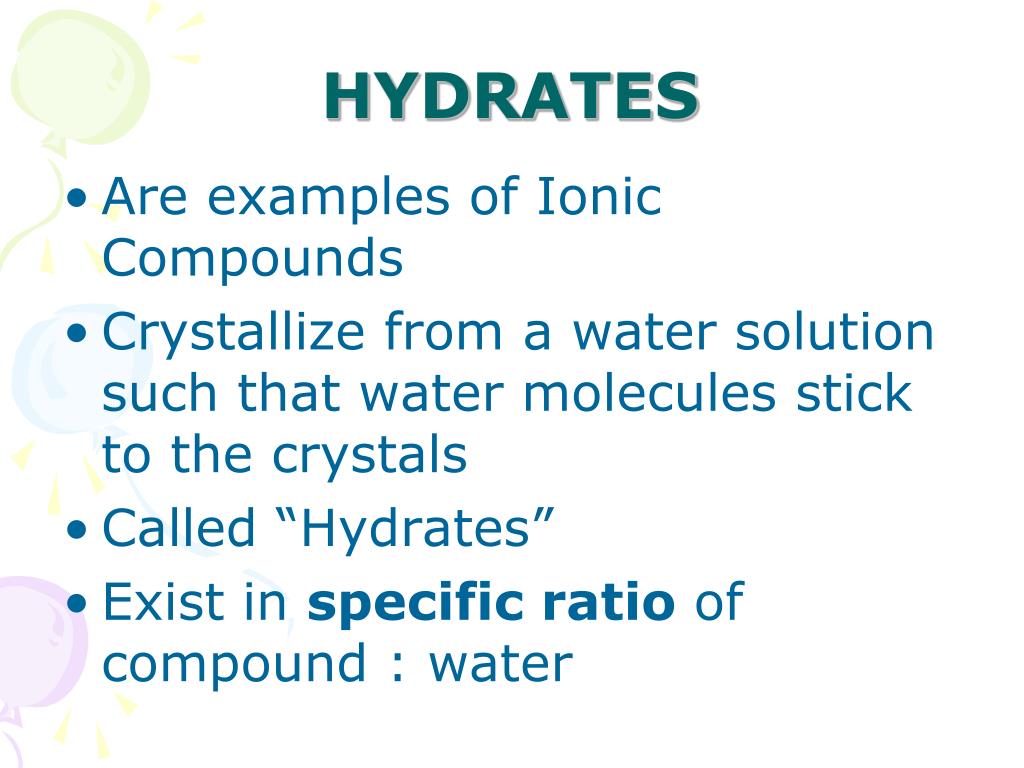

  17. HYDRATES • Are examples of Ionic Compounds • Crystallize from a water solution such that water molecules stick to the crystals • Called “Hydrates” • Exist in specific ratio of compound : water

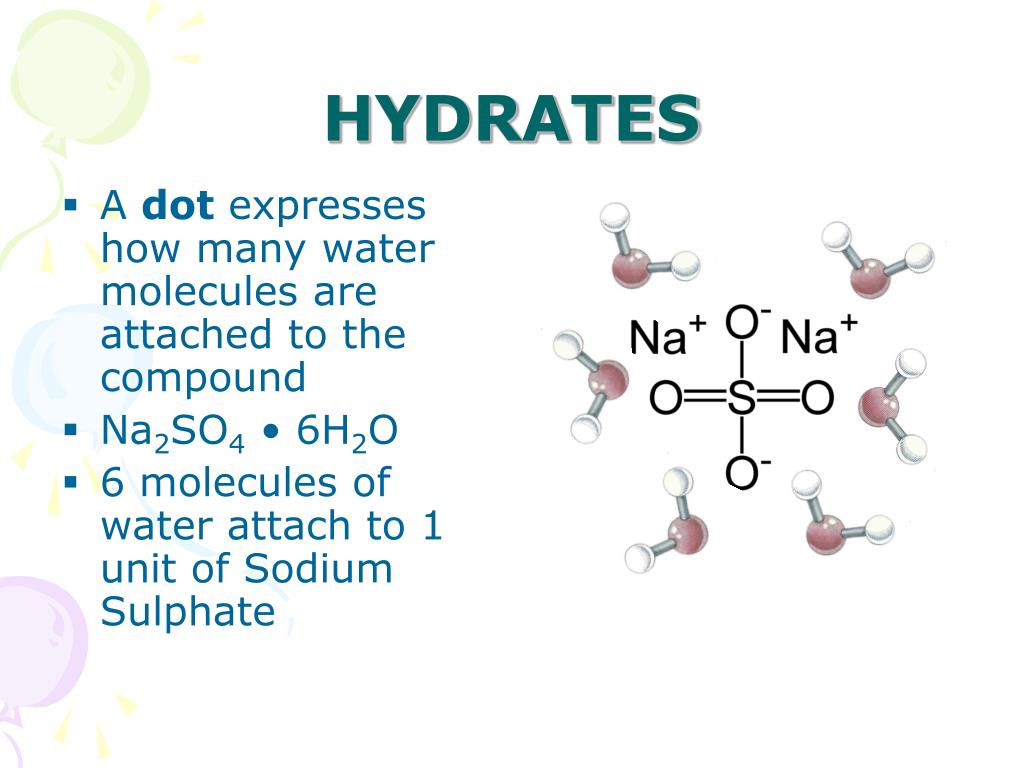

  18. HYDRATES • A dot expresses how many water molecules are attached to the compound • Na2SO4 • 6H2O • 6 molecules of water attach to 1 unit of Sodium Sulphate

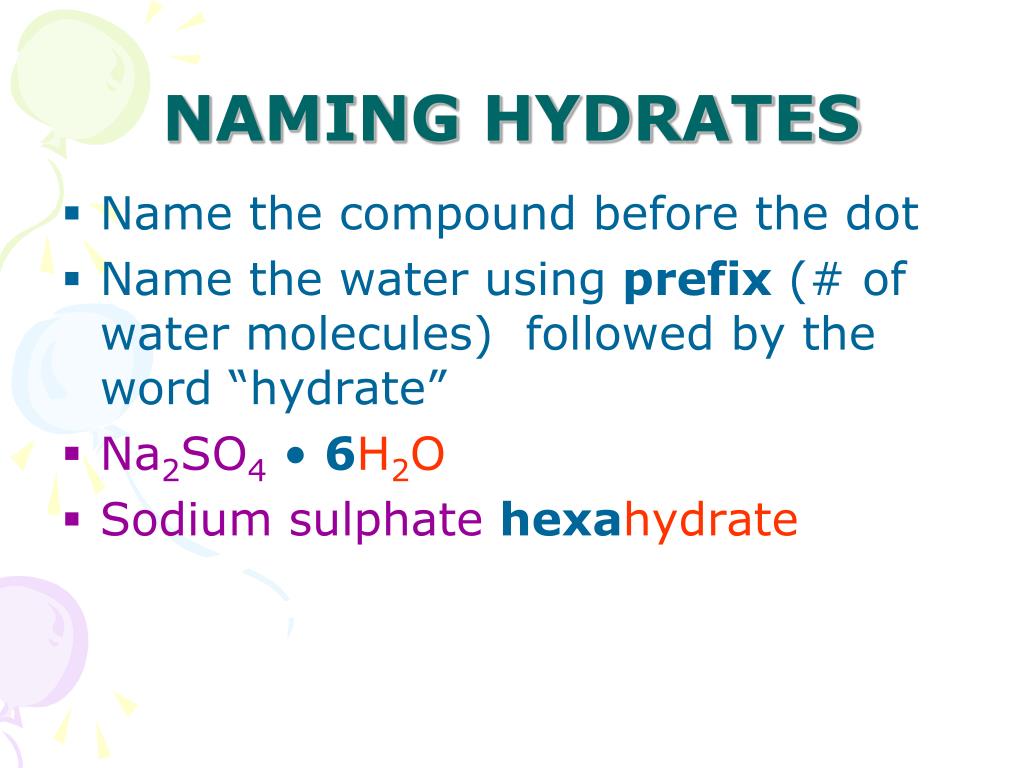

  19. NAMING HYDRATES • Name the compound before the dot • Name the water using prefix (# of water molecules) followed by the word “hydrate” • Na2SO4 • 6H2O • Sodium sulphatehexahydrate

  20. HYDRATES • Cu(SO4)• 5H2O • Copper (II) sulphate pentahydrate • Cu2(SO4)• 5H2O • Copper (I) sulphate pentahydrate • Barium chloride dihydrate • BaCl2• 2H2O

  21. Last words on Hydrates • The water can be removed from some hydrates • Called ANHYDROUS compounds • Anhydrous Barium Chloride • BaCl2 • Barium chloride dihydrate • BaCl2• 2H2O

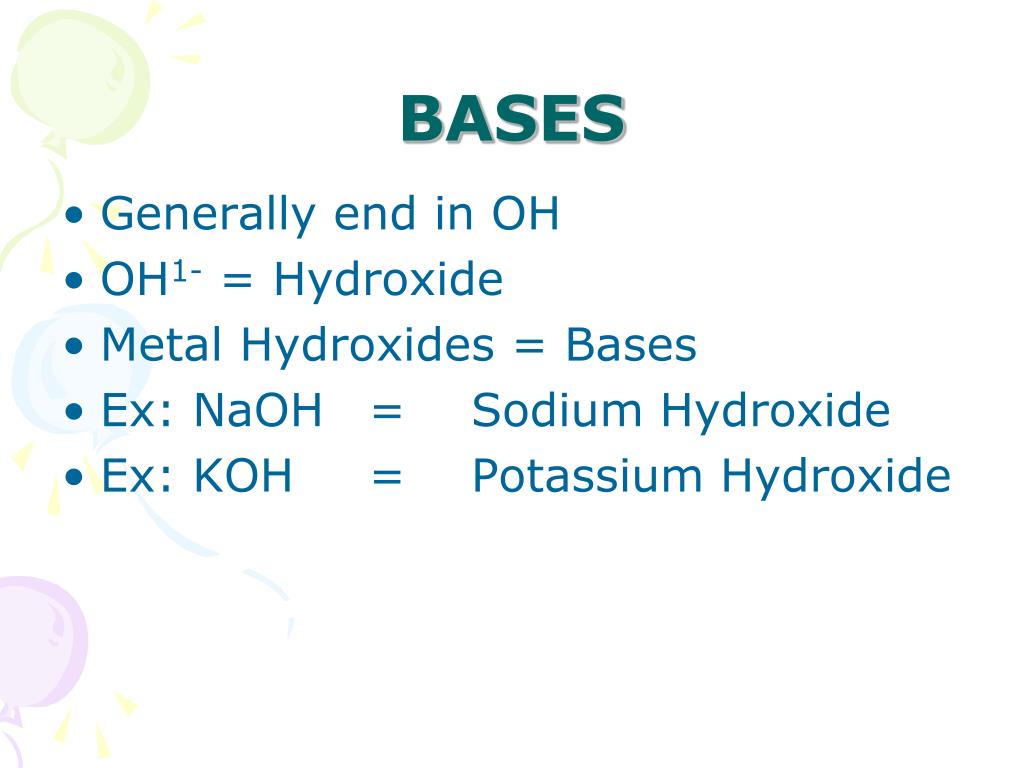

  22. BASES • Generally end in OH • OH1- = Hydroxide • Metal Hydroxides = Bases • Ex: NaOH = Sodium Hydroxide • Ex: KOH = Potassium Hydroxide

  23. PEROXIDES • Contains O-O single bond (O2) • O2 has a 2- charge • H2O2is Hydrogen peroxide • MgO2 is Magnesium peroxide • CaO2 is Calcium peroxide • NOTE: Mg + O usually makes MgO • Ca + O usually makes CaO

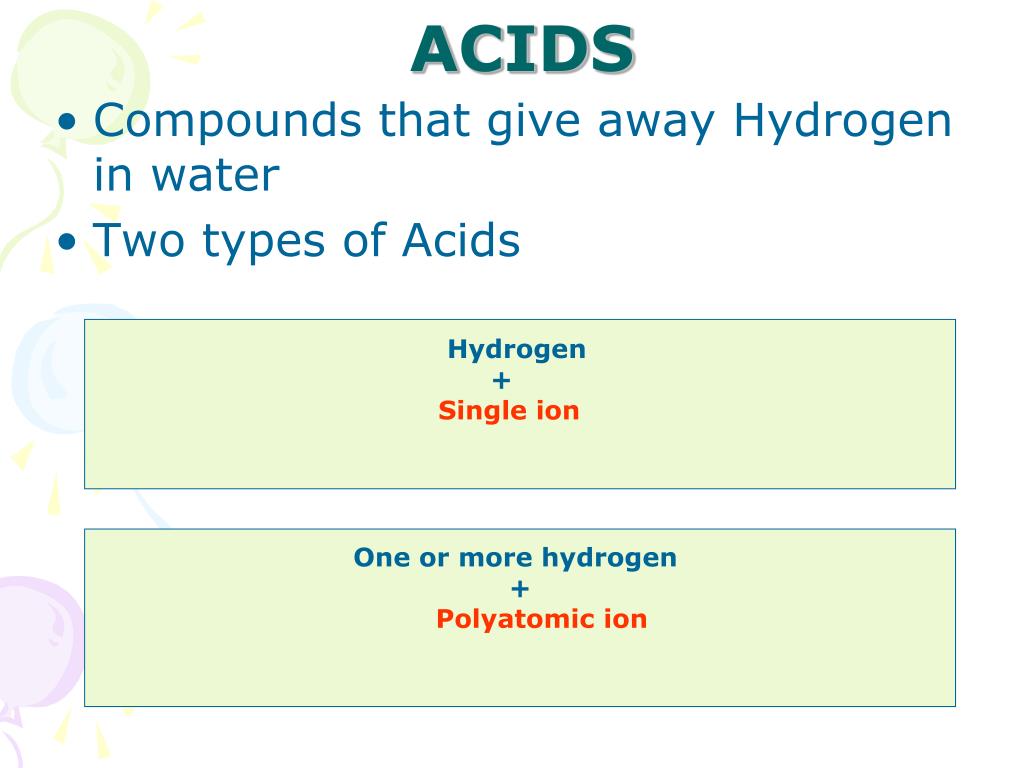

  24. Hydrogen + Single ion ACIDS • Compounds that give away Hydrogen in water • Two types of Acids One or more hydrogen + Polyatomic ion

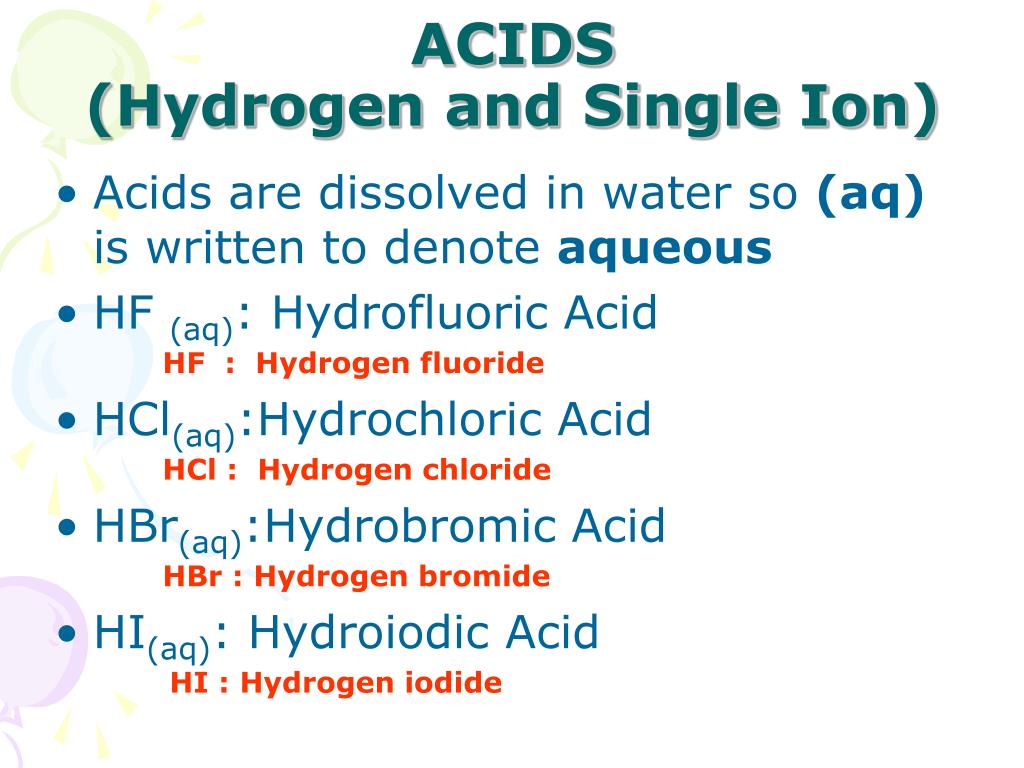

  25. ACIDS (Hydrogen and Single Ion) • Acids are dissolved in water so (aq) is written to denote aqueous • HF (aq): Hydrofluoric Acid HF : Hydrogen fluoride • HCl(aq):Hydrochloric Acid HCl : Hydrogen chloride • HBr(aq):Hydrobromic Acid HBr :Hydrogen bromide • HI(aq): Hydroiodic Acid HI : Hydrogen iodide

  26. ACIDS (One or more H + Polyatomic Ion) • Called Oxy-Acids • Polyatomic Ion has Oxygen

  27. These acids have morethan1H STANDARD OXY- ACIDS • HClO3(aq) Chloric Acid • HFO3(aq) Fluoric Acid • HBrO3(aq) Bromic Acid • HIO3(aq) Iodic Acid • HNO3(aq) Nitric Acid • H2CO3(aq) Carbonic Acid • H2SO4(aq) Sulphuric Acid • H3PO4(aq) Phosphoric Acid

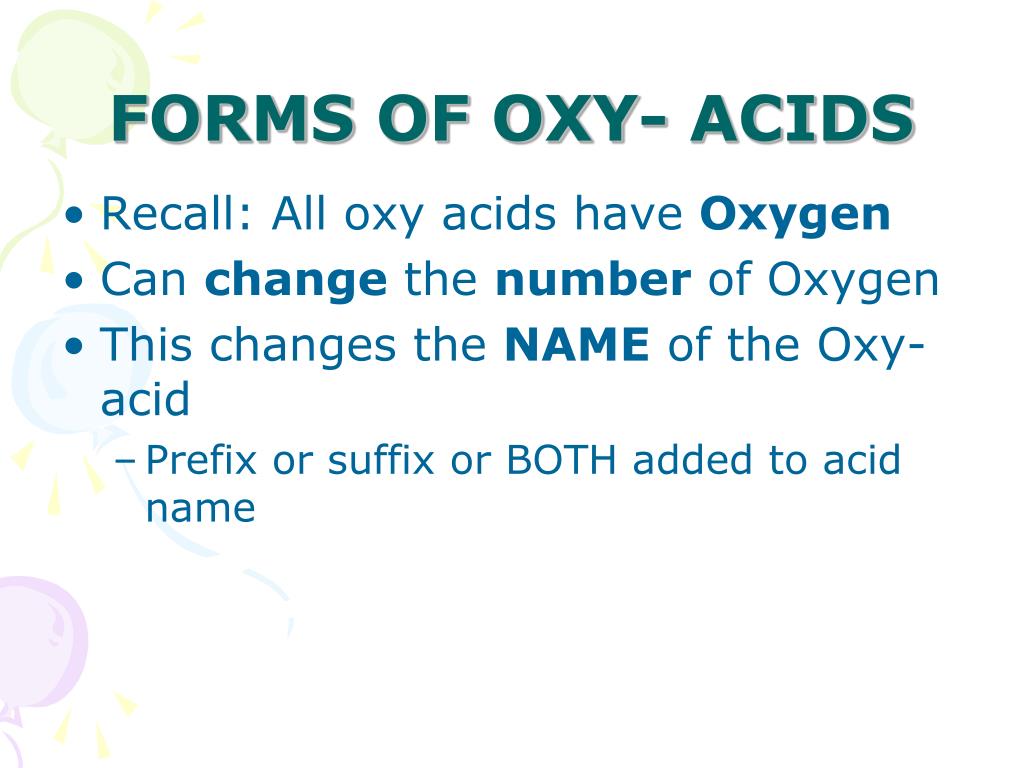

  28. FORMS OF OXY- ACIDS • Recall: All oxy acids have Oxygen • Can change the number of Oxygen • This changes the NAME of the Oxy-acid • Prefix or suffix or BOTH added to acid name

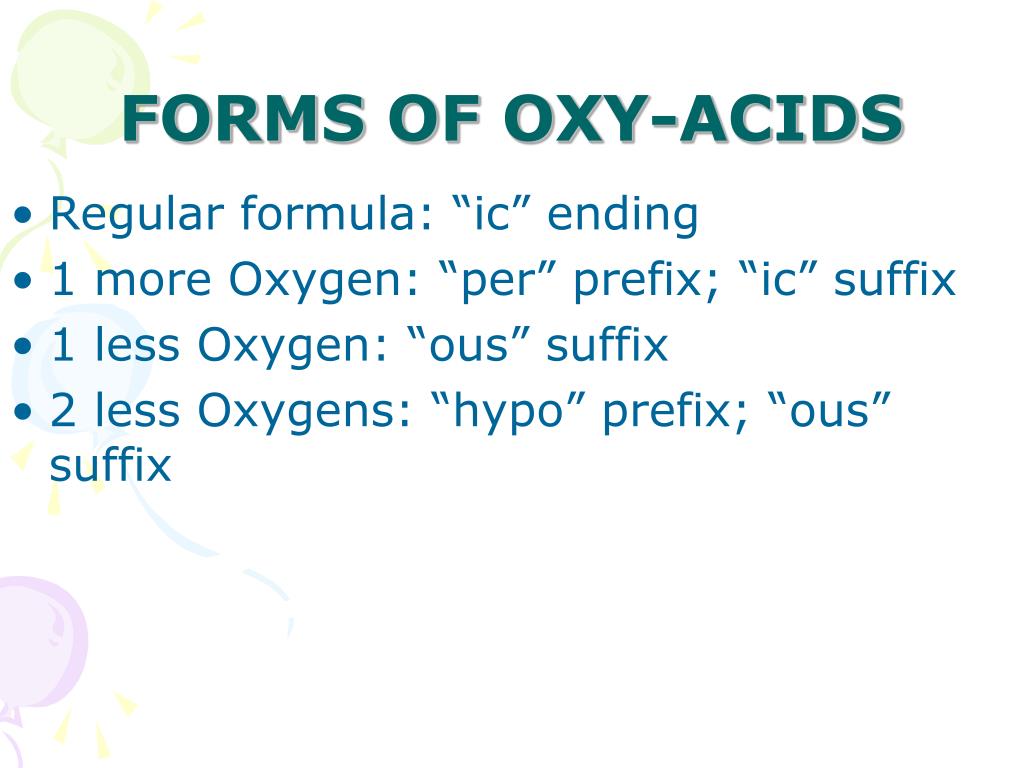

  29. FORMS OF OXY-ACIDS • Regular formula: “ic” ending • 1 more Oxygen: “per” prefix; “ic” suffix • 1 less Oxygen: “ous” suffix • 2 less Oxygens: “hypo” prefix; “ous” suffix

  30. EX: CHLORIC ACID • HClO4(aq) :Perchloric Acid (1 more O) • HClO3(aq) :Chloric Acid (REGULAR) • HClO2(aq) : Chlorous Acid (1 less O) • HClO(aq) : HypoChlorous Acid (2 less O)

  31. Name the following Oxy-Acids • HClO4(aq) • HFO2(aq) • HBrO2(aq) • HBrO(aq) • HNO3(aq) • H2CO2(aq) • H2SO5(aq) • H3PO5(aq)

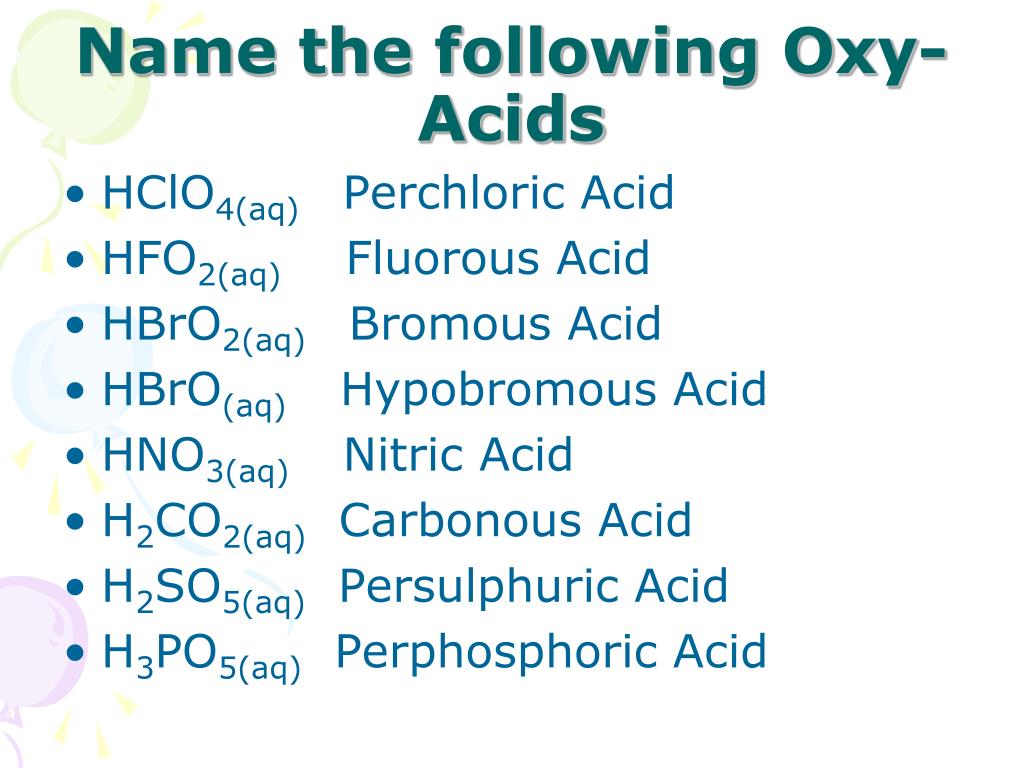

  32. Name the following Oxy-Acids • HClO4(aq) Perchloric Acid • HFO2(aq) Fluorous Acid • HBrO2(aq) Bromous Acid • HBrO(aq) Hypobromous Acid • HNO3(aq) Nitric Acid • H2CO2(aq) Carbonous Acid • H2SO5(aq) Persulphuric Acid • H3PO5(aq) Perphosphoric Acid

  33. OXY- ACID SALTS • Formed by bumping out Hydrogen from Oxy-acids • Formed when oxy-acids react with a metal • Na + H3PO4(aq) H2 + Na3PO4 • Sodium + Phosphoric Acid Hydrogen + Sodium Phosphate • RULE: “ic” acid “ate” salt

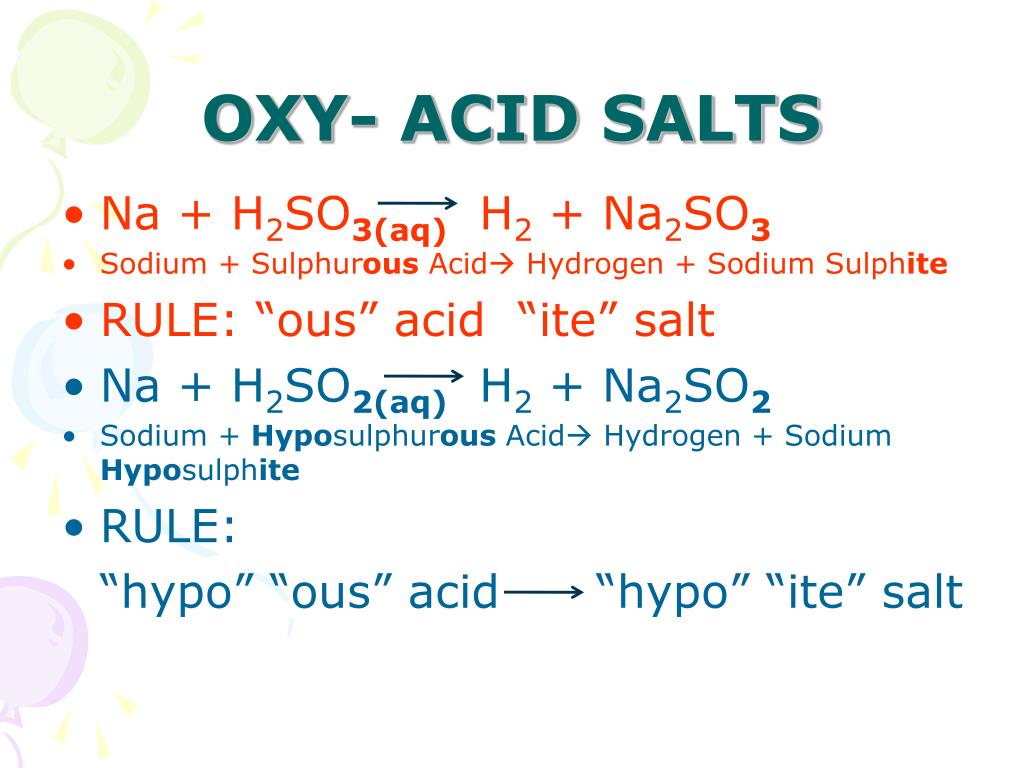

  34. OXY- ACID SALTS • Na + H2SO3(aq) H2 + Na2SO3 • Sodium + Sulphurous Acid Hydrogen + Sodium Sulphite • RULE: “ous” acid “ite” salt • Na + H2SO2(aq) H2 + Na2SO2 • Sodium + Hyposulphurous Acid Hydrogen + Sodium Hyposulphite • RULE: “hypo” “ous” acid “hypo” “ite” salt

  35. SUMMARY: OXY-ACIDS

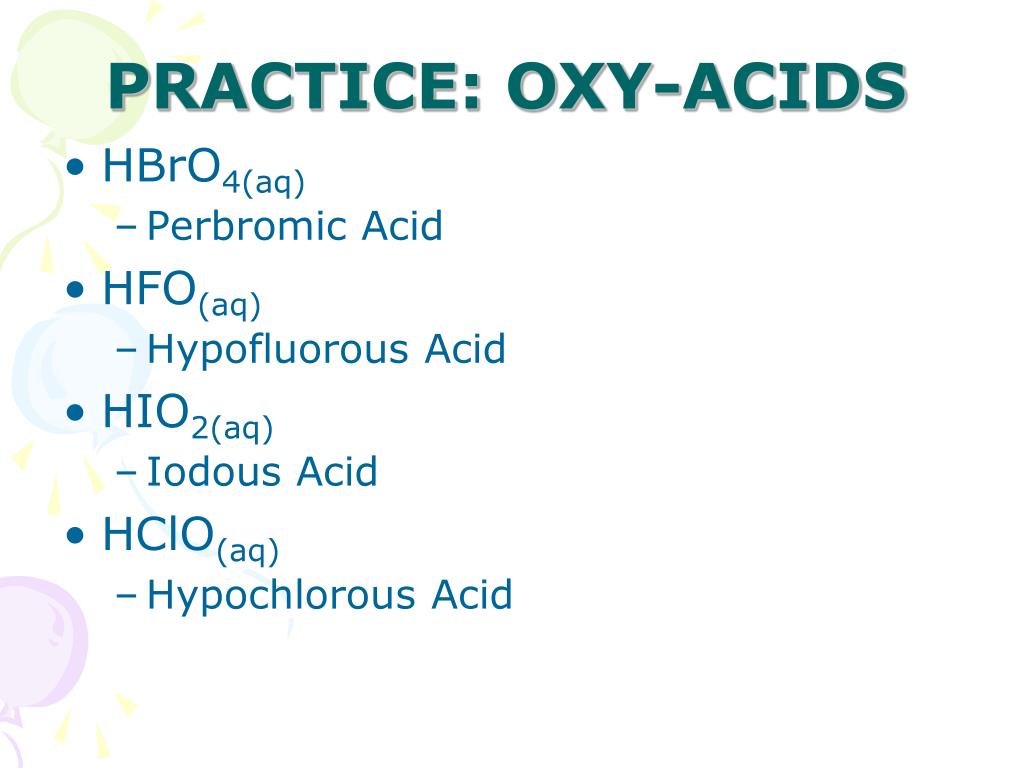

  36. PRACTICE: OXY-ACIDS • HBrO4(aq) • Perbromic Acid • HFO(aq) • Hypofluorous Acid • HIO2(aq) • Iodous Acid • HClO(aq) • Hypochlorous Acid

  37. PRACTICE: OXY-ACID SALTS • Mg(NO4)2(aq) • Magnesium pernitrate • Na2(CO2)(aq) • Sodium carbonite • K2(SO5)(aq) • Potassium persulphate • Ba3(PO2)3(aq) • Barium hypophosphite

  38. Homework • REVIEWALL Nomenclature rules • Friday/ Monday: Review • BIG QUEST: TUESDAY
