SY 솔라 시스템 카다로그

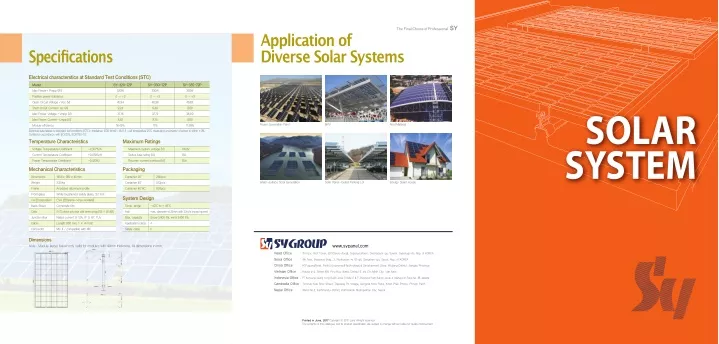

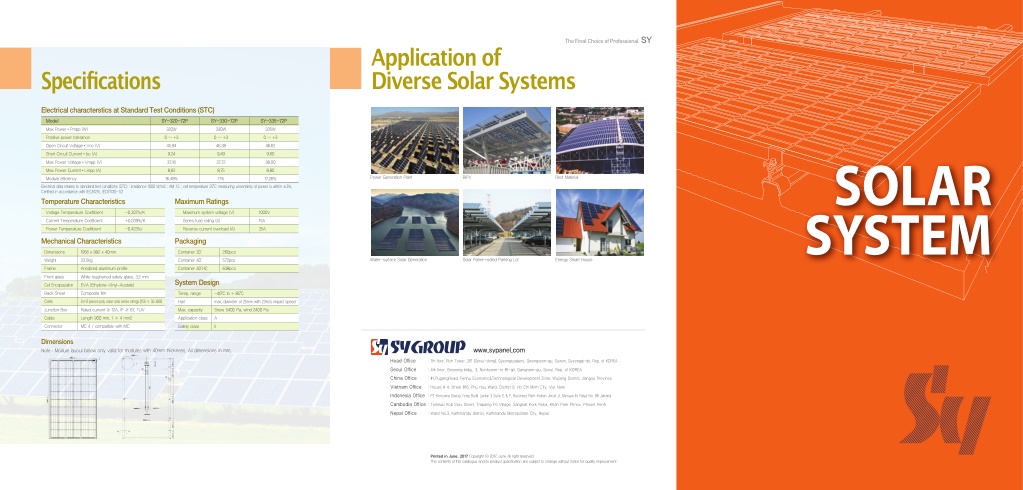

1. The Final Choice of Professional SY Application of Diverse Solar Systems Specifications Electrical characterstics at Standard Test Conditions (STC) Model SY-320-72P SY-330-72P SY-335-72P Max Power•Pmpp (W) 320W 330W 335W Positive power toferance 0 ~ +3 0 ~ +3 0 ~ +3 Open Circuit Voltage•Voc (V) 45.94 46.38 46.62 SOLAR SYSTEM Short Circuit Current•Isc (A) 9.24 9.49 9.60 Max Power Voltage•Vmpp (V) 37.16 37.72 38.00 Max Power Current•Lmpp (A) 8.62 8.75 8.80 Power Generation Plant BIPV Roof Material Module efficiency 16.49% 17% 17.26% Electrical data relates to standard test conditions (STC) : irradiance 1000 W/m2 ; AM 1.5 ; cell temperature 25°C measuring uncertainty of power is within ±3%. Certified in accordance with IEC61215, IEC61730-1/2 Temperature Characteristics Maximum Ratings Voltage Temperature Coefficient -0.307%/K Maximum system voltage (V) 1000V Current Temperature Coefficient +0.039%/K Series fuse rating (A) 15A Power Temperature Coefficient -0.423%/ Reverse current overload (A) 25A Mechanical Characteristics Packaging Dimensions 1956 x 992 x 40mm Container 20‘ 260pcs Water-surface Solar Generation Solar Panel-roofed Parking Lot Energy Smart House Weight 23.5kg Container 40‘ 572pcs Frame Anodized aluminum profile Container 40‘HC 638pcs Front glass White toughened safety glass, 3.2 mm System Design Cell Encapsulation EVA (Ethylene-Vinyl-Acetate) Back Sheet Composite film Temp. range -40°C to + 85°C Cells 6×12 pieces poly solar cells series strings (156 × 56 4BB) Hail max. diameter of 25mm with 23m/s impact speed Junction Box Rated current ≥ 12A, IP ≥ 67, TUV Max. capacity Snow 5400 Pa, wind 2400 Pa Cable Length 900 mm, 1 × 4 mm2 Application class A Connector MC 4 / compatible with MC Safety class II Dimensions www.sypanel.com Note : Module layout below only valid for modules with 40mm thickness. All dimensions in mm. Head Office : 7th floor, Rich Tower, 261 (Seryu-dong), Gyeongsudaero, Gwongseon-gu, Suwon, Gyeonggi-do, Rep. of KOREA Seoul Office : 4th floor, Boseong bldg., 3, Nonhyeon-ro 81-gil, Gangnam-gu, Seoul, Rep. of KOREA China Office : #1,PugangRoad, Fenhu Economic&Technological Development Zone, Wujiang District, Jiangsu Province Vietnam Office : House # 4, Street 816, Phu Huu Ward, District 9, Ho Chi Minh City, Viet Nam Indonesia Office : PT Kencana Ssang Yong Build Lantai 3 Suite E & F, Business Park Kebon Jeruk Jl. Meruya Ilir Raya No. 88 Jakarta Cambodia Office : Tomnub Kob Srov Street, Trapaing Po Village, Sangkat Kork Roka, Khan Prek Phnov, Phnom Penh Nepal Office : Ward No.3, Kathmandu district, Kathmandu Metropolitan City, Nepal Printed in June. 2017 Copyright ⓒ 2017. June All right reserved The contents of this catalogue and its product specification are subject to change without notice for quality improvement

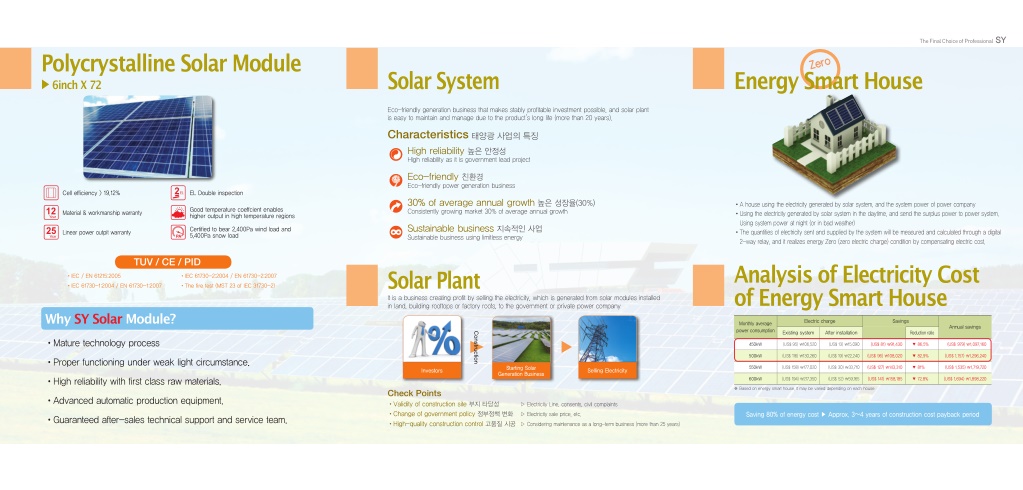

2. The Final Choice of Professional SY 0 Polycrystalline Solar Module ▶ 6inch X 72 Zero Solar System Energy Smart House Eco-friendly generation business that makes stably profitable investment possible, and solar plant is easy to maintain and manage due to the product’s long life (more than 20 years). Characteristics태양광 사업의 특징 High reliability 높은 안정성 High reliability as it is government lead project Eco-friendly 친환경 Eco-friendly power generation business Cell efficiency > 19.12% EL Double inspection 30% of average annual growth높은 성장율(30%) Consistently growing market 30% of average annual growth •A house using the electricity generated by solar system, and the system power of power company •Using the electricity generated by solar system in the daytime, and send the surplus power to power system. Using system power at night (or in bad weather) •The quantities of electricity sent and supplied by the system will be measured and calculated through a digital 2-way relay, and it realizes energy Zero (zero electric charge) condition by compensating electric cost. Good temperature coeffcient enables higher output in high temperature regions Material & workmanship warranty Sustainable business지속적인 사업 Sustainable business using limitless energy Certified to bear 2,400Pa wind load and 5,400Pa snow load Linear power outpit warranty TUV / CE / PID Analysis of Electricity Cost of Energy Smart House Solar Plant It is a business creating profit by selling the electricity, which is generated from solar modules installed in land, building rooftops or factory roofs, to the government or private power company •IEC / EN 61215:2005 •IEC 61730-2:2004 / EN 61730-2:2007 •IEC 61730-1:2004 / EN 61730-1:2007 •The fire test (MST 23 of IEC 31730-2) Why SY Solar Module? Electric charge Savings Monthly average power consumption Annual savings Existing system After installation Reduction ratio Construction •Mature technology process ▶ ▶ 450kW (US$ 81) ₩91,430 ▼ 86.5% (US$ 979) ₩1,097,160 (US$ 95) ₩106,520 (US$ 13) ₩15,090 500kW (US$ 96) ₩108,020 ▼ 82.9% (US$ 1,157) ₩1,296,240 (US$ 116) ₩130,260 (US$ 19) ₩22,240 •Proper functioning under weak light circumstance. 550kW (US$ 127) ₩143,310 ▼ 81% (US$ 1,535) ₩1,719,720 (US$ 158) ₩177,020 (US$ 30) ₩33,710 Starting Solar Generation Business Investors Selling Electricity •High reliability with first class raw materials. 600kW (US$ 141) ₩158,185 ▼ 72.8% (US$ 1,694) ₩1,898,220 (US$ 194) ₩217,350 (US$ 52) ₩59,165 ❖ Based on energy smart house. It may be varied depending on each house Check Points •Validity of construction site 부지 타당성 •Change of government policy 정부정책 변화 •High-quality construction control 고품질 시공 ▷ Considering maintenance as a long-term business (more than 25 years) •Advanced automatic production equipment. ▷ Electricity Line, consents, civil complaints Saving 80% of energy cost ▶ Approx. 3~4 years of construction cost payback period ▷ Electricity sale price, etc. •Guaranteed after-sales technical support and service team.
