slide1

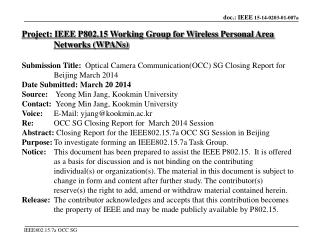

Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs)

Submission Title:Optical Camera Communication(OCC) SG Closing Report for Beijing March 2014

Date Submitted: March 20 2014

Source: Yeong Min Jang, Kookmin University

Contact: Yeong Min Jang, Kookmin University

Voice: E-Mail: yjang@kookmin.ac.kr

Re:OCC SG Closing Report for March 2014 Session

Abstract: Closing Report for the IEEE802.15.7a OCC SG Session in Beijing

Purpose: To investigate forming an IEEE802.15.7a Task Group.

Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein.

Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15.

slide2

15.7a OCC SG Second Meeting, Beijing

Closing Report20 March, 2014

purpose of occ study group

IEEE P802.15.7a OCC SG is studying applications and technology in support of creating a PAR and a CSD for creating a task group to write an air interface standard that supports the transmission of data by modulated lights that can be received and processed via an image sensor.

This project will amend the IEEE 802.15.7 standard for implementing OCC for scalable data rate, message broadcasts and localization (or positioning) via lighting sources such as flash light, display, LED Tag, and LED/Laser sources as the prospective transmitting and receiving devices such as camera.

Purpose of OCC Study Group
objective of meeting

Call for Applications about the amendment of IEEE 802.15.7 and some study items of OCC

  • Hearing of presentations about Call for application about OCC including LED-ID services and digital signage services
  • Updating the PAR and CSD
Objective of Meeting
slide5

March 2014 meeting: 5 Sessions(Mon. PM2, Tue AM1/AM2, and Thur. PM1/PM2)

  • Attendance: 10 attendees (Mon PM2), 12 attendees (Tue AM1), 10 attendees (Tue AM2), 9attendees (Thur. PM1), 6 attendees (Thur. PM2).
  • Discussions
    • - Discussion about the third draft PAR and CSD
  • 4. Relative Documents:
  • - Presentations
    • Contribution 1 –Draft PAR for OCC (15-14-0040-01-007a)
    • Contribution 2 - Draft CSD (5C) for OCC (15-14-0039-01-007a)
    • Contribution 3 - Geometry Scenarios for OCC Application (15-14-00164-00-007a)
    • Contribution 4- A Proposed Architecture for Short "Rolling Shutter" Messages(15-14-000171-00-007a)
    • Contribution 5 - Application of digital signal processing in high speed OCC system (15-14-000166-00-007a)
slide6

4. Relative Documents:

  • - Presentations
    • Contribution 6- Some CamCom Applications (15-14-00140-00-007a)
    • Contribution 7- Draft CSD (5C) for OCC (15-14-0039-01-007a)
slide7

- Main focus of OCC SG:

  • OCC applications (data communications, localization,
  • LoS marketing, LED-ID, information reception from
  • light sources and etc.)
  • ITS/Telematics/Air-craft based applications (Traffic control and
  • tracking, etc.)
  • Etc.
  • Discussion about PAR and CSD
  • We discussed about the PAR and CSD for OCC SG based on
  • IEEE 802.15.7. We will continue to discuss in May meeting
    • -draft PAR for OCC (15-14-0040-02-007a)
    • -draft CSD for OCC (15-14-0216-00-007a)
plans for may meeting
Plans for May Meeting

- Before May meeting: generate and circulate a

“Comment about PAR and CSD for IEEE 802.15.7a OCC ” paragraph.

- Allow Call for Applications Presentations

- Market expectations , Implementation and deployment issues

- Invite some companies: mobile operators, smart devices,

LED-ID, Lighting sources, LED digital signage, information

display, navigation etc.

- will have 4 sessions in May meeting

- Final completion of PAR and CSD for IEEE802.15.7a

sg extension request with intension to develop a par

SG Motion

    • Move to extend the study group to write a PAR for IEEE802.15.7a OCC
    • Vote: 6/0 /0
SG Extension Request with intension to Develop a PAR
ec motion

Move to extend the 802.15.7a OCC study group with the intension to write a PAR

  • Move: Yeong Min Jang (Yu Zeng)
  • Second: TeroKivinen
  • Vote:
    • Yes:23
    • No:0
    • Abstain:0
EC Motion
