Presentation Transcript
slide1

Ice Energy's Smart Grid Infrastructure

Brian Parsonnet

VP Technology, CTO

osisoft and ice energy i e
OSIsoft () and Ice Energy (i e)

i

ei + 1 = 0

“You’re Irrational!!”

“Get Real!!”

ice bear a distributed energy resource

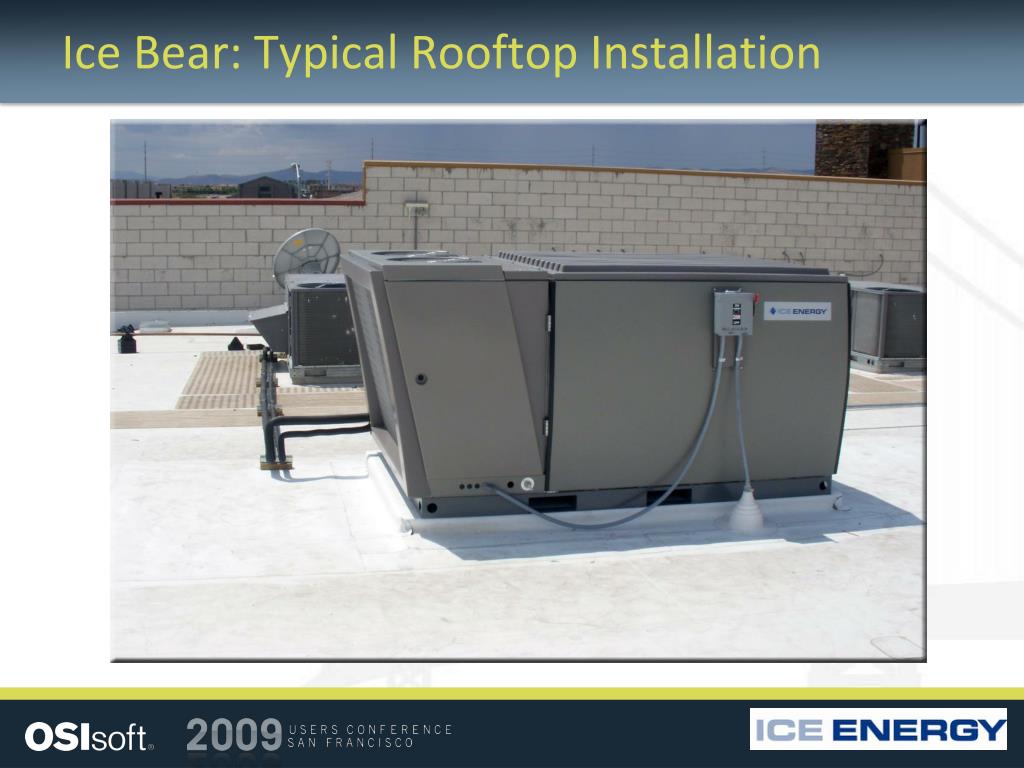

Ice Bear: A Distributed Energy Resource
  • The “Ideal Battery”
    • Reduces ~6 kW of On-Peak demand
    • Shifts 32 kWh (95%) of A/C energy to off-peak
      • 5 MWH of Peak Shift Annually
    • Reduces Carbon & NOx Emissions by ~50%
    • Consumes the same amount of energy as a standard “DX” HVAC system
  • Provides cooling for 6 – 10 hours
    • Nominal settings are from 12 noon to 6 pm (6 hours)
    • Runs autonomously, or can be remotely dispatched
  • SmartGrid Ready
    • Aggregated to Multi-MW scale
    • 100% on-line
kw demand over 24 hour cooling cycle
kW Demand over 24-Hour Cooling Cycle

Standard Cooling

(8 kW)

“Fan Only” during Ice Melt (1.7 kW)

Ice Make

Ice Make

Ice Melt Cooling

(.3 kW)

ice energy is more than just the ice bear
Ice Energy is more than just the Ice Bear
  • “The power grid is the largest machine ever made by mankind”
    • Millions of components working together, in true synchrony, yet fault tolerant
ice energy is more than just the ice bear1
Ice Energy is more than just the Ice Bear
  • Utilities have their ways of integrating and controlling this massive resource
    • Secure, complex, tightly integrated control environment
    • Historically, a “closed” architecture
  • New technologies and drivers are forcing change
    • Renewable Sources, Internet, Deregulation, Smart Devices, Open Architectures…
    • Industry response…the Smart Grid.
    • How we facilitate integration is critical to large scale deployment
ice energy is more than just the ice bear2
Ice Energy is more than just the Ice Bear
  • Integrating at the device level is difficult
    • Burdened with communication, safety, control, and security issues
      • Smart Meter, PCT, RAS, Local Generation examples
      • The Ice Bear has avoided these issues, as a device behind the meter
    • Influx of new players to address this problem
      • We can anticipate 20 years of development, new standards, changing industry structure
  • Integrating within SCADA is comparatively easy
    • Supervisory Control is common, and easily integrated
    • Data Historians are a ubiquitous tool for Data Access

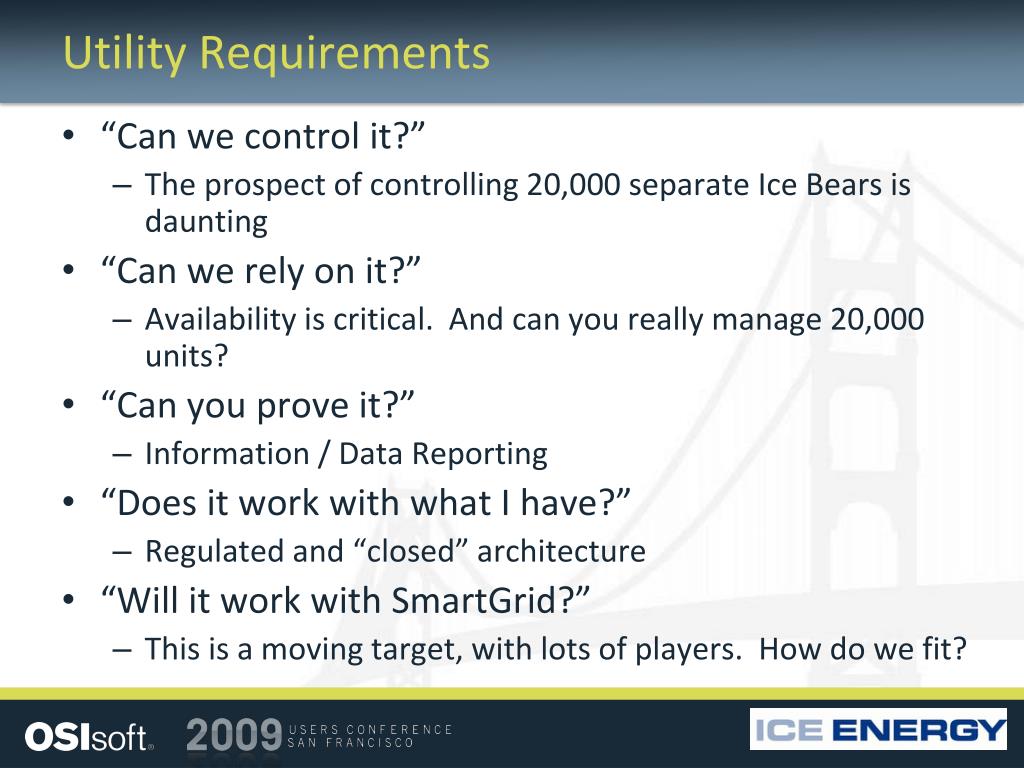

utility requirements
Utility Requirements
  • “Can we control it?”
    • The prospect of controlling 20,000 separate Ice Bears is daunting
  • “Can we rely on it?”
    • Availability is critical. And can you really manage 20,000 units?
  • “Can you prove it?”
    • Information / Data Reporting
  • “Does it work with what I have?”
    • Regulated and “closed” architecture
  • “Will it work with SmartGrid?”
    • This is a moving target, with lots of players. How do we fit?
ice energy utility solution
Ice Energy Utility Solution
  • Integrate simply with utility SCADA Systems (Supervisory Control And Data Acquisition)
    • Supervisory Control
      • Phase 1: Utility defines standard Ice Bear Operation
      • Phase 2: Utility modifies control strategy monthly, weekly, daily, or hourly
        • Provide an interface as per each utility’s needs
    • Data Acquisition
      • Provide PI connectivity to the utility to serve results
      • Connects securely, seamlessly to our server
  • Utility middleware is bypassed
    • Reducing risk, constraints, complexity, and time
ice energy software infrastructure
Ice Energy Software Infrastructure

User Interface (Computer, hand-held, phone)

Utilities, Users, Field Service, Vendors, Builders…

Presentation Layer

Visualization, Presentation Logic

Security, Personality

Web Portal

Integration (Utilities, Service, Market Data)

M&V, Diagnostics, Analytics, DER Optimization

Business Automation (Billing, Reporting…)

Business Logic

Data Historian, Customer Configuration & Rules,

Service Records, Tariffs, ETL, …

Database

Field Data Access

Data Upload, Control, Programming, Configuration

Ice Bear & 3rd Party Asset Control, Data Logging

HVAC & FMS Integration, Field Network Integ.

CoolData Controller

Field Assets

Ice Bear & 3rd Party Assets

ice energy software technologies
Ice Energy Software Technologies

Presentation Layer

Microsoft, Apple

Web Portal

LogiFusion, .NET 3.5

Business Logic

Analytica, Ultimus, Microsoft

Database

OSISoft PI, Sharepoint, SQL, Solomon

Field Data Access

SQL Server, Custom Drivers

CoolData Controller

NI Lab View, Lua, C, C++, …

Field Assets

Ice Bear & Customer Assets

slide14

Works™ Studio

  • Designer Tools
  • Design
  • Model
  • Deploy
  • Works™ Solutions
  • Application Portal
  • Works™ Manage
  • Application Management Tool
  • Manage
  • Monitor

LogiWorks™ Application Server

Monitoring Services

Application

Framework

Services

User

Interaction

Services

Information Services

ProcessServices

Community Services

Works

Portal™

Business Application

Services

Works

Modules™

Business Presentation

Services

Works

Services™

Business Information Services

Works

Process™

Business

Process

Services

Works Integration™

Business Integration Points

Works™ Messaging

Application Access Services

Data Central Services

Operational Systems

Works™Office Integration

Works™DataPortal

Works™ System Integration

Enterprise applications

Device data

Enterprise data

cooldata smartgrid controller
CoolData® SmartGrid Controller

“SmartGrid” ready

Network communications

Local scheduling and remote dispatch

Direct load control for demand response of other building assets

Real-time status, sub-metering, and data monitoring of customer equipment

Performance analysis and automated diagnostics

Configuration management

Physical & Cyber security

  • 1-Wire Dallas Sensor Network
  • NI LabVIEW Application Layer
  • Web Server
  • OSIsoft, PI Enterprise Layer

The CoolData Controller is part of the CoolData Network

osisoft s pi system
OSIsoft’s PI system
  • Power Generation, Transmission & Distribution
    • 100% of US ISOs
    • 50% of the mid and large sized power producers
    • Over 200 GW of total 350 GW average power generated & transmitted in US daily is monitored by PI software
    • Over 50% of ITOs
    • Heavily involved in SmartGrid
  • PI Features
    • Can process 20,000,000 continuous data streams
    • Stores 250,000 events per second
    • Serves 8,000,000 points per second to clients and other applications
  • Architecture
    • Uptime 99.995% (100% with 3-server collective)
    • Shadow Servers for auto-replication at remote locations
osisoft pi at ice energy
OSIsoft PI at Ice Energy
  • Ice Energy PI Infrastructure: Reliable, Scalable
    • Heart of Ice Energy’s CoolData Architecture
    • Supports 30,000 On-line Users
    • Supports 100 GW of Ice Bear distributed resource
    • Supports on-site shadow servers at utilities for local data access
  • Strategic Relationship
    • Ice Energy and OSIsoft entered into an Enterprise Licensing Agreement Dec ’07
    • Unlimited use of OSIsoft technologies
    • Proactive monitoring of the PI infrastructure by OSIsoft
    • Access to OSIsoft’s Center of Excellence
pi is at the heart of the cooldata system
PI is at the heart of the CoolData system

Portal

Workflow

Marketing

Data Viewer

Monitoring

& Diags

OSIsoft PI

Customer /

Site DB

CoolData

Server

Scheduler,

Optimizer

CoolData

Controller

FMS

Service

monitoring diagnostics
Monitoring & Diagnostics

Raw & Cleansed Data (PI)

Absolute Sensor Limits (ACE)

Op Mode (ACE)

Modal Sensor Limits (ACE)

PI Notifications

Application Data (AF)

KPI’s (ACE)

Auto Fault Diagnostics

monitoring
Monitoring

Upper Bound

Signal

Lower Bound

our infrastructure is scada compatible
Our Infrastructure is SCADA compatible

Presentation Layer

Corporate Apps

PN

Web Portal

Supervisory

Control, M&V

Utility

Soltn

Business Logic

IE Lan

Database

PI

DER Optimizer

PI

Field Data Access

Comm Server

Internet, Wireless, BPL

Field Controller

CoolData Controller

LT

Field Networks

Field Assets

Non-IED

IEDs

diagnostic migration
Diagnostic Migration
  • Phase 1
  • Remote engineer creates off-line tool
  • Results daily / weekly

Presentation Layer

Web Portal

  • Phase 2
  • Algorithm moves to the server, applied to all units
  • Results are hourly

Business Logic

Database

Field Data Access

  • Phase 3
  • Algorithm moves to the CoolData Controller
  • Results are immediate

CoolData Controller

Field Assets

der control phase 1 autonomous
DER Control: Phase 1 – Autonomous

1) Utility defines operating schedule

Presentation Layer

5) Utility dashboard

Web Portal

Business Logic

2) CoolData infrastructure distributes configurations

Database

4) CoolData M&V

Field Data Access

CoolData Controller

3) Units control themselves, as per daily schedule

Field Assets

der control phase 2 scada
DER Control: Phase 2 – SCADA

Presentation Layer

Web Portal

Business Logic

Database

Field Data Access

CoolData Controller

Field Assets

6) Utility creates special loading orders, as needed

  • Utility issues loading order:
  • For immediate or scheduled deployment
  • Shed or add load
  • Scoped by region, transmission, other…
  • Temporary or permanent changes

10) Utility reporting

7) DER Optimizer determines method, and acknowledges orders

  • DER Optimizer understands:
  • GIS and T&D locations
  • Maintenance / operational status
  • Customer imposed restrictions
  • Historical performance / expectation
  • Communication limitations
  • Additional DR assets

9) CoolData M&V

8) Units override default behavior as per request

large scale utility requirements
Large Scale Utility Requirements
  • “Can we control it?”
    • Phase 1: Utility provides nothing more than a standard operating schedule
    • Phase 2: We provide a Supervisory Control interface to the utility, designed to meet their specific needs
  • “Can we rely on it?”
    • OSIsoft is a proven reliable backbone, already vetted and accepted by the utility industry.
    • Ice Bear reliability has been proven in Utility-sponsored pilots and customer installations
  • “Can you prove it?”
    • You have all your data via a dedicated PI Server at your site.
  • “Does it work with what I have?”
    • Our solution integrates PI-to-PI, and does not require integration to SCADA middleware. In fact, we enable a faster, easier path for connectivity to additional DSM resources.
  • “Will it work with SmartGrid?”
    • Yes. We don’t impose ourselves on the architecture, rather, we are designed to fill in the gaps and dovetail with what exists.
thank you

Thank You

Questions?
