Presentation Transcript

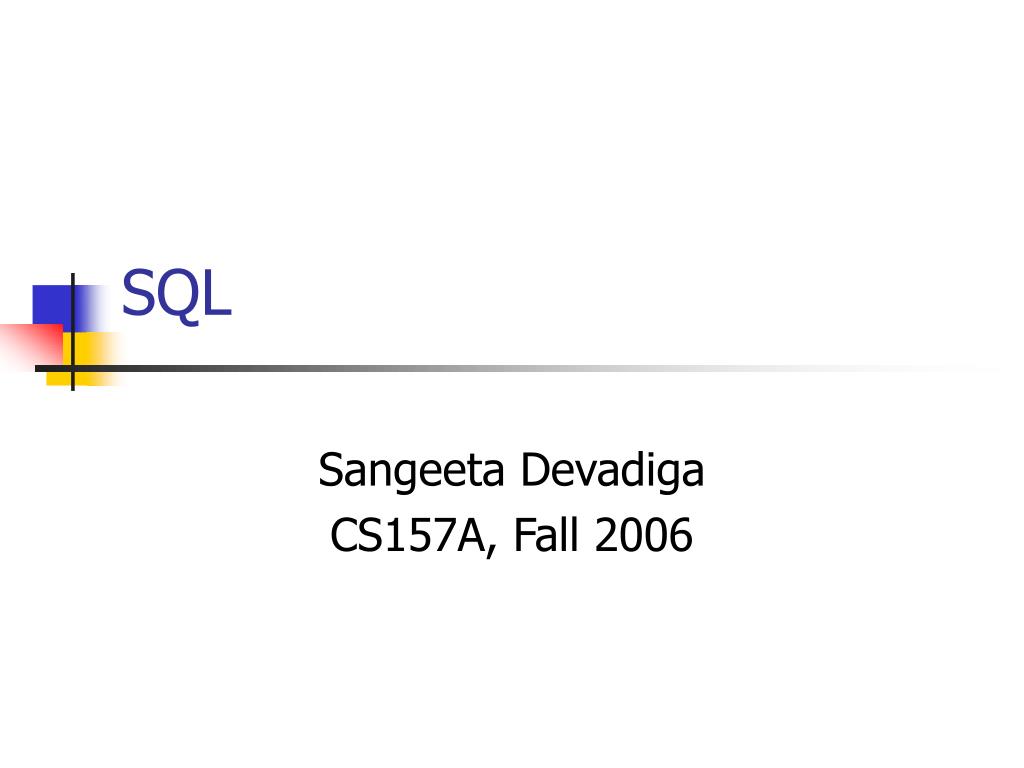

slide1

SQL

Sangeeta Devadiga

CS157A, Fall 2006

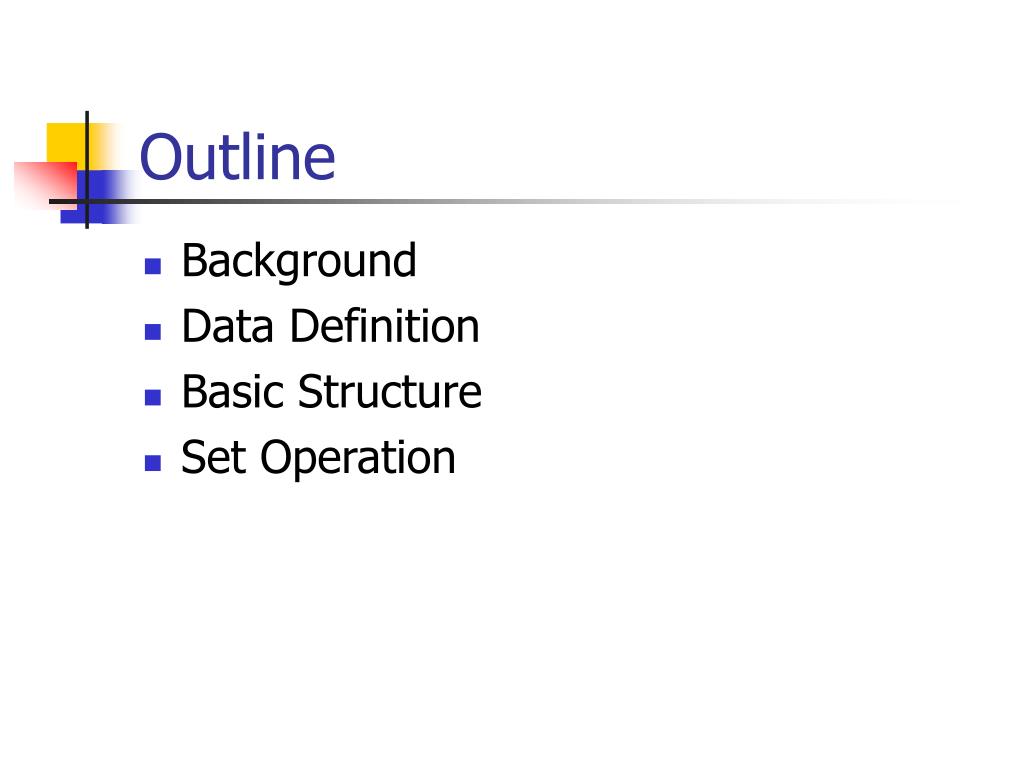

outline
Outline
  • Background
  • Data Definition
  • Basic Structure
  • Set Operation
background
Background
  • IBM developed the original version

named sequel in early 1970’s

  • Sequel language has evolved into SQL
  • SQL (Structured Query Language)

Versions of SQL

SQL 92

SQL 99

SQL 2003 (latest version)

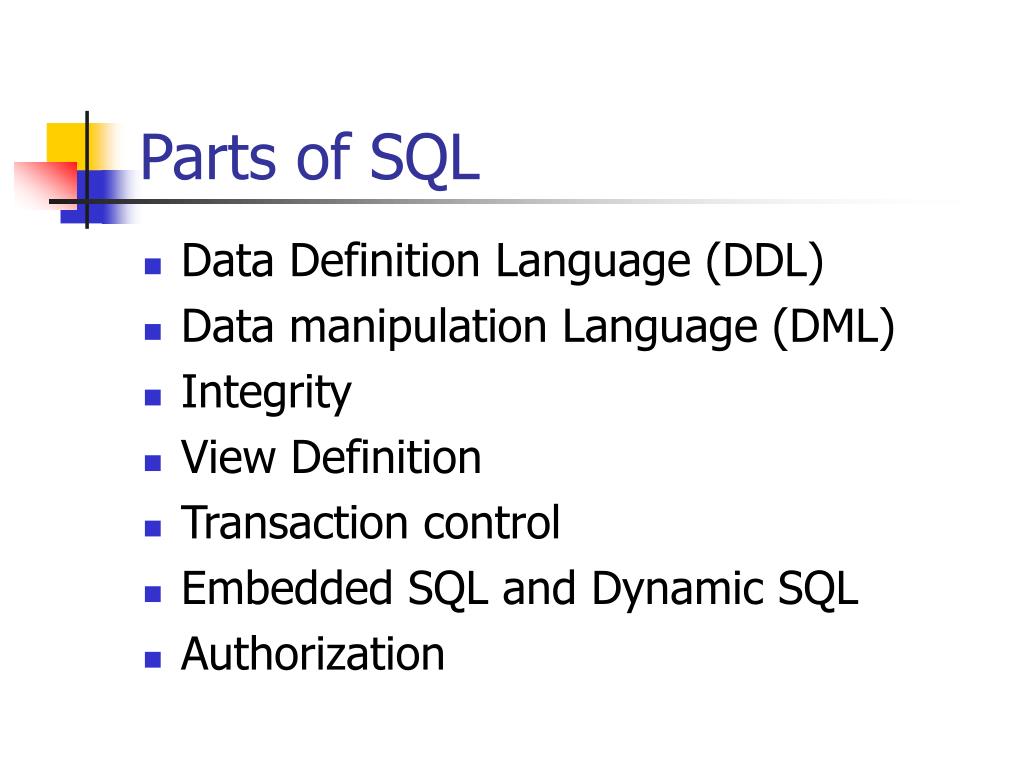

parts of sql
Parts of SQL
  • Data Definition Language (DDL)
  • Data manipulation Language (DML)
  • Integrity
  • View Definition
  • Transaction control
  • Embedded SQL and Dynamic SQL
  • Authorization

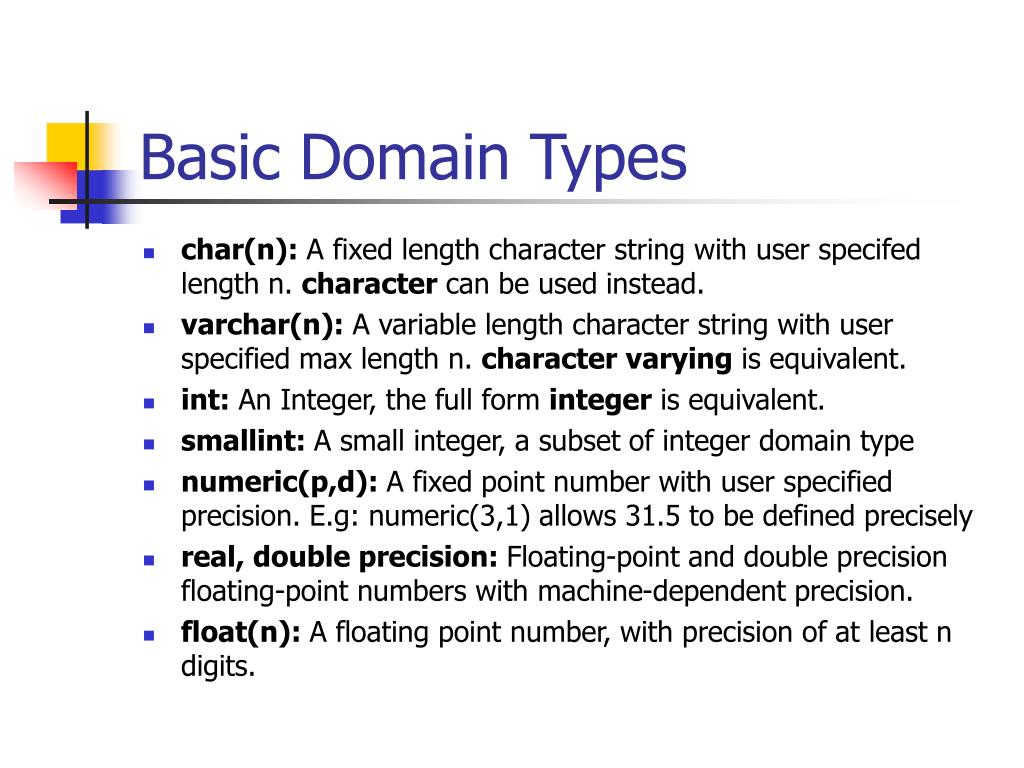

basic domain types
Basic Domain Types
  • char(n): A fixed length character string with user specifed length n. character can be used instead.
  • varchar(n): A variable length character string with user specified max length n. charactervarying is equivalent.
  • int: An Integer, the full form integer is equivalent.
  • smallint: A small integer, a subset of integer domain type
  • numeric(p,d): A fixed point number with user specified precision. E.g: numeric(3,1) allows 31.5 to be defined precisely
  • real, double precision: Floating-point and double precision floating-point numbers with machine-dependent precision.
  • float(n): A floating point number, with precision of at least n digits.

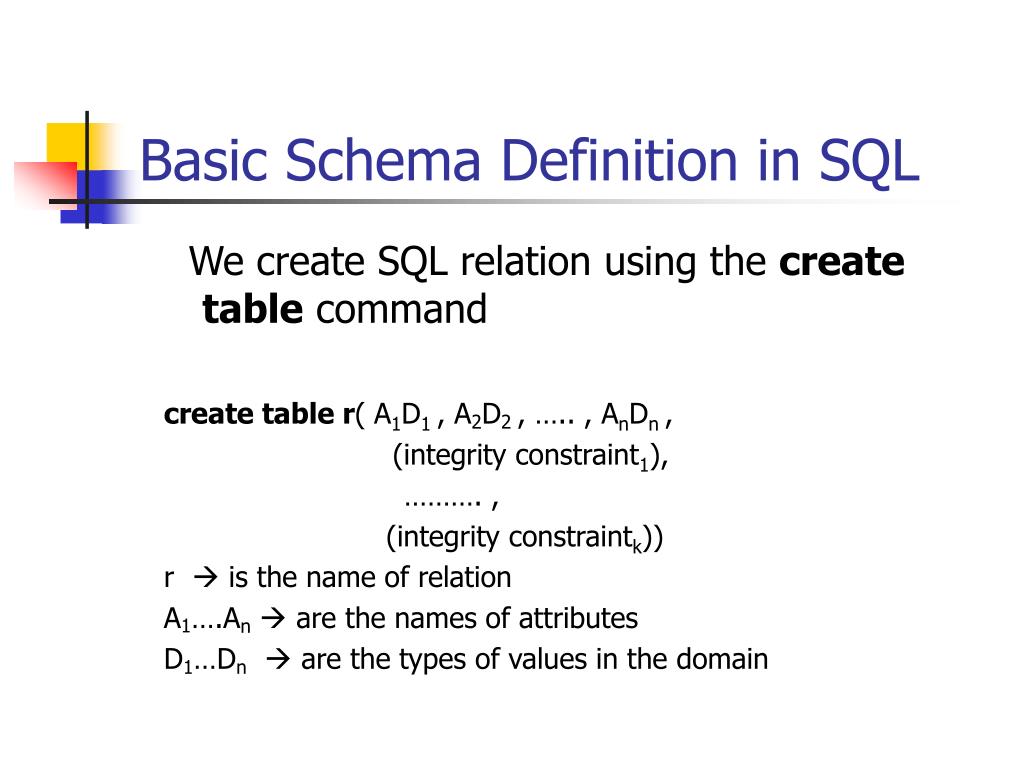

basic schema definition in sql
Basic Schema Definition in SQL

We create SQL relation using the create table command

create table r(A1D1 , A2D2, ….. , AnDn ,

(integrity constraint1),

………. ,

(integrity constraintk))

r  is the name of relation

A1….An  are the names of attributes

D1…Dn  are the types of values in the domain

examples create table

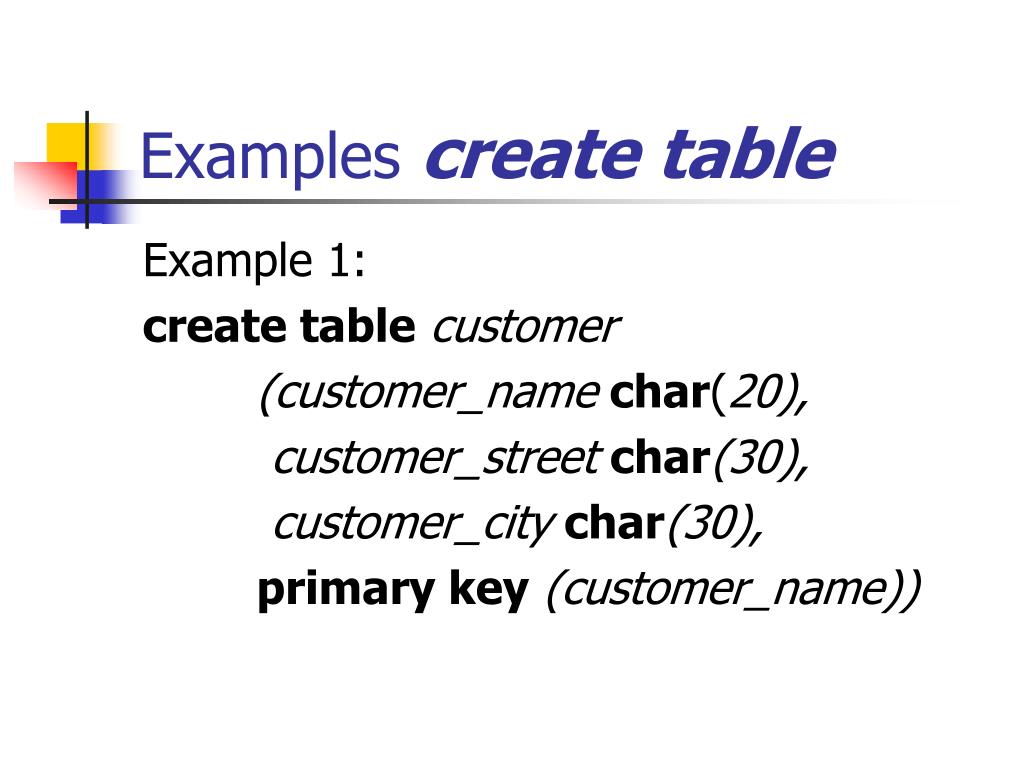

Examples create table

Example 1:

create tablecustomer

(customer_name char(20),

customer_street char(30),

customer_city char(30),

primary key (customer_name))

example 2
Example 2

create tableaccount

(account_number char(10),

branch_name char(15),

balance numeric (12, 2),

primary key (account_number))

basic sql query structure
Basic SQL Query Structure
  • SQL is based on set and relational operations with some modification and enhancement.
  • SQL query has the form

selectA1,A2, … ,An

from r1, r2, …. ,rm

whereP

      • A1 is a attribute
      • r1 represents a relation
      • P is a predicate
  • Equivalent Query:

 A1, A2, … , An(P (r1X r2X …… X rm))

  • The result of a SQL query is a relation
example select clause

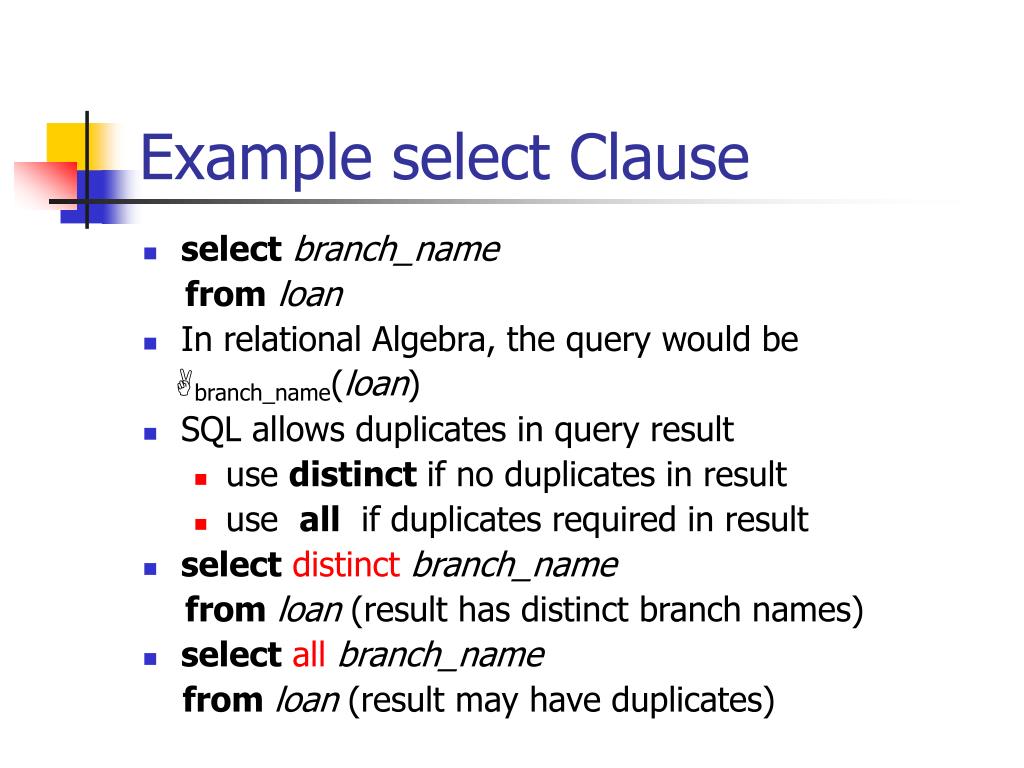

Example select Clause
  • selectbranch_name

fromloan

  • In relational Algebra, the query would be

branch_name(loan)

  • SQL allows duplicates in query result
    • use distinct if no duplicates in result
    • use all if duplicates required in result
  • selectdistinctbranch_name

from loan (result has distinct branch names)

  • selectallbranch_name

from loan (result may have duplicates)

where clause
Where Clause
  • Corresponds to the selection predicate of relational algebra
  • To find loan numbers for loans made at San Jose

branch with loan amounts greater than $500

selectloan_number

fromloan

wherebranch_name = “San Jose” and amount > $500

  • Comparison result can be combined with logical connectives and, or, and not
  • SQL includes between comparison operator
  • To find loan numbers between amt. 900 and 10,000

select loan_number

from loan

whereamount between 900 and 10000

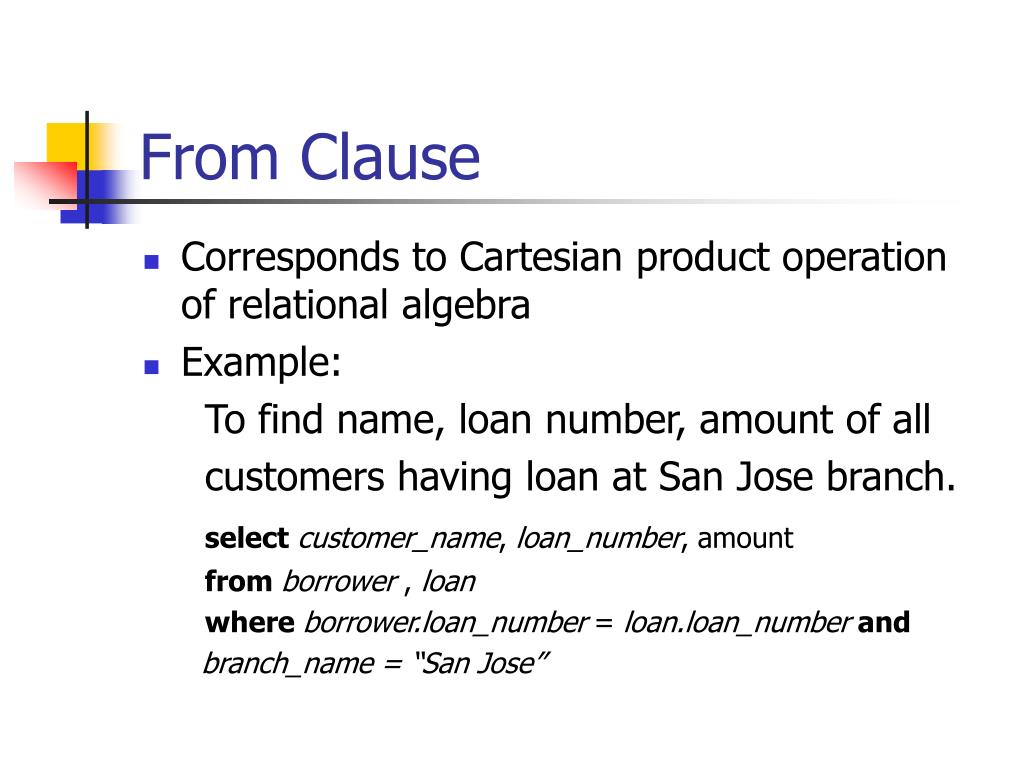

from clause
From Clause
  • Corresponds to Cartesian product operation of relational algebra
  • Example:

To find name, loan number, amount of all

customers having loan at San Jose branch.

selectcustomer_name, loan_number, amount

from borrower , loan

where borrower.loan_number=loan.loan_number and

branch_name = “San Jose”

rename
Rename
  • SQL allows renaming relations and attributes using as clause
  • Example:

To find name, loan_number, amount

of all customers and rename column

loan_number as loan_id.

selectcustomer_name, loan_number as loan_id, amount

from borrower , loan

where borrower.loan_number=loan. loan_number

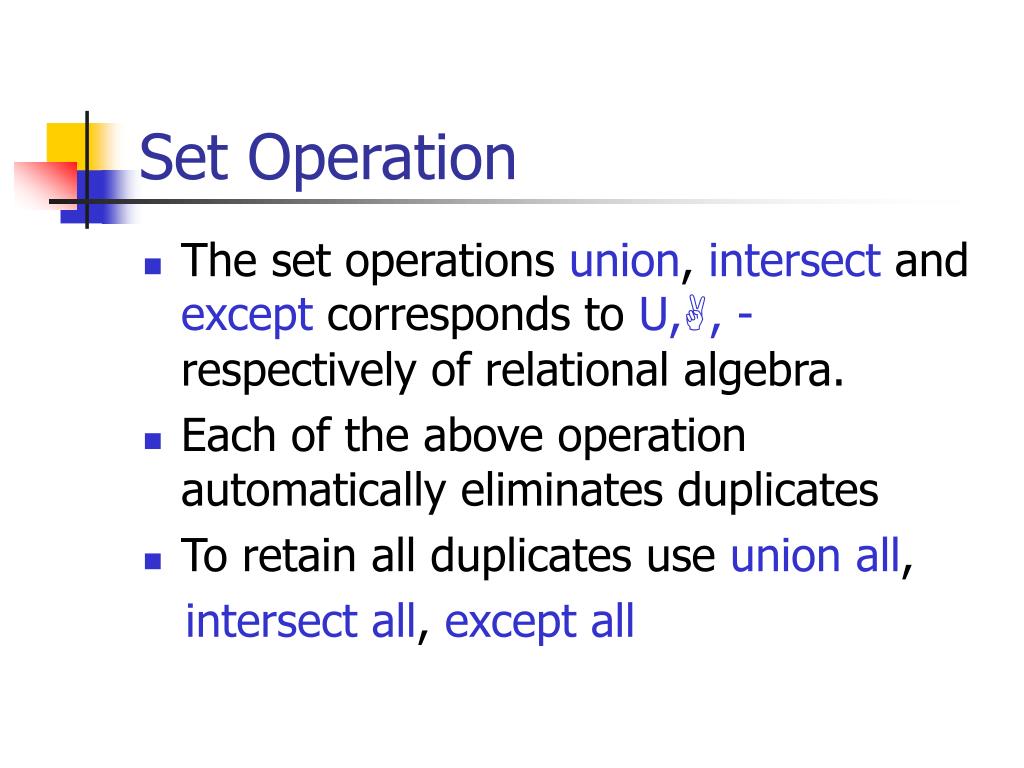

set operation
Set Operation
  • The set operations union, intersect and except corresponds to U,, - respectivelyof relational algebra.
  • Each of the above operation automatically eliminates duplicates
  • To retain all duplicates use union all,

intersect all, except all

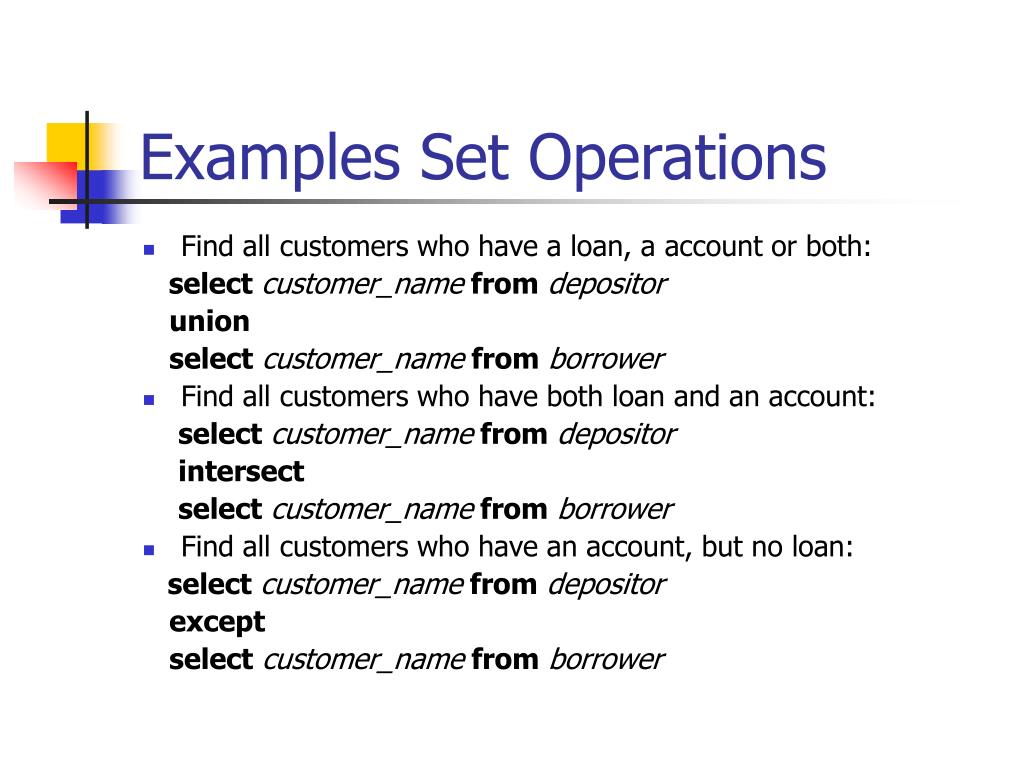

examples set operations
Examples Set Operations
  • Find all customers who have a loan, a account or both:

selectcustomer_namefromdepositor

union

selectcustomer_namefromborrower

  • Find all customers who have both loan and an account:

selectcustomer_namefromdepositor

intersect

selectcustomer_namefromborrower

  • Find all customers who have an account, but no loan:

selectcustomer_namefromdepositor

except

selectcustomer_namefromborrower
