rna switches genetic research tools

RNA SwitchesGenetic Research Tools


1Dairy Microbiology, 2Dairy Cattle Nutrition, 4Animal Biochemistry,

National Dairy Research Institute, Karnal 132001,

Haryana, 3 Meerut Institute of Engineering and Technology, Meerut-250002, U.P., India.

Email: yadavhariom@gmail.com

role of rna inside the cell

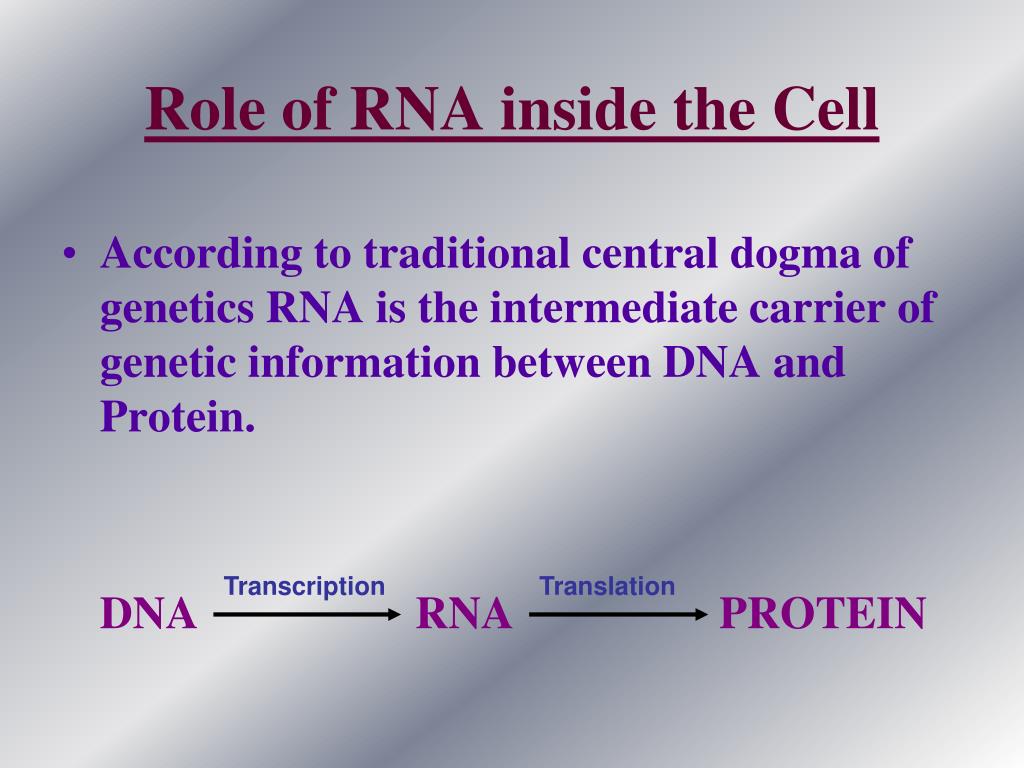

Role of RNA inside the Cell
  • According to traditional central dogma of genetics RNA is the intermediate carrier of genetic information between DNA and Protein.




new roles discovered for rna
New roles discovered for RNA
  • Certain RNA molecules, ribozymes, could catalyze biochemical reactions, a job previously thought to be the exclusive province of enzymes, which are proteins. (Kruger et al, 1980)
  • Certain RNA molecules could behave like another type of protein: antibodies. Researchers synthesized RNA molecules - now known as aptamers- that, like antibodies, can latch on tightly to specific target molecules.

(Ellington and Szostak, 1990)

  • Certain RNA sequences can directly sense environmental factors and small molecule metabolites, this allow the associated mRNA to regulate their own transcription or translation. (Breaker, 2002)
  • These self regulatory messages are called as RNA sensors and RNA switches.
rna switches
RNA Switches
  • RNA switches are mRNAs that sense the environment directly, shutting themselves down in response to particular chemical clues.
  • Breaker, Nudler, Yura and Cossart laboratories report that specific RNA sequences can act as environmental sensors of vitamin cofactors (including vitamins B1, B2 and B12) and temperature, which allow them to directly regulate the transcription or translation of associated mRNAs.

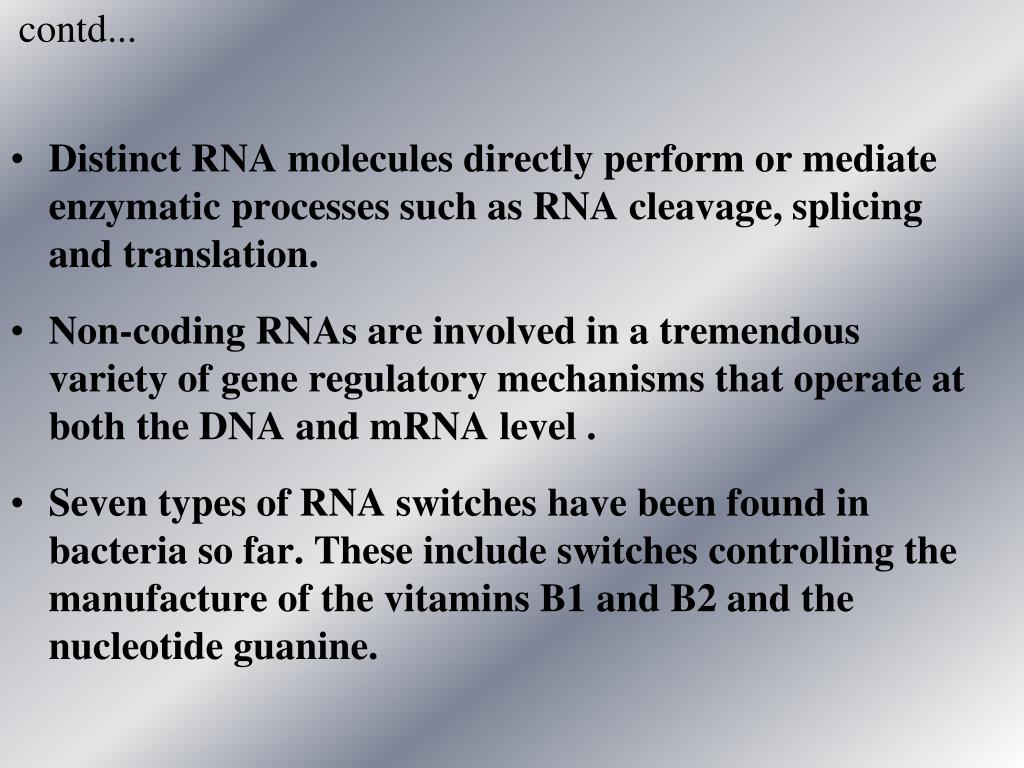

  • Distinct RNA molecules directly perform or mediate enzymatic processes such as RNA cleavage, splicing and translation.
  • Non-coding RNAs are involved in a tremendous variety of gene regulatory mechanisms that operate at both the DNA and mRNA level .
  • Seven types of RNA switches have been found in bacteria so far. These include switches controlling the manufacture of the vitamins B1 and B2 and the nucleotide guanine.
mode of action of rna switches
Mode of action of RNA Switches
  • RNA Switches can regulate gene expression at both transcription as well as translation level.
    • At transcription level they can induce premature termination of mRNA transcript.
    • At translation level the initiation of protein synthesis is stopped by these switches.
  • In certain cases RNA switches have self-cleavage property, thus regulating their own expression.
  • RNA switches can also act as thermo sensors, regulating gene expression according to the temperature change.




RNA poly.



RNA poly.

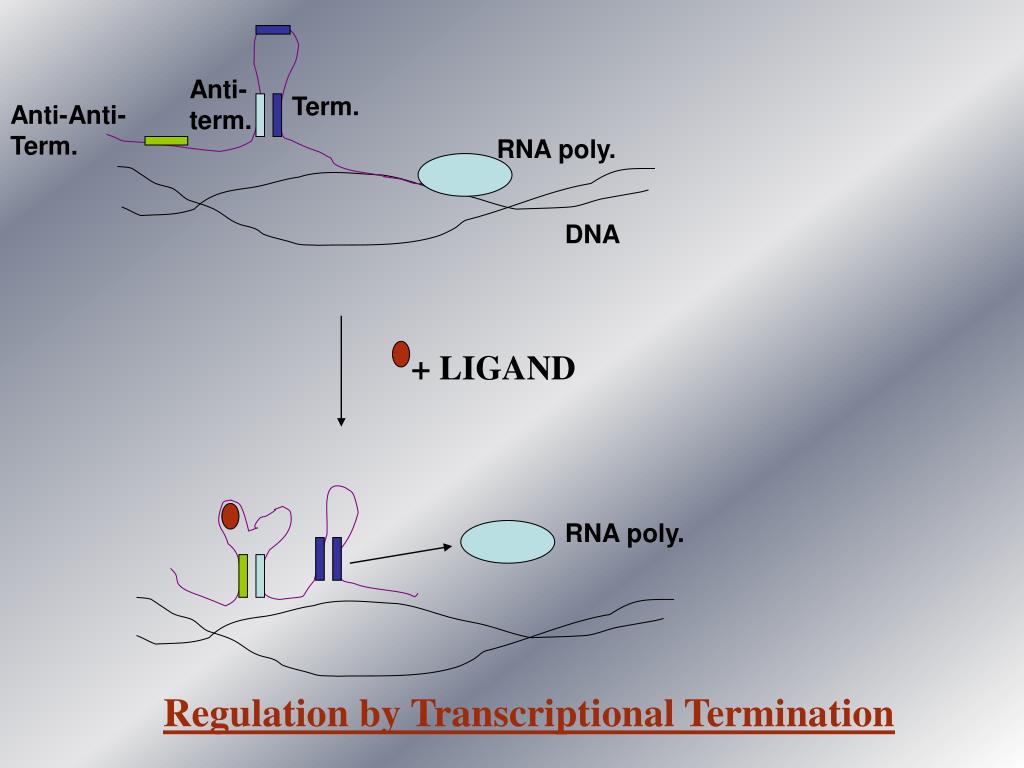

Regulation by Transcriptional Termination

examples of transcription termination mechanism
Examples of Transcription Termination Mechanism
  • Transcription termination mechanism has been reported functional in the regulation of rib and thi operon in Bacillus subtilis. (Mironova et al, 2002)
  • rib operon :- riboflavin biosynthesis.
  • thi operon :- thiamine biosynthesis.
  • In case of rib operon the 5’ Untranslated Region of the mRNA transcript can fold into two confirmations, depending upon the presence or absence of FMN.
  • In low concentration/absence of FMN the nascent transcript come out of RNA polymerase and attain a confirmation that allow the transcription to be completed.
  • In presence of FMN, it binds to the nascent transcript and transcript folds in such a way that the transcription is terminated , resulting in premature transcript which leads to no gene expression.

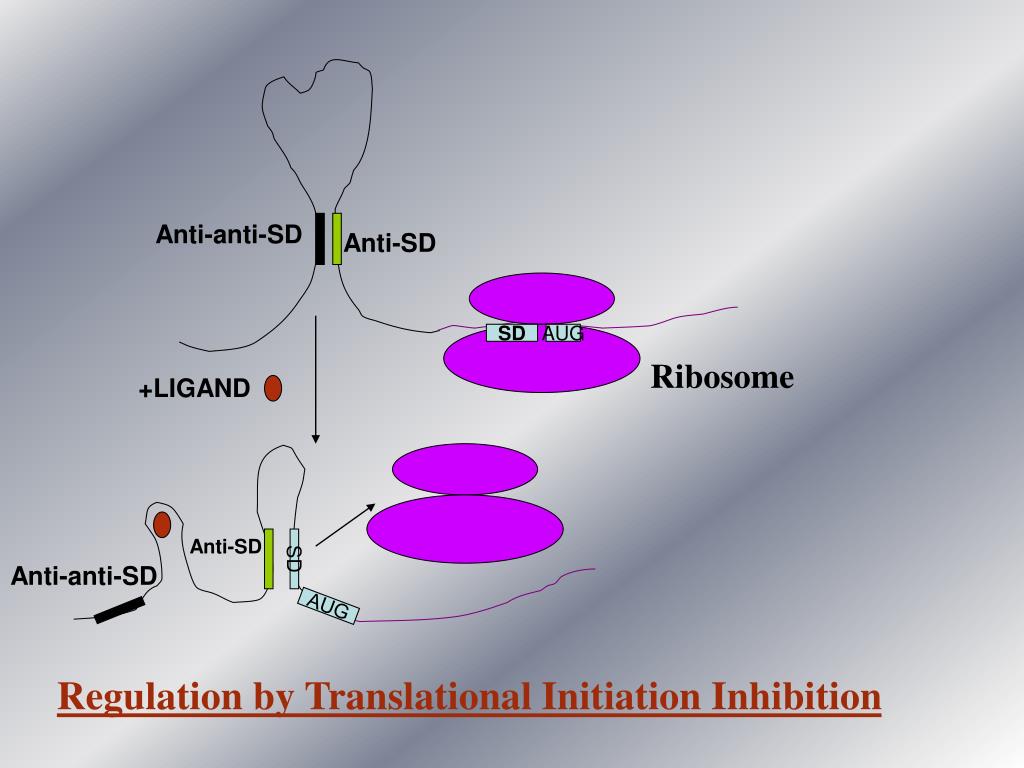

Regulation by Translational Initiation Inhibition

example of translation inhibition mechanism
Example of Translation Inhibition Mechanism
  • Translation initiation inhibition mechanism has been proposed for regulation of thiM and thiC genes required for biosynthesis of thiamin. (Mandal and Breaker, 2004)
  • The translation initiation for these genes is sensitive to the presence of thiamin.
  • Binding of thiamin to the mRNA precludes the Ribosome Binding Site from ribosome subunit access.

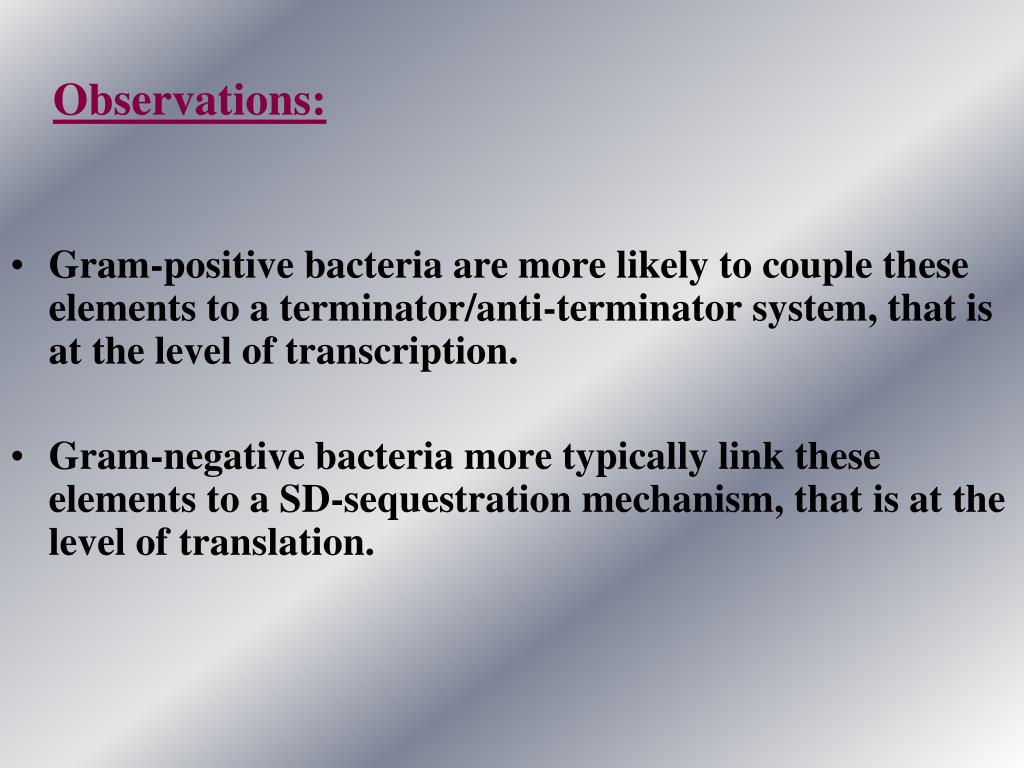

  • Gram-positive bacteria are more likely to couple these elements to a terminator/anti-terminator system, that is at the level of transcription.
  • Gram-negative bacteria more typically link these elements to a SD-sequestration mechanism, that is at the level of translation.

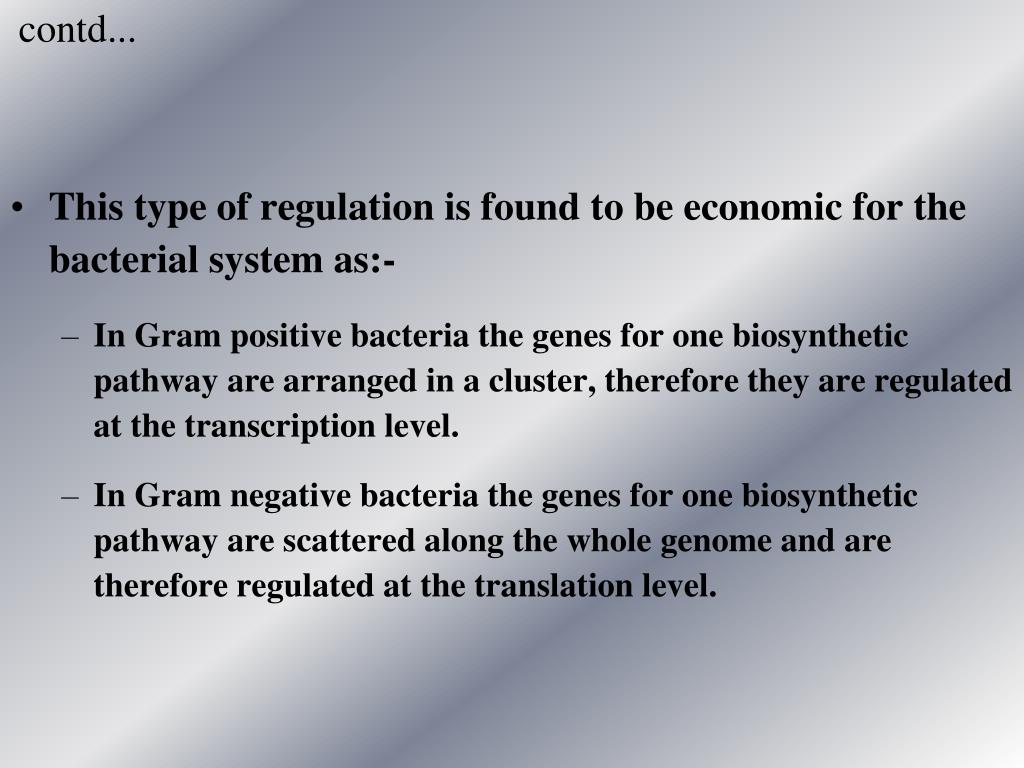

  • This type of regulation is found to be economic for the bacterial system as:-
    • In Gram positive bacteria the genes for one biosynthetic pathway are arranged in a cluster, therefore they are regulated at the transcription level.
    • In Gram negative bacteria the genes for one biosynthetic pathway are scattered along the whole genome and are therefore regulated at the translation level.
self cleavage of the rna molecules

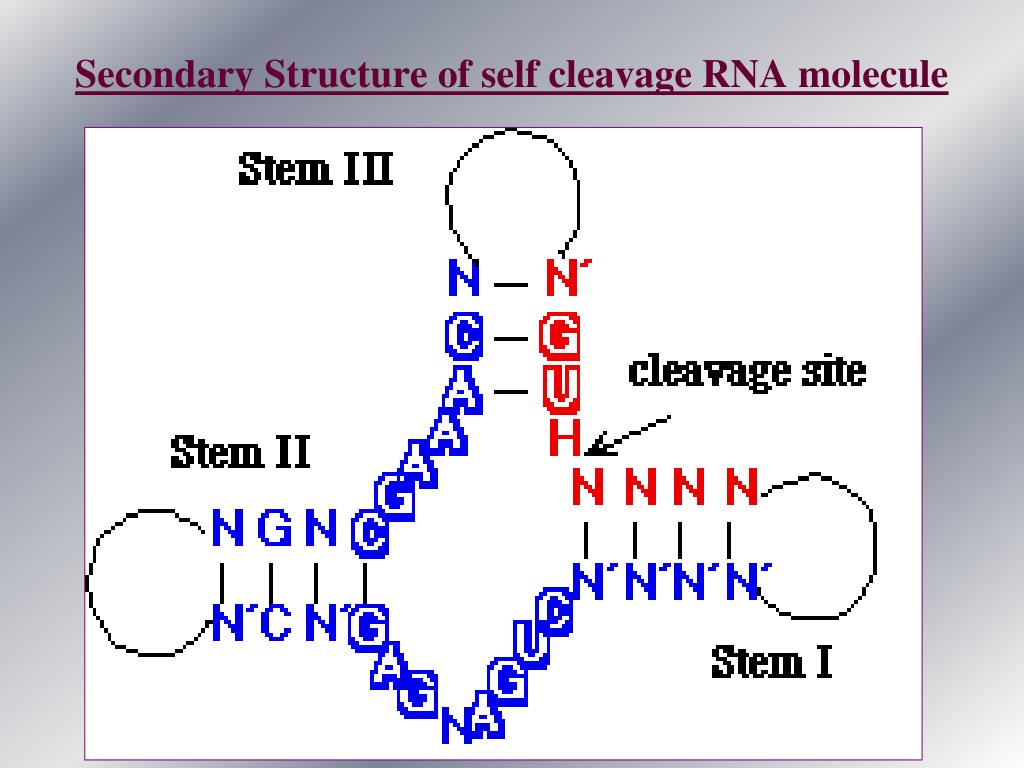

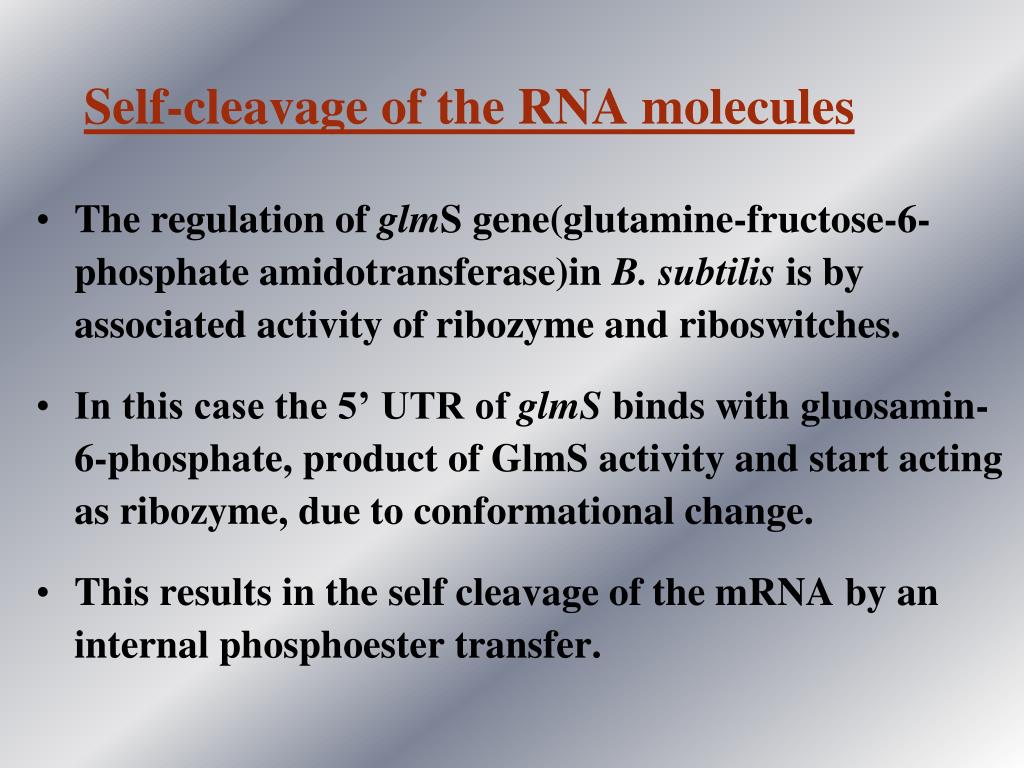

Self-cleavage of the RNA molecules
  • The regulation of glmS gene(glutamine-fructose-6-phosphate amidotransferase)in B. subtilis is by associated activity of ribozyme and riboswitches.
  • In this case the 5’ UTR of glmS binds with gluosamin-6-phosphate, product of GlmS activity and start acting as ribozyme, due to conformational change.
  • This results in the self cleavage of the mRNA by an internal phosphoester transfer.
activation of gene expression by rna thermo sensors
Activation of gene expression by RNA Thermo sensors
  • There are two well-studied examples of temperature-dependent regulation of gene expression and/or activity:-
    • during the heat shock response
    • during pathogenic invasion
  • Almost all the known thermo sensors regulate the gene expression at the translational level.

Translation regulation by an mRNA Thermo sensor





Temperature Increase



examples of rna thermo sensors
Examples of RNA Thermo sensors
  • Translation of LcrF, a general activator of virulence-related gene expression in Yersinia pestis, was found to be thermally regulated. (Hoe and Goguen, 1993)
  • A new report from the Cossart lab (2002) now provides strong evidence for an RNA thermo sensor that regulates translation of PrfA, a general activator of virulence genes in a pathogenic variety of Listeria, L. monocytogenes.
regulation of virulence gene in l monocytogenes

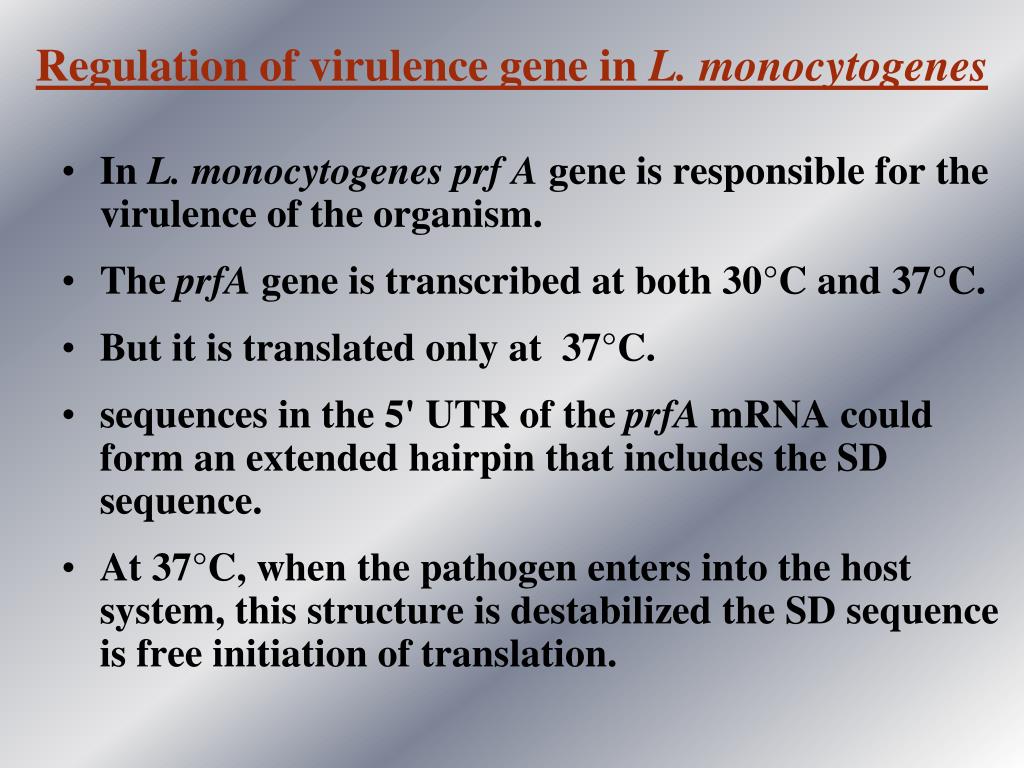

Regulation of virulence gene in L. monocytogenes
  • In L. monocytogenes prf A gene is responsible for the virulence of the organism.
  • The prfA gene is transcribed at both 30°C and 37°C.
  • But it is translated only at 37°C.
  • sequences in the 5' UTR of the prfA mRNA could form an extended hairpin that includes the SD sequence.
  • At 37°C, when the pathogen enters into the host system, this structure is destabilized the SD sequence is free initiation of translation.
advantages of rna switches for the organisms possessing them
Advantages of RNA switches for the organisms possessing them
  • Stringent control: RNA switches are very specific to their substrate. eg. recognition of TPP by THI boxes is 1000 times greater than for either thiamine or thiamine monophosphate.( Winkler et. al. 2004)
  • Ligand can be reused: Binding of the substrate to the RNA molecule is required for a short time, after this the ligand can be reused for the same or different purpose.
  • Only one gene is involved: There is no involvement of another gene product, which reduces the effect of mutation that will deregulate the mechanism.
gene expression regulation by rna in eukaryotes

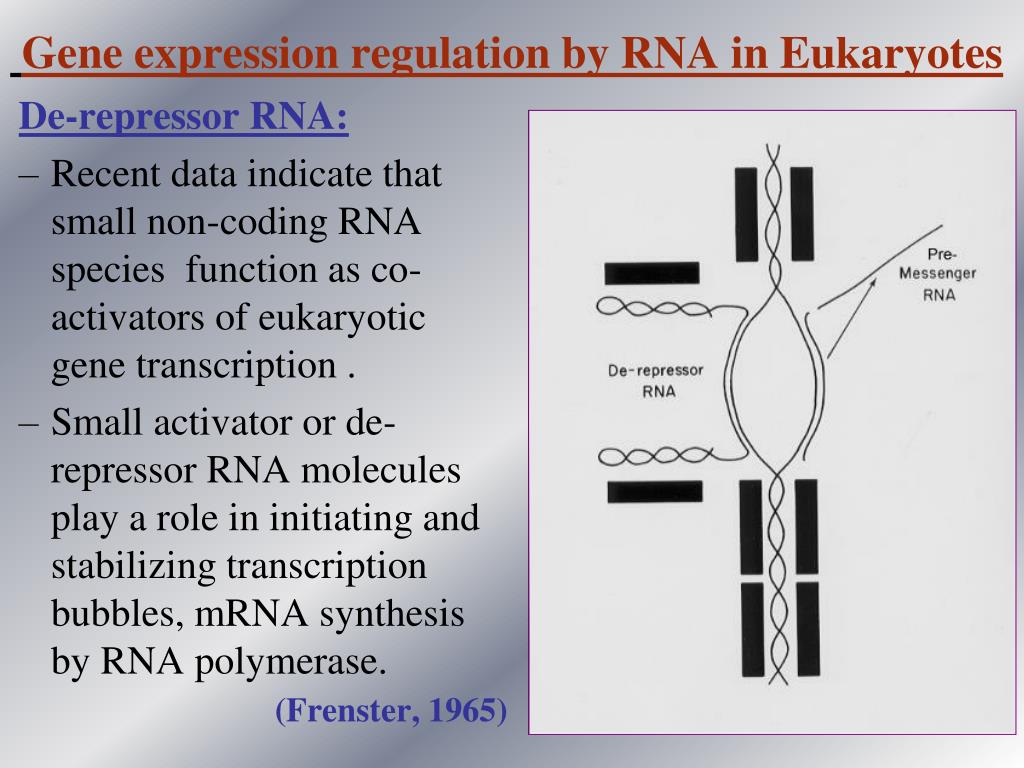

Gene expression regulation by RNA in Eukaryotes

De-repressor RNA:

  • Recent data indicate that small non-coding RNA species  function as co-activators of eukaryotic gene transcription .
  • Small activator or de-repressor RNA molecules play a role in initiating and stabilizing transcription bubbles, mRNA synthesis by RNA polymerase. (Frenster, 1965)
dsrna as a regulator of gene expression
dsRNA as a regulator of gene expression
  • ds RNA has role in several chromatin and/ or genomic DNA modifications, which lead in the regulation of specific genes.
  • ds RNA dependent mechanism can act at both transcriptional as well as post transcriptional levels.

This type of gene expression is given different names in different organisms.

  • RNA interference (RNAi) , in case of animals.
  • Post transcriptional gene silencing (PTGS) , in case of plants.
  • Quelling, in case of filamentous fungi.
other rnas involved in regulation of gene expression
Other RNAs involved in regulation of gene expression
  • micro RNA (mi RNA)- a class of noncoding small RNA identified for their role in translational repression in some animals.
  • short hairpin RNA (sh RNA)- a special class of RNA that becomes double stranded by folding of the RNA strand over itself, has been shown to be responsible for the transcriptional regulation.
applications of rna switches in genetic research

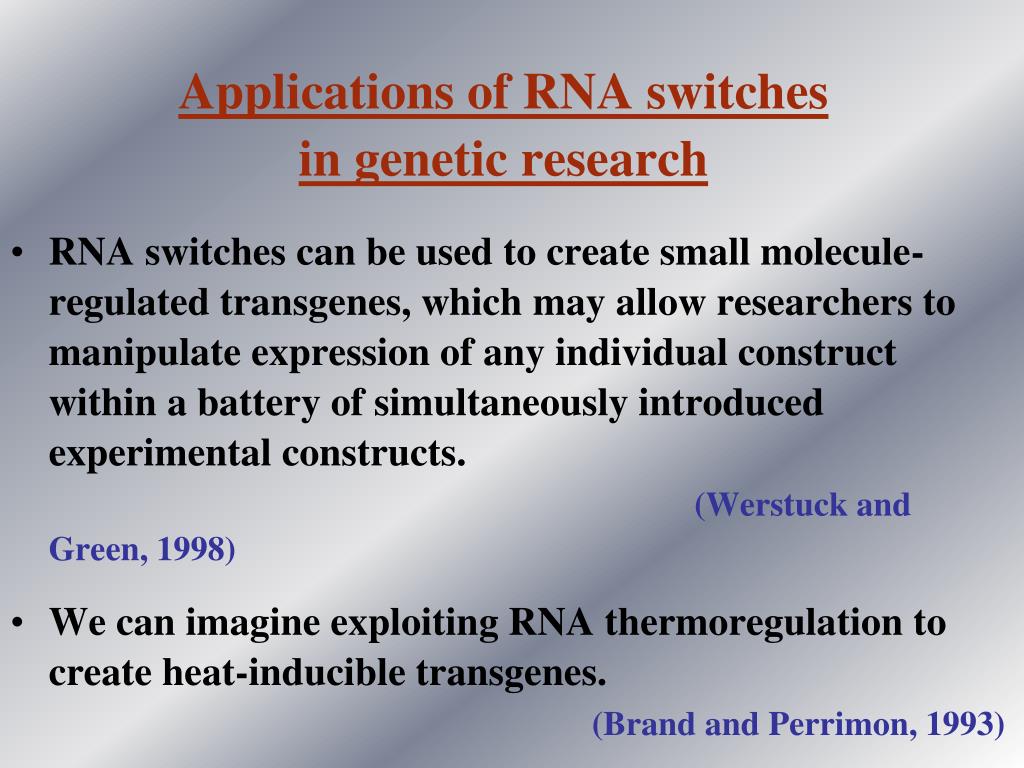

Applications of RNA switches in genetic research
  • RNA switches can be used to create small molecule-regulated transgenes, which may allow researchers to manipulate expression of any individual construct within a battery of simultaneously introduced experimental constructs. (Werstuck and Green, 1998)
  • We can imagine exploiting RNA thermoregulation to create heat-inducible transgenes. (Brand and Perrimon, 1993)
Aptamers have been placed within 5' UTRs and shown to inhibit gene expression upon introduction of the appropriate ligand.(Werstuck and Green, 1998)

Self-cleaving RNAs can be placed under allosteric control by various small molecules, which can then be used to analyze the composition of chemical and biological mixtures .(Seetharaman et al, 2001)

RNA switches can be used in gene therapy, allowing the patient to take pills to switch introduced gene on or off.


  • It may be possible to design drugs using RNA switches’ cognate ligands that would constitutively repress associated gene activity.
    • Such compounds would efficiently inhibit bacterial growth by simultaneously repressing multiple components in a given biosynthetic/metabolic/transport pathway.
    • Such compounds might be likely to have relatively low toxicity, as they would be designed to target RNA, not protein.
rna on a chip
RNA on a Chip
  • In 1995, Breaker successfully engineered RNA-based molecular switches.
    • A molecular switch is a molecule that turns on or off by another molecule or compound.
  • With dozens of these switches on hand, Breaker created an array of biosensors that use RNA to measure or detect compounds.

RNA Biochips

An array of RNA molecular switches constructed using seven distinct effector-modulated ribozymes based on the hammerhead self-cleaving RNA.

array for rna
Array for RNA
  • Breaker placed the RNA switches on a gold-coated silicon surface and arranged them in clusters.
  • Each switch was designed to bind only to a specific molecule its “target” and then to release a signal that identifies the target molecule. (In the prototype, the switches released a radioactive signal.)
  • This array of RNA switches was tested on a variety of complex mixtures. In one experiment different strains of E. coli found in bacterial cultures were successfully identified.
The array's ability to simultaneously identify a potentially large number of compounds, combined with the precise exclusivity of each switch, adds up to a recipe for a powerful and wide-ranging laboratory on a dime-sized slice of silicon.
rna super chip
RNA Super chip
  • Future RNA chips, capable of revealing the molecular composition of complex mixtures-like blood serum and industrial waste-far more comprehensively than current biochips can be synthesized.
  • Advanced versions of RNA biochip could be used for many different targets like drugs, toxins and metabolites, as well as proteins and nucleic acids.
benefit of using rna biochip

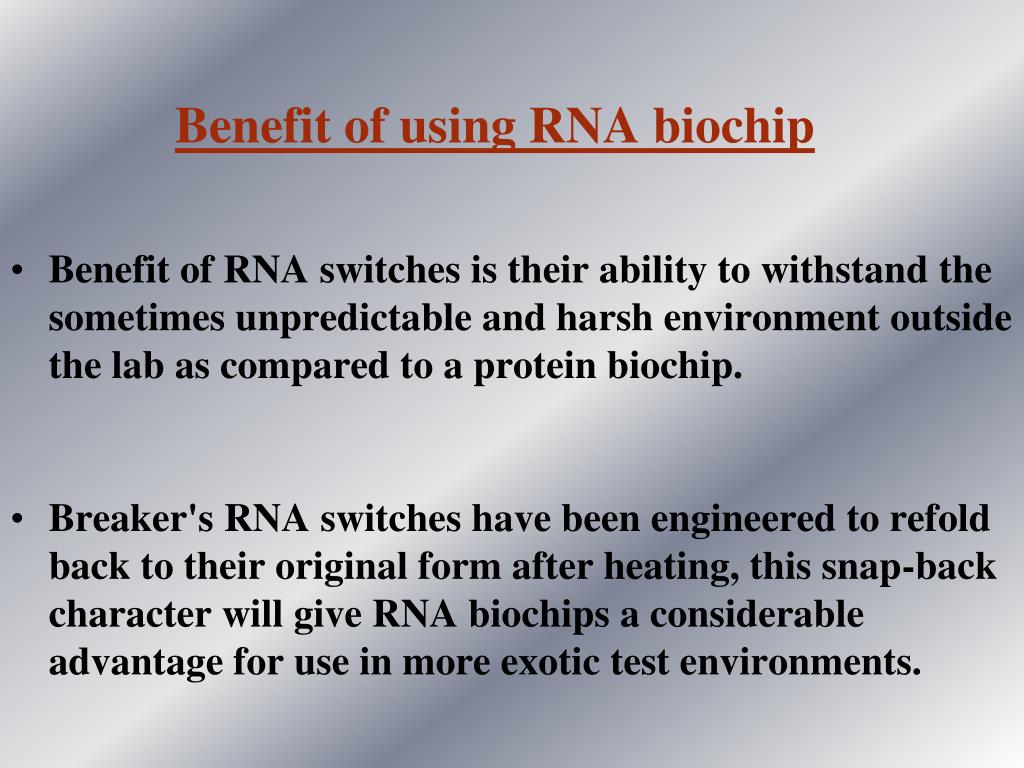

Benefit of using RNA biochip
  • Benefit of RNA switches is their ability to withstand the sometimes unpredictable and harsh environment outside the lab as compared to a protein biochip.
  • Breaker's RNA switches have been engineered to refold back to their original form after heating, this snap-back character will give RNA biochips a considerable advantage for use in more exotic test environments.
  • Manufacturing costs .
  • The chemical stability of the switches .RNA is vulnerable to certain chemicals often found in test situations that can disintegrate a switch.
  • The finer points of molecular recognition .
  • This technology is so new that it is unclear just how many different compounds it will prove possible to recognize .
future prospects
Future Prospects
  • RNA switches must be engineered to release a fluorescent, rather than a radioactive signal.
  • Use of an RNA chip in diverse fields like chemical engineering, environmental science, and even biological and chemical warfare defense.
  • Use of RNA chip in the detection and identification of pathogens.

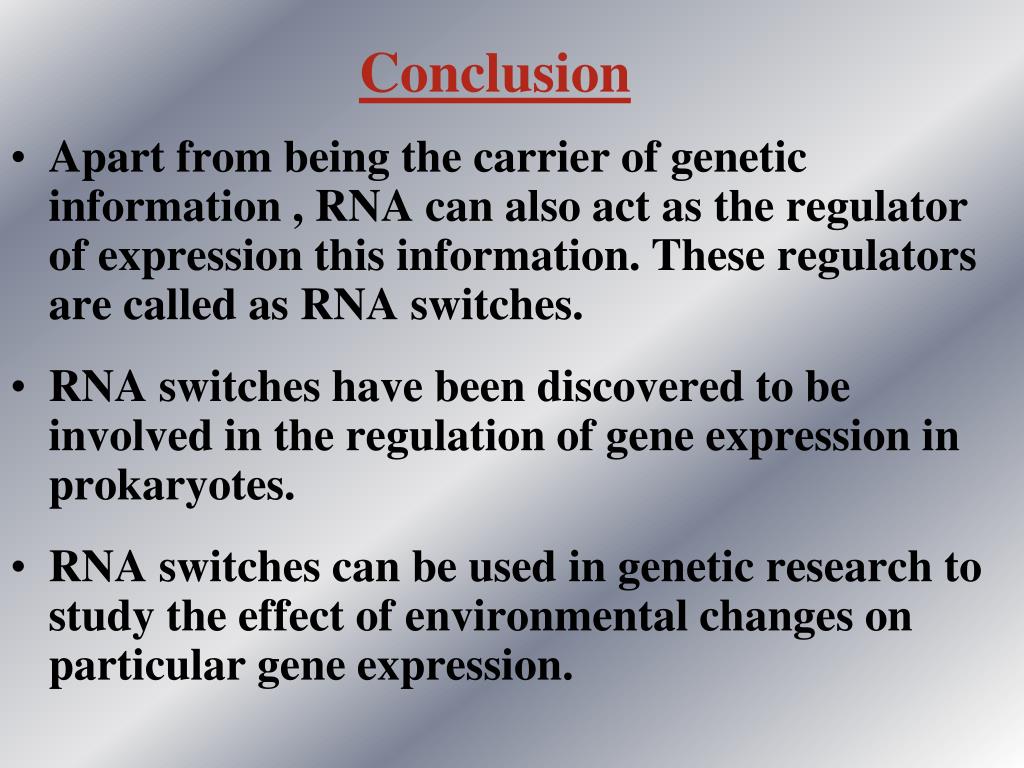

  • Apart from being the carrier of genetic information , RNA can also act as the regulator of expression this information. These regulators are called as RNA switches.
  • RNA switches have been discovered to be involved in the regulation of gene expression in prokaryotes.
  • RNA switches can be used in genetic research to study the effect of environmental changes on particular gene expression.
RNA switches can be used to in gene therapy and as drugs.
  • Researchers are trying to synthesize artificial RNA switches and we can hope that in future we will be able to use RNA switches not only in genetic research but also in antimicrobial therapy, as biosensors for different chemicals and in detection of pathogenic microorganisms.
