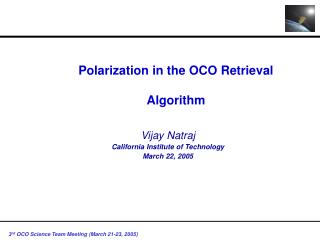

slide1

Polarization in the OCO Retrieval Algorithm

Vijay Natraj

California Institute of Technology

March 22, 2005

objectives
Objectives
  • Test polarization code and perform timing tests
  • Study effect of viewing geometry and surface albedo on reflectance errors
  • Gain insights into potential methods of characterizing polarization in a scalar retrieval code
operational and system details
Operational and System Details
  • Discrete Ordinates RT Code
  • 11 layer (8 in troposphere) atmosphere
  • Aerosol optical depth: 0.025
  • Single scattering albedo: 0.8
  • SZA: 60 degrees
  • Surface albedo: 0.2
effect of viewing geometry i
Effect of Viewing Geometry I

Red, Green, Blue, Yellow: VZA = 0°, 30°, 60°, 75°

effect of viewing geometry ii
Effect of Viewing Geometry II

Red, Green, Blue, Yellow: VZA = 0°, 30°, 60°, 75°

effect of viewing geometry iii
Effect of Viewing Geometry III

Red, Green, Blue, Yellow: VZA = 0°, 30°, 60°, 75°

effect of surface albedo i
Effect of Surface Albedo I

Red, Green: Surface Albedo = 0.05, 0.2

effect of surface albedo ii
Effect of Surface Albedo II

810

45

Red, Green: Surface Albedo = 0.05, 0.2

effect of surface albedo iii
Effect of Surface Albedo III

Red, Green: Surface Albedo = 0.05, 0.2

seasonal variation park falls i
Seasonal Variation (Park Falls) I

Red (January), Green (July): SZA = 75.1°, 34.8°

seasonal variation park falls ii
Seasonal Variation (Park Falls) II

Red (January), Green (July): SZA = 75.1°, 34.8°

seasonal variation park falls iii
Seasonal Variation (Park Falls) III

Red (January), Green (July): SZA = 75.1°, 34.8°

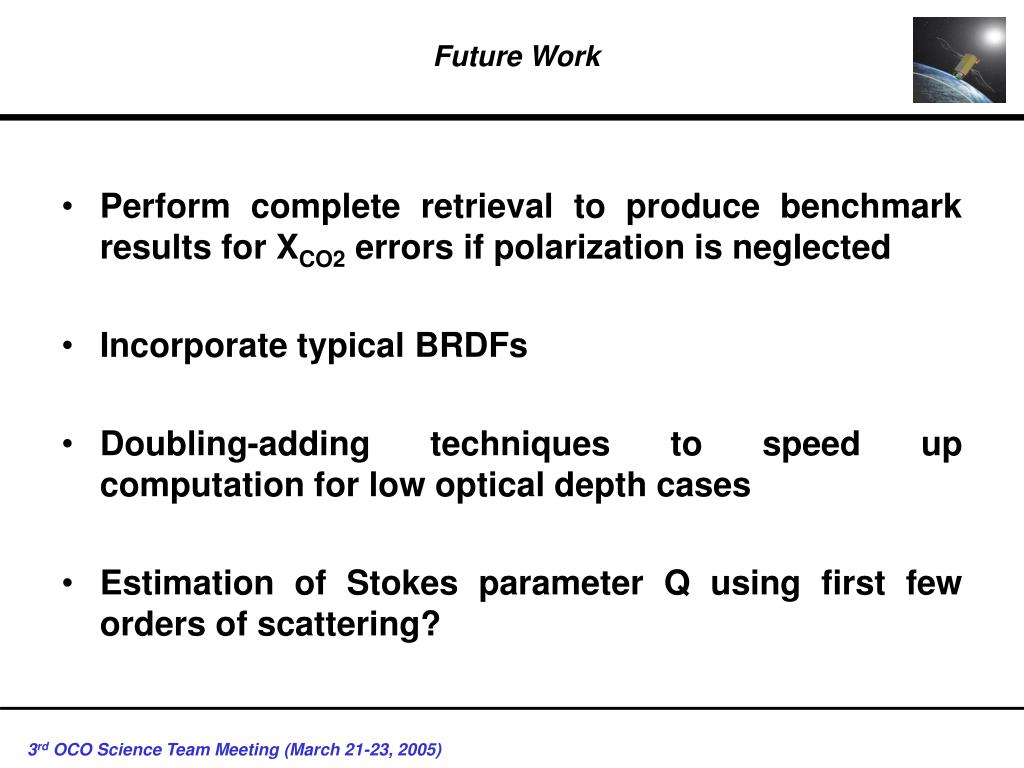

future work
Future Work
  • Perform complete retrieval to produce benchmark results for XCO2 errors if polarization is neglected
  • Incorporate typical BRDFs
  • Doubling-adding techniques to speed up computation for low optical depth cases
  • Estimation of Stokes parameter Q using first few orders of scattering?
