Presentation Transcript
asif jinnah field desktop services

Enabling a Flexible Workforce,

an insider’s view

Asif Jinnah

Field Desktop Services

the microsoft environment
The Microsoft Environment

First and Best Customer

Enterprise Infrastructure

High Scale Processes

  • Over 150,000Windows 7 Clients
  • 90,000 Office 2007 &80,000 Office 2010 clients
  • 350,000+SharePoint Sites
  • 6 data centers
  • 8,819 production servers
  • 106 countries
  • 648 buildings
  • 272,000+ SMS managed computers
  • 741,000+ devices
  • 196,988 end users
  • 73,000,000+ internal IMs per month
  • 111,000+ user mailboxes
  • 1,200,000+ remote connections per month
flexible working anywhere anytime
Flexible Working – Anywhere - Anytime
  • Reduce Business Travel
    • Reduce travel time & lost productivity
  • Reduce Commuting with Unified Communications & Teleworking
    • Improve employee satisfaction & retention
  • Reduce Office Buildings and Space
    • Innovation & productivity
    • More flexible work space
  • Increase Flexibility & Security
preparing the workforce readiness
Preparing the Workforce - Readiness
  • Windows Online Training, Help and Support
  • Work Smart Productivity Training
    • Proactive Role for IT
    • 33,685 Employees Attended
    • 627,000 hours in productivity
    • $40 Mil return (Soft ROI)
microsoft uk cost savings
Microsoft UK Cost Savings
  • In Microsoft UK, the Sales & Marketing and Support Group has seen average cost reductions of over 50%in both T&E and Telecoms, generating savings of £3.6m ($5.7m)saving year on year (over the period from November 2008 to Oct 2009 compared to the previous 12 months)
    • T&E costs savings are 51% T&E (£3.3m or $5.2m)
    • Telecom costs savings are 54% Telecoms (£320k or $505k)

The cost savings are due to the adoption of Unified Communication and Live Meeting and changes in the travel policy. The travel policy changes resulted in many business meetings being hosted online and therefore business continued as before.

securing a flexible workforce

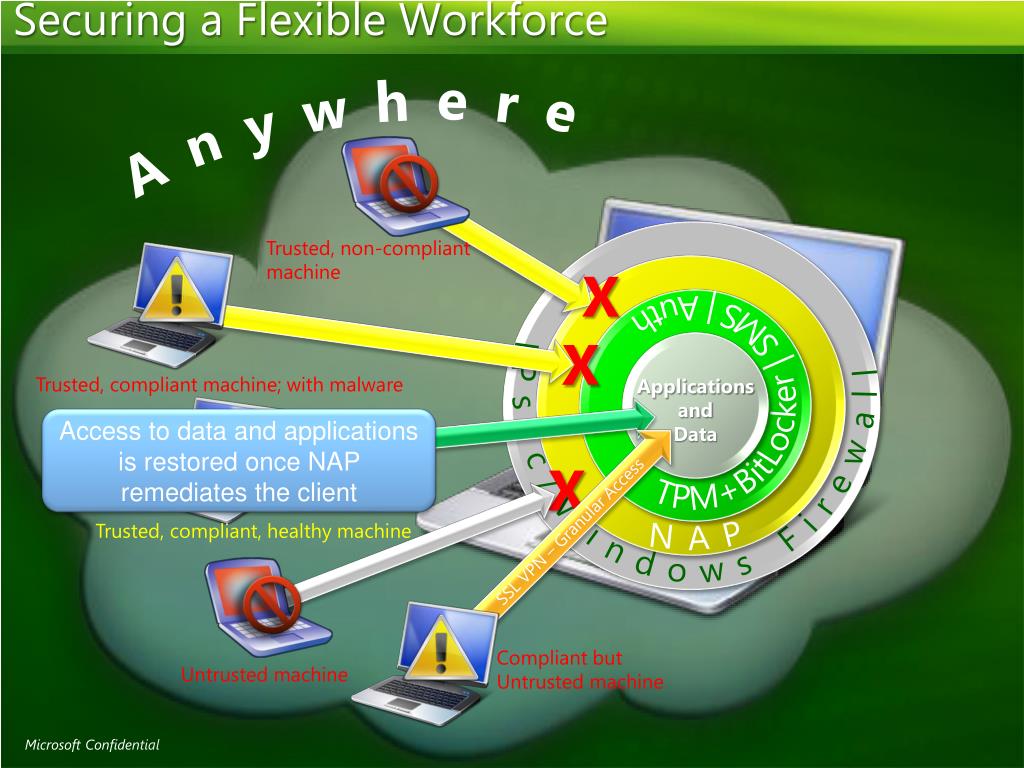

Securing a Flexible Workforce


IPsec/Windows Firewall

Trusted, non-compliant machine


TPM+BitLocker | SMS | Auth


Trusted, compliant machine; with malware




Access to data and applications is restored once NAP remediates the client



SSL VPN – Granular Access

Trusted, compliant, healthy machine

Compliant but Untrusted machine

Untrusted machine

secure web and remote access architecture
Secure Web and Remote Access Architecture

Secure Web and Remote Access Enablement

  • Benefits
    • Secure access to external facing applications
    • Secure remote access to corporate applications externally
    • Secure corporate and branch connectivity

Secure Remote Application Publishing Services

External Corporate Users


www Servers

Active Directory

Application Server

Active Directory

ISA Cluster

Secure VPN Services (Branch)

  • Offering Components
    • Secure Web Access Services – ISA Server 2006
    • Secure VPN Services and Branch – ISA Server 2006
    • Secure Remote Application Publishing Services – IAG 2007

ISA Cluster

Secure Web Access Services

Secure VPN Services (Client)

enterprise network protection architecture
Enterprise Network Protection Architecture

Enterprise Network


Policy based Network Access Services

Certificate Authority

Network Isolation Services

Unhealthy Client

  • Benefits
    • Protection of wired and wireless network traffic
    • Managed isolation of critical server infrastructure
    • Reduction of unmanaged devices connecting to corporate resources
    • Enforcement of health polices

Remediation Server

NAP Server

Critical Server

Active Directory

Critical Server

Group Policy

Network PolicyServer

  • Offering Components
    • Policy-Based Network Access Services
    • Network Access protection (NAP)
    • IPSec enforcement
    • 802.1 x enforcement
    • Wireless integrated
    • Network Isolation Services – IPSec + Group Policy

SQL Cluster

Healthy Client

Critical Server

Healthy Client

Secure Wireless Services

direct access windows 7 server 2008 r2
Direct Access – Windows 7 & Server 2008 R2
  • Best Practices and Benefits
  • Require two-factor authentication with smart cards when using DirectAccess
  • Use encryption on all communication to and from DirectAccess clients
    • IC0-1 - $250k Saving/Office
    • Use NAP to enforce client health and compliance
update management best practices

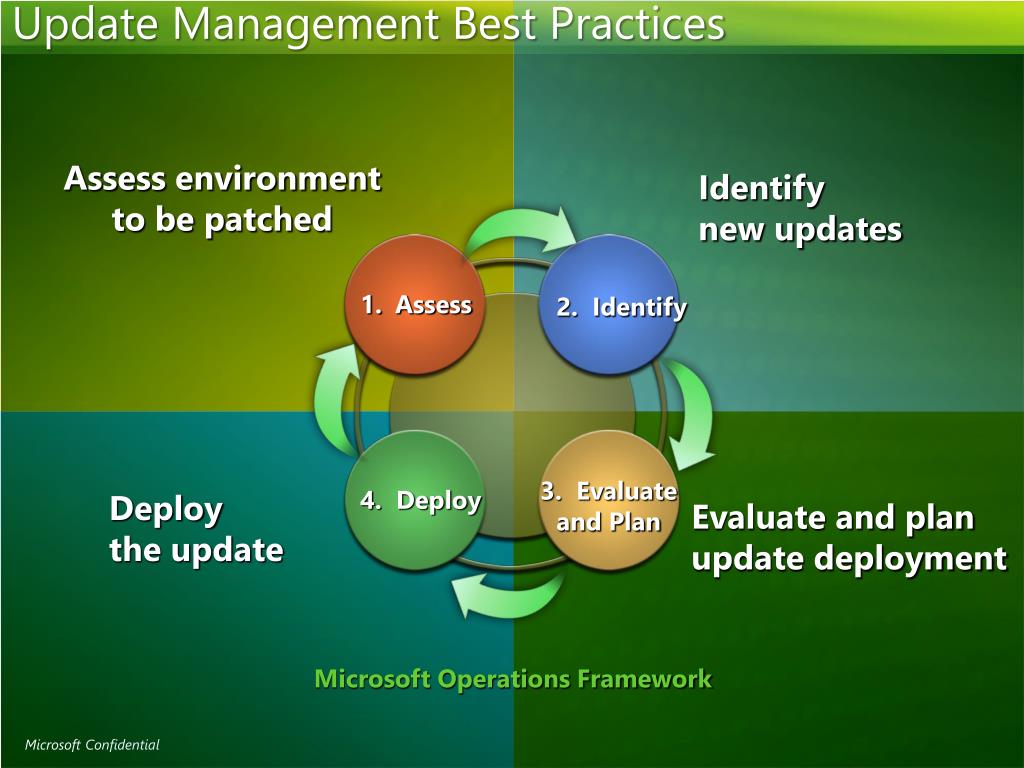

Update Management Best Practices

Assess environment to be patched

Identifynew updates


2. Identify

3. Evaluate and Plan

4. Deploy

Deploy the update

Evaluate and plan update deployment

Microsoft Operations Framework

maintaining a flexible workforce
Maintaining a Flexible Workforce



Remote access clients/dial-up


IPsec boundary

Creates Secure Net environment

All Devices


Secure Net Devices ~270,000

Devices managed through SMS/SCCM


~16,000 servers

Unique management challenges
