hybrid keyword auctions

Hybrid Keyword Auctions

Ashish Goel

Stanford University

Joint work with Kamesh Munagala, Duke University

online advertising
Online Advertising

Pricing Models

  • CPM (Cost per thousand impressions)
  • CPC (Cost per click)
  • CPA (Cost per acquisition)
  • Conversion rates:
    • Click-through-rate (CTR), conversion from clicks to acquisitions, …

Differences between these pricing models:

  • Uncertainty in conversion rates:
    • Sparse data, changing rates, …
  • Stochastic fluctuations:
    • Even if the conversion rates were known exactly, the number of clicks/conversions would still vary, especially for small samples
cost per click auction
Cost-Per-Click Auction

Auctioneer

(Search Engine)

Bid = Cost per Click

Advertiser

C

cost per click auction4
Cost-Per-Click Auction

CTR estimate

Auctioneer

(Search Engine)

Bid = Cost per Click

Advertiser

Q

C

cost per click auction5
Cost-Per-Click Auction

CTR estimate

Auctioneer

(Search Engine)

Bid = Cost per Click

Advertiser

Q

C

  • Value/impression ordering: C1Q1 > C2Q2 > …
  • Give impression to bidder 1 at CPC = C2Q2/Q1
cost per click auction6

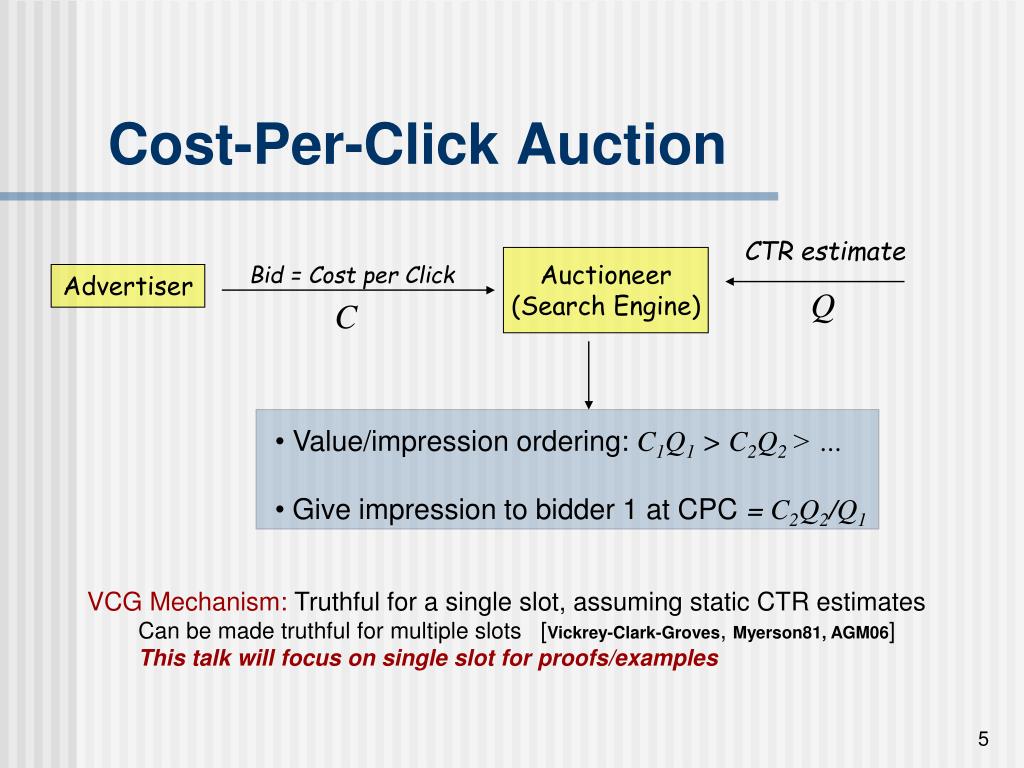

Cost-Per-Click Auction

CTR estimate

Auctioneer

(Search Engine)

Bid = Cost per Click

Advertiser

Q

C

  • Value/impression ordering: C1Q1 > C2Q2 > …
  • Give impression to bidder 1 at CPC = C2Q2/Q1
  • VCG Mechanism: Truthful for a single slot, assuming static CTR estimates
    • Can be made truthful for multiple slots [Vickrey-Clark-Groves, Myerson81, AGM06]
    • This talk will focus on single slot for proofs/examples
when does this work well
When Does this Work Well?
  • High volume targets (keywords)
    • Good estimates of CTR
  • What fraction of searches are to high volume targets?
    • Folklore: a small fraction
    • Motivating problem:
      • How to better monetize the low volume keywords?
possible solutions
Possible Solutions
  • Coarse ad groups to predict CTR:
    • Use performance of advertiser on possibly unrelated keywords
  • Predictive models
    • Regression analysis/feature extraction
    • Taxonomies/clustering
    • Collaborative filtering
    • Learn the human brain!
  • Our approach: Richer pricing models + Learning
hybrid scheme 2 dim bid
Hybrid Scheme: 2-Dim Bid

M = Cost per Impression

C= Cost per Click

Auctioneer

(Search Engine)

Advertiser

<M,C >

hybrid scheme
Hybrid Scheme

M = Cost per Impression

C= Cost per Click

CTR estimate

Auctioneer

(Search Engine)

Advertiser

Q

<M,C >

hybrid scheme13
Hybrid Scheme

M = Cost per Impression

C= Cost per Click

CTR estimate

Auctioneer

(Search Engine)

Advertiser

Q

<M,C >

  • Advertiser’s score Ri = max { Mi , Ci Qi }
hybrid scheme14
Hybrid Scheme

M = Cost per Impression

C= Cost per Click

CTR estimate

Auctioneer

(Search Engine)

Advertiser

Q

<M,C >

  • Advertiser’s score Ri = max { Mi , Ci Qi }
  • Order by score: R1 > R2 > …
hybrid scheme15
Hybrid Scheme

M = Cost per Impression

C= Cost per Click

CTR estimate

Auctioneer

(Search Engine)

Advertiser

Q

<M,C >

  • Advertiser’s score Ri = max { Mi , Ci Qi }
  • Order by score: R1 > R2 > …
  • Give impression to bidder 1:
    • If M1 > C1Q1then chargeR2per impression
    • If M1 < C1Q1then chargeR2 / Q1per click
example cpc auction
Example: CPC Auction

Bidder 1

Bidder 2

Per click cost C

5

10

Conversion rate

estimate Q

0.1

0.08

0.5

0.8

C * Q

CPC auction allocates to bidder 2 at CPC = 0.5/0.08 = 6.25

example hybrid auction
Example: Hybrid Auction

Bidder 1

Bidder 2

Per click cost C

5

10

Conversion rate

estimate Q

0.1

0.08

0.5

0.8

C * Q

Per impression

cost M

0

1.0

Max {M, C * Q}

1.0

0.8

Hybrid auction allocates to bidder 1 at CPI = 0.8

why such a model
Why Such a Model?
  • Per-impression bid:
    • Advertiser’s estimate or “belief” of CTR
    • May or may not be an accurate reflection of the truth
    • Backward compatible with cost-per-click (CPC) bidding
why such a model19
Why Such a Model?
  • Per-impression bid:
    • Advertiser’s estimate or “belief” of CTR
    • May or may not be an accurate reflection of the truth
    • Backward compatible with cost-per-click (CPC) bidding
  • Why would the advertiser know any better?
    • Advertiser aggregates data from various publishers
    • Has domain specific models not available to auctioneer
    • Is willing to pay a premium for internal experiments
provable benefits
Provable Benefits
  • Search engine:Better monetization of low volume keywords
      • Typical case: Unbounded gain over CPC auction
      • Pathological worst case: Bounded loss over CPC auction
  • Advertiser: Opportunity to make the search engine converge to the correct CTR estimate without paying a premium
  • Technical:
    • Truthful
    • Accounts for risk characteristics of the advertiser
    • Allows users to implement complex strategies
key point
Key Point

Implementing the properties need both

per impression and per click bids

multiple slots
Multiple Slots
  • Show the top K scoring advertisers
      • Assume R1 > R2 > … > RK > RK+1…
  • Generalized Second Price (GSP) mechanism:
      • For the ith advertiser, if:
        • IfMi > QiCithen charge Ri+1per impression
        • IfMi < QiCithen charge Ri+1 / Qi per click
multiple slots23
Multiple Slots
  • Show the top K scoring advertisers
      • Assume R1 > R2 > … > RK > RK+1…
  • Generalized Second Price (GSP) mechanism:
      • For the ith advertiser, if:
        • IfMi > QiCithen charge Ri+1per impression
        • IfMi < QiCithen charge Ri+1 / Qi per click
  • Can also implement VCG [Vickrey-Clark-Groves, Myerson81, AGM06]
      • Need separable CTR assumption
      • Details in the paper
uncertainty model for ctr
Uncertainty Model for CTR
  • For analyzing advantages of Hybrid, we need to model:
    • Available information about CTR
    • Asymmetry in information between advertiser and auctioneer
    • Evolution of this information over time
  • We will use Bayesian model of information
    • Prior distributions
    • Specifically, Beta priors (more later)
bayesian model for ctr
Bayesian Model for CTR

True underlying CTR = p

Auctioneer

(Search Engine)

Advertiser

bayesian model for ctr26
Bayesian Model for CTR

True underlying CTR = p

Prior distribution Pauc

Prior distribution Padv

(Public)

(Private)

Auctioneer

(Search Engine)

Advertiser

bayesian model for ctr27
Bayesian Model for CTR

True underlying CTR = p

Per-impression bid

M

CTR estimate

Q

Prior distribution Pauc

Prior distribution Padv

(Public)

(Private)

Auctioneer

(Search Engine)

Advertiser

bayesian model for ctr28

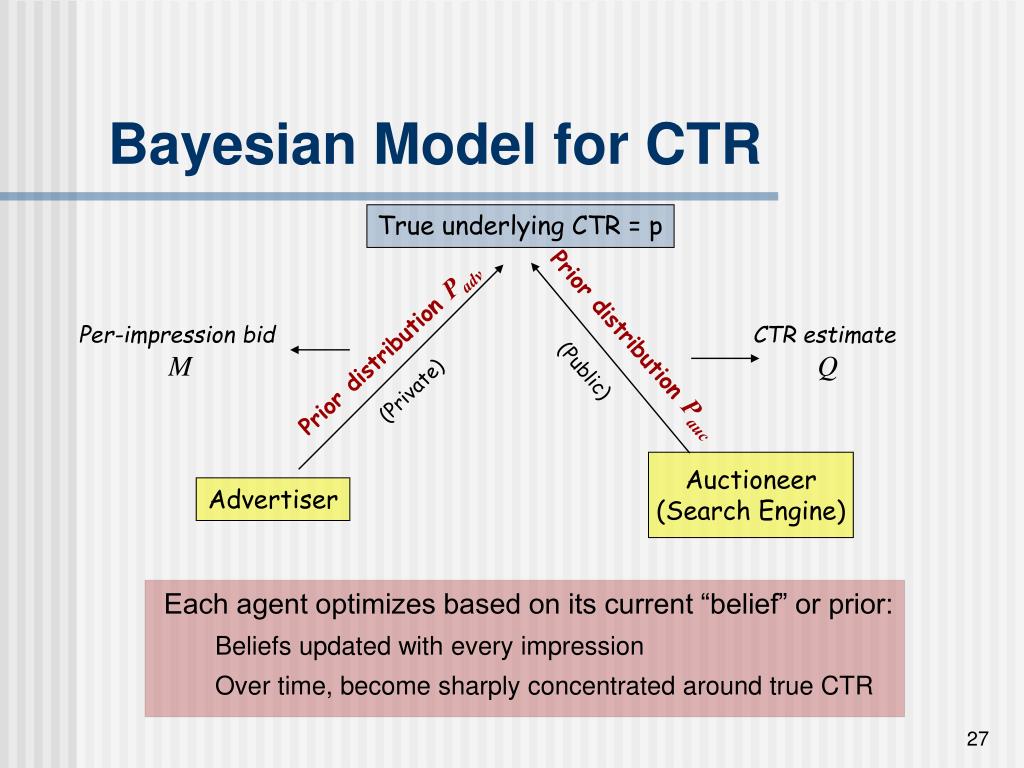

Bayesian Model for CTR

True underlying CTR = p

Per-impression bid

M

CTR estimate

Q

Prior distribution Pauc

Prior distribution Padv

(Public)

(Private)

Auctioneer

(Search Engine)

Advertiser

Each agent optimizes based on its current “belief” or prior:

Beliefs updated with every impression

Over time, become sharply concentrated around true CTR

what is a prior
What is a Prior?
  • Simply models asymmetric information
    • Sharper prior  More certain about true CTR p
    • E[ Prior ] need not be equal to p
  • Main advantage of per-impression bids is when:
    • Advertiser’s prior is “more resolved” than auctioneer’s
    • Limiting case: Advertiser certain about CTRp
  • Priors are only for purpose of analysis
    • Mechanism is well-defined regardless of modeling assumptions
truthfulness
Truthfulness
  • Advertiser assumes CTR follows distribution Padv
  • Wishes to maximize expected profit at current step
      • E[Padv]=x = Expected belief about CTR
      • Click utility = C
    • Expected profit = C x - Expected price
truthfulness31
Truthfulness
  • Advertiser assumes CTR follows distribution Padv
  • Wishes to maximize expected profit at current step
      • E[Padv]=x = Expected belief about CTR
      • Click utility = C
    • Expected profit = C x - Expected price

Bidding (Cx, C) is the dominant strategy

Regardless of Q used by auctioneer andtrue CTR p

Elicits advertiser’s “expected belief” about the CTR!

Holds in many other settings (more later)

conjugate beta priors
Conjugate Beta Priors
  • Auctioneer’s Paucfor advertiseri =Beta(,)
      • ,are positive integers
      • Conjugate of Bernoulli distribution (CTR)
      • Expected value =/ ( + )
conjugate beta priors34
Conjugate Beta Priors
  • Auctioneer’s Paucfor advertiseri =Beta(,)
      • ,are positive integers
      • Conjugate of Bernoulli distribution (CTR)
      • Expected value =/ ( + )
  • Bayesian update with each impression:
      • Probability of click = / ( + )
      • If click, new Pauc(posterior) =Beta(,)
      • If no click, new Pauc(posterior) =Beta(,)
evolution of beta priors
Evolution of Beta Priors

Denotes Beta(1,1)

Uniform prior

Uninformative

Click

1,1

No Click

1/2

1/2

2,1

1,2

2/3

1/3

1/3

2/3

E[Pauc]= 1/4

3,1

2,2

1,3

1/4

1/2

3/4

1/2

3/4

1/4

4,1

3,2

2,3

1,4

E[Pauc]= 2/5

properties of beta priors
Properties of Beta Priors
  • Larger , Sharper concentration around p
    • Uninformative prior: Beta(,)= Uniform[0,1]
  • Q =E[Pauc] = / ( + )
    • Auctioneer’s expected “belief” about CTR
    • Could be different from true CTR p
advertiser certain of ctr
Advertiser Certain of CTR

True underlying CTR = p

Per-impression bid

M = Cp

CTR estimate

Q =  / ( + )

Pauc = Beta(,)

Knows p

(Public)

(Private)

Auctioneer

(Search Engine)

Advertiser

properties of auction
Properties of Auction
  • Revenue properties for auctioneer:
      • Typical case benefit:log n times better than CPC scheme
      • Bounded pathological case loss: 36% of CPC scheme
      • Unbounded gain versus bounded loss!
  • Flexibility for advertiser:
      • Can make Paucconverge to p without paying premium
      • But pays huge premium for achieving this in CPC auction
better monetization
Better Monetization

p1

Adv. 1

Q ≈ 1 / log n

Pauc = Beta (, log n)

p2

Adv. 2

Auctioneer

p3

Adv. 3

Pauc = Beta (, log n)

  • Low volume keyword:
  • Auctioneer’s prior has high variance
  • Some pi close to 1 with high probability

pn

Adv. n

better monetization41
Better Monetization
  • Hybrid auction: Per-impression bid elicits high pi
  • CPC auction allocates slot to a random advertiser
  • Theorem: Hybrid auction generates log n times more revenue for auctioneer than CPC auction
flexibility for advertisers

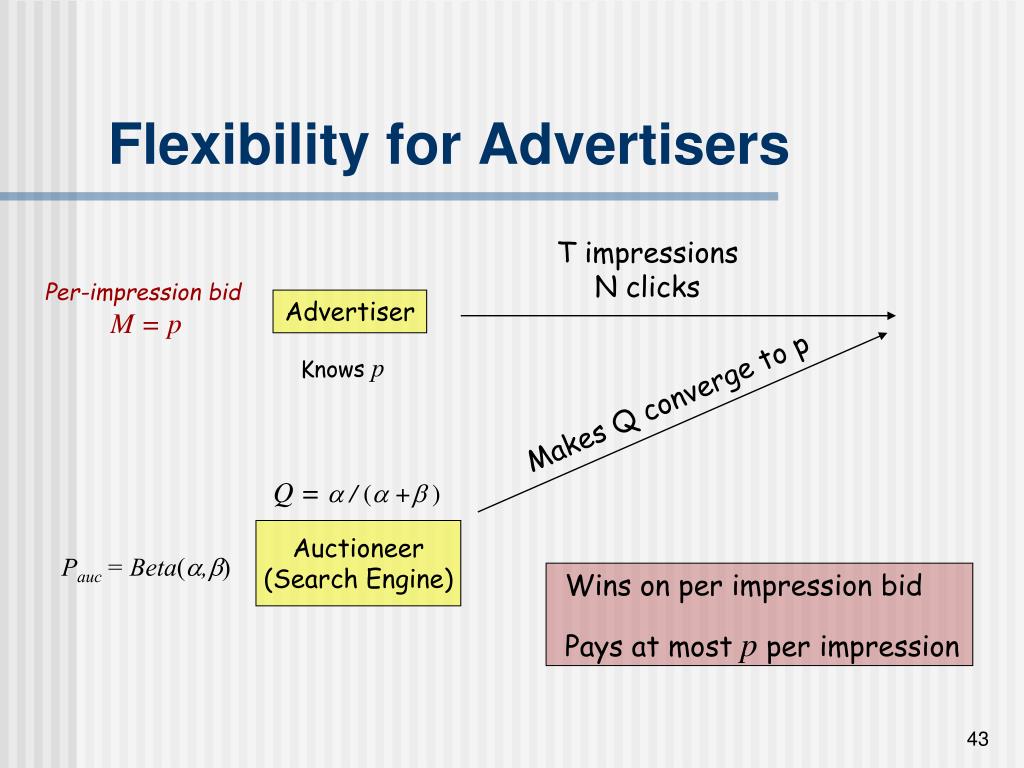

Flexibility for Advertisers

AssumeC = 1

Per-impression bid

M = p

Advertiser

Knows p

Q =  / ( + )

Auctioneer

(Search Engine)

Pauc = Beta(,)

flexibility for advertisers43
Flexibility for Advertisers

Per-impression bid

M = p

Advertiser

Knows p

Q =  / ( + )

Auctioneer

(Search Engine)

Pauc = Beta(,)

Wins on per impression bid

Pays at most p per impression

flexibility for advertisers44
Flexibility for Advertisers

T impressions

N clicks

Per-impression bid

M = p

Advertiser

Knows p

Makes Q converge to p

Q =  / ( + )

Auctioneer

(Search Engine)

Pauc = Beta(,)

Wins on per impression bid

Pays at most p per impression

flexibility for advertisers45
Flexibility for Advertisers

T impressions

N clicks

Per-impression bid

M = p

Advertiser

Knows p

Makes Q converge to p

Q =  / ( + )

Auctioneer

(Search Engine)

Pauc = Beta(,)

Now switch to CPC bidding

flexibility for advertisers46
Flexibility for Advertisers
  • If Q converges in T impressions resulting in N clicks:
    • ( N  T) ≥ p
    • Since Q = /( + )< p, this implies N ≥ T p
    • Value gain = N; Payment for T impressions at most T * p
    • No loss in utility to advertiser!
  • In the existing CPC auction:
    • The advertiser would have to pay a huge premium for getting impressions and making the CTR converge
uncertain advertisers
Uncertain Advertisers
  • Advertiser “wishes” CTR p toresolve to a high value
    • In that case, she can gain utility in the long run
    • … but CTR resolves only on obtaining impressions!
  • Should pay premium now for possible future benefit
    • What should her dynamic bidding strategy be?
uncertain advertisers49
Uncertain Advertisers
  • Advertiser “wishes” CTR p toresolve to a high value
    • In that case, she can gain utility in the long run
    • … but CTR resolves only on obtaining impressions!
  • Should pay premium now for possible future benefit
    • What should her dynamic bidding strategy be?
  • Key contribution:
    • Defining a new Bayesian model for repeated auctions
    • Dominant strategy exists!
the issue with dynamics
The Issue with Dynamics

Padv1

Adv. 1

Pauc1

Auctioneer

Pauc2

Padv2

Adv. 2

[Bapna & Weber ‘05, Athey & Segal ‘06]

  • Advertiser 1 underbids so that:
  • Advertiser 2 can obtain impressions
  • Advertiser 2 may resolve its CTR to a low value
  • Advertiser 1 can then obtain impressions cheaply
semi myopic advertiser
Semi-Myopic Advertiser
  • Maximizes utility in contiguous time when she wins the auction
    • Priors of other advertisers stay the same during this time
    • Once she stops getting impressions, cannot predict future

… since future will depend on private information of other bidders!

semi myopic advertiser52
Semi-Myopic Advertiser
  • Maximizes utility in contiguous time when she wins the auction
    • Priors of other advertisers stay the same during this time
    • Once she stops getting impressions, cannot predict future

… since future will depend on private information of other bidders!

  • Advertiser always has a dominant hybrid strategy
    • Bidding Index: Computation similar to the Gittins index
      • Advertiser can optimize her utility by dynamic programming
    • Socially optimal in many reasonable scenarios
      • Implementation needs both per-impression and per-click bids
summary
Summary
  • Allow both per-impression and per-click bids
      • Same ideas work for CPM/CPC + CPA
  • Significantly higher revenue for auctioneer
  • Easy to implement
      • Hybrid advertisers can co-exist with pure per-click advertisers
      • Easy path to deployment/testing
  • Many variants possible with common structure:
      • Optional hybrid bids
      • Impression + Click [S. Goel, Lahaie, Vassilvitskii, 2010]
conclulsion and open questions
Conclulsion and Open Questions
  • Learning is important in Online advertising
    • Remember that there are multiple strategic participants
    • Design richer pricing and communication signals
  • Some issues that need to be addressed:
    • Whitewashing: Re-entering when CTR is lower than the default
    • Fake Clicks: Bid per impression initially and generate false clicks to drive up CTR estimate Q
      • Switch to per click bidding when slot is “locked in” by the high Q
open questions
Open Questions
  • Some issues that need to be addressed:
    • Whitewashing: Re-entering when CTR is lower than the default
    • Fake Clicks: Bid per impression initially and generate false clicks to drive up CTR estimate Q
      • Switch to per click bidding when slot is “locked in” by the high Q
  • Analysis of semi-myopic model
      • Other applications of separate beliefs?
open questions56
Open Questions
  • Some issues that need to be addressed:
    • Whitewashing: Re-entering when CTR is lower than the default
    • Fake Clicks: Bid per impression initially and generate false clicks to drive up CTR estimate Q
      • Switch to per click bidding when slot is “locked in” by the high Q
  • Analysis of semi-myopic model
      • Other applications of separate beliefs?
  • Connections of Bayesian mechanisms to:
      • Regret bounds and learning [Nazerzadeh, Saberi, Vohra ‘08]
      • Best-response dynamics [Edelman, Ostrovsky, Schwarz ‘05]
truthfulness57
Truthfulness
  • Advertiser assumes CTR follows distribution Padv
  • Wishes to maximize expected profit at current step
      • E[Padv]=x = Expected belief about CTR
      • Utility from click = C
    • Expected profit = C x - Expected price

Let Cy = Per impression bid

R2 = Highest other score

If max(Cy, C Q) <R2then Price = 0

Else:

If y < Q then: Price = x R2 / Q

If y > Q then: Price = R2
