Presentation Transcript
Evolution of wireless lan security standards l.jpg
Evolution of Wireless LAN Security Standards

Bo Li

Daniel Menchaca

Harold Lee

Narendra Kamat


Outline l.jpg
Outline

  • Why security?

  • Demo (hopefully answers the above)

  • Wired Equivalent Privacy and flaws

  • VPN

  • 802.1x and design flaws

  • 802.11i (anticipated)

  • Conclusions and recommendations


Purposes of network security l.jpg
Purposes of network security

  • Four main purposes:

    • Secrecy (or confidentiality): Encryption of information

      • Secrecy of the cryptographic algorithm (restricted algorithm)

      • The cryptographic algorithm is not a secret, but the key is.

    • Authentication: Verification of identity of participants

    • Message integrity: Assurance that message received was not altered

    • Non-repudiation: Deniable sending of a message not possible


Security l.jpg
Security…

  • “Somebody else’s job!”

  • “But only people with a UT EID can connect to this Wireless LAN”

  • “Isn’t there some sort of… encryption?”


A demo l.jpg
A Demo

  • The Cast:

    • Typical wireless Laptop User (you?)

    • Typical unskilled hacker (me, for this demo!)

    • Typical unprotected WLAN (ENS)

    • Attacking wireless laptop* :promiscuous mode

      * Courtesy Network Engineering Lab (Prof. Bill Bard)


The next step wep l.jpg
The Next Step…WEP

  • Encryption.

    • Initial idea: Wired Equivalent Privacy (WEP)

    • An implementation of RC4: a commercial stream-cipher

  • C = (M+c(M)) XOR RC4(IV,k)

  • Integrity:

    • 32-bit integrity check vector (CRC)

  • Authentication:

    • Open System (!)

    • Shared Key (40-bit challenge/response)


Secure not quite l.jpg
Secure? Not quite…

  • k is 40 (recently, 104 bits), infrequently changed

  • IV can be seen by everyone

  • IV space is small (24 bits)

    • C1 = P1 XOR RC4(IV, k)

    • C2 = P2 XOR RC4(IV, k)

    • C1 XOR C2 = P1 XOR P2.

  • IV changed on per-packet basis.

  • IV collision: 24-bit IV, exhausted in a few hours.


Ieee 802 1x l.jpg
IEEE 802.1x

  • Provides an architecture for authenticity methods

    • Simplicity

      • Simple transport for EAP messages

      • Runs over all 802 LANs

    • Inherits EAP (Extensible Authentication Protocol) architecture

  • Provides port-based network access control

    • Network port: An association between a Station and an AP

  • Provides dynamic key management



Ieee 802 1x check list l.jpg
IEEE 802.1x Check List

  • Improvement over WEP

    • Authentication

    • Dynamic key management

    • MAC access control

  • 802.1x issue

    • No encryption specification, vendors may keep WEP


Known design flaw mitm attack l.jpg

Authentication Server

Access Point

LAN

802.11

Access Point

802.11

Supplicant

Known Design Flaw- MITM Attack

  • An attacker acts as an AP to supplicant and as client to the AP (authenticator)

  • Reason: lack of mutual authentication

  • One way authentication of the supplicant to AP

  • An attacker can get all network traffic from supplicant to pass through it


Other known design flaws l.jpg
Other Known Design Flaws

  • Session Hijacking

    • Lack of clear communication between RSN and 802.1x state machines and message authentication

  • Denial of Service

    • 802.1x enables per-user session keys, but no keyed message integrity check in 802.11


Solutions l.jpg
Solutions

  • Per-packet authentication

    • Authentication and integrity of EAP messages

  • Peer-to-peer authentication

    • Symmetric authentication

    • Scalable authentication

  • Adopt strong encryption algorithms

  • Luckily, 802.11i modified 802.1x


Ieee 802 11i l.jpg

Upper Layer Authentication (ULA)

EAP-TLS, PEAP, EAP-TTLS, LEAP

802.1x authentication

TKIP

(Temporal Key Integrity Protocol)

CCMP

(Counter mode CBC-MAC Protocol)

Encryption Algorithms

IEEE 802.11i

  • 802.11i proposed architecture

    • 802.1x

      • Robust authentication

      • Key distribution

    • TKIP (upgrade path)

      • Fixes WEP issues

      • Backward compatible

    • CCMP (Mandatory)

      • Advanced Encryption Standard (AES)

      • Privacy, integrity


802 11i data transfer requirements l.jpg

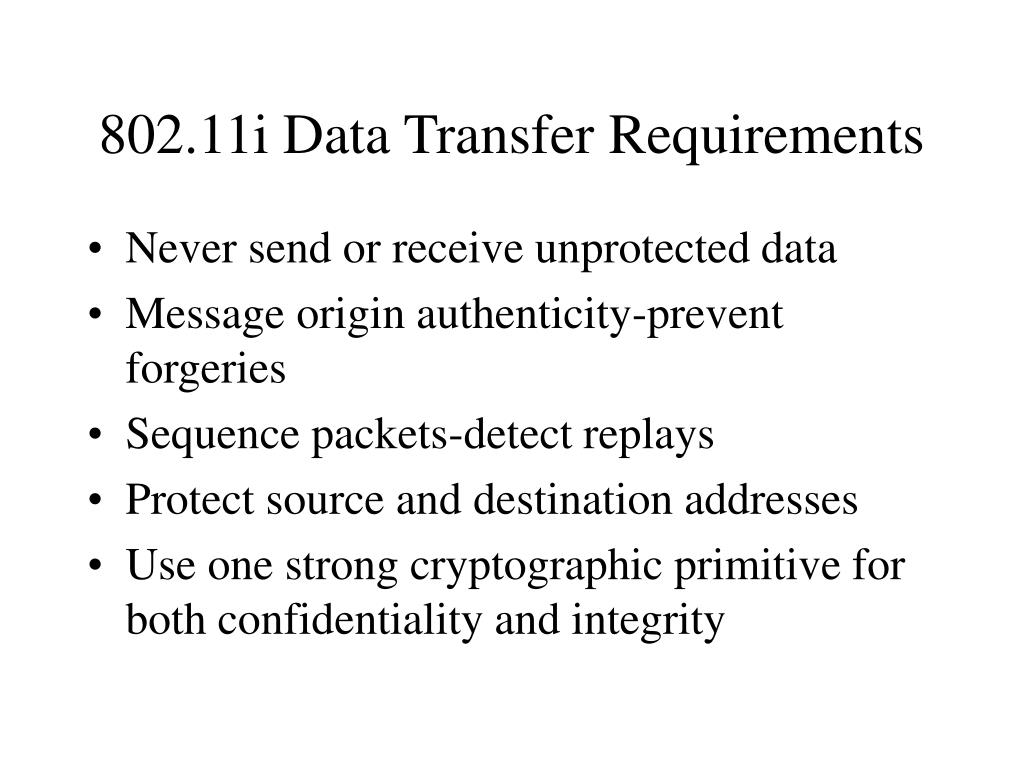

802.11i Data Transfer Requirements

  • Never send or receive unprotected data

  • Message origin authenticity-prevent forgeries

  • Sequence packets-detect replays

  • Protect source and destination addresses

  • Use one strong cryptographic primitive for both confidentiality and integrity


More 802 11i features l.jpg
More 802.11i Features

  • Pre-authentication and roaming

  • PEAP and legacy authentication support

  • Pre-shared key without authentication

    • Ad hoc networks

    • Home networks

  • Password-to-Key mapping

    • Home networks

  • Random number generation

    • High quality pseudo-random number generator is required of cryptographic applications


Ieee 802 11i checklist l.jpg
IEEE 802.11i Checklist

  • New 802.11i data protocols provide confidentiality, data origin authenticity, replay protection

  • Fresh key is generated on every session

  • Key management delivers keys used as authorization tokens, proving channel access in authorized

  • Architecture ties keys to authentication


Is 802 11i our final solution l.jpg
Is 802.11i Our Final Solution?

  • Time will prove it !!


Conclusions l.jpg
Conclusions

  • No solution/protocol is completely secure, at least not for long

  • Hacking techniques improved, standards have to keep pace, and evolve continuously

  • Lessons from previous standards

    • Wired solutions implemented in a wireless environment

    • Partial solution cannot work


Recommendations l.jpg
Recommendations

  • Use of strong cryptographic primitives

    • Tradeoff between speed and security

    • Hardware support for encryption

  • Dynamic key management

  • Mutual authentication

  • Complexity vs. manageability
