Presentation Transcript

Cse524 lecture 1 l.jpg

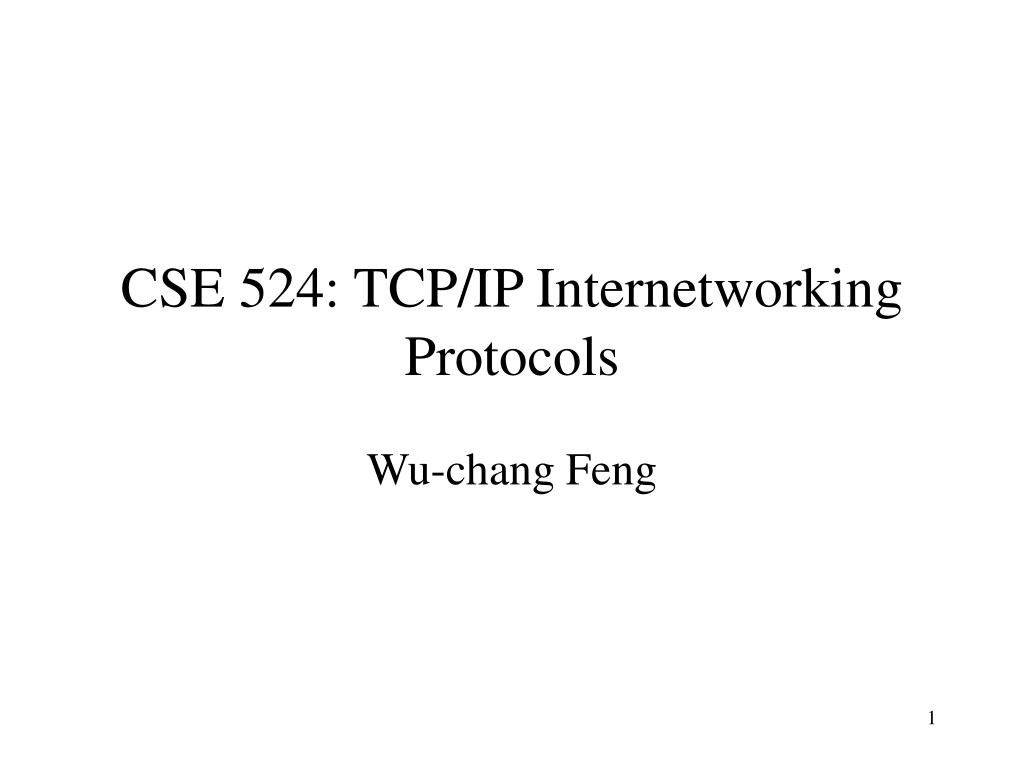

CSE524: Lecture 1

Overview, Internet architecture


Slide3 l.jpg
Quiz

  • How much do you know?


Syllabus l.jpg
Syllabus

  • http://www.cse.ogi.edu/class/cse524/

  • TA

    • Guangzhi Liu gliu@cse.ogi.edu

    • Office hours:

      • Thursday 3pm-6pm

      • CSE Central 146

  • Required book

    • Kurose/Ross, “Computer Networking: A Top-Down Approach Featuring the Internet”


Syllabus5 l.jpg
Syllabus

  • Grading

    • Exams

      • 25% Midterm (10/29/2001: Chapters 2, 3)

      • 25% Final (11/28/2001: Chapters 1, 4, 5)

    • Other

      • 25% Research paper (12/5/2001)

      • 25% Homework, quizzes, class participation

      • Coarse-grained grading


Research paper l.jpg
Research paper

  • You become the expert on “X”. You teach me.

    • Current survey and projected future of “X”

    • “X” not covered in course

    • Any length, no more than 10 pages

    • Topic and scope negotiated by e-mail

    • Approval by 10/29/2001, Due by 12/5/2001

    • Topics I’d like to know more about

      • Ultra-wide band, sensor networks, high-speed switching and routing products, web switching products, peer-to-peer networks, content-addressable networks, overlay networks, IPv6, mobile IP, intrusion detection systems, IP traceback, DDoS attacks, DDoS prevention, MPLS, lambda switching, Internet worms, …


Research paper7 l.jpg
Research paper

  • Grading

    • Correctness

    • Completeness

      • Content

      • References

    • Originality

      • Each paper will be “Google” tested

      • Quoting and referencing is fine

      • Wholesale copying is not


Goals of course l.jpg
Goals of course

  • Higher-level design decisions and their impact

  • Encyclopedia of essential protocols and algorithms


Outline of course l.jpg
Outline of course

  • Internet architecture, history, future (Chapter 1)

  • Physical, data-link layers (Chapter 5)

  • Network layer (Chapter 4)

  • Transport layer (Chapter 3)

  • Application layer (Chapter 2)


About the course l.jpg
About the course

  • Extremely condensed

  • Not comprehensive

    • Hundreds of protocols

    • PSU/OCATE 510 - Internet Routing

    • PSU/OCATE 510 - Network Management/Security

    • OHSU 58X - Multimedia Networking

    • OHSU 58X – Internet Technology and Research


Internet architecture l.jpg

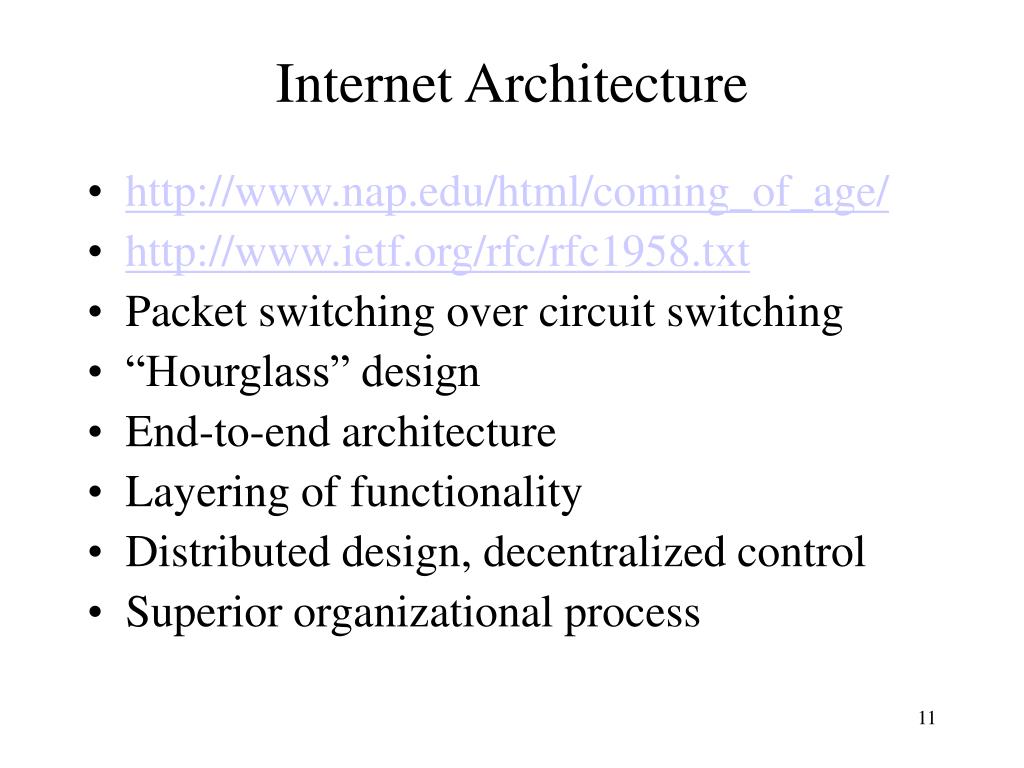

Internet Architecture

  • http://www.nap.edu/html/coming_of_age/

  • http://www.ietf.org/rfc/rfc1958.txt

  • Packet switching over circuit switching

  • “Hourglass” design

  • End-to-end architecture

  • Layering of functionality

  • Distributed design, decentralized control

  • Superior organizational process


The network core l.jpg

mesh of interconnected routers

the fundamental question: how is data transferred through net?

circuit switching: dedicated circuit per call: telephone net

packet-switching: data sent thru net in discrete “chunks”

The Network Core


Network core circuit switching l.jpg

Resources reserved for “call” on an end to end basis

link bandwidth, switch capacity

dedicated resources: no sharing

circuit-like (guaranteed) performance

call setup required

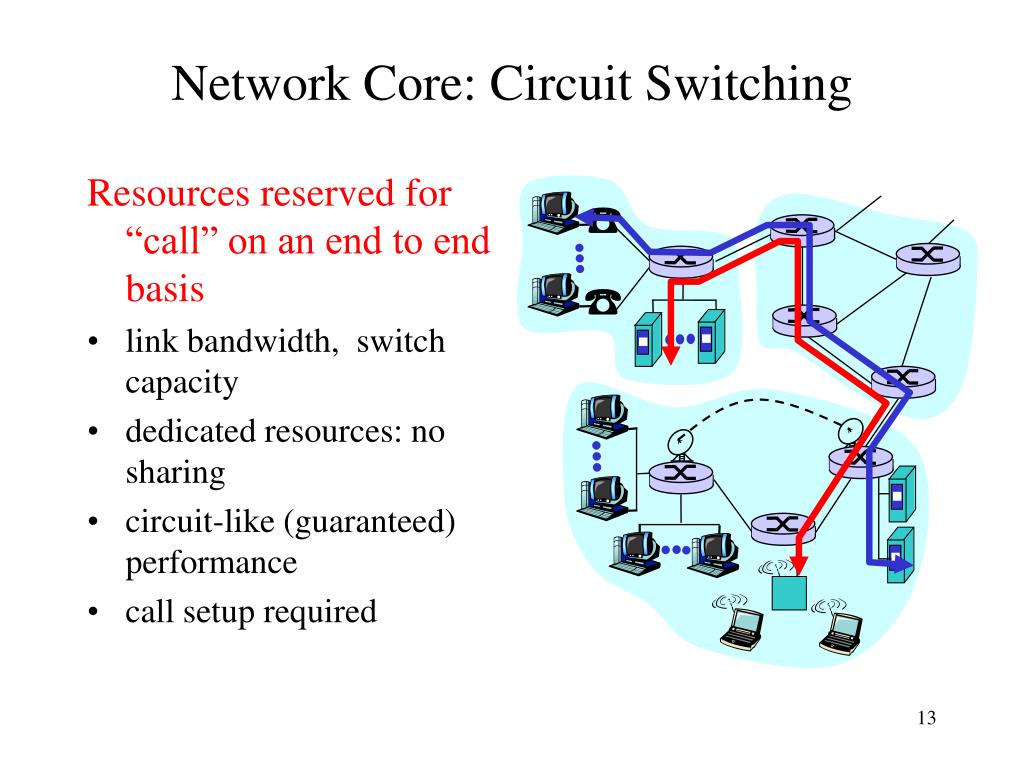

Network Core: Circuit Switching


Network core circuit switching14 l.jpg

network resources (e.g., bandwidth) divided into “pieces”

pieces allocated to calls

resource piece idle if not used by owning call (no sharing)

dividing link bandwidth into “pieces”

frequency division

time division

Network Core: Circuit Switching


Network core circuit switching example l.jpg
Network Core: Circuit Switching Example

  • 1890-current: Phone network

    • Fixed bit rate

    • Mostly voice

    • Not fault-tolerant

    • Components extremely reliable

    • Global application-level knowledge throughout network


Network core packet switching l.jpg

each end-end data stream divided into packets

user A, B packets share network resources

each packet uses full link bandwidth

resources used as needed,

Bandwidth division into “pieces”

Dedicated allocation

Resource reservation

Network Core: Packet Switching

resource contention:

  • aggregate resource demand can exceed amount available

  • congestion: packets queue, wait for link use

  • store and forward: packets move one hop at a time

    • transmit over link

    • wait turn at next link


Network core packet switching17 l.jpg

D

E

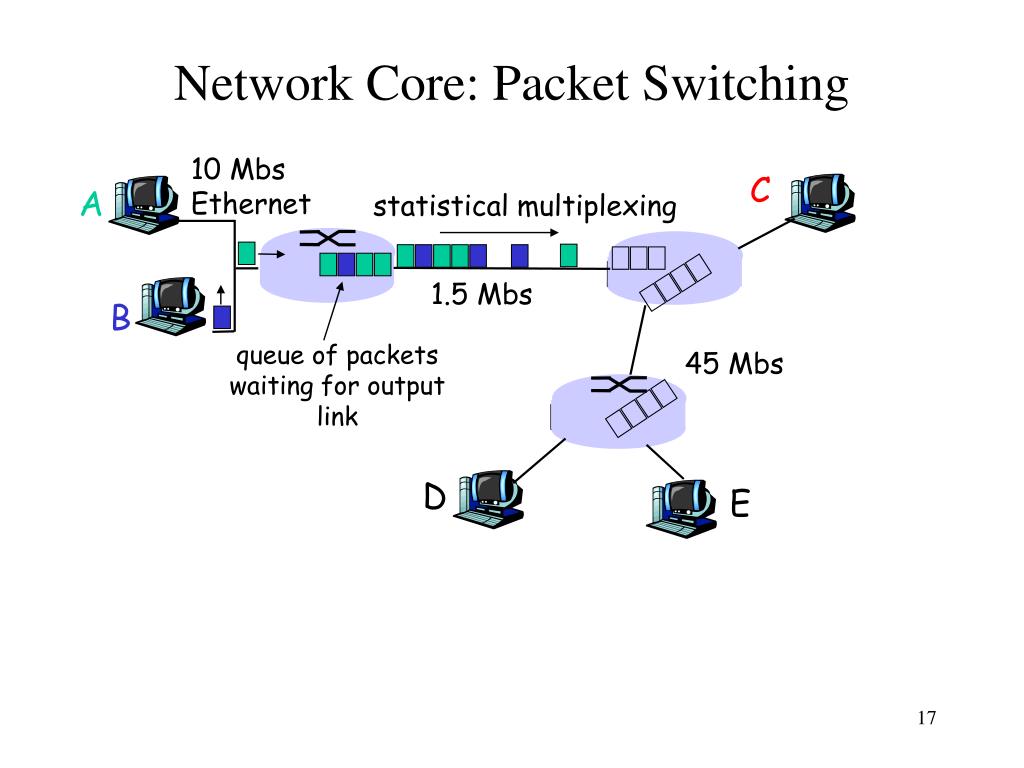

Network Core: Packet Switching

10 Mbs

Ethernet

C

A

statistical multiplexing

1.5 Mbs

B

queue of packets

waiting for output

link

45 Mbs


Network core packet switching example l.jpg
Network Core: Packet Switching Example

  • 1981-current: Internet network

    • Variable bit rate

    • Mostly data

    • Fault-tolerant

    • Components not extremely reliable (versus phone components)

    • Distributed control and management


Packet switching versus circuit switching l.jpg

1 Mbit link

each user:

100Kbps when “active”

active 10% of time

circuit-switching:

10 users

packet switching:

with 35 users, probability > 10 active less that .004

Packet switching allows more users to use network!

Packet switching versus circuit switching

N users

1 Mbps link


Packet switching versus circuit switching20 l.jpg

Great for bursty data

resource sharing

no call setup

Excessive congestion: packet delay and loss

protocols needed for reliable data transfer, congestion control

Q: How to provide circuit-like behavior?

bandwidth guarantees needed for audio/video apps

still an unsolved problem (chapter 6)

Is packet switching a “slam dunk winner?”

Packet switching versus circuit switching



Hourglass design22 l.jpg
Hourglass design

  • D. Clark, “The design philosophy of the DARPA internet”, SIGCOMM 1988, August 16 - 18, 1988.

  • http://www.acm.org/pubs/citations/proceedings/comm/52324/p106-clark/


Hourglass design23 l.jpg
Hourglass design

  • Only one protocol at the Internet level

    • Minimal required elements at the narrowest point

  • IP – Internet Protocol

    • http://www.rfc-editor.org/rfc/rfc791.txt

    • http://www.rfc-editor.org/rfc/rfc1812.txt

    • Unreliable datagram service

    • Addressing and connectionless connectivity

    • Fragmentation and assembly

  • Innovation at the edge

    • Phone network: dumb edge devices, intelligent network

    • Internet: dumb network, intelligent edge devices


Hourglass design24 l.jpg
Hourglass design

  • Simplicity allowed fast deployment of multi-vendor, multi-provider public network

    • Ease of implementation

    • Limited hardware requirements

    • Eventual economies of scale

  • Designed independently of hardware

    • Hardware addresses decoupled from IP addresses

    • IP header contains no data/physical link specific information

    • Allows IP to run over any fabric


Hourglass design25 l.jpg
Hourglass design

  • Waist expands at transport layer

  • Two dominant services layered above IP

  • TCP – Transmission Control Protocol

    • Connection-oriented service

    • http://www.rfc-editor.org/rfc/rfc793.txt

  • UDP – User Datagram Protocol

    • Connectionless service

    • http://www.rfc-editor.org/rfc/rfc768.txt


Hourglass design26 l.jpg
Hourglass design

  • TCP – Transmission Control Protocol

    • Reliable, in-order byte-stream data transfer

      • Acknowledgements and retransmissions

    • Flow control

      • Sender won’t overwhelm receiver

    • Congestion control

      • Senders won’t overwhelm network


Hourglass design27 l.jpg
Hourglass design

  • UDP – User Datagram Protocol

    • Unreliable data transfer

    • No flow control

    • No congestion control


Hourglass design28 l.jpg
Hourglass design

  • Check out /etc/services on *nix or C:\WIN*\system32\services

  • IANA

    • http://www.iana.org/assignments/port-numbers

  • What uses TCP?

    • HTTP, FTP, Telnet, SMTP, NNTP, BGP

  • What uses (mainly) UDP?

    • SNMP, NTP, NFS, RTP (streaming media, IP telephony, teleconferencing), multicast applications

  • Many protocols can use both

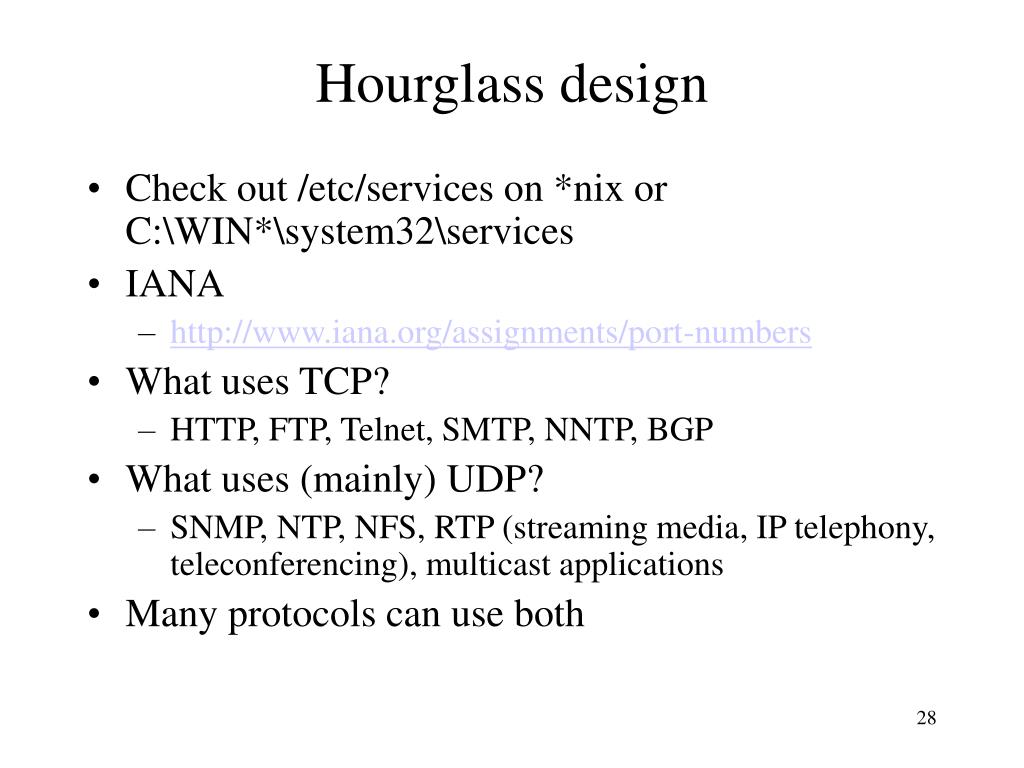

Hourglass design29 l.jpg
Hourglass design

  • Question?

    • Are TCP, UDP, and IP enough?

    • What other functionality would applications need?


Hourglass design30 l.jpg
Hourglass design

  • Security?

  • Quality-of-service?

  • Reliable, out-of-order delivery service?

  • Handling greedy sources?

  • Accounting and pricing support?

  • IPsec, DiffServ, SCTP, ….


End to end principle l.jpg
End-to-end principle

  • J. H. Saltzer, D. P. Reed and D. D. Clark “End-to-end arguments in system design”, Transactions on Computer Systems, Vol. 2, No. 4, 1984

  • http://www.acm.org/pubs/citations/journals/tocs/1984-2-4/p277-saltzer/


End to end principle32 l.jpg
End-to-end principle

  • Where to put the functionality?

    • In the network? At the edges?

  • End-to-end functions best handled by end-to-end protocols

    • Network provides basic service: data transport

    • Intelligence and applications located in or close to devices at the edge

    • Violate principle as a performance enhancement


End to end principle33 l.jpg
End-to-end principle

  • The good

    • Basic network functionality allowed for extremely quick adoption and deployment using simple devices

  • The bad

    • New network features and functionality are impossible to deploy, requiring widespread adoption within the network

    • IP Multicast, QoS


Layering l.jpg
Layering

  • Modular approach to network functionality

  • Example:

Application

Host-to-host connectivity

Link hardware


Layering characteristics l.jpg
Layering Characteristics

  • Each layer relies on services from layer below and exports services to layer above

  • Interface defines interaction

  • Hides implementation - layers can change without disturbing other layers (black box)

  • Examples

    • Topology and physical configuration

    • Routing

    • Applications require no knowledge of this

    • New applications deployed without coordination with network operators or operating system vendors


Protocols l.jpg
Protocols

  • Module in layered structure

  • Set of rules governing communication between network elements (applications, hosts, routers)

  • Protocols define:

    • Interface to higher layers (API)

    • Interface to peer

      • Format and order of messages

      • Actions taken on receipt of a message


Layering37 l.jpg
Layering

User A

User B

Application

Transport

Network

Link

Host

Host

Layering: technique to simplify complex systems


Layer encapsulation l.jpg
Layer Encapsulation

User A

User B

Get index.html

Connection ID

Source/Destination

Link Address


E g osi model 7 protocol layers l.jpg
E.g.: OSI Model: 7 Protocol Layers

  • Physical: how to transmit bits

  • Data link: how to transmit frames

  • Network: how to route packets

  • Transport: how to send packets end2end

  • Session: how to tie flows together

  • Presentation: byte ordering, security

  • Application: everything else


Osi layers and locations l.jpg
OSI Layers and Locations

Application

Presentation

Session

Transport

Network

Data Link

Physical

Switch

Host

Router

Host


Example transport layer l.jpg
Example: Transport Layer

  • First end-to-end layer

  • End-to-end state

  • May provide reliability, flow and congestion control


Example network layer l.jpg
Example: Network Layer

  • Point-to-point communication

  • Network and host addressing

  • Routing


Layering43 l.jpg
Layering

  • Is Layering always good?

    • Sometimes..

      • Layer N may duplicate lower level functionality (e.g., error recovery)

      • Layers may need same info (timestamp, MTU)

      • Strict adherence to layering may hurt performance


Layering44 l.jpg
Layering

  • Need for exposing underlying layers for optimal application performance

    • D. Tennenhouse and D. Clark. Architectural Considerations for a New Generation of Protocols. SIGCOMM 1990.

      • Intel employees: Tennenhouse is a networking “rock star” and your head of research

    • Application Layer Framing (ALF)

      • Enable application to process data as soon as it can

      • Expose application processing unit (ADU) to protocols

    • Integrated Layer Processing (ILP)

      • Layering convenient for architecture but not for implementations

      • Combine data manipulation operations across layers


Distributed design and control l.jpg
Distributed design and control

  • Reliability from intelligent aggregation of unreliable components

  • Alternate paths, adaptivity, lack of centralized control

  • Each network owned and managed separately

  • Exception: TLDs and TLD servers, IP address allocation (ICANN)


Superior organizational process l.jpg
Superior organizational process

  • IAB/IETF process allowed for quick specification, implementation, and deployment of new standards

    • Free and easy download of standards

    • Rough consensus and running code

    • 2 interoperable implementations

    • Bake-offs

    • http://www.ietf.org/

  • ISO/OSI

    • Comparison to IETF left as an exercise


Acknowledgements l.jpg
Acknowledgements

  • Portions of this lecture and all subsequent lectures are taken from course slides by Kurose/Ross and course slides by Srini Seshan’s Computer Networking course at http://www.cs.cmu.edu/~srini/15-744/S01/
