Presentation Transcript
Capacitors in a circuit l.jpg

Capacitors in a Circuit

emf

Resistors

series

parallel

Circuit problems

Capacitors in a circuit


Reading question l.jpg
Reading Question

Electrical power is

  • P = IV

  • P = Ed

  • P = I2R

  • P = qV

  • None of the above.

  • Two or more of the above.


Reading question3 l.jpg
Reading Question

Electrical power is

  • P = IV

  • P = Ed

  • P = I2R

  • P = qV

  • None of the above.

  • Two or more of the above.

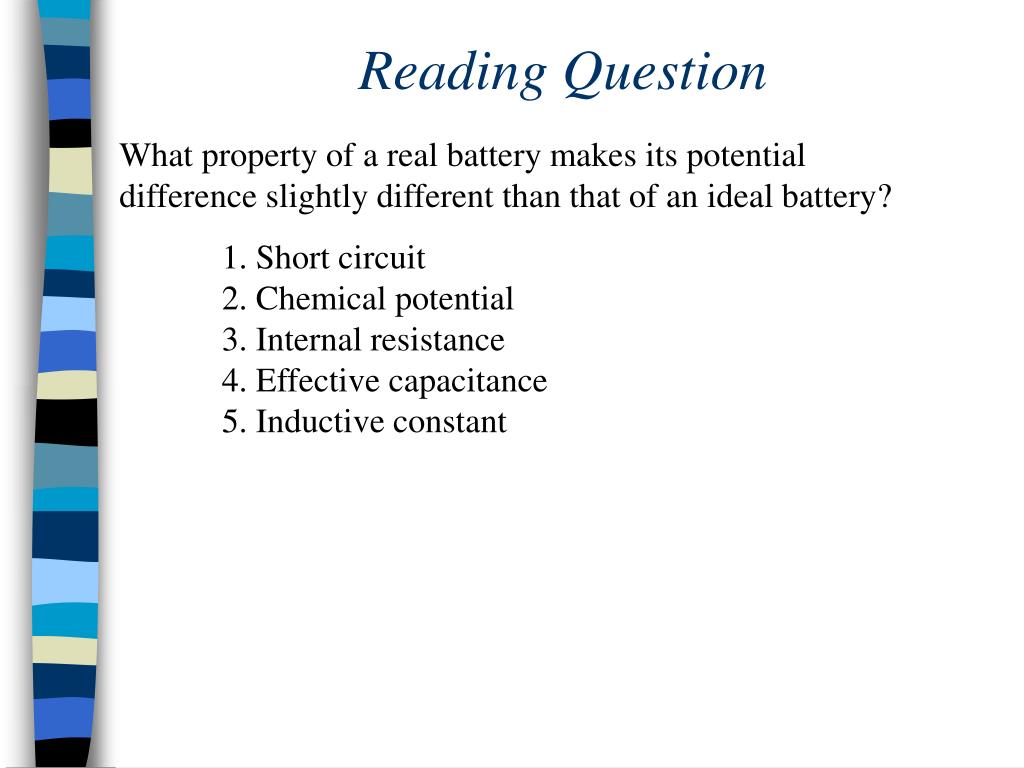

Reading question4 l.jpg
Reading Question

What property of a real battery makes its potential difference slightly different than that of an ideal battery?

1. Short circuit

2. Chemical potential

3. Internal resistance

4. Effective capacitance

5. Inductive constant


Reading question5 l.jpg
Reading Question

What property of a real battery makes its potential difference slightly different than that of an ideal battery?

1. Short circuit

2. Chemical potential

3. Internal resistance

4. Effective capacitance

5. Inductive constant


Reading question6 l.jpg
Reading Question

In an RC circuit, what quantity is represented by the symbol

1. Period

2. Torque

3. Terminal voltage

4. Time constant

5. Coefficient of thermal expansion


Reading question7 l.jpg
Reading Question

In an RC circuit, what quantity is represented by the symbol

1. Period

2. Torque

3. Terminal voltage

4. Time constant

5. Coefficient of thermal expansion


Reading question8 l.jpg
Reading Question

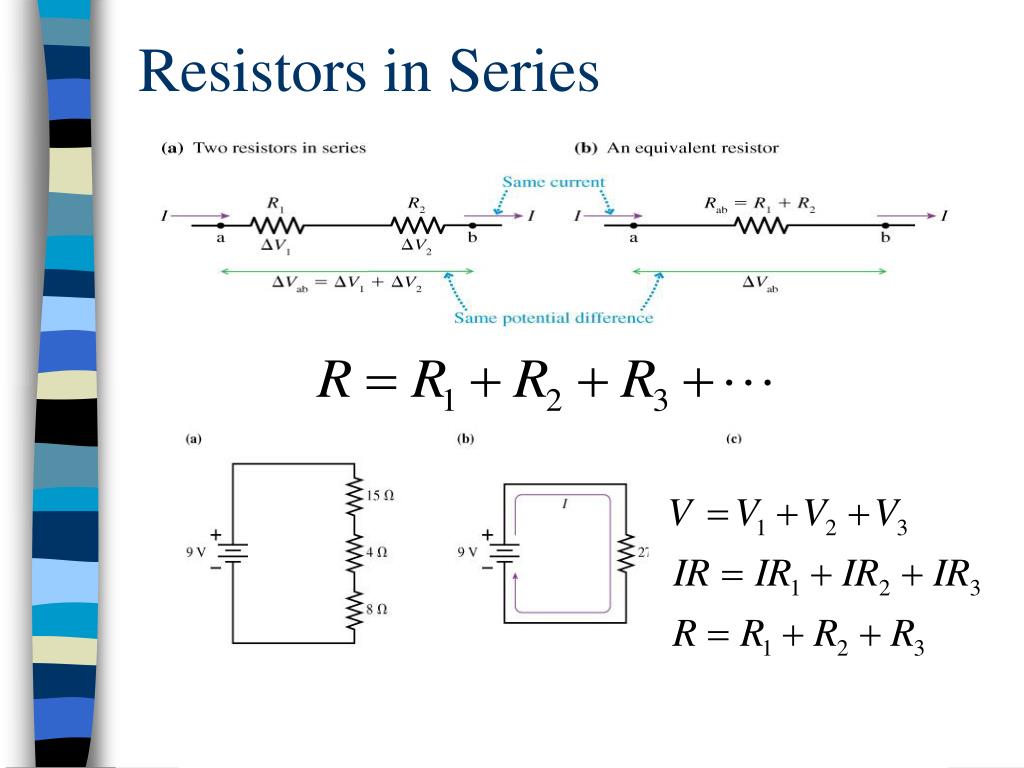

The equivalent resistance for a group of series resistors is

1. less than any resistor in the group.

2. equal to the smallest resistance in the group.

3. equal to the average resistance of the group.

4. larger than any resistance in the group.

5. larger than any resistor in the group.


Reading question9 l.jpg
Reading Question

The equivalent resistance for a group of series resistors is

1. less than any resistor in the group.

2. equal to the smallest resistance in the group.

3. equal to the average resistance of the group.

4. larger than any resistance in the group.

5. larger than any resistor in the group.










Class question l.jpg

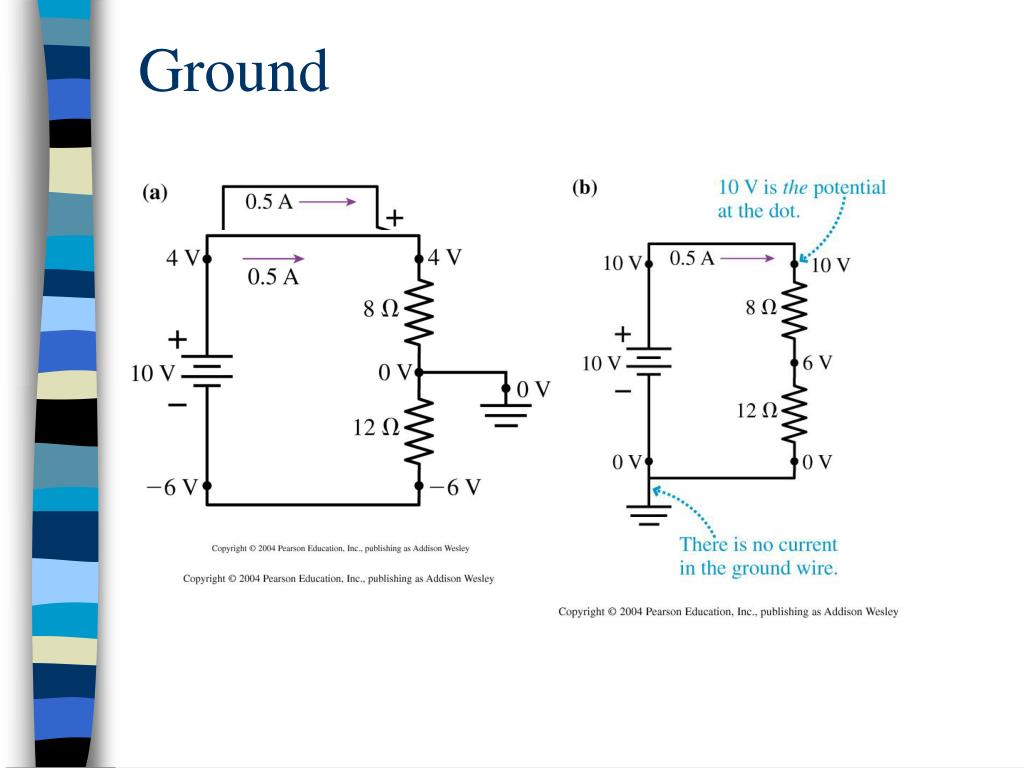

Class Question

What is the potential at points a to e ?

1. Va = 0, Vb = -4 V, Vc = -10 V, Vd = -12 V, Ve = -20 V

2. Va = -20 V, Vb = -16 V, Vc = -10 V, Vd = -8 V, Ve = 0 V

3. Va = 20 V, Vb = 16 V, Vc = 10 V, Vd = 8 V, Ve = 0 V

4. Va = -4 V, Vb = -6 V, Vc = -2 V, Vd = -8 V, Ve = 0 V

5. Va = 4 V, Vb = 6 V, Vc = 2 V, Vd = 8 V, Ve = 0 V


Class question19 l.jpg
Class Question

What is the potential at points a to e ?

1. Va = 0, Vb = -4 V, Vc = -10 V, Vd = -12 V, Ve = -20 V

2. Va = -20 V, Vb = -16 V, Vc = -10 V, Vd = -8 V, Ve = 0 V

3. Va = 20 V, Vb = 16 V, Vc = 10 V, Vd = 8 V, Ve = 0 V

4. Va = -4 V, Vb = -6 V, Vc = -2 V, Vd = -8 V, Ve = 0 V

5. Va = 4 V, Vb = 6 V, Vc = 2 V, Vd = 8 V, Ve = 0 V



Class question21 l.jpg
Class Question

Rank in order, from brightest to dimmest, the identical bulbs A to D.

1. A = B = C = D

2. A > B > C = D

3. A > C > B > D

4. A > C = D > B

5. C = D > B > A


Class question22 l.jpg
Class Question

Rank in order, from brightest to dimmest, the identical bulbs A to D.

1. A = B = C = D

2. A > B > C = D

3. A > C > B > D

4. A > C = D > B

5. C = D > B > A


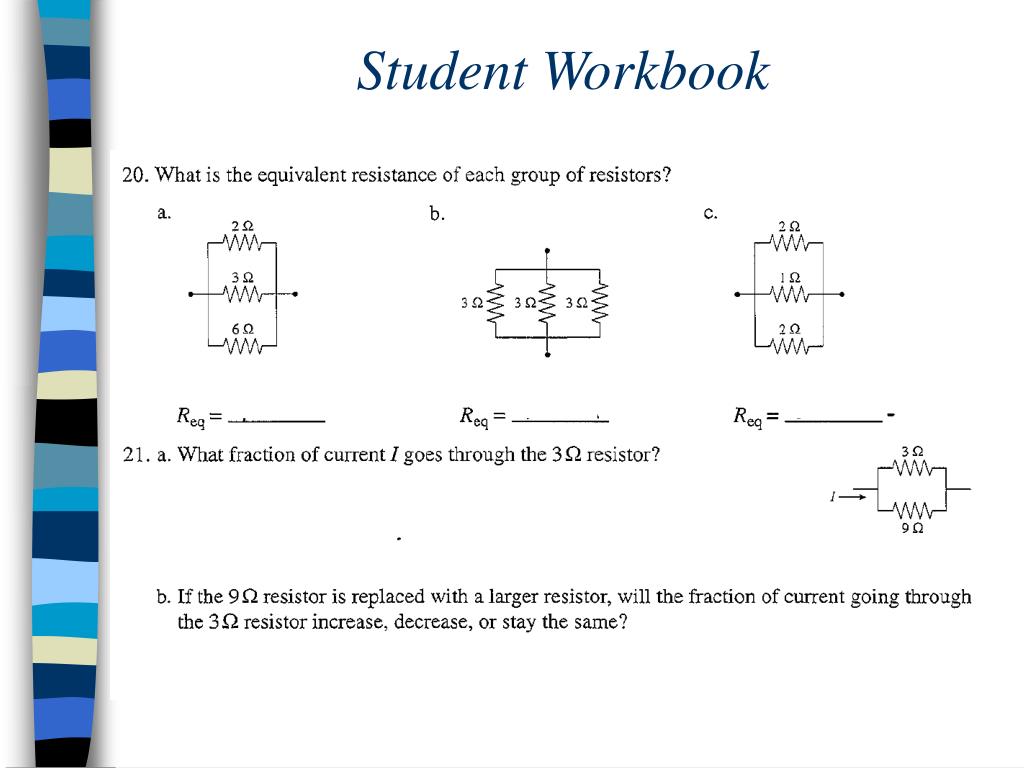

Another problem l.jpg
Another Problem

What is the current in the 600 W resistor?






Voltage measurement l.jpg
Voltage Measurement

To measure the potential difference or voltage across an element we connect the two voltage leads to the ends of the element.


Voltage measurement29 l.jpg
Voltage Measurement

What is the effect of connecting a voltmeter (DMM) to an element?

This is the resistance of the voltmeter (DMM). This resistance is more like 10 MW

If 10 MW and 1kW


Voltage measurement30 l.jpg
Voltage Measurement

What about measuring the voltage of a old battery?


Current measurement l.jpg
Current Measurement

To measure the current through an element we break the circuit and place the current meter (DMM) in the circuit so that current flows through the meter.


Ideal ammeter l.jpg

Ideal Ammeter

V

Ideal Ammeter

Rs

Rs = 0 for an ideal ammeter


Charging a capacitor l.jpg
Charging a Capacitor

Kirchhoff’s Rules


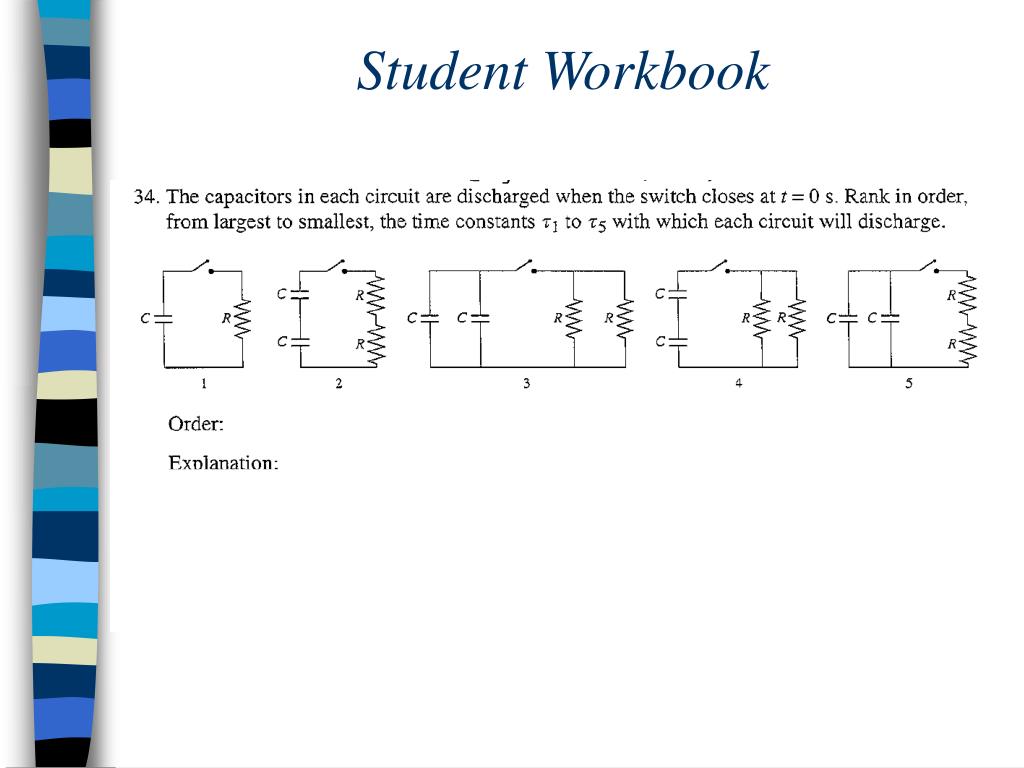

Discharging a capacitors l.jpg
Discharging a Capacitors

  • Write Kirchhoff’s voltage equation for discharging a capacitor.

  • The charge on the capacitor decrease while the charge through the resistor increases.

  • Integrate the equation


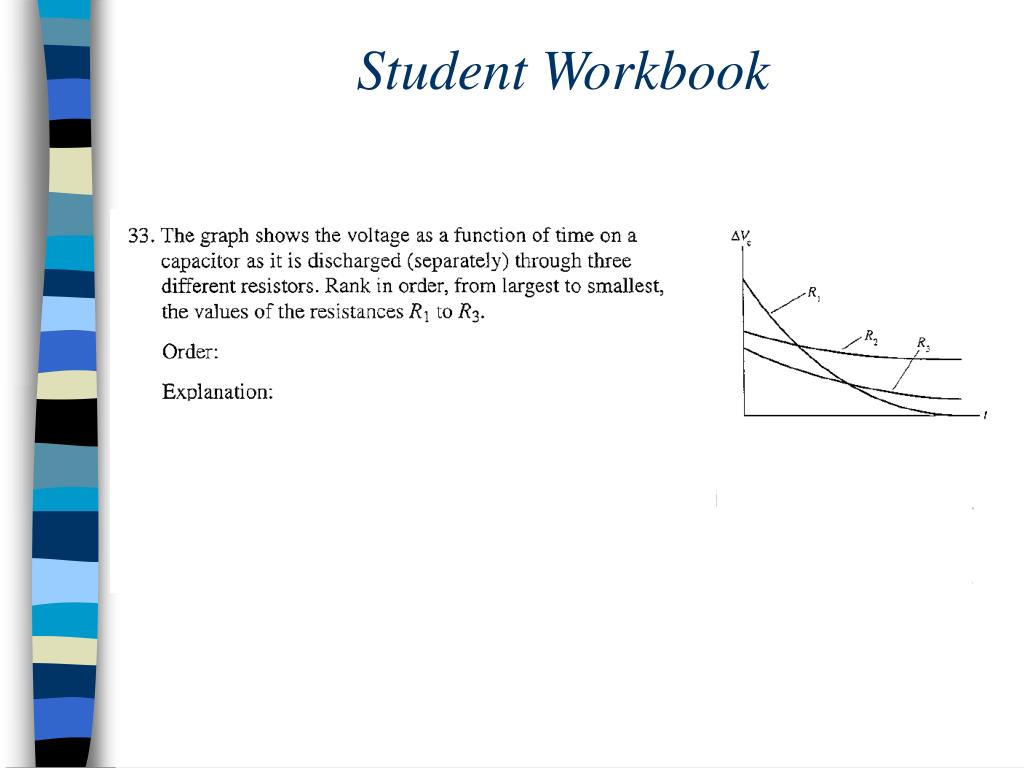

Discharging a capacitor l.jpg
Discharging a Capacitor

  • Write the equation for current and voltage for a discharging capacitor.

  • Use the definition of capacitance and the charge equation to find the equation for the voltage across the capacitor.


Charging a capacitor36 l.jpg
Charging a Capacitor

  • Are the graphs for a charging capacitor the same? Discuss this.

  • Discuss these equations in your group and make sure you all understand and can explain these equations in terms of the characteristic of the capacitor.


Charging a capacitor37 l.jpg
Charging a Capacitor

  • Now lets see a charging capacitor.

For times less than one

time constant

For times greater than a

few time constant


Capacitors in a circuit38 l.jpg
Capacitors in a Circuit

  • Now lets see what effect a capacitor has in a circuit?

For times less than one

time constant

For times greater than a

few time constant
