slide2

THE COUNTRY

  • ROAD TRANSPORT SYSTEM
  • AIR TRANSPORT SYSTEM
  • RAILWAYS SYSTEM
  • PORT LOCATION
  • PORT OF LUANDA
  • PORT OF LOBITO
  • PORT OF NAMIBE
  • TYPE OF CARGO HANDLING EQUIPMENT
  • TRAFFIC
  • MAIN CONSTRAINTS
  • ACTION PLAN

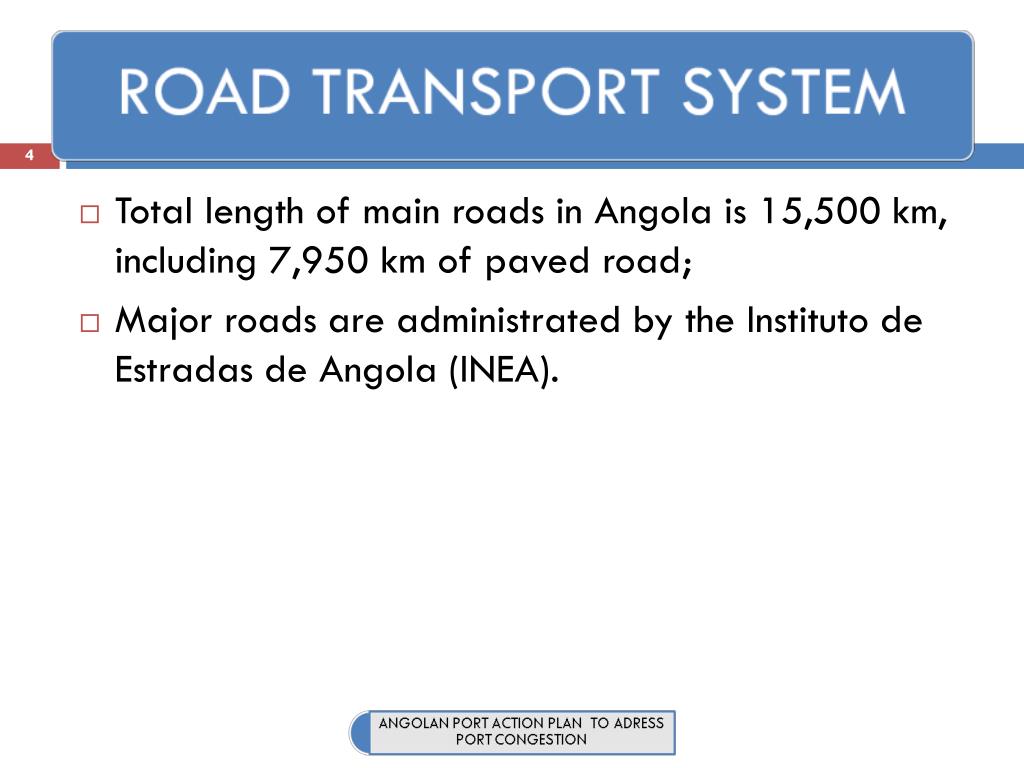

slide4

Total length of main roads in Angola is 15,500 km, including 7,950 km of paved road;

  • Major roads are administrated by the Instituto de Estradas de Angola (INEA).
slide5

Mainairport

    • Themainairports are locatedinthe provincial capitals
  • Otherairport
    • Thesmalltowns are servedbysmallairstrips
  • Fleets
    • PUBLIC
      • TAAG
      • SONAIR
    • PRIVATE
      • Some privatecompanyoperatenationalwide
slide6

CFL CFB CFN

TOTAL LENGTH OF CFL 424 Km TOTAL LENGTH OF CFB 1336 Km TOTAL LENGTH OF CFN 756 Km

slide7

MAIN PORTS

    • Luanda
    • Lobito
    • Namibe
  • SECONDARY PORTS
    • Cabinda
    • Soyo
    • Porto Amboim
slide8

Total quay length 3200 m

Depth 3,5-12,5 m

Total area 150 Ha

slide9

Total quay length 1220 m

Deph 3,5-10,5 m

Total area 11 Ha

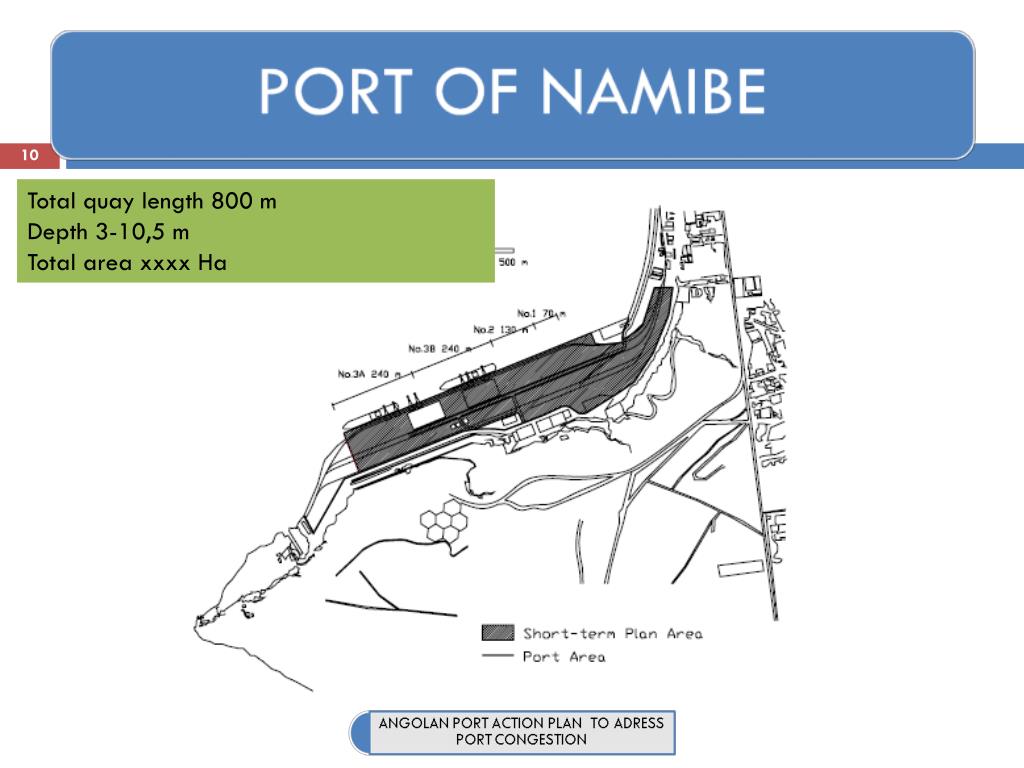

slide10

Total quaylength 800 m

Depth 3-10,5 m

Total areaxxxxHa

slide11

Alltheseportshavealmostthesametypeofequipment

    • Tugboats
    • Quaycranes (3-22 ton)
    • Mobile cranes
    • Floatingcranesof 120 ton (Lobito)
    • Craneshiploaderof 200 ton/h
    • Reach-stacker 40-45 ton
    • Top lift 40 ton
    • Forklift 2,5-40 ton
slide12

Ships arrival and departure

Average ship days in the port

Container traffic 2007

slide14

2008 FIRST SEMESTER TRAFFIC

  • Total Traffic : 3.168.934 Tons
  • Containers : 287.298 Teus
  • Vehicle : 27.886
  • 2.056 vessels called the port during the first semester of 2008 among which 366 deep sea vessels
  • The remaining ones are caostal and oils activities suppliers
  • An increase of 27 % in comparison to the same period of 2007
slide15

Comments

  • The arrival rate of two (2) ships per day
  • The average of seven movement / hour /ship
  • Five dedicated berths for containers
  • 785 teus/ship
  • Six days (6) service time/ship
  • An average of 31 ships waiting for berth per month
slide16

Fewinfrastruture;

  • Lackofappropriatehandlingequipment for container;
  • Lowproductivity;
  • PoorManagement;
  • Labourintensive;
  • Interface portcity (allourport are locatedintown centre);
  • Heavyadministrativeclearingprocess;
  • Nongeneralise use of I.T. inports.
slide17

Demurrage of ships in the ports and related surcharges;

    • Higher dwell time of container/cargo in the port
slide18

IMMEDIATE ACTIONS

  • Create extra port stacking capacities ;
  • Improve the management of container through the introduction of I.T. in all terminals and training of staff and labour;
  • Purchase of appropriate handling equipment
  • Reduce the allowed free time of container in the ports
  • Involve private sector in port commercial activities
slide19

MEDIUM AND LONG TERM ACTIONS

  • Increase storage capacity;
  • Install specialised handling equipment (especially container gantry cranes);
  • Providing extra quay length for vessel berths;
  • Operational issues;
  • Delocating the port and putting in place specialised terminals

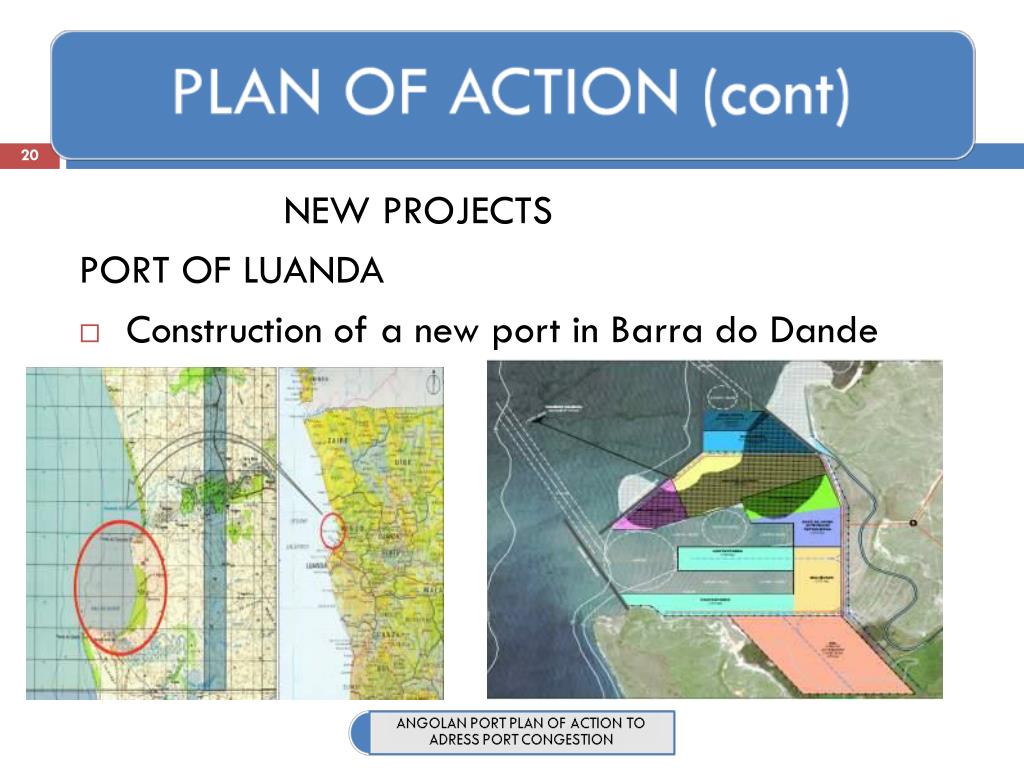

slide20

NEW PROJECTS

PORT OF LUANDA

  • Construction of a new port in Barra do Dande
slide21

NEW PROJECTS (CONT)

PORT OF LOBITO

  • Rehabilitation and extension of the port
