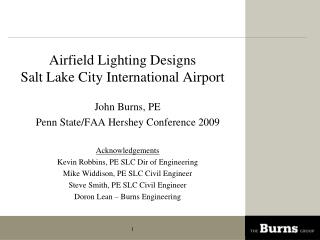

Airfield Lighting DesignsSalt Lake City International Airport

John Burns, PE

Penn State/FAA Hershey Conference 2009

Acknowledgements

Kevin Robbins, PE SLC Dir of Engineering

Mike Widdison, PE SLC Civil Engineer

Steve Smith, PE SLC Civil Engineer

Doron Lean – Burns Engineering

airport background
Airport Background
  • Four Runways (2 Parallel 12,600’, R/W 17-35, & R/W 14-32)
  • Airport is FAA approved for CAT III-B Operations.
  • 4 CAT III-B Controllable Stop Bars at both ends of each of parallel runways.
  • 2 CAT III-B Lead-Across Stop Bars at H5 & H10.
  • Majority of the SMCGS upgrade was performed under retrofit conditions.
presentation overview
Presentation Overview
  • Due to complexity of SMCGS system and overall airport operations airfield lighting design is incorporated & coordinated early into the planning and conceptual design.
  • Presentation will review three (3) sample projects of innovative Electrical coordination performed in the early design process.
  • Result: Significant cost savings and optimization of construction budget.
runway 34r 16l case study 1
Runway 34R-16L – Case Study 1
  • Airport’s main operational runway. Closure significantly impact’s Airport’s operations.
  • Runway inpavement lights (R/W CTL and TDZ) were originally retrofitted in existing asphalt in early 90’s.
  • 2007: Due to deteriorating pavement, a 4” mill and overlay was required.
  • Major issue: Majority (±400) of base cans were originally installed with short extensions that could not accommodate 4” mill.
  • Several options:
    • Hand-mill. (Very expensive & time consuming).
    • Replace 400 base cans that do not accommodate milling.
    • Cut base can and retrofit base new base can. No guaranteed or warranted.
    • Raise runway elevation to accommodate cans.
runway 34r 16l case study 15
Runway 34R-16L – Case Study 1
  • SLC Maintenance, Engineering, & Burns developed a base can height profile to be overlayed on the mill/asphalt profile to analyze how much overlay is required and potential savings.
  • 799 Base cans opened and measured over a 14 night period (11:00 p.m. to 6:00 a.m.).
  • Simple measurement system to quickly and accurately measure the base can height.
  • Elevation profile was created across every base can for Runway Centerline & Runway TDZ.
problem base cans in the way
Problem: Base cans in the way

Existing Grade

New Grade

Elevation

Base Can Height

Milled Surface

R/W CTL #11

R/W CTL #13

R/W CTL #10

R/W CTL #12

R/W CTL #1

R/W CTL #2

R/W CTL #3

R/W CTL #4

R/W CTL #5

R/W CTL #6

R/W CTL #7

R/W CTL #8

R/W CTL #9

  • Challenge:
  • Can’t raise runway too much
  • Fix runway humps
  • Overlay as close to 4” as possible
  • Minimize disruption to operation or number of base cans removed
solution revise profile
Solution: Revise Profile

Runway slightly raised in certain spots by no more than 1”

Existing Grade

New Grade

Elevation

Milled Surface

Base Can Height

R/W CTL #11

R/W CTL #13

R/W CTL #10

R/W CTL #12

R/W CTL #1

R/W CTL #2

R/W CTL #3

R/W CTL #4

R/W CTL #5

R/W CTL #6

R/W CTL #7

R/W CTL #8

R/W CTL #9

  • Result:
  • Schedule impact significantly reduced
  • 350 fewer cans were removed, approximately $400k savings
  • Efficient milling operation
slide8

Runway 34R-16L – Case Study 1

Light base after milling

Light base removal

other factors
Other Factors
  • To Meet Slope Requirements parts of shoulder were milled and overlaid.
  • Navigational aids were analyzed such as ILS/Glideslope/ALSF/PAPI to ensure impact of slight raise was within standards. Flight checked and passed as a precaution.
coordination of t w ctl and concrete joints case study 2
Coordination of T/W CTL and Concrete Joints – Case Study 2
  • Challenge:
    • Reconstruct center four panels only with 20’ x 20’ panels
    • Old concrete panel size is 25’ by 25’.
    • Centerline light radius and spacing fixed in existing panels
    • Many joint conflict with new panel size,
    • Base cans must be at least 2.5’ from light center to concrete joint
    • Would require block-outs at Concrete Joints or Partial panel replacements.

Existing Panels (25’ x 25’)

T/W L-852D @ 12.5’

New Panels (20’ x 20’’)

coordination of t w ctl and concrete joints case study 211
Coordination of T/W CTL and Concrete Joints – Case Study 2
  • Solution: Proposed to use FAA’s L-852K fixture for radius lights.
    • Fixture allows for 25’ (+/- 10%) spacing while still meeting RVR <1,200’ requirements.
    • Fixture is toed in on both sides of fixture.
    • Photometrical L-852K can be seen from 25’ away as much as L-852D fixture can be seen from 12.5’. (Refer to DOT/FAA/AR-TN06 for photometric data)

L-852D

L-852K

Pictures courtesy of DOT/FAA/AR-TN06

case study 2 solution
Case Study #2 - Solution
  • L-852K fixtures: Improved coordination with concrete joint panels.
  • Less maintenance due to fewer fixtures
  • Less construction cost due to fewer fixtures
  • Can be used in conjunction with L-852D, do not have to retrofit entire Airport.

Existing Panels (25’ x 25’)

T/W L-852K @ 25’

New Panels (20’ x 20’)

light intensity and vault capacity case study 3
Light Intensity and Vault Capacity – Case Study 3
  • Issue #1:
    • Delta Airline Pilots complained that:

(a) lights are too bright at low intensity of 3 Step Operation

(b) Centerline are not energized all the time.

    • Airport configured with 3 Step CCR for taxiway centerline lights.
    • Centerline lights are only energized during RVR conditions requiring taxiway centerline lights
  • Issue #2:
    • Existing Vault was approaching physical capacity and could not accommodate future Airport growth. (Deicing Pads, Parallel Taxiway)
    • Terminal Redevelopment location was unknown and building a new vault would not only be expensive but also might be in the way of future construction.
light intensity and vault capacity case study 314
Light Intensity and Vault Capacity – Case Study 3
  • Issue #1: Light Intensity
    • Decision was made to operate T/W CTL at all times under 5 step operation. (Step 2 for VFR Conditions)
    • Majority of existing CCRs were original “LC” type CCRs configured for 3 step operation. CCRs could not be readily converted to 5 step operation.
slide15

Light Intensity and Vault Capacity – Case Study 3

  • Issue # 2 – Vault Capacity
    • New 5 step Ferro type CCRs are larger than 3 step LC CCRs
    • Physical space to build a second stack for CCRs limited.
    • Physical modifications to enlarge vault not practical.
    • New terminal location is not known. Airport hesitant to build new vault because it might need to be razed within 10 years.
    • Seismic #4 rated.
  • Agenda
main vault configuration
Main Vault Configuration
  • East and West Vault rooms are similar
  • Existing configuration has 4 rows of double-stack CCRs
  • Also has 3 Rows of single, large Ferro CCRs
  • Siemens ACE Units.
  • Agenda
slide17

Light Intensity and Vault Capacity – Case Study 3

  • Cost to provide new CCRs to accommodate 5 Step Operation: $1.1 Million.

Directive:

Design 5 step system and provide for future expansion at or near $1.1 million budget.

solution
Solution:
  • Utilize switchgear CCR system on half of the rows
    • Advantages:
    • Minimizes space requirements. 14 CCRS can be installed on 20’ long by 4’ wide by 8’ high space.
    • Use stag connectors to pull CCR in/out and replace easily.
    • Minimizes overhead connection points as all wiring goes into an incoming power bay and is transferred via bus bars to the powerpacks.
    • Dis-Advantages:
    • Future upgrades are sole-sourced to mfg. that wins initial project.
  • Agenda
sequential phasing
Sequential Phasing
  • 12 Phasing steps to ensure all circuits remain energized during nightime operations (7:00 p.m. to 7:00 a.m.)
  • Agenda
slide20

Early Phases

  • Temporarily consolidate load on spare and other CCRs
  • Remove CCRs to make space for switchboard CCRs
  • Agenda
slide21

Later Phases

  • Install Switchgear CCRs
  • Reconfigure circuits to new switchgear regulators
final configuration
Final Configuration
  • 5 step CCRs provided for T/W centerline lights
  • Increased space for future regulators

Future SGRS

Future SGRS

result
Result
  • 5 step CCRs provided for T/W centerline lights
  • Increased space for future regulators

Space for future CCRs before reconfiguration = 12

Switchgear project cost = $1.6 Million vs. New Vault Cost = $7 - $9 Million

Reconfiguration will accommodate future growth for next 15 years at a fraction of the cost to expand the vault

summary
Summary
  • Investigate height of base can during design and coordinate with pavement overlay
  • Use of L-852-K centerline light fixtures can reduce the concrete pavement joint conflicts
  • Switchboard regulators can free up space in the vault and possibly eliminate the need to expand building
