AES Specialties Contractors Ceramic Cover Systems 100 Photo Album
Ceramic Cover 100 Benefits Easy Application with standard Spray Equipment Latex based Can be applied on hot surfaces without plant shutdown Easy to repair and maintain Saves thermal energy and space Facilitates visual inspection of hot surfaces Non-combustible and low flame spread Reduces temperatures in work areas for personnel protection Chemical resistant Protects against corrosion Sound dampening effect Limited surface preparation is necessary Superior adhesion Outstanding flexibility Can be top-coated with polyurethane, epoxy and waterborne coatings Impressive references Comprehensively tested at independent laboratories
Sample pipe of conventional vs. CC-100Fiberglass is difficult to seal Very Durable – Damage resistantEasily damaged Waterproof and a Vapor BarrierPromotes corrosion due to chloride content Will not affect indoor air qualityDifficult to maintain vapor barrier Very chemical resistant against acids, basesMust be removed for inspection of substrate and retards microbial growth.Smoke and Flame spread 25 and 50 Can be easily repaired Not chemical resistant Class A fire ratedCan affect indoor air quality Eliminates under insulation corrosion Must be jacketed if used outdoors or in wet areas Aesthetically pleasing appearance and can be tinted most colors or top-coated. No VOC’s.
Industrial and Commercial Uses Tanks Rotary Dryers Piping Duct work Kilns Digesters Chillers Steam Lines Reactors Heat Exchangers Roofs Boilers Dust Collectors/Baghouses

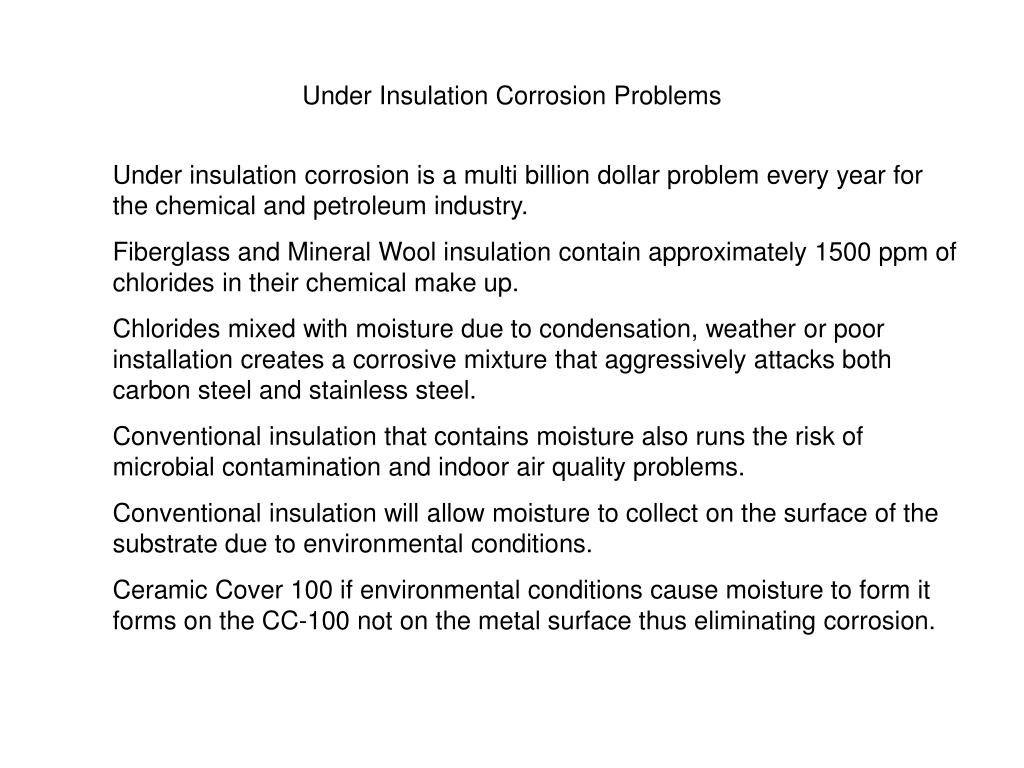

Under Insulation Corrosion Problems Under insulation corrosion is a multi billion dollar problem every year for the chemical and petroleum industry. Fiberglass and Mineral Wool insulation contain approximately 1500 ppm of chlorides in their chemical make up. Chlorides mixed with moisture due to condensation, weather or poor installation creates a corrosive mixture that aggressively attacks both carbon steel and stainless steel. Conventional insulation that contains moisture also runs the risk of microbial contamination and indoor air quality problems. Conventional insulation will allow moisture to collect on the surface of the substrate due to environmental conditions. Ceramic Cover 100 if environmental conditions cause moisture to form it forms on the CC-100 not on the metal surface thus eliminating corrosion.
Under insulation corrosion on chilled water piping with fiberglass insulation removed
Smart Paper Hamilton, OH. Rotary Dryer CC-100 for Insulation and Corrosion Protection
Architectural and Commercial Uses Indoor spiral or exposed duct work Roof top duct work Exposed concrete or metal ceilings and walls Tilt up concrete panels CMU walls Metal buildings Build green roof coating for energy conservation Fresh air intakes plenums
CC-100 on cooling ducts to prevent condensation and increase chiller energy savings
Exterior Duct work at First Presbyterian Church in Lexington, KY.
CC-100 for insulation on the underside of metal deck at Churchill Downs Phase II
University of Louisville Visual Arts School ceiling – CC-100 applied for insulation. Ceiling is concrete slab with parking garage above.
U of L School of Visual Art ceiling CC-100 tinted to match architects color Benjamin Moore Paints Cape Hateras Sand. Project was coordinated with GC to work around finishes and lighting in place while coated.
CC-100 above drop ceiling for condensation control due to conditioned space above at Churchill Downs Phase II
Lexington Legends Ball Park – Makers Mark Grill & Bar 20 mils of CC-100 on precast concrete for insulation value
Owner wanted to use bar & grill all year around, but had trouble heating the area during the winter months. CC-100 solved their problems
CC-100 was top coated with latex green interior paint to match customer interior
Prefabrication Made Easy Prefabrication of duct work in sheet metal fabricators shop then delivered to job and installed. Install CC-100 to rotary dryer in shop then shipped by rail to Mexico. Install CC-100 to skid work in mechanical contractors shop for shipment to jobsite and installation.
Ease of application and durability of CC-100 allow for work to be prefabricated and installed later saving valuable time.
Duct work coated with 40 mils prior to installation by mechanical contractor.
AMACO-BP dryer coated in Louisville Dryer’s shop being loaded onto a rail car for shipment to Mexico.
After Photo – Morgan Foods Horizontal cookerRecovery of Investment of Approx. 9 Months.
Large rotary dryer for Louisville Dryer coated in their shop for shipment to China.
