  1. DRO 1628 NT RS Réalisée par : D. DILÉ Date : 4.12.2009

  2. 414 DRO 1628 NT RS RL = 1674.5 mm (65.92″) Mini 450 mm (17.71″) Maxi 1540 mm (60.62″) RL RL RL RL 0 0 0 0 0

  3. 414 DRO 1628 NT RS Skip-FeedRL = 1674.5 mm (65.92″) Maxi 1600 mm (63″) 2100 mm (82.677″) Mini 450 mm (17.71″) RL RL RL RL 0 0 0 0 0

  4. 414 ½ RL ½ RL ½ RL ½ RL ½ RL ½ RL ½ RL ½ RL DRO 1628 NT RS Dual-FeedRL = 1674.5 mm (65.92″) ½ RL = 837.21 mm (32.96″) Mini 450 mm (17.71″) Maxi 736.6mm (29″) RL RL RL RL 0 0 0 0 0

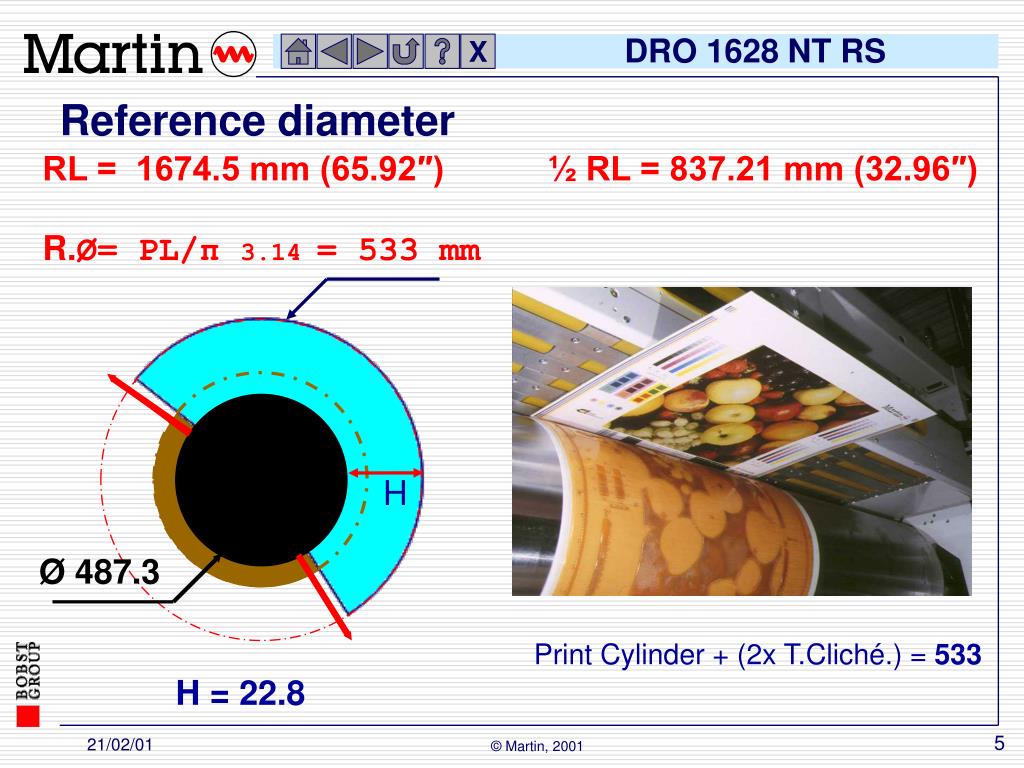

  5. H Ø 487.3 DRO 1628 NT RS Reference diameter RL = 1674.5 mm (65.92″) ½ RL = 837.21 mm (32.96″) R.Ø= PL/π3.14 = 533 mm Print Cylinder + (2x T.Cliché.) = 533 H = 22.8
