ITCS 6010

1. ITCS 6010 VUI Evaluation

2. Summative Evaluation • Evaluation of the interface after it has been developed. • Typically performed only once at the end of development. Rarely used in practice. • Not very formal. • Data is used in the next major release.

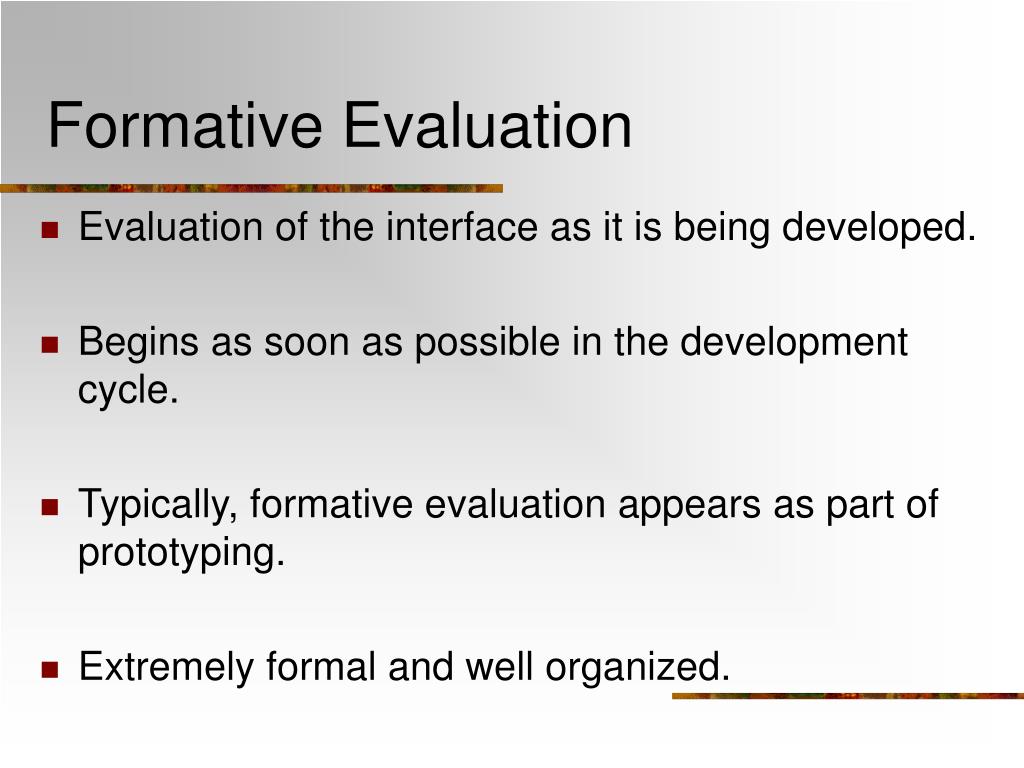

3. Formative Evaluation • Evaluation of the interface as it is being developed. • Begins as soon as possible in the development cycle. • Typically, formative evaluation appears as part of prototyping. • Extremely formal and well organized.

4. Formative Evaluation • Performed several times. • An average of 3 major cycles followed by iterative redesign per version released • First major cycle produces the most data. • Following cycles should produce less data, if you did it right.

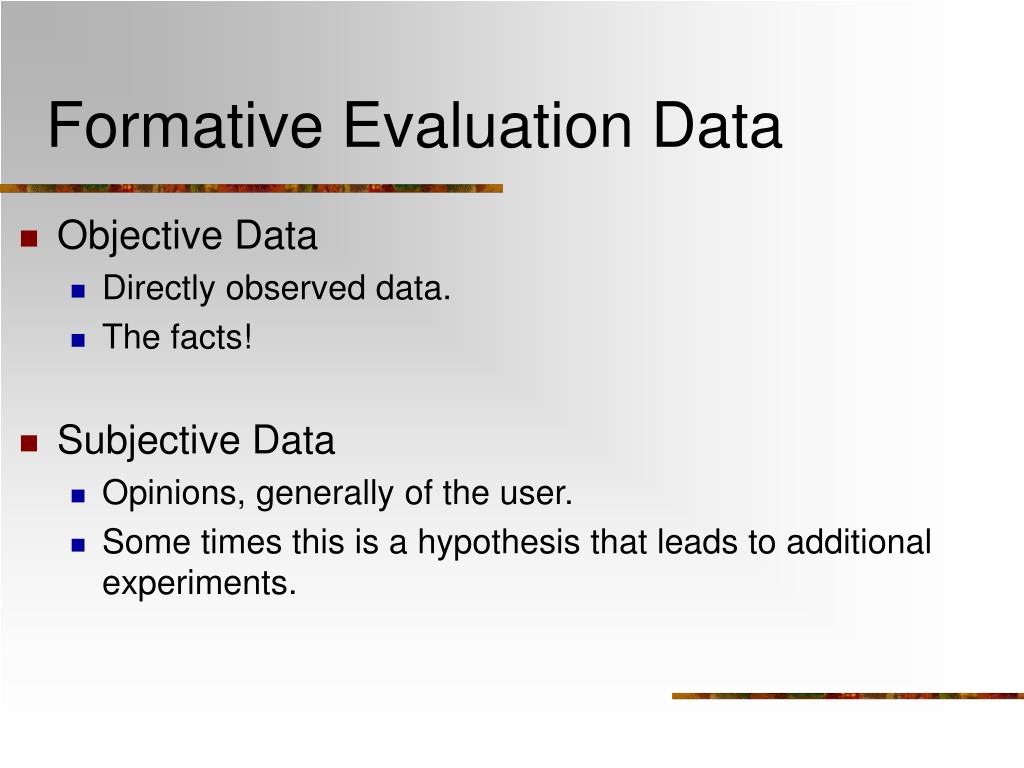

5. Formative Evaluation Data • Objective Data • Directly observed data. • The facts! • Subjective Data • Opinions, generally of the user. • Some times this is a hypothesis that leads to additional experiments.

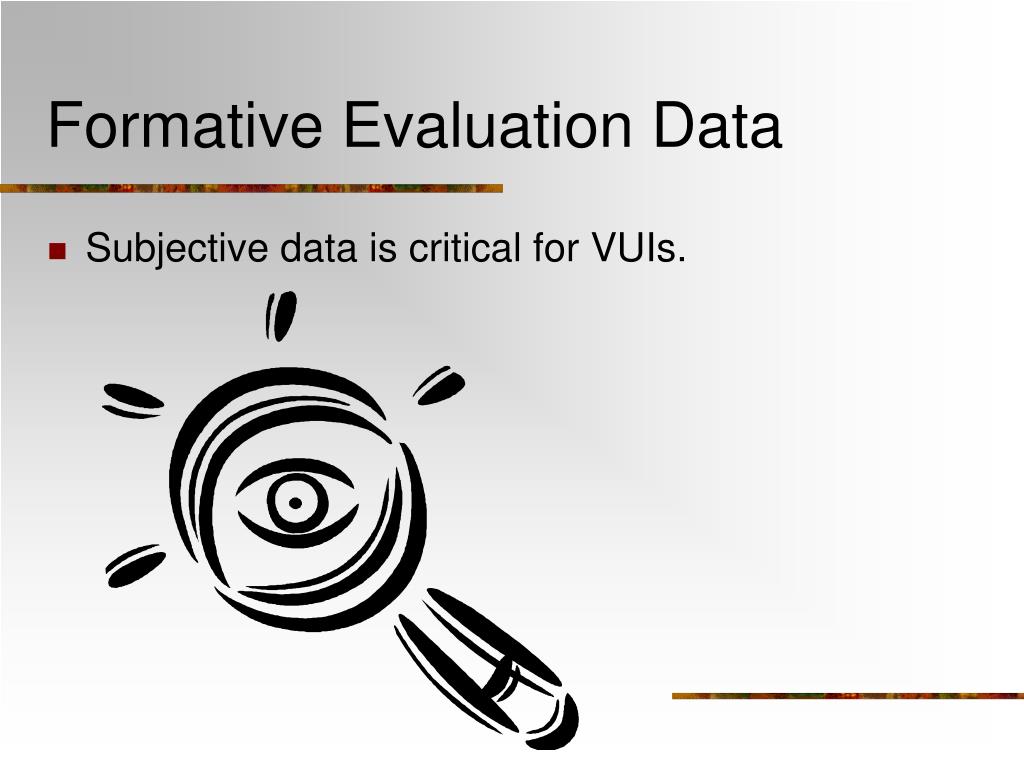

6. Formative Evaluation Data • Subjective data is critical for VUIs.

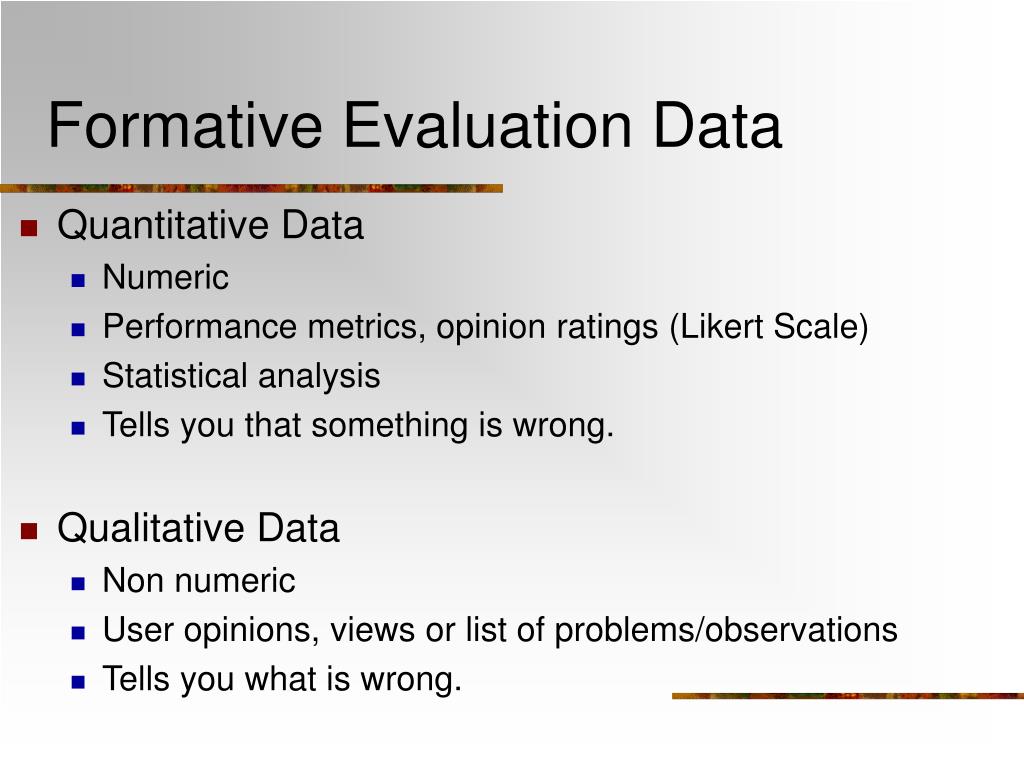

7. Formative Evaluation Data • Quantitative Data • Numeric • Performance metrics, opinion ratings (Likert Scale) • Statistical analysis • Tells you that something is wrong. • Qualitative Data • Non numeric • User opinions, views or list of problems/observations • Tells you what is wrong.

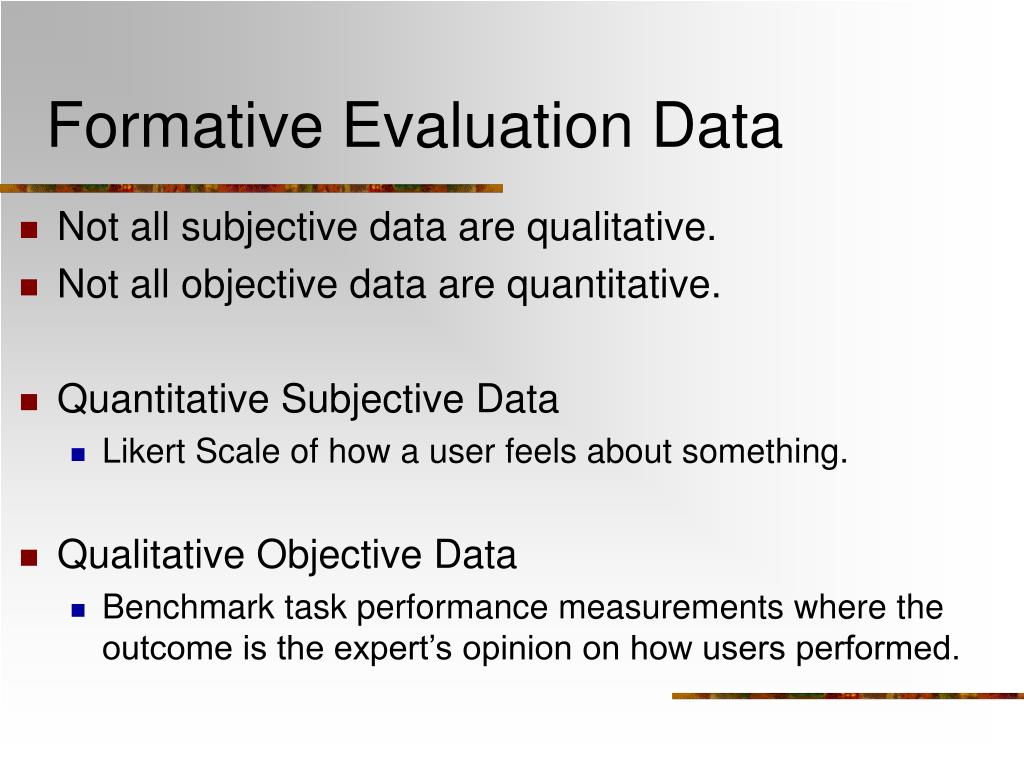

8. Formative Evaluation Data • Not all subjective data are qualitative. • Not all objective data are quantitative. • Quantitative Subjective Data • Likert Scale of how a user feels about something. • Qualitative Objective Data • Benchmark task performance measurements where the outcome is the expert’s opinion on how users performed.

9. Steps in Formative Evaluation • State hypothesis and design the experiment. • Conduct the experiment. • Collect the data. • Analyze the data. • Draw your conclusions & establish hypotheses. • Redesign and do it again.

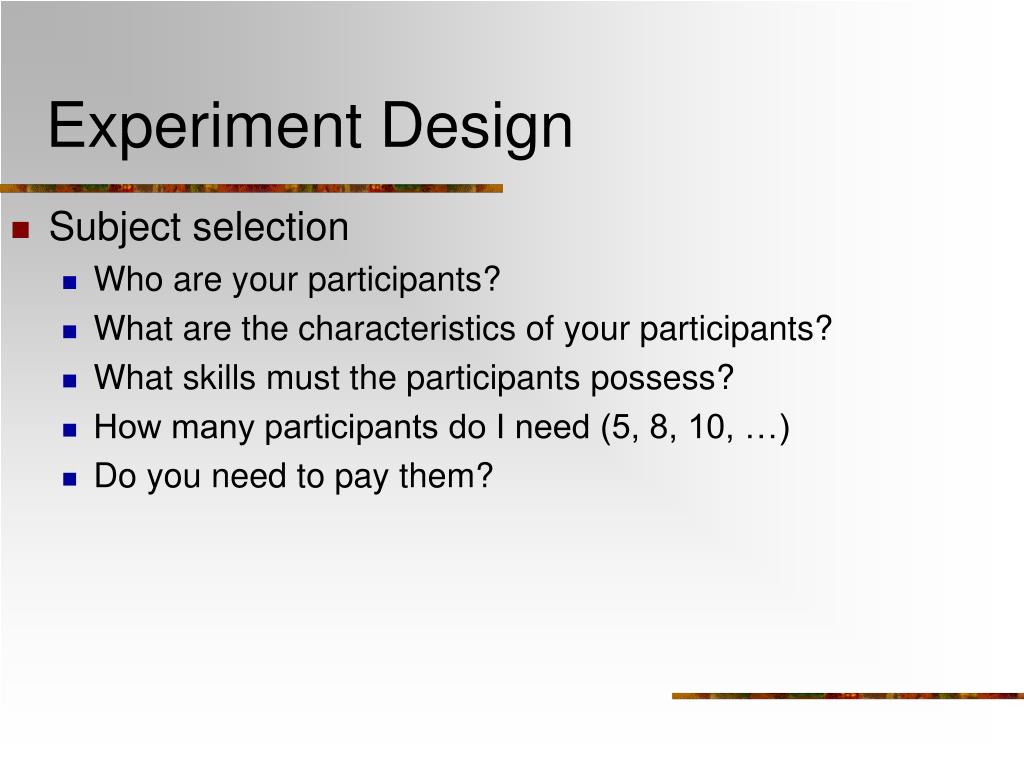

10. Experiment Design • Subject selection • Who are your participants? • What are the characteristics of your participants? • What skills must the participants possess? • How many participants do I need (5, 8, 10, …) • Do you need to pay them?

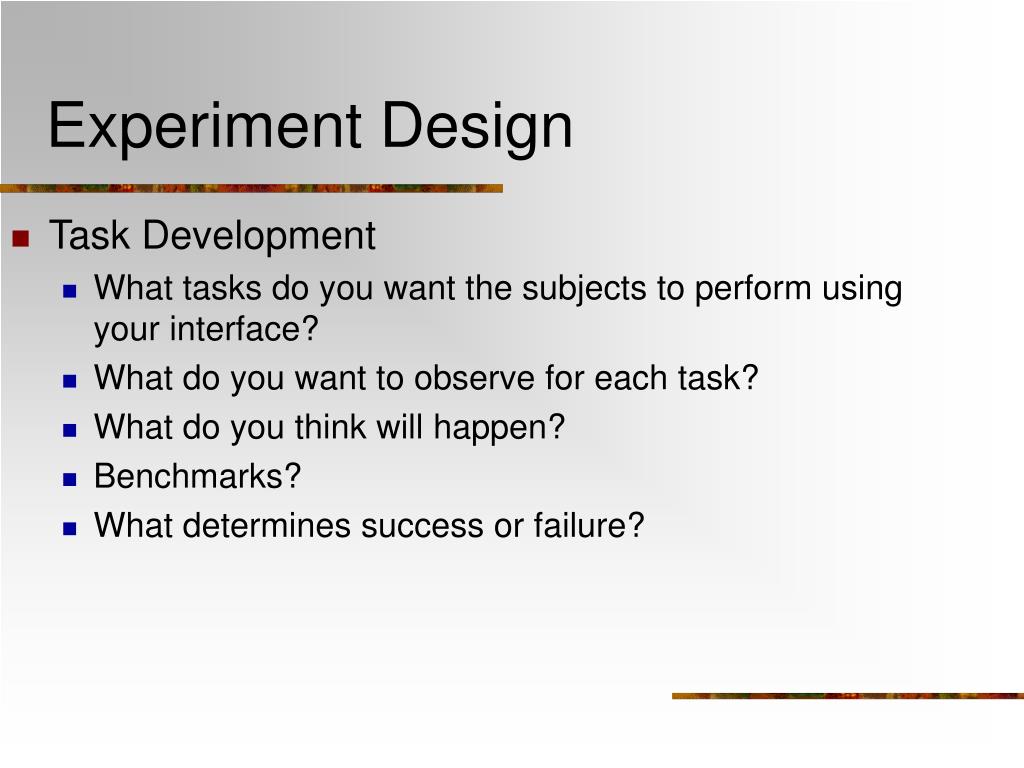

11. Experiment Design • Task Development • What tasks do you want the subjects to perform using your interface? • What do you want to observe for each task? • What do you think will happen? • Benchmarks? • What determines success or failure?

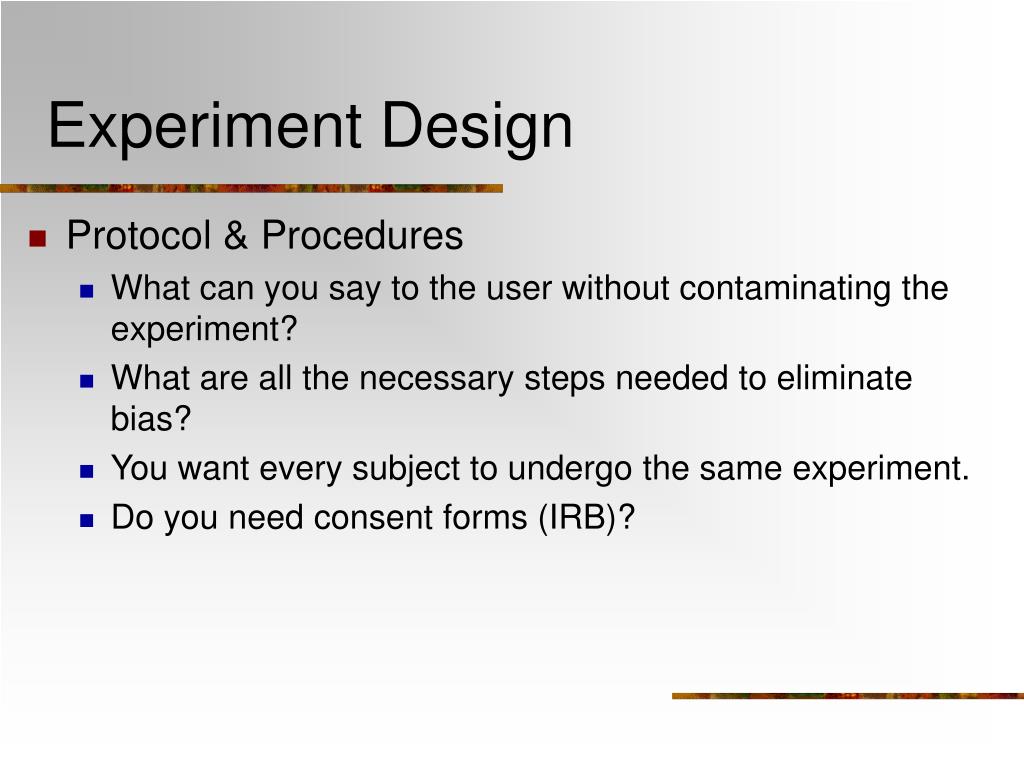

12. Experiment Design • Protocol & Procedures • What can you say to the user without contaminating the experiment? • What are all the necessary steps needed to eliminate bias? • You want every subject to undergo the same experiment. • Do you need consent forms (IRB)?

13. Experiment Trials • Calculate Method Effectiveness • Sears, A., (1997) “Heuristic Walkthroughs: Finding the Problems Without the Noise,” International Journalof Human-Computer Interaction, 9(3), 213-23. • Follow protocol and procedures. • Don’t say “say” in your experiment, this will bias or contaminate your experiment. • Pilot Study • Expect the unexpected.

14. Experiment Trials • Pilot Study • An initial run of a study (e.g. an experiment, survey, or interview) for the purpose of verifying that the test itself is well-formulated. For instance, a colleague or friend can be asked to participate in a user test to check whether the test script is clear, the tasks are not too simple or too hard, and that the data collected can be meaningfully analyzed. • (see http://www.usabilityfirst.com/ )

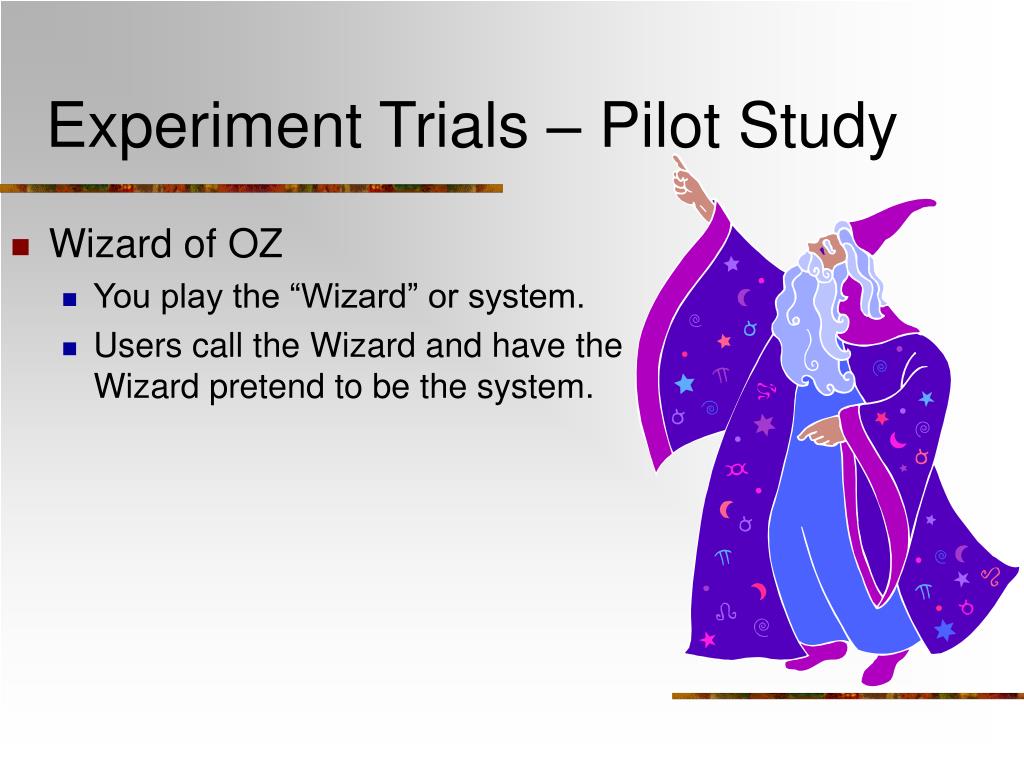

15. Experiment Trials – Pilot Study • Wizard of OZ • You play the “Wizard” or system. • Users call the Wizard and have the Wizard pretend to be the system.

16. Data Collection • Collect more than enough data. • More is better! • Backup your data. • Secure your data.

17. Data Analysis • Use more than one method. • All data lead to the same point. • Your different types of data should support each other. • Remember: • Quantitative data tells you something is wrong. • Qualitative data tells you what is wrong. • Experts tell you how to fix it.

18. Measuring Method Effectiveness

19. Redesign • Redesign should be supported by data findings. • Setup next experiment. • Sometimes it is best to keep the same experiment. • Sometimes you have to change the experiment. • Is there a flaw in the experiment or the interface?

20. Formative Evaluation Methods • Usability Inspection Methods • Usability experts are used to inspect your system during formative evaluation. • Usability Testing Methods • Usability tests are conducted with real users under observation by experts. • Usability Inquiry Methods • Usability evaluators collect information about the user’s likes, dislikes and understanding of the interface.

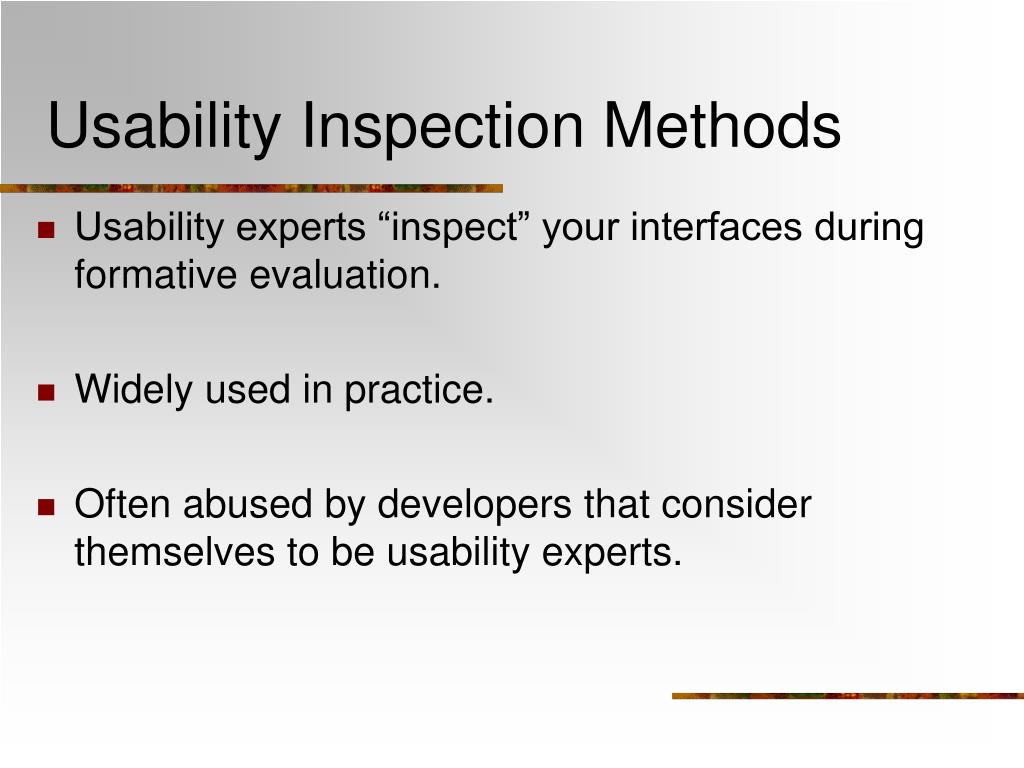

21. Usability Inspection Methods • Usability experts “inspect” your interfaces during formative evaluation. • Widely used in practice. • Often abused by developers that consider themselves to be usability experts.

22. Usability Inspection Methods • Heuristic Evaluation • Cognitive Walkthroughs • Pluralistic Walkthroughs • Feature, Consistency & Standards Inspection

23. Heuristic Evaluation: What is it? • Several evaluators independently evaluate the interface & come up with potential usability problems. • It is important that there be several of these evaluators and that the evaluations be done independently. • Nielsen's experience indicates that around 5 evaluators usually results in about 75% of the overall usability problems being discovered.

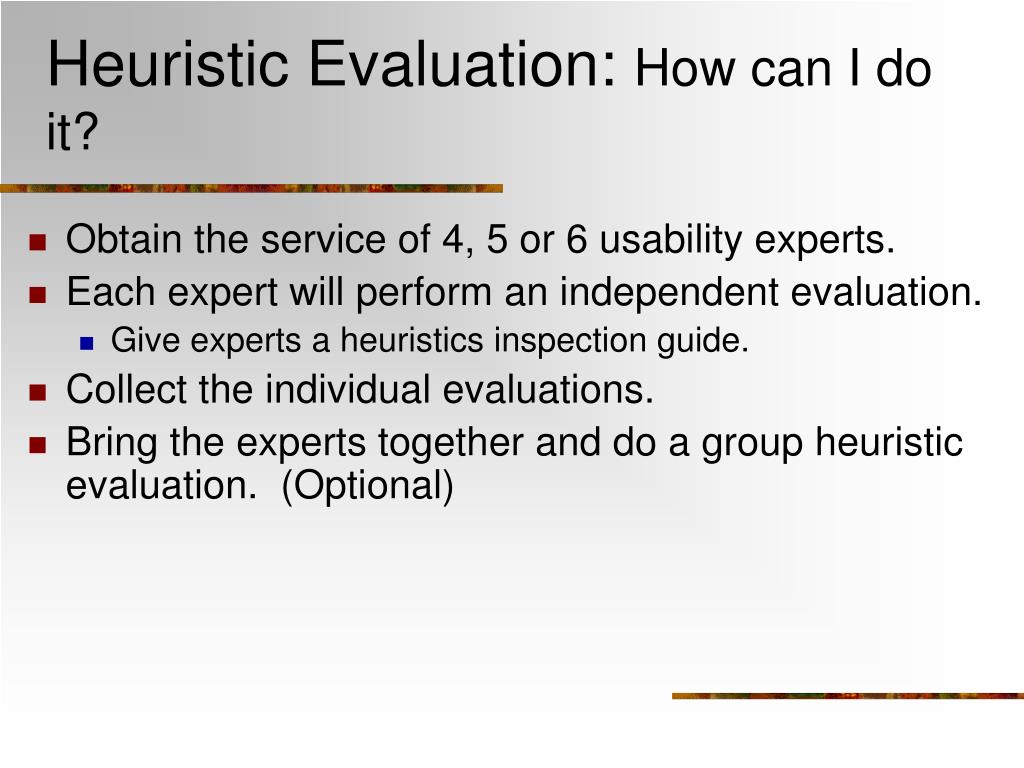

24. Heuristic Evaluation: How can I do it? • Obtain the service of 4, 5 or 6 usability experts. • Each expert will perform an independent evaluation. • Give experts a heuristics inspection guide. • Collect the individual evaluations. • Bring the experts together and do a group heuristic evaluation. (Optional)

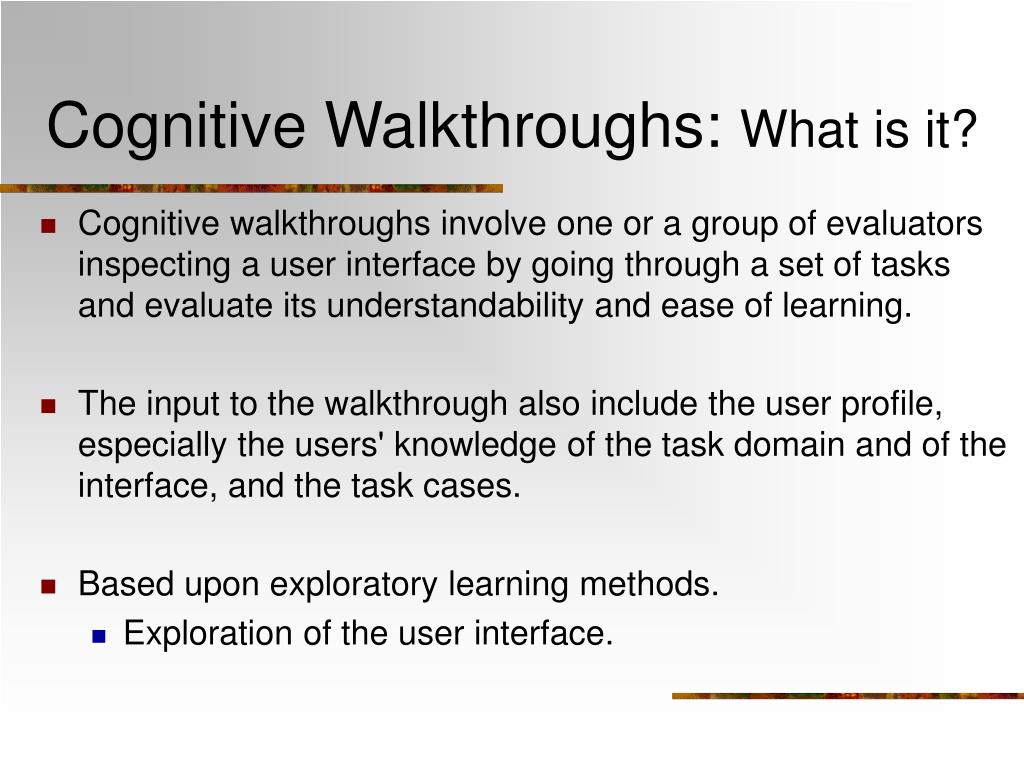

25. Cognitive Walkthroughs: What is it? • Cognitive walkthroughs involve one or a group of evaluators inspecting a user interface by going through a set of tasks and evaluate its understandability and ease of learning. • The input to the walkthrough also include the user profile, especially the users' knowledge of the task domain and of the interface, and the task cases. • Based upon exploratory learning methods. • Exploration of the user interface.

26. Cognitive Walkthroughs: What is it? • The evaluators may include • Human factors engineers • Software developers • People from marketing • Documentation, etc. • Best used in the design stage of development.

27. Cognitive Walkthroughs: How can I do it? • During the walkthrough: • Illustrate the task and then ask a user to perform a task. • Accept input from all participants: do not interrupt demo. • After the walkthrough: • Make interface changes. • Plan the next evaluation.

28. Pluralistic Walkthroughs: What is it? • During the design stage, a group of people: • Users • Developers • Usability Experts • Meet to perform a walkthrough.

29. Pluralistic Walkthroughs: How can I do it? • The group meets and 1 person acts as coordinator. • A task is presented to the group. • Paper prototypes, screen shots, etc. are presented. • Each participants write down comments on each interface. • After the demo, a discussion will follow.

30. Feature, Consistency & Standards Inspection: What is it? • Feature, Consistency & Standards are inspected by an expert.

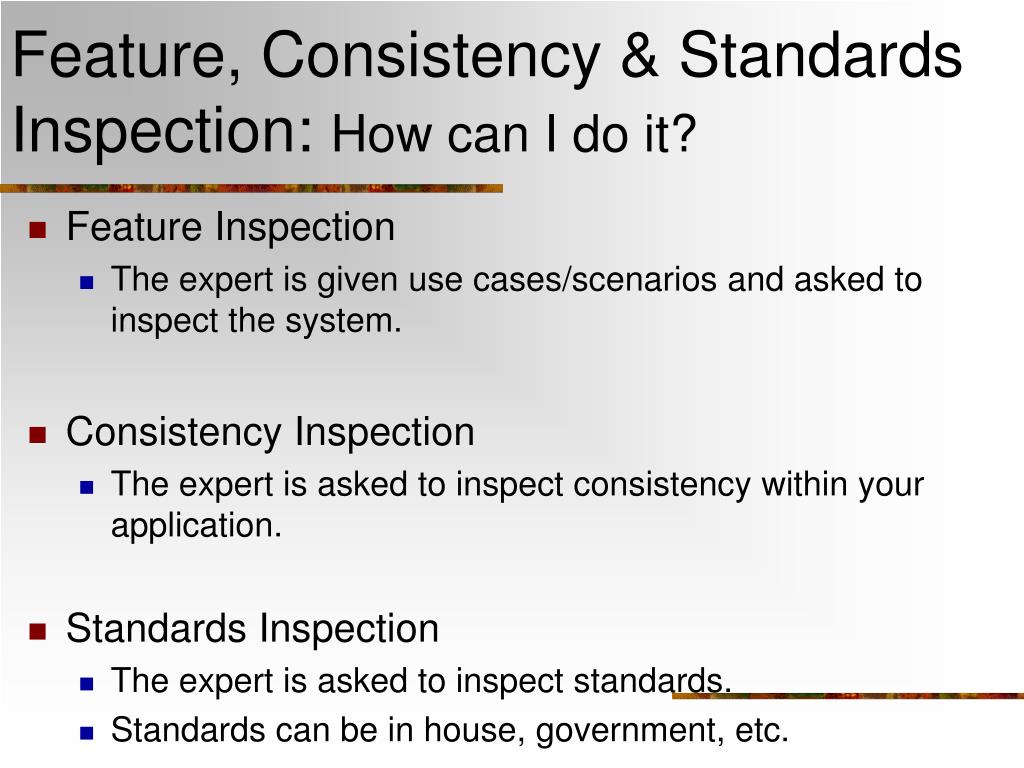

31. Feature, Consistency & Standards Inspection: How can I do it? • Feature Inspection • The expert is given use cases/scenarios and asked to inspect the system. • Consistency Inspection • The expert is asked to inspect consistency within your application. • Standards Inspection • The expert is asked to inspect standards. • Standards can be in house, government, etc.

32. Usability Testing Methods • Carrying out experiments to find out specific information about a design and/or product. • Basis comes from experimental psychology. • Uses statistical data methods • Quantitative and Qualitative

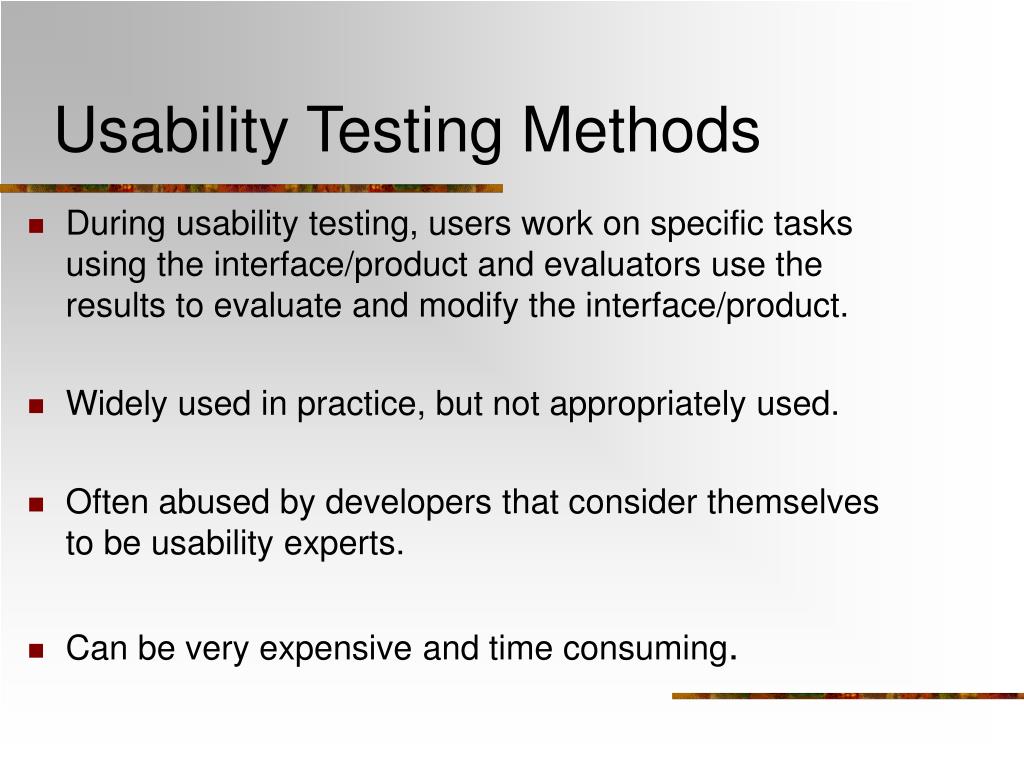

33. Usability Testing Methods • During usability testing, users work on specific tasks using the interface/product and evaluators use the results to evaluate and modify the interface/product. • Widely used in practice, but not appropriately used. • Often abused by developers that consider themselves to be usability experts. • Can be very expensive and time consuming.

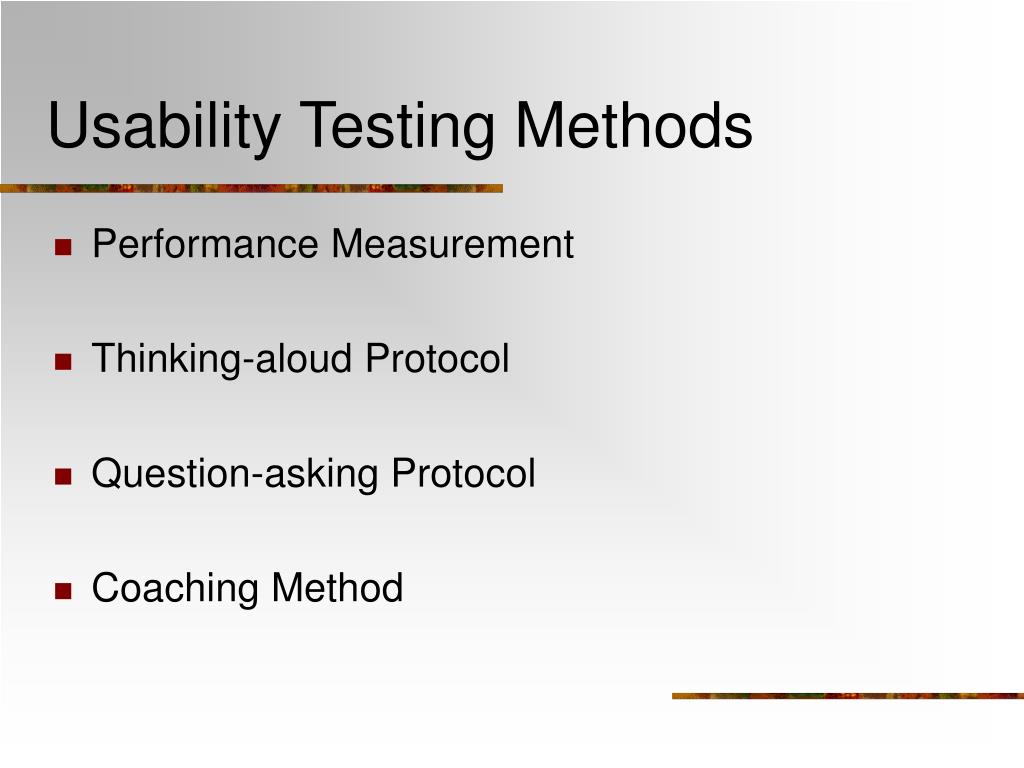

34. Usability Testing Methods • Performance Measurement • Thinking-aloud Protocol • Question-asking Protocol • Coaching Method

35. Usability Testing Methods • Co-discovery Learning • Teaching Method • Retrospective Testing • Remote Testing

36. Performance Measurement: What is it? • Used to collect quantitative data. • Typically, you will be looking for benchmark data. • Objectives MUST be quantifiable • 75% of users shall be able to complete the basic task in less than 30 minutes.

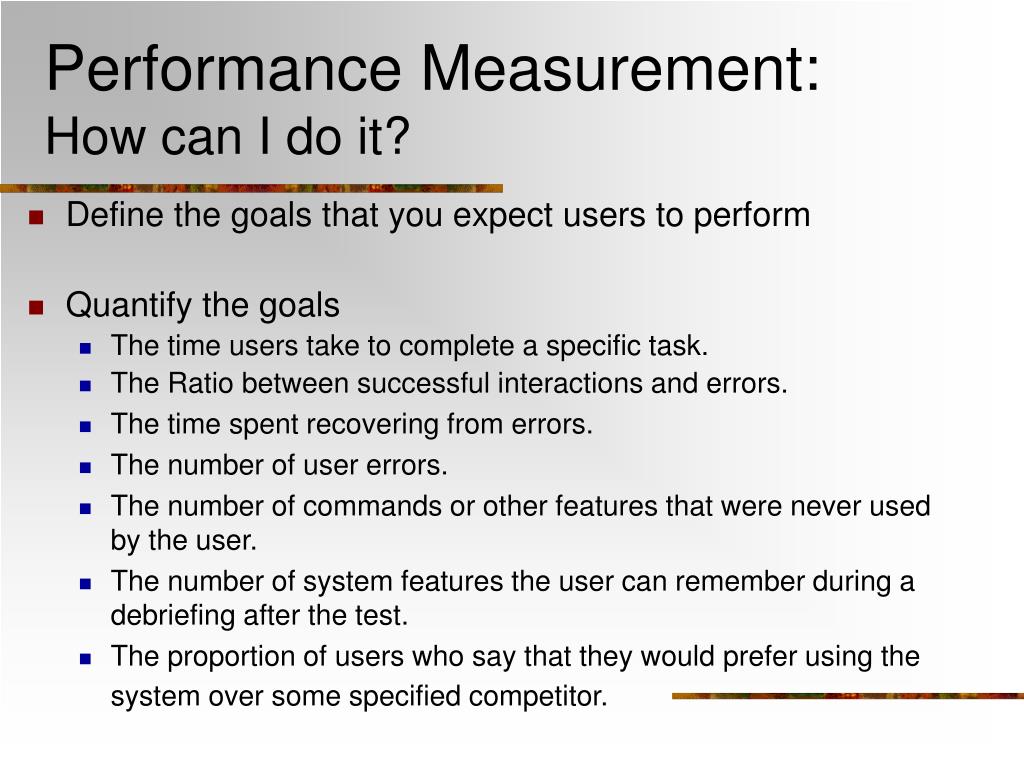

37. Performance Measurement: How can I do it? • Define the goals that you expect users to perform • Quantify the goals • The time users take to complete a specific task. • The Ratio between successful interactions and errors. • The time spent recovering from errors. • The number of user errors. • The number of commands or other features that were never used by the user. • The number of system features the user can remember during a debriefing after the test. • The proportion of users who say that they would prefer using the system over some specified competitor.

38. Performance Measurement: How can I do it? • Get participants for the experiments • Conduct very controlled experiments • All variables must remain consistent across users • Problem with performance measurement • No qualitative data

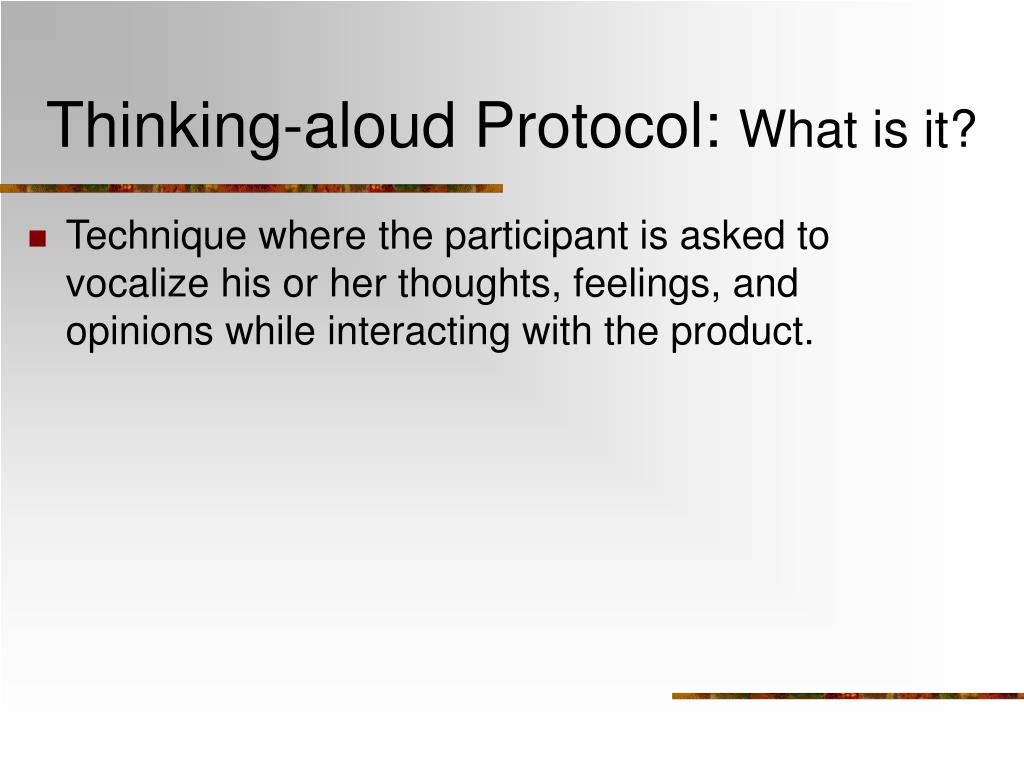

39. Thinking-aloud Protocol: What is it? • Technique where the participant is asked to vocalize his or her thoughts, feelings, and opinions while interacting with the product.

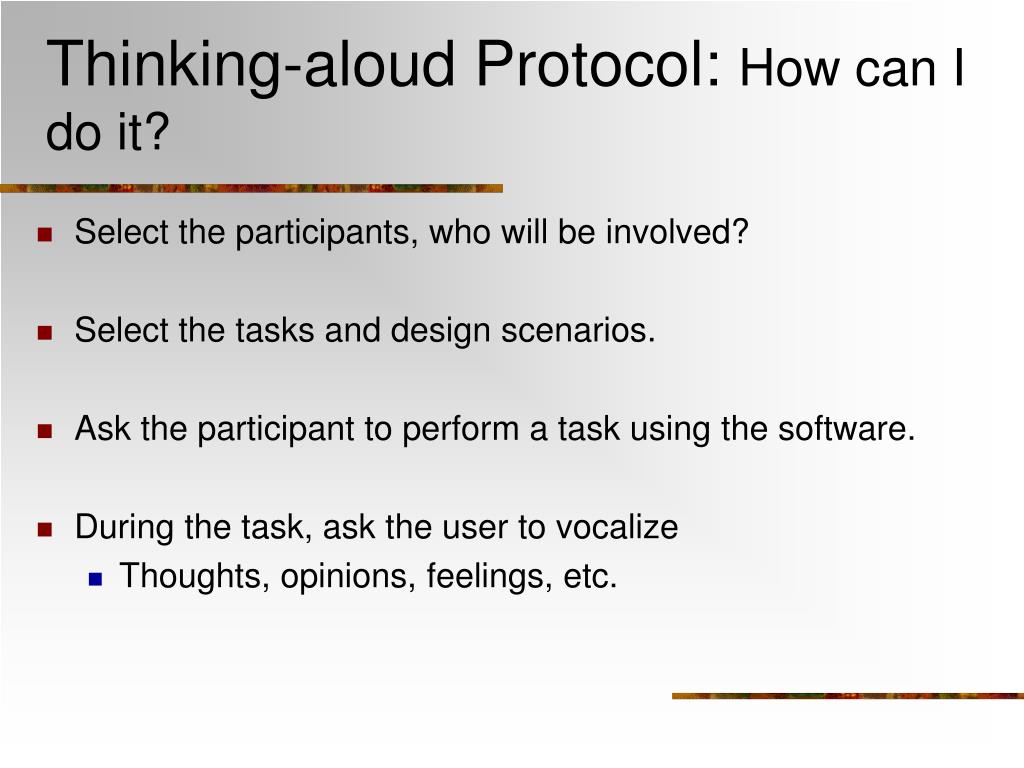

40. Thinking-aloud Protocol: How can I do it? • Select the participants, who will be involved? • Select the tasks and design scenarios. • Ask the participant to perform a task using the software. • During the task, ask the user to vocalize • Thoughts, opinions, feelings, etc.

41. Thinking-aloud Protocol • Problem With Thinking-Aloud Protocol • Cognitive Overload • Can you walk & chew gum at the same time? • Asking the participants to do too much.

42. Question-asking Protocol: What is it? • Similar to Thinking-aloud protocol. • Instead of participant saying what they are thinking, the evaluator prompts the participant with questions while using the system.

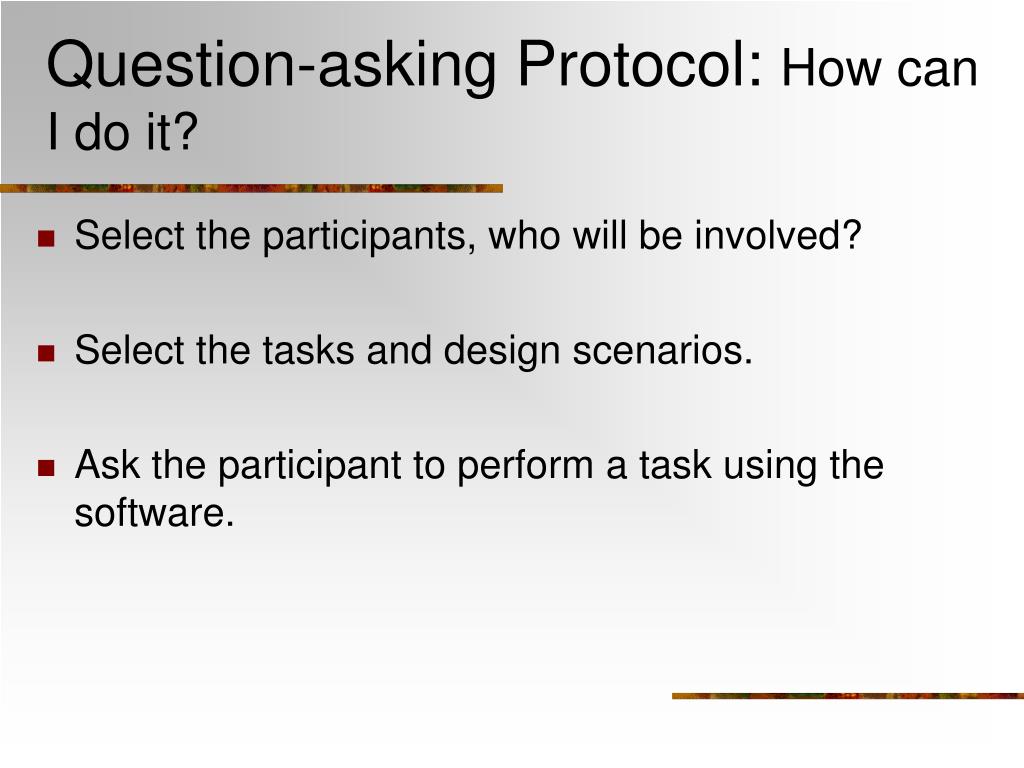

43. Question-asking Protocol: How can I do it? • Select the participants, who will be involved? • Select the tasks and design scenarios. • Ask the participant to perform a task using the software.

44. Question-asking Protocol: How can I do it? • During the task, ask the user to questions about the product • Thoughts, opinions, feelings, etc. • Problem With Thinking-Aloud Protocol • Cognitive Overload++ • Can you walk, chew gum & talk at the same time? • Asking the participants to do too much. • Added pressure when the evaluator asks questions. • Can be frustrating on novice users.

45. Coaching Method: What is it? • A system expert sits with the participant and acts as a coach. • Expert answers the participant’s questions. • The evaluator observes their interaction.

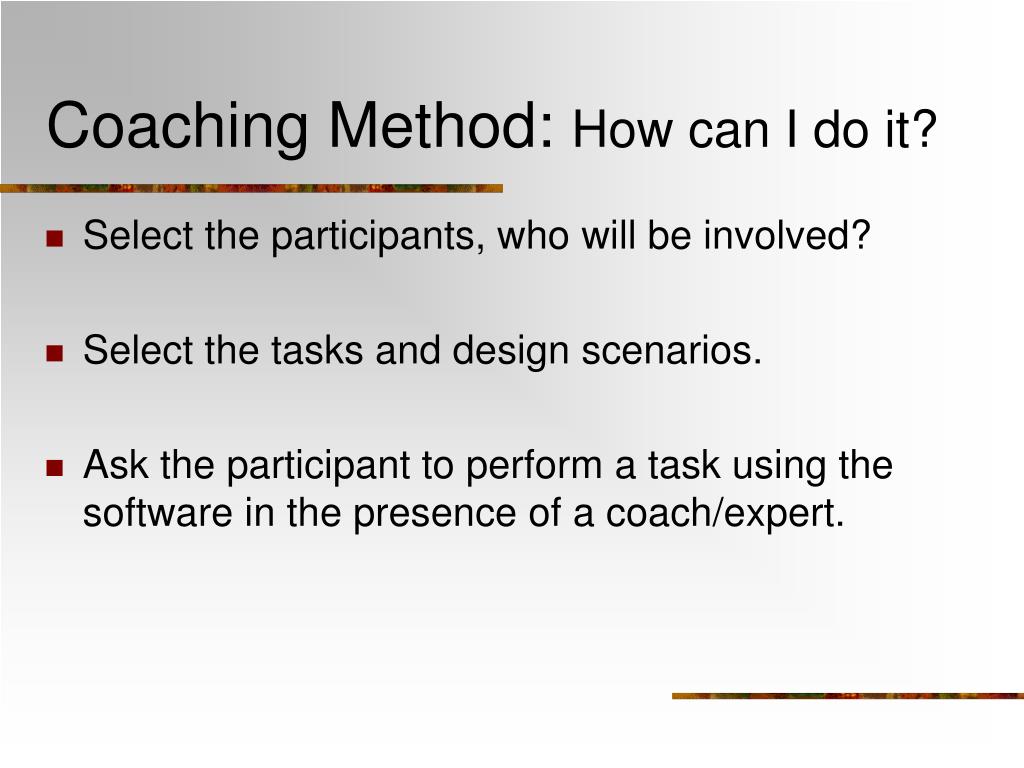

46. Coaching Method: How can I do it? • Select the participants, who will be involved? • Select the tasks and design scenarios. • Ask the participant to perform a task using the software in the presence of a coach/expert.

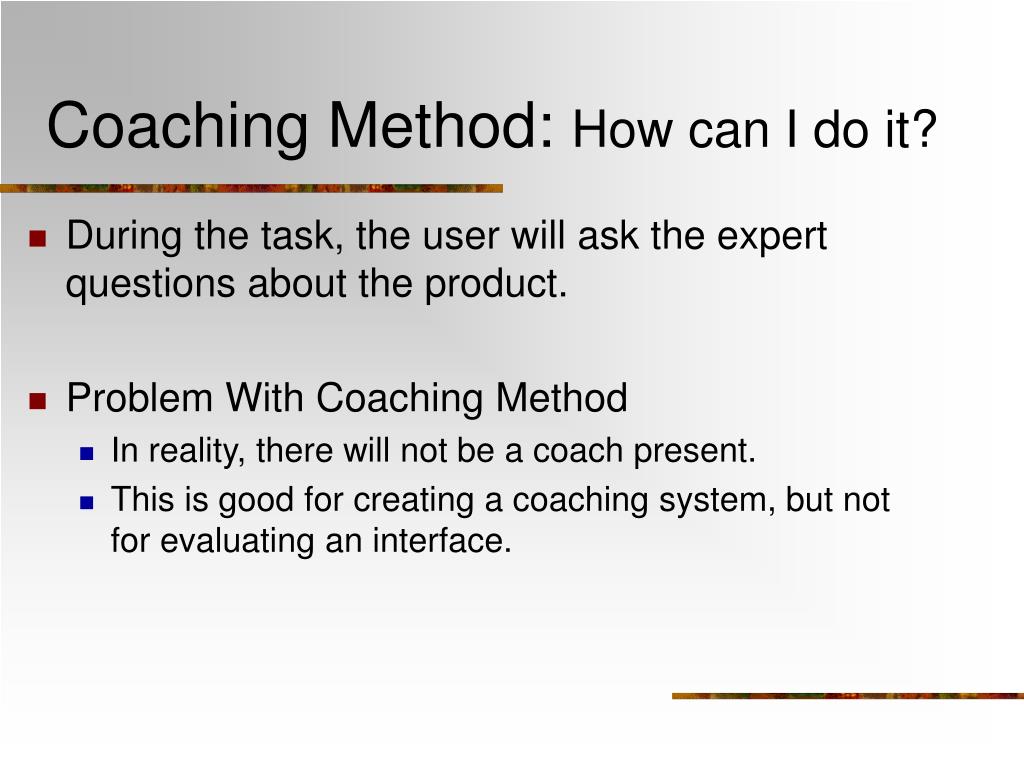

47. Coaching Method: How can I do it? • During the task, the user will ask the expert questions about the product. • Problem With Coaching Method • In reality, there will not be a coach present. • This is good for creating a coaching system, but not for evaluating an interface.

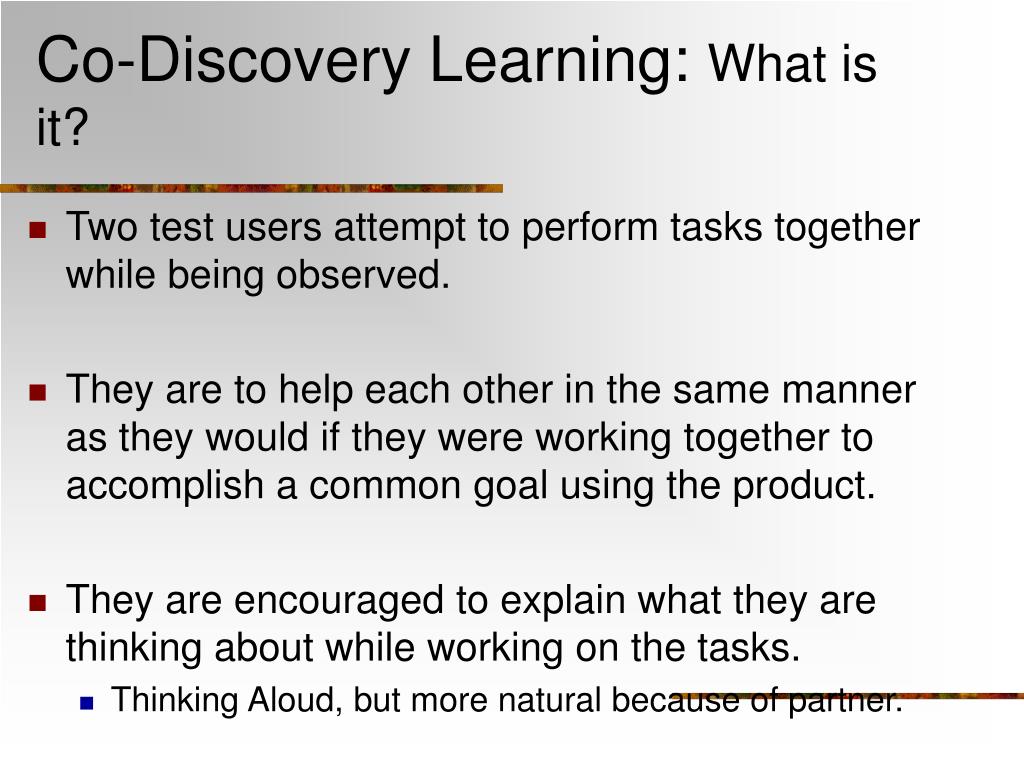

48. Co-Discovery Learning: What is it? • Two test users attempt to perform tasks together while being observed. • They are to help each other in the same manner as they would if they were working together to accomplish a common goal using the product. • They are encouraged to explain what they are thinking about while working on the tasks. • Thinking Aloud, but more natural because of partner.

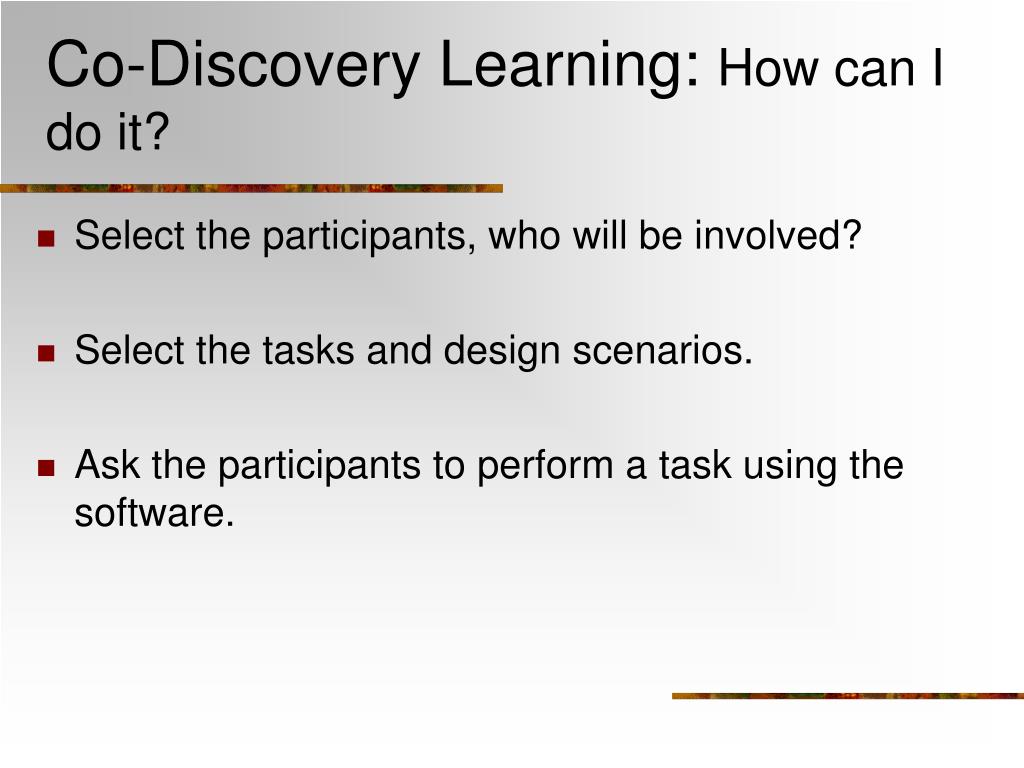

49. Co-Discovery Learning: How can I do it? • Select the participants, who will be involved? • Select the tasks and design scenarios. • Ask the participants to perform a task using the software.

50. Co-Discovery Learning: How can I do it? • During the task, the users will help each other and voice their thoughts by talking to each other. • Problem With Co-Discovery Learning • Neither is an expert • The blind leading the blind.
