BIRN Data Grid

Roman Olschanowsky

University of California, San Diego

February 17, 2004

introduction
Introduction

BIRN-CC’s purpose is to provide it’s consortium of neuroscience laboratories the ability to share, compute, and collaborate.

SRB provides the ability to transparently share data across remote sites.

outline
Outline
  • Introduction to SRB
    • Discussion on SRB basics
    • SRB Clients
  • Overview of BIRN Data Grid
    • Infrastructure
    • Topology
    • A BIRN site
    • SRB Stability
    • SRB Statistics
introduction to srb
Introduction to SRB
  • A distributed file system (Data Grid)
    • Client-server architecture.
    • Abstracts physical
how do they differ
How do they differ?
  • Logical Abstraction
    • Folders are NOT physical
    • Files do NOT inherit physical location
    • Everything is potentially distributed
  • Access Control
    • Permissions are NOT rwxrwxrwx
    • Permissions ARE on a object by object basis
    • Groups and permissions ARE more similar to NTFS
  • Domains
    • Provides geographical / logical grouping of users
    • Provides namespace scalability: john@harvard john@mit
    • Also doubles as groups
common scommands
Common Scommands

Sinit

Senv

Spwd

Sls -l

Sget

Sget (Sget –m –b)

Sbunload

Sput

Sput (Sput –m –b)

Sbload

Scp

Smv (logical)

Sphymove (physical)

Srm

Scd

Smkdir

Srmdir

Serror

Schmod

  • Don’t forget to Sexit!
grid computation

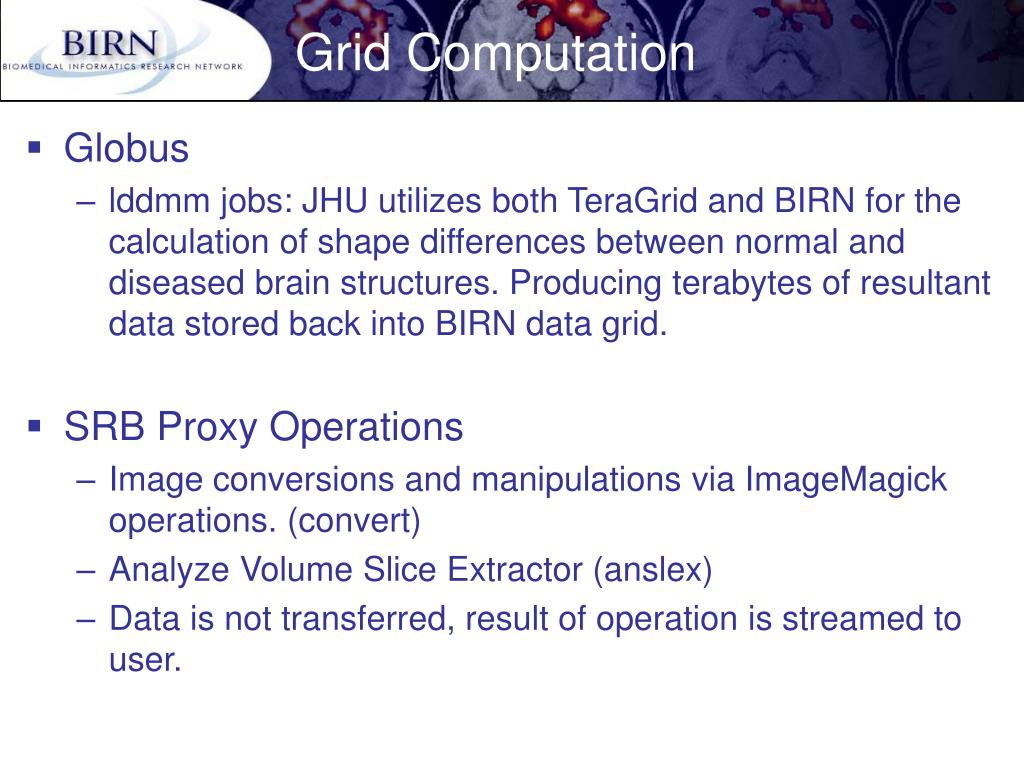

Grid Computation
  • Globus
    • lddmm jobs: JHU utilizes both TeraGrid and BIRN for the calculation of shape differences between normal and diseased brain structures. Producing terabytes of resultant data stored back into BIRN data grid.
  • SRB Proxy Operations
    • Image conversions and manipulations via ImageMagick operations. (convert)
    • Analyze Volume Slice Extractor (anslex)
    • Data is not transferred, result of operation is streamed to user.
file replication
File Replication

Sls

/home/Demo/SRB-Tutorial/files-2:

Doc.txt

Sls -l

/home/Demo/SRB-Tutorial/files-2:

romanoly 0 z-ucsd-ncmir-nas1 15 2003-07-09-05.15 Doc.txt

romanoly 1 z-jhu-cis-nas0 15 2003-07-09-05.16 Doc.txt

romanoly 2 z-stanford-lucas-nas 15 2003-07-09-05.16 Doc.txt

romanoly 3 z-umn-cmrr-nas0 15 2003-07-09-05.16 Doc.txt

romanoly 4 z-uci-bic-nas0 15 2003-07-09-05.17 Doc.txt

components of srb space
Components of SRB Space

DR

MC

DR

DR

DR

DR

DR

DR

DR

DR

DR

SC

SC

SC

SC

SC

SRB

SRB

SRB

SRB

SRB

SRB

SRB

SRB

SRB

SRB

DR - Data Repository

MC - Meta Catalog

SC - SRB Client

slide17

Physical Rack

BIRN 1.0 Rack

BIRN 1.5 Rack

physical rack layout
Physical Rack Layout
  • Gigabit/10/100 Network Switch – Cisco 4506
  • Cisco 3002 3DES Encrypted VPN for secure statistics and packet tracing
  • Gigabit Ethernet Network Probe
  • DL 380 NetTools Network Statistics System
  • DL 380 General purpose compute platform
  • DL 380 Grid POP
    • SRB, Globus
    • Dual Processor Linux with1GB memory
  • Network Attached Storage – Gigabit Ethernet
    • 0.5 TB to 2 TB
  • UPS for Rack (208VAC/40Amp supply)
  • Direct Power for redundancy (208VAC/30Amp)

Cisco 4506

GigE Net Probe

Cisco 3002

Fiber Tap

LCD PopUp Screen/Keyboard

DL380 NetTools

DL380 General

DL380 Grid POP

DL380 NAS 0.5 to 2.0 TB

UPS

srb location or slave server
SRB “Location” or “Slave Server”

DR

SRB

“Physical Resources”

z-jhu-cis-nas0

z-jhu-cis-nas1

“Location”

z-jhu-cis-nas2

SRB

“jhu-cis-nas”

logical compound resources
Logical / Compound Resources

SRB

“instant replication”

“fast archival”

“resource pooling”

“My-Resource”

SRB

monitoring grid status
Monitoring Grid Status

0.7 TB

5.2 TB

0 TB

1.6 TB

0.8 TB

0.8 TB

3.2 TB

0.8 TB

2.4 TB

0.8 TB

0.8 TB

2.4 TB

1.6 TB

0.8 TB

5.0 TB

0.78 TB

0.08 TB

stability
Stability

BIRN Grid is up and available approximately 98%

Example of typical site uptime:

conclusion
Conclusion

SRB provides BIRN’s neuroscience laboratories with the ability to share and collaborate.

Questions?

www.nbirn.net

www.sdsc.edu/srb

roman2u@sdsc.edu
