Announcements

1. Announcements • You survived midterm 2! • No Class / No Office hours Friday

2. Its all about speed! • … well usually, sometimes its about memory • Portable devices, low power devices • Today we will focus on: • What makes computers fast/slow • How to reason about algorithms • We have seen many ways to do a particular task • How do we choose which way we should write our program?

3. Big speed differences • Many of the techniques we’ve learned take no time at all in other applications • Select a figure in Word. • It’s automatically inverted as fast as you can click. • Color changes in Photoshop happen as you change the slider • Increase or decrease red? Play with it and see it happen live.

4. What makes my program fast? • Is it that Photoshop is so fast? • Or that Pythonis so slow? • It’s some of both—it’s not a simple problem with an obvious answer. • We’ll consider two issues: • How fast can computers get • What’s not computable, no matter how fast you go

5. What a computer really understands • Computers really do not understand Python, nor Java, nor any other language. • The basic computer only understands one kind of language: machinelanguage. • Machine language consists of instructions to the computer expressed in terms of values in bytes. • These instructions tell the computer to do very low-level activities.

6. Machine language trips the right switches • The computer doesn’t really understand machine language. • The computer is just a machine, with lots of switches that make data flow this way or that way. • Machine language is just a bunch of switch settings that cause the computer to do a bunch of other switch settings. • We interpret those switches to be addition, subtraction, loading, and storing. • In the end, it’s all about encoding. A byte of switches

7. Assembler and machine language • Machine language looks just like a bunch of numbers. • Assembler language is a set of words that corresponds to the machine language. • It’s often one-to-one relationship. • A word of assembler equals one machine language instruction, typically. • (Often, just a single byte.)

8. Assembler instructions • Assembler instructions tell the computer to do things like: • Store numbers into particular memory locations or into special locations (variables) in the computer. • Test numbers for equality, greater-than, or less-than. • Add numbers together, or subtract them.

9. An example assembly language program LOAD 10,R0 ; Load special variable R0 with 10 LOAD 12,R1 ; Load special variable R1 with 12 SUM R0,R1 ; Add R0 and R1, Put the result in R1 STOR R1,#45 ; Store the result into memory location #45 Recall that we talked about memory as a long series of boxes. Each one has a location (number) (like #45). The “special variables” are often called “registers”. That is why they begin with the letter “R”.

10. Assembler -> Machine LOAD 10,R0 ; Load special variable R0 with 10 LOAD 12,R1 ; Load special variable R1 with 12 SUM R0,R1 ; Add R0 and R1, Put the result in R1 STOR R1,#45 ; Store the result into memory location #45 Might appear in memory as just 12 bytes: 01 00 10 01 01 12 02 00 01 03 01 45

11. Machine language is executed very quickly • Imagine a relatively slow computer today (not latest generation) having a clock rate of 1.5 Gigahertz. • What that means exactly is hard to explain,but let’s interpret it as processing 1.5 billion bytes per second. • Those 12 bytes would execute inside the computer, then, in 12/1,500,000,000th of a second!

12. Other factors affect speed • Processor Speed • Cache located on the processor • Memory speed (and size!) • Hard Drive speed • Operating System efficiency

13. Hard Drive • Slowest form of storage • Unlike RAM, Hard Drive storage is “permanent” • It survives after you turn the power off

14. Storage relationships • If you have too little RAM, your computer will store some things on hard disk. • It will be slower to bring back into RAM for the computer to use it. • The system bus describes how fast things can move around your computer. • Network is even slower than the hard drive • If you’re grabbing a web page from the network, onto the hard drive, and into RAM, the network speed will be the limiting factor.

15. How do we compare algorithms? • There’s more than one way to search. • How do we compare algorithms to say that one is faster than another? • Computer scientists use something called Big-O notation • It’s the order of magnitude of the algorithm • Big-O notation tries to ignore differences between languages, even between compiled vs. interpreted, and focus on the number of steps to be executed.

16. What question are we trying to answer? • If I am given a larger problem to solve (more data), how is the performance of the algorithm affected? • If I change the input, how does the running time change?

17. We want to choose the algorithm with the best complexity • We want an algorithm which will be fast • A “lower” complexity mean an algorithm will perform better on large input

18. Finding something in the phone book • O(n) algorithm • Start from the beginning. • Check each page, until you find what you want. • Not very efficient • Best case: One step • Worse case: n steps where n = total entries in phone book • Average case: n/2 steps

19. Implementing a Linear Search – slightly different deffindInList(something, alist): status = False for item in alist: if (item == something): status = True return status

20. Running our Search Algorithm >>> print(findInList("bear",["apple","bear","cat","dog","elephant"])) True >>> print(findInList("giraffe",["apple","bear","cat","dog","elephant"])) False

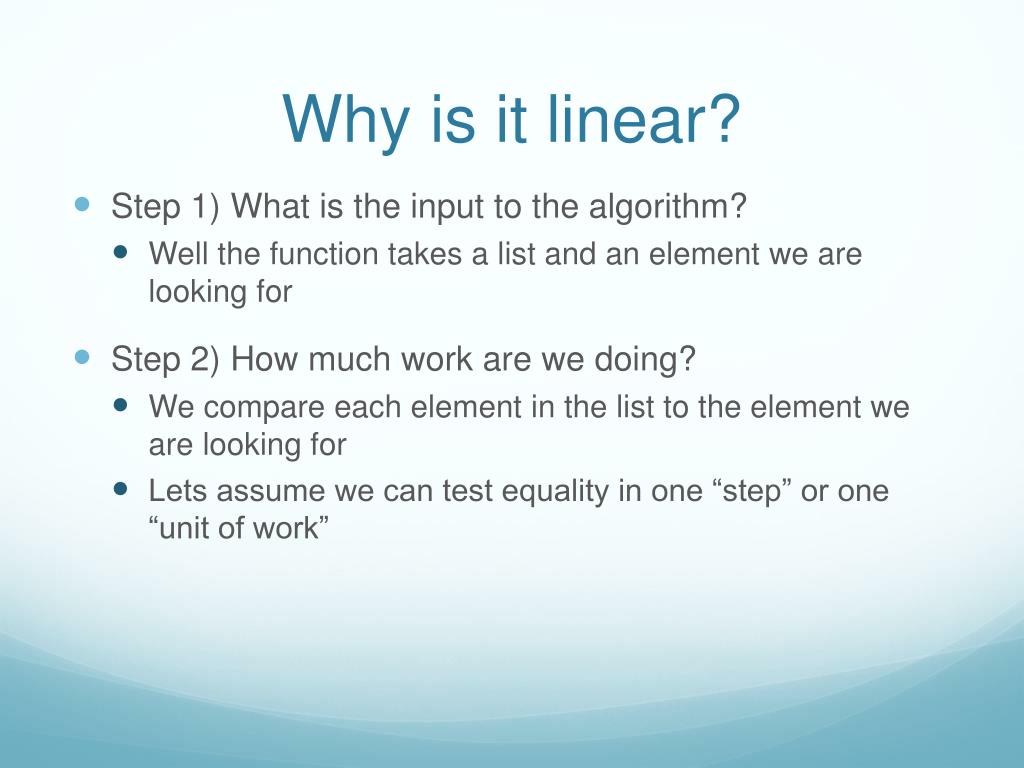

21. Why is it linear? • Step 1) What is the input to the algorithm? • Well the function takes a list and an element we are looking for • Step 2) How much work are we doing? • We compare each element in the list to the element we are looking for • Lets assume we can test equality in one “step” or one “unit of work”

22. Implementing a Linear Search deffindInList(something, alist): status = False for item in alist:  how much work we perform if (item == something):  piece of work status = True return status

23. Implementing a Linear Search – slightly better deffindInList(something, alist): for item in alist: if (item == something): return True return False

24. So why do we bother with linear search? • Our data might not be ordered! • Notice that our faster algorithms required our data to be ordered • We say that ordered data is sorted • Challenge question: Is it faster to linearly search through unordered data, or to sort it, and then use a binary search? • We will answer this next week!

25. A better search in a sorted list • O(log n) (log2 n = x where 2x=n) • Split the phone book in the middle. • Is the name you’re at before or after the page you’re looking at? • If after, look from the middle to the end. • If before, look from the start to the middle. • Keep repeating until done • More efficient: • Best case: It’s the first place you look. • Average and worst case: log n steps

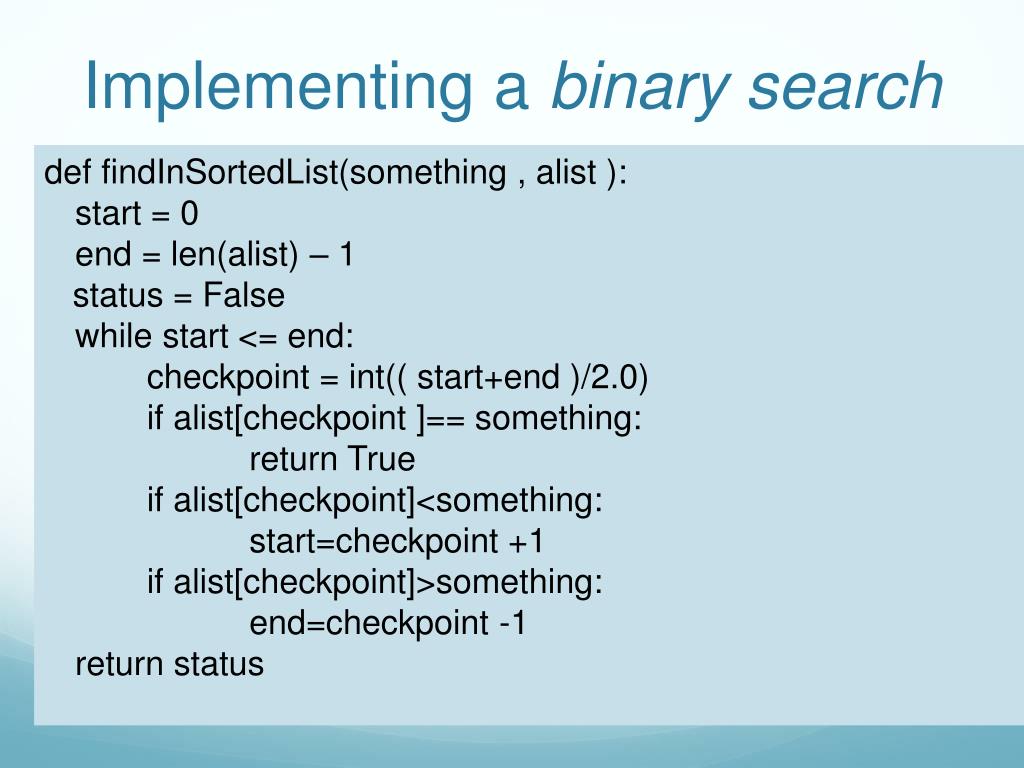

26. Implementing a binary search def findInSortedList(something , alist ): start = 0 end = len(alist) – 1 status = False while start <= end: checkpoint = int(( start+end )/2.0) if alist[checkpoint ]== something: return True if alist[checkpoint]<something: start=checkpoint +1 if alist[checkpoint]>something: end=checkpoint -1 return status

27. Running the binary search print("Checking at: "+str(checkpoint )+" Start:"+str(start )+" End:"+str(end)) >>> findInSortedList("giraffe" ,["apple","bear","cat”,"dog"]) Checking at: 1 Start :0 End:3 Checking at: 2 Start :2 End:3 Checking at: 3 Start :3 End:3 False >>> findInSortedList("apple” ["apple","bear","cat”,"dog"]) Checking at: 1 Start :0 End:3 Checking at: 0 Start :0 End:0 True >>> findInSortedList("dog" ,["apple","bear","cat”,"dog"]) Checking at: 1 Start :0 End:3 Checking at: 2 Start :2 End:3 Checking at: 3 Start :3 End:3 True

28. Clicker Question • Did you come to class today? • A) yes • B) no

29. Homework • Read Chapter 9
