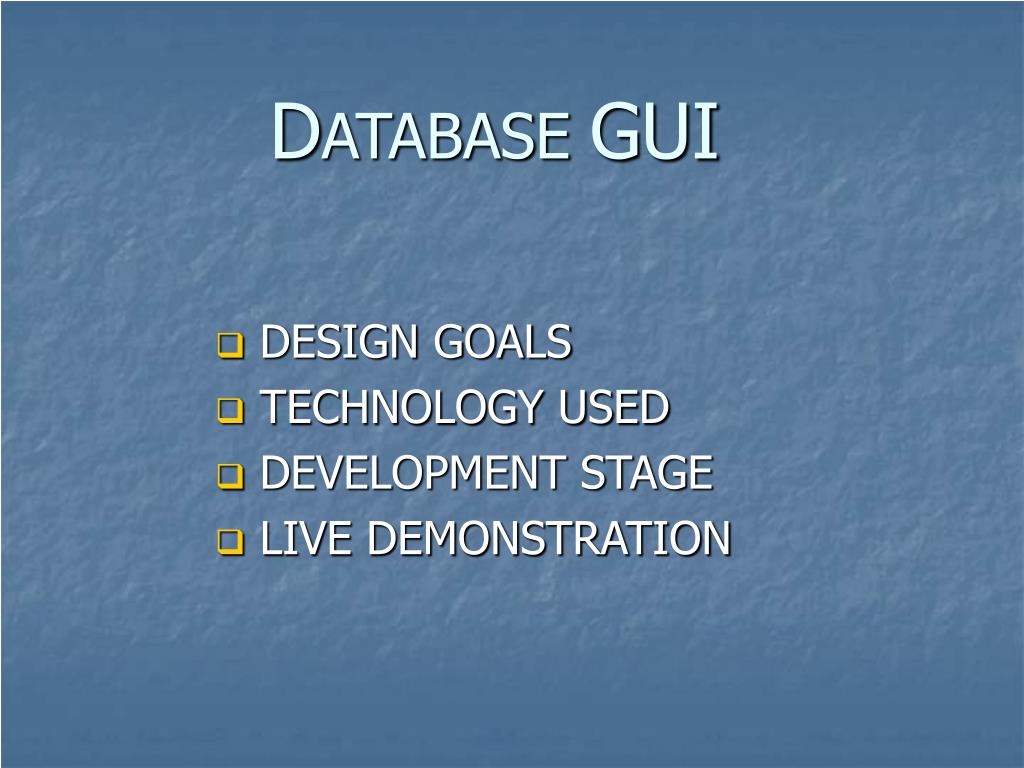

  1. DATABASE GUI DESIGN GOALS TECHNOLOGY USED DEVELOPMENT STAGE LIVE DEMONSTRATION

  2. DESIGN GOALS • ADAPTABLE • CONFIGURABLE • DYNAMIC PLOTTING • DEPLOYABLE • CAN BE USED WITH ANY MySQL DATABASE • EASILY SWITCHED FROM ONE DB TO ANOTHER • CONFIGURATION FILE • WEB-BASED INTERFACE • DOES NOT CREATE A TEMPORARY FILE • SAVES DISK SPACE • NO ADDITIONAL SOFTWARE NEEDED • SERVED BY A WEB CONTAINER - e.g. TOMCAT

  3. TECHNOLOGYSERVER-SIDE JAVA • INTERFACE – JAVASERVER FACES • BACKEND CODE – JAVA & JAVASERVER PAGES • PLOTTING CAPABILITY – USES FREEHEP JAVALIBRARY – JAIDA (http://aida.freehep.org/jaida)

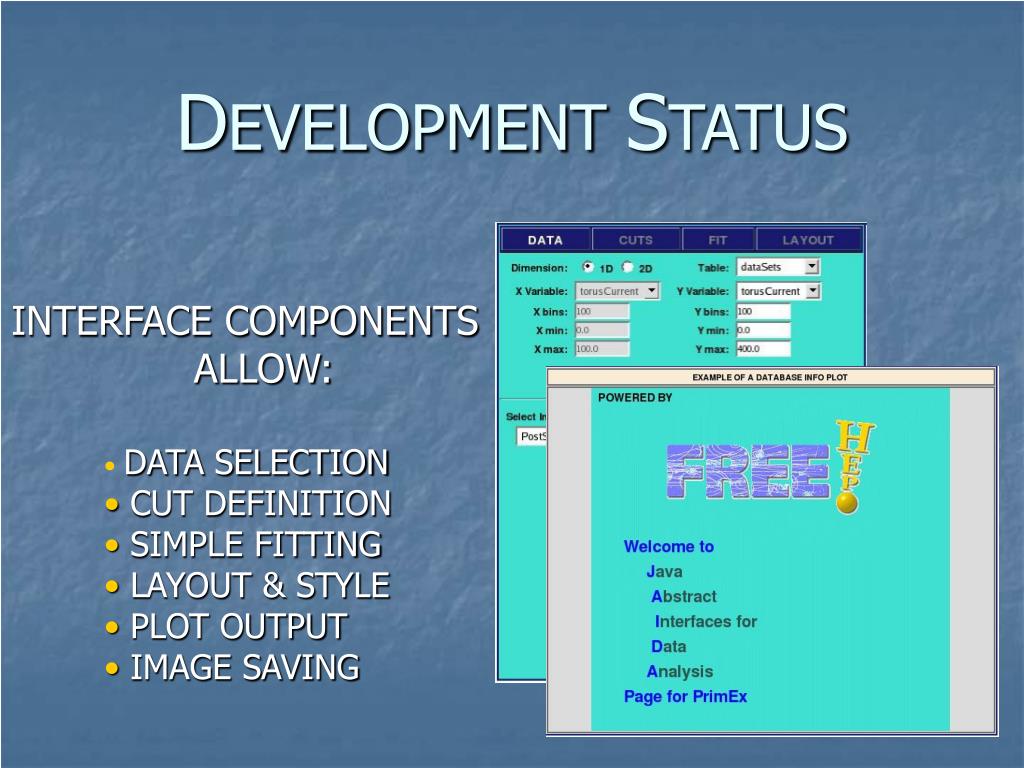

  4. DEVELOPMENT STATUS INTERFACE COMPONENTS ALLOW: • DATA SELECTION • CUT DEFINITION • SIMPLE FITTING • LAYOUT & STYLE • PLOT OUTPUT • IMAGE SAVING

  5. HOW IT WORKS

  6. WHAT’S NEXT? • FINALIZE THE DESIGN • PACK IN A WEB APPLICATION ARCHIVE FILE (WAR FILE) • INSTALL ON clasweb.jlab.org SO IT IS WIDELY ACCESSIBLE
