  1. Advanced services in gLite Gergely Sipos and Peter Kacsuk MTA SZTAKI

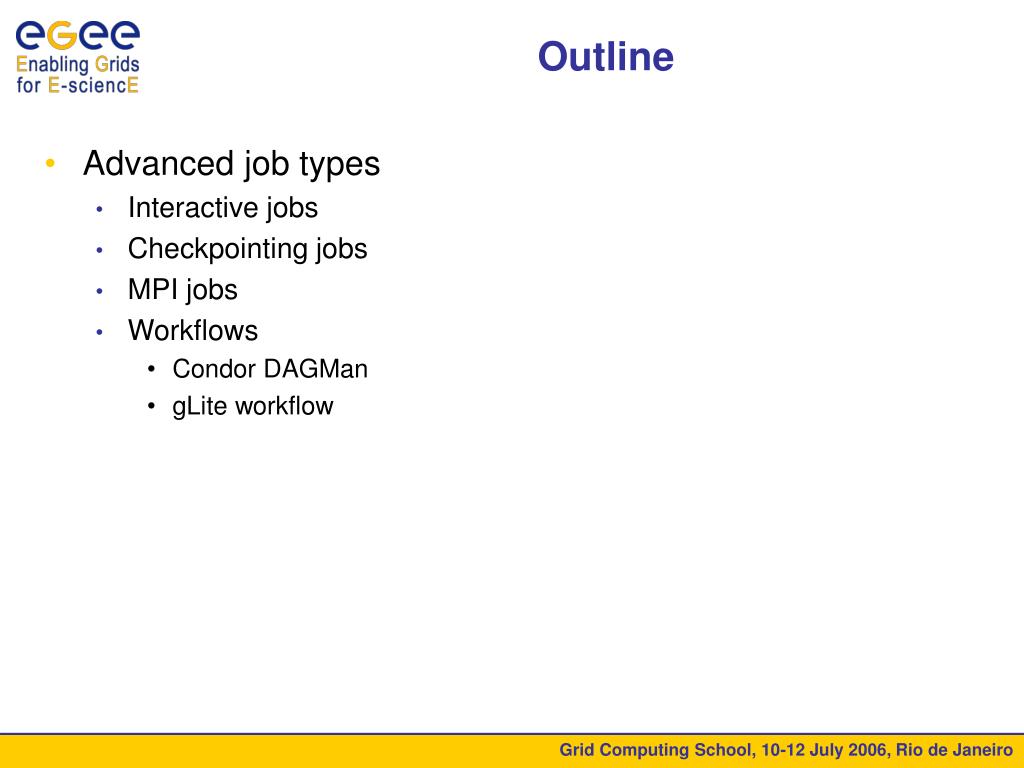

  2. Outline • Advanced job types • Interactive jobs • Checkpointing jobs • MPI jobs • Workflows • Condor DAGMan • gLite workflow Grid Computing School, 10-12 July 2006, Rio de Janeiro

  3. Normal job • We have talked about Normal jobs • sequential program • takes input • performs computation • writes output • The user gets the output after the execution • Other options: • Interactive jobs • Logical checkpointing jobs • MPI jobs • Workflows Grid Computing School, 10-12 July 2006, Rio de Janeiro

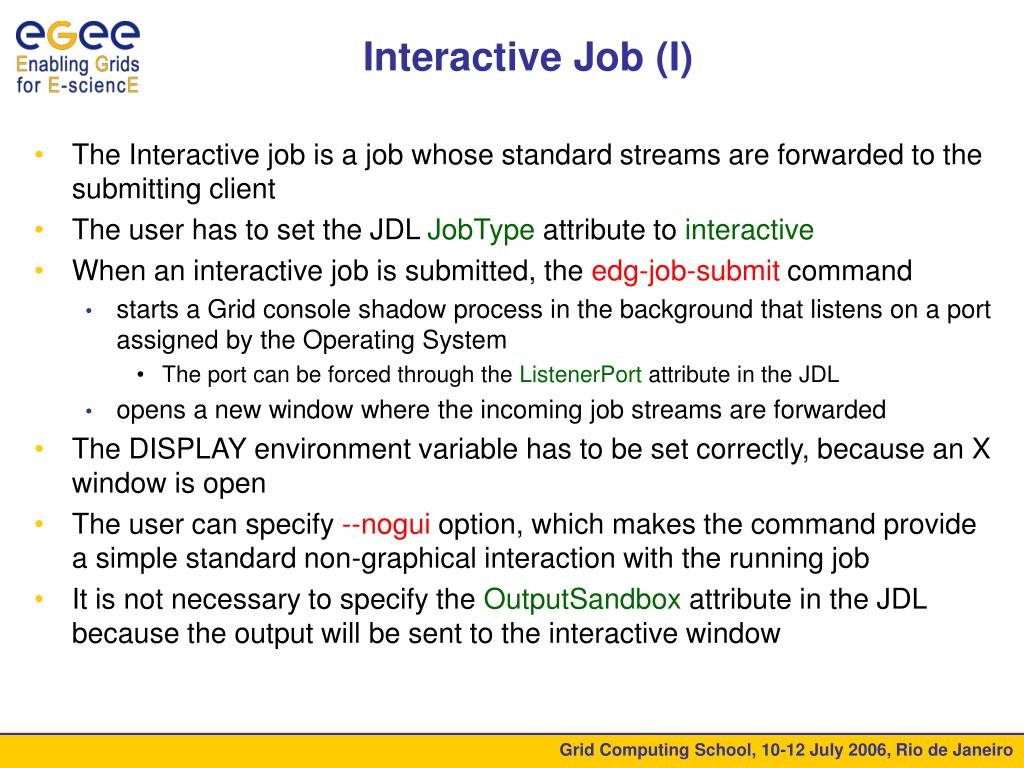

  4. Interactive Job (I) • The Interactive job is a job whose standard streams are forwarded to the submitting client • The user has to set the JDL JobType attribute to interactive • When an interactive job is submitted, the edg-job-submit command • starts a Grid console shadow process in the background that listens on a port assigned by the Operating System • The port can be forced through the ListenerPort attribute in the JDL • opens a new window where the incoming job streams are forwarded • The DISPLAY environment variable has to be set correctly, because an X window is open • The user can specify --nogui option, which makes the command provide a simple standard non-graphical interaction with the running job • It is not necessary to specify the OutputSandbox attribute in the JDL because the output will be sent to the interactive window Grid Computing School, 10-12 July 2006, Rio de Janeiro

  5. Interactive jobs (II) • Specified setting JobType = “Interactive” in JDL • When an interactive job is executed, a window for the stdin, stdout, stderr streams is opened • Possibility to send the stdin to the job • Possibility the have the stderr and stdout of the job when it is running • Possibility to start a window for the standard streams for a previously submitted interactive job with command edg-job-attach Grid Computing School, 10-12 July 2006, Rio de Janeiro

  6. Logical Checkpointing Job • The Checkpointing job is a job that can be decomposed in several steps • In every step the job state can be saved in the LB and retrieved later in case of failures • The job state is a set of pairs <key, value> defined by the user • The job can start running from a previously saved state and not from the beginning again • The user has to set the JDL JobType attribute to checkpointable Grid Computing School, 10-12 July 2006, Rio de Janeiro

  7. Logical Checkpointing Job • When a checkpointable job is submitted and starts from the beginning, the user run simply the edg-job-submit command • the number of steps, that represents the job phases, can be specified by the JobSteps attribute • e.g. JobSteps = 2; • the list of labels, that represents the job phases, can be specified by the JobSteps attribute • e.g. JobSteps = {“january”, “february”}; • The latest job state can be obtained by using the edg-job-get-chkpt <jobid> command • A specific job state can be obtained by using the edg-job-get-chkpt –cs <state_num> <jobid> command • When a checkpointable job has to start from an intermediate job state, the user run the edg-job-submit command using the –chkpt <state_jdl> option where <state_jdl> is a valid job state file, where the state of a previously submitted job was saved Grid Computing School, 10-12 July 2006, Rio de Janeiro

  8. Job checkpointing example Example of Application (e.g. HEP MonteCarlo simulation) int main () { … for (int i=event; i < EVMAX; i++) { < process event i>;} ... exit(0); } Grid Computing School, 10-12 July 2006, Rio de Janeiro

  9. Job checkpointing example User code must be easily instrumented in order to exploit the checkpointing framework … #include "checkpointing.h" int main () { JobState state(JobState::job); event = state.getIntValue("first_event"); PFN_of_file_on_SE = state.getStringValue("filename"); …. var_n = state.getBoolValue("var_n"); < copy file_on_SE locally>; … for (int i=event; i < EVMAX; i++) { < process event i>; ... state.saveValue("first_event", i+1); < save intermediate file on a SE>; state.saveValue("filename", PFN of file_on_SE); ... state.saveValue("var_n", value_n); state.saveState(); } … exit(0); } Grid Computing School, 10-12 July 2006, Rio de Janeiro

  10. Job checkpointing example #include "checkpointing.h" int main () { JobState state(JobState::job); event = state.getIntValue("first_event"); PFN_of_file_on_SE = state.getStringValue("filename"); …. var_n = state.getBoolValue("var_n"); < copy file_on_SE locally>; … for (int i=event; i < EVMAX; i++) { < process event i>; ... state.saveValue("first_event", i+1); < save intermediate file on a SE>; state.saveValue("filename", PFN of file_on_SE); ... state.saveValue("var_n", value_n); state.saveState(); } … exit(0); } • User defines what is a state • Defined as <var, value> pairs • Must be “enough” to restart a • computation from a • previously saved state Grid Computing School, 10-12 July 2006, Rio de Janeiro

  11. Job checkpointing example #include "checkpointing.h" int main () { JobState state(JobState::job); event = state.getIntValue("first_event"); PFN_of_file_on_SE = state.getStringValue("filename"); …. var_n = state.getBoolValue("var_n"); < copy file_on_SE locally>; … for (int i=event; i < EVMAX; i++) { < process event i>; ... state.saveValue("first_event", i+1); < save intermediate file on a SE>; state.saveValue("filename", PFN of file_on_SE); ... state.saveValue("var_n", value_n); state.saveState(); } … exit(0); } User can save from time to time the state of the job Grid Computing School, 10-12 July 2006, Rio de Janeiro

  12. Job checkpointing example #include "checkpointing.h" int main () { JobState state(JobState::job); event = state.getIntValue("first_event"); PFN_of_file_on_SE = state.getStringValue("filename"); …. var_n = state.getBoolValue("var_n"); < copy file_on_SE locally>; … for (int i=event; i < EVMAX; i++) { < process event i>; ... state.saveValue("first_event", i+1); < save intermediate file on a SE>; state.saveValue("filename", PFN of file_on_SE); ... state.saveValue("var_n", value_n); state.saveState(); } … exit(0); } Retrieval of the last saved state The job can restart from that point Grid Computing School, 10-12 July 2006, Rio de Janeiro

  13. MPI Job • There are a lot of libraries supporting parallel jobs, but we decided to support MPICH. • The MPI job is run in parallel on several processors • The user has to set the JDL JobType attribute to MPICH and specify the NodeNumber attribute that’s the required number of CPUs • When a MPI job is submitted, the UI adds • in the Requirements attribute Member(“MpiCH”, other.GlueHostApplicationSoftwareRunTimeEnvironment)(the MPICH runtime environment must be installed on the CE) other.GlueCEInfoTotalCPUs >= NodeNumber(a number of CPUs must be at least be equal to the required number of nodes) • In the Rank attribute other.GlueCEStateFreeCPUs (it is chosen the CE with the largest number of free CPUs) Grid Computing School, 10-12 July 2006, Rio de Janeiro

  14. MPI Job [ JobType = "MPICH"; NodeNumber = 2; Executable = "MPItest.sh"; Argument = "cpi 2"; InputSandbox = {"MPItest.sh", "cpi"}; OutputSandbox = "executable.out"; Requirements = other.GlueCEInfoLRMSType == “PBS” || other.GlueCEInfoLRMSType == “LSF”; ] • The NodeNumber entry is the number of threads of MPI job • The MPItest.sh script only works if PBS or LSF is the local job manager Grid Computing School, 10-12 July 2006, Rio de Janeiro

  15. MPI Job • Snapshot of MPItest.sh: # $HOST_NODEFILE contains names of hosts allocated for MPI job for i in `cat $HOST_NODEFILE` ; do echo "Mirroring via SSH to $i" #creates the working directories on all the nodes allocated for parallel execution ssh $i mkdir -p `pwd` #copies the needed files on all the nodes allocated for parallel execution /usr/bin/scp -rp ./* $i:`pwd` # sets the permissions of the files ssh $i chmod 755 `pwd`/$EXE ssh $i ls -alR `pwd` done #execute the parallel job with mpirun mpirun -np $CPU_NEEDED -machinefile $HOST_NODEFILE `pwd`/$EXE > executable.out • Important: you need shared keys between worker nodes • Avoids sharing of home directories • Enforced in GILDA • NOT enforced in LCG2 … The VO needs to negotiate on a site by site basis Grid Computing School, 10-12 July 2006, Rio de Janeiro

  16. Condor DAGMan • Directed Acyclic Graph Manager • DAGMan allows you to specify the dependencies between your Condor jobs, so it can manage them automatically for you. • (e.g., “Don’t run job “B” until job “A” has completed successfully.”) Grid Computing School, 10-12 July 2006, Rio de Janeiro

  17. Job A Job B Job C Job D What is a DAG? • A DAG is the datastructure used by DAGMan to represent these dependencies. • Each job is a “node” in the DAG. • Each node can have any number of “parent” or “children” nodes – as long as there are no loops! Grid Computing School, 10-12 July 2006, Rio de Janeiro

  18. Job A Job B Job C Job D Defining a Condor DAG • A DAG is defined by a .dagfile, listing each of its nodes and their dependencies: # diamond.dag Job A a.sub Job B b.sub Job C c.sub Job D d.sub Parent A Child B C Parent B C Child D • each node will run the Condor job specified by its accompanying Condor submit file Grid Computing School, 10-12 July 2006, Rio de Janeiro

  19. Submitting a Condor DAG • To start your DAG, just run condor_submit_dag with your .dag file, and Condor will start a personal DAGMan daemon which to begin running your jobs: % condor_submit_dag diamond.dag • condor_submit_dag submits a Scheduler Universe Job with DAGMan as the executable. • Thus the DAGMan daemon itself runs as a Condor job, so you don’t have to baby-sit it. Grid Computing School, 10-12 July 2006, Rio de Janeiro

  20. Running a Condor DAG • DAGMan acts as a “meta-scheduler”, managing the submission of your jobs to Condor based on the DAG dependencies. DAGMan A Condor Job Queue .dag File A B C D Grid Computing School, 10-12 July 2006, Rio de Janeiro

  21. Running a Condor DAG (cont’d) • DAGMan holds & submits jobs to the Condor queue at the appropriate times. DAGMan A Condor Job Queue B B C C D Grid Computing School, 10-12 July 2006, Rio de Janeiro

  22. Running a Condor DAG (cont’d) • In case of a job failure, DAGMan continues until it can no longer make progress, and then creates a “rescue” file with the current state of the DAG. DAGMan A Condor Job Queue Rescue File B X D Grid Computing School, 10-12 July 2006, Rio de Janeiro

  23. Recovering a Condor DAG • Once the failed job is ready to be re-run, the rescue file can be used to restore the prior state of the DAG. DAGMan A Condor Job Queue Rescue File B C C D Grid Computing School, 10-12 July 2006, Rio de Janeiro

  24. Recovering a Condor DAG (cont’d) • Once that job completes, DAGMan will continue the DAG as if the failure never happened. DAGMan A Condor Job Queue B C D D Grid Computing School, 10-12 July 2006, Rio de Janeiro

  25. Finishing a Condor DAG • Once the DAG is complete, the DAGMan job itself is finished, and exits. DAGMan A Condor Job Queue B C D Grid Computing School, 10-12 July 2006, Rio de Janeiro

  26. Additional DAGMan Features • Provides other handy features for job management… • nodes can have PRE & POST scripts • failed nodes can be automatically re-tried a configurable number of times Grid Computing School, 10-12 July 2006, Rio de Janeiro

  27. DAG Job in EGEE • The DAG job is a Directed Acyclic Graph Job • The user has to set in the JDL • JobType=„dag”, • nodes ( containing the description of the nodes), and • dependencies attributes NOTE: • A plug-in has been implemented to map an EGEE DAG submission to a Condor DAG submission • Some improvements have been applied to the ClassAd API to better address WMS need Grid Computing School, 10-12 July 2006, Rio de Janeiro

  28. cmkin1 cmkin4 cmkin2 cmkin5 cmkinN cmkin3 DAG Job in EGEE nodes = { cmkin1 = [ file = “bckg_01.jdl" ;], cmkin2 = [ file = “bckg_02.jdl" ;], …… cmkinN = [ file = “bckg_0N.jdl" ;] }; dependencies = { {cmkin1, cmkin2}, {cmkin2, cmkin3}, {cmkin2, cmkin5}, {{cmkin4, cmkin5}, cmkinN} } Grid Computing School, 10-12 July 2006, Rio de Janeiro
