  1. Your premier global partner for trusted and innovative lighting solutions! We take pride in our seasoned R&D team, diligently pioneering the forefront of next-generation lighting technologies, ensuring our company's vanguard position in the industry. Our dedicated in-house support and worldwide sales teams stand poised to deliver bespoke lighting solutions tailored to your distinct requirements.

  2. Beyond a Simple Luminaire: Smart Pole Innovations is a versatile lighting system designed to cater to the diverse needs of a city. Smart Pole Innovations is a versatile lighting system designed to cater to the diverse needs of a city. In diameters of 180mm, 200mm, with variable heights up to 13-15 meters and beyond, the system seamlessly integrates into its architectural surroundings, maintaining proportional harmony. 8m Smart Pole Innovations – Leading the Way: With a 180mm & 200mm diameter and numerous innovations, Smart Pole represents the forefront of cutting-edge technology, tailored for deployment in aesthetically pleasing design and supply concepts within urban environments. 7m 6m 5m 4m 3m 2m 1m Pole : Dia: 180mm & Height: 5.5m Pole : Dia: 180mm & Height: 6.5m Pole : Dia: 200mm & Height: 8m 2

  3. SHINETOO Smart Pole Colours Pole Coating Superior longevity Our durable coating systems are environmentally friendly and can deliver superior longevity for C4/5 environments compared to other coating solutions. Smart lamp poles redefine urban aesthetics with customizable colors as a CITY ELEMENT. Whether in white, red, green, grey, blue, or black, each hue adds character. Adaptable to occasions and seasons, intensifying the emotional experience of urban spaces, the color becomes a statement, reflecting the city's identity. High level of clarity Our selection guide is based on ISO 12944 corrosivity categories combined with more than 25 years of field experience. With our consulting services and design tools you can be certain you make the right choices. Maximum efficiency Our multi-layer powder coating systems are easy to apply, and the shorter curing times allow for faster project completion. Interpon Redox Triplex UV, abrasion and mechanical resistance (60-90 μ) Corrosin protection (120-240 μ) PRE-TREATMENT 3 4

  4. SHINETOO Smart Pole Rotating Structure Modular Structure Flexible and Convenient 360° LED Spot Light 355° GOBO Projector CCTV Camera 5 6

  5. LED Spot Light SHINETOO Smart Pole Spotlights can be aimed downward to emphasize details,upward for a soft glow, or angled for dynamic effects. Omni-directional lighting offers uniform illumination. These choices create a distinctive and visually engaging environment.Spotlights on lamp poles concentrate light to highlight buildings, sculptures, or urban landscapes. They enhance the beauty of parks and squares, creating a unique nighttime ambiance. Used to illuminate specific parts of buildings, spotlights emphasize architectural design and details. LED Spot Light Product Data Description Housing Lamp Brand Application Light source Adjustable angle Weight[kg] Body color Product dimensions [mm] Operating temperature [°C] Dimming Cooling Driver Chips Surge protection Impact resistance Tightness level Electrical class General warranty [year] LED Spotlight 12/24/36W / - 2200K Aluminum Philips Smart pole LED 355° 7 RAL 4007 H300 x Ø140 mm -10℃~55℃ DALI-1 Passive Philips Philips 1/2 kV (optional SP10 10 kV) IK07 IP66 Class I 5 Φ180mm / Φ200mm Φ140mm 15° 25° 35° 60° 300mm 350mm Performance Data System power [W] Nominal luminous flux [lm] Rated efficacy [lm/W] IP front (optical) IP back (electrical) IP Rating Photometric distribution Nominal correlated colour temperature (CCT) [K] Colour rendering index (CRI) [Ra] Nominal beam angle [°] 12/ 24 / 36 1372 / 2780 /4186 110 66 66 66 Wide 2200 80 15/25/35/60 Spectrogram Electrical Data IEC protection class Operating voltage [V] Rated frequency or frequency range [Hz] Class I 220-240V 50/60Hz 1 10

  6. SHINETOO Smart Pole GOBO Projector A GOBO light projects patterns or text using special slides (GOBOs). Commonly used in events, it adds personalized lighting effects by projecting clear designs onto surfaces. Easily interchangeable, GOBOs offer versatility for creating unique visual atmospheres. GOBO Projector Φ180mm / Φ200mm Φ140mm 300mm 350mm Product Data Description Housing Lamp Brand Application Light source Adjustable angle Weight[kg] Body color Product dimensions [mm] Operating temperature [°C] Cooling Driver Chips Image diameter Tightness level Electrical class General warranty [year] LED Gobo lights Aluminum Osram Smart pole LED 355° 3.5 RAL 4007 H300 x Ø140 mm -10℃~55℃ Passive Meanwell Osram 41.5/36 IP66 Class I 5 Projection distance(m) Pattern diameter(m) 1 2 3 6 10 0.28 0.56 0.85 1.3 2.8 12

  7. RGBW Lantern RGBW technology in smart lamp poles provides versatile lighting with customizable colors and precise white light control. Ideal for themed events and festivals, it enhances urban spaces with dynamic and energy-efficient illumination. SHINETOO Smart Pole RGBW Lantern Product Data Description Housing Dimming Weight [kg] Body color Product dimensions [mm] Operating temperature [°C] Rated ambient temperature (tq) [°C] Cooling Driver Chips Impact resistance Tightness level Electrical class General warranty [year] Voltage Optic LED RGBW lantern Aluminum DMX512 18.5 RAL 4007 H1200 x Ø180 mm -10℃ ~ 55℃ 25 Passive Meanwell XLG-75-24-A Lumileds 5050RGBW 0.2W R IK07 IP65 Class I 5 DC 24V PMMA Φ180mm / Φ200mm Φ180mm / Φ200mm 2200mm Performance data System power [W] Nominal luminous flux [lm] Rated efficacy [lm/W] IP front (optical) IP back (electrical) IP Rating Nominal correlated colour temperature (CCT) [K] Colour rendering index (CRI) [Ra] Nominal beam angle [°] 50W 4260LM 85LM/W 65 65 65 RGBW Ra≥80 360 1200mm Electrical data Electrical class Operating voltage [V] Lamp input current [mA] Class I 100-305VAC 380 14

  8. SHINETOO Wifi AP Wi-Fi in smart poles enables high-speed wireless connectivity, facilitating seamless communication and data transfer. Users can easily access the internet via smartphones and tablets. Integrated into smart city infrastructure, Wi-Fi supports efficient monitoring, data collection, and city management. It also provides public Wi-Fi services. Remote monitoring capabilities allow real-time adjustments for increased efficiency. IoT connectivity supports intelligent applications like traffic management and environmental monitoring, enhancing urban environments with convenience and efficiency. Smart Pole SHINETOO Smart Pole Wifi AP Specification Installation Size Φ180mm / Φ200mm Pole/wall mounting 209*95*43mm 2.4GHz frequency band: 300Mbps 5GHz frequency band: 867Mbps Wireless 1.Building to smart pole 10/100/1000Mbps RJ45 port*1 5dBi omnidirectional antenna 360° 1 unit system indicator light 1 RESET button 1 FAT/FIT mode toggle switch Port Antenna Coverage Angle Indicator Light Base Unit (BU) Button 560mm 12VDC/1A Passive PoE power supply, distance up to 40M Power Supply Network FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management IP65 Management Terminal Units (TU) IP Grade Working temperature: -30℃～65℃ Working humidity: 10%～90%RH non-condensing Storage temperature: -40℃～70℃ Storage humidity: 5%～90%RH non-condensing Use Environment The Base Unit is mounted outdoors, on the side of a building or on a rooftop. It connects to 8 terminal units installed within a range of 200 meters max. 2.4G: 150 meters 5G: 200 meters (When working with different wireless terminals, the actual coverage distance may vary) Recommended Coverage Distance (Open Environment) Key Features System log Restore factory settings Backup configuration Import configuration Software upgrade Ping watchdog 2.Smart pole to smart pole · 11AC dual-band concurrent, the highest wireless rate can reach 1167Mbps. System Management · 5dBi omnidirectional antenna, coverage radius up to 200 meters. · Designed for outdoor, waterproof and dustproof grade can reach IP68, working temperature can reach -30℃~65℃, adapt to various harsh environments. Base Unit (BU) Recommended number of connecting device 25(2.4G)+45(5G) · Spectrum navigation makes the 2.4GHz and 5GHz frequency bands more balanced. · Adjust power linearly, effectively reducing mutual interference between APs. Max. number of connecting device 100(2.4G)+100(5G) · Automatically remove weak signal devices to avoid dragging down the entire network and improve wireless network performance. Network · Independent hardware protection circuit, can automatically restore abnormal AP. · Passive PoE network cable power supply, flexible layout. Terminal Units (TU) · Pole/wall mounting, flexible and simple installation. The Base Unit is integrated in a smart pole. This one connects to 8 terminal units installed within a range of 200 meters max. 1 16

  9. SHINETOO Smart Pole CCTV Camera Camera lmage Sensor Max. Resolution Min.Illumination Shutter Time Day & Night Angle Adjustment 1/1.8" Progressive Scan CMOS 3840x2160 Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light 1/3 s to 1/100,000 s IR cut filter Pan: 0° to 360° , tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2° 4 mm, horizontal FOV 90.0°, vertical FOV 45.8, diagonal FOV 109.4° CCTV Camera A CCTV camera with a 180° field of view provides wide-angle surveillance coverage, capturing a broad area within its sight. This technology is ideal for monitoring large spaces, offering a comprehensive view that helps enhance security and situational awareness. The 180°coverage minimizes blind spots, ensuring efficient surveillance and effective monitoring. Focal Length & FOV M16 Fixed F1.0 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ Lens Mount Iris Type Aperture Depth of Field DORI 2.8mm: D: 89 m, O: 35 m, R:17 m,l: 8 m 4mm: D: 109 m, O: 43 m, R: 21 m, l: 10 m DORI Illuminator Supplement Light Type Supplement Light Range Smart Supplement Light IR Wavelength Φ180mm / Φ200mm Φ140mm IR, White Light Up to 60 m Yes 850 nm 300mm 350mm HEOP Memory: 40 MB Smart RAM:350 MB eMMC: 2 GB Open Resources Computing Power Open Capability Deep Learning Structure Programming Language 1.5 TOPS HEOP 2.0 OpendevSDK Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX C, C++ 18

  10. SHINETOO Smart Pole PTZ Camera Camera lmage Sensor Max. Resolution Min.Illumination Shutter Speed Slow Shutter Day & Night Zoom 1/2.8" Progressive Scan CMOS 1920x1080 Color: 0.005 Lux @ (F1.6, AGCON); B/W: 0.001 Lux @(F1.6,AGC ON),0 Lux with IR 1s to 1/30,000 s Yes IR cut filter 25 × optical, 16 ×digital Lens Focus Aperture Zoom Speed Focal Length Auto, semi-auto, manual Max.F1.6 Approx.3.6 s 4.8 mm to 120 mm Horizontal field of view: 57.6°to 25°(wide-tele) Vertical field of view: 34.4° to 1.4°(wide-tele) Diagonal field of view: 64.5° to 2.9°(wide-tele) 360° PTZ Camera A PTZ camera with a 360° field of view offers complete coverage by allowing pan, tilt, and zoom functionalities. This advanced camera system can rotate horizontally and vertically, providing a full view of the surroundings. With the ability to zoom in on specific details, PTZ cameras are versatile for surveillance in various settings, offering enhanced flexibility and control over the monitored area. FOV Illuminator Supplement Light Type Supplement Light Range IR IR Distance: up to 100m PTZ Proportional Pan Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,panoramascan Park Action Φ180mm / Φ200mm Φ165mm Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,panorama scan,dome reboot,dome adjust,aux output Scheduled Task Movement Range(Pan) Movement Range(Tilt) Pan Speed Tilt Speed Presets Patrol Scan Pattern Scan Power-off Memory 3D Positioning PTZ Status Display Preset Freezing 360° -15° to 90°(auto flip) Pan speed: configurable from 0.1 to 80/s; preset speed: 80/s Tilt speed: configurable from 0.1 to 80°/s, preset speed 80°/s 300 8 patrols, up to 32 presets for each patrol 4 pattern scans Yes Yes Yes Yes 350mm 20

  11. SHINETOO Smart Pole PA Speaker Key Features · High-grade aluminum alloy enclosure, suitable for installations in different environments. PA Speaker Speakers in smart poles serve multiple purposes, including public announcements for city notifications and background music. In emergencies, they enhance the emergency broadcast system by broadcasting urgent notifications. Integrated with other smart devices, smart poles contribute to comprehensive city management and services. · Outdoor weatherproof design, IP rating could reach IP65. · Easy configuration via user-friendly web interface. · A-in-one loudspeaker with built-in network audio decoder, class-D digital amplifier and DSP (digital signal proces-sor), ensuring crystal clear voice intelligibility all the time. · Built-in loop detector for remotely monitoring the loudspeaker's working condition. · Scheduled bell ringing tasks with custom MP3 audio files can be stored in the FTP server of the loudspeaker, specificaudio file can be played automatically at the specified time even when the loudspeaker is offline. Φ180mm / Φ200mm Ambient noise:60 Decibels · Fully compliant 3rd party iP endpoint, compatible with most mainstream on-premise and cloud/hosted VolPtelephone systems. · Work with VolP telephone system for live voice announcements. · Work with SPON@ XC-9000 audio management software for powerful features such as live and scheduled voiceannouncements, real-time and timed background music, emergency notification alerting, zone paging, etc. Technical Parameters MODEL NO Power Supply Power Consumption Rated Power Output Network Protocol Audio Codec Maximum SPL S/N(Signal-to-Noise) Ratio Frequency Response Interface IP Rating Dimensions Weight Standard Accessories Optional Accessories NAS-8507B03 DC 24V/2.7A ≤40W 30W SIP 2.0 (RFC 3261), FTP,HTTP,TCP/IP,UDP,ARP,ICMP,IGMP MP3,PCM/L16,ADPCM dB+3dB ≥85dB 50Hz-20kHz 1xRJ45 Ethernet Port, 1xLine Input, 1xRelay lnput, 1xPower Input IP65 450x88.1x83.2mm 2.2kg 1×Waterproof Connector, 1×Fixing Bracket, 1×Mounting Bracket, 1×lnstallation Manual DC24V/2.7A Power AdapterlEC C13 Power Cord (US/EU/UK/AU) NAS-8507B04 700mm ≤50W 40W 10m When the ambient noise is 60 decibels, the sound of the smart light pole speaker can be heard at 10m away. 600x88.1x83.2mm 2.8kg 22

  12. SHINETOO Smart Pole SHINETOO Smart Pole Model DS-PEA22 Series Panic Alarm Station Build-in Camera Parameters Camera FOV Day & night Video compression standard Resolution Audio Parameters Panic Alarm Station SOS is a preconfigured version of a smart multi-functional pole designed as the city's guardian angel. It ensures a feeling of security by allowing citizens to quickly connect with emergency services through a one-button push. This system features a Voice-over-IP intercom for clear communication about incidents, supported by embedded cameras for real-time video feeds. SOS guides emergency crews to incident locations, optimizing their response. It ensures people never feel alone in the city, receiving prompt support, while emergency services can efficiently cover larger zones and allocate resources optimally. 2 MP HD IR Camera, IR Distance ≥ 10 m Horizontal: 128°, Vertical: 75°, Diagonal: 147° IR Cut Filter H.264, H.264 SVC, H.265 1920 ×1080@25fps 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m 1-ch 3.5 mm Audio Interface for External Audio Input Audio input 1-ch 3 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output Audio output Audio compression standard Audio quality G.711 U/64Kbps,G.726 /16Kbps Noise Suppression and Echo Cancellation For Citizens • Enhanced peace of mind • Direct communication with city services • Swift and effective assistance during emergencies. Network Parameters Network protocol Ethernet Public network transmission Network encryption Alarm One-touch alarm Tampering Alarm TCP/IP, RTSP, SNMP and HIK-SIP 10 M/100 M Self-adaptive Ethernet port ISUP 2.0/ Hik-Connect /Standard SIP Supports User Lock-in and Password Security Prompt Supported Supported Device Interfaces Ethernet port IO Input IO Output SD Card PSTN 2 RJ45 10 M/100 M Self-adaptive Ethernet Port 2 2 Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card,Max.128G 1-ch General Power supply Power consumption Working temperature Working humidity Installation Dimensions 100-240VAC < 24W 40°C to +60°C(-40°F to 140°F) 10% to 90% Wall Mounting 218 mm x 128 mm x 58 mm (8.58"x 5.04"x 2.28"） For Cities • Robust, integrated, and aesthetically pleasing solution • An intelligent and cost-effective utilization of lighting infrastructure • Remote monitoring of local incidents • Streamlining on-site interventions by emergency services. 1 24

  13. IOT Cateway SHINETOO Hatch Smart Pole Wifi AP & CCTV Camera & PA Speaker & EM PTT IOT Cateway Wifi AP Line Key Lock CCTV Camera Line PA Speaker Line RGBW Lantern Driver Unlocked - Open EM PTT Line LED Spot Light 1-4 Driver PTZ Camera PA Speaker Driver Locked -Closed Air Switch 220V AC Individual Lamp Controller

  14. 350 260 4-M24 Ø403 500 7xØ5箍筋 105 1000 950 850 65 5 24.06.11 技术要求： 1.重要尺寸用"*"表示 2.未注公差见自由公差表 3.材料： 4.表面处理： 5.本产品需符合RoHS及REACH指令 6.型号： 自由公差 ★绘图单位:mm 绘图必须用1:1绘制 版本号 说明 日期 签名/ 制图 审核 物料 名称 物料 编码 X.0 XX.0 XXX.0 0.X 数值 地笼 ±0.1 ±0.25 ±0.5 ±0.05 公差 s Q235 等级 标记 比例 重量 暂无 工艺 标准化 1g yymmdd F 第　张 共　 张 2 5 嘉兴宝诗照明电器有限公司 批 准 工程技术图

  15. System Demonstration

  16. DALI Dimming Driver Individual Lamp Controller Wireless Communication AC 220V (Input) Signal Line AC 220V (Output) LED Spot Light Driver Line Individual Lamp Controller AC 220V (Input) Patch Cable Server Cluster Optical Module Aggregation Optical Port Switch Optical Module Optical Module Wireless Communication Monitoring Manager Intelligent Manager GOBO Projector Optical Module Optical Module Optical Distribution Frame Fiber Cabinet Category 5e Cable Centralized controller DMX512 Controller High Voltage Signal Control Line Network Firewall Category 6A Cable Smart Integrated Box Power over Ethernet AC 220V (Input) Category 5e Cable Core router DC 24V Driver Line RGBW Lantern Power Adapter Control Room/Data Center Category 5e Cable Category 6A Cable AC 380V AC Power Manager Power over Ethernet Core Switch BTS/GPS Timing Device Wifi AC 220V (Input) Category 5e Cable Fiber Optic Transmission Category 6A Cable Power over Ethernet Video Intercom CCTV Cameras Category 6A Cable Category 5e Cable Power over Ethernet IOT Digital Video Recorder PTZ Cameras WIRELESS CONTROL Category 6A Cable DC 24V Driver Line AC 220V (Input) Power Adapter PA Speaker Nearby Distribution Substation Category 6A Cable Power over Ethernet EM PTT

  17. DALI Dimming Driver Individual Lamp Controller AC 220V (Input)&PLC Signal Line AC 220V (Output) LED Spot Light Driver Line Individual Lamp Controller AC 220V (Input)&PLC Patch Cable Server Cluster Optical Module Aggregation Optical Port Switch Optical Module Optical Module Monitoring Manager Intelligent Manager GOBO Projector Optical Module Optical Module Optical Distribution Frame Fiber Cabinet Category 5e Cable Centralized controller DMX512 Controller High Voltage Signal Control Line Network Firewall Category 6A Cable Smart Integrated Box Power over Ethernet AC 220V (Input) Category 5e Cable Core router DC 24V Driver Line RGBW Lantern Power Adapter Control Room/Data Center Category 5e Cable Category 6A Cable AC 380V AC Power Manager Power over Ethernet Core Switch BTS/GPS Timing Device Wifi AC 220V (Input) Category 5e Cable Fiber Optic Transmission Category 6A Cable Power over Ethernet Video Intercom CCTV Cameras Category 6A Cable Category 5e Cable Power over Ethernet IOT Digital Video Recorder PTZ Cameras PLC Category 6A Cable DC 24V Driver Line AC 220V (Input) Power Adapter PA Speaker Nearby Distribution Substation Category 6A Cable Power over Ethernet EM PTT

  18. LED SPOT LIGHT

  19. GOBO PROJECTOR

  20. RGBW LANTERN

  21. CCTV CAMERA

  22. PTZ CAMERA

  23. PA SPEAKER

  24. PANIC ALARM STATION Alarm Position

  25. FEATURES

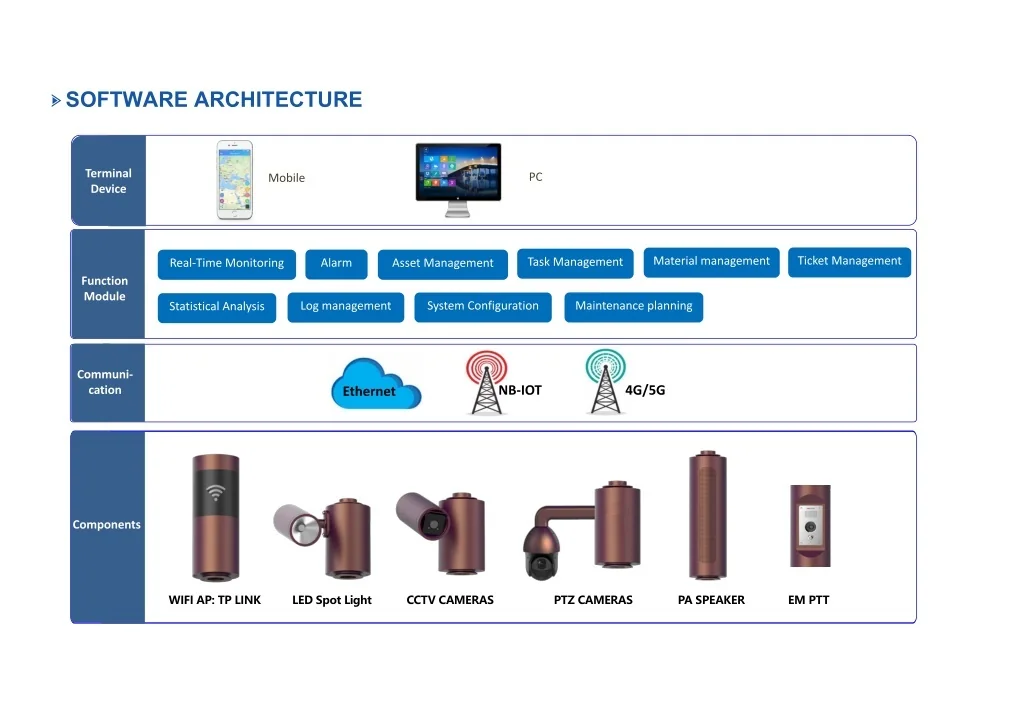

  26. SOFTWARE ARCHITECTURE WIFI AP: TP LINK LED Spot Light CCTV CAMERAS PTZ CAMERAS PA SPEAKER EM PTT

  27. HOME

  28. SMART POLE DASHBOARD Pole 1 0 LED Spot Light 2 0 WIFI AP: TP LINK 1 0 CCTV CAMERAS 1 0 PTZ CAMERAS 1 0 PA SPEAKER 1 0 EM PTT 1 0

  29. SMART POLE -OVERVIEW LED Spot Light PA SPEAKER PTZ CAMERAS EM PTT SMART POLE -LAMP

  30. SMART POLE -CCTV CAMERA REAL-TIME MONITORING LED Spot Light PA SPEAKER PTZ CAMERAS EM PTT

  31. ALARM

  32. USER CENTER

  33. FACILITY MANAGEMENT

  34. DEVICE MANAGEMENT

  35. TASK MANAGEMENT

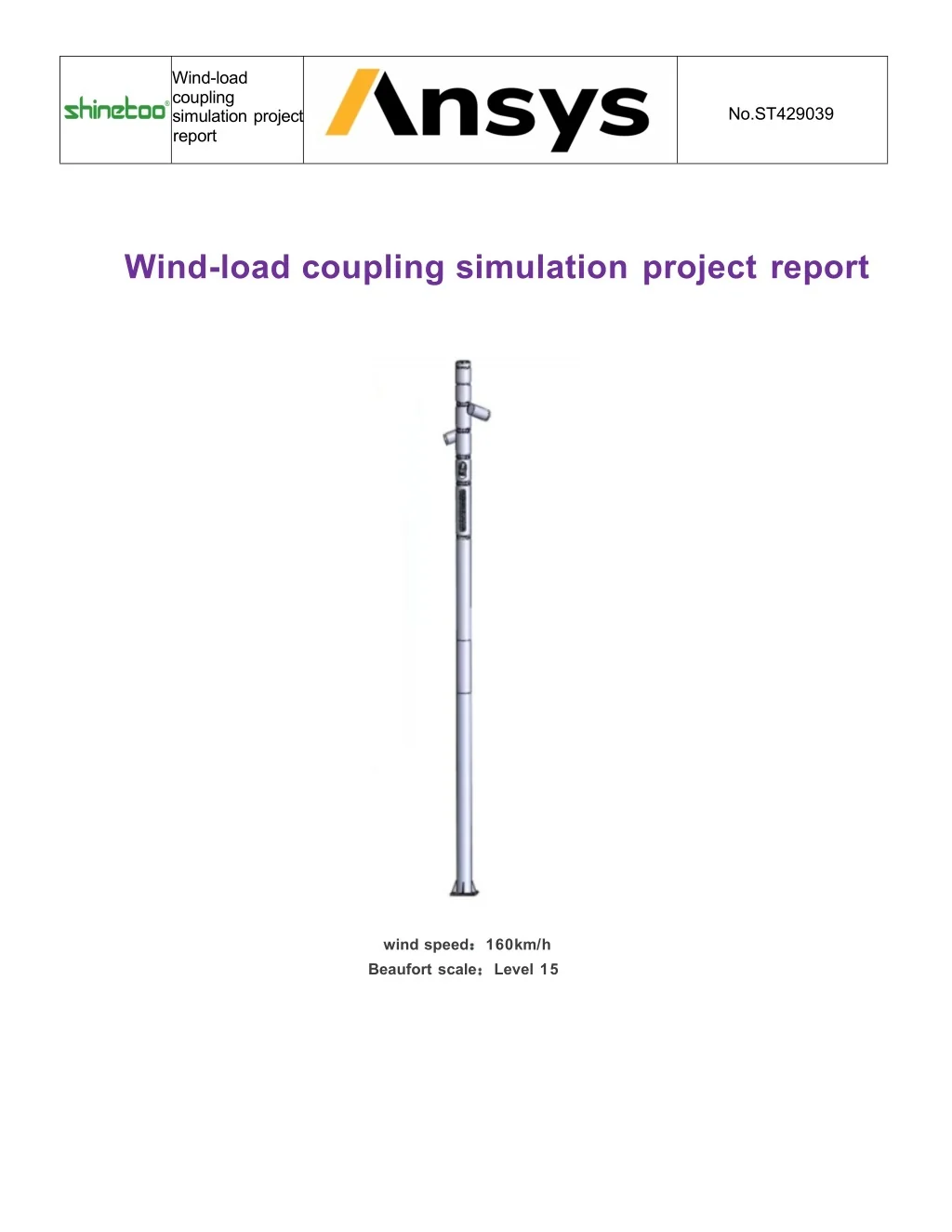

  36. Wind-load coupling simulation project report No.ST429039 Wind-load coupling simulation project report wind spee Beaufort scal d 160km/h Level 15 e

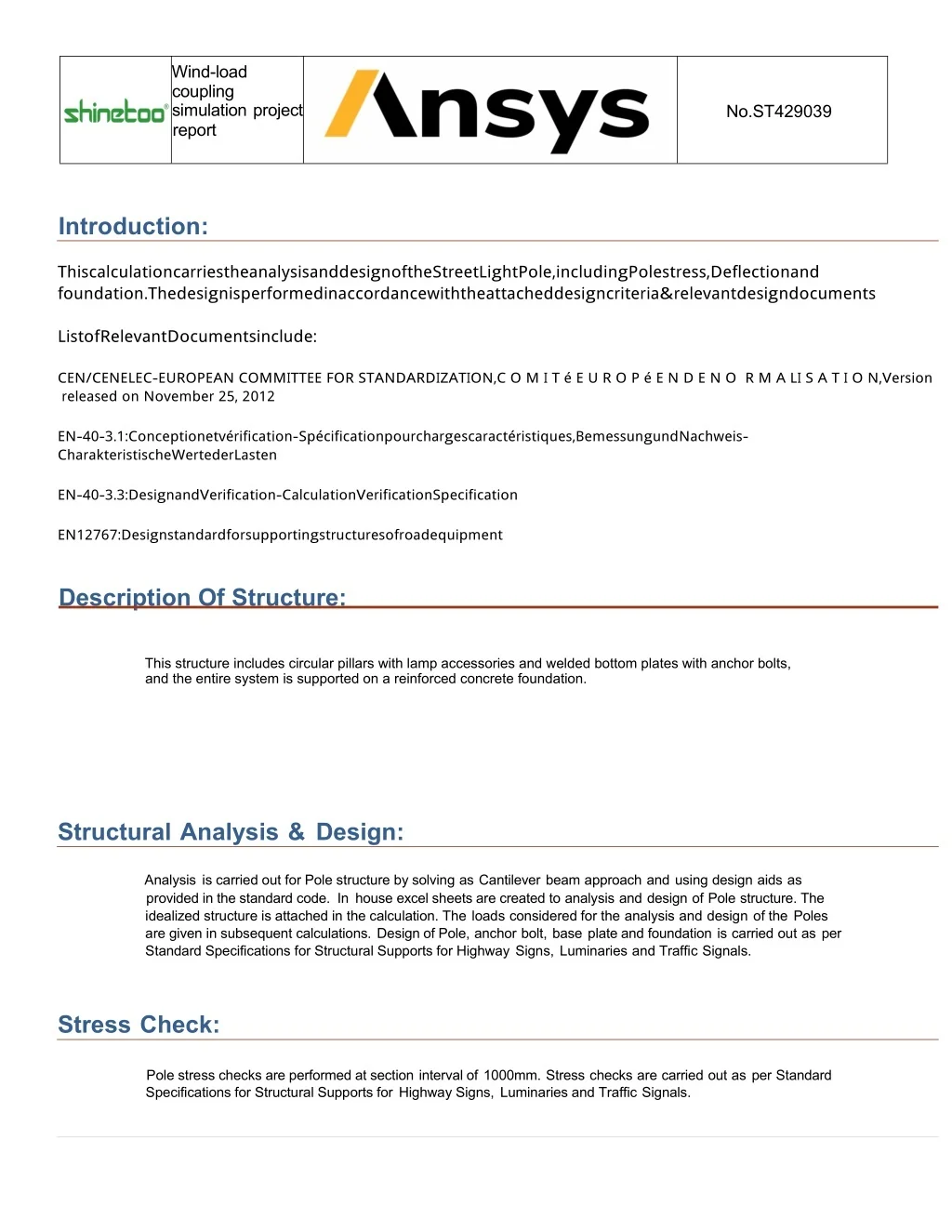

  37. Wind-load coupling simulation project report No.ST429039 Introduction: ThiscalculationcarriestheanalysisanddesignoftheStreetLightPole,includingPolestress,Deflectionand foundation.Thedesignisperformedinaccordancewiththeattacheddesigncriteria&relevantdesigndocuments ListofRelevantDocumentsinclude: CEN/CENELEC-EUROPEAN COMMITTEE FOR STANDARDIZATION,C O M I T é E U R O P é E N D E N O R M A LI S A T I O N,Version released on November 25, 2012 EN-40-3.1:Conceptionetvérification-Spécificationpourchargescaractéristiques,BemessungundNachweis- CharakteristischeWertederLasten EN-40-3.3:DesignandVerification-CalculationVerificationSpecification EN12767:Designstandardforsupportingstructuresofroadequipment Description Of Structure: Thisstructureincludescircularpillarswithlampaccessoriesandweldedbottomplateswithanchorbolts, andtheentiresystemissupportedonareinforcedconcretefoundation. Structural Analysis & Design : Analysis is carried out for Pole structure by solving as Cantilever beam approach and using design aids as provided in the standard code. In house excel sheets are created to analysis and design of Pole structure. The idealized structure is attached in the calculation. The loads considered for the analysis and design of the Poles are given in subsequent calculations. Design of Pole, anchor bolt, base plate and foundation is carried out as per Standard Specifications for Structural Supports for Highway Signs, Luminaries and Traffic Signals. Stress Check: Pole stress checks are performed at section interval of 1000mm. Stress checks are carried out as per Standard Specifications for Structural Supports for Highway Signs, Luminaries and Traffic Signals.

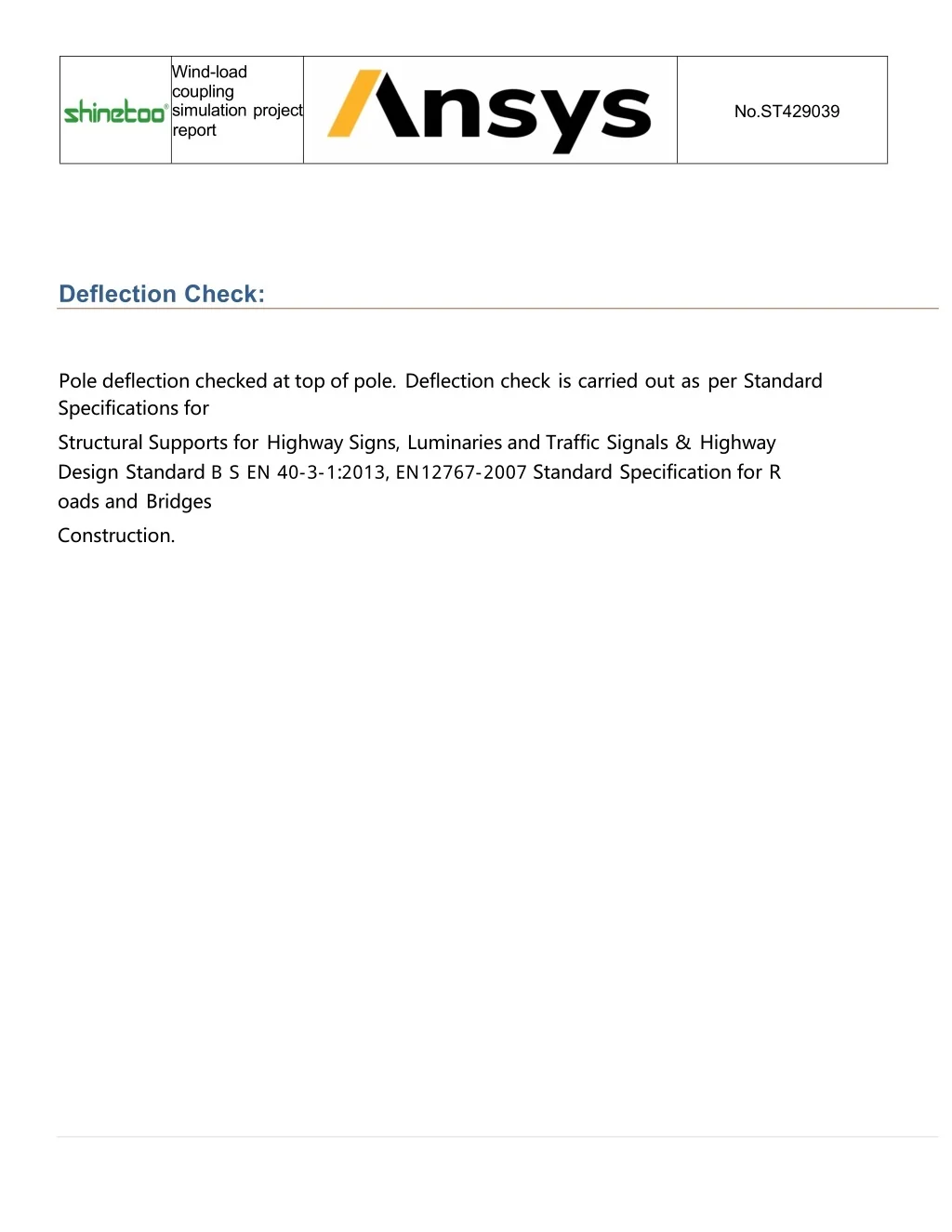

  38. Wind-load coupling simulation project report No.ST429039 Deflection Check: Pole deflection checked at top of pole. Deflection check is carried out as per Standard Specifications for Structural Supports for Highway Signs, Luminaries and Traffic Signals & Highway Design Standard B S EN 40-3-1:2013, EN12767-2007 Standard Specification for R oads and Bridges Construction.

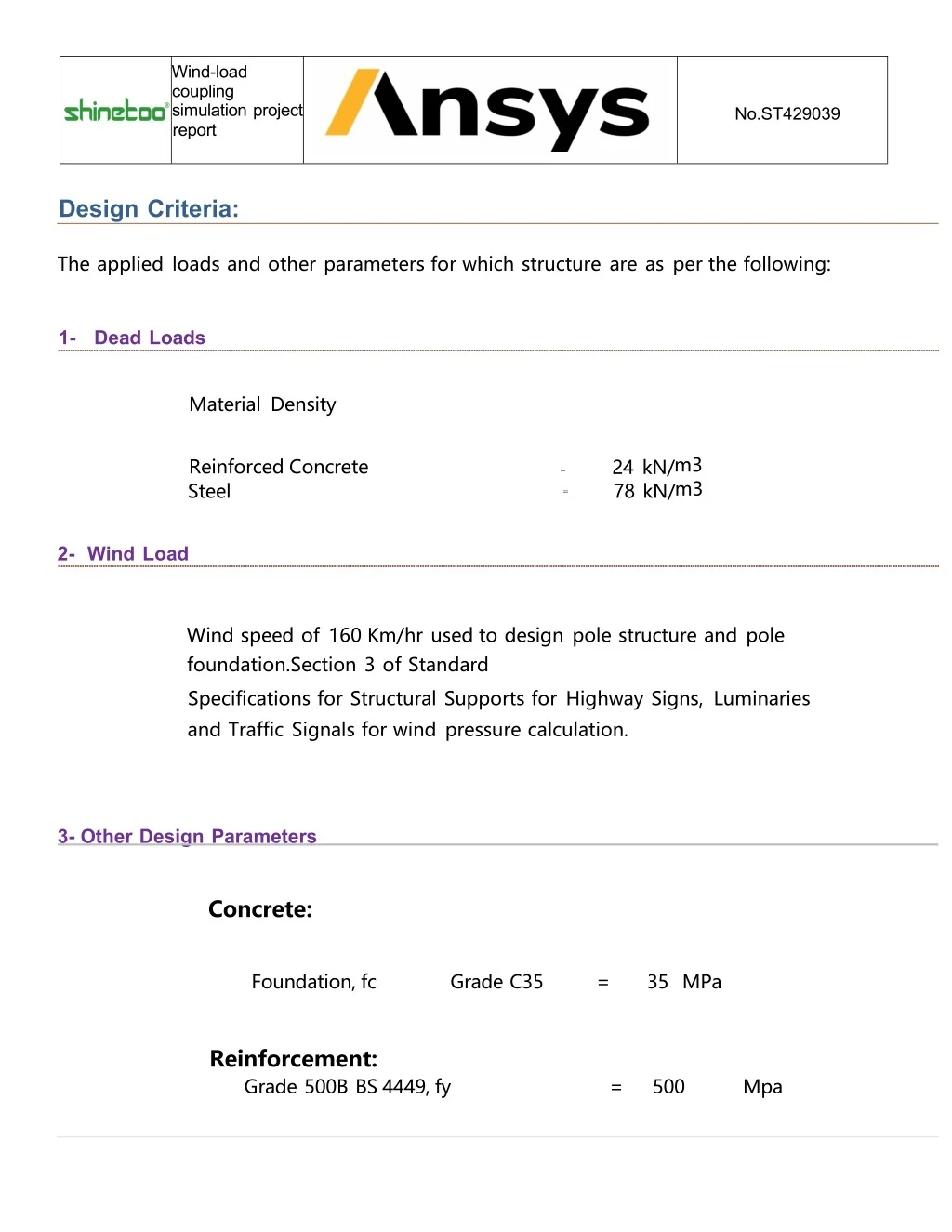

  39. Wind-load coupling simulation project report No.ST429039 Design Criteria: The applied loads and other parameters for which structure are as per the following: 1- Dead Loads Material Densit y 24 kN/m3 78 kN/m3 Reinforced Concrete Steel = = 2- Wind Load Wind speed of 160 Km/hr used to design pole structure and pole foundation.Section 3 of Standard Specifications for Structural Supports for Highway Signs, Luminaries and Traffic Signals for wind pressure calculation. 3- Other Design Parameter s Concrete: Foundation, fc Grade C35 = 35 MPa Reinforcement: Grade 500B BS 4449, fy = 500 Mpa

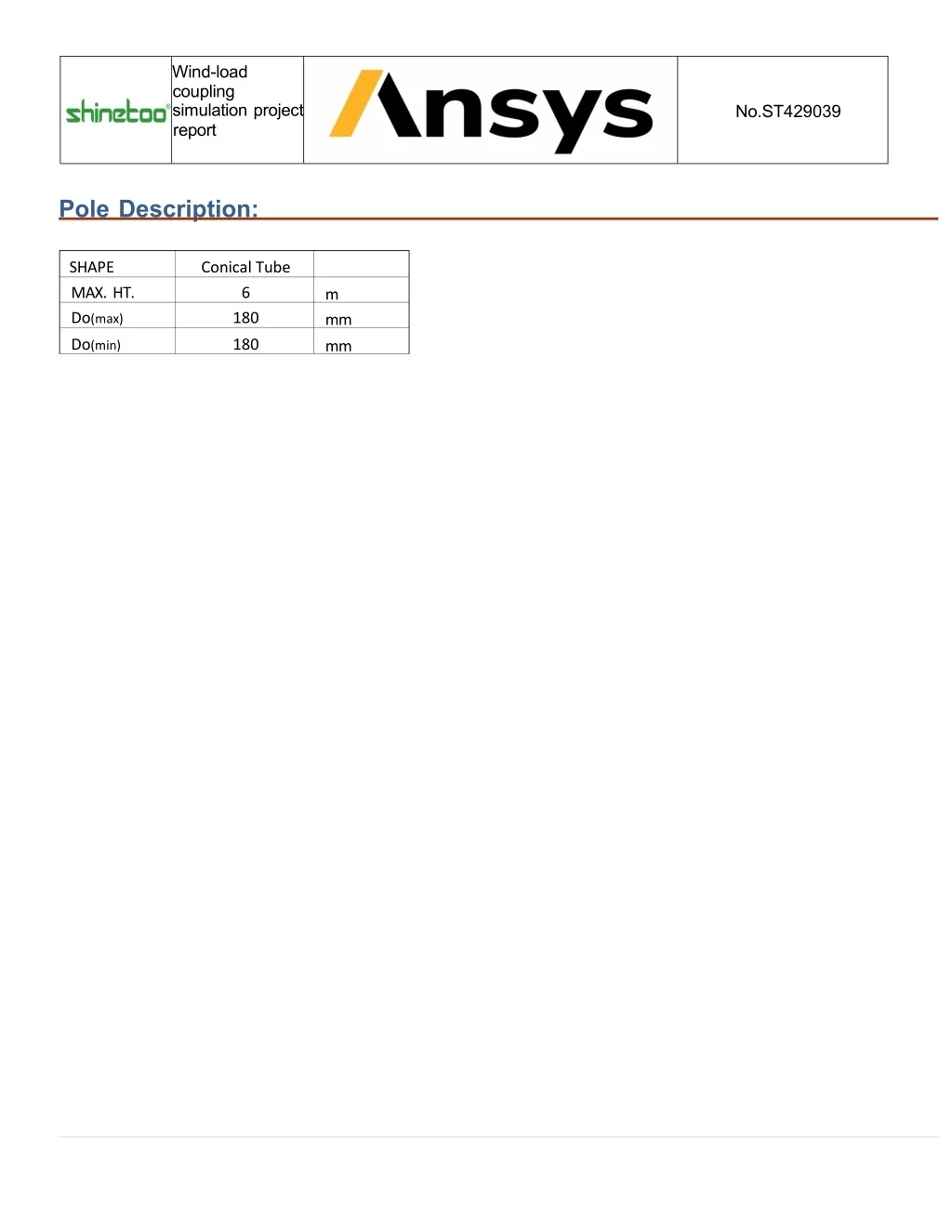

  40. Wind-load coupling simulation project report No.ST429039 Pole Description: SHAPE MAX. HT. Do(max) Conical Tube 6 180 m mm Do(min) 180 m m

  41. Wind-load coupling simulation project report No.ST429039 Pressure onPoledueto Wind: Wind load as per Standar EN40Specifications for Structural Supports for Highway Signs, Luminaries and Traffic Signals 2001 4th Edition (Interim 2002) P or N/m2) = Design wind pressur e = = 0.613 Kz G V2 Ir Cd (Pa Where: Kz = Height & Exposure factor = Gust factor for 3- second = Basic wind speed 6.0(H / 180.1)0.163 = G = 1.14 V = 160 kmph 44.45m/s Ir Cd F years as per Project specification = 5 25 = Importance factor = Drag Coefficient 0.5/0.4 = Shear force at Individual 0.5/0.45 0.5/0.45 = = Segmen t Hc = Height of Segment

  42. Wind-load coupling simulation project report No.ST429039 Test summary Test summary: 1. The overall connection of the model is tight without any fracture phenomenon，Shear stress < 180Mpa 2. Maximum deviation angle of vertical coordinate1.973°( ≤ 2.5 PAS PASS S °)Operating environment Software Product: CPU Type: CPU Speed: RAM: Operating System Ansys Intel(R) Core(TM) i9-13900K CPU @ 5.80GHz 24533MHz 2687MB / 2311MB Windows 10 (19042.804) : Model Information Model Name: Project Name : φ 180x6000mm+500x500x900.STP Wind load testing of smart light poles Entry name: Stress and deformationcoefficient testing of pole components at a wind speed of 4 44 4. .45 45 meters/second : SI (m-kg-s) Unit System Analysis Type: External (excluding internal space) Size of Computational Domain Space definition X- -6.00 m X+ 6.00 m -5.00 m Y- Y+ 5.00 m Z- -15.00 m Z+ 15.00 m

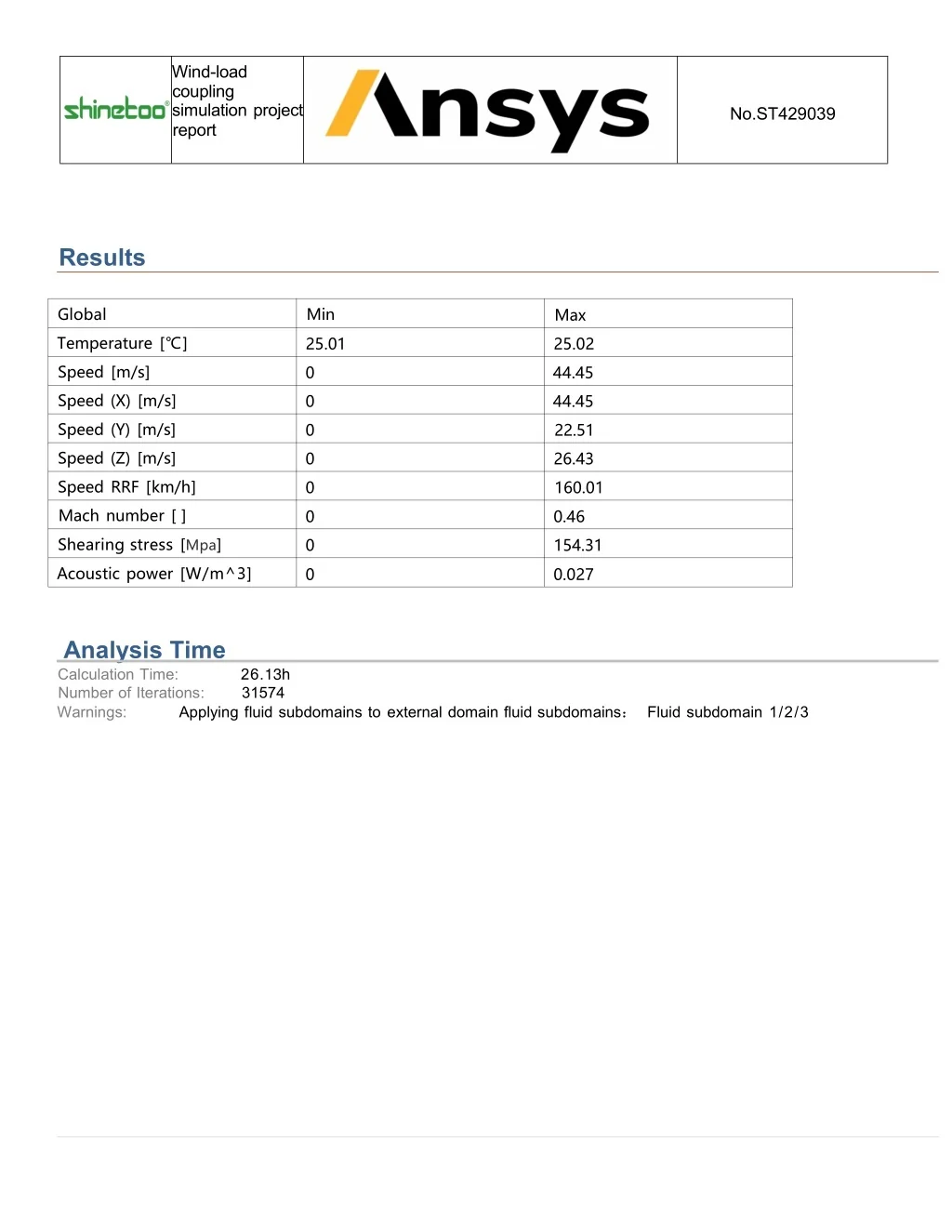

  43. Wind-load coupling simulation project report No.ST429039 Results Global Min Max Temperature [℃] 25.01 25.02 Speed [m/s ] 0 44.45 Speed (X) [m/s ] 0 44.45 Speed (Y) [m/s ] 0 22.51 Speed (Z) [m/s ] 0 26.43 Speed RRF [km/h ] 0 160.01 Mach number [ ] 0 0.46 Shearing stress [Mpa ] 0 154.31 Acoustic power [W/m^3 ] 0 0.027 Analysis Time Calculation Time: Number of Iterations: Warnings: 26.13h 31574 Applying fluid subdomains to external domain fluid subdomains： Fluid subdomain 1/2/3

  44. Wind-load coupling simulation project report No.ST429039 Design Parameters: Pole: polesize, (A/F) = 180 m m Pole wall thickness, (t) = 3.0 Base Plate : Base plateshape (N) = Square Base plate length (N) = 350 mm Base platewidth (B)= 350 mm Plate Yield stress (FyBase) = 154 Mp a Anchor Bolt: 470 Anchor Bolt Yield Stress, (FyBolt) = Mpa Grade 4.6 Allow. Anchor Bolt Tensile stress (Fta) = Mpa Fta =0.5 FyBolt 210 14 0 Allow.Anchor BoltShear stress (Fsa) = Mpa Fsa =0.3 FyBolt Dist.from Bolt Centerto Plate Edge (B.C.D) = mm Assume 62 BoltsC/C Distances = mm 245 24 Assume Bolt Diameter, (db)= mm 730 Assume Bolt Length, (Lb) = m m Total No.of Bolts, (Nb) = 4 Loadings : Axial Load, A= 0.79 KN Shear X-Direction, (Vx) = 0.33 KN Shear Y-Direction, (Vy) = 0.00 KN Moment @ Base, (Mx) = 0.00 KN.m 1.41 Moment@ Base, (My) = Torsional Moment@ Base, (Mt) = KN.m KN.m 0.00

  45. Wind-load coupling simulation project report No.ST429039 Check Local Bond db = Bolt Diameter = 24 mm Lb= Bolt Length= 730 mm Maximumforce inAnchor Bolt = 2.4 KN Tmax= fct = Stress in Concrete 0.17 Mpa fca = AllowbleStress in Concrete,= Mpa 1.65

  46. Wind-load coupling simulation project report No.ST429039 Base Plate 19744.19 N Maximumforce inanchor bolt = Tmax = B.C.D*0.5+ A/F*0.5 = 85 leverarmanchor boltto pole edge = mm de = 11542.04 Maximum moment in base plat= Tmax * de = N.mm Mb = Assume 14 Assumedthickness of base plat = t = mm B *t2/ 4 = 17433.11 Plastic modulusof base plat= Zp = mm3 Zp * Fybase/1.1 5 Limited momenton base plate= Mlimit = 481533.16 N.m m Weld Connection Pole and Base Plate: KN.m M= Applied Momentat Base = 1.11 A/F = Pole Dimensionacrossflats = mm 181 tw = Considering filletweld= mm 32 Effectivethroatdimension= mm t = 1.812 Yield Strength of Welding Electrode = Mpa 180 Fweld = W/F = Weld Dimension acrossflats = m m 584

  47. Wind-load coupling simulation project report No.ST429039 Pole Foundation Analysis: W1=Total weight of lamp pole, cantilever arm, and foundation cage W2=Total weight of foundation cage+concrete N=Total weight of exposed light poles
