Presentation Transcript
data strobe ds encoding sam stratton sam stratton@aeroflex com

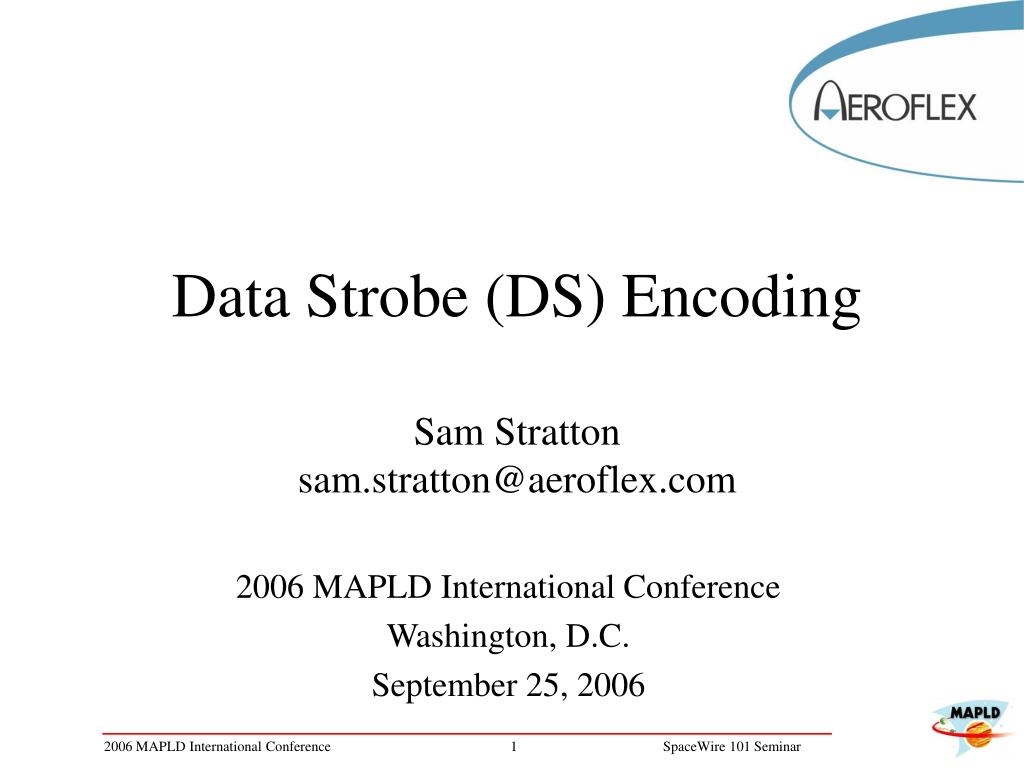

Data Strobe (DS) EncodingSam Strattonsam.stratton@aeroflex.com

2006 MAPLD International Conference

Washington, D.C.

September 25, 2006

slide2

DS Encoding

  • Strobe signal is sent along with the serial Data
  • The clock is extracted by XORing the Data and Strobe signals
pros and cons
Pros and Cons
  • Pros
    • Nearly 1 bit time of skew Margin
    • Good Jitter Tolerance
  • Cons
    • Receiver data is asynchronous with respect to local clocks
implementation challenges
Implementation Challenges
  • Receiver for decode of Data Strobe waveforms is an asynchronous circuit
  • Analyze asynchronous circuit to guarantee no race conditions violate timing
  • Implementation of asynchronous circuits are difficult in FPGAs
    • FPGA vendors do not guarantee minimum timing of parts
      • Routing variations for common circuit
      • Interconnect delay variances
    • ASIC designs can more easily guarantee minimum timing of circuits
slide5

DATA path delay

DATA

D

D

Q

Q

D

D

Q

Q

FF0

FF2

I_3

CLK_BUFF

CLK_BUFF

XOR

XOR

STROBE

D

D

Q

Q

D

D

Q

Q

FF1

FF3

DS Circuit Analysis

  • Only first 2 Flip Flips (FFs) are asynchronous
    • FF0 & FF1
  • All other FFs in shift register are synchronous with single clock edge
  • Timing Checks
    • Setup
      • Data changing
    • Hold
      • Strobe changing
    • Minimum pulse width
  • Conditions
    • Data changing
    • Strobe changing
slide6

Timing ChecksSet-up Time

  • Setup Checks
    • Ensure Data that generated the clock arrives before the clock
      • Blue is faster than Red
      • T(Data to FF[D]) <T(Data to FF[Clk])-T(Set-up FF)
      • For FPGA - use longest path and shortest path together for worst case
        • Consider rising and falling edge permutations

DATA path delay

DATA

D

D

Q

Q

D

D

Q

Q

FF0

FF2

I_3

CLK_BUFF

CLK_BUFF

XOR

XOR

STROBE

D

D

Q

Q

D

D

Q

Q

FF1

FF3

slide7

Longer Bit

Period

Data

skew

Strobe

skew

Bit

Period

Clock

Shorter

Bit

Period

Timing ChecksHold Time

  • Hold Checks
    • Ensure Strobe generated clock does not latch the wrong Data
      • Red shorter than Bit Period (T) of Data rate
        • Note Bit Period defined from rising to falling edge
      • TBit Period +T(Data to FF[D]) >T(Strobe to FF[Clk])+T(Hold FF)
      • For FPGA - use longest path and shortest path together for worst case
        • Consider rising and falling edge permutations

DATA path delay

DATA

D

D

Q

Q

D

D

Q

Q

FF0

I_3

FF2

CLK_BUFF

CLK_BUFF

XOR

XOR

STROBE

D

D

Q

Q

D

D

Q

Q

FF1

FF3

slide8

Timing ChecksMinimum Edge Separation

  • Min Edge Separation Checks
      • Ensure Bit Period is greater than Absolute value of difference in Data clock generated path delay and Strobe clock generated path delay
      • TMin Bit Period >|T(Strobe to FF[Clk])-T(Data to FF[Clk])| + T(Set-up) + T(Hold)
      • For FPGA - use longest path and shortest path together for worst case
        • Consider rising and falling edge permutations

DATA path delay

DATA

D

D

Q

Q

D

D

Q

Q

FF0

FF2

I_3

CLK_BUFF

CLK_BUFF

XOR

XOR

STROBE

D

D

Q

Q

D

D

Q

Q

FF1

FF3

asic vs fpga
ASIC vs FPGA
  • Traces are the primary contributor to delays
    • ASIC
    • - Critical paths can be carefully managed
    • FPGA
    • - Path lengths cannot be changed, only links to paths

FPGA, Fixed Architecture

ASIC, No Fixed Architecture

summary

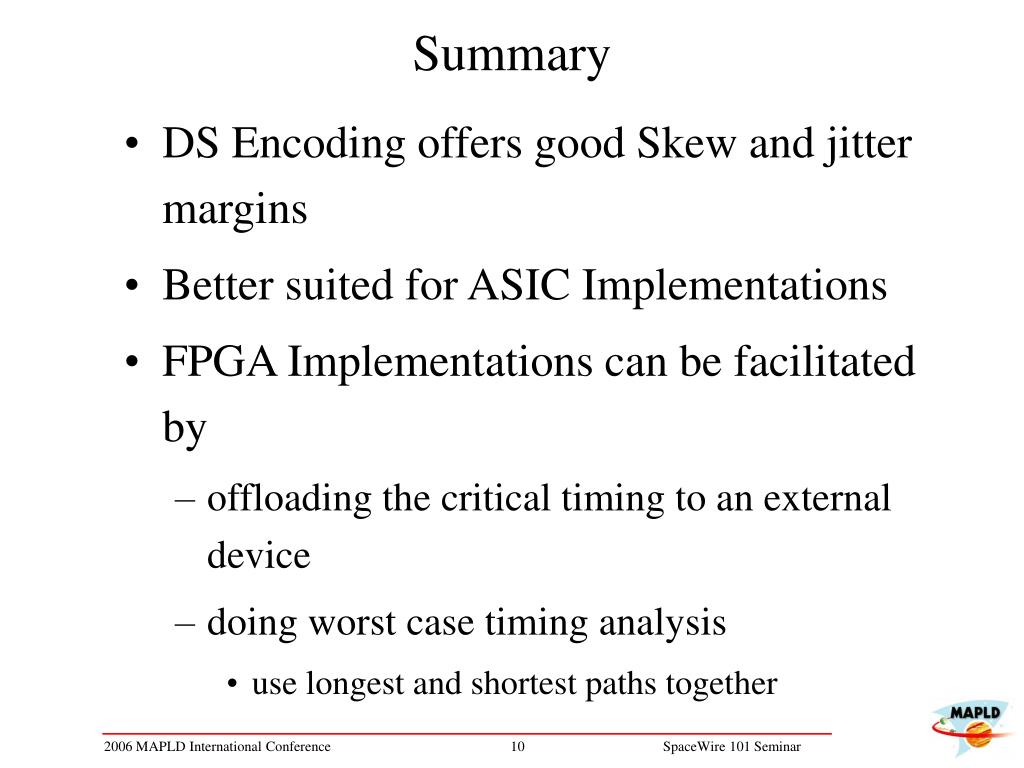

Summary
  • DS Encoding offers good Skew and jitter margins
  • Better suited for ASIC Implementations
  • FPGA Implementations can be facilitated by
    • offloading the critical timing to an external device
    • doing worst case timing analysis
      • use longest and shortest paths together
