2 nd Messenger Systems, continued

1. 2nd Messenger Systems, continued

2. Cyclic AMP production and degradation • In resting cells, the cAMP level is so low (10-8M) that it does not bind the targets, such as regulatory subunits of cAMP-gated channels. Stimulation of a G Protein Receptor raises the level 100x, enough to saturate the receptors.

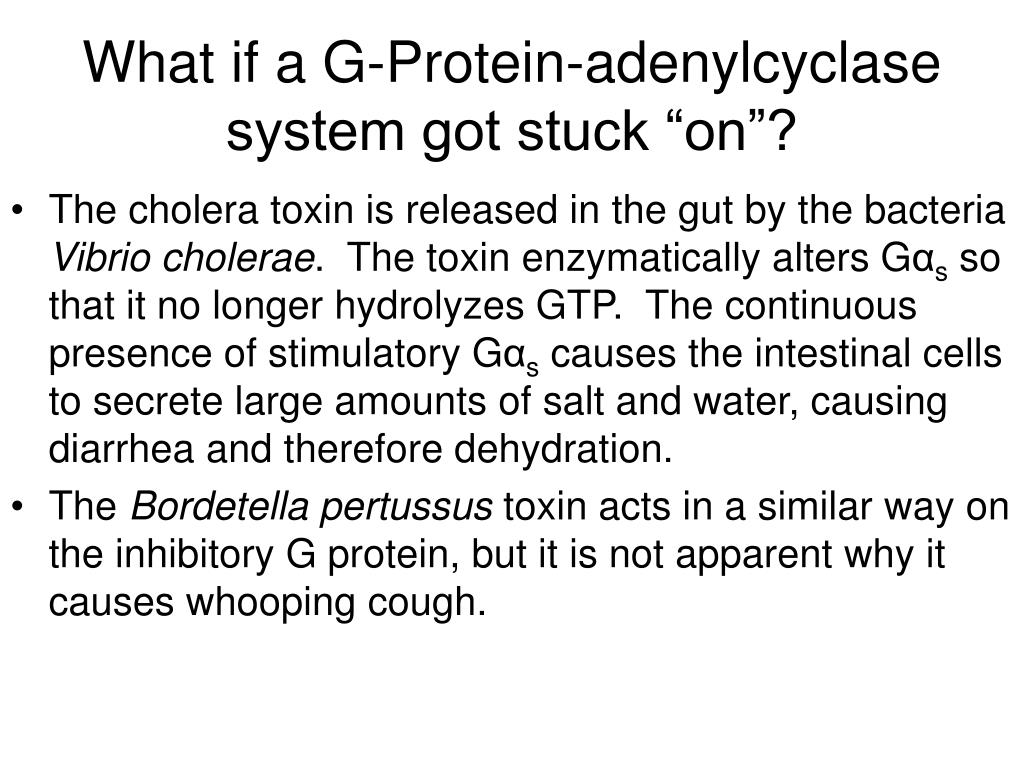

3. What if a G-Protein-adenylcyclase system got stuck “on”? • The cholera toxin is released in the gut by the bacteria Vibrio cholerae. The toxin enzymatically alters Gαs so that it no longer hydrolyzes GTP. The continuous presence of stimulatory Gαs causes the intestinal cells to secrete large amounts of salt and water, causing diarrhea and therefore dehydration. • The Bordetella pertussus toxin acts in a similar way on the inhibitory G protein, but it is not apparent why it causes whooping cough.

4. Cyclic AMP modulation of Protein Kinases

5. Effects of Protein Phosphorylation Addition of a phosphate by protein kinase or removal by protein phosphatase is the most common post-translational modification of proteins. It turns processes on and off, e.g., • Cell motility • Membrane channels • Cell division >99% of phosphorylation occurs on serine or threonine residues. The effects on structure include: • Steric interference: altering affinity • Conformational change that blocks or activates enzymes • Creation of binding sites

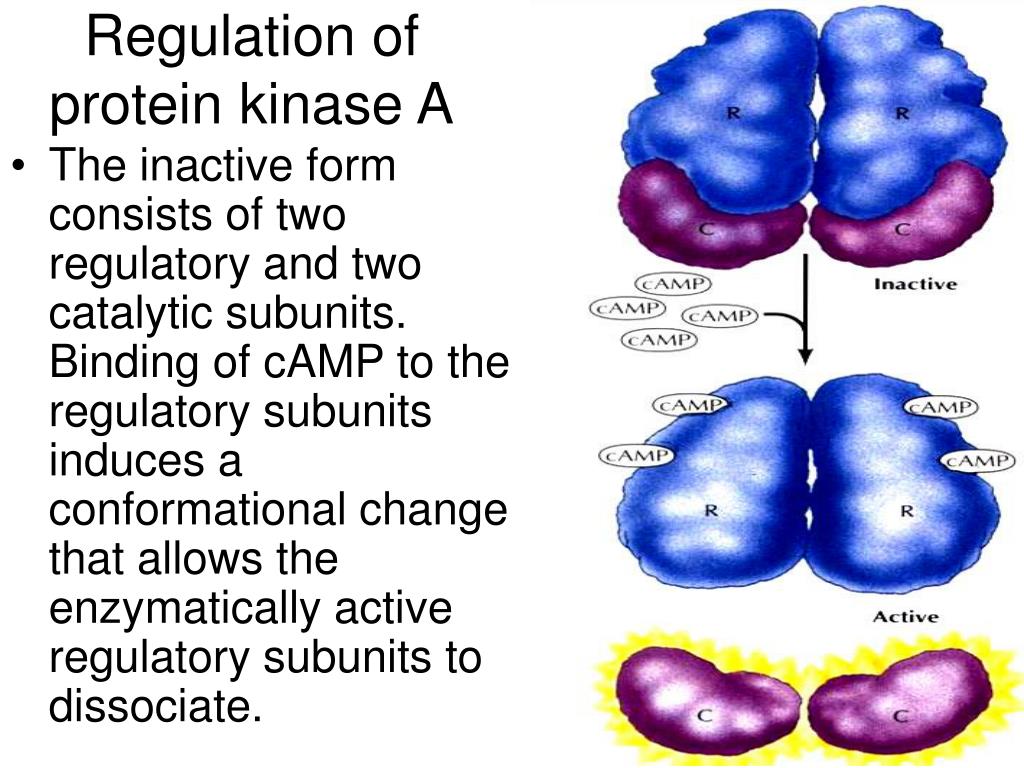

6. Regulation of protein kinase A • The inactive form consists of two regulatory and two catalytic subunits. Binding of cAMP to the regulatory subunits induces a conformational change that allows the enzymatically active regulatory subunits to dissociate.

7. Receptor Tyrosine Kinases Receptors that are catalytic

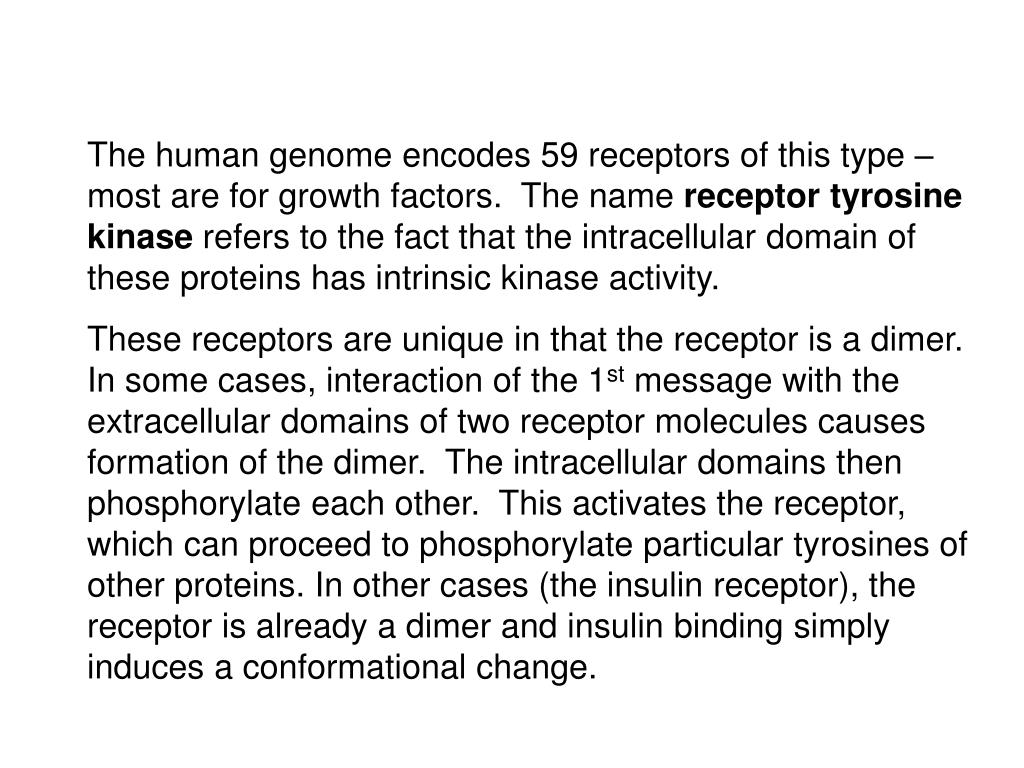

8. The human genome encodes 59 receptors of this type – most are for growth factors. The name receptor tyrosine kinase refers to the fact that the intracellular domain of these proteins has intrinsic kinase activity. These receptors are unique in that the receptor is a dimer. In some cases, interaction of the 1st message with the extracellular domains of two receptor molecules causes formation of the dimer. The intracellular domains then phosphorylate each other. This activates the receptor, which can proceed to phosphorylate particular tyrosines of other proteins. In other cases (the insulin receptor), the receptor is already a dimer and insulin binding simply induces a conformational change.

9. Structures of receptor protein tyrosine kinases (FYI: PDGF is platelet derived growth factor, EGF is epidermal growth factor)

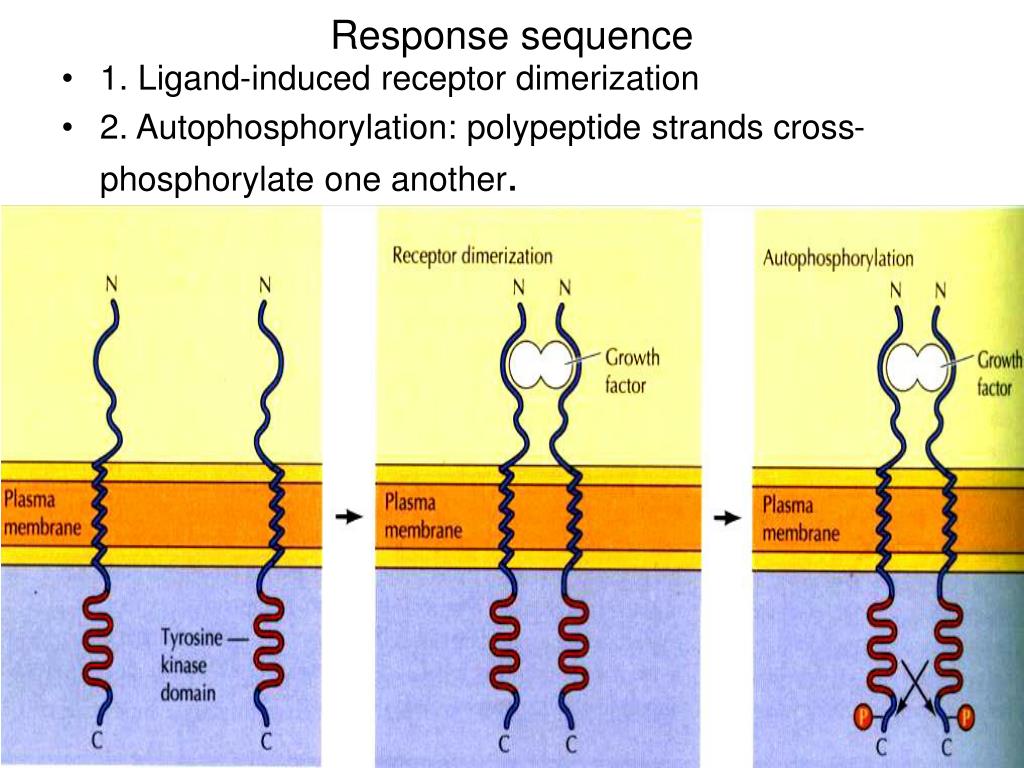

10. Response sequence • 1. Ligand-induced receptor dimerization • 2. Autophosphorylation: polypeptide strands cross-phosphorylate one another.

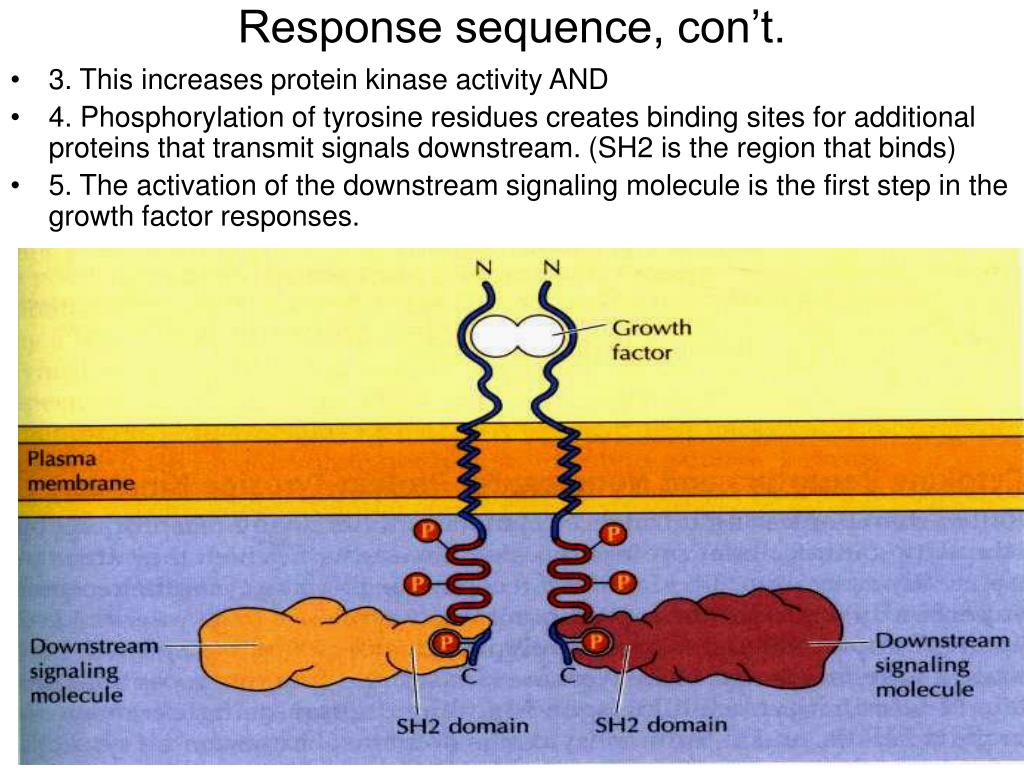

11. Response sequence, con’t. • 3. This increases protein kinase activity AND • 4. Phosphorylation of tyrosine residues creates binding sites for additional proteins that transmit signals downstream. (SH2 is the region that binds) • 5. The activation of the downstream signaling molecule is the first step in the growth factor responses.

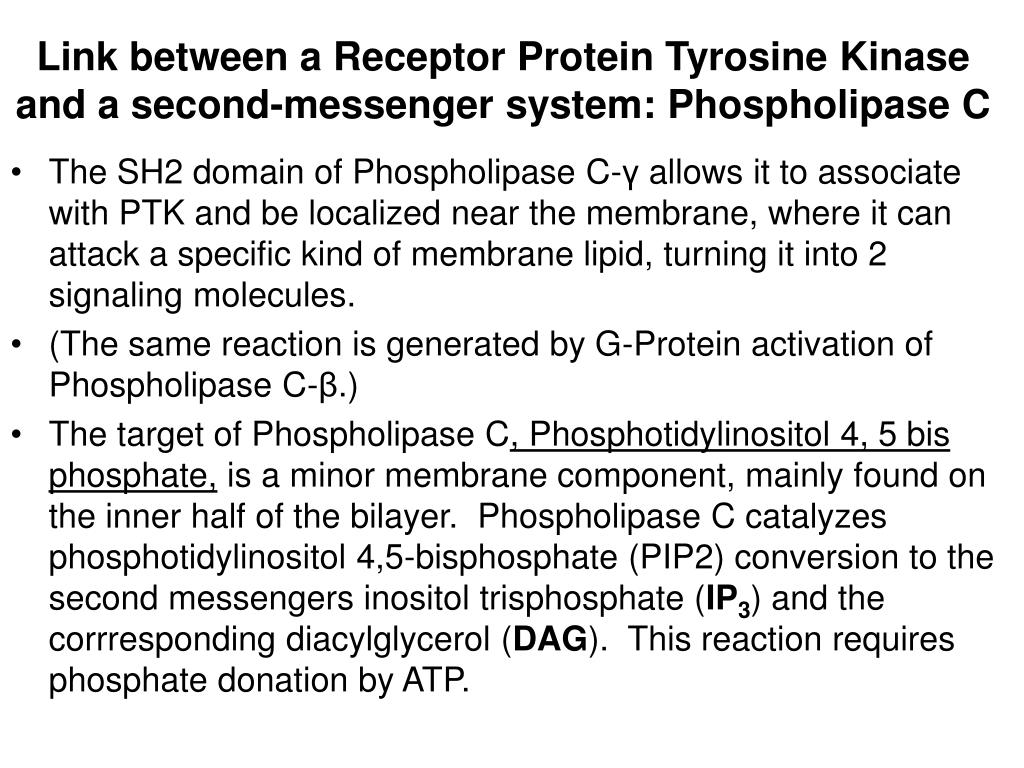

12. Link between a Receptor Protein Tyrosine Kinase and a second-messenger system: Phospholipase C • The SH2 domain of Phospholipase C-γ allows it to associate with PTK and be localized near the membrane, where it can attack a specific kind of membrane lipid, turning it into 2 signaling molecules. • (The same reaction is generated by G-Protein activation of Phospholipase C-β.) • The target of Phospholipase C, Phosphotidylinositol 4, 5 bis phosphate, is a minor membrane component, mainly found on the inner half of the bilayer. Phospholipase C catalyzes phosphotidylinositol 4,5-bisphosphate (PIP2) conversion to the second messengers inositol trisphosphate (IP3) and the corrresponding diacylglycerol (DAG). This reaction requires phosphate donation by ATP.

13. Inositol Triphosphate (IP3) and Diacylglycerol (DAG) as second messengers

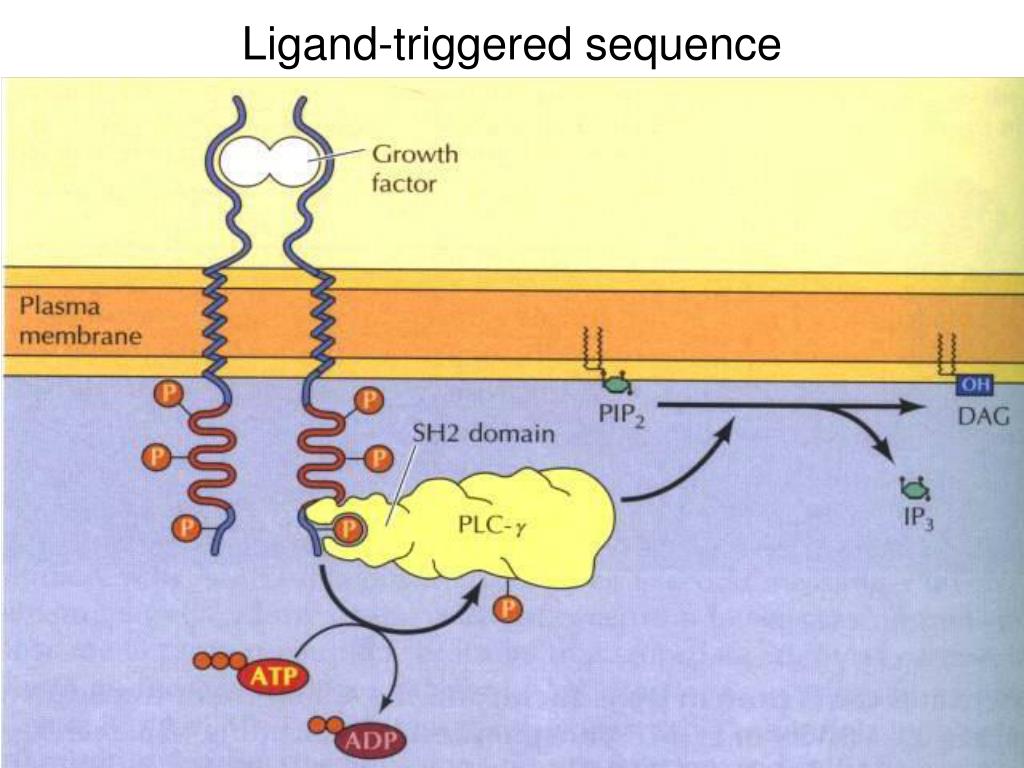

14. Ligand-triggered sequence

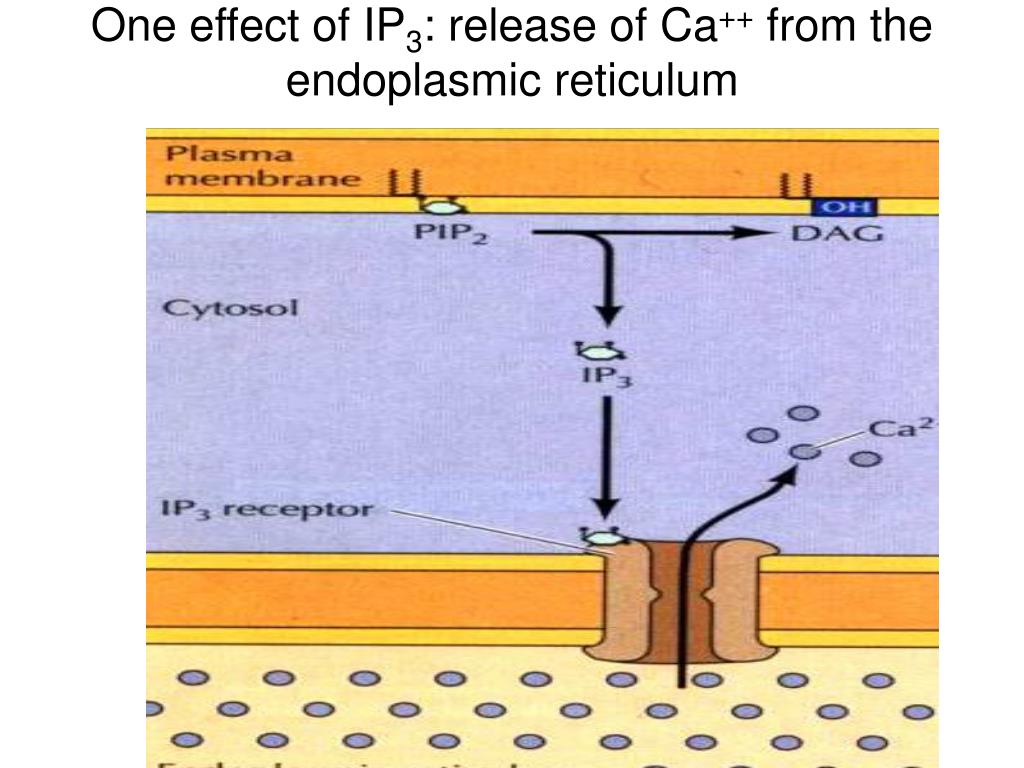

15. One effect of IP3: release of Ca++ from the endoplasmic reticulum

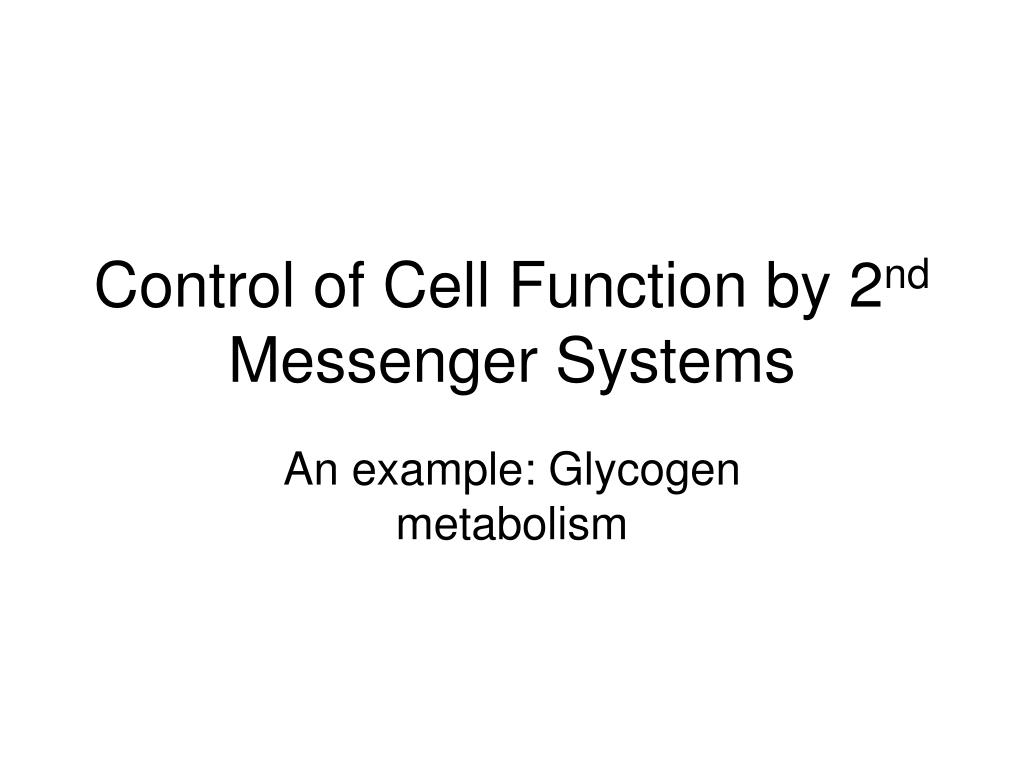

16. Control of Cell Function by 2nd Messenger Systems An example: Glycogen metabolism

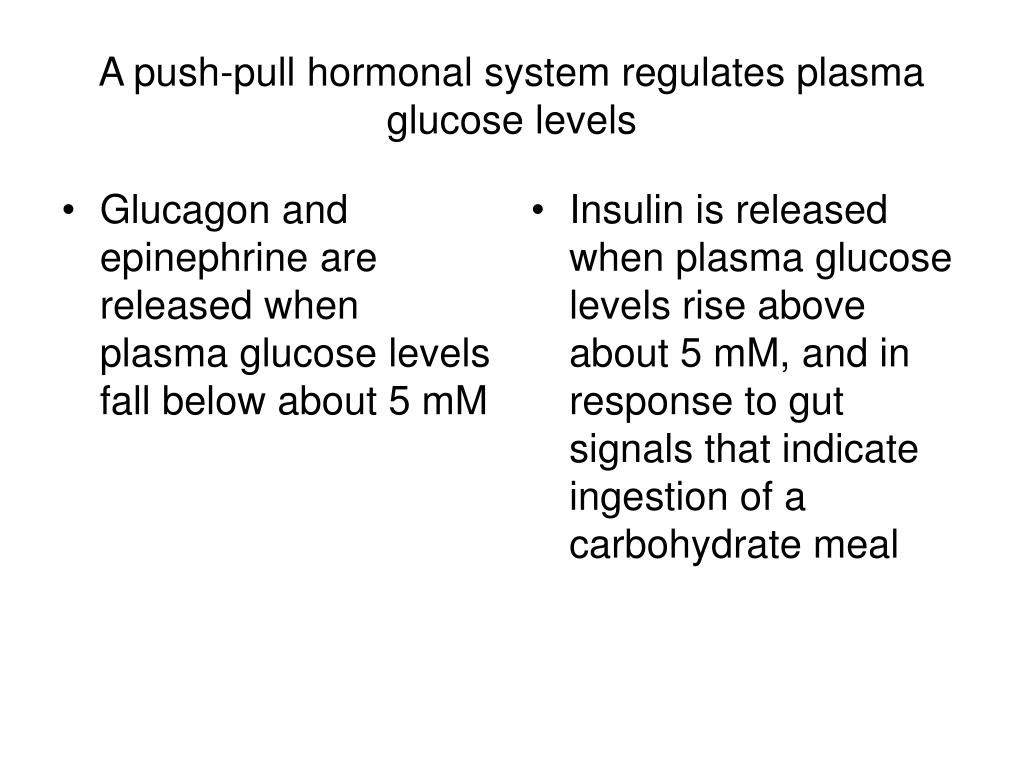

17. Glucagon and epinephrine are released when plasma glucose levels fall below about 5 mM Insulin is released when plasma glucose levels rise above about 5 mM, and in response to gut signals that indicate ingestion of a carbohydrate meal A push-pull hormonal system regulates plasma glucose levels

18. 2 tissues, 3 hormones

19. Insulin has multiple intracellular consequences • The insulin receptor phosphorylates a family of IRS (insulin receptor substrate) proteins, which then activate other downstream signaling proteins, leading to a large variety of metabolic effects in the target cells.

20. Major insulin effects that relate to glycogen metabolism in liver • Enhances activity of glycolytic enzymes (hexokinase, phosphofructokinase, pyruvate kinase and pyruvate dehydrogenase) • Inhibits glucose-6-phosphatase • Stimulates conversion of glycogen synthetase kinase from active to inactive form • Since glycogen synthetase kinase inactivates glycogen synthetase, inactivating it stimulates glycogen synthetase • Inhibits glycogen phosphorylase • (glucose uptake by liver is mainly via the insulin-insensitive GLUT2 transporter)

21. Effect of insulin on liver Glycogen synthesis and glycolysis are stimulated; gluconeogenesis is inhibited

22. Major effects of insulin on glycogen metabolism in muscle Just as in liver, except that • gluconeogenesis does not occur in muscle • in muscle insulin stimulates insertion of insulin-sensitive GLUT4 glucose transporters into the plasma membrane

23. Effect of insulin on muscle Glucose uptake, glycolysis and glycogen synthesis are stimulated – gluconeogenesis is not an issue in muscle

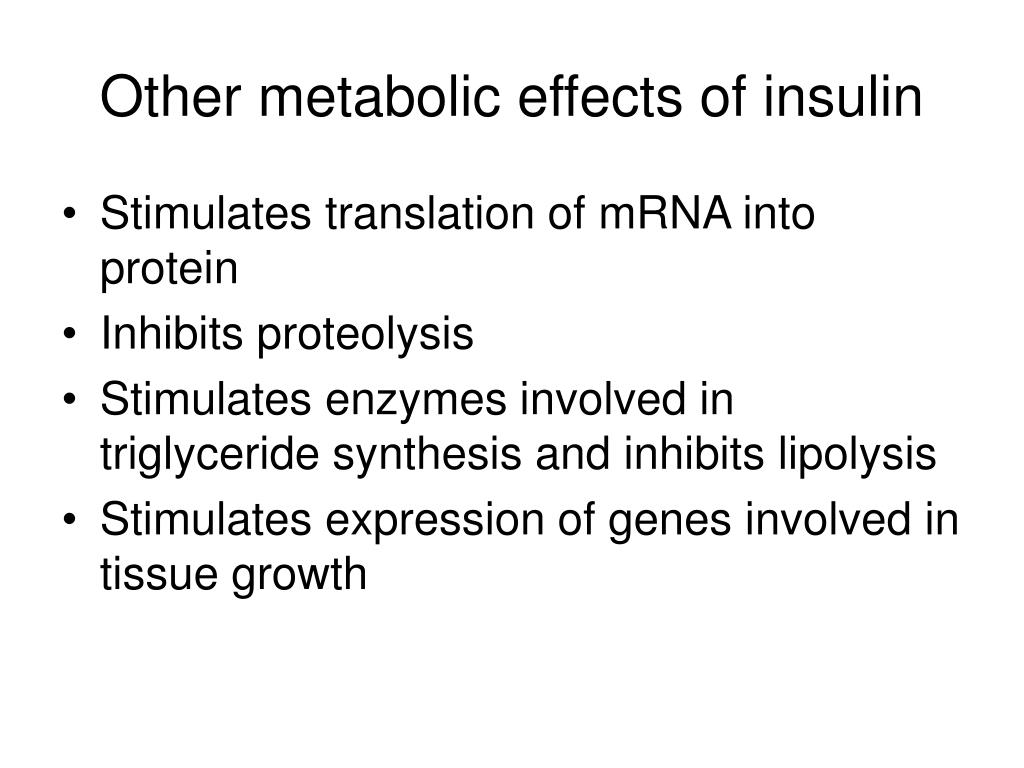

24. Other metabolic effects of insulin • Stimulates translation of mRNA into protein • Inhibits proteolysis • Stimulates enzymes involved in triglyceride synthesis and inhibits lipolysis • Stimulates expression of genes involved in tissue growth

25. Major effects of glucagon on glycogen metabolism in liver Glucagon antagonizes the effects of insulin Promotes net glycogen breakdown: inhibits hexokinase and glycogen synthetase and activates glycogen phosphorylase and glucose-6-phosphatase Promotes gluconeogenesis by stimulating key enzymes in the pathway – particularly ones related to fructose phosphates, as shown in following slides:

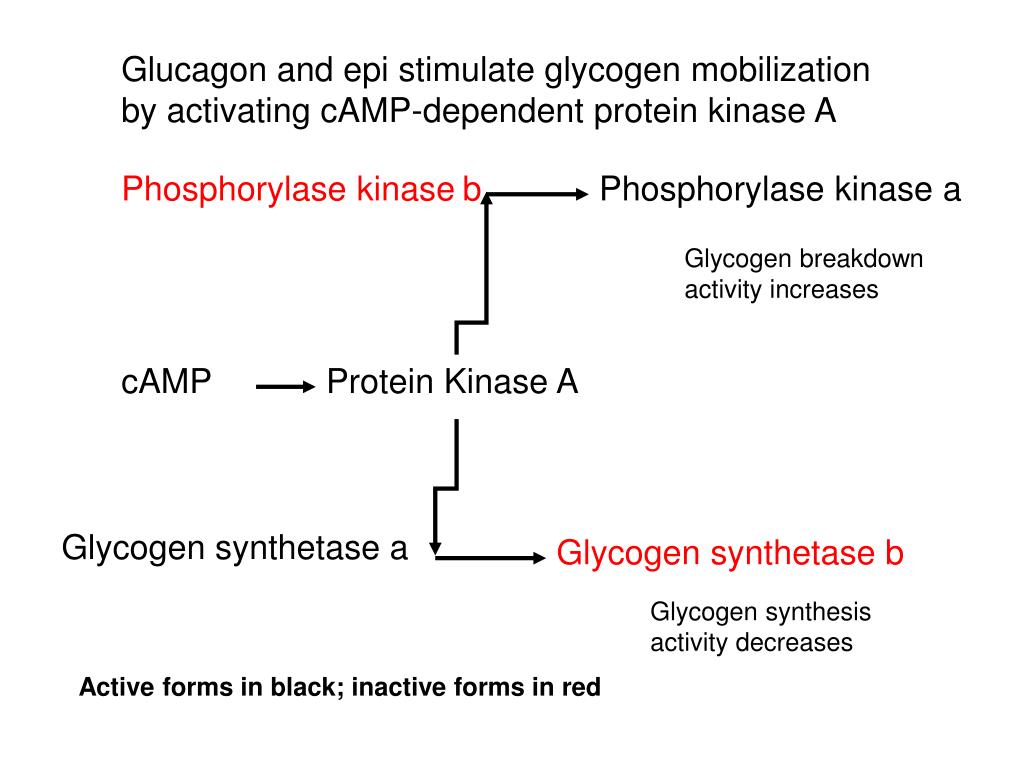

26. Phosphorylase kinaseb Phosphorylase kinase a Glycogen breakdown activity increases cAMP Protein Kinase A Glycogen synthetase b Glycogen synthesis activity decreases Glucagon and epi stimulate glycogen mobilization by activating cAMP-dependent protein kinase A Glycogen synthetase a Active forms in black; inactive forms in red
