Evolutionary Response to Chemicals in the Environment

Evolutionary Response to Chemicals in the Environment. Introduction to Detoxification enzymes (focusing on cytochrome P450s) Evolutionary response to toxins (pesticides) Evolution at the pesticide target Evolution of generalized detoxification mechanisms (e.g. cytochrome P450s).

jeslyn
Download Presentation

Evolutionary Response to Chemicals in the Environment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Evolutionary Response to Chemicals in the Environment • Introduction to Detoxification enzymes (focusing on cytochrome P450s) • Evolutionary response to toxins (pesticides) • Evolution at the pesticide target • Evolution of generalized detoxification mechanisms (e.g. cytochrome P450s)

  2. Introduction to Detoxification Enzymes

  3. Detoxification Enzymes(or “Drug Metabolizing Enzymes,” “Effector-Metabolizing Enzymes”) • Involved in detoxification of plant metabolites, dietary products, drugs, toxins, pesticides, carcinogens • All DMEs have endogenous compounds as natural substrates (used in natural process of breaking down compounds) • Located in every eukaryotic cell, most prokaryotes • Many different types, many families, many alleles; each individual has a unique set of enzymes • Selection result from variation in diet, climate, geography, toxins (pesticides)

  4. Detoxification Enzymes • Exogenous compounds (toxins, pesticides) compete with endogenous ligands (estrogen, other hormones) • for binding to receptors (estrogen, glucocorticoid) • channels (ion or other ligand) acting as agonists or antagonists. • Such binding to receptors could result in toxicitiy, abnormal development, or cancer • Detoxification enzymes act to break down these chemicals before they bind to receptors or channels

  5. Partial list of detoxification enzymes Phase I (functionalization) reactions: oxidations and reductions Cytochrome P450s, flavin-containing monooxygenases (FMOs), hydroxylases, lipooxygenases, cyclooxygenases, peroxidases, mononamine oxidases (MAOs)and various other oxidases, dioxygenases, quinone reductases, dihydrodiol reductases, and various other reductases, aldoketoreductases, NAD-and NADP-dependent alcohol dehydrogenases, aldehyde dehydrogenases, steroid dehydrogenases, dehalogenases. Phase II (conjugation) reactions: transfer chemical moieties to water-soluble derivatives UDP glucuronosyltransferases,GSH S transferases, sulfotransferases, acyltransferases,glycosyltransferases, glucosyltransferases, transaminases, acetyltransferases, methyltransferases Hydrolytic enzymes Glycosylases, glycosidases, amidases,glucuronidases, paraoxonases, carboxylesterases, epoxide hydrolase and various other hydrolases, acetylcholinesterases and various other esterases

  6. Cytochrome P450s

  7. CYPs (cytochrome P450s) • At least 74 gene families • 14 ubiquitous in all mammals • CYP1, 2, 3, involved in detoxification of lipophilic, or nonpolar substances • Other CYP families involved in metabolism of endogenous substances, such as fatty acids, prostaglandins, steroids, and thyroid hormones

  8. CYP450 • CYP catalyses a variety of reactions including epoxidation, N-dealkylation, O-dealkylation, S-oxidation and hydroxylation. • A typical cytochrome P450 catalysed reaction is: • NADPH + H+ + O2 + RH ==> NADP+ + H2O + R-OH

  9. Evolutionary History of CYP450s • Different types arose through gene duplication and differentiation • The first CYP450s likely evolved in response to an increase in oxygen in the atmosphere (along with CAT and SOD) • The massive diversity of these CYP is thought to reflect the coevolutionary history between plants and animals. • Plants develop new alkaloids to limit their consumption by animals - the animals develop new enzymes to metabolize the plant toxins, and so on.

  10. CYP Evolution: duplication and differentiation The number of CYP2 genes appear to have exploded after animals invaded land, ~400 million years ago (50 gene duplications) and began eating plants • Phylogenetic tree of 34 CYP450 proteins. • Black diamonds = gene-duplication events. • Unmarked branch points = speciation events. The start of the invasion of land

  11. Human population variation in DME allele frequencies • Many different alleles (amino acid differences) at many DME genes • Differences among populations might arise due to natural selection arising from Dietary differences, or differences in Climate and Geography • There might also be differences arising from genetic drift (random loss of alleles in small populations) • Maintenance of genetic variation might be explained by balancing selection (such as heterozygote advantage)

  12. Human population variation in DME allele frequencies Implications of genetic variation: • Differences in dietary capacities • Many drugs are plant derivatives, such that differences in response to plant compounds would affect drug responses • Differences in drug metabolism, drug excretion rates and final serum drug concentrations

  13. Humans have 18 gene families of cytochrome P450 genes and 43 subfamilies • CYP1 drug metabolism (3 subfamilies, 3 genes, 1 pseudogene) • CYP2 drug and steroid metabolism (13 subfamilies, 16 genes, 16 pseudogenes) • CYP3 drug metabolism (1 subfamily, 4 genes, 2 pseudogenes) • CYP4 arachidonic acid or fatty acid metabolism (5 subfamilies, 11 genes, 10 • pseudogenes) • CYP5 Thromboxane A2 synthase (1 subfamily, 1 gene) • CYP7A bile acid biosynthesis 7-alpha hydroxylase of steroid nucleus (1 • subfamily member) • CYP7B brain specific form of 7-alpha hydroxylase (1 subfamily member) • CYP8A prostacyclin synthase (1 subfamily member) • CYP8B bile acid biosynthesis (1 subfamily member) • CYP11 steroid biosynthesis (2 subfamilies, 3 genes) • CYP17 steroid biosynthesis (1 subfamily, 1 gene) 17-alpha hydroxylase • CYP19 steroid biosynthesis (1 subfamily, 1 gene) aromatase forms estrogen • CYP20 Unknown function (1 subfamily, 1 gene) • CYP21 steroid biosynthesis (1 subfamily, 1 gene, 1 pseudogene) • CYP24 vitamin D degradation (1 subfamily, 1 gene) • CYP26A retinoic acid hydroxylase important in development (1 subfamily member) • CYP26B probable retinoic acid hydroxylase (1 subfamily member) • CYP26C probabvle retinoic acid hydroxylase (1 subfamily member) • CYP27A bile acid biosynthesis (1 subfamily member) • CYP27B Vitamin D3 1-alpha hydroxylase activates vitamin D3 (1 subfamily member) • CYP27C Unknown function (1 subfamily member) • CYP39 7 alpha hydroxylation of 24 hydroxy cholesterol (1 subfamily member) • CYP46 cholesterol 24-hydroxylase (1 subfamily member) • CYP51 cholesterol biosynthesis (1 subfamily, 1 gene, 3 pseudogenes) lanosterol 14-alpha demethylase

  14. Some CYP enzymes involved in Drug Metabolism

  15. Human Polymorphism at CYP2D6 • Oxidative metabolism of over 40 common drugs • More than 50 different alleles have been identified • 5-10% Caucasians have null alleles, and no function • 7% Caucasians have duplication causing excessive function due to excessive expression of the enzyme • Many intermediate levels of functioning

  16. Various CYP alleles in Caucasians

  17. Extra copy of CYP 2D6 (gene duplication)

  18. Pharmacological consequences of genetic variation at CYP Individual differences in the ability to breakdown different chemicals Inefficient drug metabolism: higher serum drug concentration, increase risk of concentration-dependent side-effects Over-efficient metabolism: failure to attain therapeutic doses

  19. Can the response to toxins in the environment evolve? • Do cytochrome P450s play a role in some cases? • In the case of CYP450s, there is genetic variation

  20. Evolutionary Response to Chemicals in the Environment • Introduction to Detoxification enzymes (focusing on cytochrome P450s) • Evolutionary response to toxins (pesticides) • Evolution at the pesticide target • Evolution of generalized detoxification mechanisms (e.g. cytochrome P450s)

  21. The number of different types of chemicals in the environment has been increasing over time

  22. CHEMICALS & THE ENVIRONMENT 11,000,000 Chemicals are known 100,000 Chemicals are produced deliberately 90,000 Registered Chemicals in the US 1200-1500 New Chemicals are registered in the US/year Only ~50 Organic toxins with legally enforceable environmental standards in drinking water http://www.epa.gov/safewater/mcl.html

  23. Example: Evolution of Insecticide Resistance

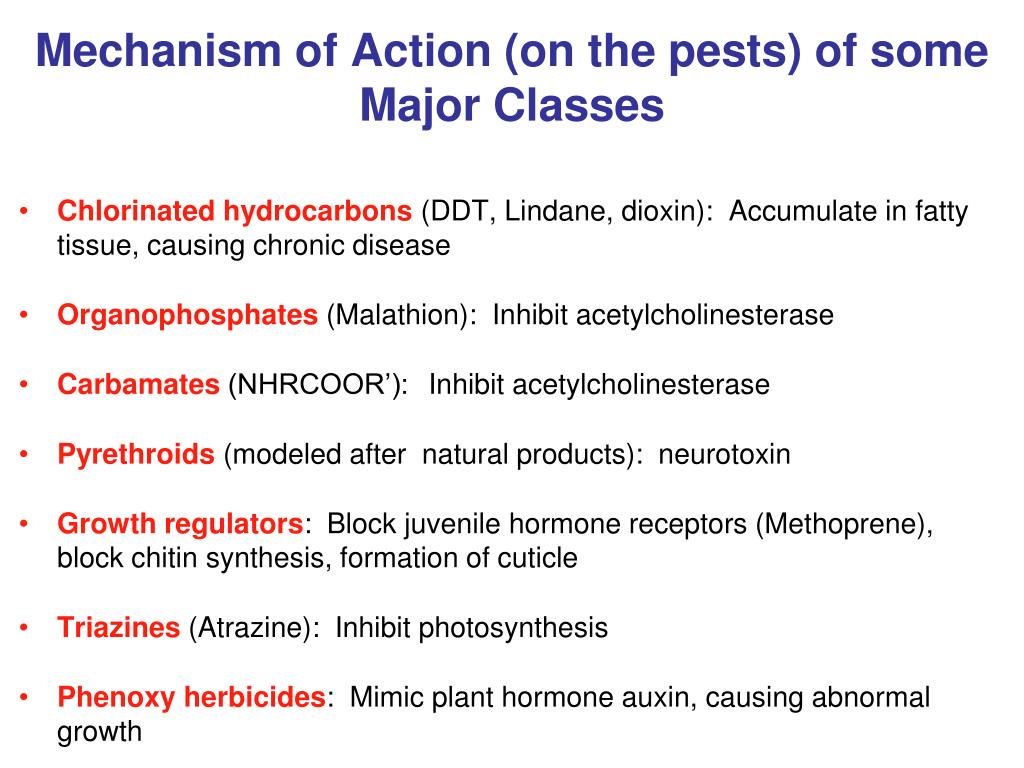

  24. Mechanism of Action (on the pests) of some Major Classes • Chlorinated hydrocarbons (DDT, Lindane, dioxin): Accumulate in fatty tissue, causing chronic disease • Organophosphates (Malathion): Inhibit acetylcholinesterase • Carbamates(NHRCOOR’): Inhibit acetylcholinesterase • Pyrethroids (modeled after natural products): neurotoxin • Growth regulators: Block juvenile hormone receptors (Methoprene), block chitin synthesis, formation of cuticle • Triazines (Atrazine): Inhibit photosynthesis • Phenoxy herbicides: Mimic plant hormone auxin, causing abnormal growth

  25. Pesticides Atrazine PCB 4-nonylphenol DDT Malathion Kepone Dioxin

  26. Evolution at the Targets of Pesticide Action OR Evolution of Detoxification Capacity (CYP450s)

  27. Evolution at the Targets of Pesticide Action In Response to Neurotoxins • Evolution of Ion Channels • Evolution of Acetylcholinesterase

  28. Evolution at the targets of pesticide action Ligand-gated Ion Channels (bind to neurotransmitters, e.g. GABA, acetylcholine) Site of action of pesticides cyclodiene, neonicotinoids, ivermectin, etc. • Amino Acid substitution in the GABA receptor • The “Rdl” allele codes for a GABA-receptor subunit that is resistant to cyclodiene pesticides • This allele has an amino acid substitution of alanine --> serine (or glycine) at position 302, that is crucial for insecticide binding (Zhang et al. 1994) • This amino acid substitution occurs across many different taxa, and is a striking case of parallel evolution • Duplications of Rdl allele (Anthony et al. 1998) • Up to 4 copies of the Rdl allele, with different amino acid compositions (allowing different response to different toxins)

  29. Parallel evolution of insectide resistance conferring mutations across species Point mutations within the Rdl allele in different species replace the same amino acid

  30. Evolution at the targets of pesticide action Voltage-gated Ion Channels (important for neuronal signaling) Site of action of DDT and pyrethroids • Changes in target receptor or channel • Point mutation in neuronal Na channel (Martin et al 2000) • Single Amino Acid substitution in Chloride channel (ffrench-Constant et al 2000) • Equivalent mutations at similar positions in the channel have been found across a wide variety of insect species

  31. Evolution at the targets of pesticide action Acetylcholinesterase Breaks down acetylcholine Target of organophosphate and carbamate pesticides • Amino acid substitution in the acetylcholinesterase (Ace) gene • All resistant strains (different subspecies) of the mosquito Culex pipiens have the same amino acid substitution • glycine --> serine at position 119 within the active site of the enzyme

  32. Evolution at the Targets of Pesticide Action • Single amino acid substitutions in single genes can confer resistance • Only a limited number of amino acid substitutions can be tolerated and still maintain receptor or enzyme function • Become the possible mutations are limited, often end up with Parallel Evolution: Identical replacements occur across a wide range of taxa

  33. Evolution of Detoxification Capacity(Cytochrome P450s) • Pesticide resistance could be gained through the action of cytochrome P450s • Their evolution is not as restricted as the targets of action (channels, etc.), which have to retain function (unlike the previous cases, here we have functional redundancy) • The multigene families could detoxify a wide range of toxins

  34. Daborn et al. 2002. Science 297: 2253-2256 Example: Examined Drosophila populations worldwide, and examined the genome of insecticide resistant populations

  35. Result • Insecticide resistant populations of Drosophila exhibited an overtranscription of a single cytochrome P450 gene Cyp6g1 (regulatory shift) • Cyp6g1 is an enzyme responsible for breaking down DDT and other toxins

  36. The individuals that overtranscribed the CYP6g1 gene possessed the DDT-R allele 10-100 times mRNA synthesis in the resistant strains The DDT-R allele has an insertion of the “Accord” element into the 5’ end of the Cyp6g1 gene, via a transposon Daborn et al. 2002

  37. “Pesticide Treadmill” A few years after a pesticide is introduced, insects evolve resistance So another chemical is used Then another chemical is used Then another Then another

  38. “Pesticide Treadmill” We cannot evolve as quickly, so potentially the accumulated pesticides in the environment could have a more detrimental effect on us than on the organisms we are trying to kill
