Banking Example

Banking Example. branch (branch-name, branch-city, assets) customer (customer-name, customer-street, customer-city) account (account-number, branch-name, balance) loan (loan-number, branch-name, amount) depositor (customer-name, account-number) borrower (customer-name, loan-number).

jeslyn
Download Presentation

Banking Example

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Banking Example • branch (branch-name, branch-city, assets) • customer (customer-name, customer-street, customer-city) • account (account-number, branch-name, balance) • loan (loan-number, branch-name, amount) • depositor (customer-name, account-number) • borrower (customer-name, loan-number)

  2. Example Queries • Find the loan-number, for loans of over $1200 {t.loan-number | t  loan  t [amount]  1200} • Find the loan number for each loan of an amount greater than $1200 {t.loan_number | t  loan   s loan (t[loan-number] = s[loan-number]  s [amount]  1200)} Notice that a relation on schema [loan-number] is implicitly defined by the query

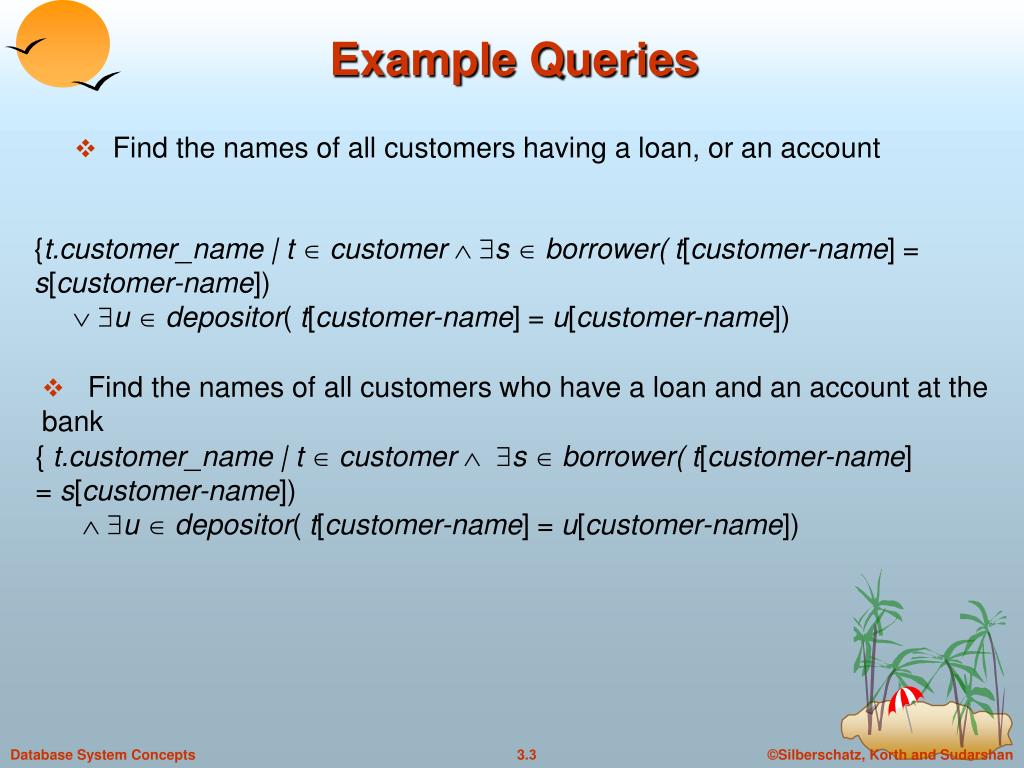

  3. Example Queries • Find the names of all customers having a loan, or an account {t.customer_name | t  customer s  borrower( t[customer-name] = s[customer-name])  u  depositor( t[customer-name] = u[customer-name]) • Find the names of all customers who have a loan and an account at the bank { t.customer_name | t  customer s  borrower( t[customer-name] = s[customer-name])  u  depositor( t[customer-name] = u[customer-name])

  4. Example Queries • Find the names of all customers having a loan at the Perryridge branch {t.customer_name | t  customer  s  borrower(t[customer-name] = s[customer-name]  u  loan(u[branch-name] = “Perryridge”  u[loan-number] = s[loan-number]))} • Find the names of all customers who have a loan at the Perryridge branch, but no account at any branch of the bank { t.customer_name | t  customer  s  borrower( t[customer-name] = s[customer-name]  u  loan(u[branch-name] = “Perryridge”  u[loan-number] = s[loan-number]))  not v  depositor (v[customer-name] = t[customer_name]) }

  5. Example Queries • Find the names of all customers having a loan from the Perryridge branch, and the cities they live in { t.customer_name,t.customer_city | t  customer  s  loan(s[branch-name] = “Perryridge”  u  borrower (u[loan-number] = s[loan-number]  t [customer-name] = u[customer-name])   v  customer (u[customer-name] = v[customer-name]  t[customer-city] = v[customer-city])))} Note, v is redundant!

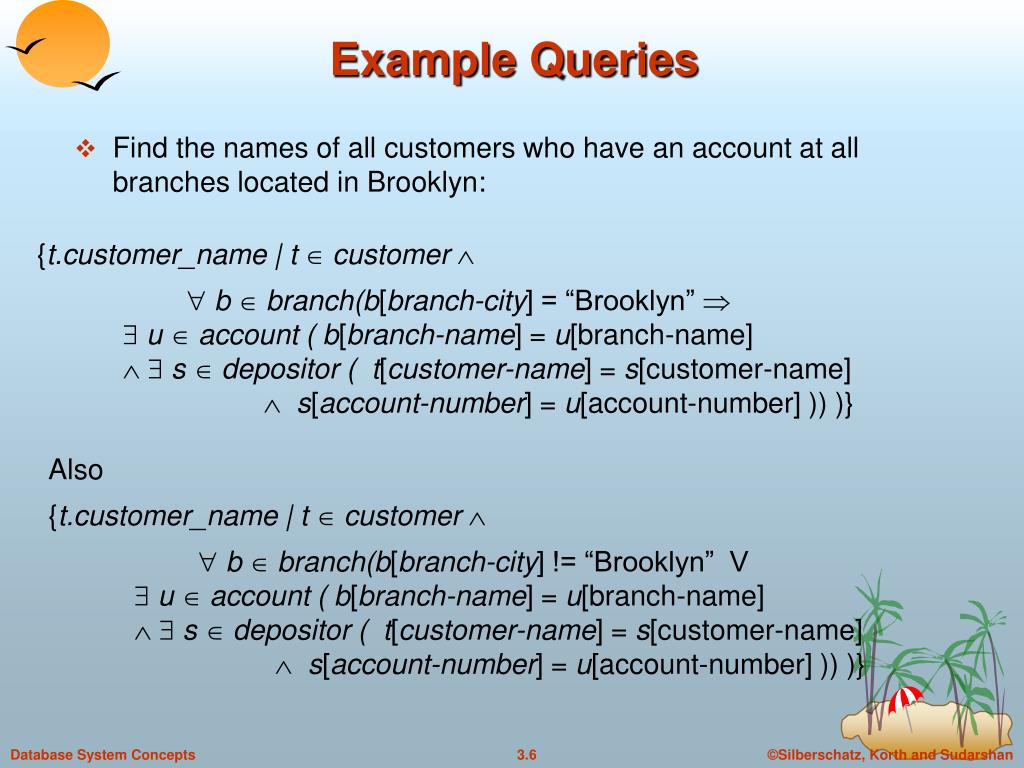

  6. Example Queries • Find the names of all customers who have an account at all branches located in Brooklyn: {t.customer_name | t  customer   b  branch(b[branch-city] = “Brooklyn”   u  account ( b[branch-name] = u[branch-name]   s  depositor ( t[customer-name] = s[customer-name]  s[account-number] = u[account-number] )) )} Also {t.customer_name | t  customer   b  branch(b[branch-city] != “Brooklyn” V  u  account ( b[branch-name] = u[branch-name]   s  depositor ( t[customer-name] = s[customer-name]  s[account-number] = u[account-number] )) )}

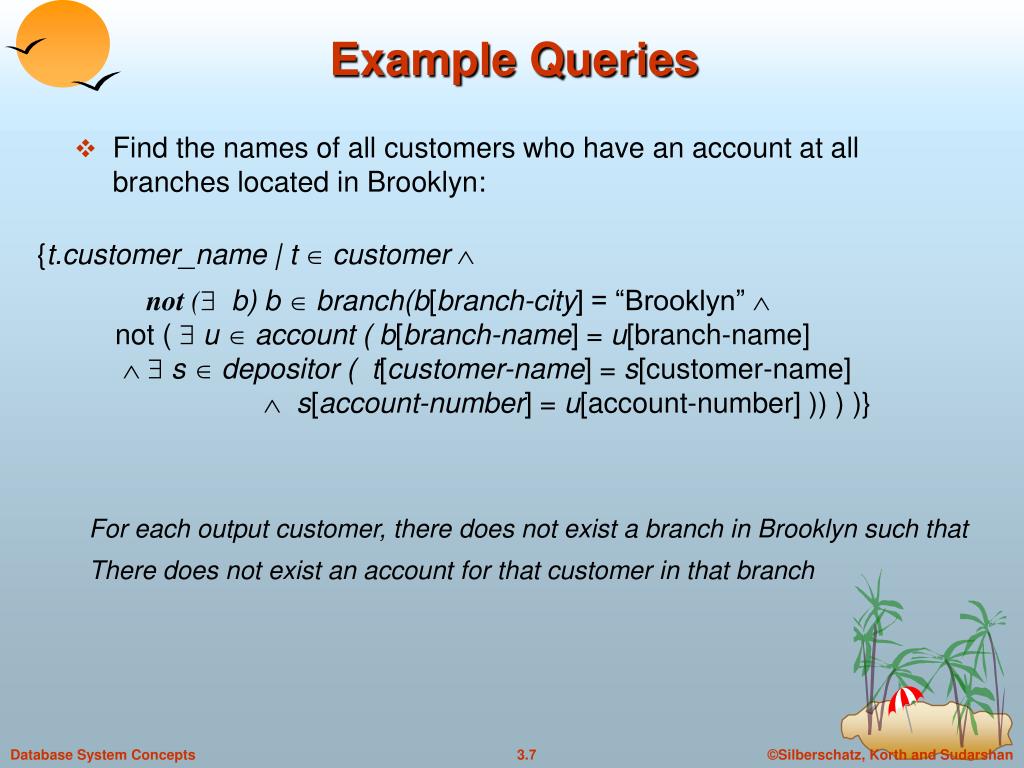

  7. Example Queries • Find the names of all customers who have an account at all branches located in Brooklyn: {t.customer_name | t  customer  not ( b) b  branch(b[branch-city] = “Brooklyn”  not (  u  account ( b[branch-name] = u[branch-name]   s  depositor ( t[customer-name] = s[customer-name]  s[account-number] = u[account-number] )) ) )} For each output customer, there does not exist a branch in Brooklyn such that There does not exist an account for that customer in that branch

  8. Transforming the Universal and Existential Quantifiers ( x) (P(x))  not ( x)(not (P(x))) ( x) (P(x))  not ( x)(not (P(x))) ( x) (P(x) and Q(x))  not ( x) (not (P(x)) or not (Q(x))) ( x) (P(x) or Q(x))  not ( x) (not (P(x)) and not (Q(x))) ( x) (P(x)) or Q(x))  not ( x) (not (P(x)) and not (Q(x))) ( x) (P(x) and Q(x))  not ( x) (not (P(x)) or not (Q(x))) A => B  not(A) or B Notice also that the following is true, where the => symbol stands for implies: ( x) (P(x)) => ( x) (P(x)) Not ( x) (P(x)) => not ( x) (P(x))

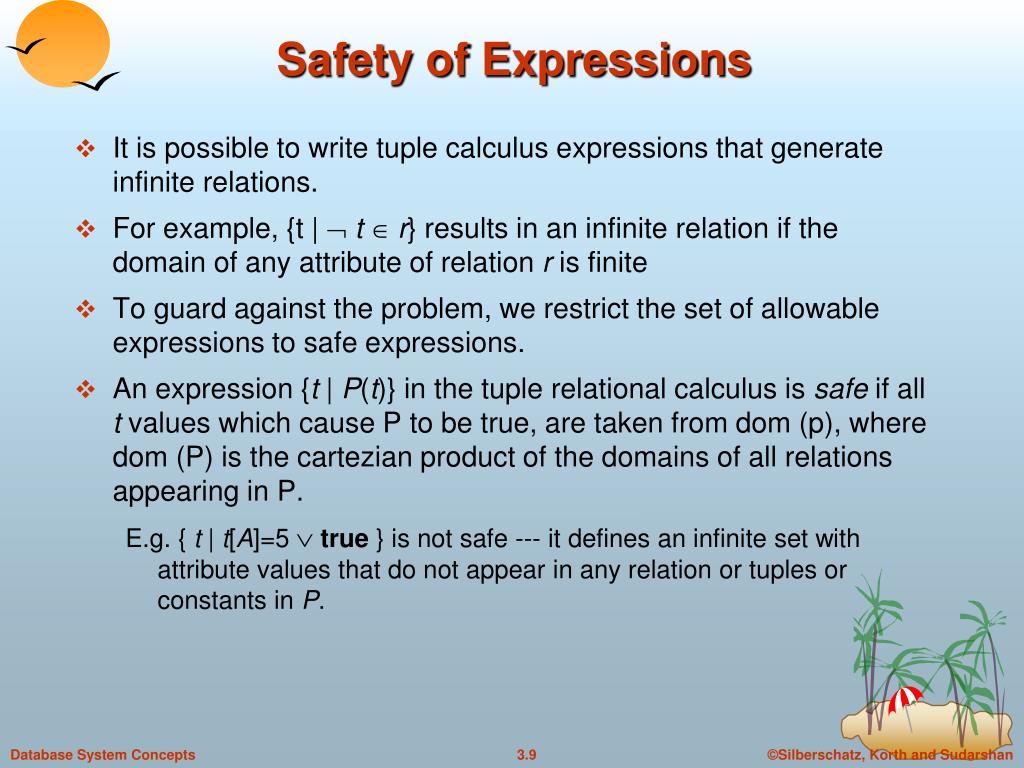

  9. Safety of Expressions • It is possible to write tuple calculus expressions that generate infinite relations. • For example, {t |  t r} results in an infinite relation if the domain of any attribute of relation r is finite • To guard against the problem, we restrict the set of allowable expressions to safe expressions. • An expression {t | P(t)}in the tuple relational calculus is safe if all t values which cause P to be true, are taken from dom (p), where dom (P) is the cartezian product of the domains of all relations appearing in P. E.g. { t | t[A]=5 true } is not safe --- it defines an infinite set with attribute values that do not appear in any relation or tuples or constants in P.

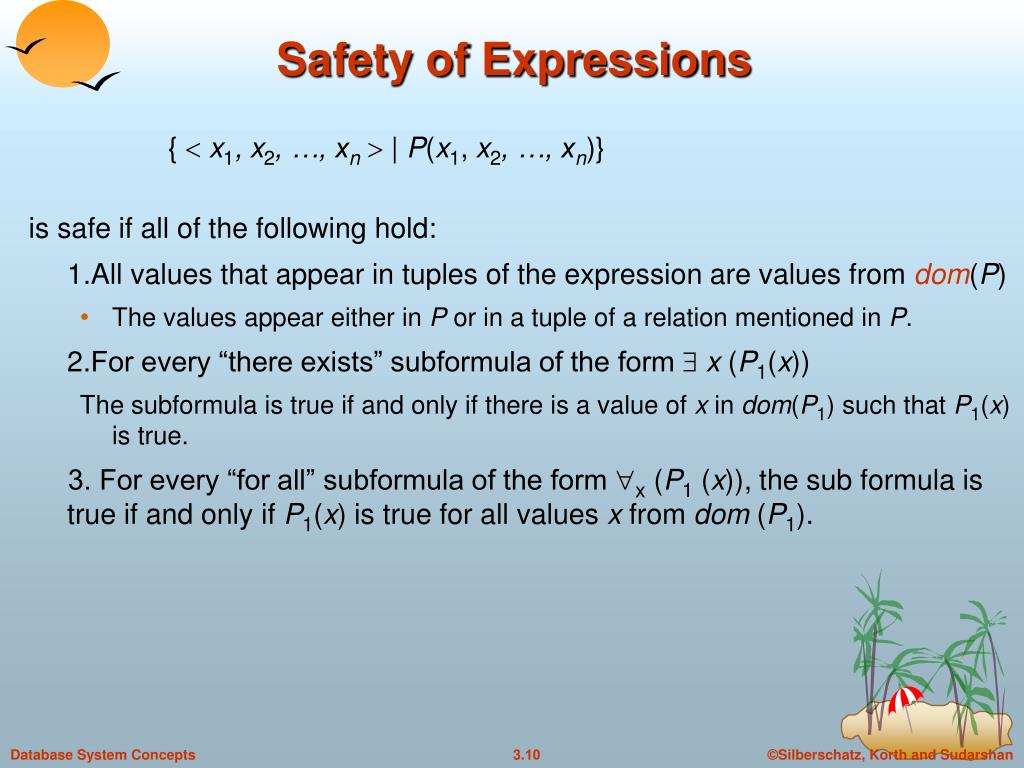

  10. Safety of Expressions {  x1, x2, …, xn  | P(x1, x2, …, xn)} is safe if all of the following hold: 1. All values that appear in tuples of the expression are values from dom(P) • The values appear either in P or in a tuple of a relation mentioned in P. 2. For every “there exists” subformula of the form  x (P1(x)) The subformula is true if and only if there is a value of x in dom(P1) such that P1(x) is true. 3. For every “for all” subformula of the form x (P1 (x)), the sub formula is true if and only if P1(x) is true for all values x from dom (P1).

  11. TRC – Additional Examples • QUERY 1 Retrieve the name and address of all employees who work in the ‘Research’ department. Q1 : {t.FNAME, t.LNAME, t.ADDRESS | EMPLOYEE(t) and ( d) (DEPARTMENT (d) and d.DNAME = ‘Research’ and d.DNUMBER=t.DNO) } • QUERY 2 for every project located in ‘Stafford’, list the project number, the controlling department number, and the department manager’s last name, birthday, and address. Q2 : {p.PNUMBER, p.DNUM, m.LNAME, m.BDATE, m.ADDRESS | PROJECT(p) and EMPLOYEE (m) and p.PLOCATION=‘Stafford’ and (( d)(DEPARTMENT(d) and p.DNUM=d.DNUMBER an d.MGRSSN=m.SSN)) } • QUERY 3 find the name of each employee who works on a project controlled by department number 5. Q3 : {e.LNAME, e.FNAME | EMPLOYEE(e) and ( ( x) ( w) (PROJECT(x) and WORKS_ON(w) and x.DNUM=5 and w.ESSN=e.SSN and x.PNUMBER=w.PNO) ) }

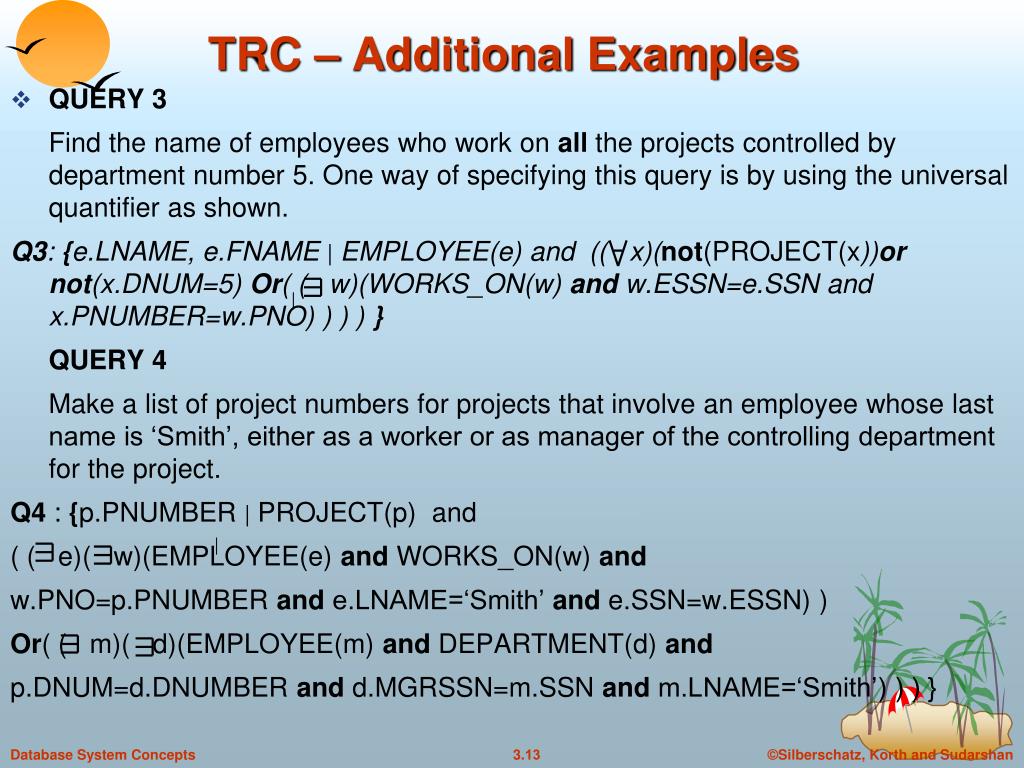

  12. TRC – Additional Examples • QUERY 3 Find the name of employees who work on all the projects controlled by department number 5. One way of specifying this query is by using the universal quantifier as shown. Q3: {e.LNAME, e.FNAME | EMPLOYEE(e) and (( x)(not(PROJECT(x))ornot(x.DNUM=5) Or( ( w)(WORKS_ON(w) and w.ESSN=e.SSN and x.PNUMBER=w.PNO) ) ) ) } QUERY 4 Make a list of project numbers for projects that involve an employee whose last name is ‘Smith’, either as a worker or as manager of the controlling department for the project. Q4 : {p.PNUMBER|PROJECT(p) and ( ( e)( w)(EMPLOYEE(e) and WORKS_ON(w) and w.PNO=p.PNUMBER and e.LNAME=‘Smith’ and e.SSN=w.ESSN) ) Or( ( m)( d)(EMPLOYEE(m) and DEPARTMENT(d) and p.DNUM=d.DNUMBER and d.MGRSSN=m.SSN and m.LNAME=‘Smith’) ) ) }

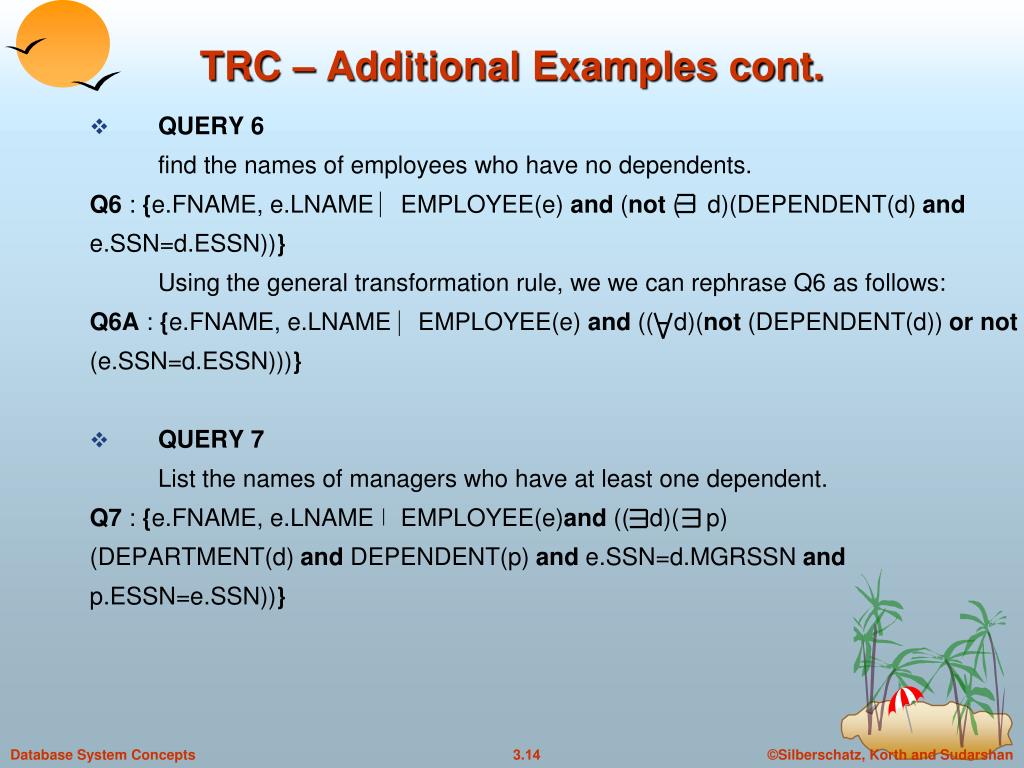

  13. TRC – Additional Examples cont. • QUERY 6 find the names of employees who have no dependents. Q6 : {e.FNAME, e.LNAME EMPLOYEE(e) and (not ( d)(DEPENDENT(d) and e.SSN=d.ESSN))} Using the general transformation rule, we we can rephrase Q6 as follows: Q6A : {e.FNAME, e.LNAME EMPLOYEE(e) and (( d)(not (DEPENDENT(d)) ornot (e.SSN=d.ESSN)))} • QUERY 7 List the names of managers who have at least one dependent. Q7 : {e.FNAME, e.LNAME EMPLOYEE(e)and (( d)( p) (DEPARTMENT(d) and DEPENDENT(p) and e.SSN=d.MGRSSN and p.ESSN=e.SSN))}

  14. Domain Relational Calculus • A nonprocedural query language equivalent in power to the tuple relational calculus • Each query is an expression of the form: {  x1, x2, …, xn  | P(x1, x2, …, xn)} • x1, x2, …, xn represent domain variables • P represents a formula similar to that of the predicate calculus • NOTE: The attribute Xi represents is by its location!

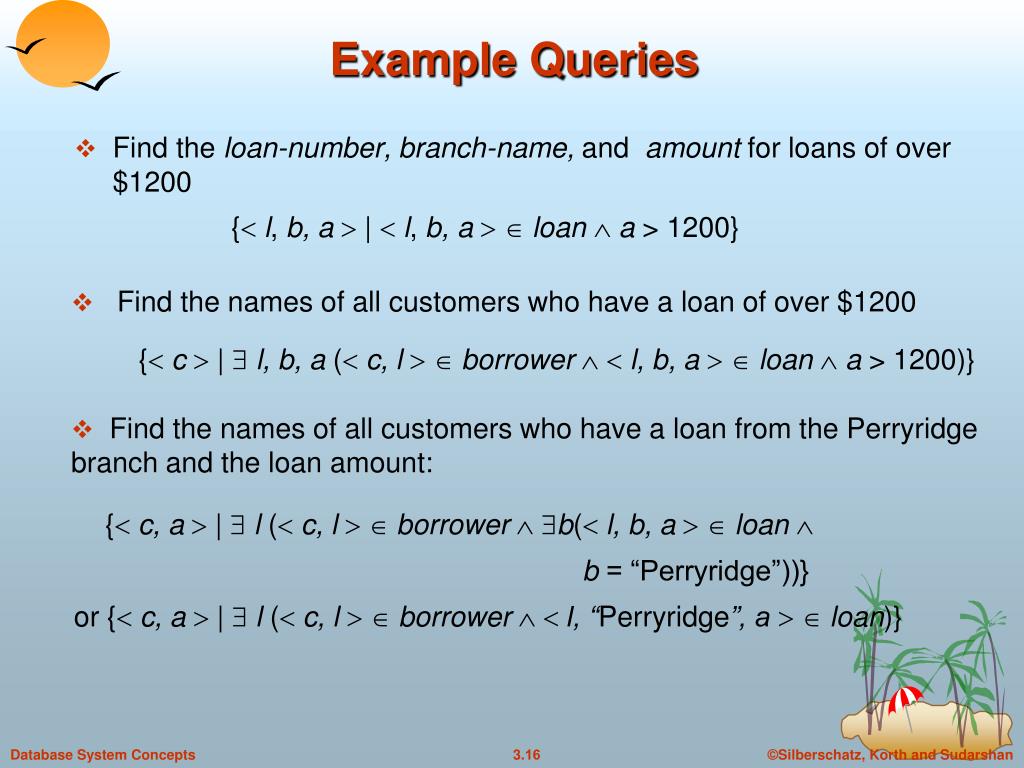

  15. Example Queries • Find the loan-number, branch-name, and amount for loans of over $1200 { l, b, a  |  l, b, a   loan  a > 1200} • Find the names of all customers who have a loan of over $1200 { c  |  l, b, a ( c, l   borrower   l, b, a   loan  a > 1200)} • Find the names of all customers who have a loan from the Perryridge branch and the loan amount: { c, a  |  l ( c, l   borrower  b( l, b, a   loan  b = “Perryridge”))} or { c, a  |  l ( c, l   borrower   l, “Perryridge”, a   loan)}

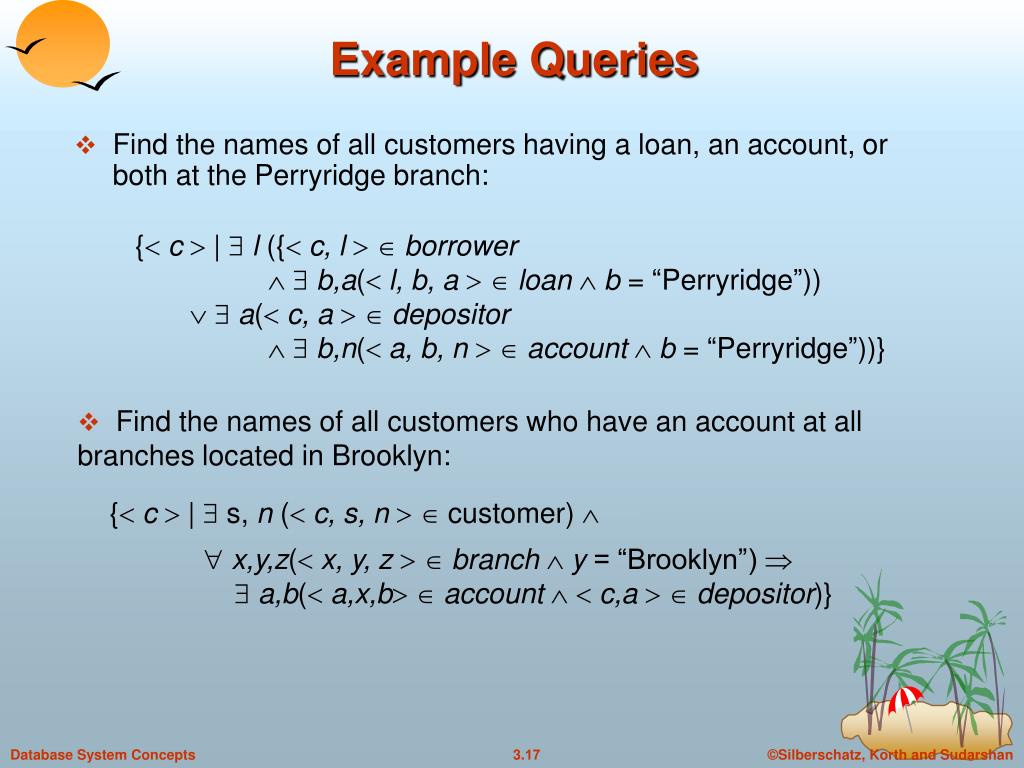

  16. Example Queries • Find the names of all customers having a loan, an account, or both at the Perryridge branch: { c  |  l ({ c, l   borrower  b,a( l, b, a   loan  b = “Perryridge”))   a( c, a   depositor  b,n( a, b, n   account  b = “Perryridge”))} • Find the names of all customers who have an account at all branches located in Brooklyn: { c  |  s, n ( c, s, n   customer)   x,y,z( x, y, z   branch  y = “Brooklyn”)   a,b( a,x,b  account   c,a   depositor)}

  17. DRC Examples • QUERY 1 Retrieve the name and address of all employees who work for the ‘Research’ department. Q1 : {qsv l ( z) ( l) ( m) (EMPLOYEE(qrstuvwxyz) and DEPARTMENT(lmno) and l=‘Research’ and m=z)} note implicit existenial notation • QUERY 2 For every project located in ‘stafford’, list the project number, the controlling department number, and the department manager’s last name, birthdate and address. Q2 : {iksuv l ( j) ( m) ( n) ( t)(PROJECT(hijk)and EMPLOYEE(qrstuvwxyz) and DEPARTMENT(lmno) and k=m and n=t and j=‘stanfford’)} • QUERY 6 find the names of employees who have no dependents. Q6 : {qs l ( t) (EMPLOYEE(qrstuvwxyz) and (( l)(not(DEPENDENT(lmnop)) or not (t=l))))} Query 6 can be restated using universal quantifiers instead of the existensial quantifiers, as shown in Q6A: Q6A : {qs l ( t) (EMPLOYEE(qrstuvwxyz) and (( l) (not(DEPENDENT(lmnop))or not (t=l))))}

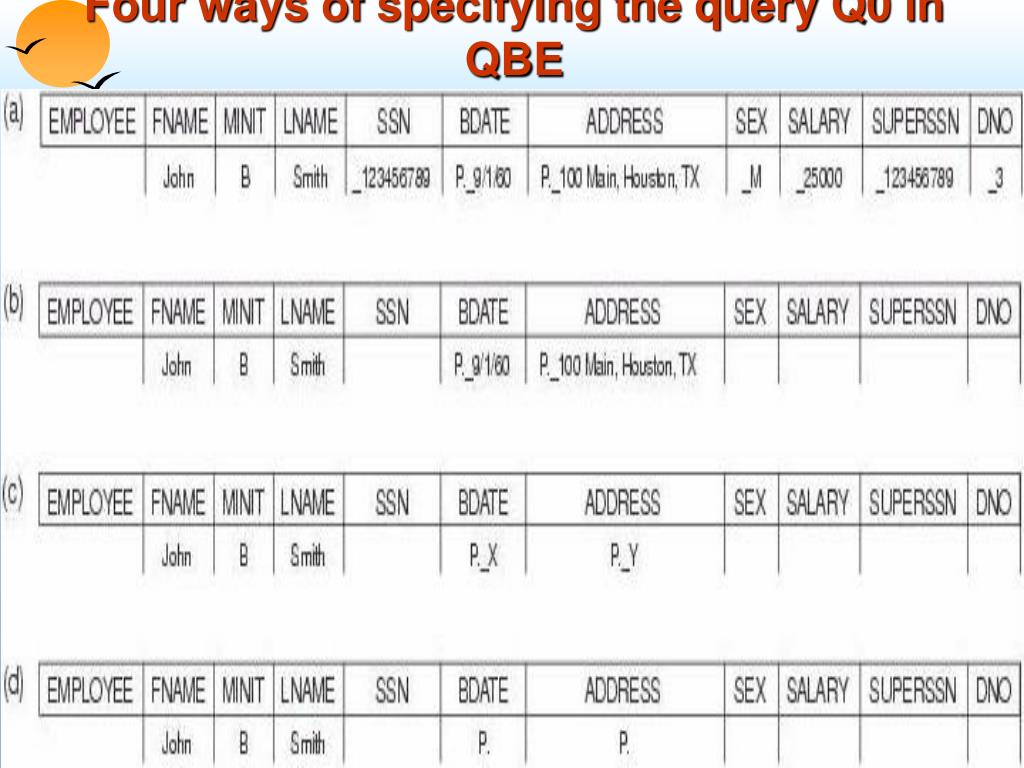

  18. Four ways of specifying the query Q0 in QBE

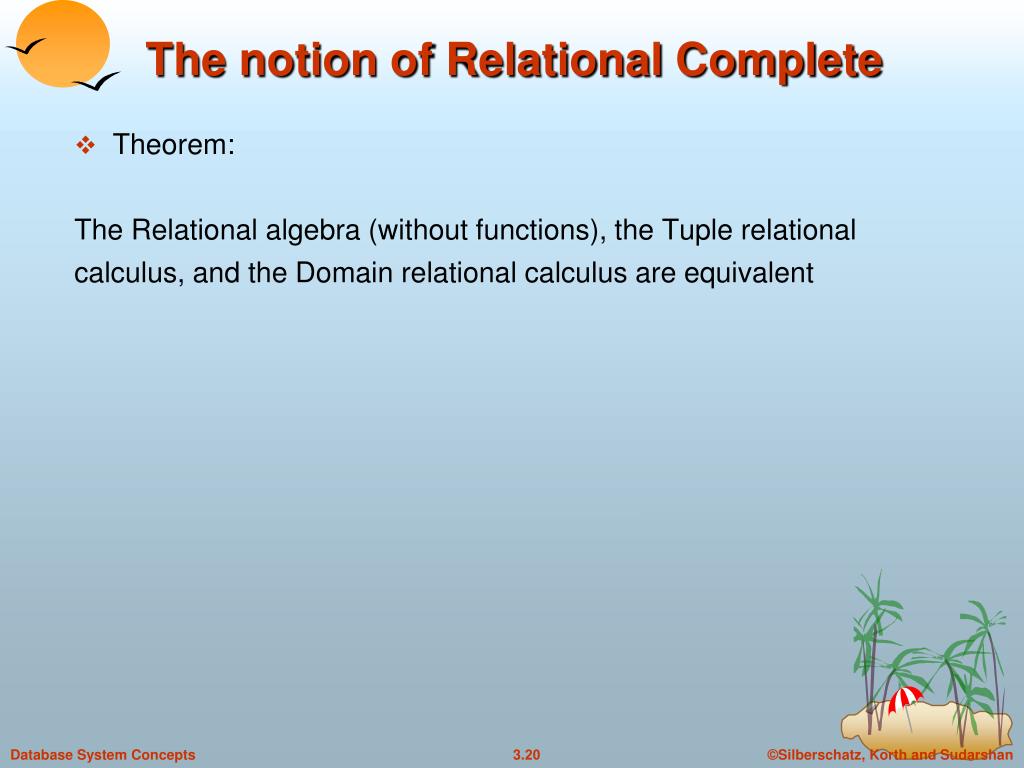

  19. The notion of Relational Complete • Theorem: The Relational algebra (without functions), the Tuple relational calculus, and the Domain relational calculus are equivalent

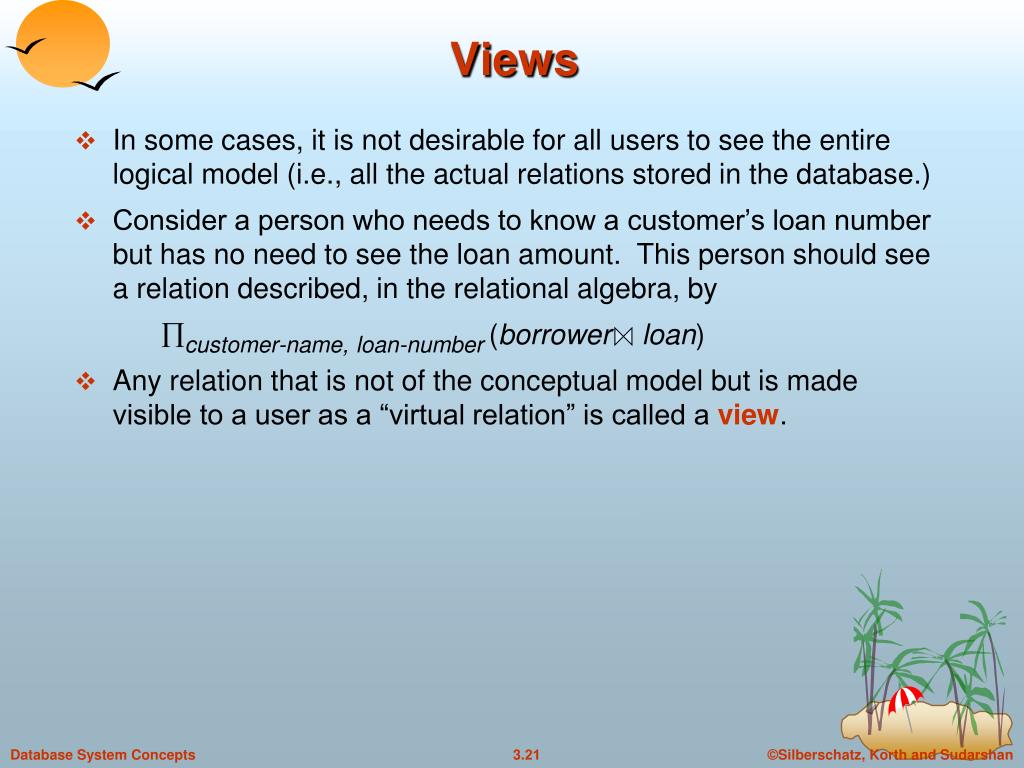

  20. Views • In some cases, it is not desirable for all users to see the entire logical model (i.e., all the actual relations stored in the database.) • Consider a person who needs to know a customer’s loan number but has no need to see the loan amount. This person should see a relation described, in the relational algebra, by customer-name, loan-number(borrower loan) • Any relation that is not of the conceptual model but is made visible to a user as a “virtual relation” is called a view.

  21. View Definition • A view is defined using the create view statement which has the form create view v as <query expression > where <query expression> is any legal relational algebra query expression. The view name is represented by v. • Once a view is defined, the view name can be used to refer to the virtual relation that the view generates. • View definition is not the same as creating a new relation by evaluating the query expression • Rather, a view definition causes the saving of an expression; the expression is substituted into queries using the view.

  22. create view all-customer as branch-name, customer-name(depositor account)  branch-name, customer-name(borrowerloan) View Examples • Consider the view (named all-customer) consisting of branches and their customers. • We can find all customers of the Perryridge branch by writing: branch-name (branch-name= “Perryridge”(all-customer))

  23. Updates Through View • Database modifications expressed as views must be translated to modifications of the actual relations in the database. • Consider the person who needs to see all loan data in the loan relation except amount. The view given to the person, branch-loan, is defined as: create view branch-loan as branch-name, loan-number(loan) • Since we allow a view name to appear wherever a relation name is allowed, the person may write: branch-loan  branch-loan  {(“Perryridge”, L-37)}

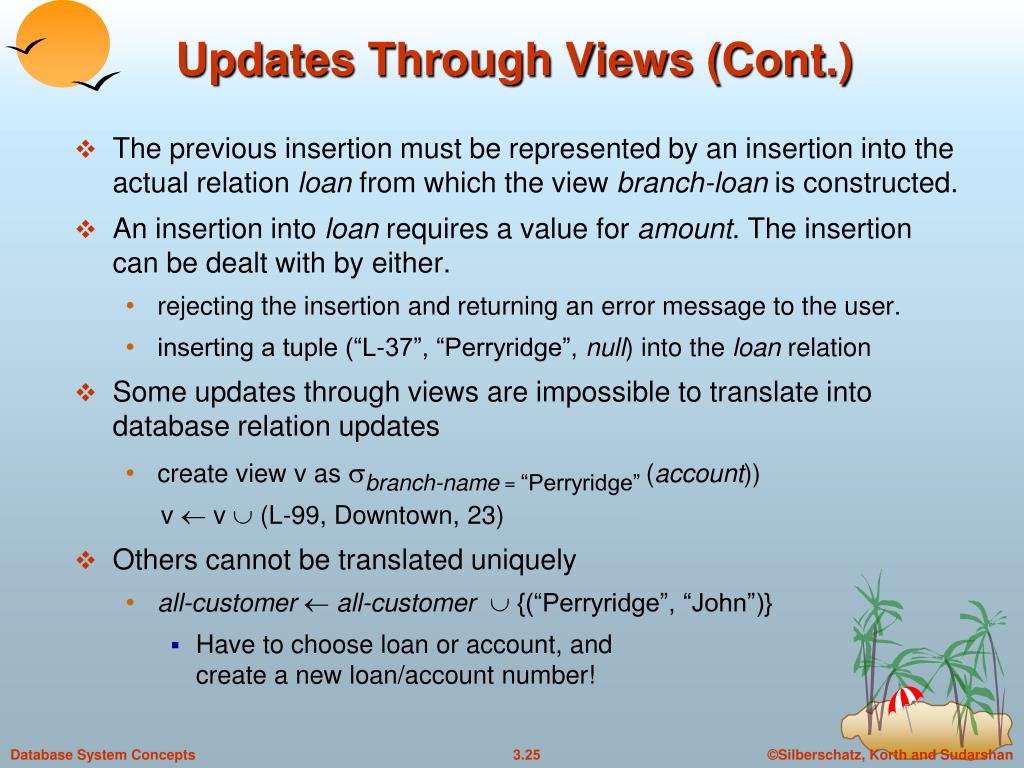

  24. Updates Through Views (Cont.) • The previous insertion must be represented by an insertion into the actual relation loan from which the view branch-loan is constructed. • An insertion into loan requires a value for amount. The insertion can be dealt with by either. • rejecting the insertion and returning an error message to the user. • inserting a tuple (“L-37”, “Perryridge”, null) into the loan relation • Some updates through views are impossible to translate into database relation updates • create view v as branch-name= “Perryridge”(account)) v  v  (L-99, Downtown, 23) • Others cannot be translated uniquely • all-customer all-customer  {(“Perryridge”, “John”)} • Have to choose loan or account, and create a new loan/account number!

  25. Data Dictionary Storage Data dictionary (also called system catalog) stores metadata: that is, data about data, such as • Information about relations • names of relations • names and types of attributes of each relation • names and definitions of views • integrity constraints • User and accounting information, including passwords • Statistical and descriptive data • number of tuples in each relation • Physical file organization information • How relation is stored (sequential/hash/…) • Physical location of relation • operating system file name or • disk addresses of blocks containing records of the relation • Information about indices (Chapter 12)

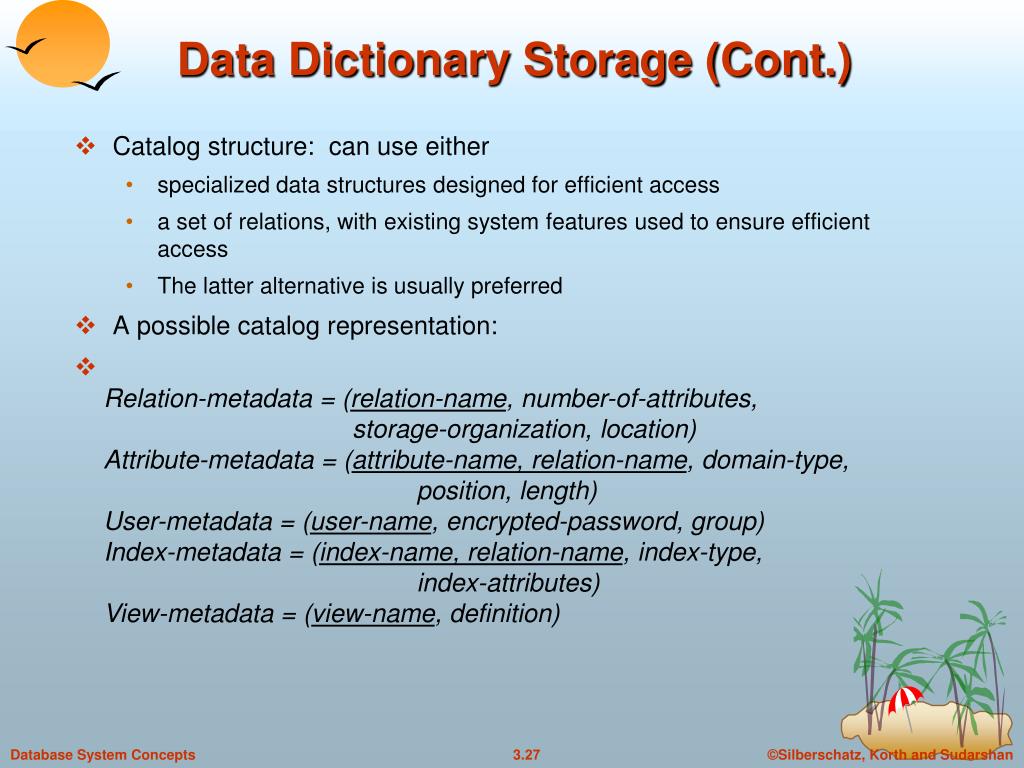

  26. Data Dictionary Storage (Cont.) • Catalog structure: can use either • specialized data structures designed for efficient access • a set of relations, with existing system features used to ensure efficient access • The latter alternative is usually preferred • A possible catalog representation: Relation-metadata = (relation-name, number-of-attributes, storage-organization, location)Attribute-metadata = (attribute-name, relation-name, domain-type, position, length) User-metadata = (user-name, encrypted-password, group) Index-metadata = (index-name, relation-name, index-type, index-attributes) View-metadata = (view-name, definition)

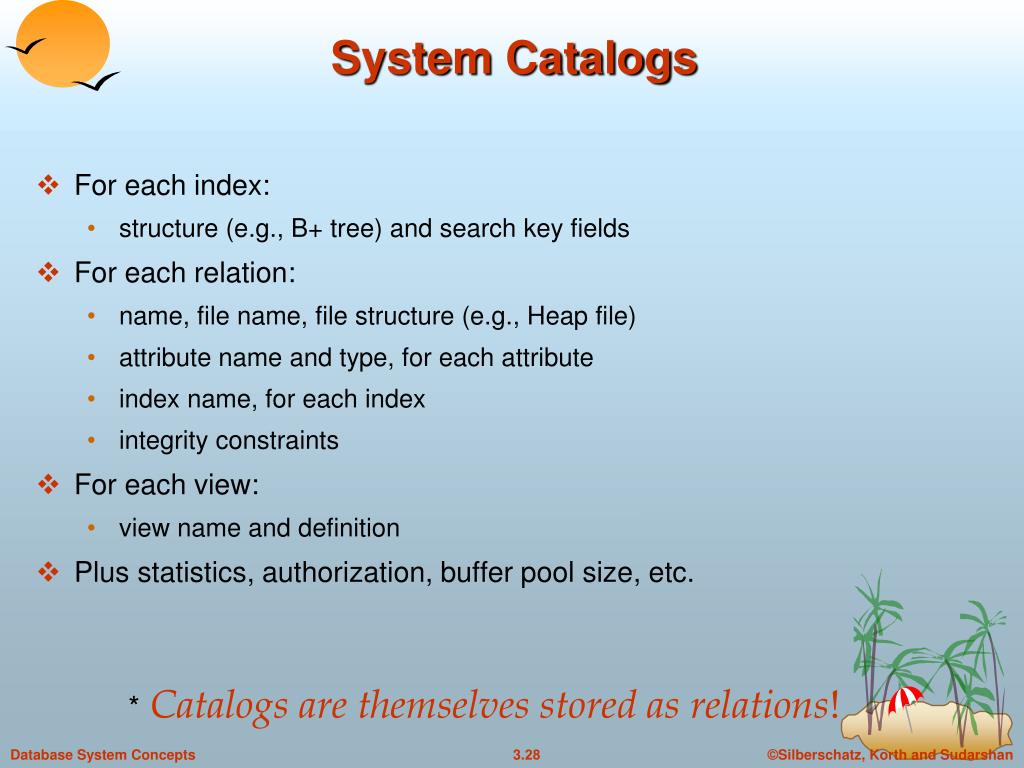

  27. System Catalogs • For each index: • structure (e.g., B+ tree) and search key fields • For each relation: • name, file name, file structure (e.g., Heap file) • attribute name and type, for each attribute • index name, for each index • integrity constraints • For each view: • view name and definition • Plus statistics, authorization, buffer pool size, etc. • Catalogs are themselves stored as relations!

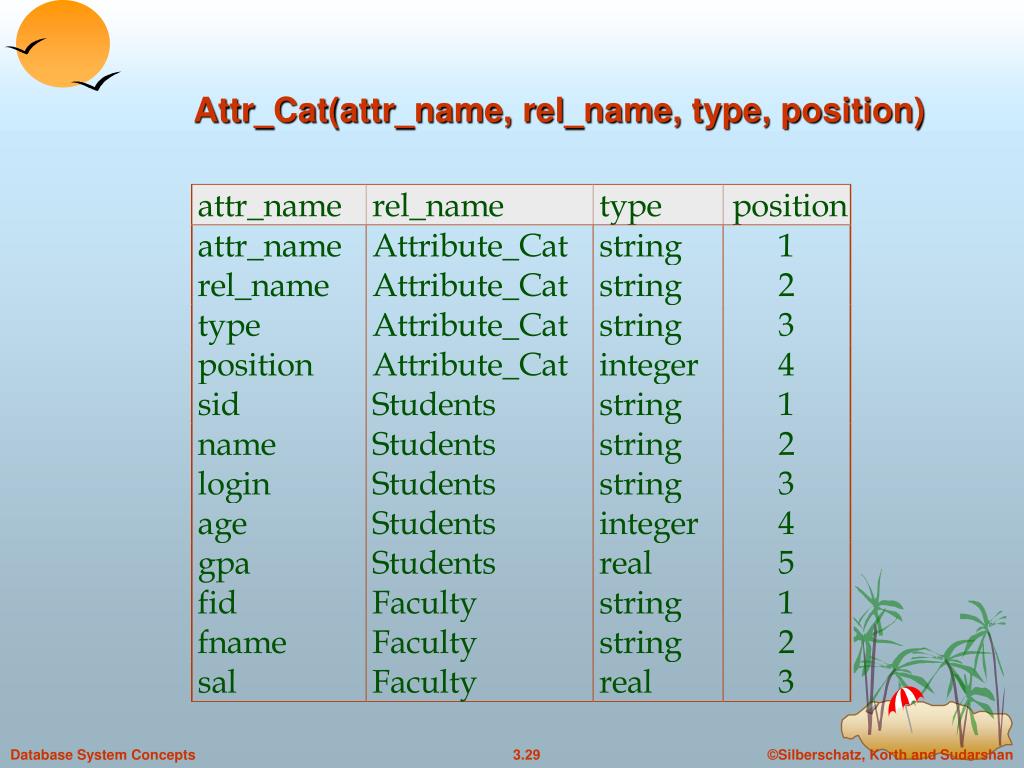

  28. Attr_Cat(attr_name, rel_name, type, position)

  29. End of Chapter 3
