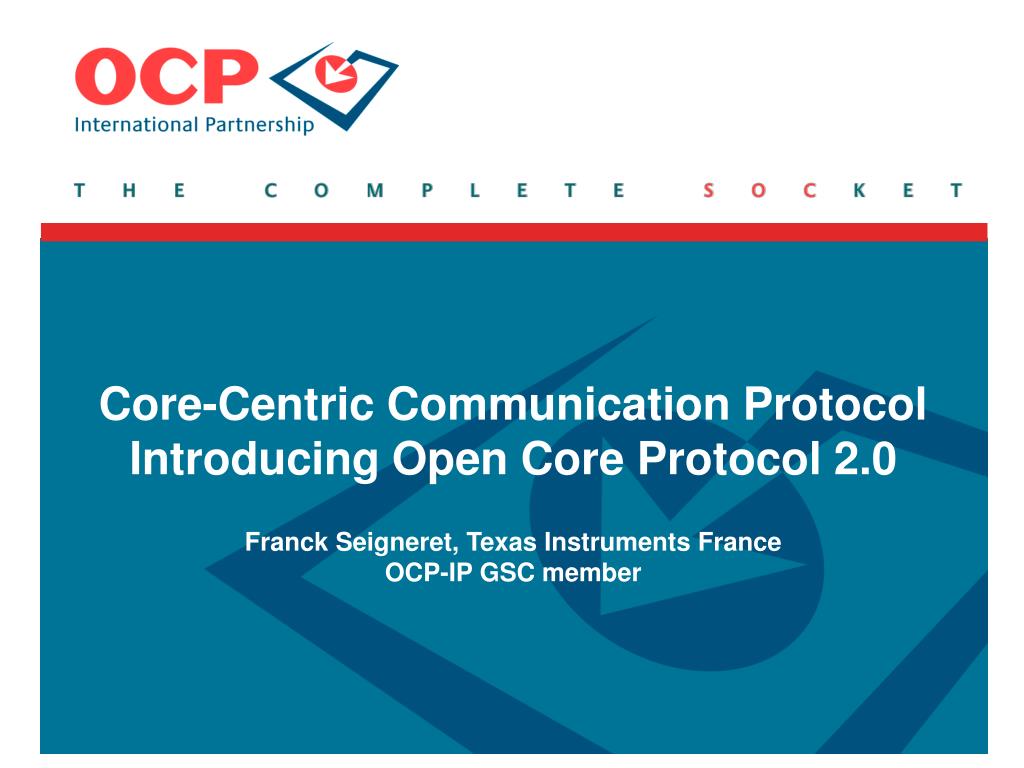

Slide1 l.jpg

Core-Centric Communication ProtocolIntroducing Open Core Protocol 2.0Franck Seigneret, Texas Instruments FranceOCP-IP GSC member

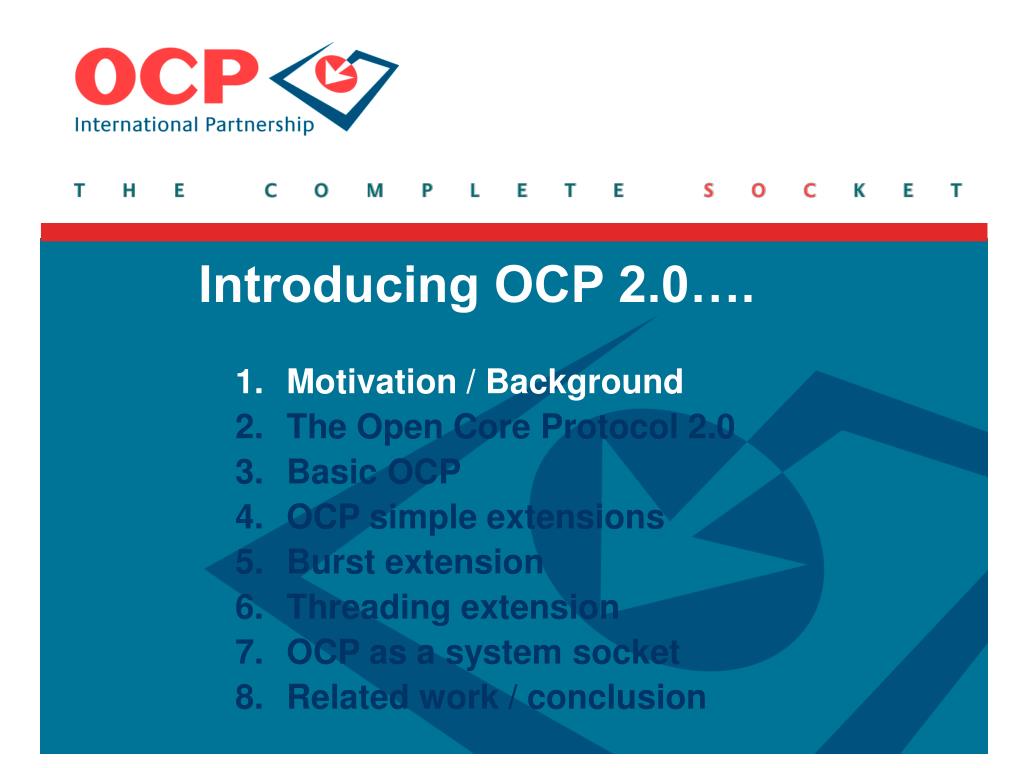

Slide2 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion


Motivation reuse without rework l.jpg
Motivation: reuse without rework

  • SOC designers want to reuse IP cores to shorten development schedules.

  • Problem:IP cores need to be re-adapted into each system design

    • 1000s of cores, 10s or 100s of interconnects/buses

    • must understand lots of interfaces

    • overwhelming amount of adaptation work

  • Motivation: reuse without rework

    • Plug-and-play between cores and interconnects systems from different sources.


Solution core system protocol l.jpg

Core 1

Core 2

Core N

Core

designers

core i/f

core i/f

core i/f

On-chip interconnect

System socket

System socket

System socket

System

integrator

Solution: Core/System Protocol

  • What is needed is a standard, well-defined protocol for cores to talk to a system interconnect.


Core system protocol requirements l.jpg
Core/System Protocol Requirements

  • Clearly-specified contract between core developer and system integrator

  • Core-Centric

    • Interconnect neutral (not some bus protocol)

  • Encompass entire core/system interface

  • Scalable and configurable

  • Process independent, synthesis/timing analysis friendly


Slide6 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion


Open core protocol 2 0 l.jpg
Open Core Protocol 2.0

  • Open Core Protocol (OCP) is a core-centric protocol under the governance of the OCP-IP association to enable true core plug-and-play and re-use

    • This is an OPEN standard

  • OCP-IP is driven by a pool of key players in the semiconductor industry: Nokia, Texas Instruments, STMicroelectronics, UMC, MIPS, Philips, Sonics, EDA vendors…

    • Multiple working groups (specification, functional verification, SystemC modeling…): make of OCP a “living” standard

  • Think of OCP as configurable core socket

  • OCP 2.0 specification (and much more) can be freely downloaded from the OCP-IP web site: www.ocpip.org


Basic ocp concepts l.jpg
Basic OCP Concepts

  • Point-to-point, uni-directional, synchronous

    • Easy physical implementation

  • Master/Slave, Request/Response model

    • Well-defined, simple roles

  • Extensions

    • Added functionality to support cores with more complex interface requirements

  • Configurability

    • Match a core’s requirements exactly

    • Tailor design to required features only


Slide9 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion


Basic ocp l.jpg
Basic OCP

  • Master / Slave

  • Split protocol

  • Multiple phases:

    • Request phase

    • Response phase

    • Separate data handshake (optional)

  • System / Core


Ocp commands l.jpg
OCP commands

  • Idle…

  • Read transfer

    • Standard Read

    • ReadEx, ReadLinked for exclusive access

  • Write transfer

    • With or without response

    • Posted (Write) or non posted (WriteNonPost) semantics

    • Conditional (WriteConditional) for exclusive access

  • Exclusive accesses

    • Locked synchronization

      • Atomic ReadEx / Write pairs

    • Lazy synchronization

      • Non atomic ReadLinked / WriteConditional pairs


Handshaking l.jpg
Handshaking

  • Each phase starts when sender asserts the phase

    • for example, request phase starts when master sends a non-idle command

  • Phase ends when receiver asserts handshake

    • for example, request phase ends when slave asserts the command accept signal

  • Handshaking allows both sides to assert flow control

    • sender can delay asserting the phase

    • receiver can delay asserting the handshake

  • Example: core can’t take a request every cycle

    • no need to add storage, just hold off on accepting requests if not ready

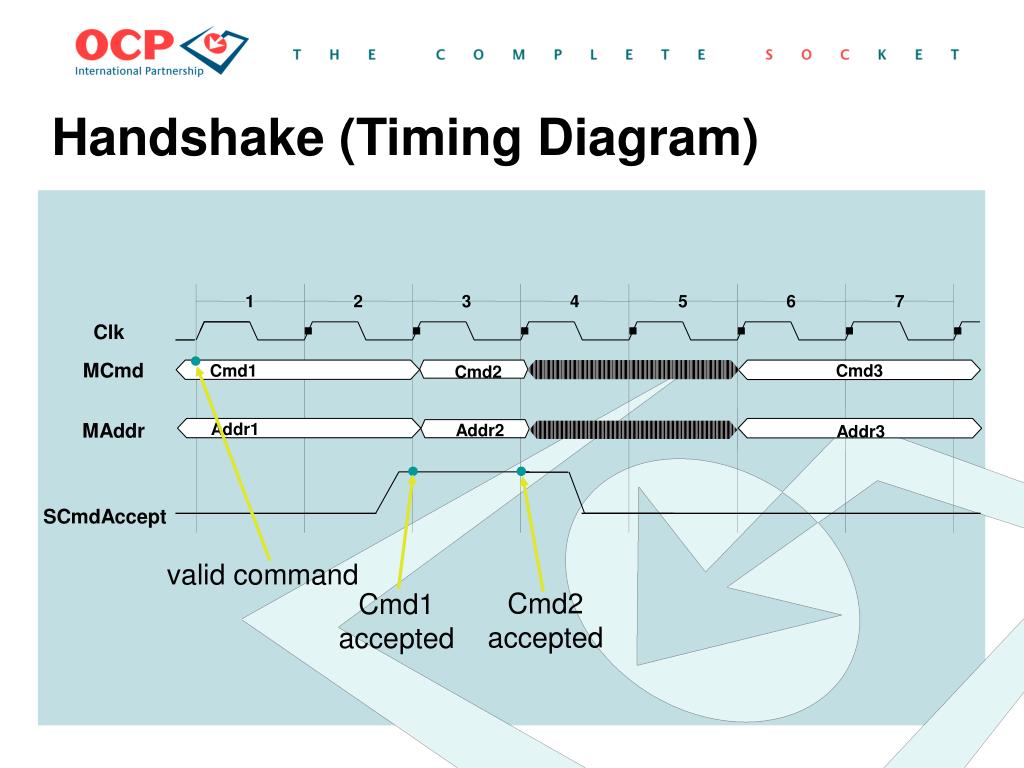

Handshake timing diagram l.jpg

1

2

3

4

5

6

7

Clk

MCmd

Cmd1

Cmd3

Cmd2

MAddr

Addr1

Addr2

Addr3

SCmdAccept

valid command

Cmd2accepted

Cmd1accepted

Handshake (Timing Diagram)

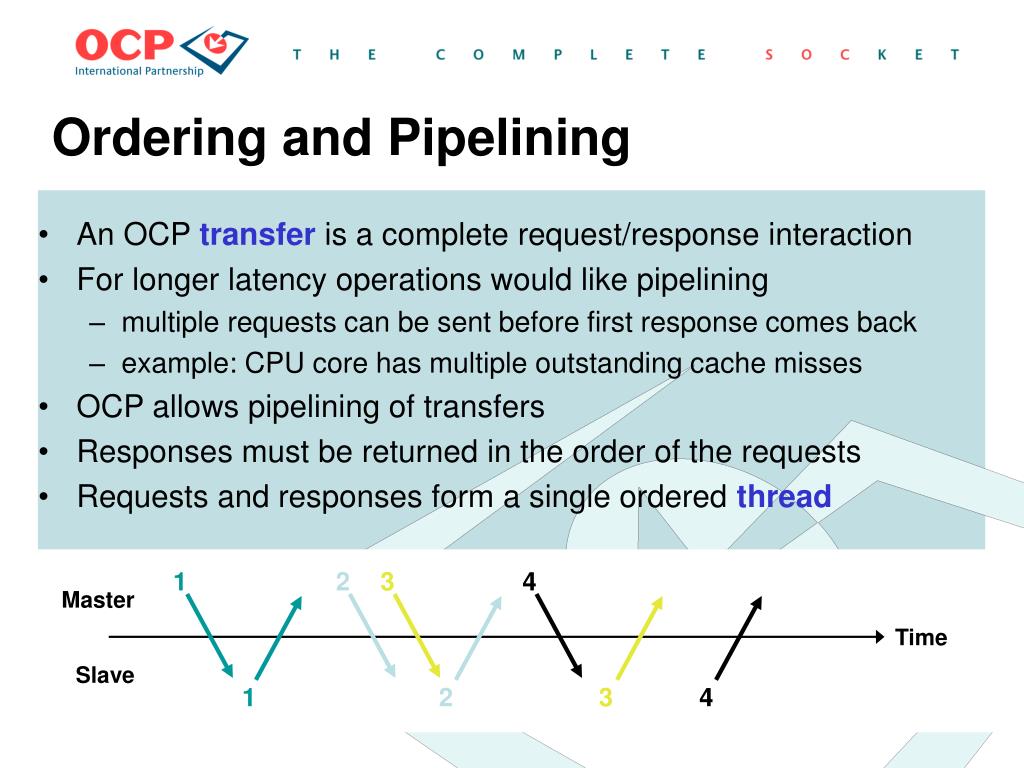

Ordering and pipelining l.jpg

1

2

3

4

Master

Slave

1

2

3

4

Ordering and Pipelining

  • An OCP transfer is a complete request/response interaction

  • For longer latency operations would like pipelining

    • multiple requests can be sent before first response comes back

    • example: CPU core has multiple outstanding cache misses

  • OCP allows pipelining of transfers

  • Responses must be returned in the order of the requests

  • Requests and responses form a single ordered thread

Time



Slide16 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion

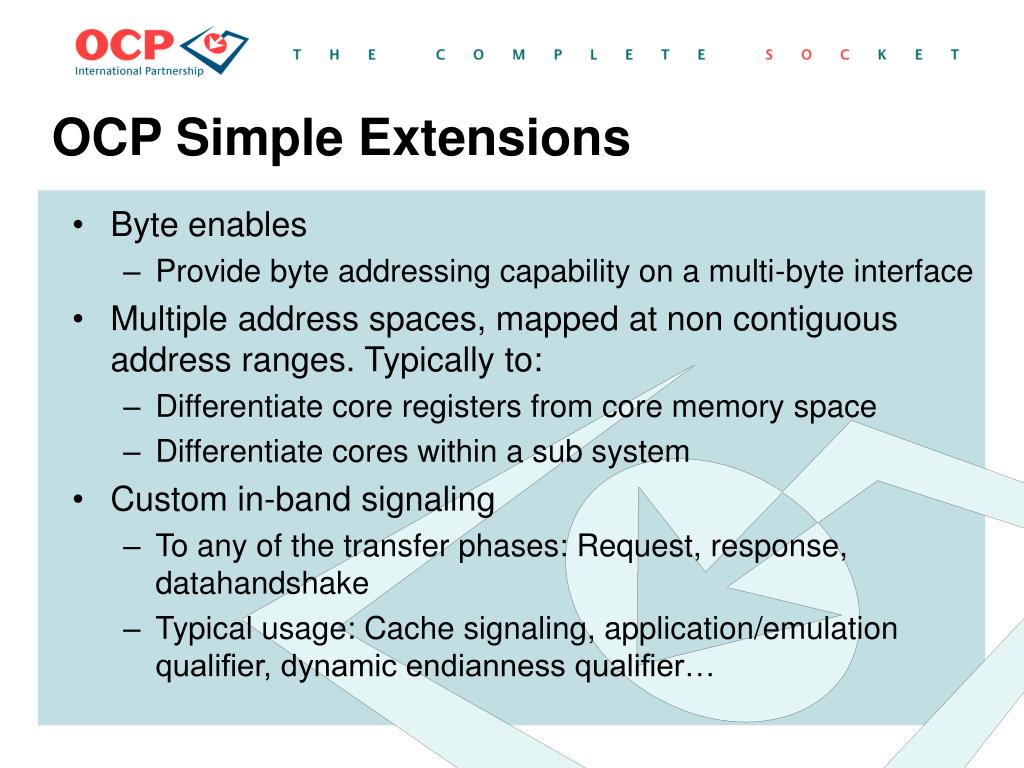

Ocp simple extensions l.jpg

Byte enables

Provide byte addressing capability on a multi-byte interface

Multiple address spaces, mapped at non contiguous address ranges. Typically to:

Differentiate core registers from core memory space

Differentiate cores within a sub system

Custom in-band signaling

To any of the transfer phases: Request, response, datahandshake

Typical usage: Cache signaling, application/emulation qualifier, dynamic endianness qualifier…

OCP Simple Extensions


Slide18 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion

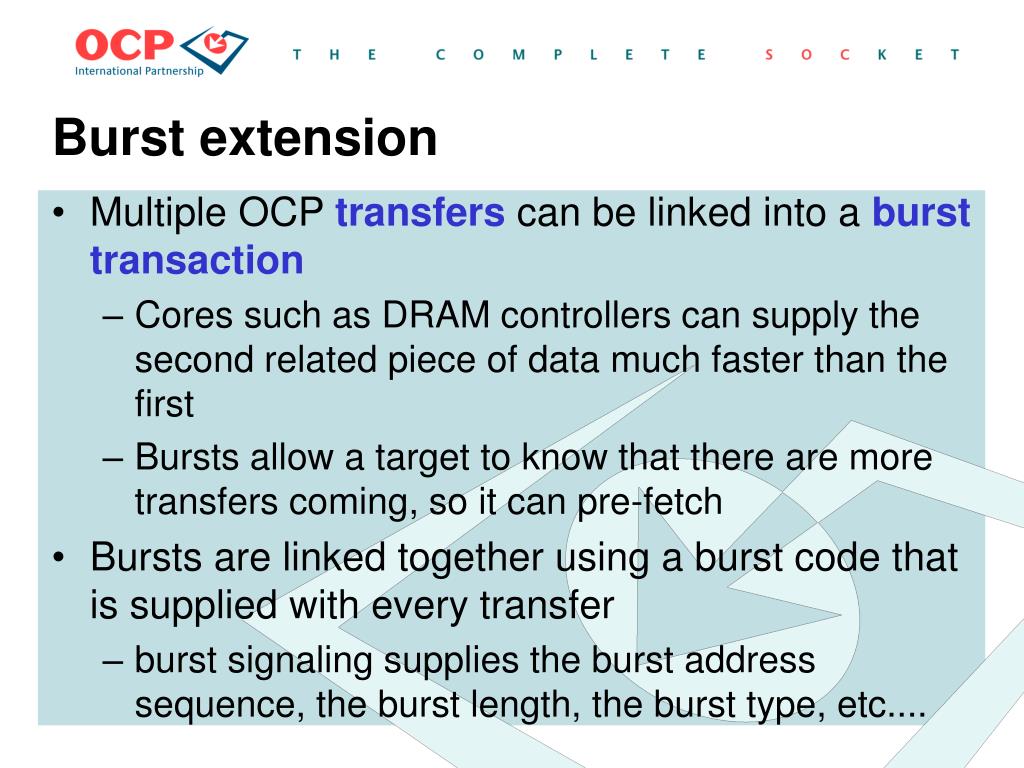

Burst extension l.jpg
Burst extension

  • Multiple OCP transfers can be linked into a burst transaction

    • Cores such as DRAM controllers can supply the second related piece of data much faster than the first

    • Bursts allow a target to know that there are more transfers coming, so it can pre-fetch

  • Bursts are linked together using a burst code that is supplied with every transfer

    • burst signaling supplies the burst address sequence, the burst length, the burst type, etc....


The ocp burst flexibility l.jpg
The OCP burst flexibility

  • Ability to handle precise bursts (the length is known) and un-precise bursts (the length is unknown).

  • Ability to specify standard address sequences (incrementing, wrapping, streaming, XOR) as well as custom address sequences.

  • Ability to support single request/multiple data transaction models.

  • Ability to define atomic sub-units within a burst for fine control of the request interleaving throughout the system interconnect.

  • Ability to add complete framing information with all transfer phases.


Slide21 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion


Threading extension l.jpg
Threading extension

  • Within an OCP thread, responses must return in the order of the requests.

  • For some cores, out-of-order responses are desirable

    • A multi-bank DRAM controller can return requests to an open bank faster than to a closed one

    • A DMA controller can handle multiple outstanding transactions from multiple channels on the same OCP port

  • An OCP interface can support multiple threads

    • Allows for concurrency and out-of-order returns

    • Each thread retains strict ordering semantics

    • BUT: there are is no ordering between transfers in different threads


Threads illustrated l.jpg
Threads (illustrated)

  • Golden rule

    • Strict ordering within a thread

    • No ordering betweenthreads

  • Requests, data, responses are tagged with a threadID

  • Multithreading also helps reducing the number of wires, to limit the routing congestions

1A

1B

2A

2B

Master

time

Slave

1A

2A

1B

2B

Thread A

Thread B


Slide24 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion


Control and test signals l.jpg
Control and Test Signals

  • Reset

  • Interrupt

  • Transaction error reporting

  • Core Flags (core-to-core)

  • Core Status/Control (system-to-core)

  • Test: Scan chains and standard JTAG (IEEE1149)

  • …and platform specific signals

also known as Sideband Signals because they areout-of-band with respect to data flow signals


Configurability l.jpg
Configurability

  • OCP is configurable to tailor the interface exactly to the features required by the core

    • Basic OCP is very simple

    • Many extensions exist for cores with more complex interface requirements

  • OCP is configured via a set of parameters

    • Control the presence of a set of signals

      • example: core makes use of byte enables

    • Control the width of a set of signals

      • example: address width is 14 bits

    • Control protocol features

      • example: core uses data handshaking to pipeline write data


Ocp as ip core delivery vehicle l.jpg
OCP as IP Core Delivery Vehicle

  • OCP is not just a core/system interface specification

  • OCP also specifies:

    • Precise description format for core interfaces

    • Precise description format for timing of core interfaces

    • Core performance information

  • Configuration information is in machine-readable TCL file format

    • Allows for automated processing, at both core and interconnect level

  • Core designer and system integrator’s job is greatly simplified

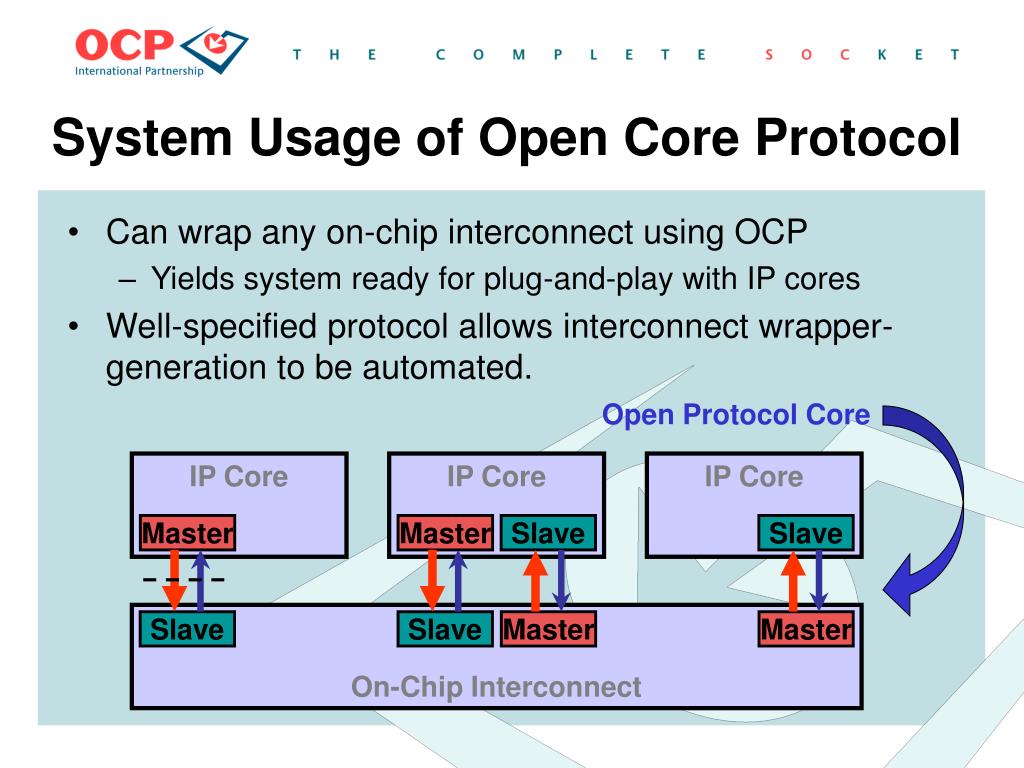

System usage of open core protocol l.jpg

Master

Master

Master

Master

Open Protocol Core

IP Core

IP Core

IP Core

Slave

Slave

Slave

Slave

On-Chip Interconnect

System Usage of Open Core Protocol

  • Can wrap any on-chip interconnect using OCP

    • Yields system ready for plug-and-play with IP cores

  • Well-specified protocol allows interconnect wrapper-generation to be automated.


Slide29 l.jpg

Introducing OCP 2.0….

  • Motivation / Background

  • The Open Core Protocol 2.0

  • Basic OCP

  • OCP simple extensions

  • Burst extension

  • Threading extension

  • OCP as a system socket

  • Related work / conclusion

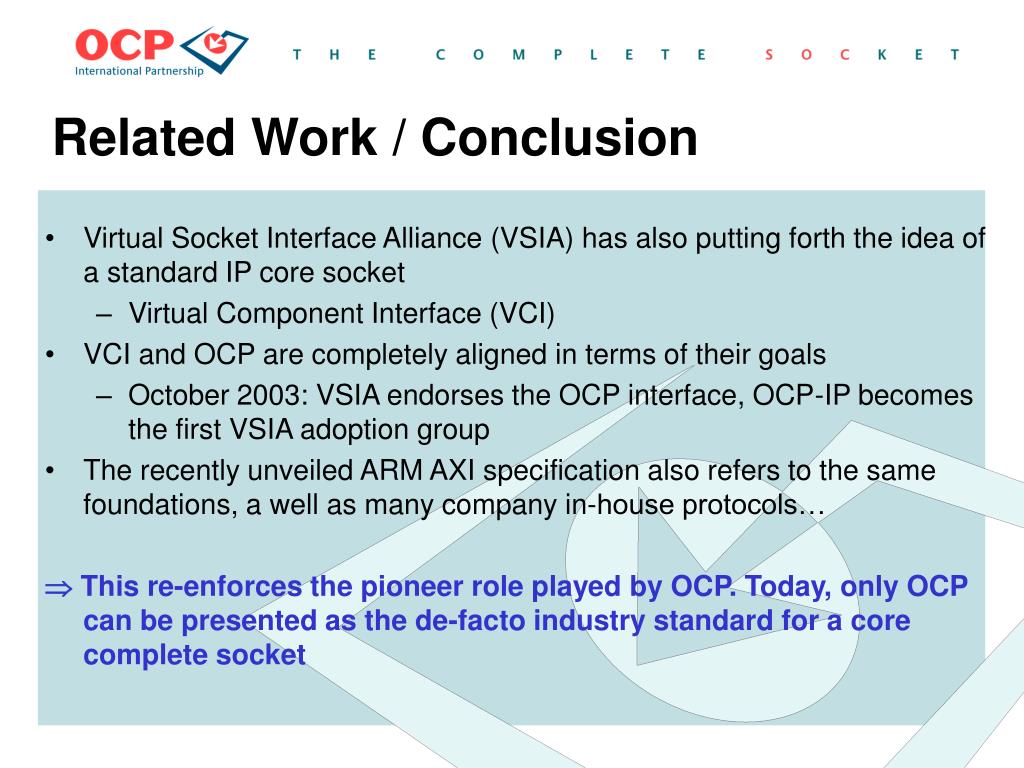

Related work conclusion l.jpg
Related Work / Conclusion

  • Virtual Socket Interface Alliance (VSIA) has also putting forth the idea of a standard IP core socket

    • Virtual Component Interface (VCI)

  • VCI and OCP are completely aligned in terms of their goals

    • October 2003: VSIA endorses the OCP interface, OCP-IP becomes the first VSIA adoption group

  • The recently unveiled ARM AXI specification also refers to the same foundations, a well as many company in-house protocols…

     This re-enforces the pioneer role played by OCP. Today, only OCP can be presented as the de-facto industry standard for a core complete socket


Slide31 l.jpg

THANK YOU !For more information, please take a look at http://www.ocpip.org/and… stop at the OCP-IP booth in this conference center
