LaboPol/LaboForce 의 특징

LaboPol/LaboForce 의 특징. User-friendly and easy operation Quick exchange of grinding,lapping and polishing discs Table-top design in corrosion-resistant material Automation with the specimen movers LaboForce-3 or LaboForce-1 High level of reproducibility. 디스크 수 : 2 개

jescie-thompson
Download Presentation

LaboPol/LaboForce 의 특징

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

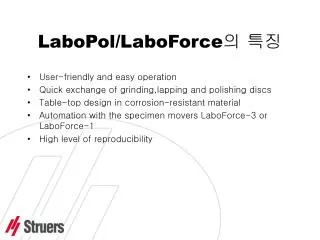

  1. LaboPol/LaboForce의 특징 • User-friendly and easy operation • Quick exchange of grinding,lapping and polishing discs • Table-top design in corrosion-resistant material • Automation with the specimen movers LaboForce-3 or LaboForce-1 • High level of reproducibility

  2. 디스크 수: 2개 • 디스크직경: 200,230 , 250mm dia. • 회전속도: 300 rpm • 모터출력: 180 Watt • 전원 : 220V/60Hz. 단상 • 크기: 700(W) x 690(D) x 220(H) LaboPol-21 STRUERS Two Discs Grinding Machine

  3. LaboPol-5 • STRUERS Universal Grinding/Polishing Machine <사양> • 디스크 직경 : 200mm dia. • 회전속도 : 50-500 rpm • Motor output : 370 W • Power : 220V/60Hz. • Dimensions : 410(W) x 670(D) x 315(H)

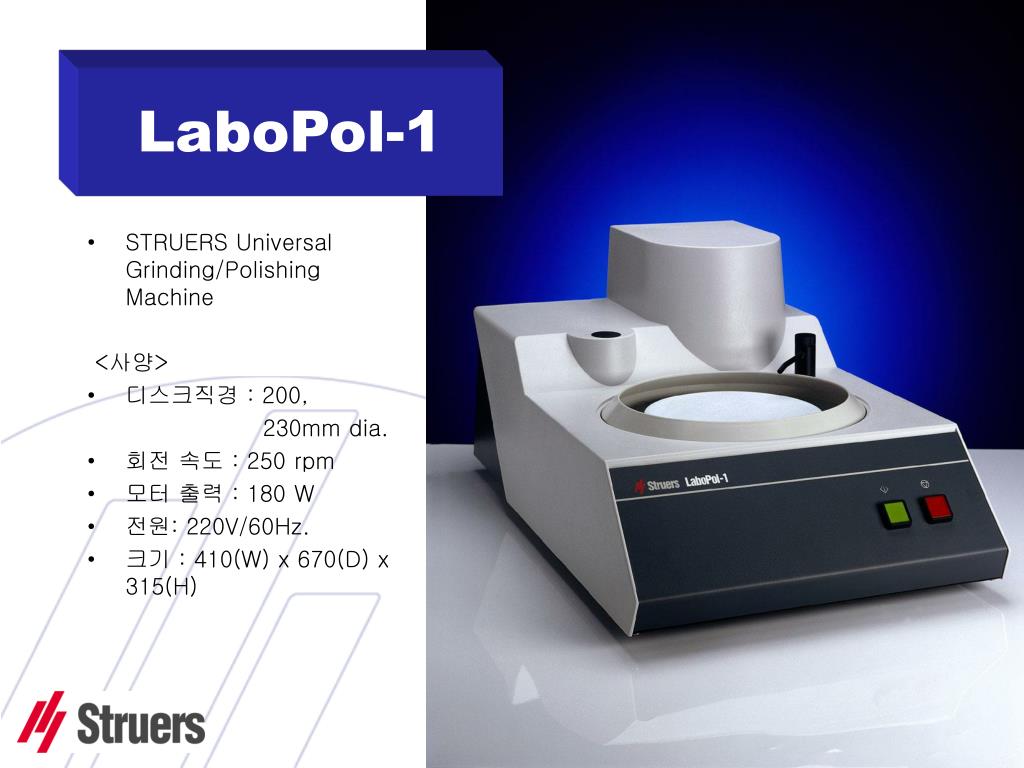

  4. LaboPol-1 • STRUERS Universal Grinding/Polishing Machine <사양> • 디스크직경 : 200, 230mm dia. • 회전 속도 : 250 rpm • 모터 출력 : 180 W • 전원: 220V/60Hz. • 크기 : 410(W) x 670(D) x 315(H)

  5. LaboForce-3 STRUERS Automatic Specimens Mover <사양> • 안정적이며 견고함 • 직경 25-40mm의 개별시편 • 이동이 용이함 • 압력범위 : 5 N~40 N • 회전속도 : 250 rpm • 단독시편가공가능 • 모터출력 : 25 Watt . • 윤활제 공급장치 내장 • 시편 갯 수 : 1 ~3 개 • 전원 : 220V/60Hz. • 크기 : 185(W) x 325(D) x 320(H)

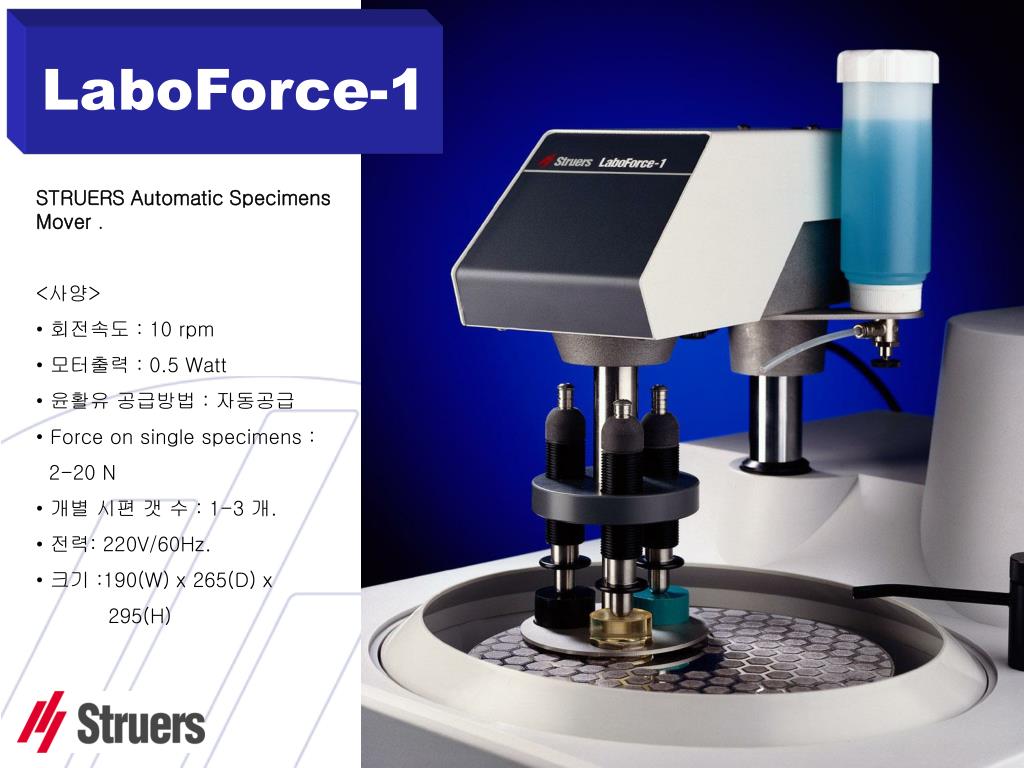

  6. LaboForce-1 • STRUERS Automatic Specimens Mover . • <사양> • 회전속도 : 10 rpm • 모터출력 : 0.5 Watt • 윤활유 공급방법 : 자동공급 • Force on single specimens : • 2-20 N • 개별 시편 갯 수 : 1-3 개. • 전력: 220V/60Hz. • 크기 :190(W) x 265(D) x • 295(H)

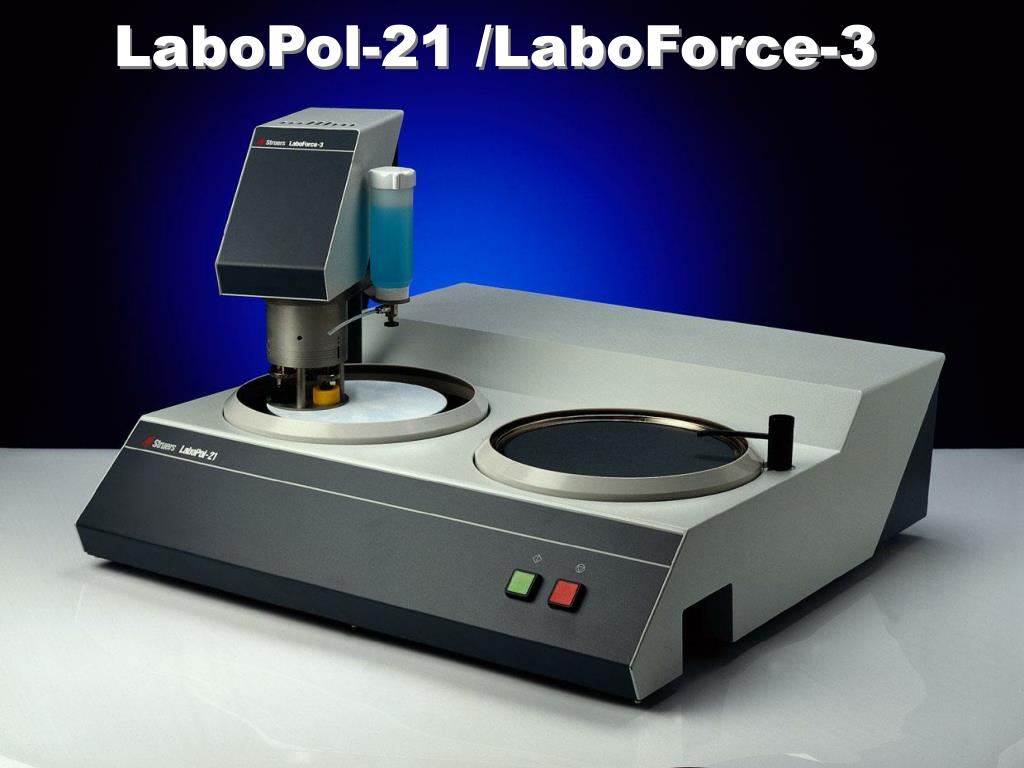

  7. LaboPol-21 /LaboForce-3

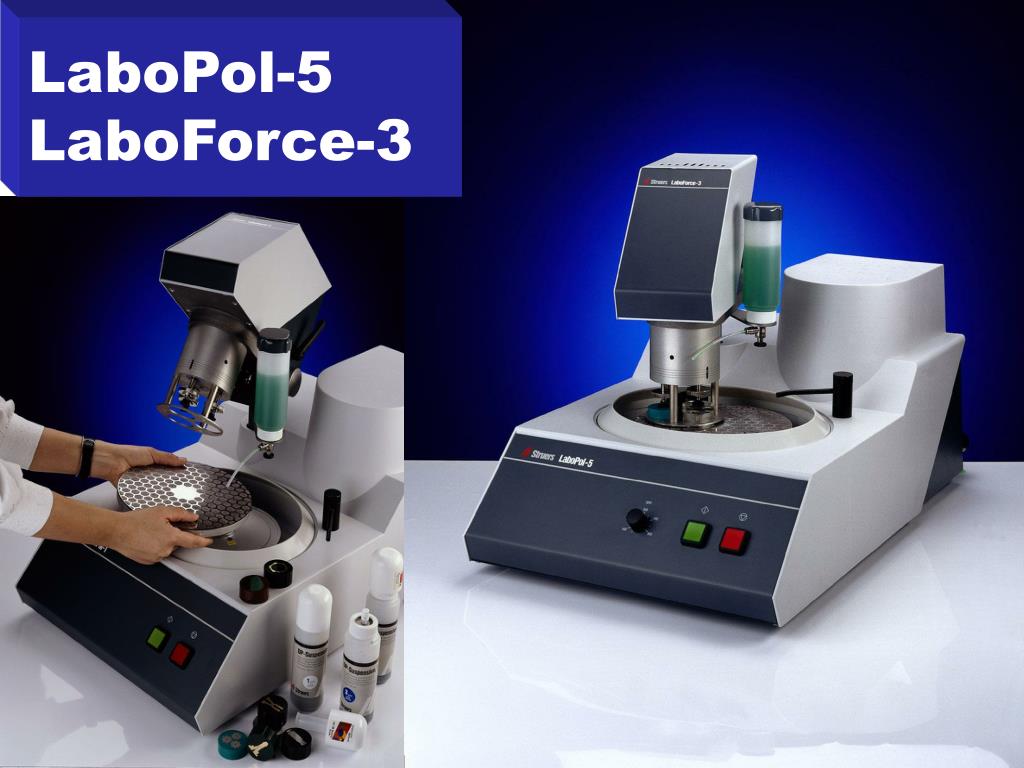

  8. LaboPol-5 LaboForce-3

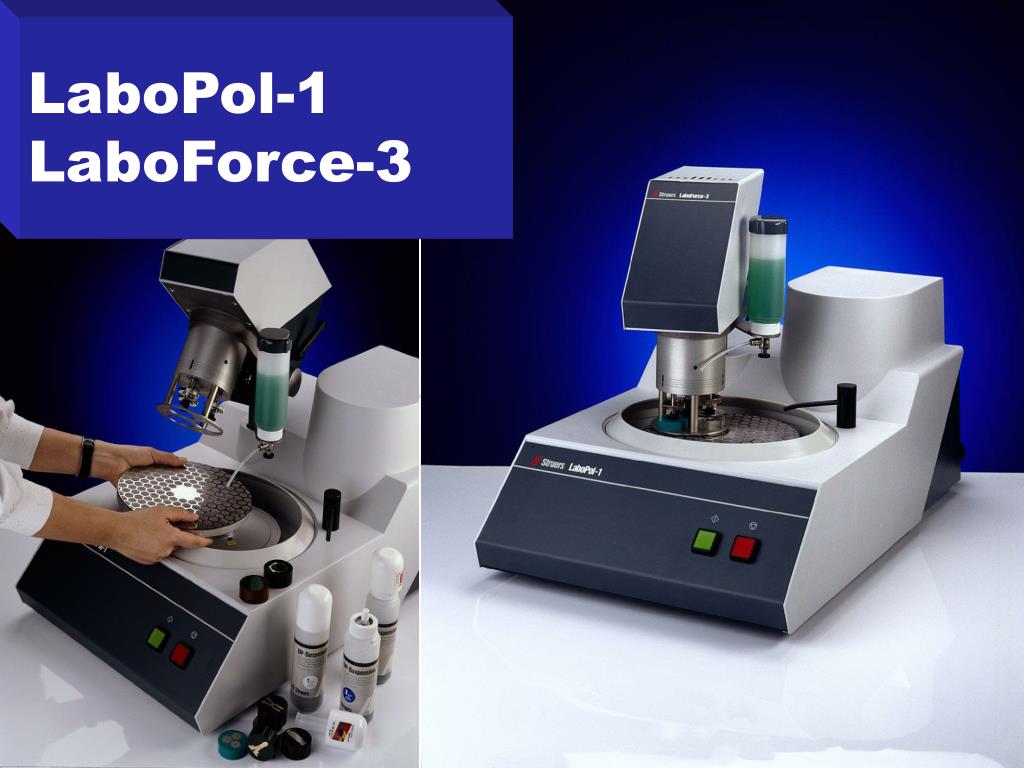

  9. LaboPol-1 LaboForce-3

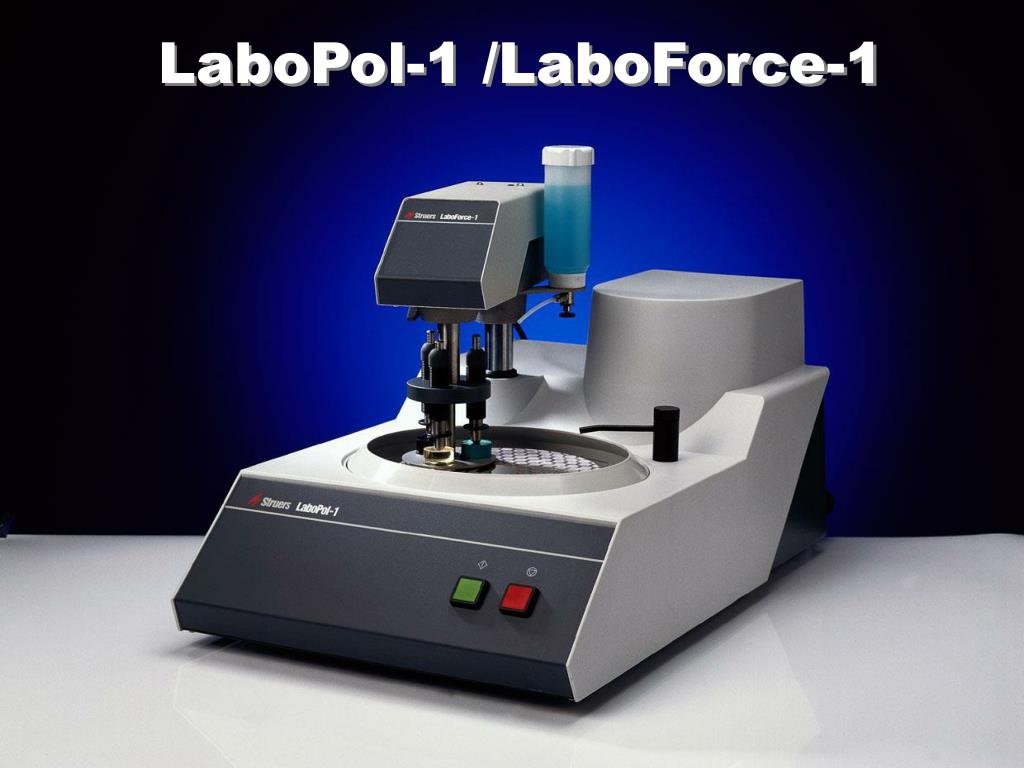

  10. LaboPol-1 /LaboForce-1

  11. 사양-LaboPol-2 • . Disc diameter : 200mm dia. • . Rotational speed : 150/500 rpm • . Motor output : 180 W • . Power : 220V/60Hz. • . Dimensions : 410(W) x 670(D) x 315(H)

  12. 사양-LaboPol-4 • . Disc diameter : 200mm dia. • . Rotational speed : 0-150 rpm • . Motor output : 180 W • . Power : 220V/60Hz. • . Dimensions : 410(W) x 670(D) x 315(H)

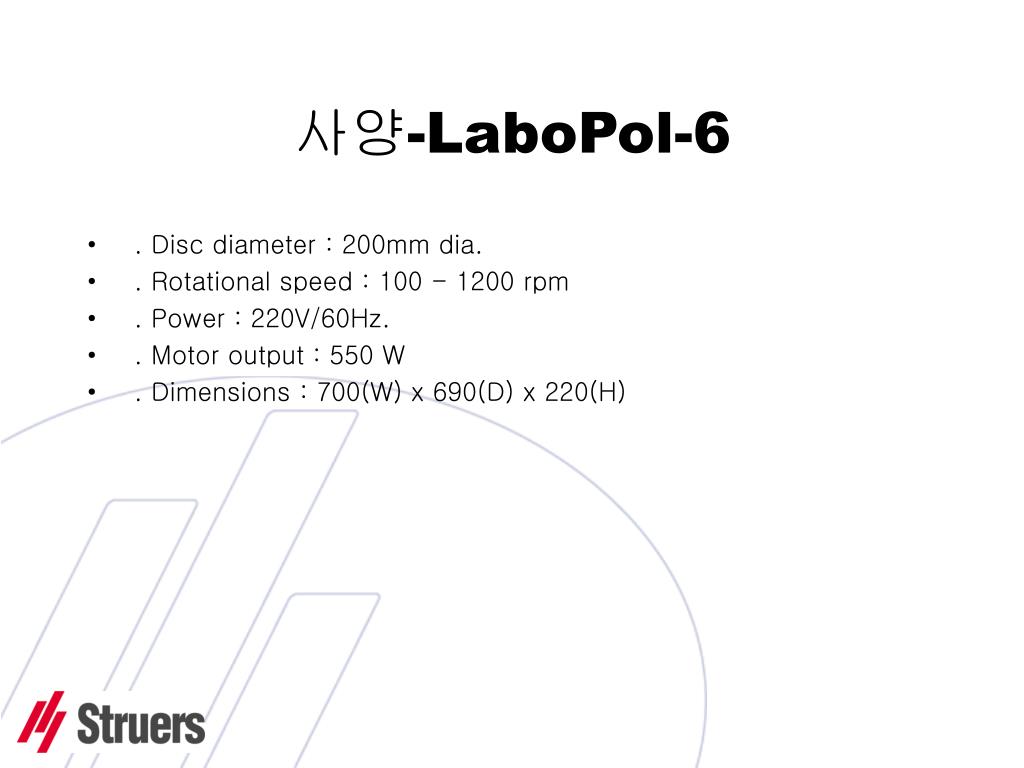

  13. 사양-LaboPol-6 • . Disc diameter : 200mm dia. • . Rotational speed : 100 - 1200 rpm • . Power : 220V/60Hz. • . Motor output : 550 W • . Dimensions : 700(W) x 690(D) x 220(H)
