harry potter scratch game

Harry Potter Scratch Game

Pranali Choubal

Kunal Shah

Barb Ericsonericson@cc.gatech.edu

Dec 2007

Harry Potter Scratch Game

the game

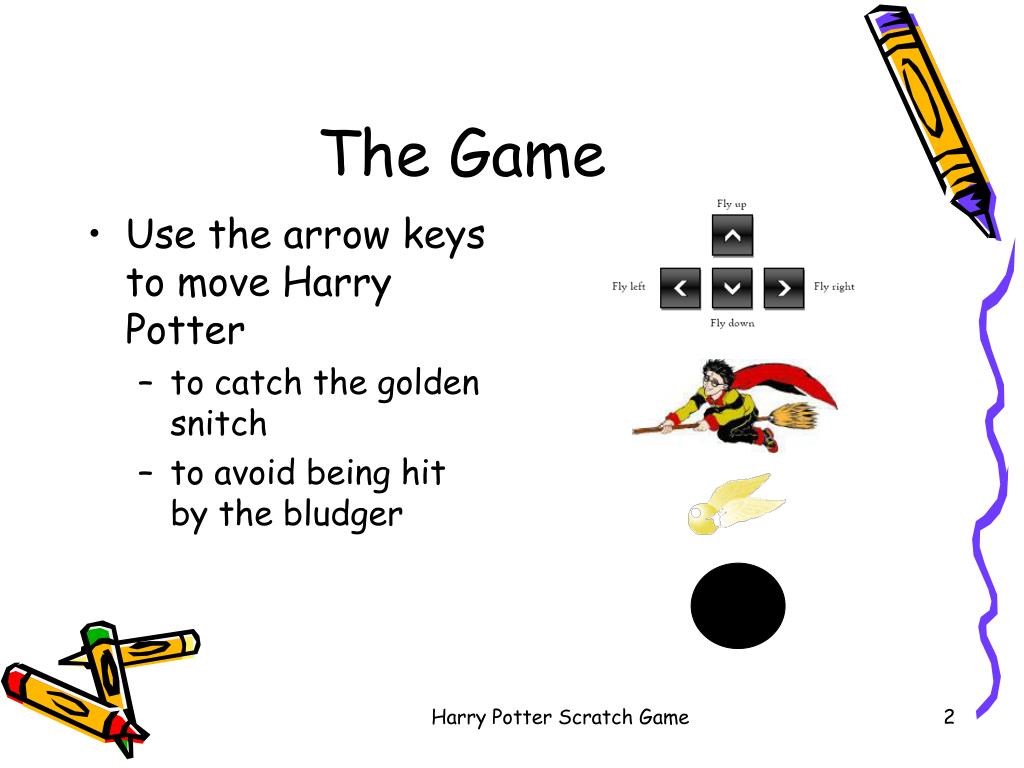

The Game
  • Use the arrow keys to move Harry Potter
    • to catch the golden snitch
    • to avoid being hit by the bludger

Harry Potter Scratch Game

getting started

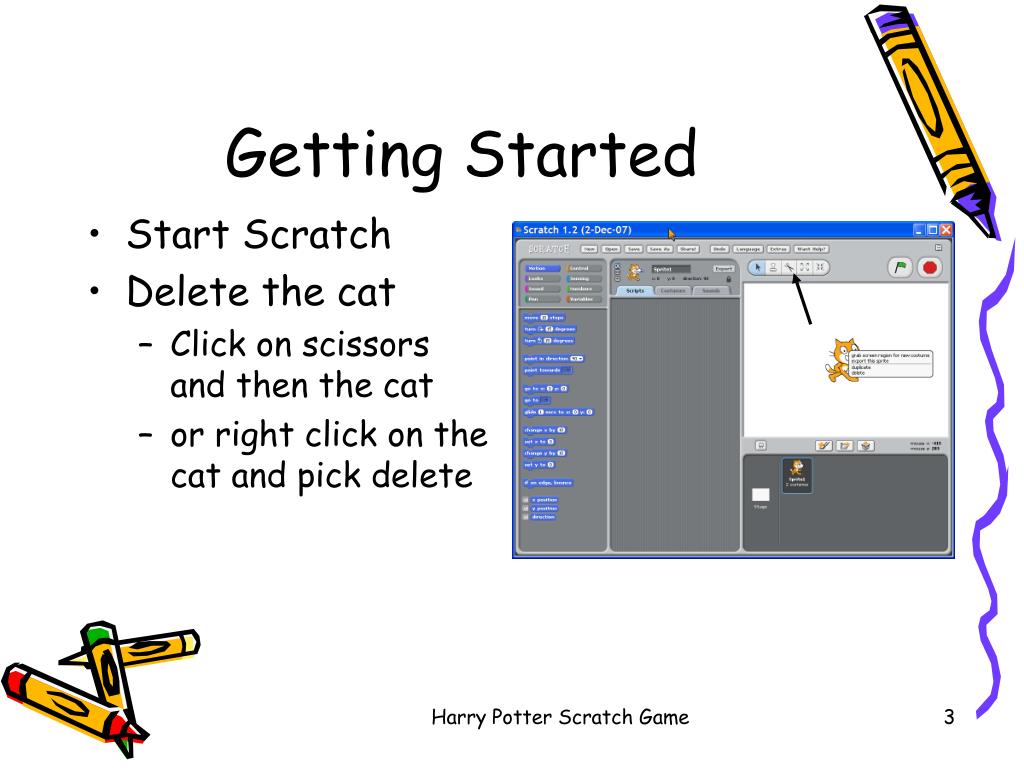

Getting Started
  • Start Scratch
  • Delete the cat
    • Click on scissors and then the cat
    • or right click on the cat and pick delete

Harry Potter Scratch Game

change the background
Change the Background
  • Click on the stage to select it
  • Click on the Backgrounds tab
  • Click on the import button

Harry Potter Scratch Game

select new background

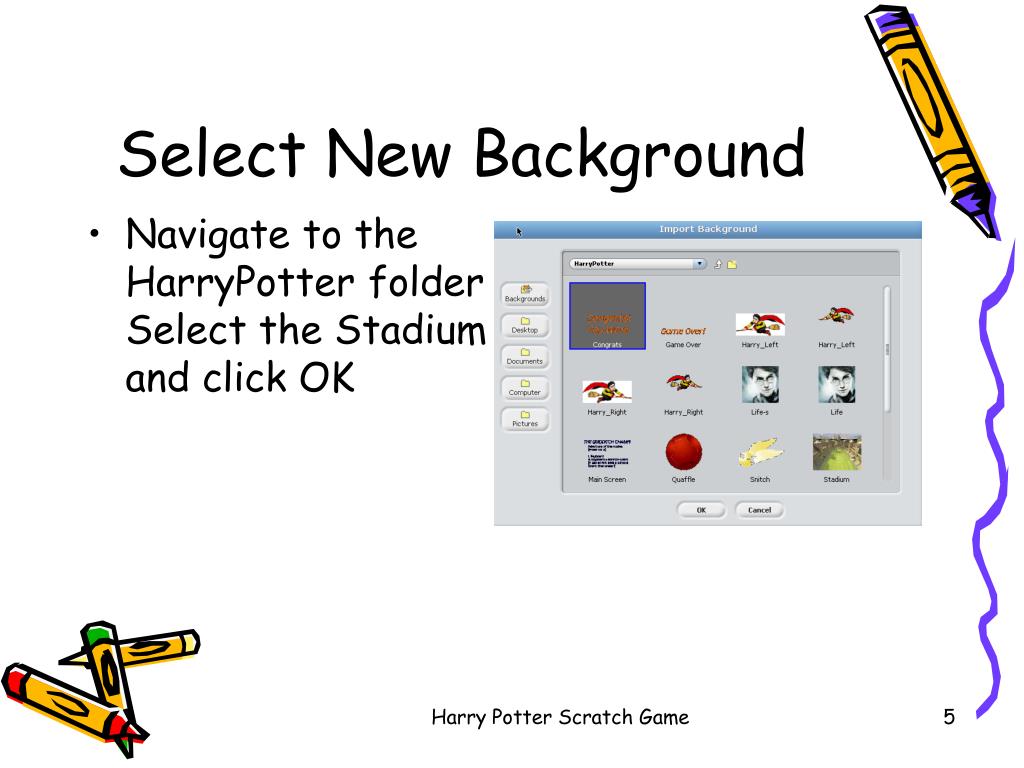

Select New Background
  • Navigate to the HarryPotter folder Select the Stadium and click OK

Harry Potter Scratch Game

the stage is set

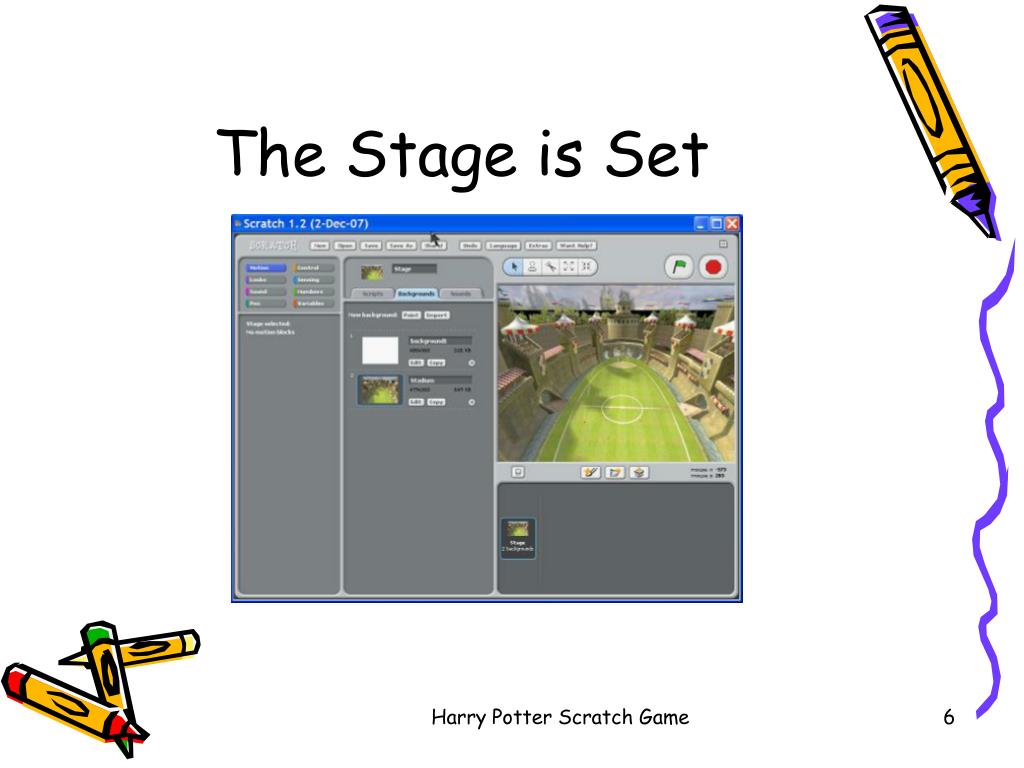

The Stage is Set

Harry Potter Scratch Game

add harry potter

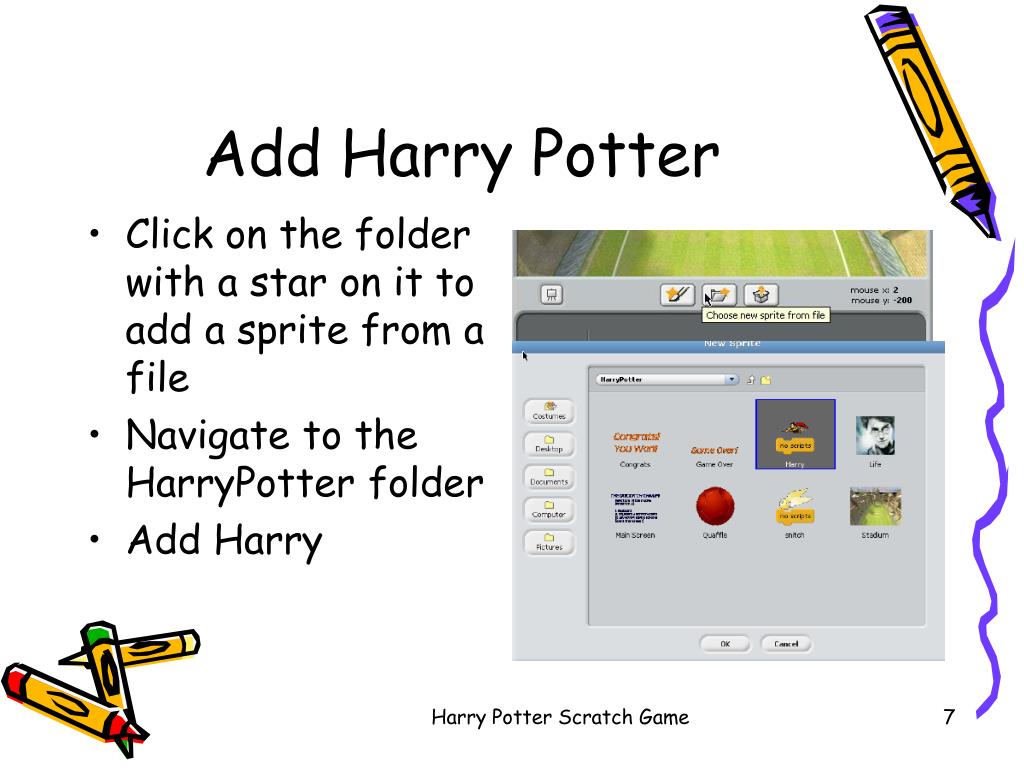

Add Harry Potter
  • Click on the folder with a star on it to add a sprite from a file
  • Navigate to the HarryPotter folder
  • Add Harry

Harry Potter Scratch Game

the game so far

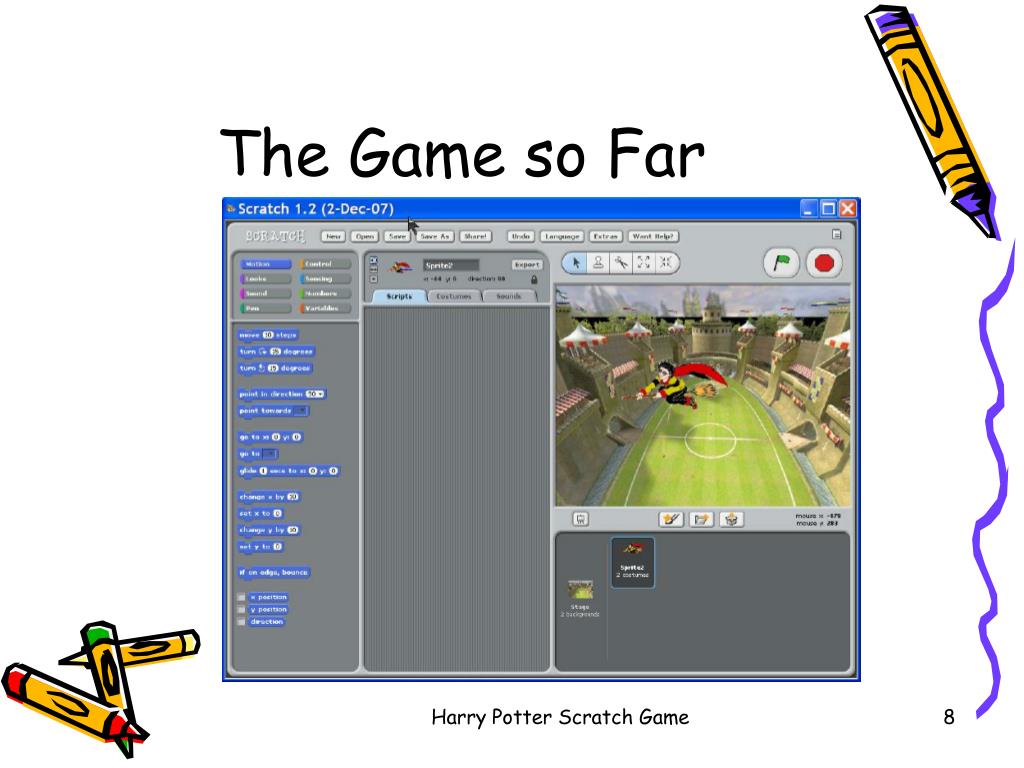

The Game so Far

Harry Potter Scratch Game

scratch is event driven

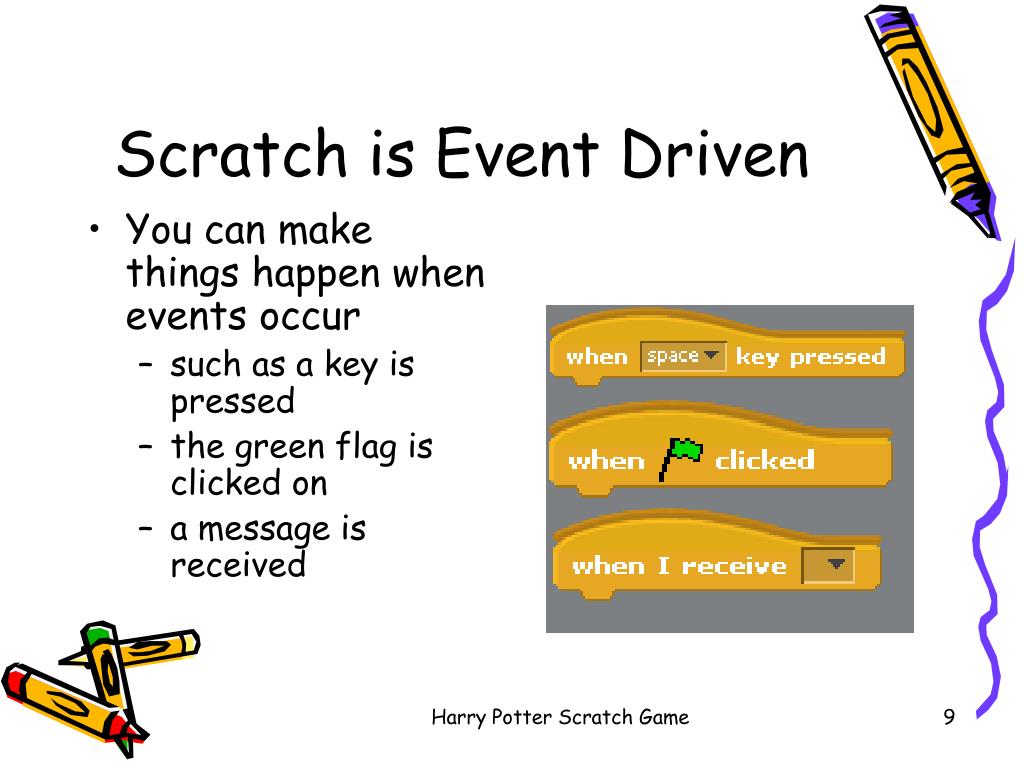

Scratch is Event Driven
  • You can make things happen when events occur
    • such as a key is pressed
    • the green flag is clicked on
    • a message is received

Harry Potter Scratch Game

making harry move

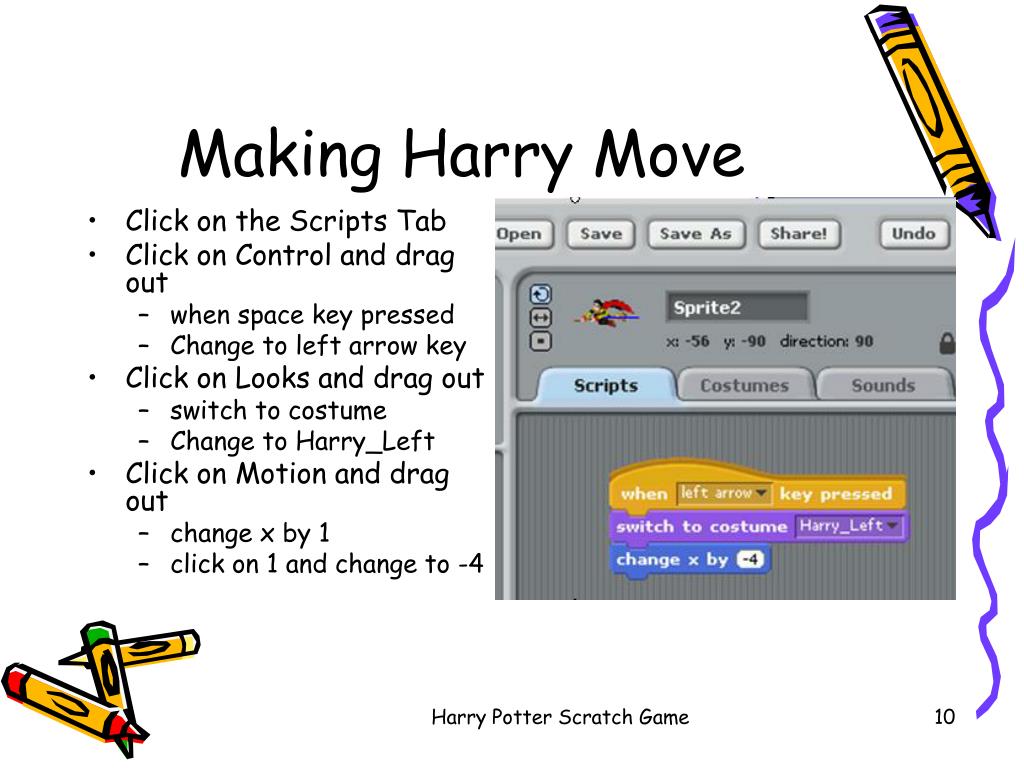

Making Harry Move
  • Click on the Scripts Tab
  • Click on Control and drag out
    • when space key pressed
    • Change to left arrow key
  • Click on Looks and drag out
    • switch to costume
    • Change to Harry_Left
  • Click on Motion and drag out
    • change x by 1
    • click on 1 and change to -4

Harry Potter Scratch Game

the scratch stage

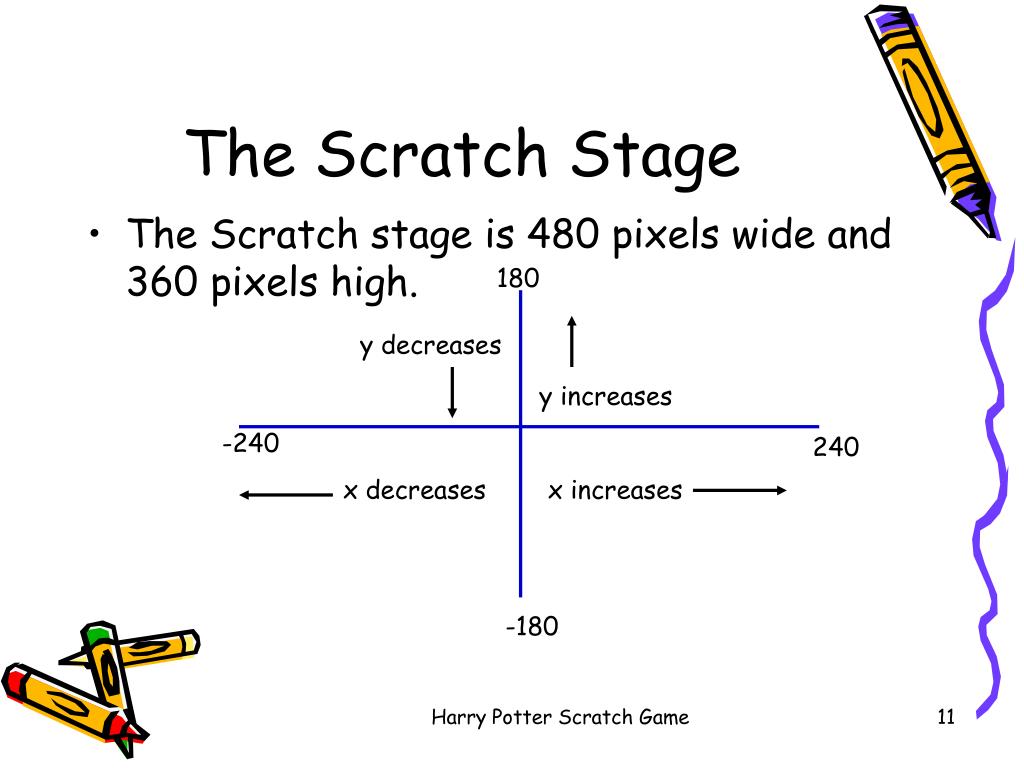

The Scratch Stage
  • The Scratch stage is 480 pixels wide and 360 pixels high.

180

y decreases

y increases

-240

240

x decreases

x increases

-180

Harry Potter Scratch Game

add other key scripts

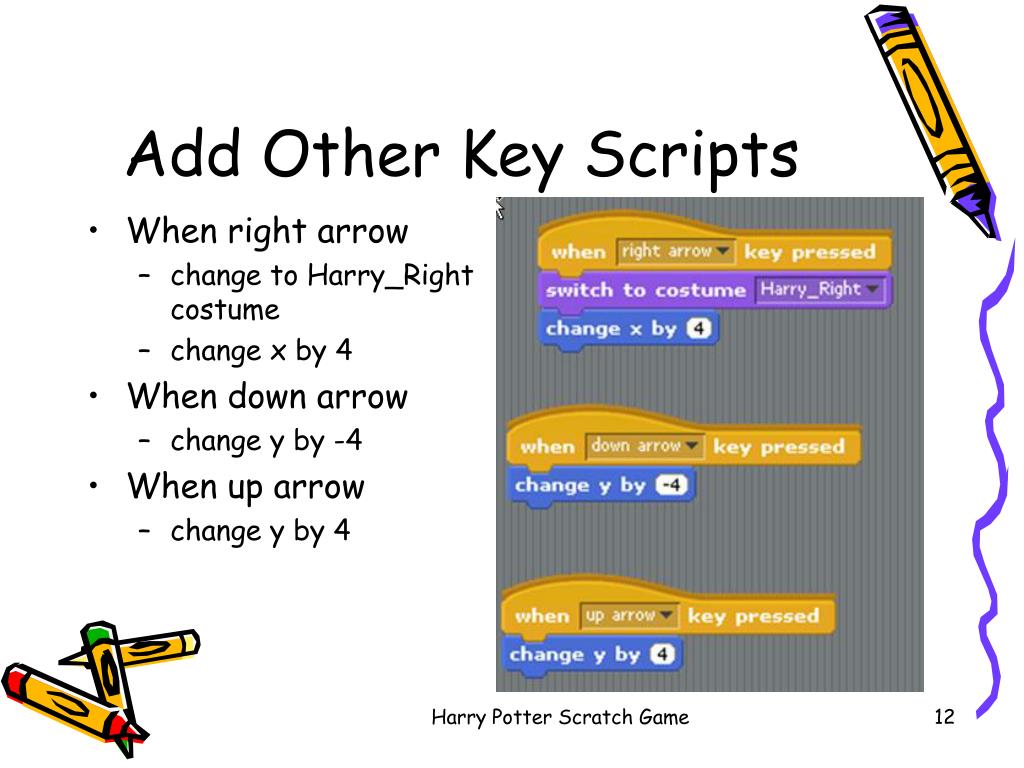

Add Other Key Scripts
  • When right arrow
    • change to Harry_Right costume
    • change x by 4
  • When down arrow
    • change y by -4
  • When up arrow
    • change y by 4

Harry Potter Scratch Game

add the golden snitch

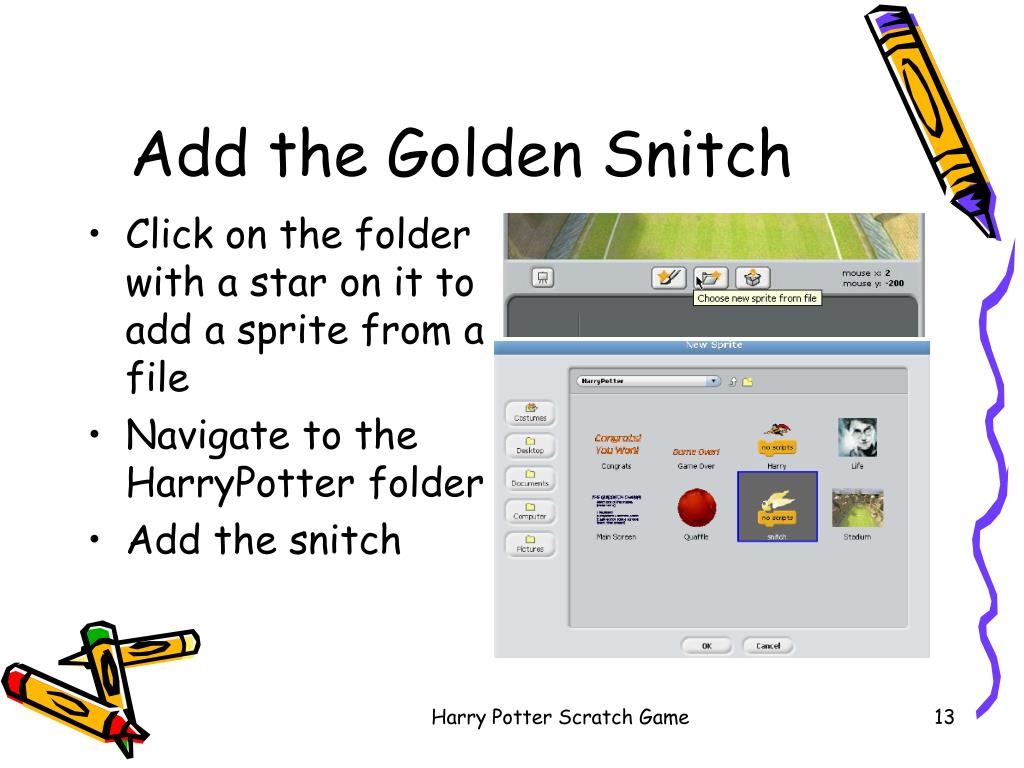

Add the Golden Snitch
  • Click on the folder with a star on it to add a sprite from a file
  • Navigate to the HarryPotter folder
  • Add the snitch

Harry Potter Scratch Game

harry and the snitch

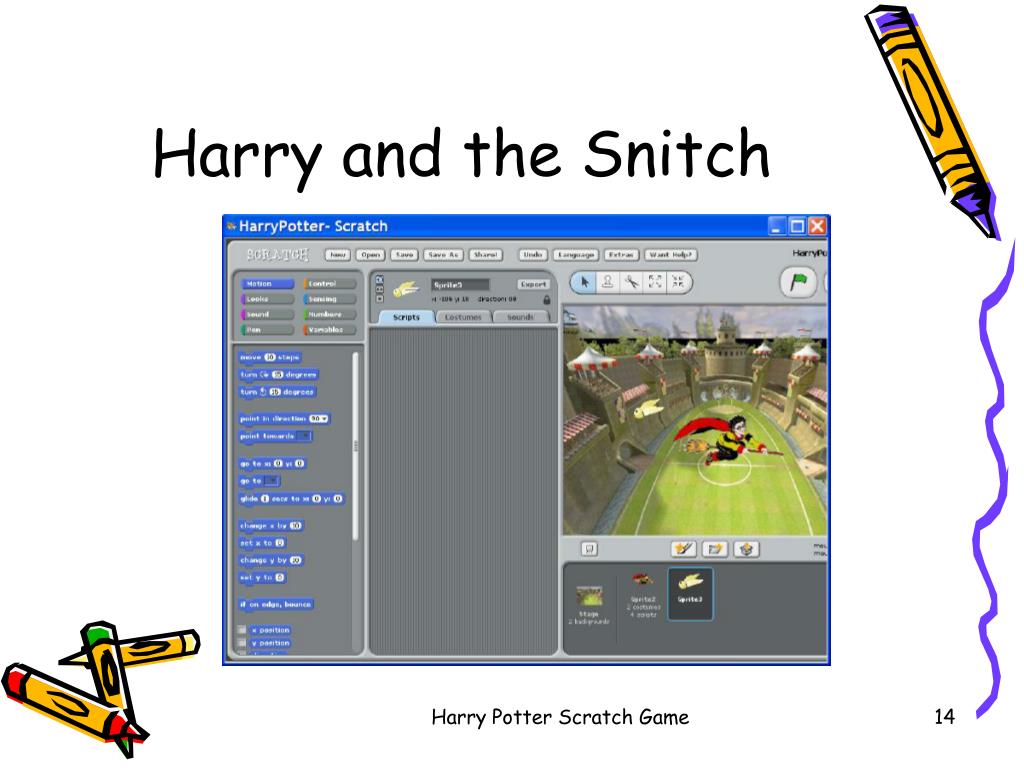

Harry and the Snitch

Harry Potter Scratch Game

snitch behavior

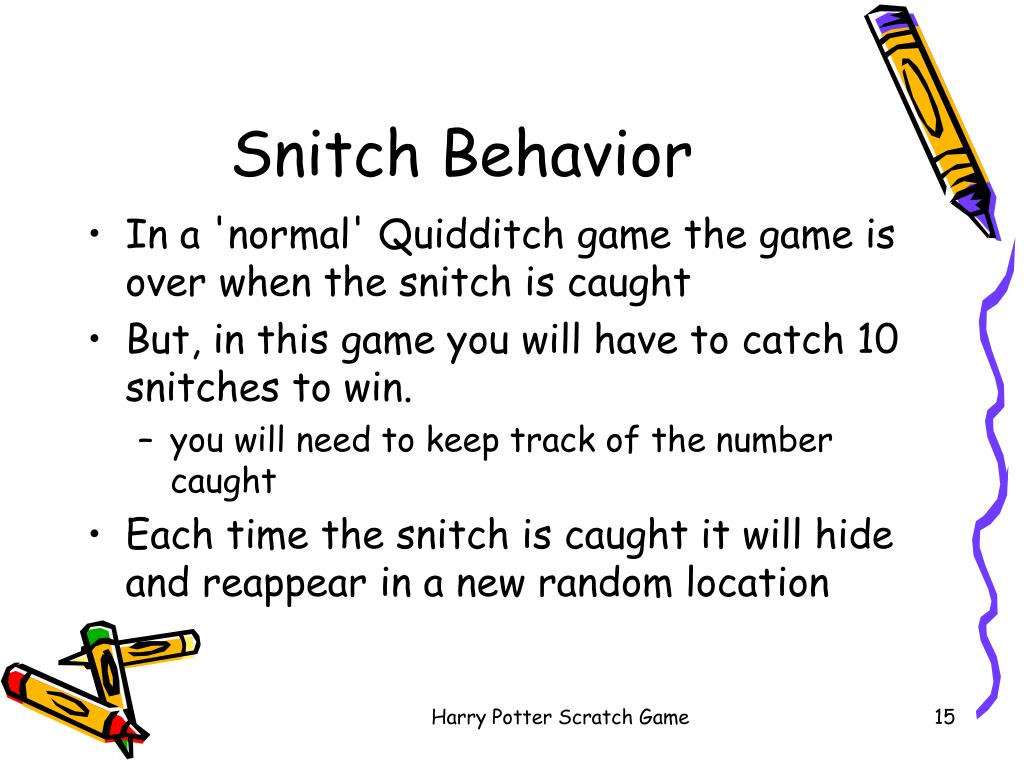

Snitch Behavior
  • In a 'normal' Quidditch game the game is over when the snitch is caught
  • But, in this game you will have to catch 10 snitches to win.
    • you will need to keep track of the number caught
  • Each time the snitch is caught it will hide and reappear in a new random location

Harry Potter Scratch Game

variables

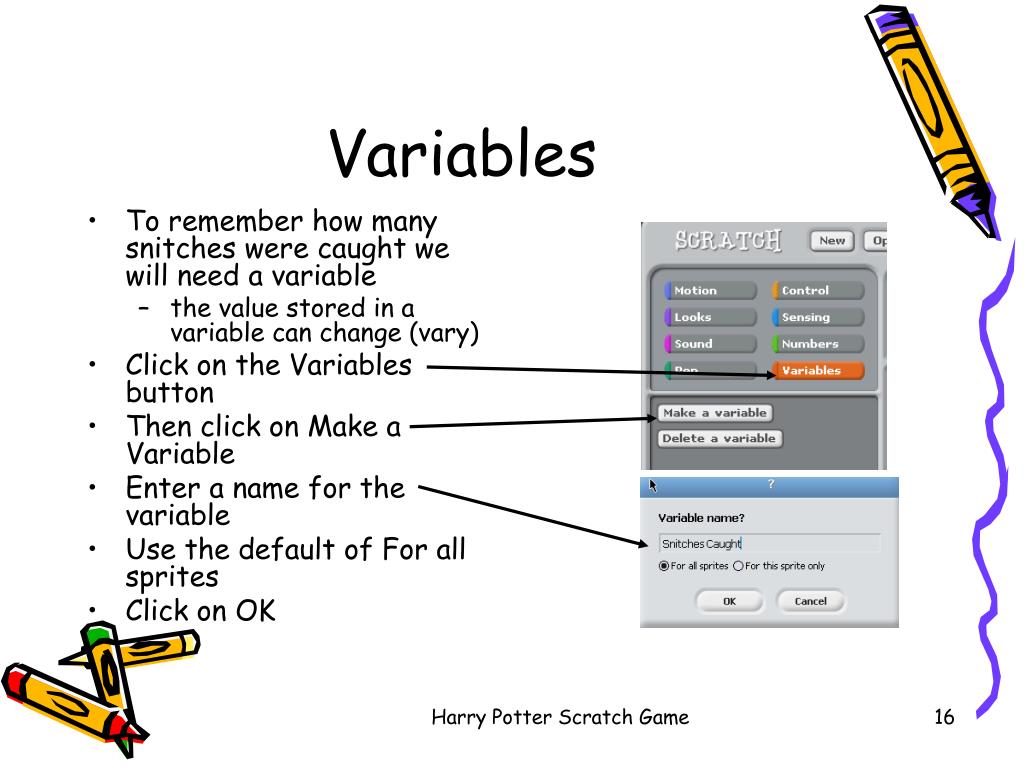

Variables
  • To remember how many snitches were caught we will need a variable
    • the value stored in a variable can change (vary)
  • Click on the Variables button
  • Then click on Make a Variable
  • Enter a name for the variable
  • Use the default of For all sprites
  • Click on OK

Harry Potter Scratch Game

starting

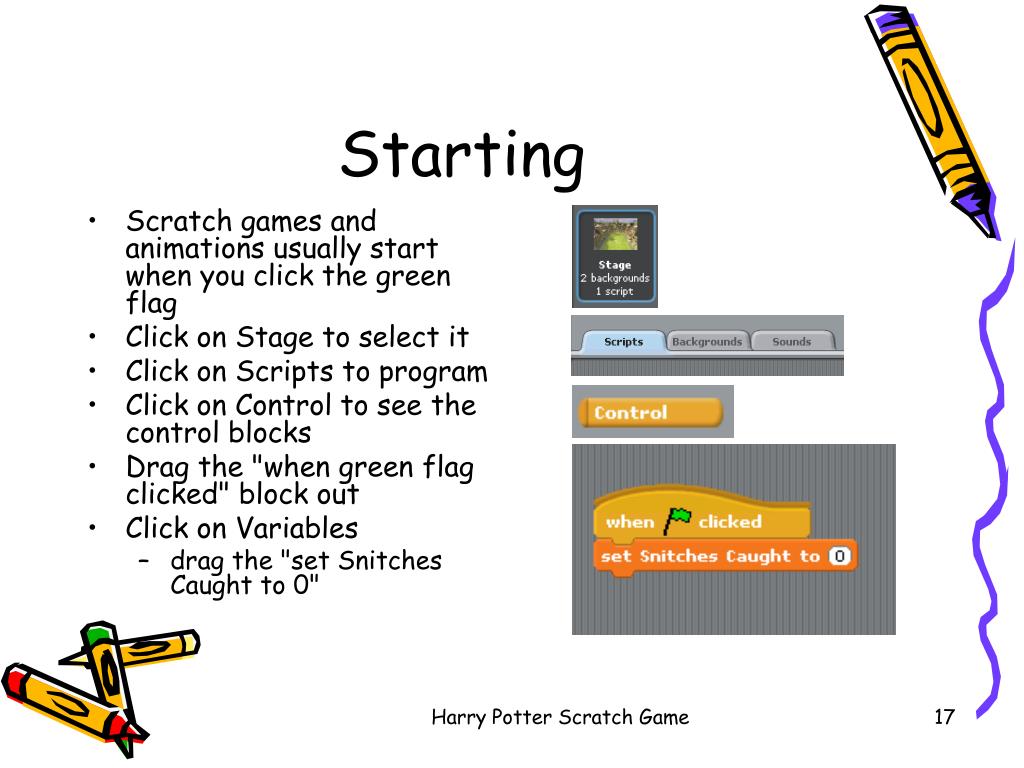

Starting
  • Scratch games and animations usually start when you click the green flag
  • Click on Stage to select it
  • Click on Scripts to program
  • Click on Control to see the control blocks
  • Drag the "when green flag clicked" block out
  • Click on Variables
    • drag the "set Snitches Caught to 0"

Harry Potter Scratch Game

messages

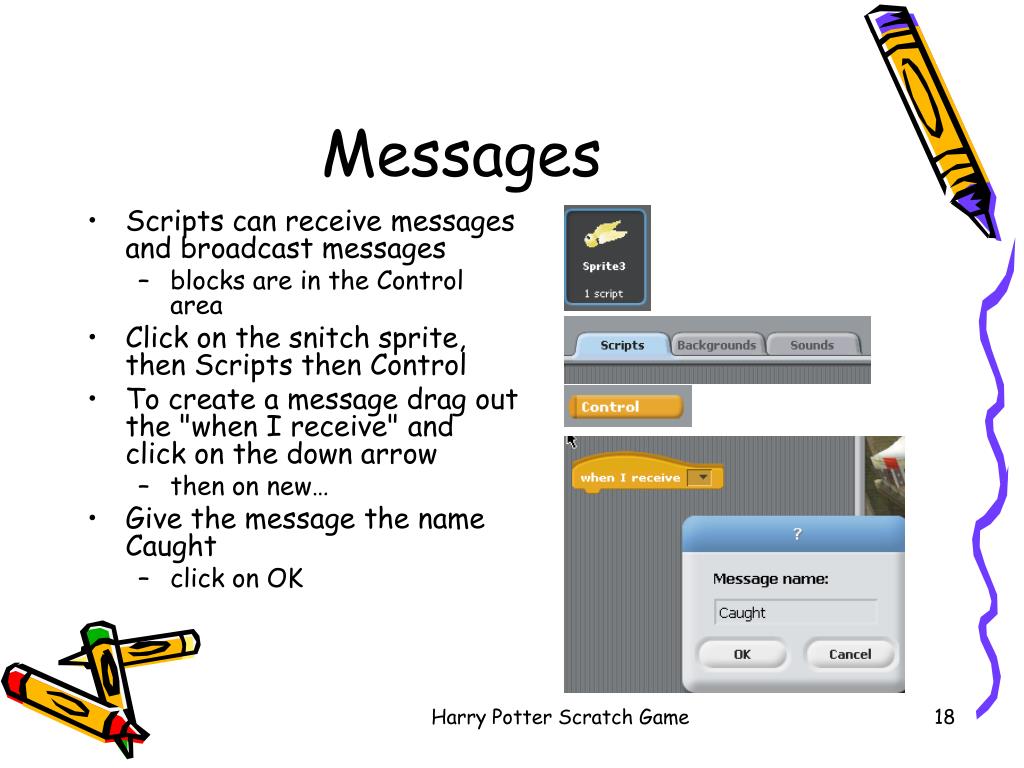

Messages
  • Scripts can receive messages and broadcast messages
    • blocks are in the Control area
  • Click on the snitch sprite, then Scripts then Control
  • To create a message drag out the "when I receive" and click on the down arrow
    • then on new…
  • Give the message the name Caught
    • click on OK

Harry Potter Scratch Game

more about messages

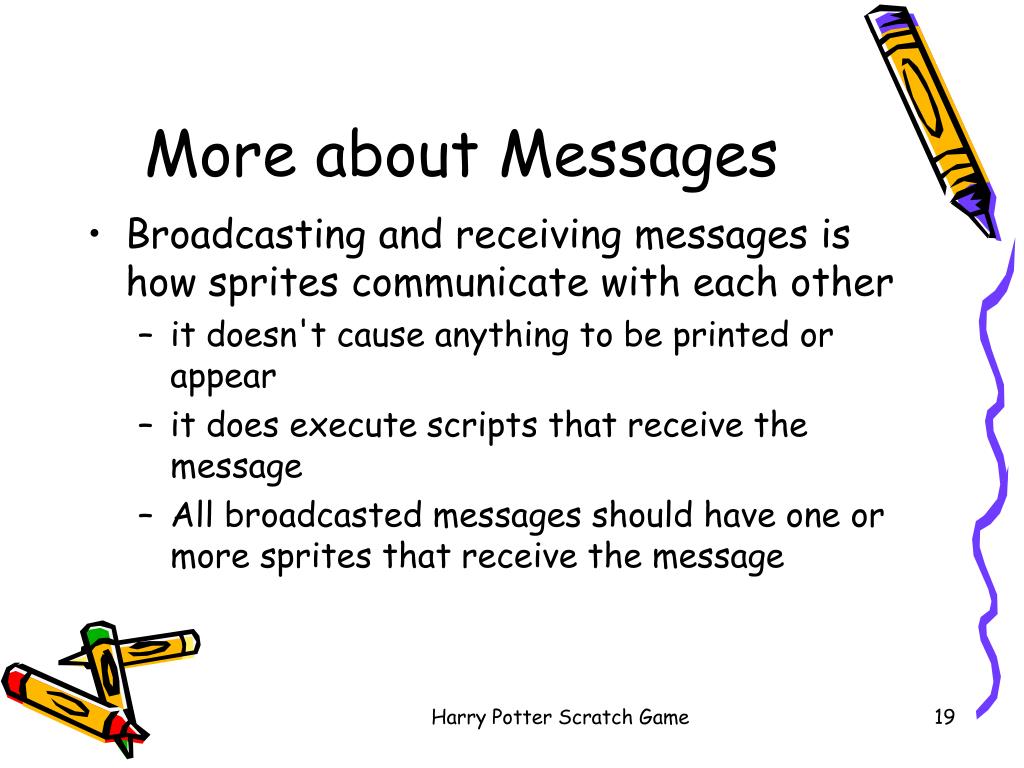

More about Messages
  • Broadcasting and receiving messages is how sprites communicate with each other
    • it doesn't cause anything to be printed or appear
    • it does execute scripts that receive the message
    • All broadcasted messages should have one or more sprites that receive the message

Harry Potter Scratch Game

responding to caught

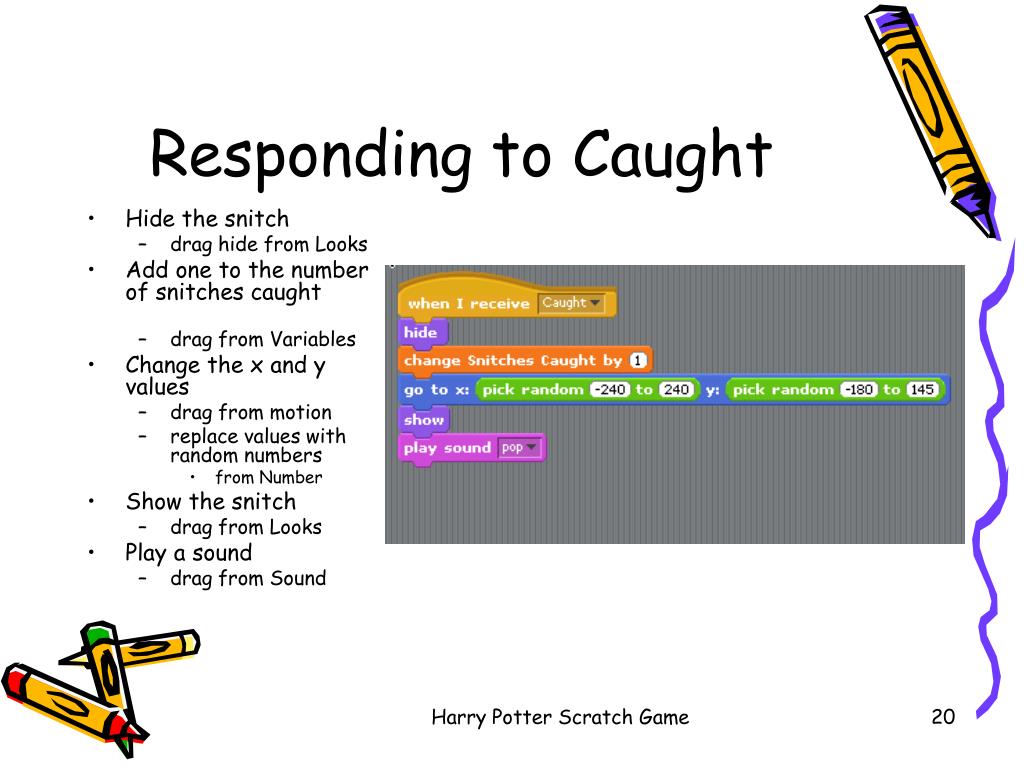

Responding to Caught
  • Hide the snitch
    • drag hide from Looks
  • Add one to the number of snitches caught
    • drag from Variables
  • Change the x and y values
    • drag from motion
    • replace values with random numbers
      • from Number
  • Show the snitch
    • drag from Looks
  • Play a sound
    • drag from Sound

Harry Potter Scratch Game

conditional execution
Conditional Execution
  • Sometimes we want to execute a block or several blocks if some condition is true
    • use sensing blocks or number blocks that return true or false
    • these have 6 sides (hexagon)
  • The snitch is captured if Harry is touching it
  • Use an if from Control to check if Harry is touching the snitch sprite

Harry Potter Scratch Game

catching the snitch

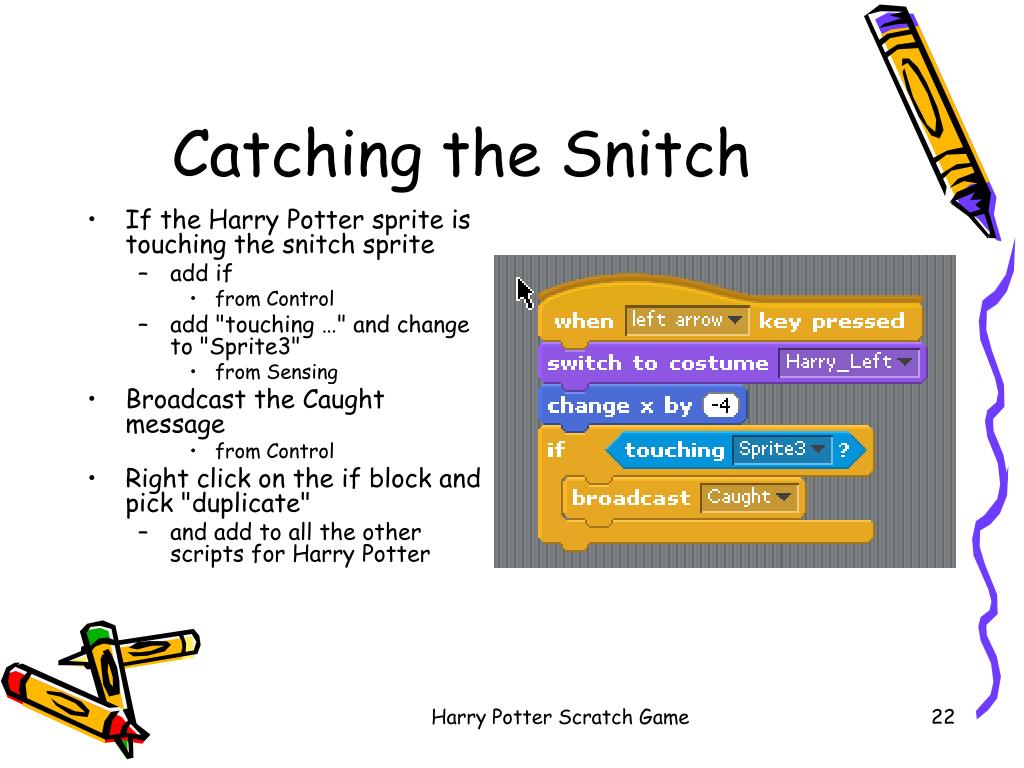

Catching the Snitch
  • If the Harry Potter sprite is touching the snitch sprite
    • add if
      • from Control
    • add "touching …" and change to "Sprite3"
      • from Sensing
  • Broadcast the Caught message
      • from Control
  • Right click on the if block and pick "duplicate"
    • and add to all the other scripts for Harry Potter

Harry Potter Scratch Game

catching the snitch1

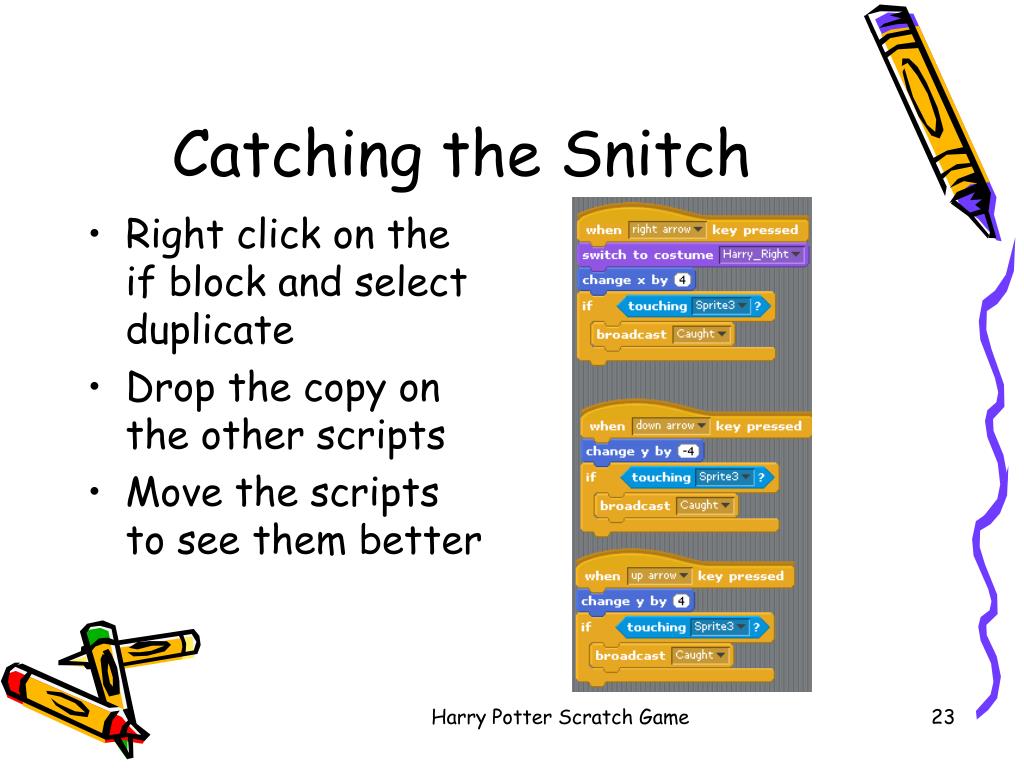

Catching the Snitch
  • Right click on the if block and select duplicate
  • Drop the copy on the other scripts
  • Move the scripts to see them better

Harry Potter Scratch Game

more on conditionals

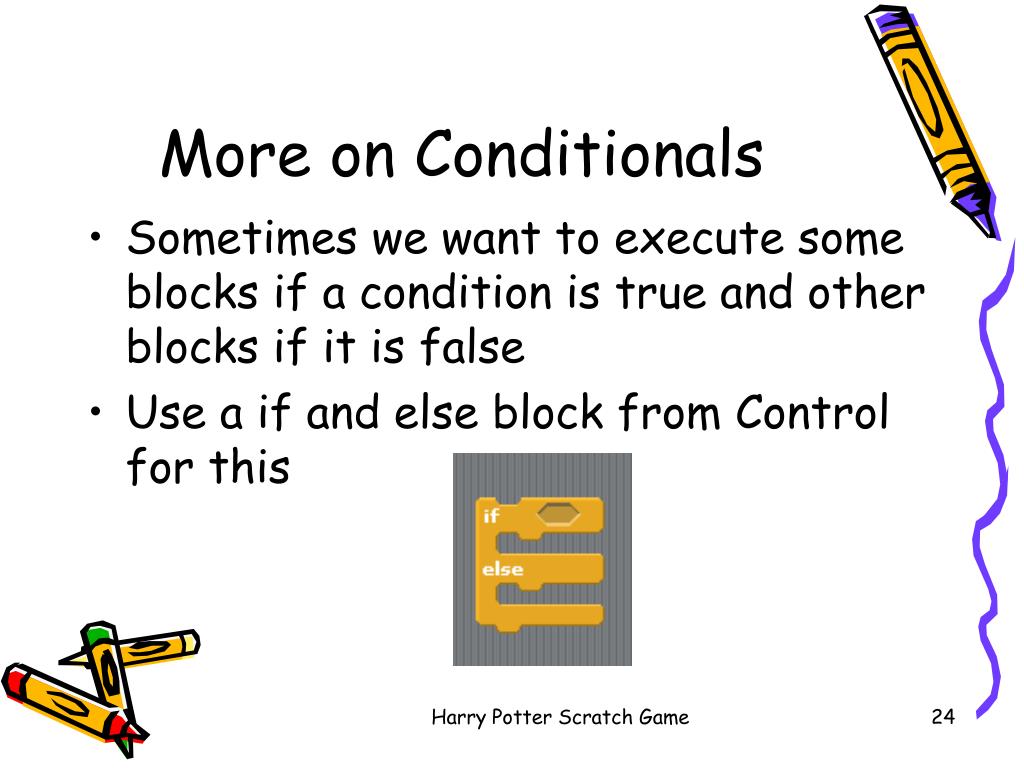

More on Conditionals
  • Sometimes we want to execute some blocks if a condition is true and other blocks if it is false
  • Use a if and else block from Control for this

Harry Potter Scratch Game

winning the game
Winning the Game
  • In the snitch script that receives the caught message
    • drag in a if and else
      • from Control
    • place it after the change Snitches Caught by 1
    • move the last 3 tiles into the else part
      • if you have won these don't need to execute

Harry Potter Scratch Game

winning the game1
Winning the Game
  • drag in a "blank = blank"
    • from Number
  • drag in "Snitches Caught" to the first blank area
    • from Variables
  • click on second blank area and type in 10
  • drag in a broadcast block
    • Create new message "Won"

Harry Potter Scratch Game

telling the user
Telling the User
  • Click on Stage
  • Click on Backgrounds
  • Click on Import
  • Navigate to HarryPotter folder
  • Select Congrats
    • click on OK

Harry Potter Scratch Game

stage scripts

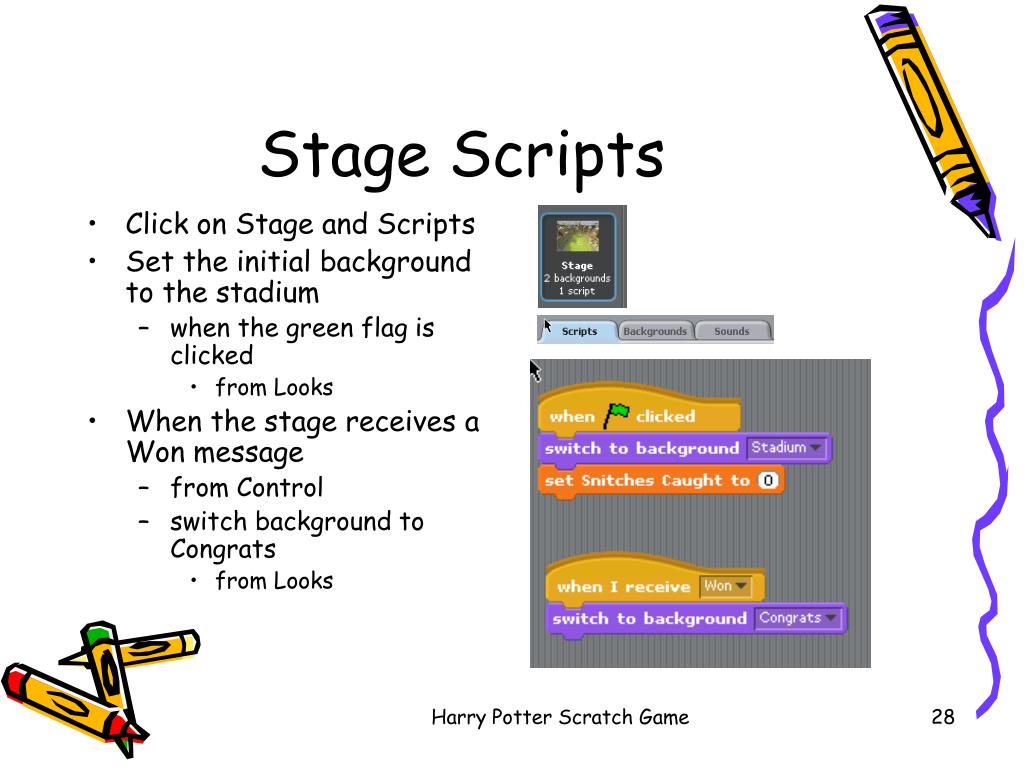

Stage Scripts
  • Click on Stage and Scripts
  • Set the initial background to the stadium
    • when the green flag is clicked
      • from Looks
  • When the stage receives a Won message
    • from Control
    • switch background to Congrats
      • from Looks

Harry Potter Scratch Game

hide other sprites
Hide Other Sprites
  • If the user has won
    • hide the other sprites
      • Harry Potter
      • Snitch
    • You can click on the "when I receive Won"
      • and drag it to the snitch sprite to copy it
      • then click on the snitch sprite and scripts to check the copy worked

Harry Potter Scratch Game

when game starts
When Game Starts
  • If the user wins and Harry and the Snitch hide when you restart the game
    • they won't show again if you start a new game
  • Add "when green flag clicked" show to:
    • Harry
    • Golden Snitch

Harry Potter Scratch Game

making it harder

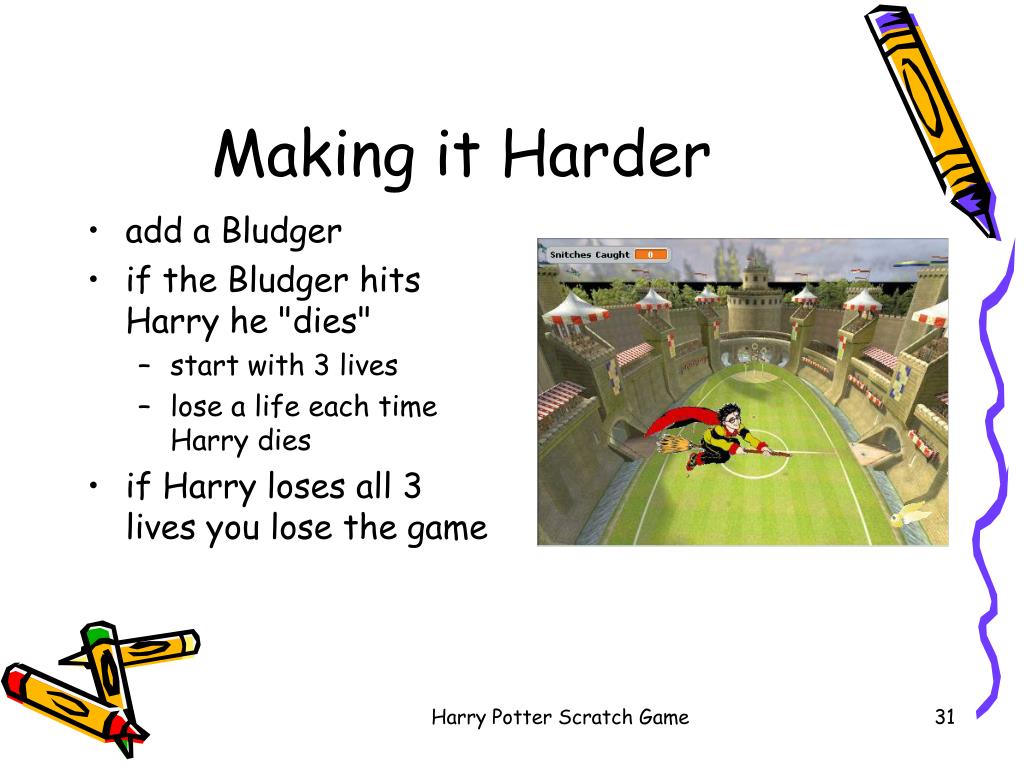

Making it Harder
  • add a Bludger
  • if the Bludger hits Harry he "dies"
    • start with 3 lives
    • lose a life each time Harry dies
  • if Harry loses all 3 lives you lose the game

Harry Potter Scratch Game

add lives variable

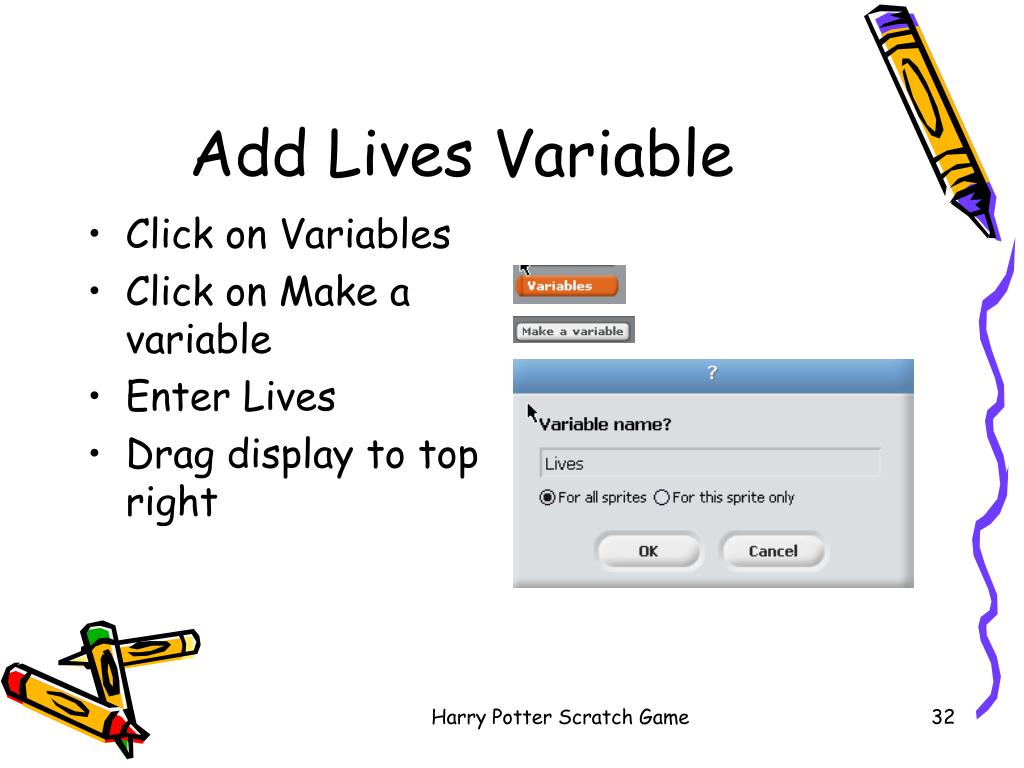

Add Lives Variable
  • Click on Variables
  • Click on Make a variable
  • Enter Lives
  • Drag display to top right

Harry Potter Scratch Game

start with 3 lives

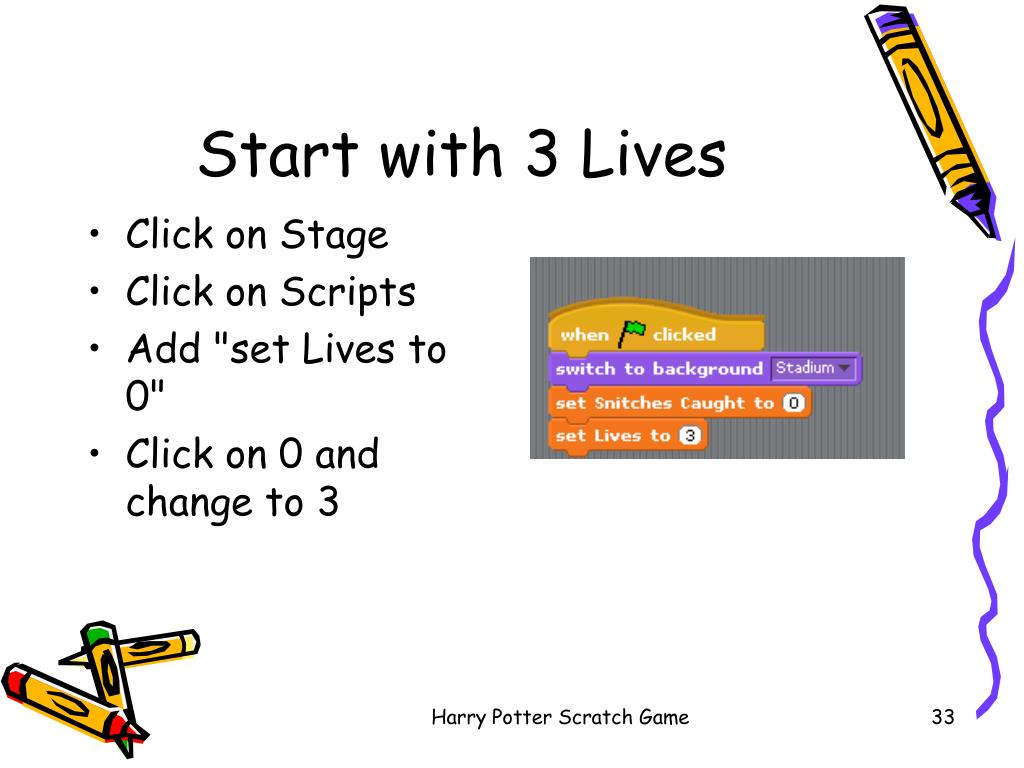

Start with 3 Lives
  • Click on Stage
  • Click on Scripts
  • Add "set Lives to 0"
  • Click on 0 and change to 3

Harry Potter Scratch Game

painting a bludger
Painting a Bludger
  • You can paint a new sprite
    • click on the paintbrush with a star on it
  • Click the color
  • Click the circle shape tool
  • Click and drag to make the circle
  • Click on OK

Harry Potter Scratch Game

loops
Loops
  • Sometimes you want to repeat blocks until the game ends or something happens
  • Use a forever block to repeat actions until the game ends
    • use a stop all block to stop all scripts
  • Use a repeat block to repeat some actions a given number of times

Harry Potter Scratch Game

bludger scripts
Bludger Scripts
  • When the green flag is clicked loop forever
    • set x to 260
    • hide the bludger
    • wait for some random amount of time between 3 and 5 seconds
    • show the bludger
    • Glide to the opposite side
      • x is -260
      • random y from -145 to 145

Harry Potter Scratch Game

bludger scripts1
Bludger Scripts
  • When the green flag is clicked, loop forever
    • check if touching Harry
      • play a sound
      • reduce the number of lives
      • check if lost
        • lives = 0
      • wait till not touching Harry
        • or you will die quickly

Harry Potter Scratch Game

tell user game over

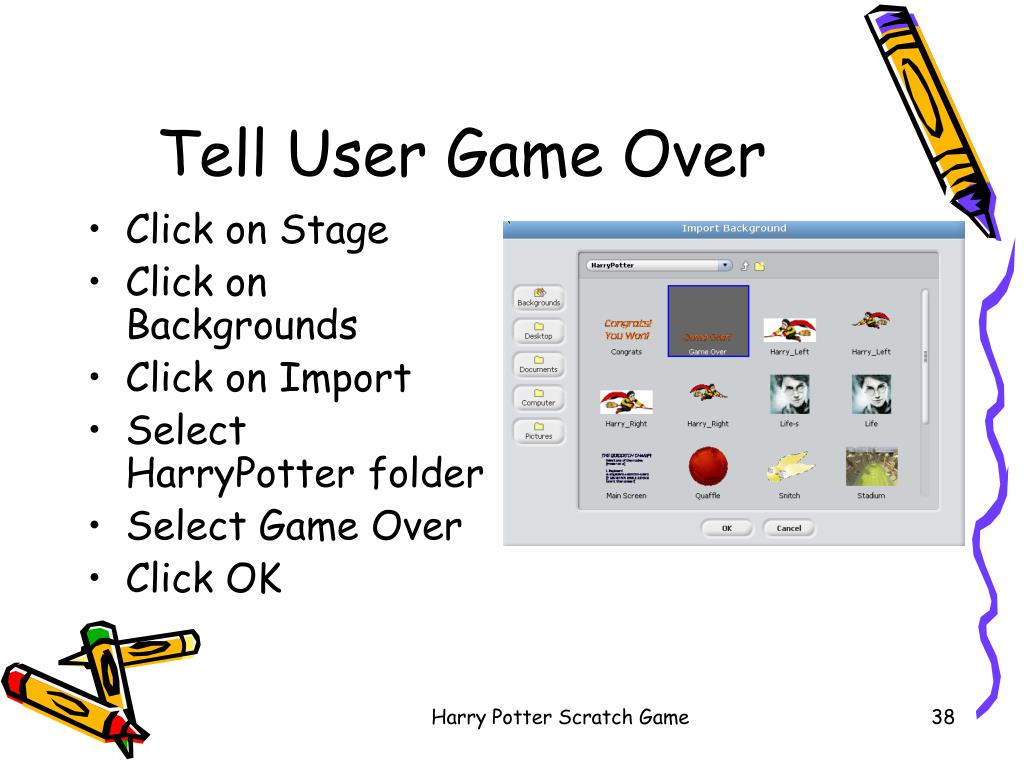

Tell User Game Over
  • Click on Stage
  • Click on Backgrounds
  • Click on Import
  • Select HarryPotter folder
  • Select Game Over
  • Click OK

Harry Potter Scratch Game

new stage script

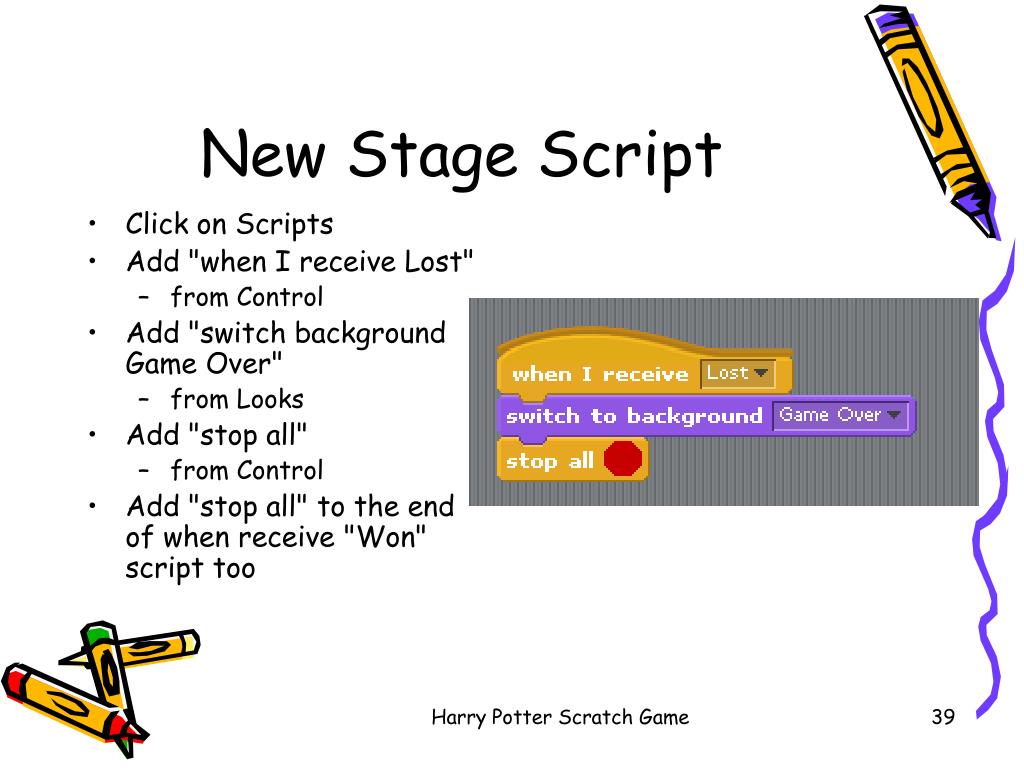

New Stage Script
  • Click on Scripts
  • Add "when I receive Lost"
    • from Control
  • Add "switch background Game Over"
    • from Looks
  • Add "stop all"
    • from Control
  • Add "stop all" to the end of when receive "Won" script too

Harry Potter Scratch Game

hide sprites when lose
Hide Sprites When Lose
  • When the game is lost
    • hide Harry
    • hide the Snitch

Harry Potter Scratch Game

project notes

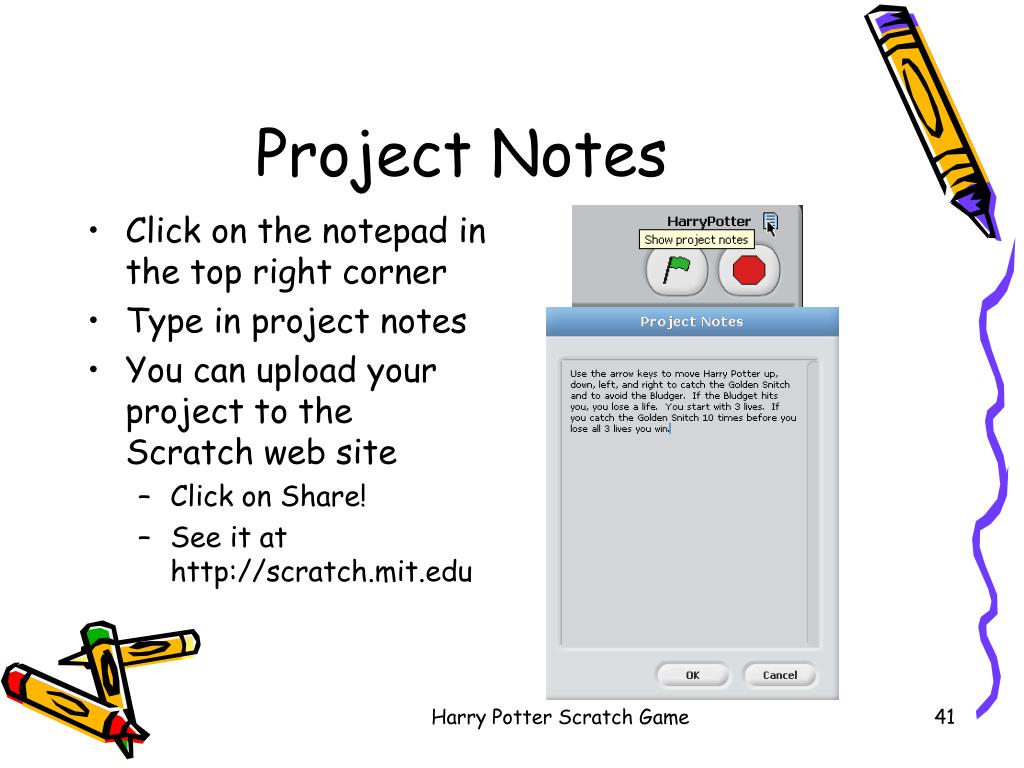

Project Notes
  • Click on the notepad in the top right corner
  • Type in project notes
  • You can upload your project to the Scratch web site
    • Click on Share!
    • See it at http://scratch.mit.edu

Harry Potter Scratch Game

extensions

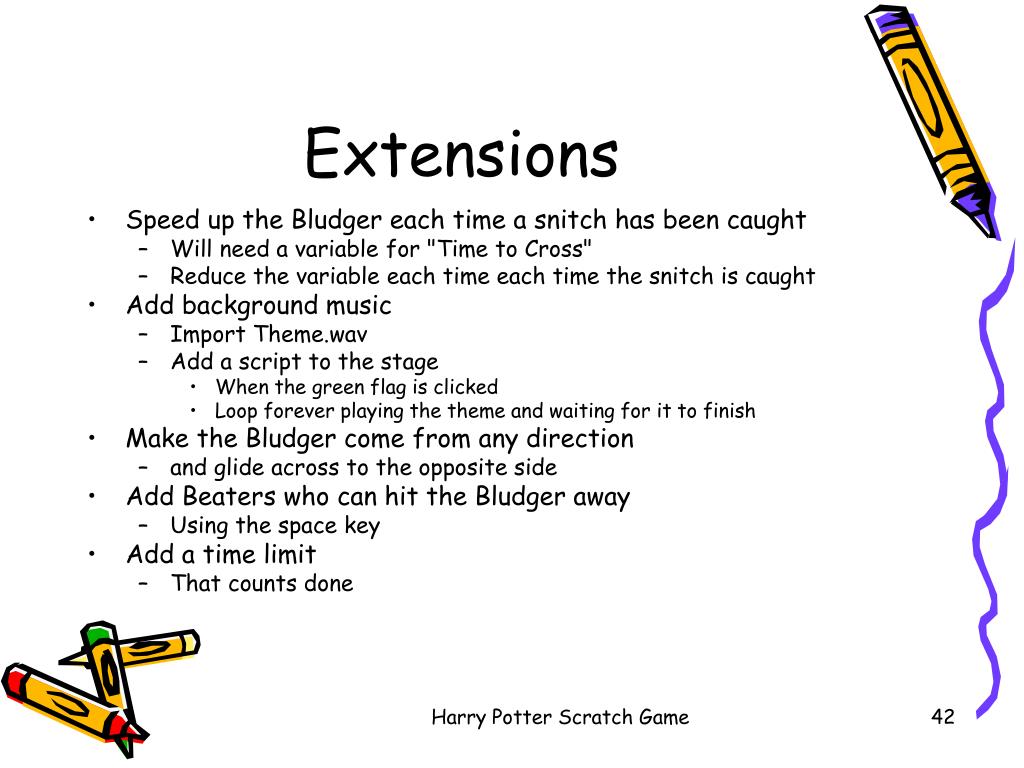

Extensions
  • Speed up the Bludger each time a snitch has been caught
    • Will need a variable for "Time to Cross"
    • Reduce the variable each time each time the snitch is caught
  • Add background music
    • Import Theme.wav
    • Add a script to the stage
      • When the green flag is clicked
      • Loop forever playing the theme and waiting for it to finish
  • Make the Bludger come from any direction
    • and glide across to the opposite side
  • Add Beaters who can hit the Bludger away
    • Using the space key
  • Add a time limit
    • That counts done
