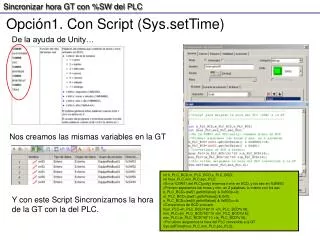

  1. Opción1. Con Script (Sys.setTime) De la ayuda de Unity… Nos creamos las mismas variables en la GT int h_PLC_BCD,m_PLC_BCD,s_PLC_BCD; int hour_PLC,min_PLC,sec_PLC; //En la %SW51 del PLC(unity) tenemos h:min en BCD, y los sec en %SW50 //Primero separamos las horas y min. en 2 palabras, lo mismo con los sec h_PLC_BCD=(sw51.getIntValue() & 0xff00)>>8; m_PLC_BCD=(sw51.getIntValue() & 0xff); s_PLC_BCD=(sw50.getIntValue() & 0xff00)>>8; //Convertimos de BCD a binario hour_PLC=(h_PLC_BCD/16)*10 +(h_PLC_BCD%16); min_PLC=(m_PLC_BCD/16)*10 +(m_PLC_BCD%16); sec_PLC=(s_PLC_BCD/16)*10 +(s_PLC_BCD%16); //Por ultimo asignamos la hora del PLC convertida a la GT Sys.setTime(hour_PLC,min_PLC,sec_PLC); Y con este Script Sincronizamos la hora de la GT con la del PLC.

  2. Opción2. Con la Tabla de Diálogo, Función 33. Con la Tabla de Dialogo sincroniza y sin Script, simplemente con Acciones.
