  1. IHE Cardiology • Domain Overview Harry Solomon 27-July-2010

  2. Agenda • Domain Update • Overview of existing profiles • New profiles

  3. Domain Update • Cardiology domain was established in 2004 • Successful profile development during years 1-4: • Cath, Echo and Stress Workflows • Retrieval and display of ECGs • Storage and exchange of evidence documents • Displayable reports • 2008 domain became dormant due to lack of funding • 2009 domain was re-established with new funding through ACC, ASE, ASNC, HRS

  4. Echo Workflow • Addresses ordering, scheduling, scheduling, storage and review of echo exams including: • TTE, TEE, Stress exams • Specifically deals with intermittently connected modality • Handling of compressed images

  5. Cath Workflow • Deals with complex cardiac catheterization Workflow: • Unordered /emergency exams • Coordination of imaging, reporting and hemodynamic data • Support for multi-modality workflow coordination • Coordination of diagnostic imaging and interventional procedure information

  6. Stress Testing Workflow • Provides ordering and collecting multi-modality (ECG and imaging) data during diagnostic cardiac stress testing procedures • Manages ECG and imaging workflow in an integrated manner • Both echo and NM imaging • Adherence to ACC/ASNC NM display requirements

  7. Access to ECGs from everywhere in the hospital: Resting ECGs, Holter ECGs Simplified and standardized access to ECGs and viewing process No need for ‘printed ECGs’ Retrieve ECG for Display

  8. Evidence Documents • The IHE Radiology Evidence Documents Profile defines the storage, exchange, archive and display of clinical findings such as measurements, observations, and results created by acquisition modalities or workstations. • IHE Cardiology adds named options for each class of cardiac imaging evidence, with some specific content and display requirements. • Cath • Echo • Stress • CTA/MRA

  9. New Developments • Displayable Reports profile (major update) • Distributes “display ready” PDF/CDA clinical reports from the reporting app, to the department, to the enterprise. • 2009-10 update includes CDA format reports, better alignment with HL7 conventions and orders process, clarification of actors for legacy systems • Applicable to other domains • Image Enabled Office • Address integration of imaging suite into an office EMR environment, to support expected meaningful use criteria for imaging in 2015 • Applicable to other domains • Resting ECG Workflow • Similar to Scheduled Workflow to address ordering of a resting ECG (“12 lead“) test, performing the test, reporting and storage of the ECG data in a standardized format

  10. More Information http://www.ihe.net/Events/webinars2010.cfm IHE Webinar series 2010 http://www.ihe.net/Technical_Framework/index.cfm IHE Technical Frameworks and Supplements New Trial Implementation versions to be released ~ Aug 1 http://wiki.ihe.net/index.php?title=Cardiology Information on IHE Cardiology development activities

  11. Displayable Reports (DRPT) Profile Overview Harry Solomon 27-July-2010

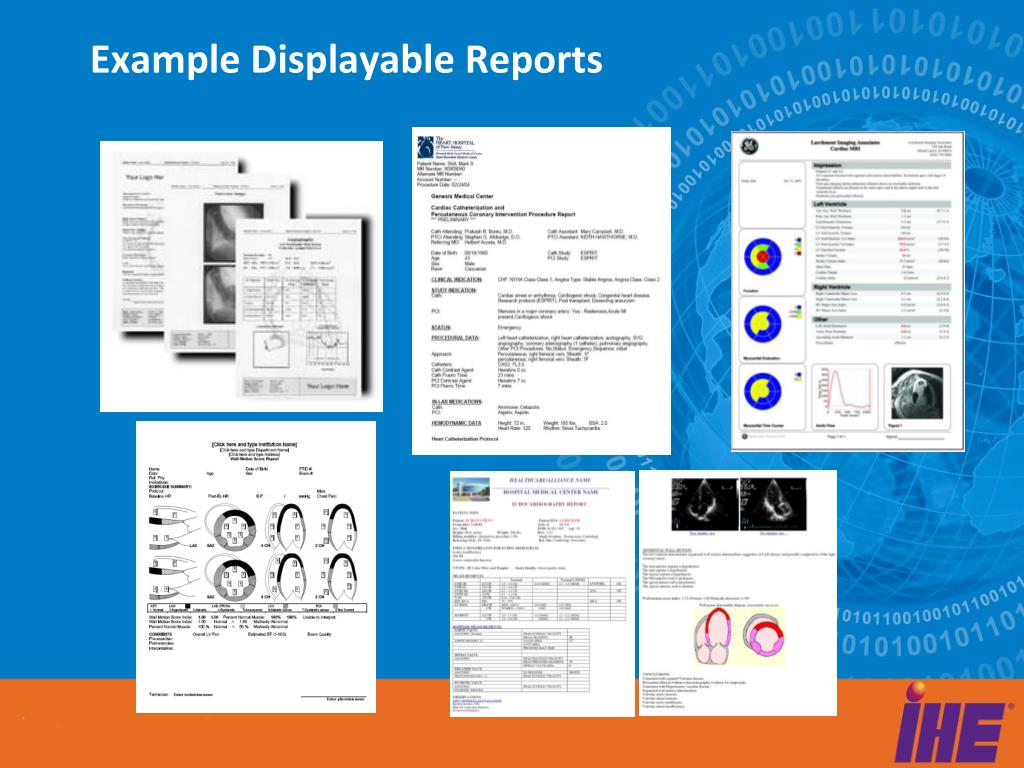

  12. Example Displayable Reports

  13. The Problem • Most existing reporting applications operate with paper paradigm • Print / Scribble (signature) / Fax • “Advanced” report management has some electronic capabilities • Free-text blob • Storage / database • Electronic signature • Specialty reporting apps need to go beyond the blob • Inconsistent requirements for how to do this

  14. Displayable Reports Profile Abstract / Scope • Workflow for creation, signature/release, and distribution • Management of PDF and CDA formatted clinical reports • Both may embed graphics • Report repository/archive • Archive at one level (nominally the department) required • May leverage PACS • Additional archive at second level (enterprise) supported • Web access to repository/registry • Supports additional integration use cases

  15. DRPT Actor / Transaction Diagram Report Creator Encapsulated Report Submission [CARD-7] ¯ Integrated Report Manager/Repository Procedure Scheduled [RAD-4] Patient Update [RAD-12] Procedure Update [RAD-13] Enterprise Report Repository ® Encapsulated Report Submission [CARD-7] Report Manager  ® Report Reference Submission [CARD-8] Report Reference Submission [CARD-8] DSS/ Order Filler Patient Update [RAD-12] ® Encapsulated Report Storage [CARD-9] ¯ Storage Commitment [RAD-10] ¯ Information Source Report Repository Display ­ Encapsulated Report Query [CARD-10] Encapsulated Report Retrieve [CARD-11] ­ Report Reader

  16. Report Manager System Requirements • Manage reporting cycle and clinical report repository • HL7v2 inputs (ADT, ORM) for current patients/procedures • HL7v2 input (MDM with encapsulated PDF or CDA) for new reports • HL7v2 output to Enterprise Repository for signed reports • MDM with encapsulated document or with reference pointer • Web server interface to clinical report repository (IHE RID) • Optional storage of report copy in DICOM object • Encapsulated PDF or CDA • Claim conformance as separate “Report Manager” and “Report Repository”

  17. HL7 MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… HL7 HL7 MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|RP|11528-7^LN… http://serv.hosp.org/app?requestType=DOCUMENT&documentUID=”1.2.3”&preferredContentType=”application/pdf” MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… HTTP DICOM (0008,0005) IR_100 (0008,0012) 20061113 (0008,0013) 1109 (0008,0016) 1.2.8401008.… DRPT Diagram – Separate Report Manager and Report Repository Report Creator Encapsulated Report Submission [CARD-7] ¯ Procedure Scheduled [RAD-4] Patient Update [RAD-12] Procedure Update [RAD-13] Enterprise Report Repository ® Encapsulated Report Submission [CARD-7] Report Manager  ® Report Reference Submission [CARD-8] Report Reference Submission [CARD-8] DSS/ Order Filler Patient Update [RAD-12] ® Encapsulated Report Storage [CARD-9] ¯ Storage Commitment [RAD-10] ¯ Information Source Report Repository Display ­ Encapsulated Report Query [CARD-10] Encapsulated Report Retrieve [CARD-11] ­ Report Reader

  18. HL7 MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… HL7 HL7 MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|RP|11528-7^LN… http://serv.hosp.org/app?requestType=DOCUMENT&documentUID=”1.2.3”&preferredContentType=”application/pdf” MSH|^~\$|… PID|1|0123456‑1||R… OBR|1|X89‑1501^… OBX|1|ED|11528-7^LN… HTTP DRPT Diagram – Integrated Report Manager / Repository Report Creator Encapsulated Report Submission [CARD-7] ¯ Procedure Scheduled [RAD-4] Patient Update [RAD-12] Procedure Update [RAD-13] Integrated Report Manager/ Repository Enterprise Report Repository ® Encapsulated Report Submission [CARD-7] Report Manager  ® Report Reference Submission [CARD-8] Report Reference Submission [CARD-8] DSS/ Order Filler Information Source Report Repository Display

  19. Enterprise Report Repository Requirements • Receive signed reports from department, and make them available to the enterprise and beyond • HL7v2 input for signed reports from Report Manager • MDM with encapsulated document or with reference pointer • At discretion of Enterprise Report Repository (Report Manager configuration time) • If reference pointer option used, Enterprise Report Repository or its clients can use Web interface to obtain document from departmental report repository (IHE RID) • Allows distributed enterprise storage architecture

  20. New Transactions • Encapsulated Report Submission [CARD-7] • HL7 MDM^T02 (new) and MDM^T10 (update) • OBX segments (2) with Study Unique ID and with encapsulated report • Report must be PDF or CDA • Additional OBX segments allowed to convey critical observations • Sent from Report Creator to Report Manager, and from Report Manager to Enterprise Repository • Report Reference Submission [CARD-8] • HL7 MDM^T01 (new) and MDM^T09 (update) • Identical to CARD-7 but with reference pointer rather than encapsulated report • Reference pointer is RID Retrieve Document for Display [ITI-12] URL • Sent from Report Manager to Enterprise Repository and to DSS/OF

  21. New Transactions • Encapsulated Report Storage [CARD-9] • DICOM Encapsulated PDF or Encapsulated CDA • Encapsulated Report Query [CARD-10] • DICOM query keys specified for encapsulated document objects

  22. Image enabled Office (IEO) Profile Overview Harry Solomon 27-July-2010

  23. Image Enabled Office Problem Statement • Increasing number of clinical offices with both imaging equipment and electronic medical records • Lower cost imaging systems (e.g., portable ultrasound) • Deployment and meaningful use of EMRs is an explicit goal of the U.S. government • Imaging equipment needs to be integrated into the office environment workflow • Imaging results need to be integrated into the EMR • Systems in an office environment must be more seamlessly integrated than in an in-patient environment • Less IT-savvy staff

  24. Image-Enabled Office (IEO) Profile Scope • Integration of an imaging suite (modalities, storage server, and workstations) with an electronic health record system in an ambulatory office setting • Fully bi-directional integration, including ordering/scheduling of an imaging exam, status reporting for that exam, report creation, and web-based imaging exam review integration Out of Scope: • Exchange with other entities (supported by PDI, XDS and XDS-I functionality) • Specialized content (supported by specialized workflow and content profiles)

  25. IEO Design Principles • Leverage existing imaging workflow and equipment • Image Manager/Archive should be separate from EHR-S • Modalities and image workstations should operate with no changes from Scheduled Workflow • Modality worklist, MPPS, image/evidence storage • Specialty reporting apps • Simple EHR-S integration to imaging workflow management • Loose: emulation of ADT/CPOE with standard HL7 I/F to separate manager actor (DSS/OF) • Tight: built-in or bolted-on Broker / Interface Engine • Web-based integration between EHR-S and Image Manager • Web service invocation a la ITI Retrieve Info for Display

  26. IEO Actor / Transaction Diagram Integrated EHR-S EHR-S Information Source Display  Encapsulated Report Submission [CARD-7]  Notify Study Access [CARD-14]  Invoke Image Display Service [CARD-15] • Encapsulated Report Storage • [CARD-9]  Patient Registration [RAD-1]  Placer Order Management [RAD-2]  Procedure Scheduled [RAD-4]  Outpatient Update [CARD-16]  Outpatient Update [CARD-16]  Filler Order Management [RAD-3]  Procedure Updated [RAD-13] Report Creator PPS Manager DSS / OF Query Images Evidence […] Retrieve Images/ Evidence [CARD-4] Image Display Image Manager / Image Archive    Procedure Step in Progress […]  Query Modality Worklist [RAD-5] Procedure Step Completed […] Evidence Creator  Modality Images /Evidence Stored [CARD-2] Acquisition Modality  Storage Commitment [CARD-3]

  27. Electronic Health Record System (EHR-S) Requirements • Manage patient demographics, imaging orders, and clinical data repository • HL7v2 outputs (ADT, ORM) and inputs (ORU, MDM) • Web server interface to clinical data repository (IHE RID) • Web client interface for imaging data display • DICOM workflow interface (MWL, MPPS) • Loosely coupled via HL7 to workflow manager (DSS/OF) or • Proprietary coupling to broker / interface engine • Claim conformance as “Integrated EHR-S” • Optional storage of imaging report copy in DICOM object • Encapsulated PDF or CDA • No restriction on deployment model (on- or off-site)

  28. Image Manager / Archive (PACS) Requirements • Manage imaging repository • HL7v2 inputs (ADT, ORM) and output (ORU) • Web server interface for imaging data display • DICOM workflow interface (MPPS SCP) • No restriction on deployment model (on- or off-site)

  29. Report Creator (image analysis app) Requirements • Grouped with Acquisition Modality or Image Display • Create report as HL7 CDA or as PDF sent in HL7v2 output (MDM) • [CARD-7] Transaction from DRPT Profile • May have additional OBX’s with significant measurements • Optional Web client interface to EHR-S repository (IHE RID)

  30. New Transactions • Notify Study Access [CARD-14] • Image Manager/Archive to EHR-S • HL7 ORU^R01 • Trigger Event – availability of study images at Image Manager • OBX segments (2) with Study Unique ID and with display service URL • Invoke Image Display Service [CARD-15] • EHR-S to Image Manager/Archive • Web service over HTTP • Invokes navigation / viewing study in standard web browser • Outpatient Update [CARD-16] • Similar to Patient Update [RAD-12], only 2 outpatient-related trigger events • HL7 ADT^A08 and A40

  31. Invoke Image Display Service [CARD-15] • Access based on Study UID or Patient ID • Follows model of IHE ITI Retrieve Info for Display web services • http://<location>/IHERetrieveDICOMInfo?requestType=STUDY&studyUID=<studyUID> • http://<location>/IHERetrieveDICOMInfo?requestType=SUMMARY&patientID=<patientID_HL7v2CX>&lowerDateTime=<LDT>&upperDateTime=<UDT>&mostRecentResults=<num> • Image Manager responds with web-based display application • Any necessary plug-in downloadable from Image Mgr

  32. Resting ECG Workflow (REWF) Profile Overview Barry Brown 27-July-2010

  33. REWF Profile Scope In Scope Out of Scope Reporting workflow management Clinical trial workflow • Patient registration • Ordering and scheduling • Acquisition • Data storage • Data retrieval for reporting • Report distribution

  34. Use Cases • Normal Priority, Scheduled ECGs • Patient is registered • ECG is ordered, scheduled, acquired, stored, reviewed, and reported • Urgent ECG, Unidentified Patient • Unordered ECG • Patient demographics reconciliation • Scheduled ECG While Offline • Order reconciliation • Other Cases Not Completely Covered • Patient Demographics for Unscheduled ECGs • Acquisition Modality should be grouped with PDQ Consumer • Clinical Trials • Much thought was given to clinical trial workflow, but it deserves its own profile in a future year • Physician Offices • ECGs are often (implicitly) ordered and acquired in a single step while a patient is being examined • The new Image Enabled Office profile covers office-based ECG workflow

  35. Related Profiles • RAD SWF - Scheduled Workflow • Patient registration • Test ordering and scheduling • Acquisition and data storage • Data retrieval • RAD PIR - Patient Information Reconciliation • Urgent ECGs acquired on unknown patients • ITI CT - Consistent Time • Synch Acquisition Modality’s clock • ITI PDQ - Patient Demographics Query • Acquisition Modality can query for demographics • CARD DRPT - Displayable Reports • Distribute ECG reports • CARD IEO - Image Enabled Office • Workflow in an office environment

  36. Highlights • Allows multi-vendor interoperability between 5 major subsystems: • Registration and ordering (HIS, CVIS) • ECG archival (PACS, ECG Management) • Acquisition devices (Electrocardiographs) • ECG analysis and reporting workstations (ECG or PACS Workstations) • ECG report consumers (EMR) • Uses HL7 transactions for HIS and EMR. • Uses DICOM transactions for acquisition devices and workstations • ECG waveforms stored as DICOM General ECG Waveform objects • ECG measurements and interpretations stored as DICOM Structured Reports • An “Integrated ECG Manager” actor makes it easier for traditional ECG management products to adopt this profile.

  37. Actor / Transaction Diagram

  38. Familiar Actors and Transactions • Actors reused from other profiles: • ADT (SWF) • Order Placer (SWF) • DSS/OF (SWF) • Image Manager / Image Archive (SWF) • PPS Manager (SWF) • Acquisition Modality (SWF) • Evidence Creator (SWF) • Image Display (SWF) • Time Client (CT) • Report Creator (DRPT) • Report Manager (DRPT)

  39. “Integrated ECG Manager” Actor • Integrated ECG Manager is an optional integration of the actors in the “middle” • Makes it easier for traditional ECG management products to adopt this profile without having to expose transactions between the integrated actors • Individual actors are still present so traditional departmental management and archive products can treat Resting ECG Workflow like other scheduled workflows

  40. New and Modified Transactions • CARD-2 Modality Images/Evidence Stored • Acquisition Modality and Image Archive actors must be able to store General ECG Waveform and Enhanced SR (ECG Report template) • CARD-4 Retrieve Images/Evidence • Report Creator and Image Display actors must be able to display General ECG Waveform and Enhanced SR (ECG Report template) • CARD-7 Encapsulated Report Submission • Specifies displayable Resting ECGs (PDFs) should meet minimum display requirements • Basic measurements and interpretation should be included as discrete data in OBX segments • New: CARD-12 Query Enhanced Modality Worklist • Patient queries can also match on Admission ID • Broad queries can also match on Scheduled Procedure Step Location • New: CARD-13 Query Cardiology Images/Evidence • Query returns Performed Protocol Step Code Sequence to distinguish General ECG Waveform objects used for resting ECG from other tests and monitoring sessions

  41. More Information http://www.ihe.net/Events/webinars2010.cfm IHE Webinar series 2010 http://www.ihe.net/Technical_Framework/index.cfm IHE Technical Frameworks and Supplements New Trial Implementation versions to be released ~ Aug 1 http://wiki.ihe.net/index.php?title=Cardiology Information on IHE Cardiology development activities
