  1. GeometryReview Chapters 1-13

  2. 8 5 7 10 ½(bh) is the formula for the area of this polygon. T R I A N G L E Use the formula to find the area of this triangle: A= 35

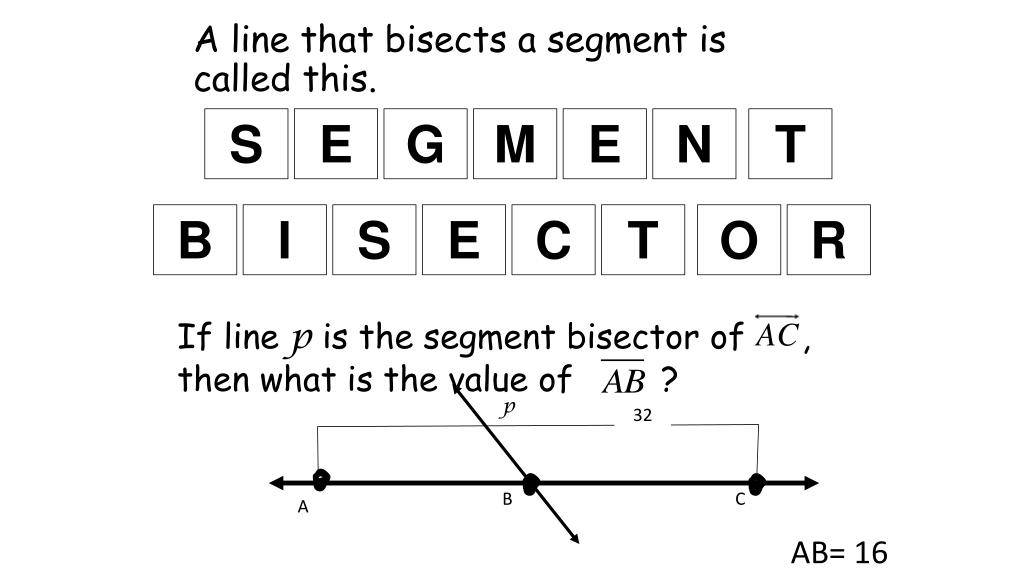

  3. p 32 B C A A line that bisects a segment is called this. S E G M E N T B I S E C T O R If line p is the segment bisector of AC, then what is the value of AB ? AB= 16

  4. 3p - 4 B C p + 6 A D A special characteristic of a rhombus A L L C O N G R U E N T S I D E S What is the value of side AB in this rhombus? AB= 11

  5. 45 cm d = 20 cm This figure’s name. C Y L I N D E R What is the volume of the figure below? V=14,137 cm3

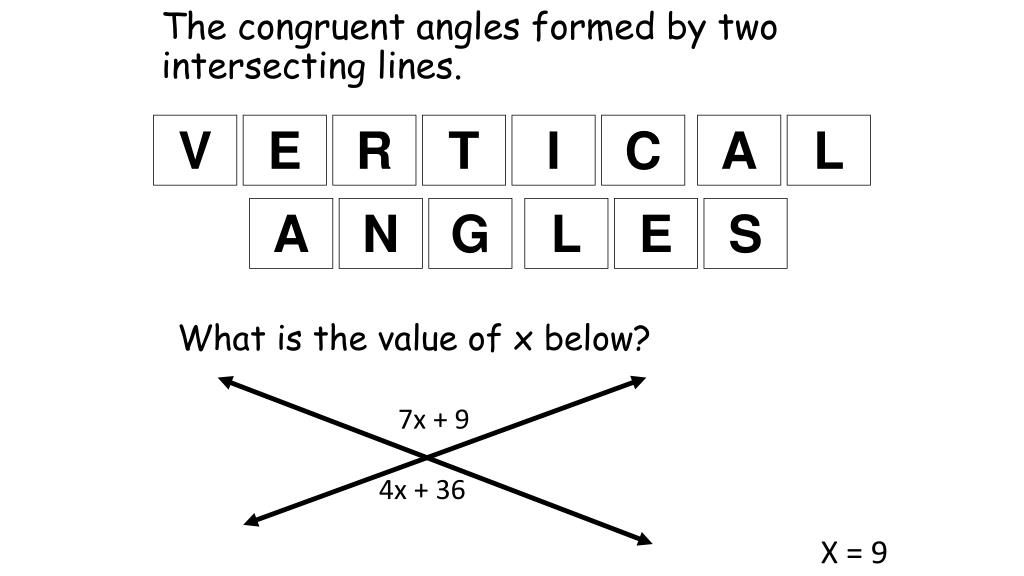

  6. 7x + 9 The congruent angles formed by two intersecting lines. V E R T I C A L A N G L E S What is the value of x below? 4x + 36 X = 9

  7. 10 8 7 7 36 in 3 ft 7 18 in Name the triangle by its sides. 5 S C A L E N E Name the following triangles by their sides: equilateral; isosceles

  8. If three sides of one triangle are congruent to the corresponding three sides of another triangle, then the two triangles are congruent by what postulate? S I D E S I D E S I D E

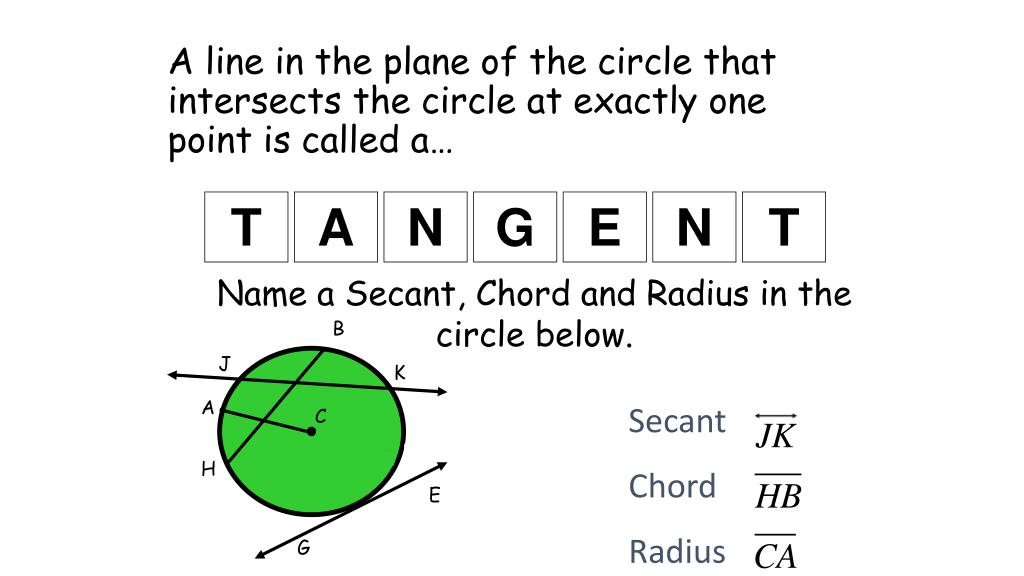

  9. B J K A C D H E G A line in the plane of the circle that intersects the circle at exactly one point is called a… T A N G E N T Name a Secant, Chord and Radius in the circle below. Secant Chord Radius

  10. 1 and 2 have this relationship. 1 2 S A M E S I D E I N T E R I O R A N G L E S

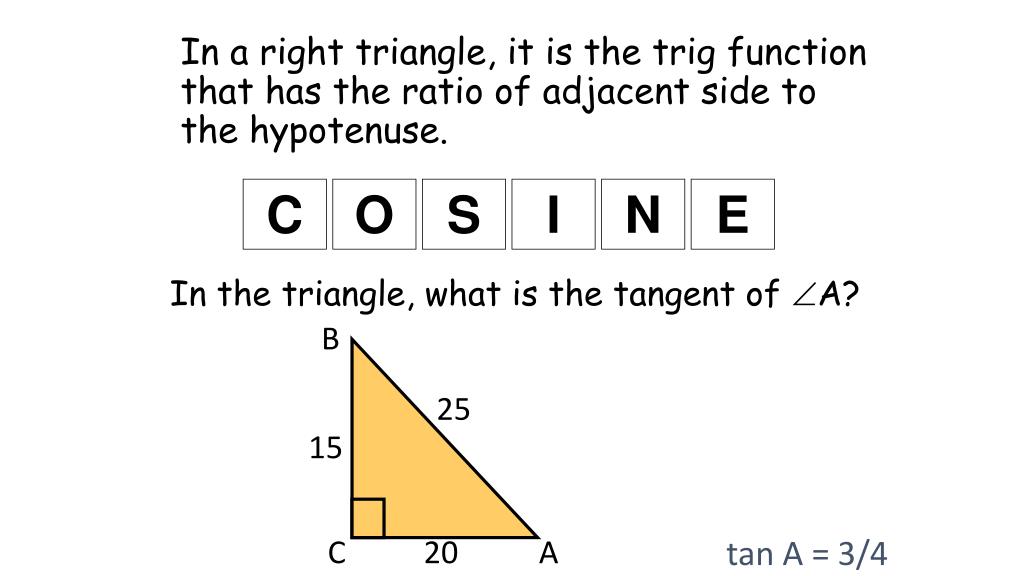

  11. B 25 15 C 20 A In a right triangle, it is the trig function that has the ratio of adjacent side to the hypotenuse. C O S I N E In the triangle, what is the tangent of A? tan A = 3/4

  12. B 35 x C 20 A What theorem states that the sum of the square of the legs of a right triangle equals the square of the hypotenuse? P Y T H A G O R E A N T H E O R E M What is the value of x to the nearest tenth? x = 28.7

  13. If two sides and the included angle of one triangle are congruent to the corresponding two sides and included angle of another triangle, then the two triangles are congruent by what postulate? S I D E A N G L E S I D E

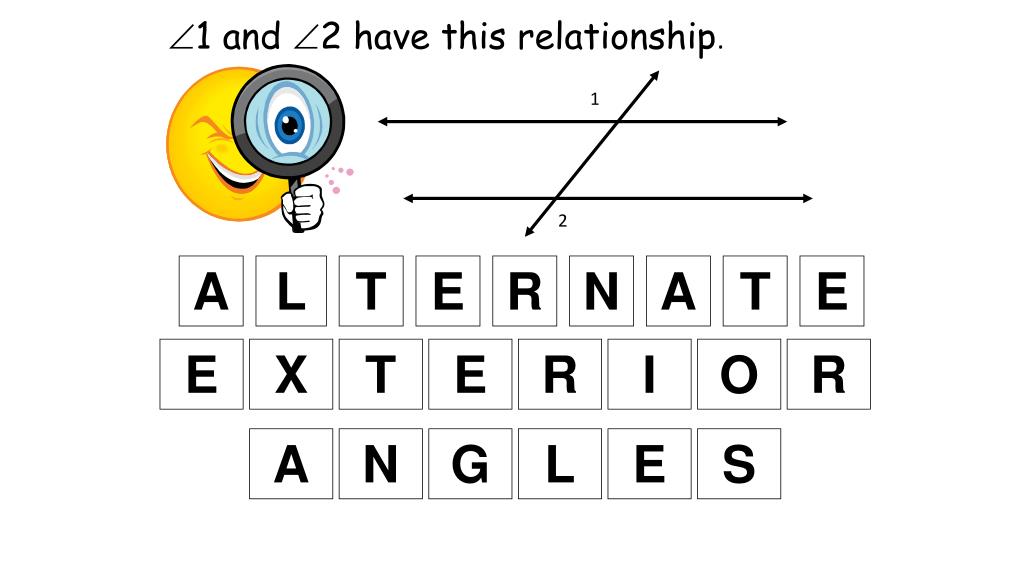

  14. 1 and 2 have this relationship. 1 2 A L T E R N A T E E X T E R I O R A N G L E S

  15. 117° A B These two angles are ... 56° 34° C O M P L E M E N T A R Y A and B are supplementary angles. What is the measure of B? B = 63°

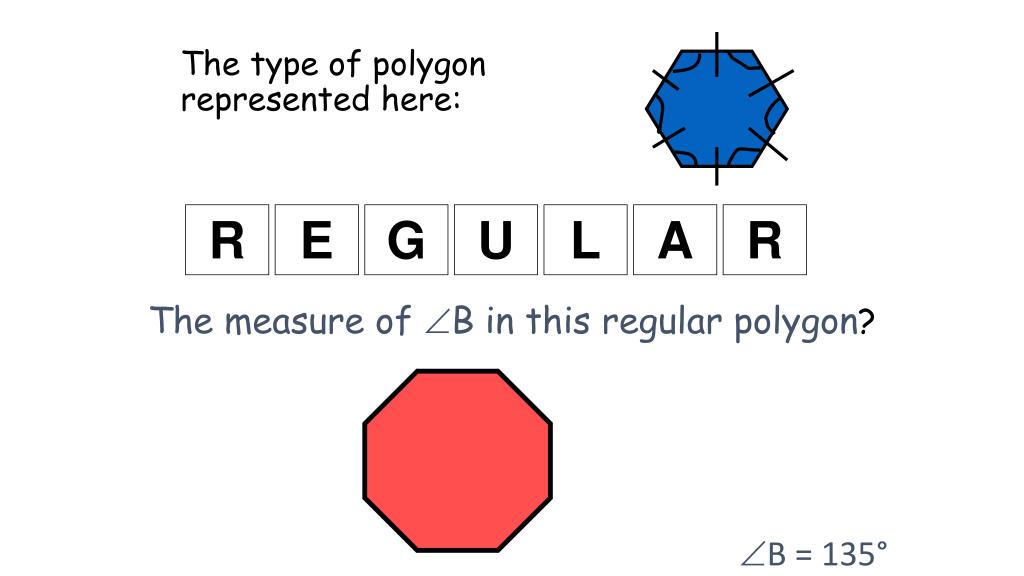

  16. The type of polygonrepresented here: R E G U L A R The measure of B in this regular polygon? B = 135°

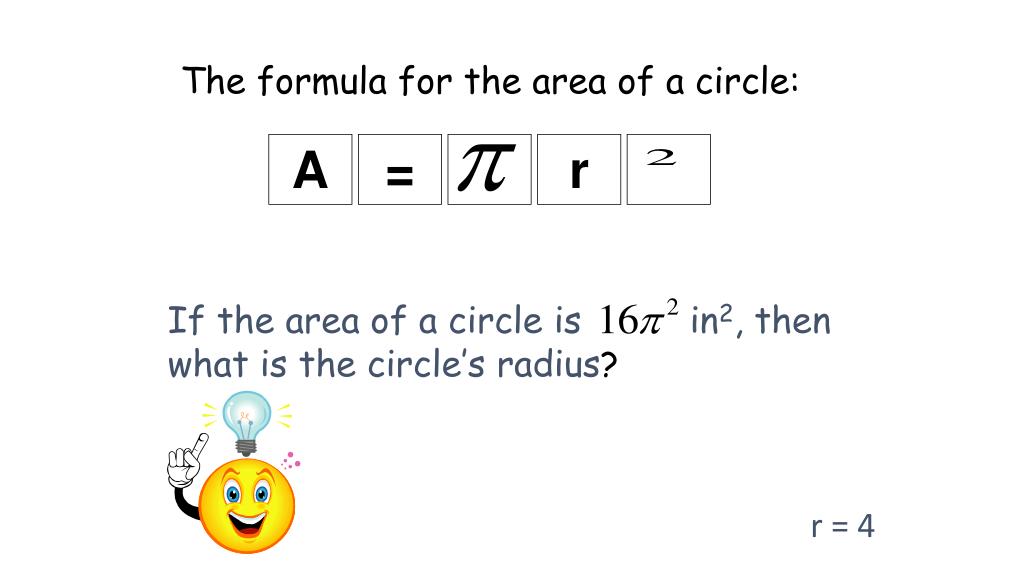

  17. If the area of a circle is in2, then what is the circle’s radius? The formula for the area of a circle: A = r r = 4

  18. The type of triangles shown here: 6 3 50° 50° 2 4 S I M I L A R In the triangles above, what is the ratio between corresponding sides? ratio = 1/2

  19. What postulate proves these triangles are congruent? A N G L E A N G L E S I D E

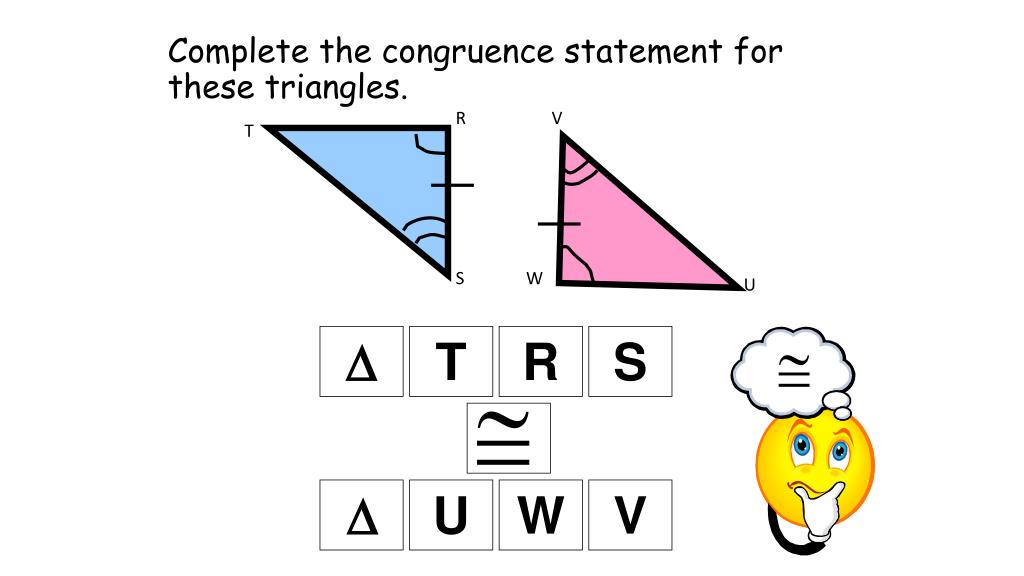

  20. S W U  T R S  U W V Complete the congruence statement for these triangles. R V T

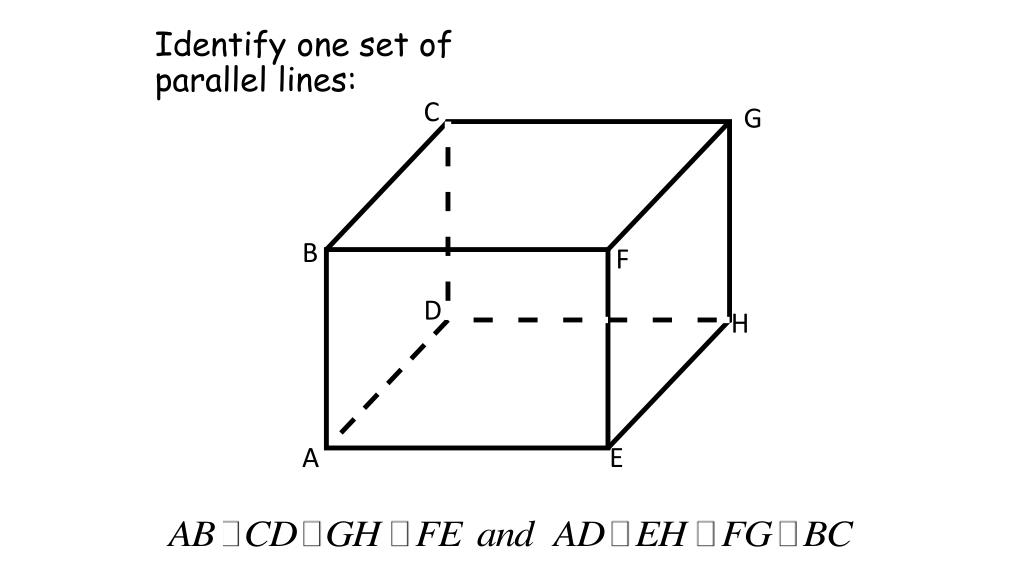

  21. Identify one set of parallel lines: C G B F D H A E

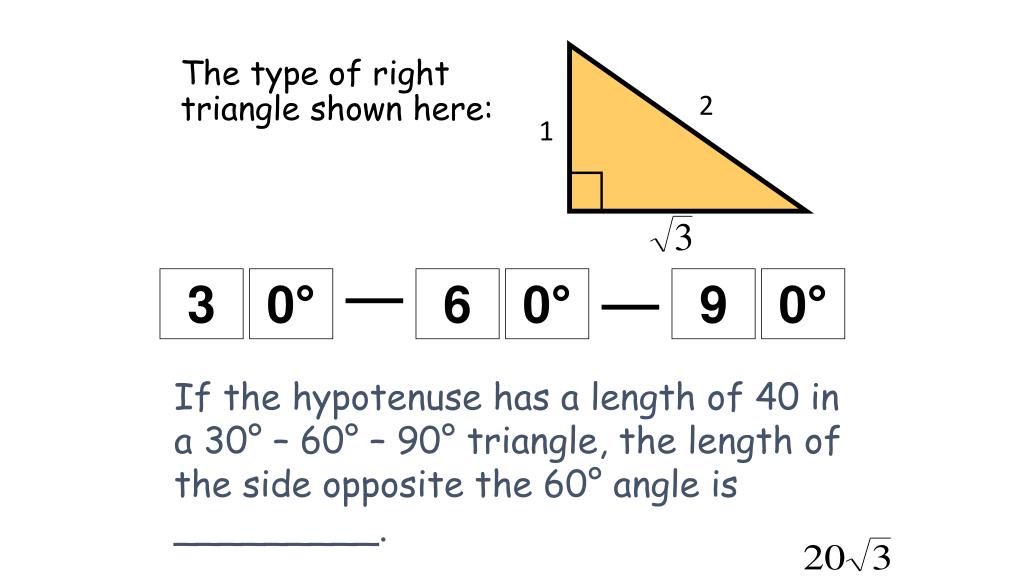

  22. The type of right triangle shown here: 2 1 3 0° 6 0° 9 0° If the hypotenuse has a length of 40 in a 30° – 60° – 90° triangle, the length of the side opposite the 60° angle is _________.

  23. , etc. The type of polygon shown here: C O N C A V E Draw any convex polygon.

  24. B 17 15 C A r If a line is tangent to a circle, then it is _______ to the radius at the point of tangency. P E R P E N D I C U L A R AB is tangent to circle C. Find the value of r r = 8

  25. 52 cm A B 28 cm Name the quadrilateral that has exactly one pair of parallel sides and the nonparallel sides are congruent. I S O S C E L E S T R A P E Z O I D What is the length of midsegment AB in the trapezoid below? AB = 40

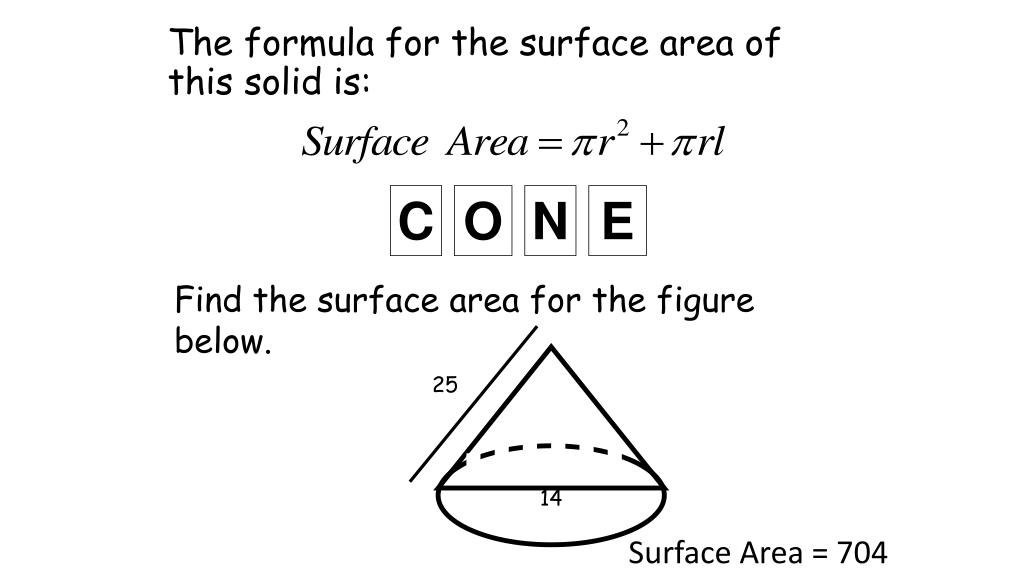

  26. 25 14 The formula for the surface area of this solid is: C O N E Find the surface area for the figure below. Surface Area = 704

  27. Good Luck Studying For Finals!!! Think about staying after school for help.
