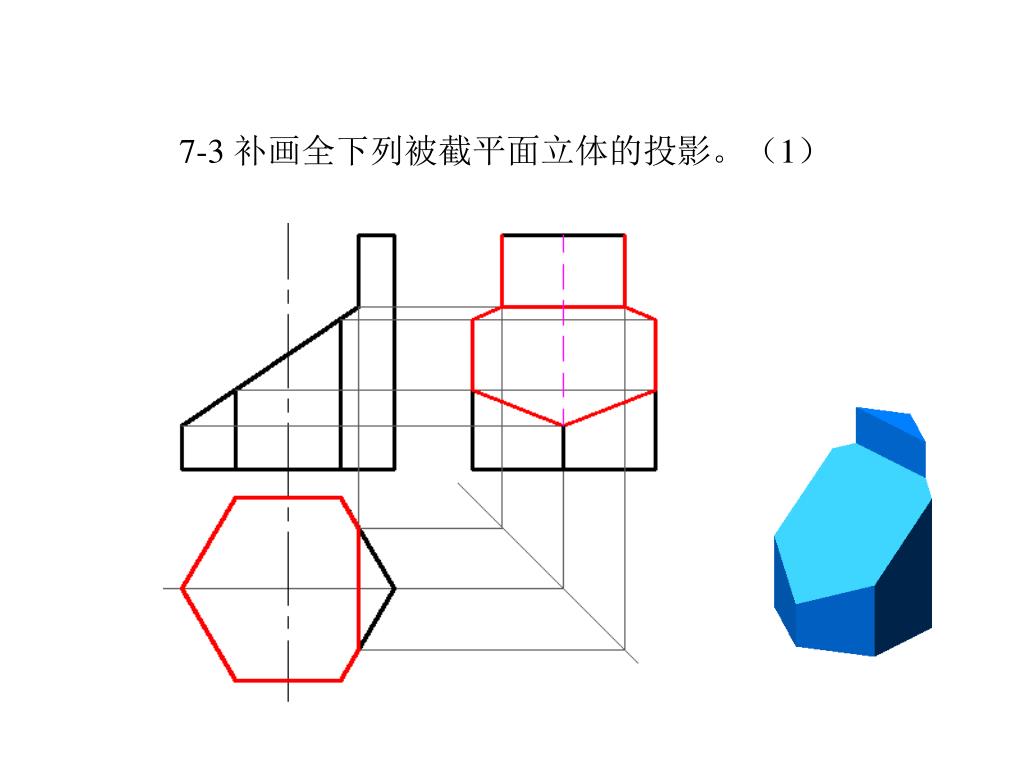

  1. 7-3 补画全下列被截平面立体的投影。（1）

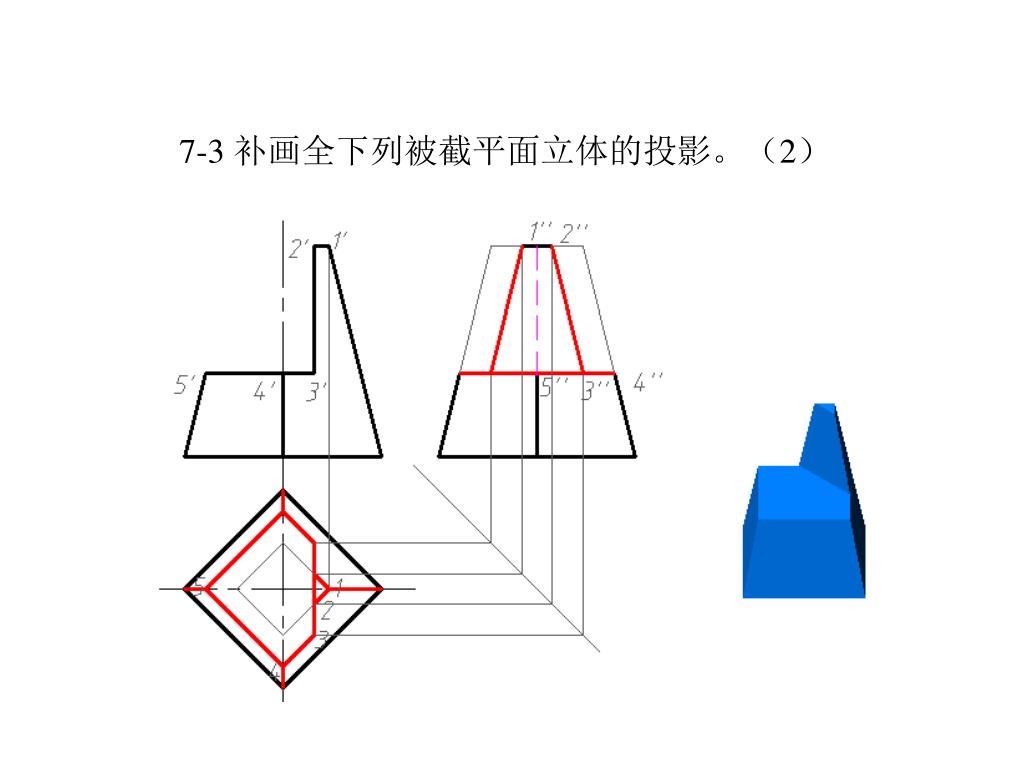

  2. 7-3 补画全下列被截平面立体的投影。（2）

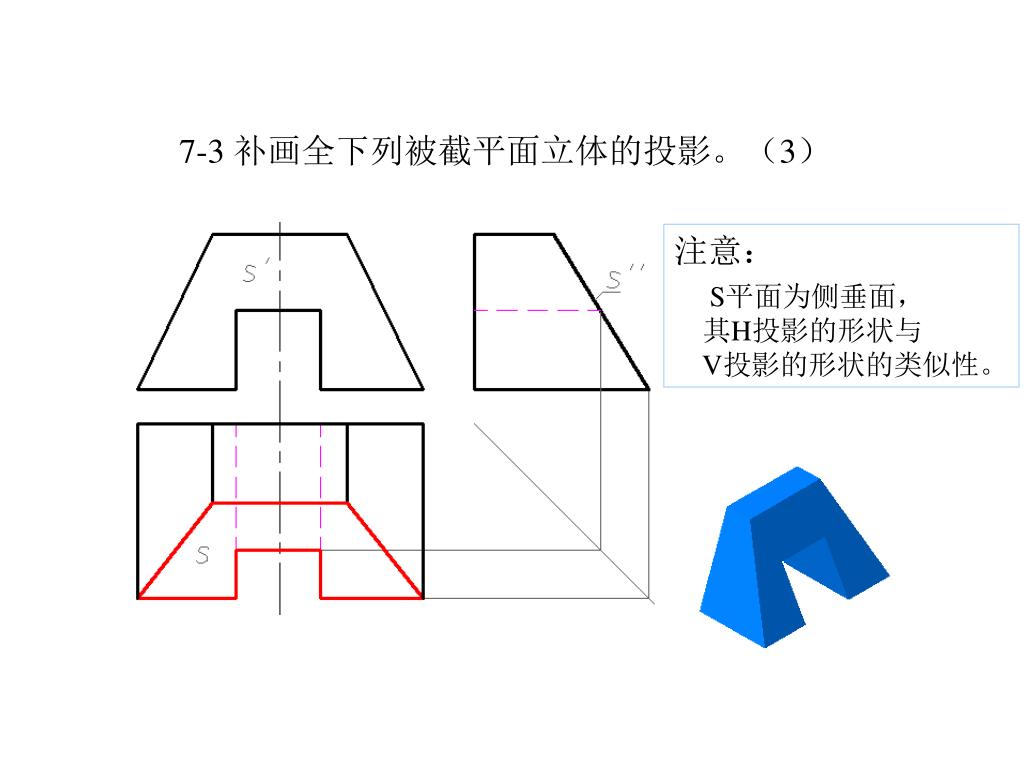

  3. 7-3 补画全下列被截平面立体的投影。（3） 注意： S平面为侧垂面， 其H投影的形状与 V投影的形状的类似性。

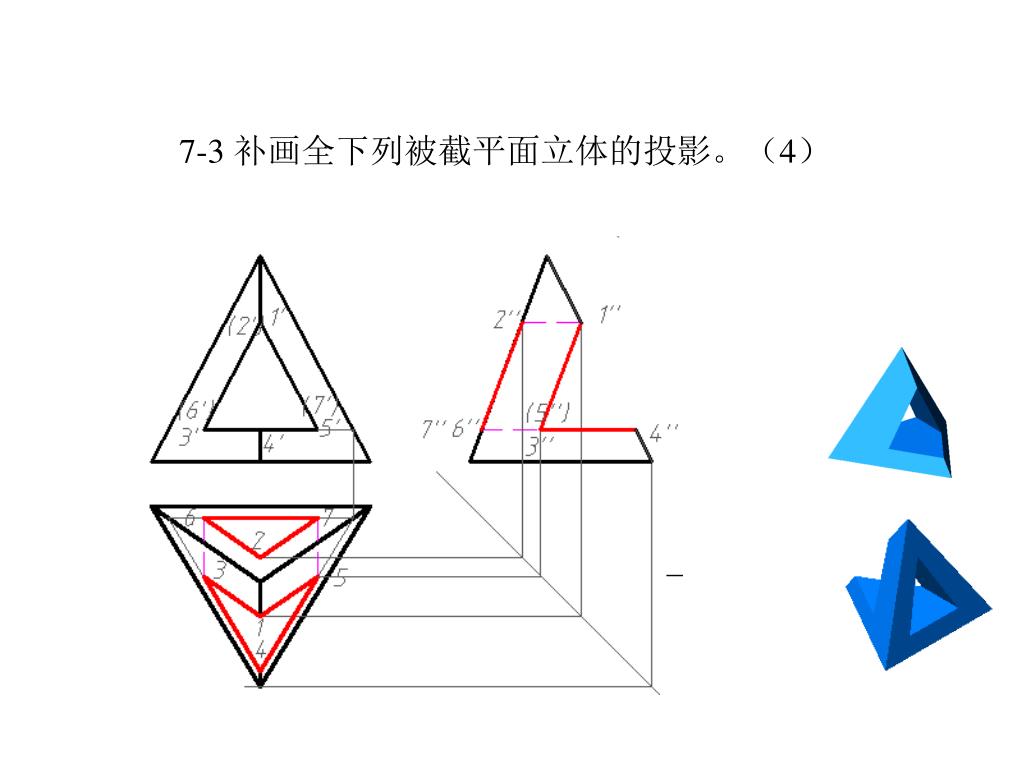

  4. 7-3 补画全下列被截平面立体的投影。（4）
