  1. MINISTRY FOR DEVELOPMENTNew fixed wing aircrafts CN-235-300FORSASEMAR

  2. Search and Rescue (SAR) Safety at Sea Environmental Protection and Surveillance Maritime Traffic Monitoring MARITIME SURVEILLANCE MISSIONS Missions to be performed by SASEMAR Pág 1

  3. MARITIME SURVEILLANCE TASKS Tasks • Target Detection • Identification • Action • SAR: Throwing of life saving equipment • Oill Spill imaging, report and monitoring • Operations co-ordination of other resources such as helicopters, fast action boats, etc. Continously • Real time data exchange to mision control and other units • Databases access from the plane Pág. 2

  4. CN-235-300 FEATURES • Airborne operational aft ramp • Multi pupose fixwing aircraft • High wing for optimal visual surveillance • Low life cost • Propulsion efficiency • Range • High volume pressurized cabin • Landing gear prepared for short and land runways (STOL)

  5. CN-235-300: VIEWS AND WEIGHTS Lenght 21.40 mts Height 8.17 mts Wing Span 25.81 mts MTOW 16.500 kgrs MLW 16.500 kgrs Max. Fuel 5.264 lts

  6. CN-235-300: MARITIME PATROL COMUNICATIONS VOICE / DATA (U/VHF, HF, Satellite) AFT RAMP CAMERA IR/TV SEARCH RADAR 360o SCANNER IR/UV/LFS MICROWAVE RADIOMETER (MWR) SIDE LOOKING AIRBORNE RADAR (SLAR)

  7. CN-235-300: CABIN LAYOUT CREW 2 PILOTS 2 TACTIC OPERATORS 1 OBSERVER BASIC CONFIGURATION 2 CONSOLES BUBBLE WINDOW MISSION CONSOLE LIFERAFT THROWIING FLARES RADAR ACCESS Pág. 6

  8. SENSORS Surveillance • Radar 360º • IR/TV • Comunications • Cameras RADAR FLIR 40-200 mn Pág. 7

  9. OIL SPILL SENSORS • SLAR • Camera IR/TV • Scanner IR / UV • MW Radiometer • LFS Pág. 8

  10. MISSION SYSTEM • Integrated Tactic System • Sensors control • Data information display • Tactic databases creation and update • Aircraft navigation • Data link system management Pág. 9

  11. CN-235-300: MARITIME PATROL Range: + 11 h Maximum patrolled distance: 1.600 nm 200 nm transit mission. Searching time 9.5 hrs. Distance Patrolled 1.300 nm Maximum mission range 1.040 nm defined for 30 min searching time

  12. CN-235-300: MISSION RANGES 0º 15º 15º 30º Max. mission range 1040 nm 45º Málaga 10,4 hr / 100 nm 30º 8,3 hr / 300 nm Las Palmas 5,1 hr / 600 mn 15º Pág 11

  13. CN-235-300: COASTAL SURVEILLANCE Flying line (140 x 20 mn) BASE Identification area FLIR/TV (160 x 40 mn) Searching area (210 x 90 mn)

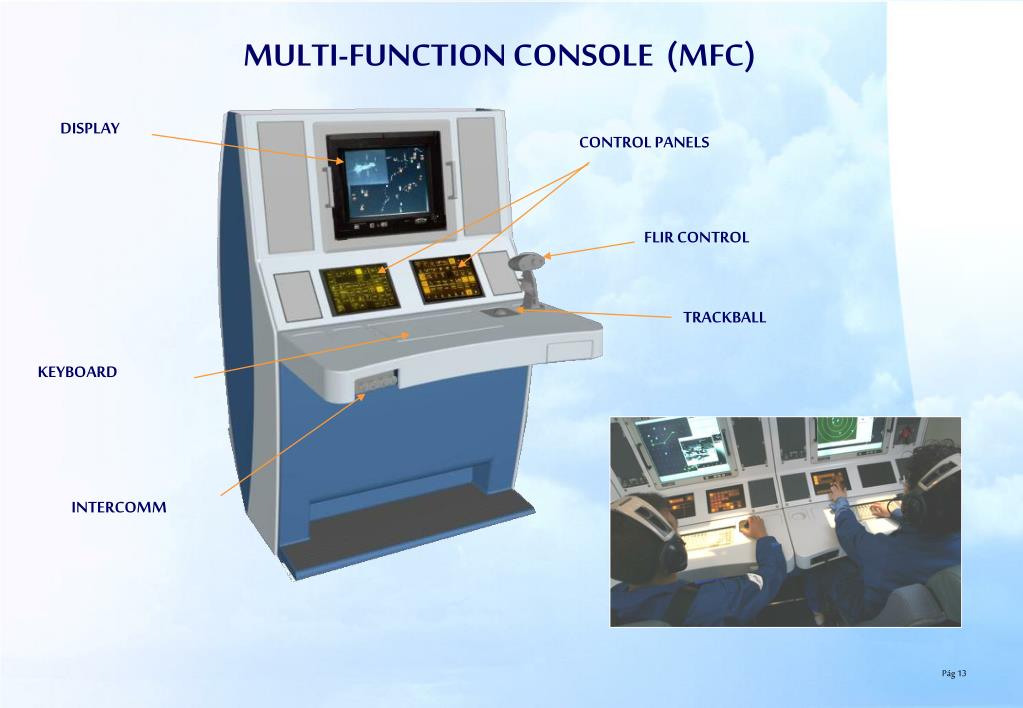

  14. MULTI-FUNCTION CONSOLE (MFC) DISPLAY CONTROL PANELS FLIR CONTROL TRACKBALL KEYBOARD INTERCOMM

  15. Funcionalities Mission Planning Mission data recording Preflight Data Insertion Package Briefing debriefing and reports Real time mission monitoring Data link Mission analisys Features Local network Open arquitechture system Commercial Software and Equipment MISSION SUPPORT FACILITY Pág. 14

  16. Thank you !
