The Skin Effect

The Skin Effect. Section 60. Long thin straight wire with AC current. Wire with circular cross section. Outside wire, low-frequency quasistatic case: Ignore time derivatives of EM fields outside conductors. What happens to an AC current in a wire as the frequency is increased?.

jenna-burt
Download Presentation

The Skin Effect

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Skin Effect Section 60

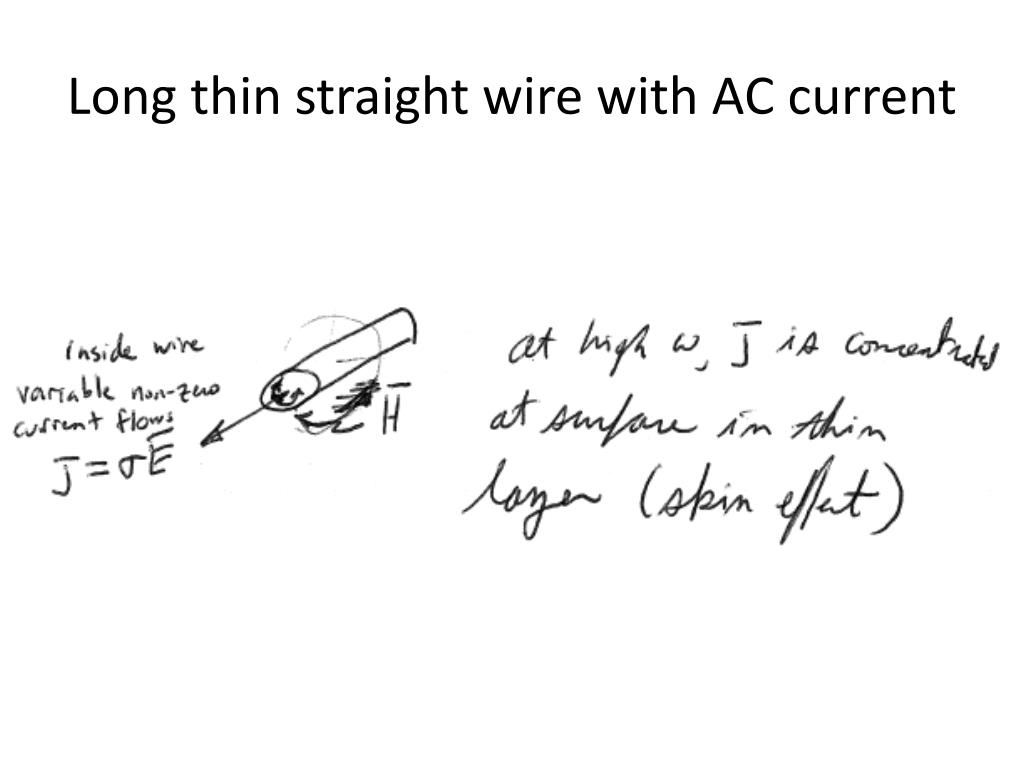

  2. Long thin straight wire with AC current

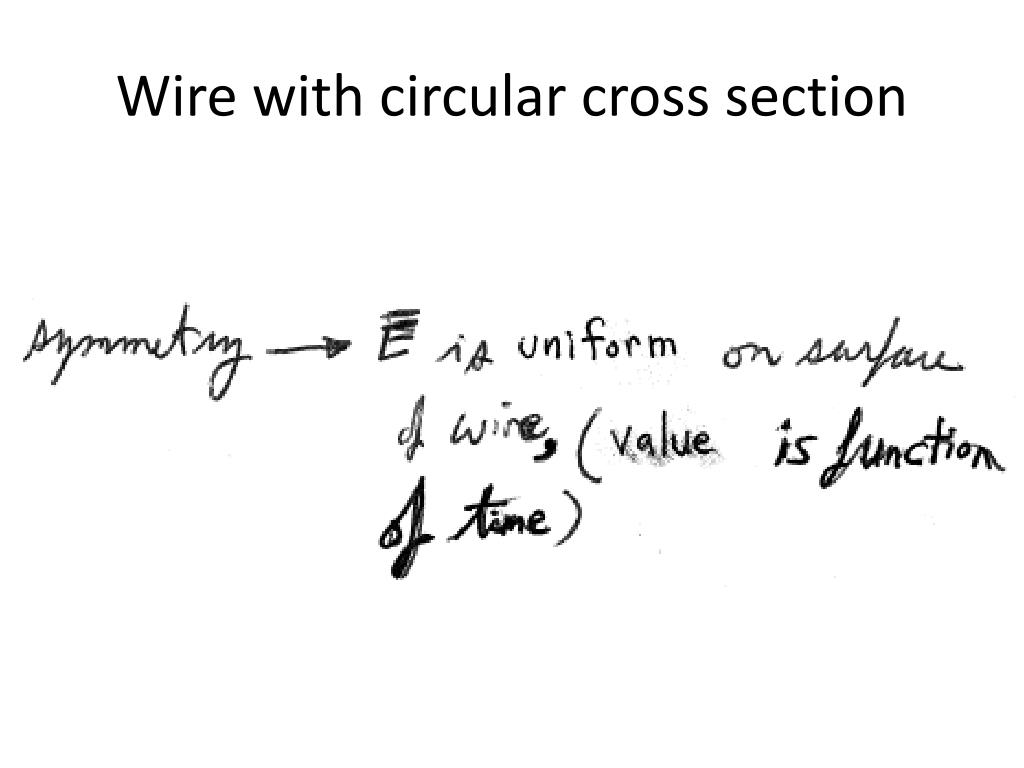

  3. Wire with circular cross section

  4. Outside wire, low-frequency quasistatic case: Ignore time derivatives of EM fields outside conductors.

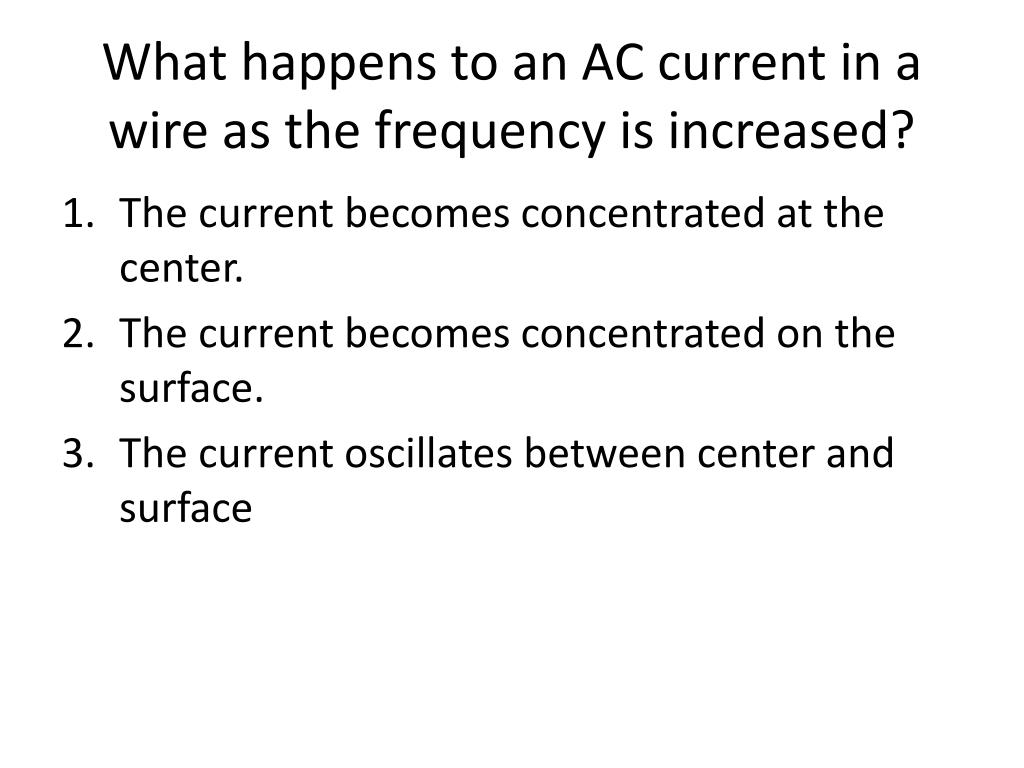

  5. What happens to an AC current in a wire as the frequency is increased? • The current becomes concentrated at the center. • The current becomes concentrated on the surface. • The current oscillates between center and surface
