  1. Geodetic Monitoring Solutions in Mining Industry ASIA GEOSPATIAL FORUM 2011 Pasawat Tipyotha Application Engineer

  2. Information +Time Trend Trimble Monitoring Solutions Common request in all monitoring applications

  3. Optical Total Stations • High accuracy positioning • Can observe multiple points • Relatively short distances <2,5km • GNSS Sensors • Large distances • High data rate • Precise differential positioning • Limited to one point Trimble Monitoring Solutions Different jobs require different sensors

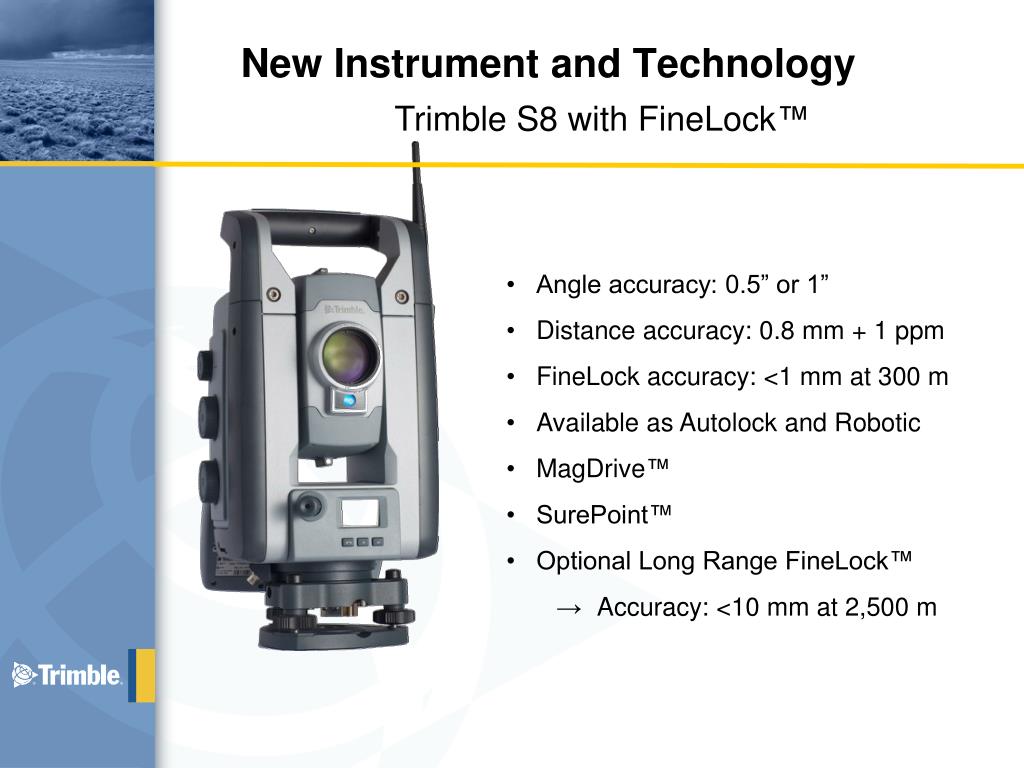

  4. New Instrument and Technology Trimble S8 with FineLock™ • Angle accuracy: 0.5” or 1” • Distance accuracy: 0.8 mm + 1 ppm • FineLock accuracy: <1 mm at 300 m • Available as Autolock and Robotic • MagDrive™ • SurePoint™ • Optional Long Range FineLock™ • Accuracy: <10 mm at 2,500 m

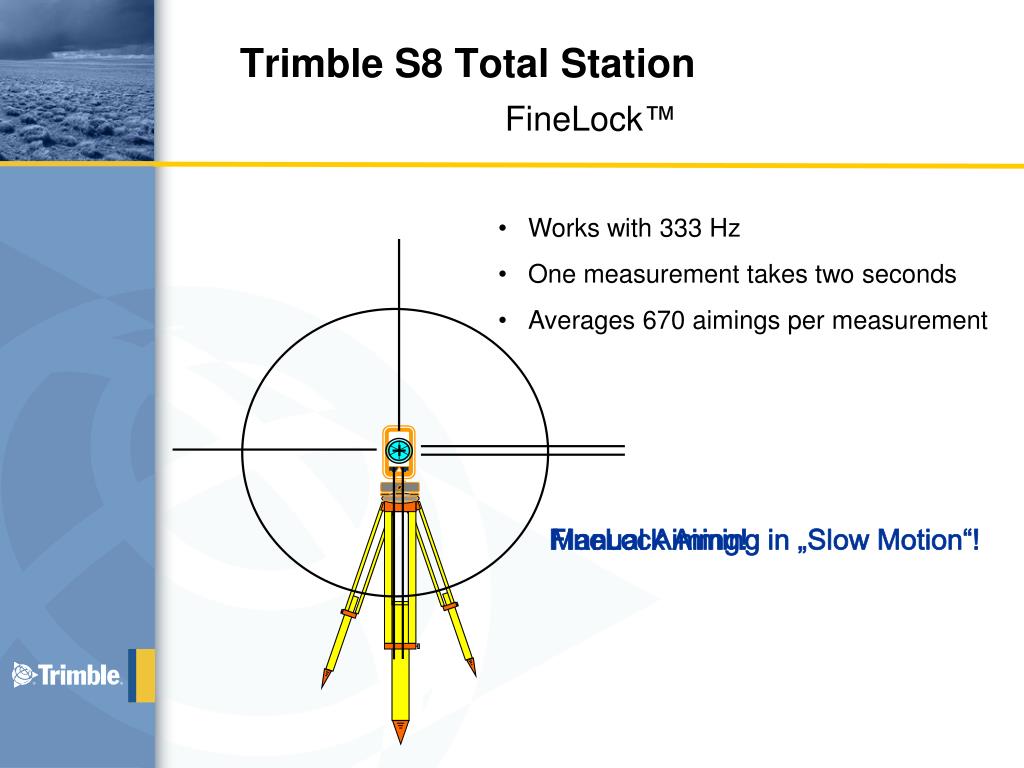

  5. Trimble S8 Total Station FineLock™ • Works with 333 Hz • One measurement takes two seconds • Averages 670 aimings per measurement FineLock Aiming in „Slow Motion“! Manual Aiming!

  6. Trimble S8 Total Station FineLock™ • Narrow field of view • No interference with surrounding prisms • Minimum separation Δ: 80 cm at 200 m Δ

  7. Trimble 4D Control Applications for GNSS and optical sensors • Optical total stations • GNSS receivers

  8. Trimble 4D Control Applications for GNSS and optical sensors • Optical total stations • GNSS receivers • Optical total stations combined with GNSS receivers

  9. Trimble 4D Control Designed for Mining Displacement based on slope distance measurements

  10. Overview • Motivation for introducing the separated Slope Distance Measurements. • Implementation in T4D (Monitor Properties, Slope Distance Chart View, Alarming, Report)

  11. Motivation • Due the atmospheric circumstances we are not able permanently to lock the target prism. Instead of losing information of the point in the current round it would be useful to get at least one usable measurement component from the running round the slope distance. • We are interested into point movements in the instrument direction (some users need exactly this feature) • This kind of displacement should be estimated by comparing the measurements (ReferenceSlopeDistance - CurrentSlopeDistance) but not estimated via the derived coordinates.

  12. Motivation The monitoring direction is defined with one measurement component only (instrument<->target).  no correlation with vertical and horizontal angles. The uncertainty of measurements is dependent only of Slope Distance Measurements and ppm-Modeling.  in case of “target not locked” state we assume that the target point is still near the expected position. So the inaccuracy in the slope distance is much less than e.g. vertical angle. The adjustment calculation have not effect on the delta values of slope distance measurements.

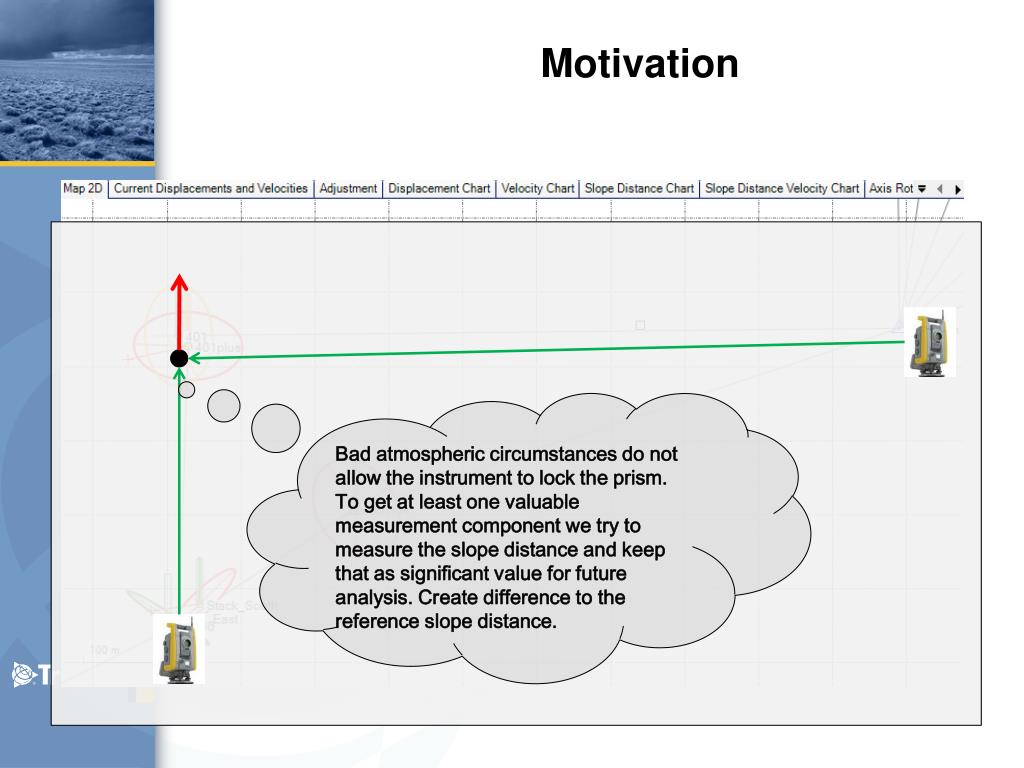

  13. Motivation Bad atmospheric circumstances do not allow the instrument to lock the prism. To get at least one valuable measurement component we try to measure the slope distance and keep that as significant value for future analysis. Create difference to the reference slope distance.

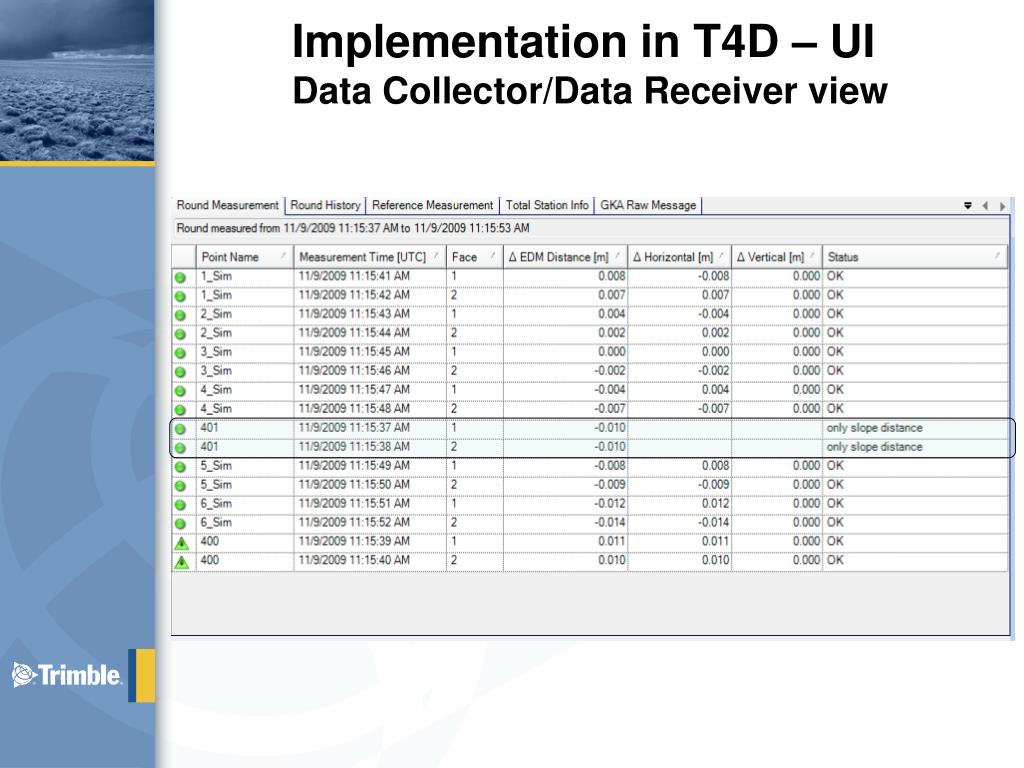

  14. Implementation in T4D – UI Data Collector/Data Receiver view

  15. Implementation in T4D – UI 2D Map

  16. Implementation in T4D – UI Displacement Chart View

  17. Implementation in T4D – UI Slope Distance Chart View

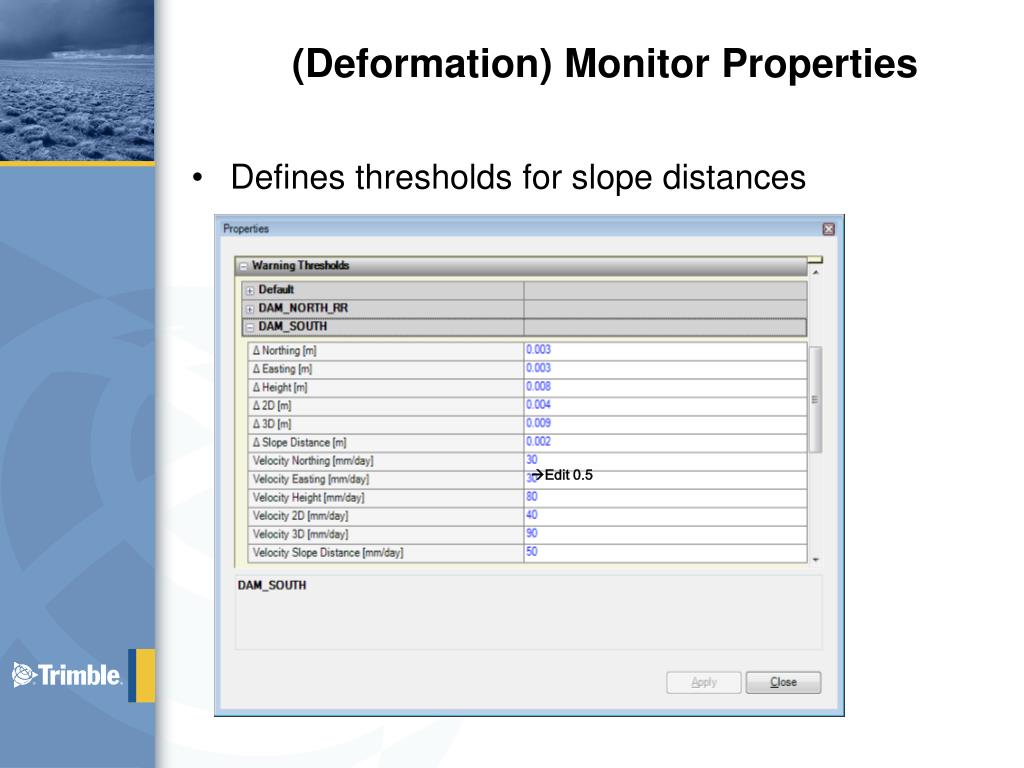

  18. (Deformation) Monitor Properties • Defines thresholds for slope distances Edit 0.5

  19. Slope distance Thresholds of a point in the group DAM_SOUTH

  20. Alarming • Create appropriate thresholds via Alarm Manager • If threshold is exceeded we get appropriate alarm message

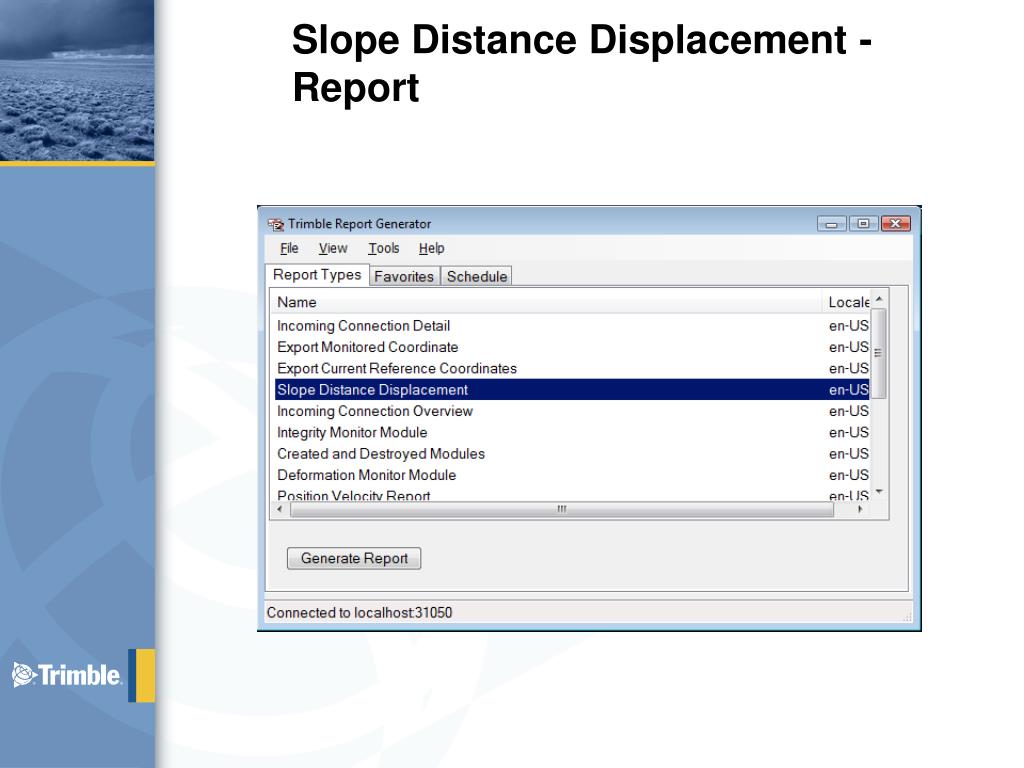

  21. Slope Distance Displacement - Report

  22. Slope Distance Displacement - Report

  23. New rail track New train station New tunnel Examples from the real world Zurich Central Station, Switzerland Real-time optical monitoring!

  24. Examples from the real world Phalaborwa Copper Mine, South Africa

  25. Examples from the real world Tolt Dam, U.S.A.

  26. Examples from the real world Deep Foundation in Monte Carlo, Monaco

  27. Examples from the real world El Romeral Iron Mine, Chile

  28. Example from Real Project in DetailsMaemoh Mine, Thailand

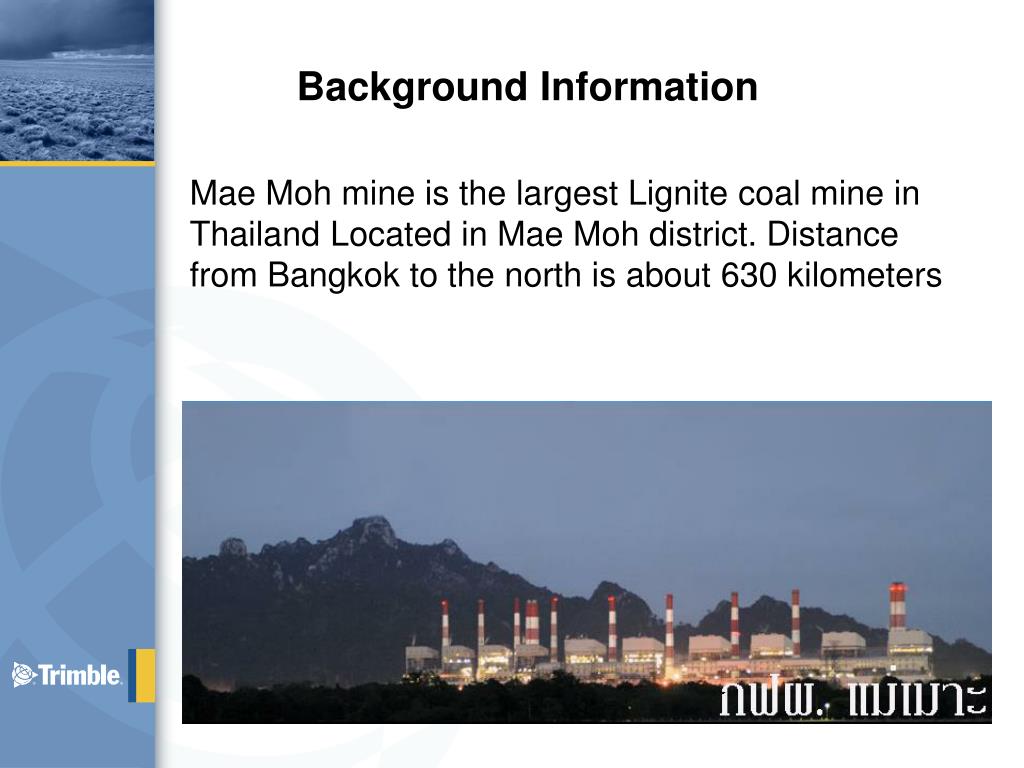

  29. Background Information Mae Moh mine is the largest Lignite coal mine in Thailand Located in Mae Moh district. Distance from Bangkok to the north is about 630 kilometers

  30. More information • The Maemoh mine serves the Maemoh Power Plant from EGAT. This power plant supplies power to the northern region of Thailand. The mine has been operating for 50 years already. With the more recent expansion the need existed to install a new, additional monitoring system. Within the mine many people are working and many, expensive machinery is deployed. To reduce the risk to both staff and equipment this new monitoring system was needed. Due to the dimension of the mine a long range monitoring solution was needed. The Trimble S8 proved a perfect solution for this.

  31. Problems with the old system • Using 6 radios including repeaters for transmit the data to control center • Lightening problem • Stability problem • Keeping Database PCs at site • Risk for robbery • Checking data on site at daily basis • Not flexible

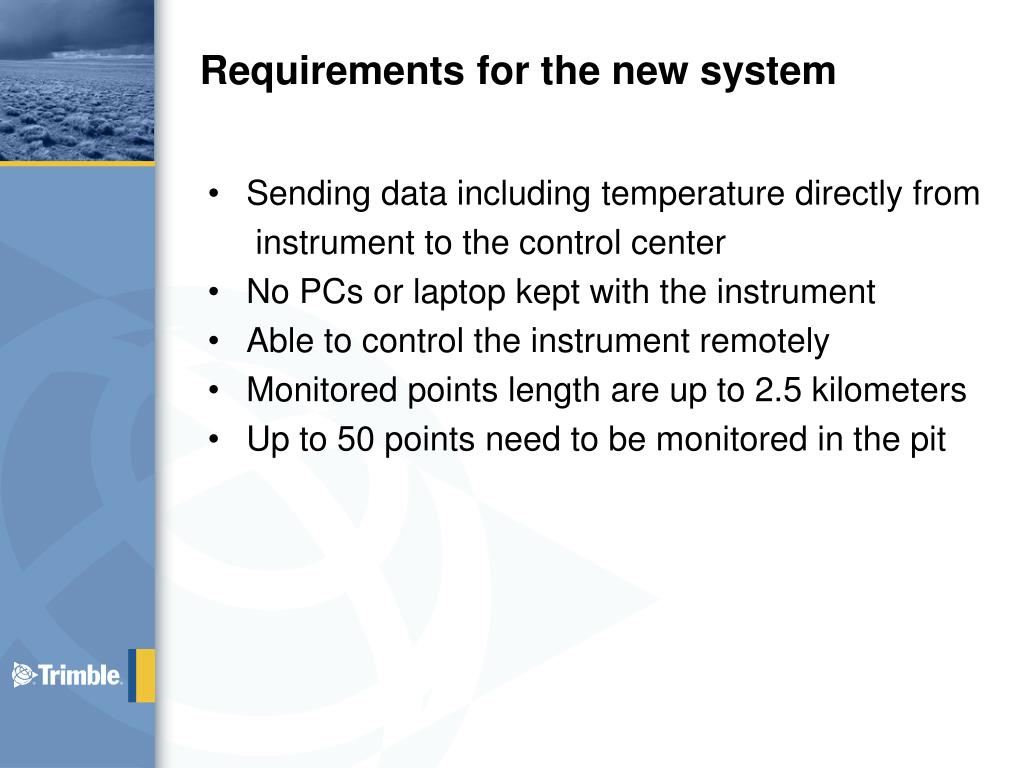

  32. Requirements for the new system • Sending data including temperature directly from instrument to the control center • No PCs or laptop kept with the instrument • Able to control the instrument remotely • Monitored points length are up to 2.5 kilometers • Up to 50 points need to be monitored in the pit

  33. New System Diagram

  34. Control points

  35. Monitored Area

  36. Monitoring Hut

  37. Control Center

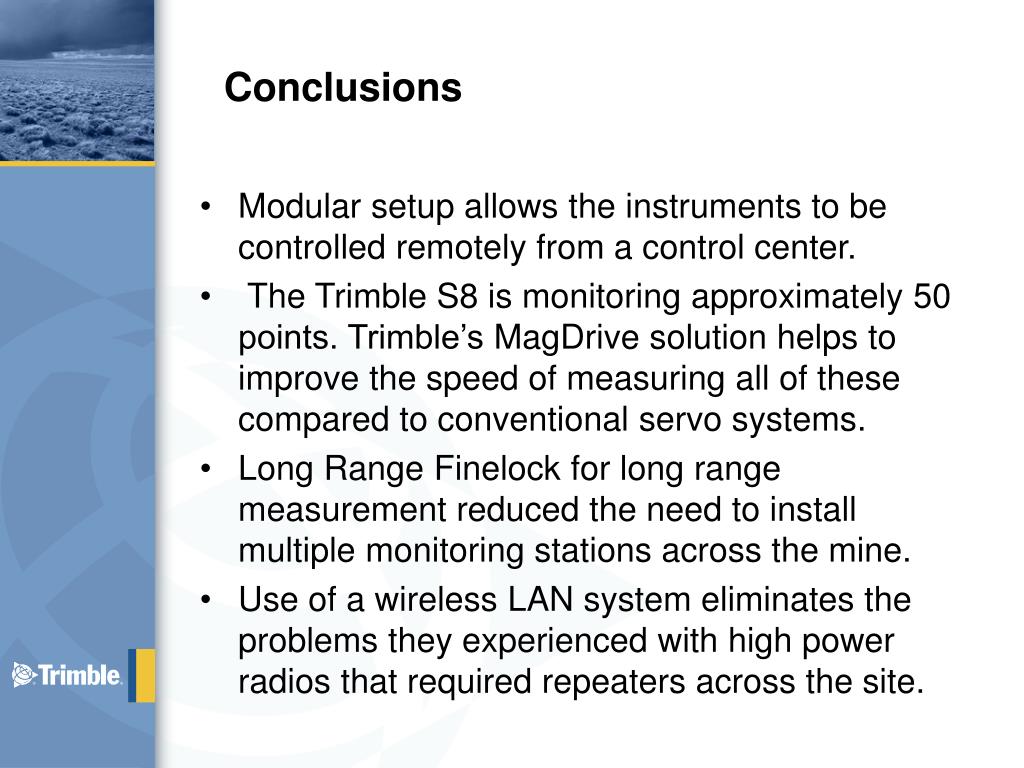

  38. Conclusions • Modular setup allows the instruments to be controlled remotely from a control center. • The Trimble S8 is monitoring approximately 50 points. Trimble’s MagDrive solution helps to improve the speed of measuring all of these compared to conventional servo systems. • Long Range Finelock for long range measurement reduced the need to install multiple monitoring stations across the mine. • Use of a wireless LAN system eliminates the problems they experienced with high power radios that required repeaters across the site.
