Presentation Transcript

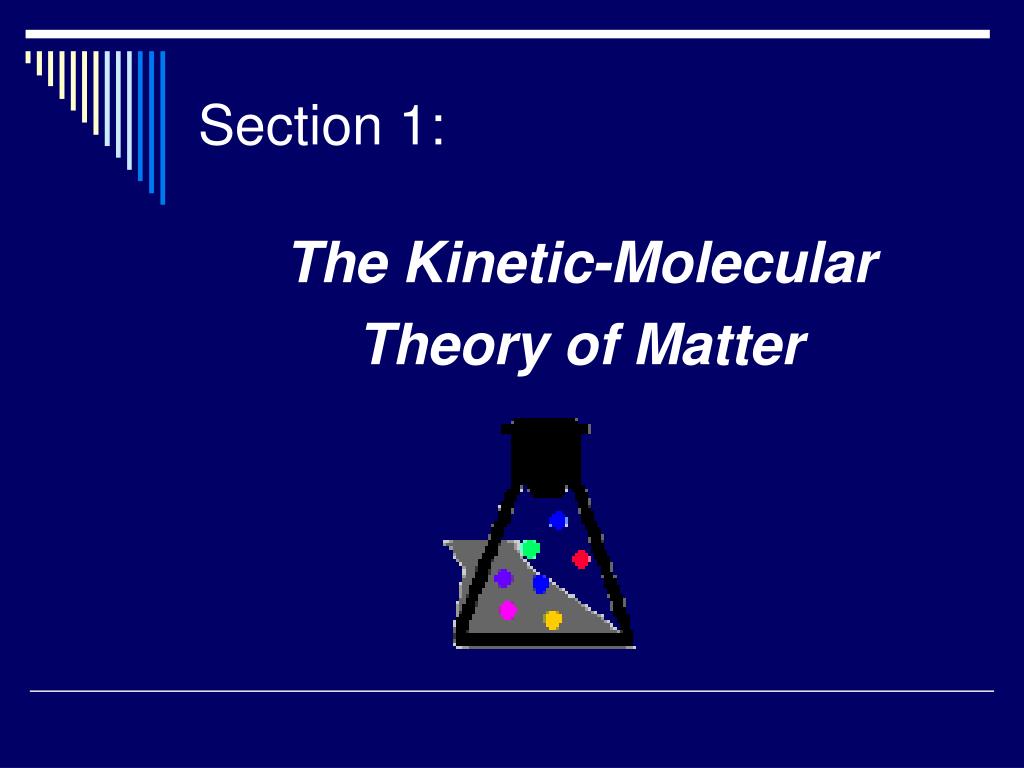

section 1
Section 1:

The Kinetic-Molecular

Theory of Matter

section 1 kinetic molecular theory of matter
Section 1: Kinetic-Molecular Theory of Matter
  • Kinetic-molecular theory is based on…

All matter is made of particles that are in constant motion.

  • Is used to explain properties of solids, liquids, & gases.
section 1 kinetic molecular theory of matter4
Section 1: Kinetic-Molecular Theory of Matter
  • Solids, liquids, and gases vary due to the energy of the particles and the forces that act upon them.
  • This chapter will study gases.
section 1 kinetic molecular theory of matter5
Section 1: Kinetic-Molecular Theory of Matter
  • Theory pertains to idealgases - notrealgases.
  • An ideal gas is an imaginary gas that perfectly fits all the assumptions of the k-m theory.
section 1 kinetic molecular theory of matter6
Section 1: Kinetic-Molecular Theory of Matter

5 assumptions:

1.Gases consist of large numbers of tiny particles that are far apart relative to their size

  • Much farther apart than liquids & solids so they can be compressed.
section 1 kinetic molecular theory of matter7

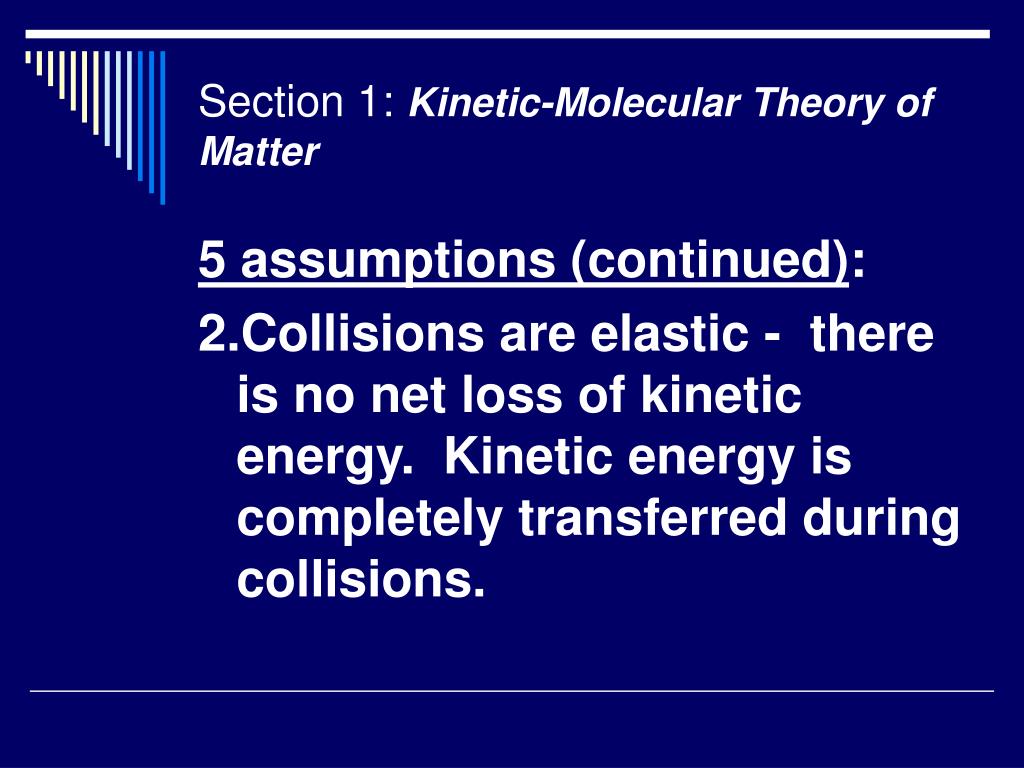

Section 1: Kinetic-Molecular Theory of Matter

5 assumptions (continued):

2.Collisions are elastic - there is no net loss of kinetic energy. Kinetic energy is completely transferred during collisions.

section 1 kinetic molecular theory of matter8
Section 1: Kinetic-Molecular Theory of Matter

5 assumptions (continued):

Kinetic energy is constant (if at same temperature)

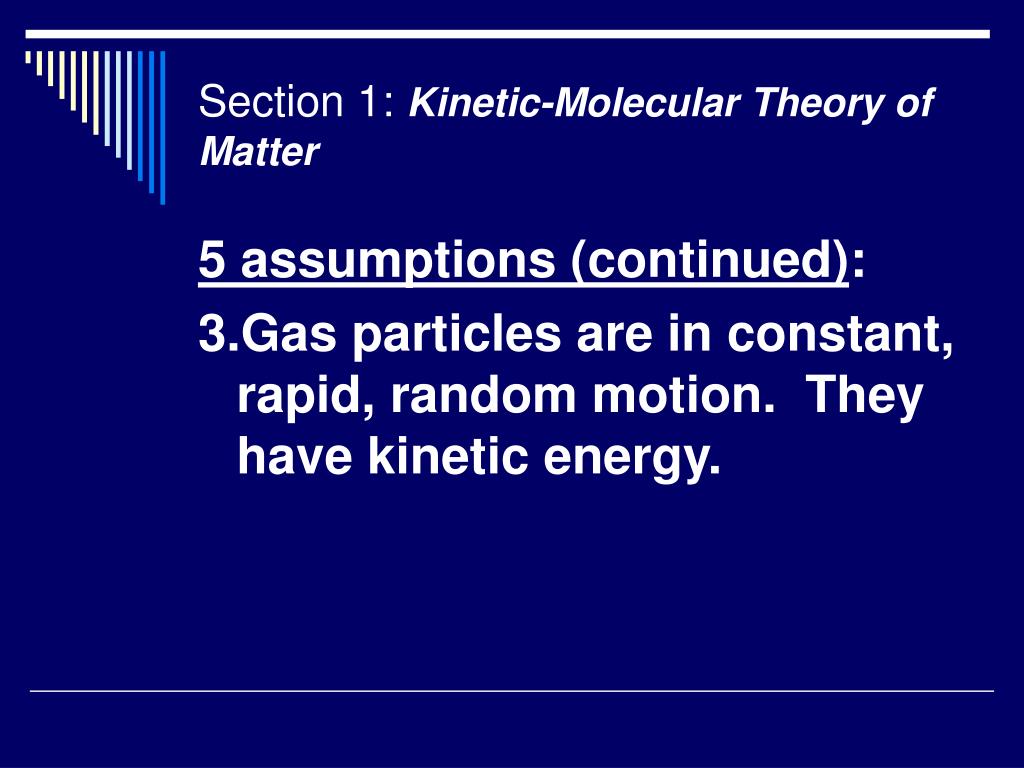

section 1 kinetic molecular theory of matter9
Section 1: Kinetic-Molecular Theory of Matter

5 assumptions (continued):

3.Gas particles are in constant, rapid, random motion. They have kinetic energy.

section 1 kinetic molecular theory of matter10
Section 1: Kinetic-Molecular Theory of Matter

5 assumptions (continued):

4. No forces of attraction act on gas particles.

section 1 kinetic molecular theory of matter11
Section 1: Kinetic-Molecular Theory of Matter

5 assumptions (continued):

  • The average kinetic energy of gas particles depends on the temperature of the gas.

KE= mv2

2

section 1 kinetic molecular theory of matter12

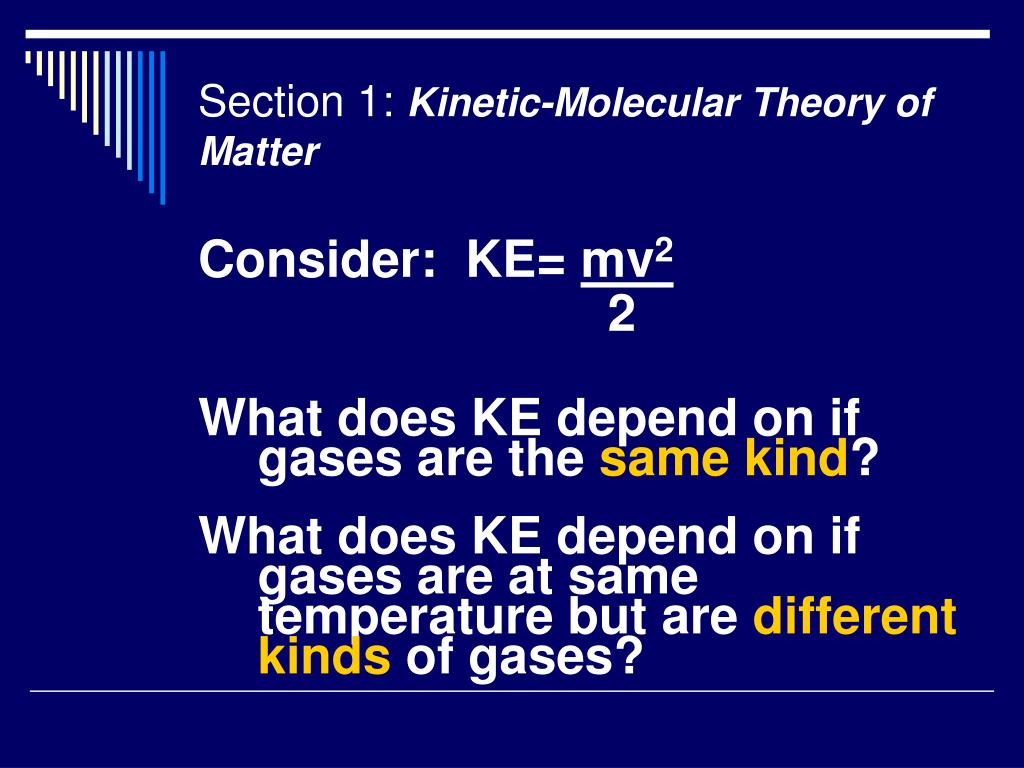

Section 1: Kinetic-Molecular Theory of Matter

Consider: KE= mv2

2

What does KE depend on if gases are the same kind?

What does KE depend on if gases are at same temperature but are differentkinds of gases?

physical properties of gases
Physical Properties of Gases
  • Expansion – Completely fill container & take its shape
physical properties of gases15

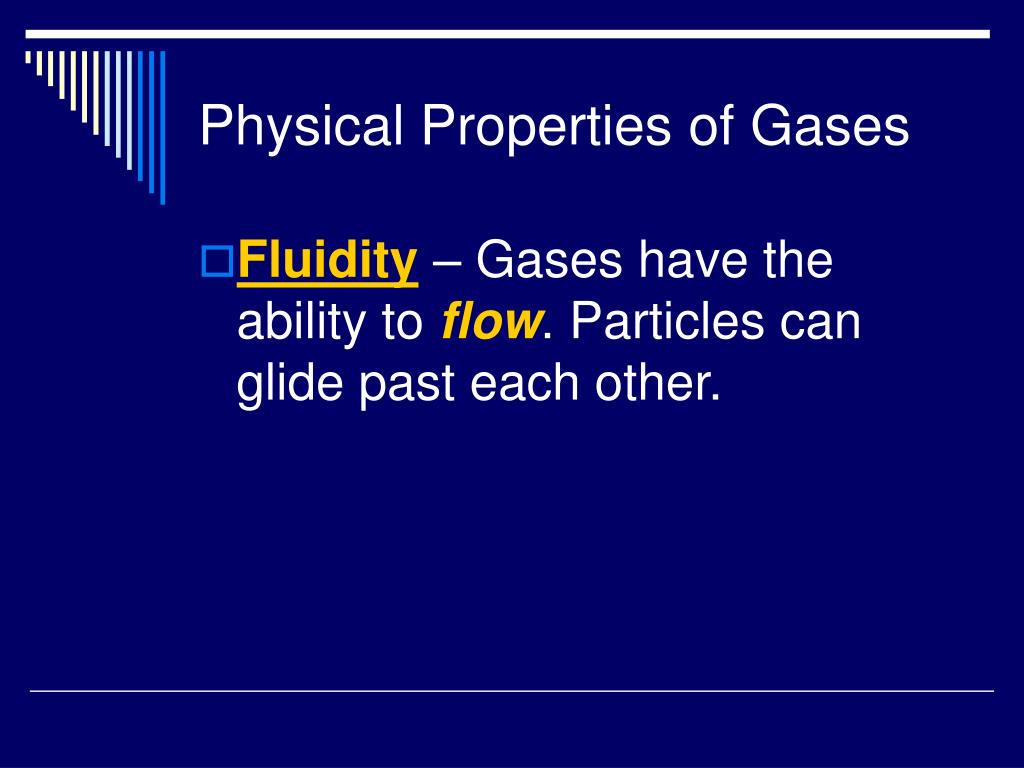

Physical Properties of Gases
  • Fluidity – Gases have the ability to flow. Particles can glide past each other.
physical properties of gases16
Physical Properties of Gases
  • Low density: Gas densities are about 1/1000 that of the liquid or solid phase.
  • Compressibility: Steel canisters contain about 100 times the number of particles than at normal pressure.
physical properties of gases17
Physical Properties of Gases
  • Diffusion: Gases randomly move and mix by random motion of their particles.
  • The rate of diffusion depends on the mass of the particles. Heavier ones move more slowly.
physical properties of gases19
Physical Properties of Gases
  • Effusion: Gases under pressure spread out when released from a small opening.
deviations of real gases
Deviations of Real Gases
  • Real gases do not behave according to all the assumptions of the K-M theory.
  • Real gases deviate most when they are under very high pressures and very cold temperatures.

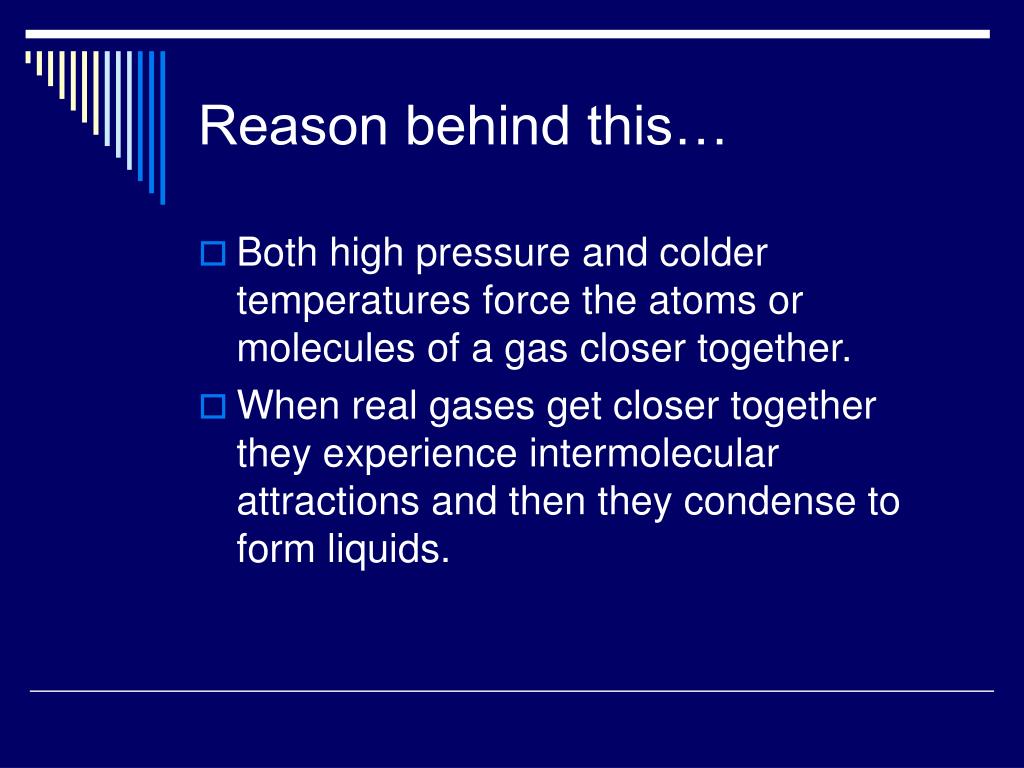

reason behind this
Reason behind this…
  • Both high pressure and colder temperatures force the atoms or molecules of a gas closer together.
  • When real gases get closer together they experience intermolecular attractions and then they condense to form liquids.
deviations of real gases22
Deviations of Real Gases
  • Noble gases behave more like ideal gases than any others.
  • More polar gases behave less like ideal gases.
section 2
Section 2:

Pressure

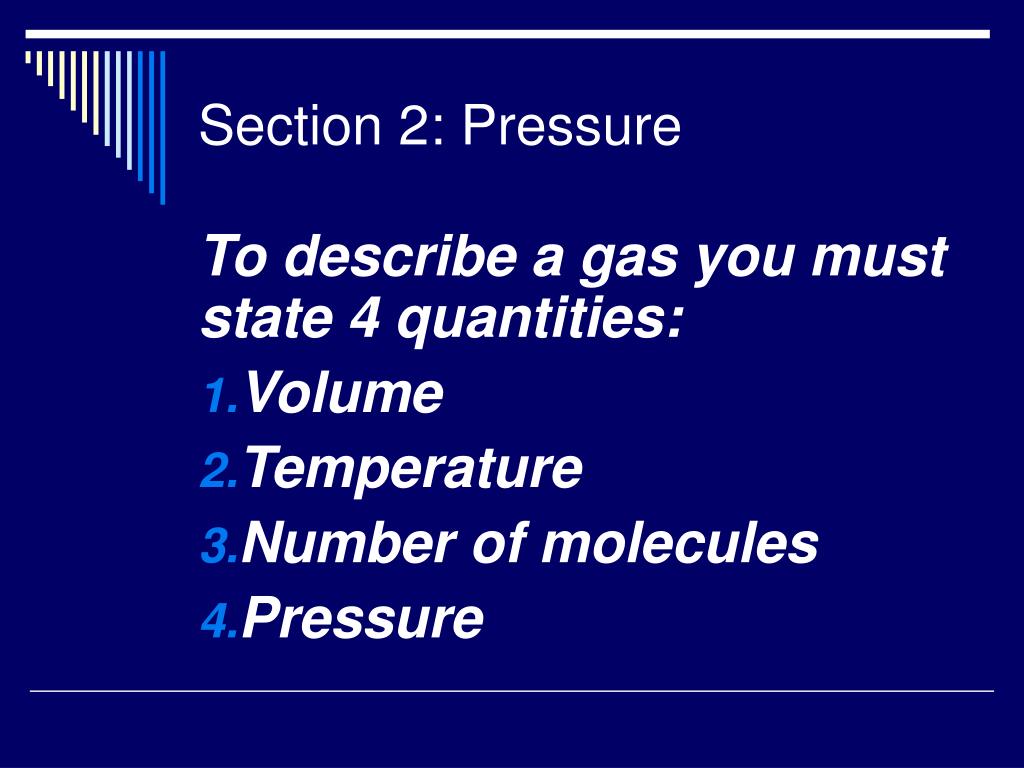

section 2 pressure
Section 2: Pressure

To describe a gas you must state 4 quantities:

  • Volume
  • Temperature
  • Number of molecules
  • Pressure
section 2 pressure25
Section 2: Pressure

Pressure is defined as the amount of force per unit of area.

P = force

area

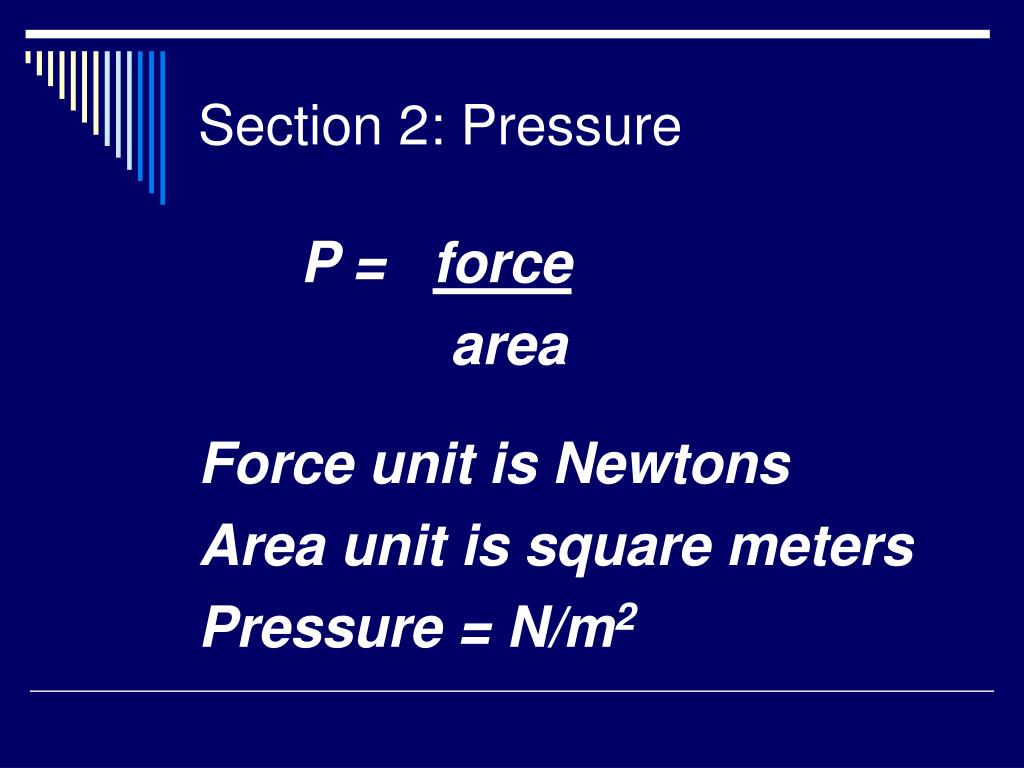

section 2 pressure26
Section 2: Pressure

P = force

area

Force unit is Newtons

Area unit is square meters

Pressure = N/m2

section 2 pressure27
Section 2: Pressure

Open can

Closed Can

Air Pumped

Out

measuring pressure
Measuring Pressure
  • What tool do we use to measure atmospheric pressure?
  • Barometer!
  • First built by Evangelista Torricelli (1600’s)
measuring pressure29
Measuring Pressure
  • Torricelli noticed that pumps could raise water only 34 feet high.
  • He compared density of mercury to density of water (14x greater)
  • Predicted height that mercury could be raised (1/14 of 34 ft or about 30 inches).
units of pressure

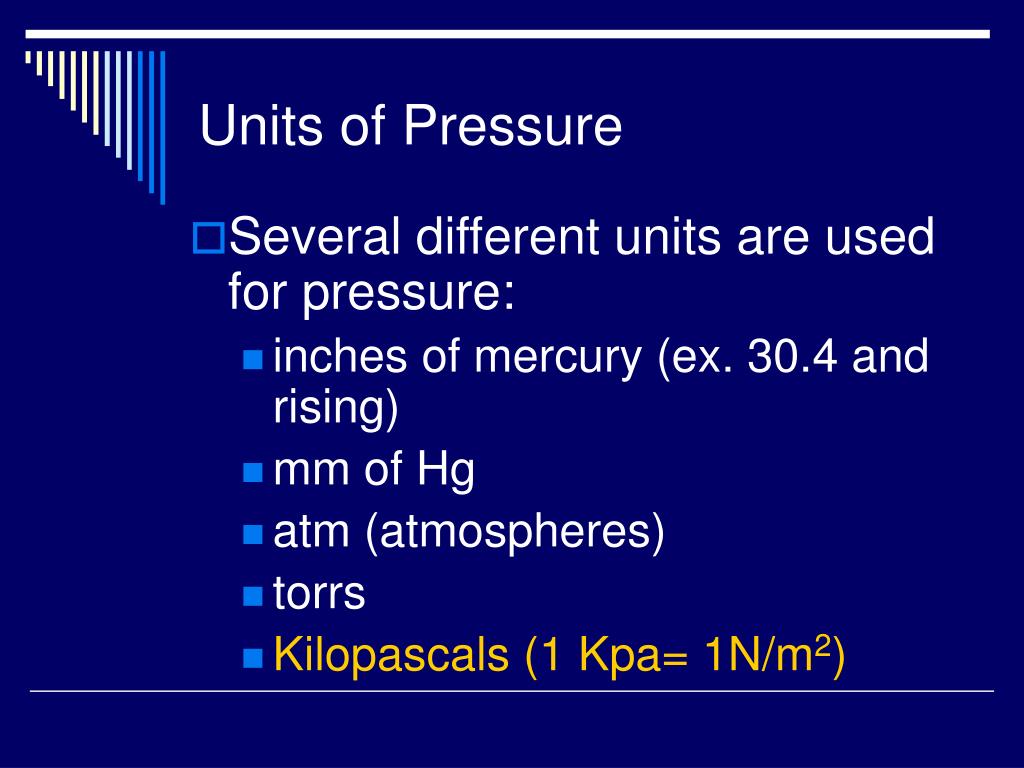

Units of Pressure
  • Several different units are used for pressure:
    • inches of mercury (ex. 30.4 and rising)
    • mm of Hg
    • atm (atmospheres)
    • torrs
    • Kilopascals (1 Kpa= 1N/m2)

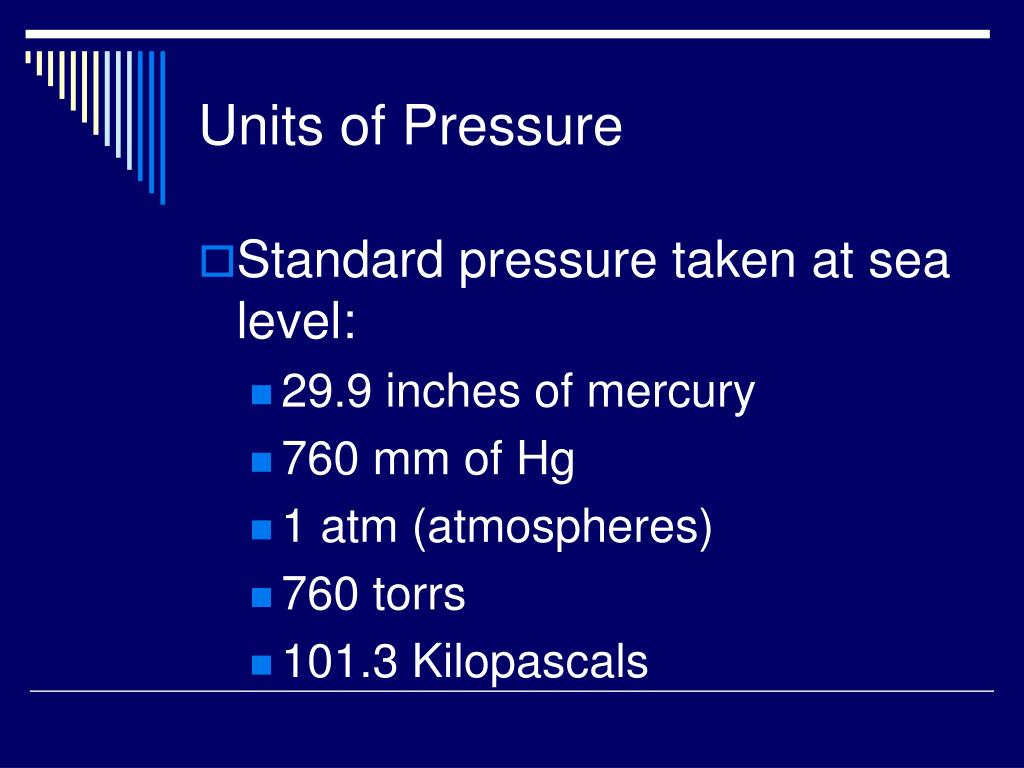

units of pressure31
Units of Pressure
  • Standard pressure taken at sea level:
    • 29.9 inches of mercury
    • 760 mm of Hg
    • 1 atm (atmospheres)
    • 760 torrs
    • 101.3 Kilopascals
section 3
Section 3

The Gas Laws

Mathematical relationships between volume, temperature, pressure and quantity of gases

section 3 the gas laws
Section 3: The Gas Laws
  • Boyle’s Law
  • Charles’ Law
  • Dalton’s Law of Partial Pressures
  • Gay-Lussac’s Law
  • Combined Gas Law
section 3 the gas laws34

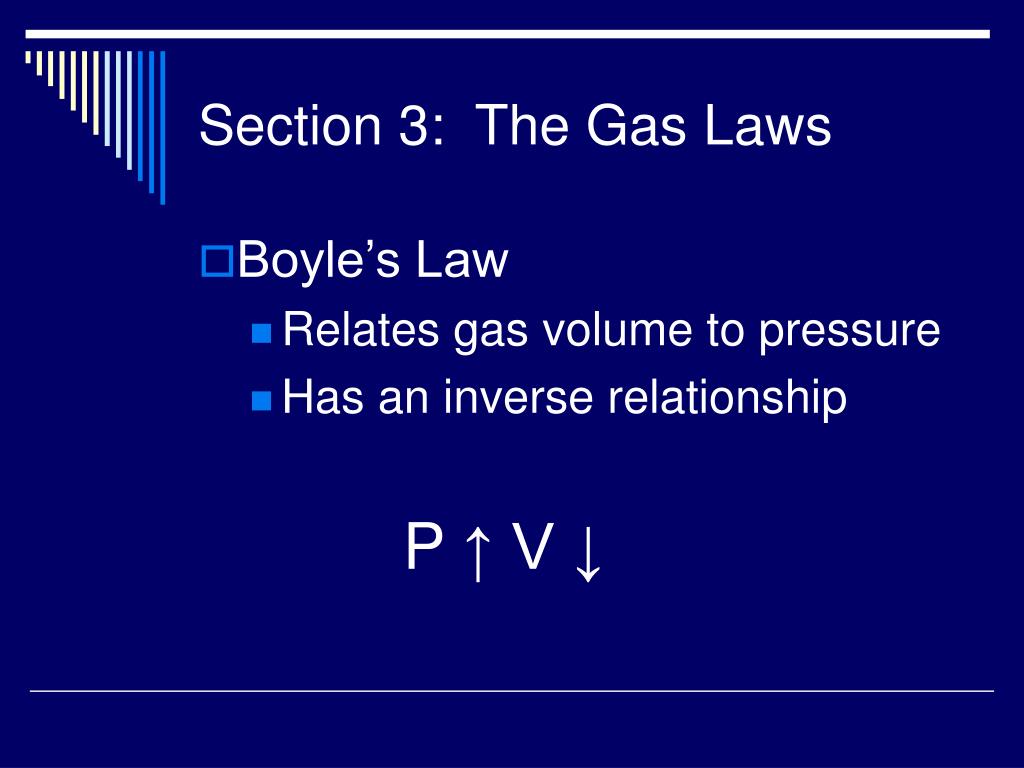

Section 3: The Gas Laws
  • Boyle’s Law
    • Relates gas volume to pressure
    • Has an inverse relationship

P ↑ V ↓

section 3 the gas laws35
Section 3: The Gas Laws
  • Formula for Boyle’s Law

P1V1 = P2V2

What would be a gas’s volume if the pressure reduced from 98 kPa down to 60 kPa if its original volume was 300 Liters?

section 3 the gas laws37
Section 3: The Gas Laws

P1V1 = P2V2

98 (300) = 60 (V2)

V2 = 490 L

section 3 the gas laws38

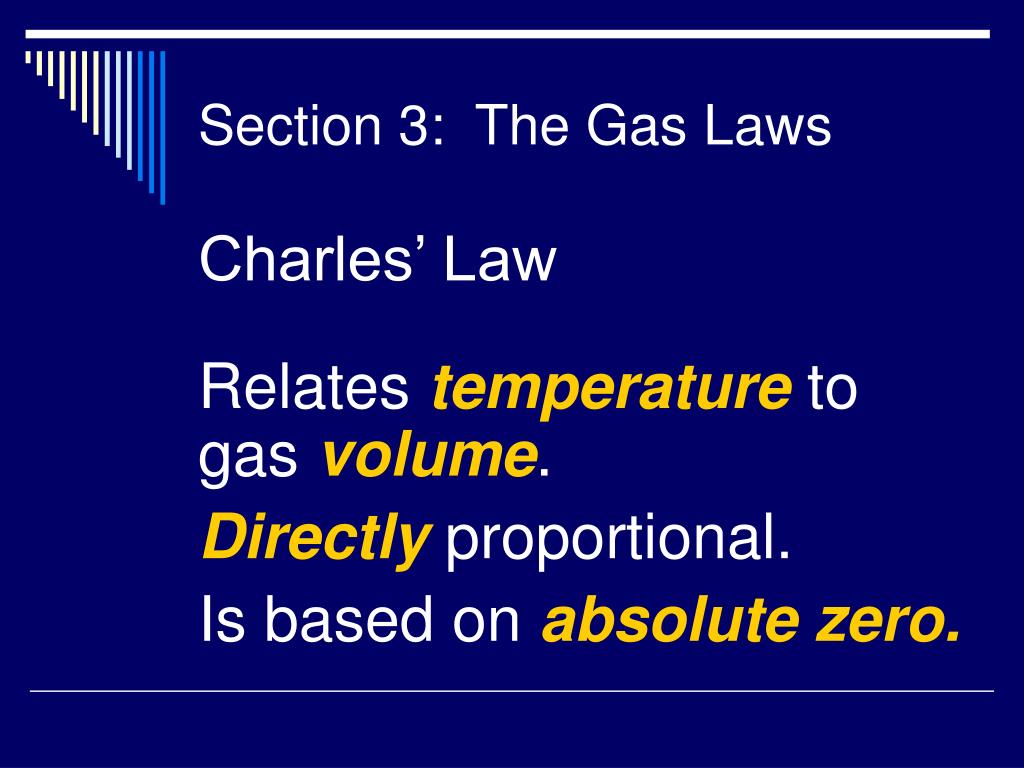

Section 3: The Gas Laws

Charles’ Law

Relates temperature to gas volume.

Directly proportional.

Is based on absolute zero.

section 3 the gas laws39
Section 3: The Gas Laws

In 1787, Jacques Charles found that as he decreased the temperature of a gas 1 degree then the volume decreased 1/273.

section 3 the gas laws40
Section 3: The Gas Laws

The volume of a fixed mass of gas at constant pressure varies directly with the Kelvin temperature.

section 3 the gas laws41
Section 3: The Gas Laws

Formula for Charles’ Law (temperature must be in Kelvin)

V1 V2

=

T1 T2

problem

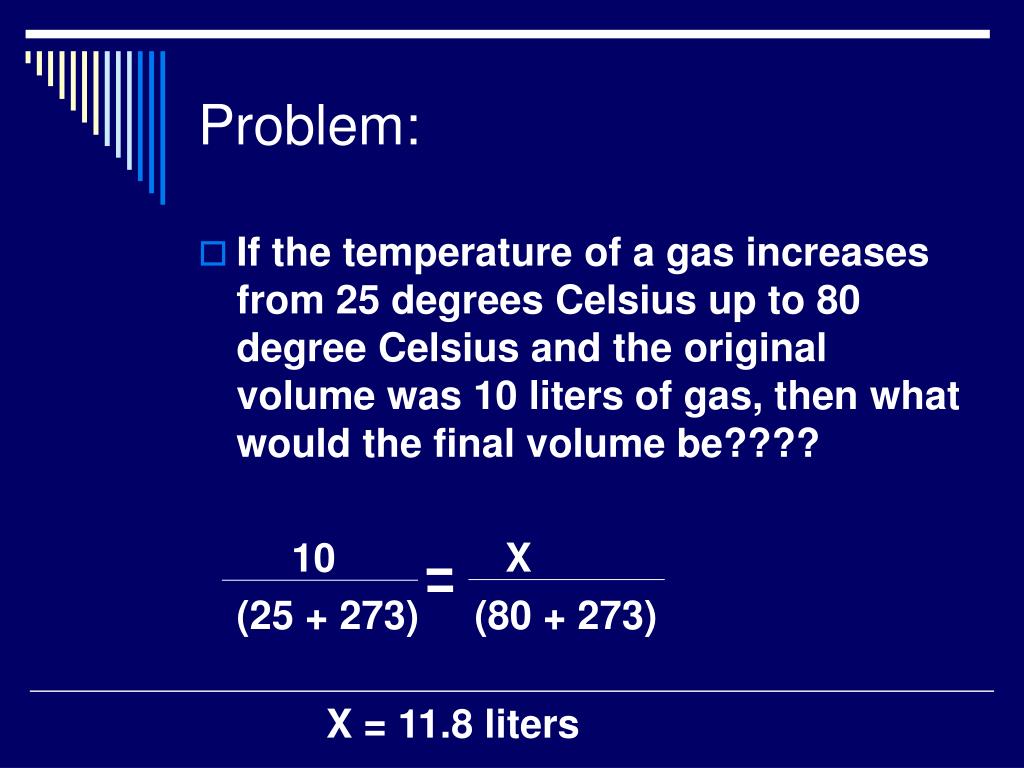

Problem:
  • If the temperature of a gas increases from 25 degrees Celsius up to 80 degree Celsius and the original volume was 10 liters of gas, then what would the final volume be????

10 X

(25 + 273) (80 + 273)

X = 11.8 liters

gay lussac s law
Gay-Lussac’s Law
  • Relates pressure and temperature (assumes constant volume)

P1 P2

=

T1 T2

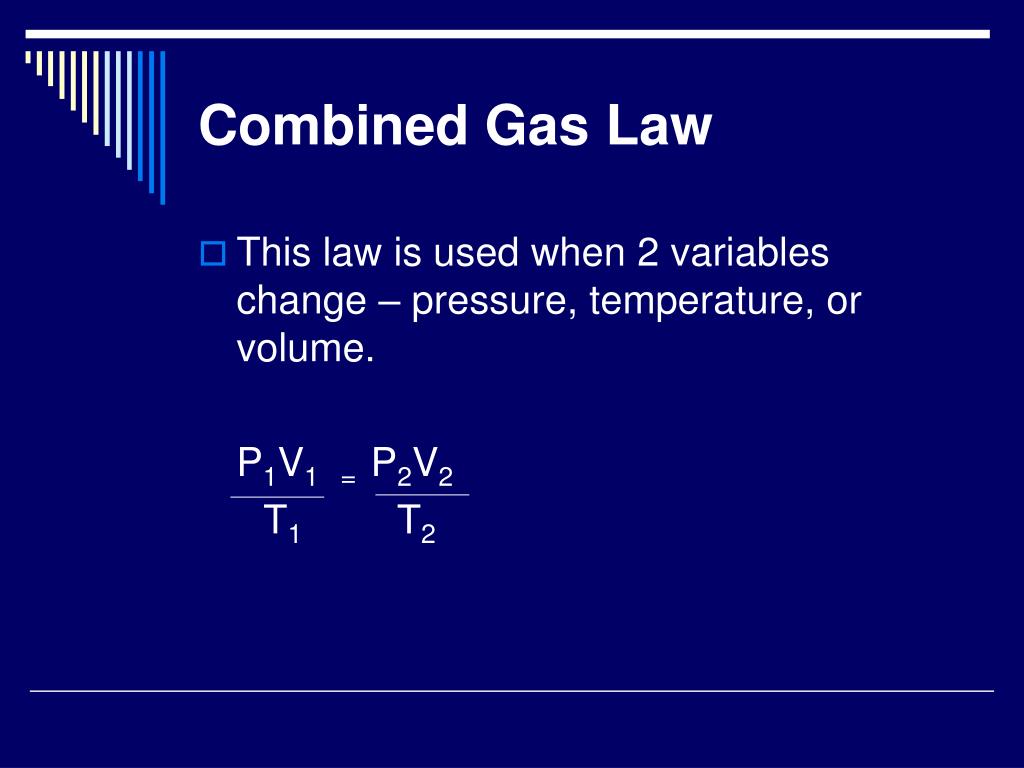

combined gas law
Combined Gas Law
  • This law is used when 2 variables change – pressure, temperature, or volume.

P1V1 = P2V2

T1 T2

dalton s law of partial pressure
Dalton’s Law of Partial Pressure
  • If there is no chemical reaction occurring then the pressure of a mixture of gases will be equal to all the combined pressures of each gas.
  • Equation:

PT = P1 + P2 + P3 + …

collecting gases by water displacement

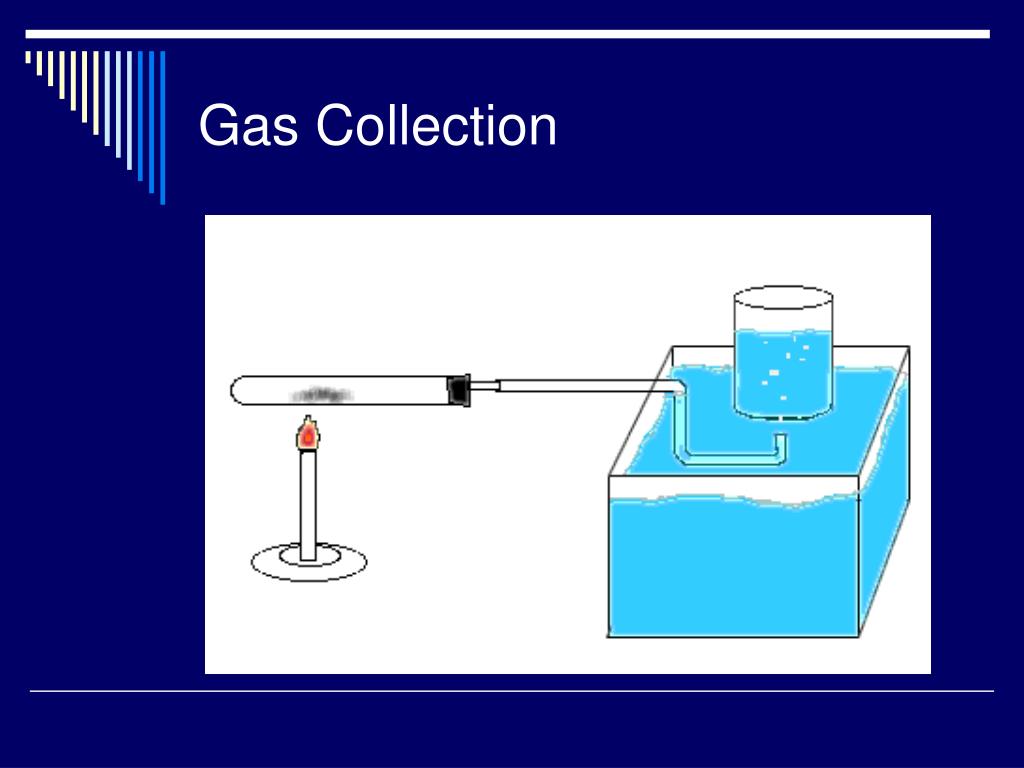

Collecting Gases by Water Displacement
  • Water is commonly collected by bubbling it through water.
  • The pressure then in the container is a combination of both the pressure of the gas as well as a small amount of water vapor.
collecting gases by water displacement49
Collecting Gases by Water Displacement
  • To determine the pressure of the gas you must subtract the pressure of the water vapor.
  • The pressure of the water varies according to the temperature.
  • Use the chart for H2O pressure:
sample problem
Sample Problem:
  • Oxygen was collected under water at 20°C. If the combined pressure was 731 torr, then what is the pressure of the gas within?

H2O pressure at 20 C = 17.5 torr

Total press: 731

Minus H2O - 17.5

Gas press: 713.5 torr

assignment
Assignment
  • Page 329:
    • questions 39-43
