Presentation Transcript

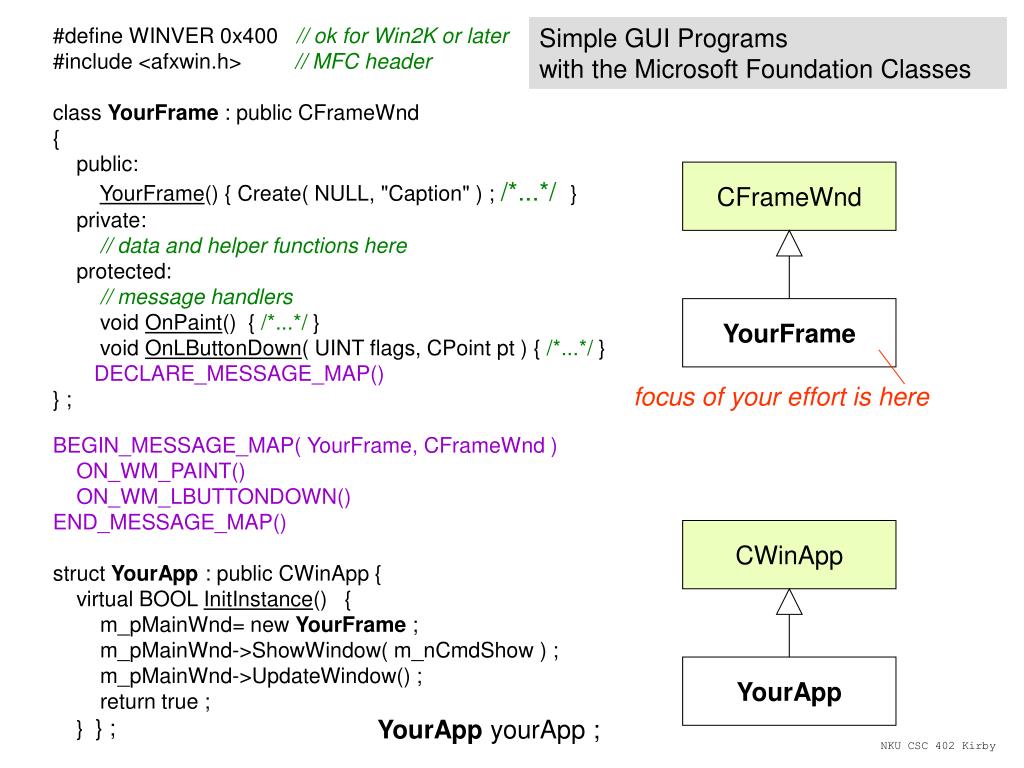

slide1

Simple GUI Programs

with the Microsoft Foundation Classes

CFrameWnd

YourFrame

focus of your effort is here

CWinApp

YourApp

#define WINVER 0x400 // ok for Win2K or later

#include <afxwin.h> // MFC header

class YourFrame : public CFrameWnd

{

public:

YourFrame() { Create( NULL, "Caption" ) ; /*...*/}

private:

// data and helper functions here

protected:

// message handlers

void OnPaint() { /*...*/ }

void OnLButtonDown( UINT flags, CPoint pt ) { /*...*/ }

DECLARE_MESSAGE_MAP()

} ;

BEGIN_MESSAGE_MAP( YourFrame, CFrameWnd )

ON_WM_PAINT()

ON_WM_LBUTTONDOWN()

END_MESSAGE_MAP()

struct YourApp : public CWinApp {

virtual BOOL InitInstance() {

m_pMainWnd= new YourFrame ;

m_pMainWnd->ShowWindow( m_nCmdShow ) ;

m_pMainWnd->UpdateWindow() ;

return true ;

} } ;

YourApp yourApp ;

NKU CSC 402 Kirby
