RECTIFICATION. X-RAY CIRCUIT. Whenever the art of medicine is loved, there is also love for humanity. Hippocrates. RECTIFICATION. PROCESS BY WHICH ALTERNATING CURRENT IS CHANGED TO PULSATING DIRECT CURRENT. A/C GENERATOR A/C CURRENT 1 PHASE. A/C ( UNRECTIFIED)- FREQUENCY 60 Hz.
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
PROCESS BY WHICH ALTERNATING CURRENT IS CHANGED TO PULSATING DIRECT CURRENT

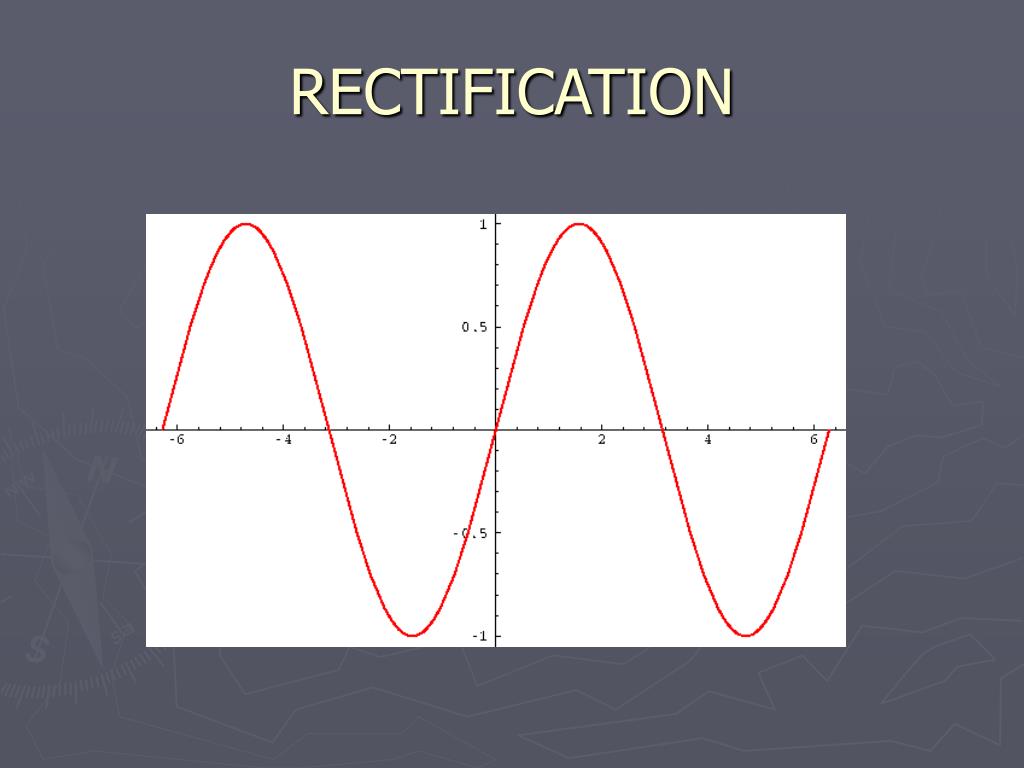

A/C ( UNRECTIFIED)- FREQUENCY 60 Hz
60 NEGATIVE PULSES/SEC
60 FULL CYCLES
D/C HALF-WAVE – 60 POSITIVE PULSES/SEC
NEGATIVE PULSES ARE SUPPRESSED

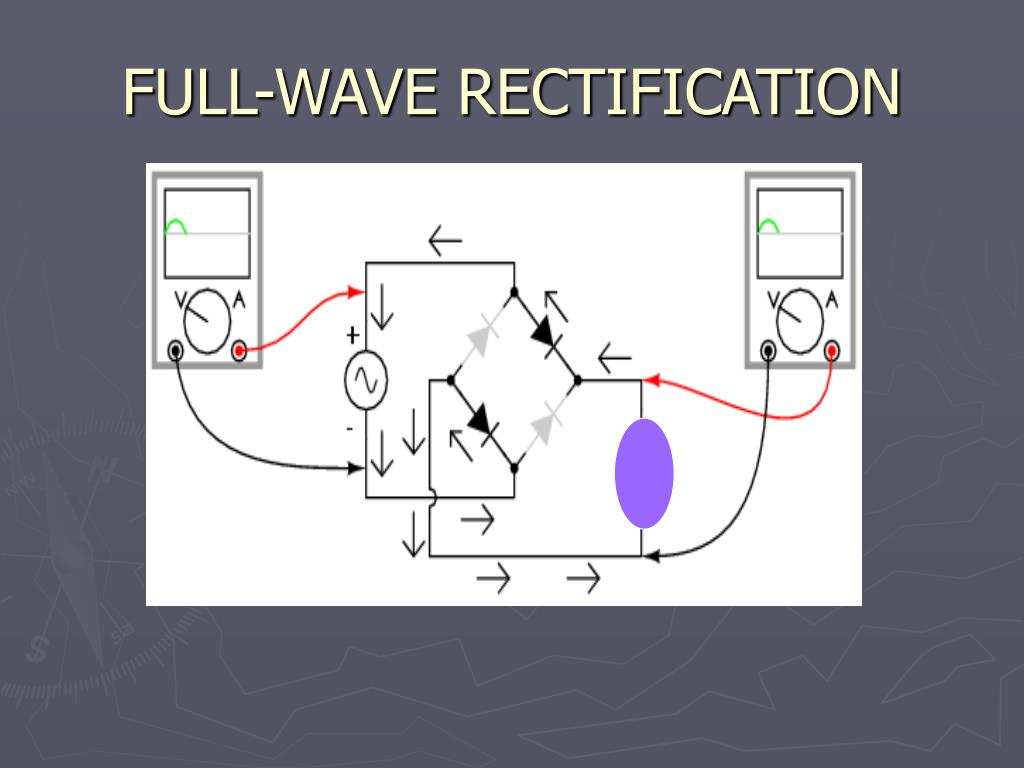

D/C HALF-WAVE – 120 POSITIVE PULSES/SEC

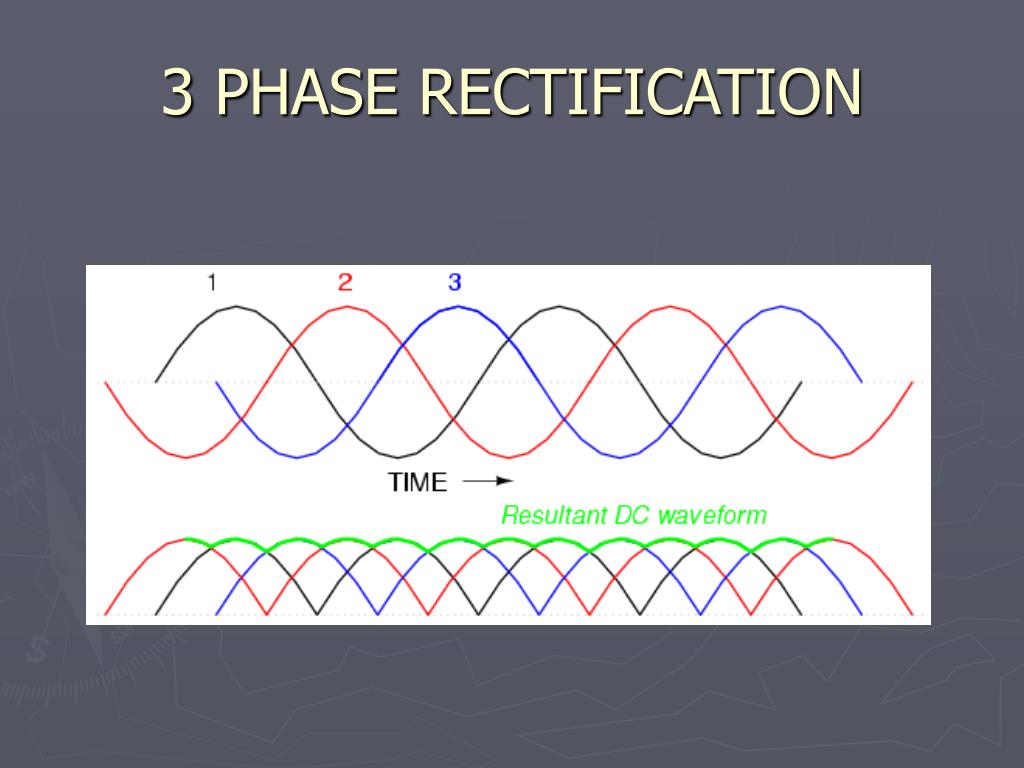

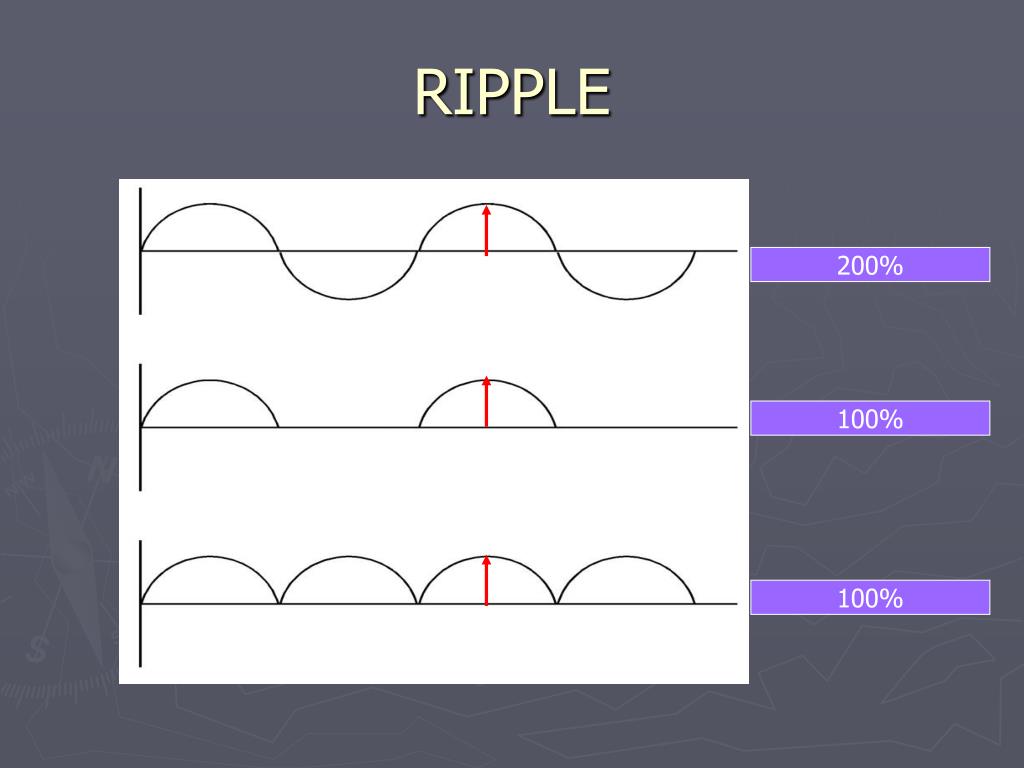

D/C 3 PHASE 6 PULSE – 6 PULSES/CYCLE

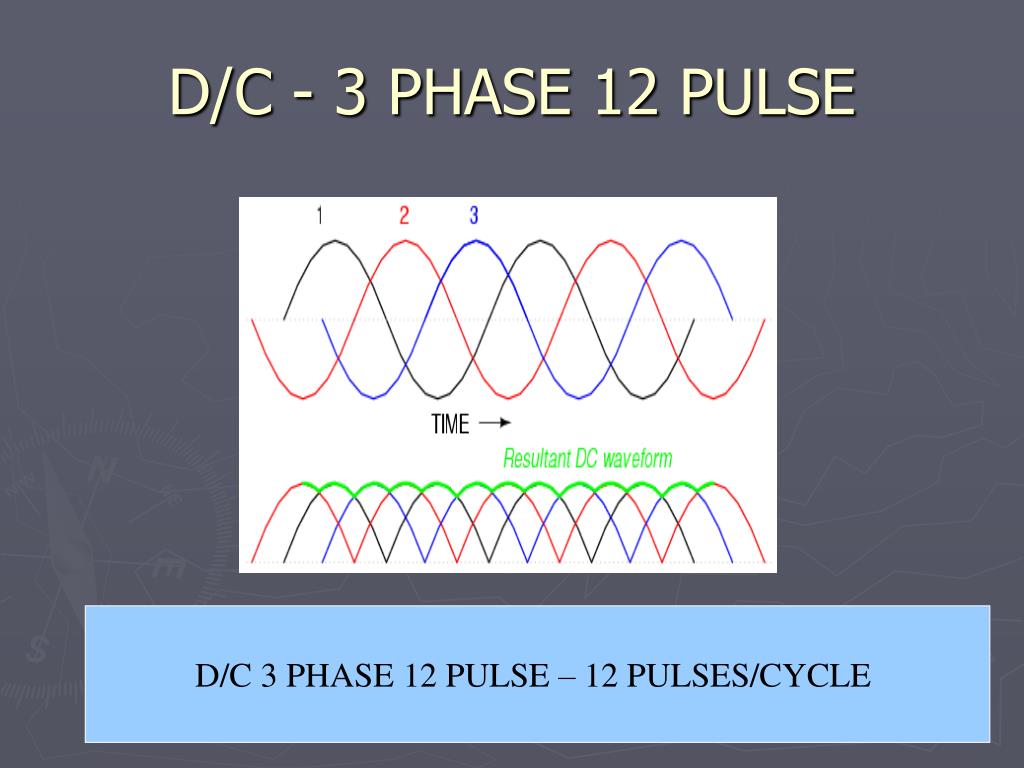

D/C 3 PHASE 12 PULSE – 12 PULSES/CYCLE

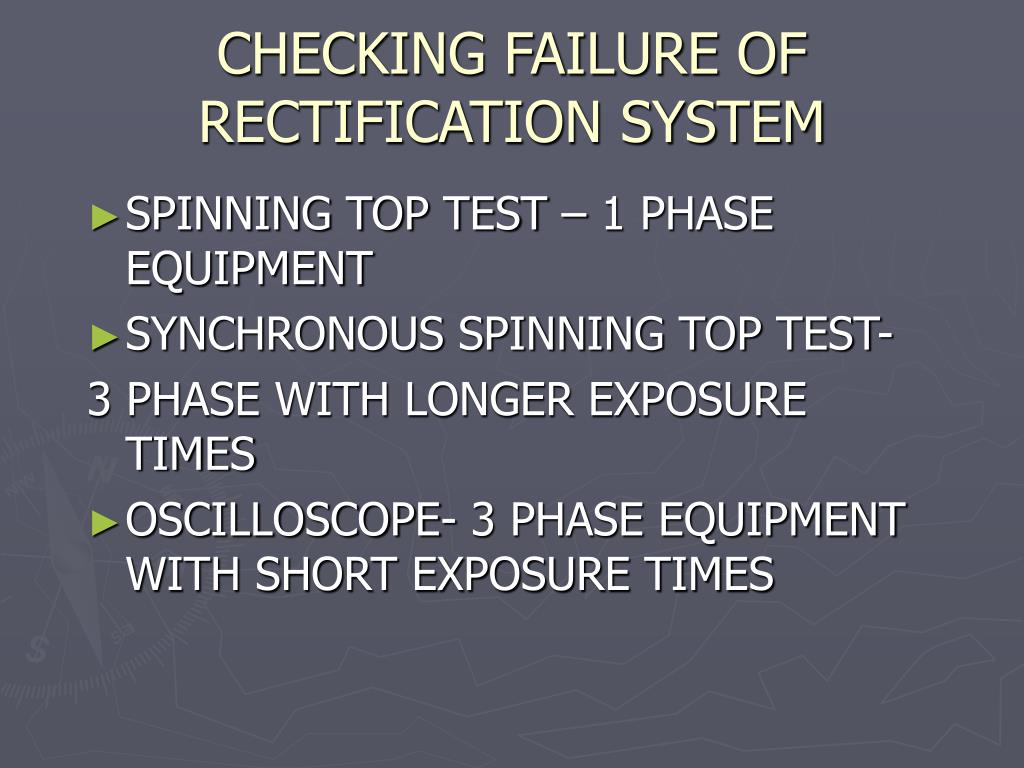

3 PHASE WITH LONGER EXPOSURE TIMES
# OF DASHES = TIME (SEC) x 60 PULSES
# OF DASHES = TIME (SEC) x 120 PULSES
DEG. OF ARC = 360°/ sec x TIME (sec)
