Presentation Transcript
slide1

Low Cost Waste Water

Desalination Systems (RDITM)

Patrick Curran, CEO

www.atlantis-water.com

“Enabling Responsible Energy Independence”

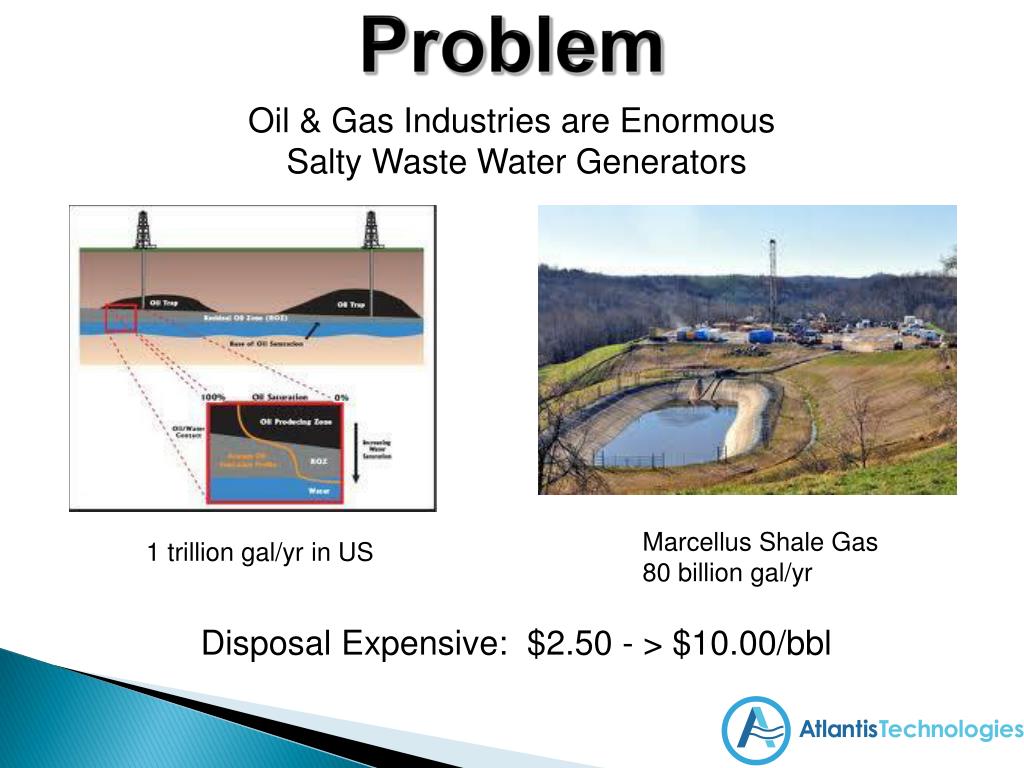

problem
Problem

Oil & Gas Industries are Enormous

Salty Waste Water Generators

Marcellus Shale Gas

80 billion gal/yr

1 trillion gal/yr in US

Disposal Expensive: $2.50 - > $10.00/bbl

slide3

Solution: RDI Desalination

  • $5.4 million Defense Department Investment
  • Super capacitor, removes any salt
  • 8 Issued & pending patents since 2009.
  • Scalable to > 1,000 gpm
  • Modular design
slide4

Value Proposition

  • Modular: Plug and Play into plant
  • 40% - 70% lower cost of ownership
  • High Salinity: Up to 250,000 ppm
  • Removes sulfates, hardness, metals
  • Up to 95% clean water recovered
  • Wide range of pH, AMD water
slide5

Cost of Ownership

10,000 ppm, $/bbl

slide6

Cost of Ownership

75,000 ppm, $/bbl

slide7

Cost of Ownership

250,000 ppm, $/bbl

slide8

What is Radial Deionization?

(+)

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

+

+

-

-

+

-

-

-

+

-

+

+

+

+

-

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

Clean Water

Salty Water

(-)

Super Capacitor

applications
Applications

Shale Gas

Oil/Oil Sands

Power Generation

Acid Mine Drainage

awards
Awards
  • 8issued & pending patents.
  • 2nd Place, 2011 Anaheim New Energy Technologies
    • - http://acnet-anaheim.net/about-acnet-clean-tech-competition
  • Winner, 2011 Tech Coast Angels Quick Pitch
    • - http://www.xconomy.com/san-diego/2011/10/11/atlantis-technologies-cleans-up-at-angels-quick-pitch-competition/
  • Winner, 2011 American Water Summit “Idol” contest.
    • - http://www.uimonline.com/index/webapp-stories-action?id=598
  • Finalist, 2011 Imagine H2O Waste Water Bus. Plan
    • http://www.waterefficiency.net/WE/Articles/15580.aspx
  • Semi Finalist, 2012 Global Cleantech Open
    • http://cleantechopen.com/app.cgi/content/home/index
  • Winner 2012 Artemis Most Promising Water Tech
  • Winner, Most Innovative Product, Clean Technology
slide12

Team Leaders

  • Patrick Curran: CEO, CTO
  • BS Chemical Engineering, Drexel University
  • 13 years wastewater experience
  • 25 years of engineering & management, 2nd Startup
  • Mark Franzen: CFO
  • BA Finance, CSU Northridge
  • Raised over $200 million equity capital.
  • CFO of 16 companies including 6 startups.
  • Robert Newton: P.E., Business Development Leader
  • BS Chemical Engineering, Drexel University
  • 28 years wastewater experience including
  • ex-Global Marketing Director of Siemens. 2nd startup
  • Kelly Sarber: Business Development Leader, Investor Relations
  • MBA, Harvard University, BA Economics, UCLA
  • More than 30 years of waste and waste water business leadership.
  • CEO, Strategic Managementt. 2nd startup.
slide13

Key Takeaways

  • Technology works – $5.4MM DARPA, 1,000’s of tests
  • Large & Growing Markets > $1.6 Bill/yr by 2016.
  • Strong Intellectual Property – 8 Issued/pending patents
  • High Profile Partners – Power, Oil/Gas, Water Treatment
  • Experienced Team – CEO, CFO, Bizdev, Engs, Advisors
