    1. SCX-6X22 Series training JULY 2006 Mechanism

    2. Agenda • General Specification • Structure and Paper Path • Disassembly • Consumable parts

    3. Ⅰ. General Specification Objectives • To make you aware of the key specification points

    4. Ⅰ. General Specification - Overall

    5. Ⅰ. General Specification – Print / Scan

    6. Ⅰ. General Specification - Copy

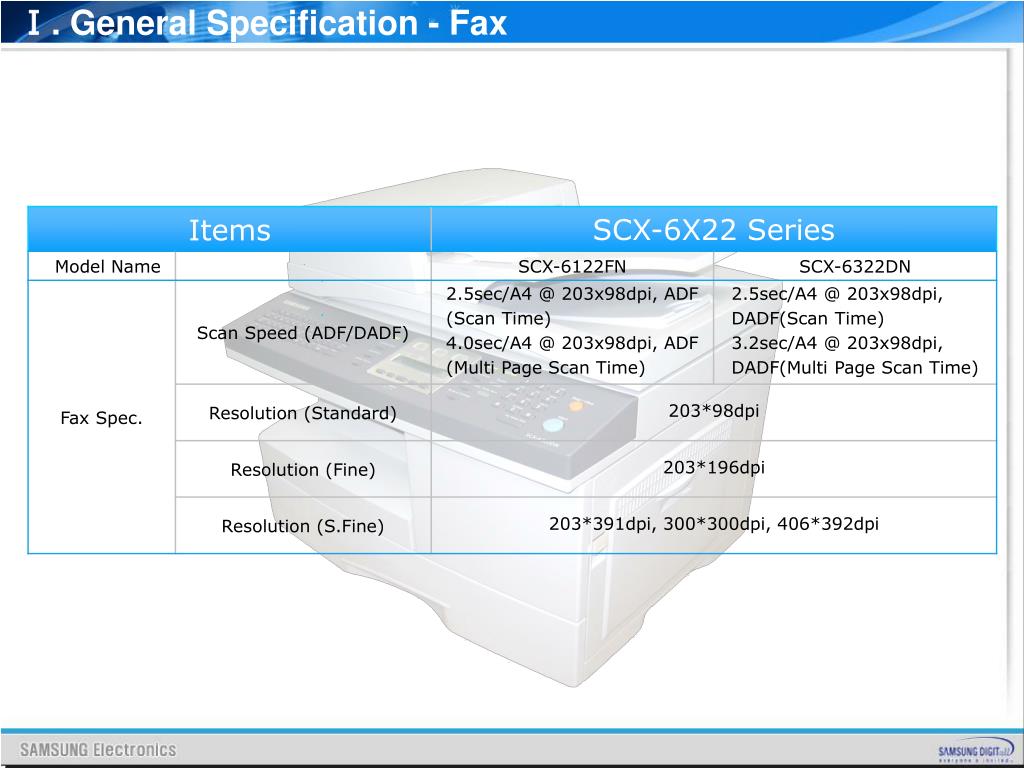

    7. Ⅰ. General Specification - Fax

    8. Ⅱ. Structure and Paper Path Objectives • To make you aware of the structure and the paper path of SCX-6x22 series

    9. Ⅱ. Structure and Paper Path - Structure 4 5 9 8 3 7 10 2 6 1 Structure (SCX-6122FN) Paper Input (Cassette) Original Copy Output (ADF) 5 1 Paper Input (Manual Feeder) 6 2 Toner Cartridge OPC 9 CCD Paper Out (Face Down) 7 3 10 LSU Fuser Unit 8 4 Original Copy Input (ADF)

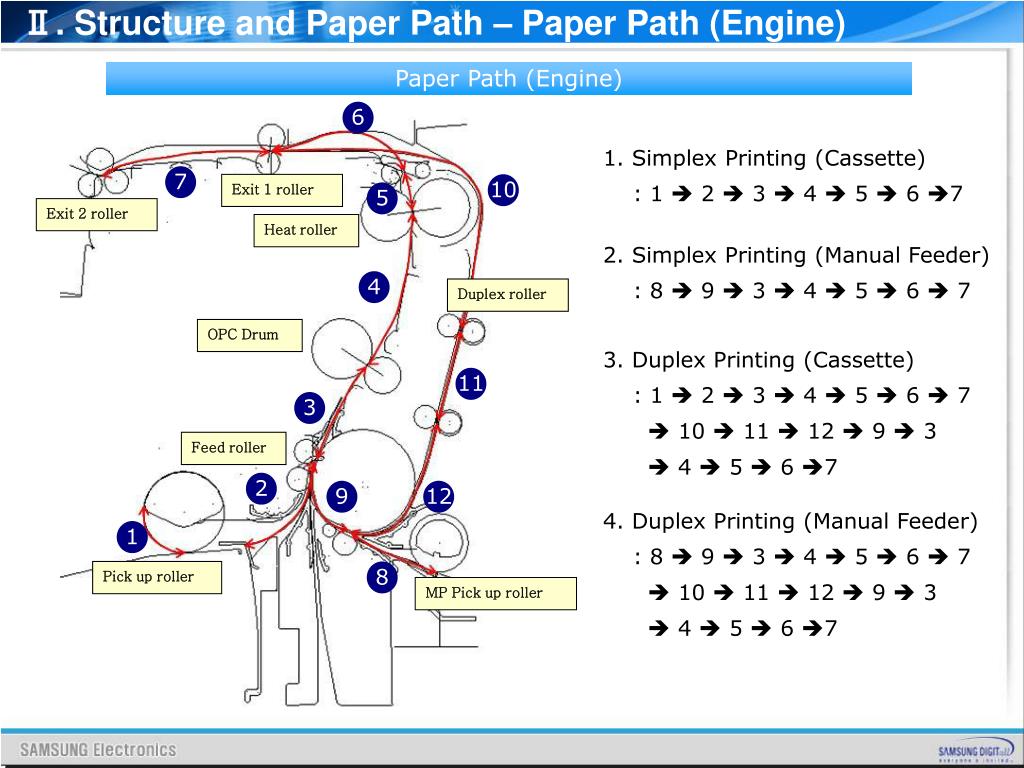

    10. Ⅱ. Structure and Paper Path – Paper Path (Engine) 6 7 10 Exit 1 roller 5 Exit 2 roller Heat roller 4 Duplex roller OPC Drum 11 3 Feed roller 2 9 12 1 8 Pick up roller MP Pick up roller Paper Path (Engine) 1. Simplex Printing (Cassette) : 1  2  3  4  5  6 7 2. Simplex Printing (Manual Feeder) : 8  9  3  4  5  6  7 3. Duplex Printing (Cassette) : 1  2  3  4  5  6  7  10  11  12  9  3  4  5  6 7 4. Duplex Printing (Manual Feeder) : 8  9  3  4  5  6  7  10  11  12  9  3  4  5  6 7

    11. Ⅱ. Structure and Paper Path – Paper Path (DADF) Regi roller Pick up roller 2 1 10 9 8 3 6 7 5 Feed roller Scan roller 4 Paper Path (Engine) 1. Simplex Copy : 1  2  3  4  5  6 7 2. Duplex Printing (Collated) : 1  2  3  4  5  6 7  8  9  10  3  4  5  6 7  8  9  10  3  4  5  6 7 3. Duplex Printing (Non-Collated) : 1  2  3  4  5  6 7  8  9  10  3  4  5  6 7

    12. Ⅲ. Disassembly Objectives • To show you how to disassemble the whole set and each unit

    13. Ⅲ. Disassembly – Rear Cover

    14. Ⅲ. Disassembly – Scanner (1)

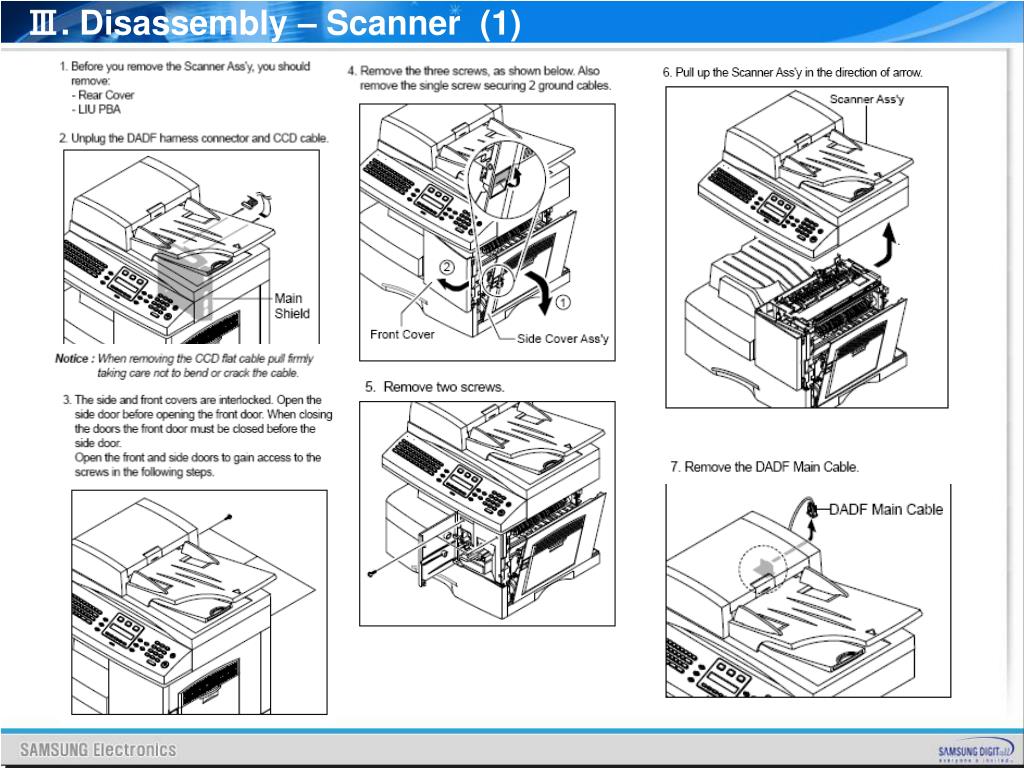

    15. Ⅲ. Disassembly – Scanner (2)

    16. Ⅲ. Disassembly – Scanner (3)

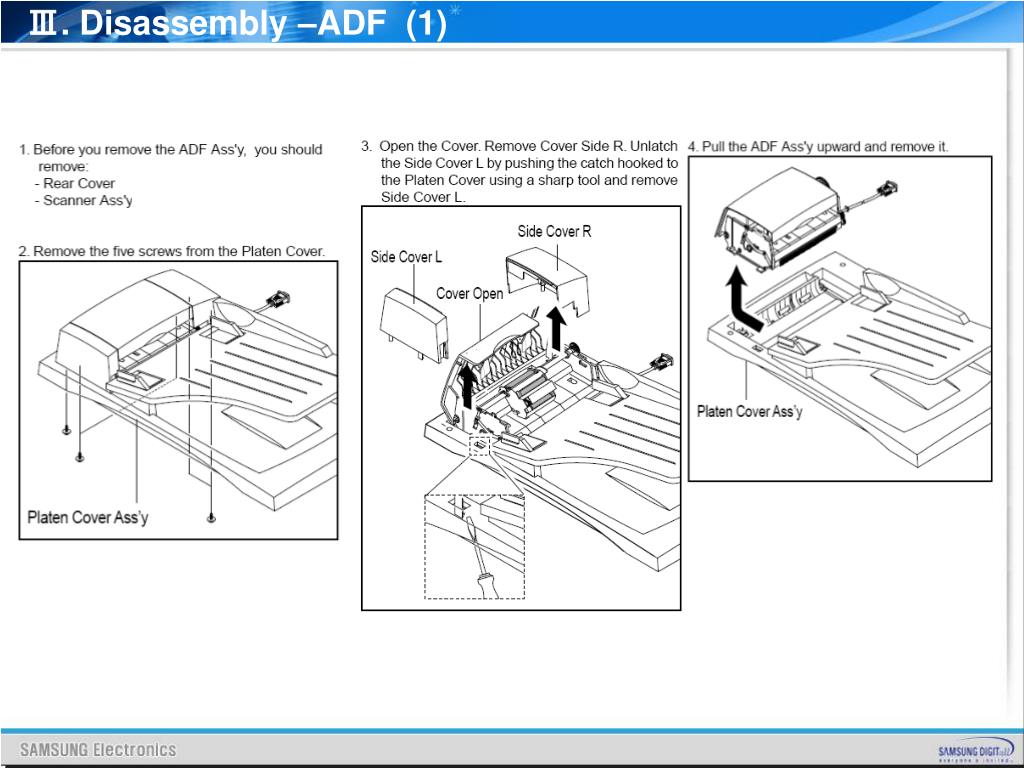

    17. Ⅲ. Disassembly –ADF (1)

    18. Ⅲ. Disassembly –ADF (2)

    19. Ⅲ. Disassembly – DADF (1)

    20. Ⅲ. Disassembly – DADF (2)

    21. Ⅲ. Disassembly – DADF (3)

    22. Ⅲ. Disassembly – OPE

    23. Ⅲ. Disassembly – Side Cover / MP

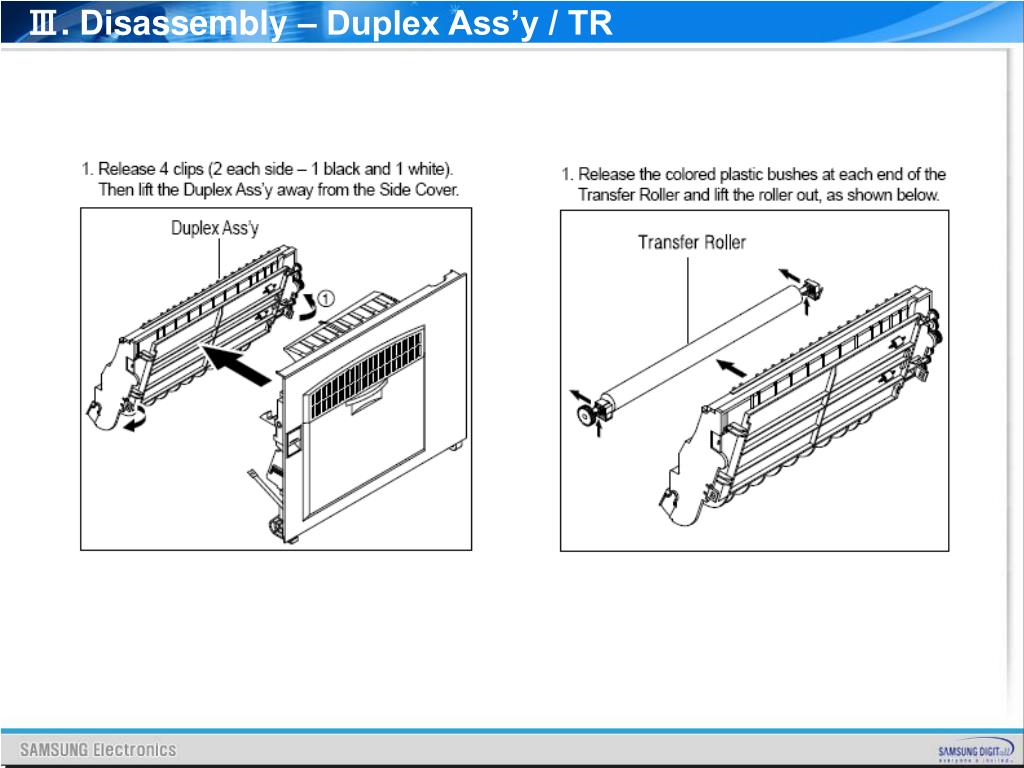

    24. Ⅲ. Disassembly – Duplex Ass’y / TR

    25. Ⅲ. Disassembly – Fuser

    26. Ⅲ. Disassembly – Exit Ass’y

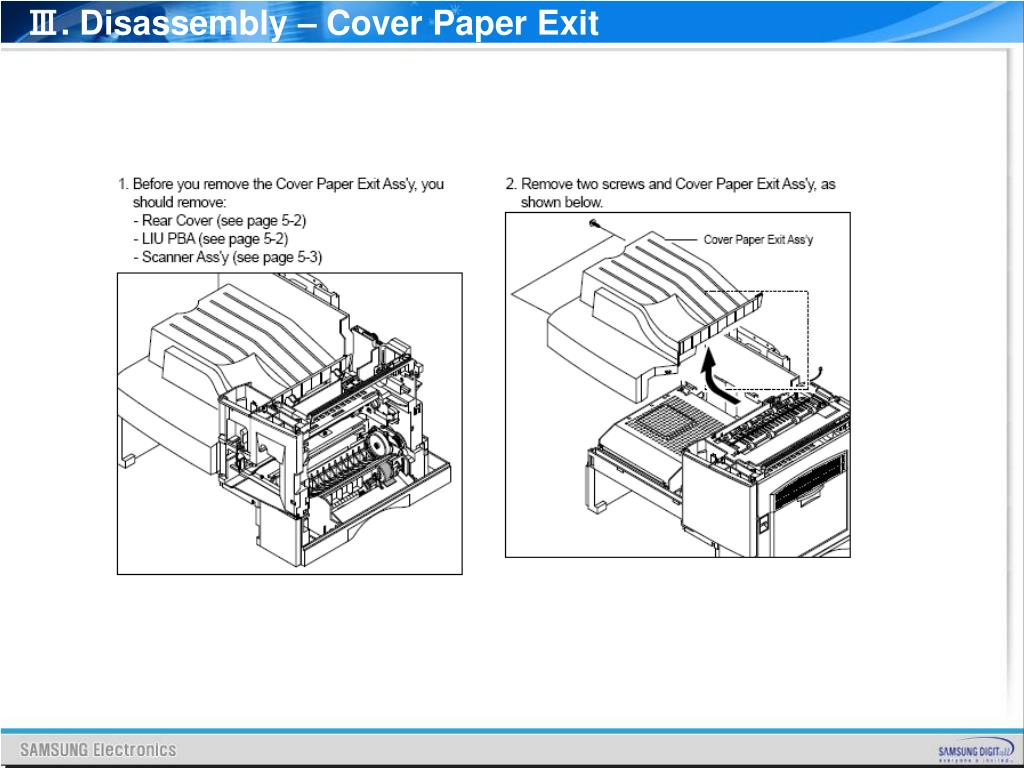

    27. Ⅲ. Disassembly – Cover Paper Exit

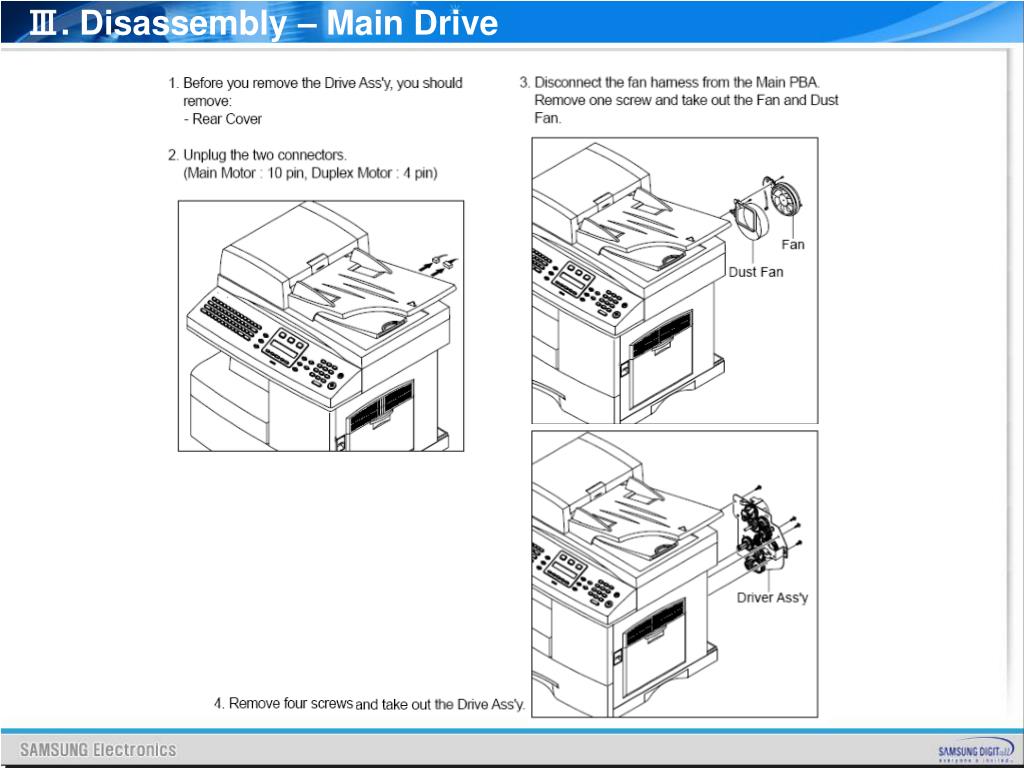

    28. Ⅲ. Disassembly – Main Drive

    29. Ⅲ. Disassembly – SMPS

    30. Ⅲ. Disassembly – LSU

    31. Ⅲ. Disassembly – Cover Exit Rear

    32. Ⅲ. Disassembly – Main Frame

    33. Ⅲ. Disassembly – MP

    34. Ⅲ. Disassembly – Feed

    35. Ⅲ. Disassembly – Pick Up

    36. Ⅳ. Consumable parts Objectives • To make you aware of the consumable parts
