Acid-Steam-Cleaning-System-LMACS-A100

Labmate Acid Steam Cleaning System has an 80L capacity, cleaning 49 microwave digestion tubes per cycle. It features a PTFE chamber, 90u00b0C temp control, 120L/min flow rate, dual-fan exhaust, 120u00b0C drying, and 20 programs for efficient, reliable cleaning.

jazmin14
Download Presentation

Acid-Steam-Cleaning-System-LMACS-A100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

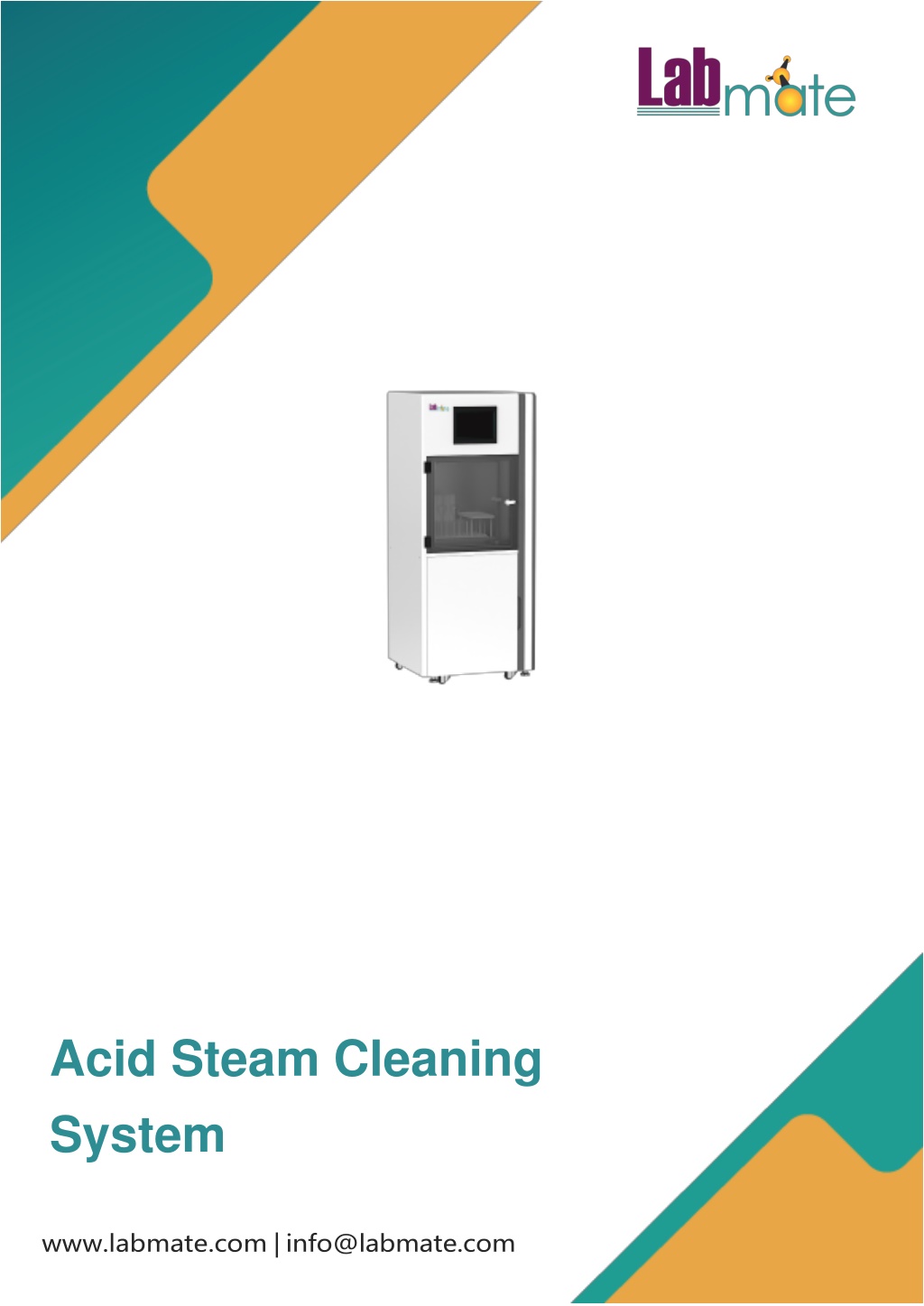

  1. Acid Steam Cleaning System www.labmate.com | info@labmate.com

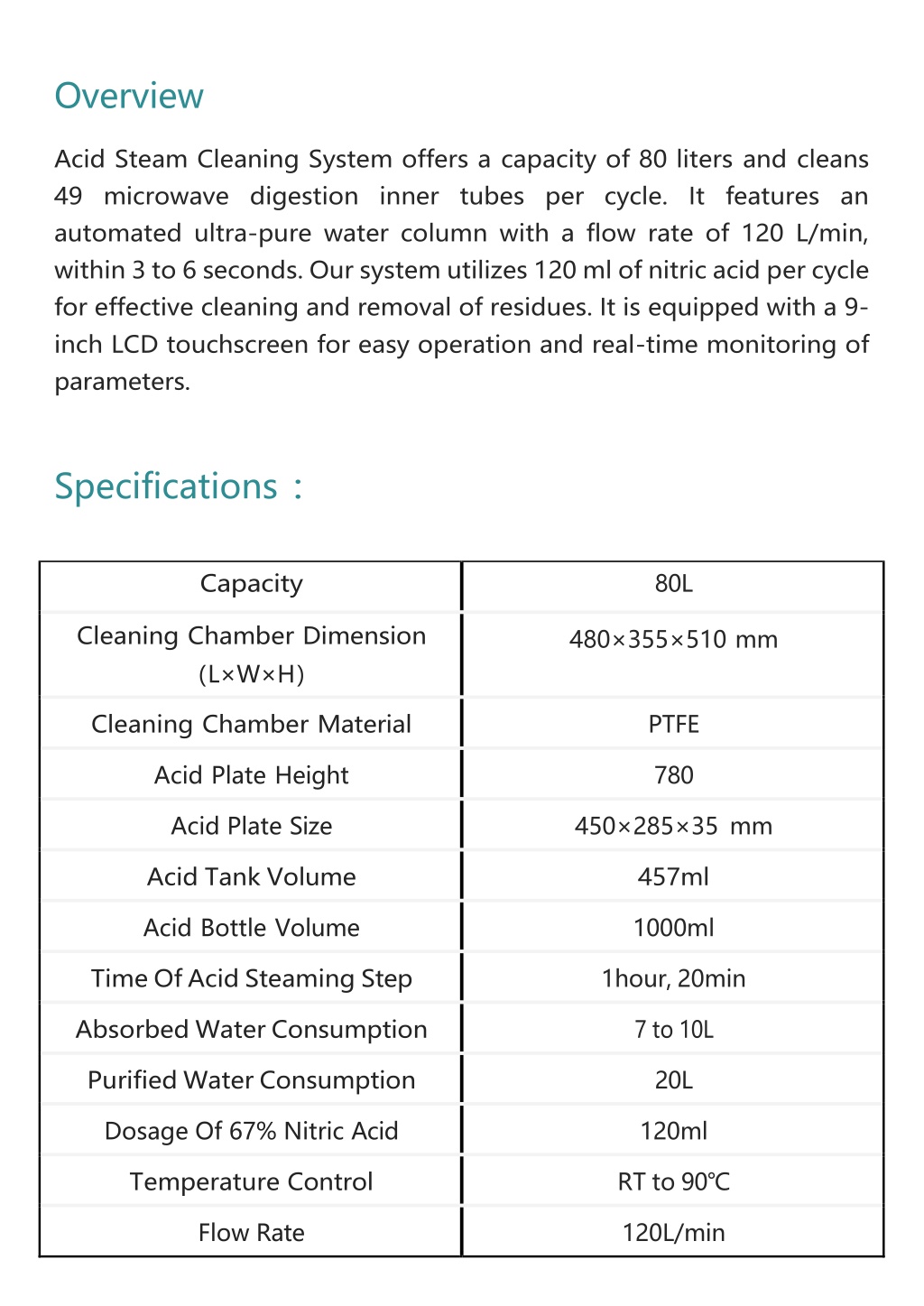

  2. Overview Acid Steam Cleaning System offers a capacity of 80 liters and cleans 49 microwave digestion inner tubes per cycle. It features an automated ultra-pure water column with a flow rate of 120 L/min, within 3 to 6 seconds. Our system utilizes 120 ml of nitric acid per cycle for effective cleaning and removal of residues. It is equipped with a 9- inch LCD touchscreen for easy operation and real-time monitoring of parameters. Specifications : Capacity 80L Cleaning Chamber Dimension （L×W×H） 480×355×510 mm Cleaning Chamber Material PTFE Acid Plate Height 780 Acid Plate Size 450×285×35 mm Acid Tank Volume 457ml Acid Bottle Volume 1000ml Time Of Acid Steaming Step 1hour, 20min Absorbed Water Consumption 7 to 10L Purified Water Consumption 20L Dosage Of 67% Nitric Acid 120ml Temperature Control RT to 90℃ Flow Rate 120L/min

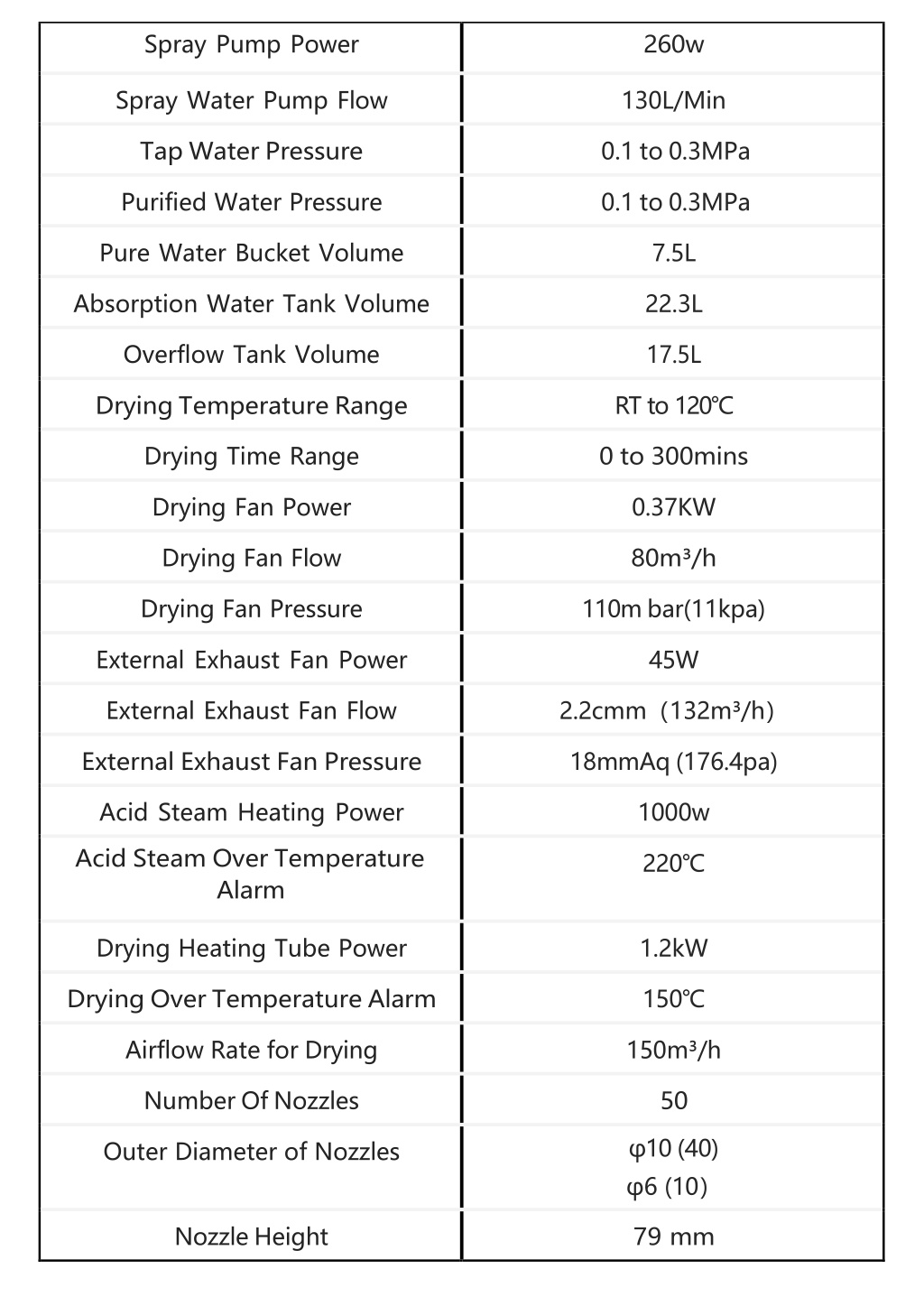

  3. Spray Pump Power 260w Spray Water Pump Flow 130L/Min Tap Water Pressure 0.1 to 0.3MPa Purified Water Pressure 0.1 to 0.3MPa Pure Water Bucket Volume 7.5L Absorption Water Tank Volume 22.3L Overflow Tank Volume 17.5L Drying Temperature Range RT to 120℃ Drying Time Range 0 to 300mins Drying Fan Power 0.37KW Drying Fan Flow 80m³/h Drying Fan Pressure 110m bar(11kpa) External Exhaust Fan Power 45W External Exhaust Fan Flow 2.2cmm（132m³/h） External Exhaust Fan Pressure 18mmAq (176.4pa) Acid Steam Heating Power 1000w Acid Steam Over Temperature Alarm 220℃ Drying Heating Tube Power 1.2kW Drying Over Temperature Alarm 150℃ Airflow Rate for Drying 150m³/h Number Of Nozzles 50 φ10 (40) φ6 (10） Outer Diameter of Nozzles Nozzle Height 79 mm

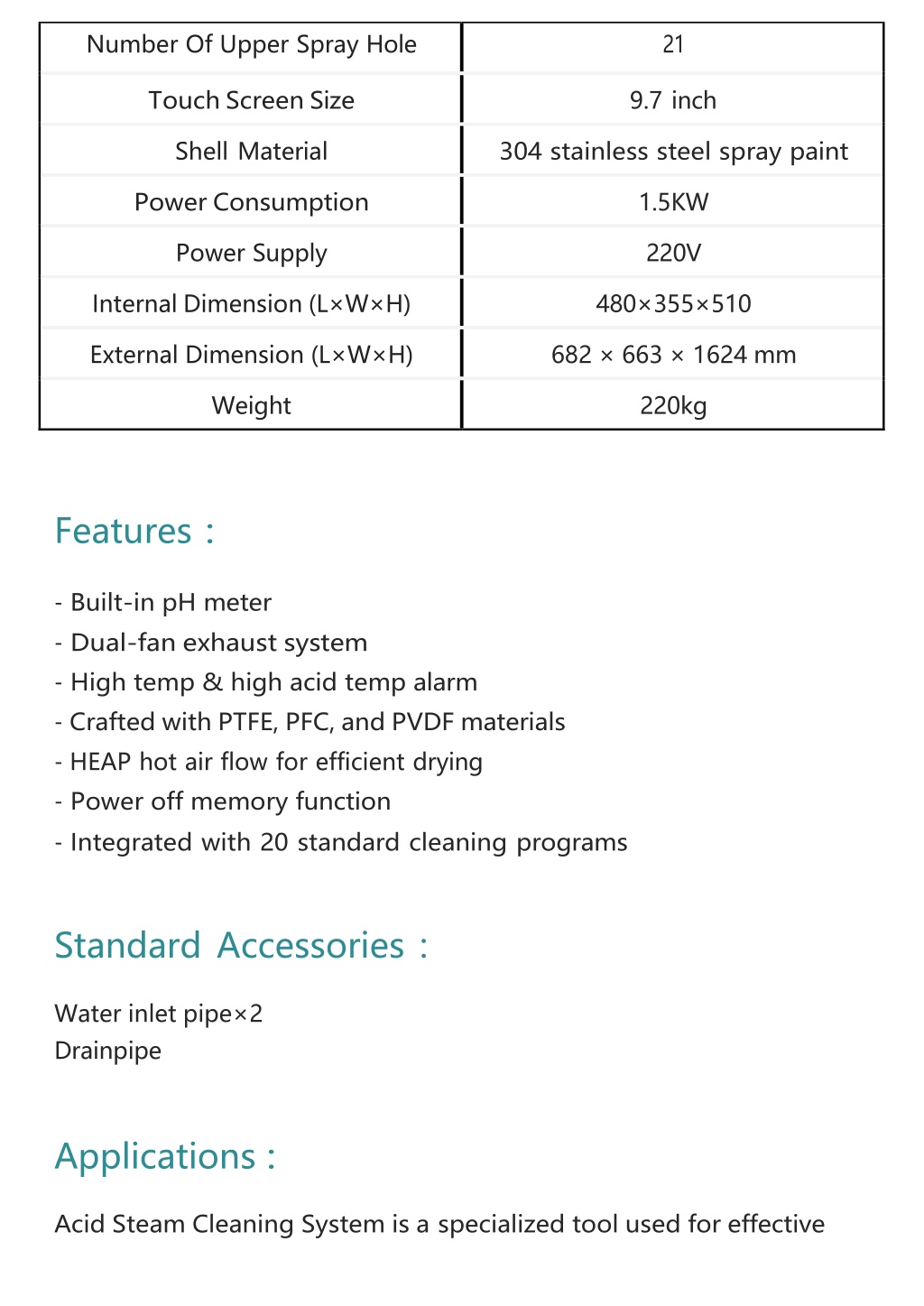

  4. Number Of Upper Spray Hole 21 Touch Screen Size 9.7 inch Shell Material 304 stainless steel spray paint Power Consumption 1.5KW Power Supply 220V Internal Dimension (L×W×H) 480×355×510 External Dimension (L×W×H) 682 × 663 × 1624 mm Weight 220kg Features : -Built-in pH meter -Dual-fan exhaust system -High temp & high acid temp alarm -Crafted with PTFE, PFC, and PVDF materials -HEAP hot air flow for efficient drying -Power off memory function -Integrated with 20 standard cleaning programs Standard Accessories : Water inlet pipe×2 Drainpipe Applications : Acid Steam Cleaning System is a specialized tool used for effective

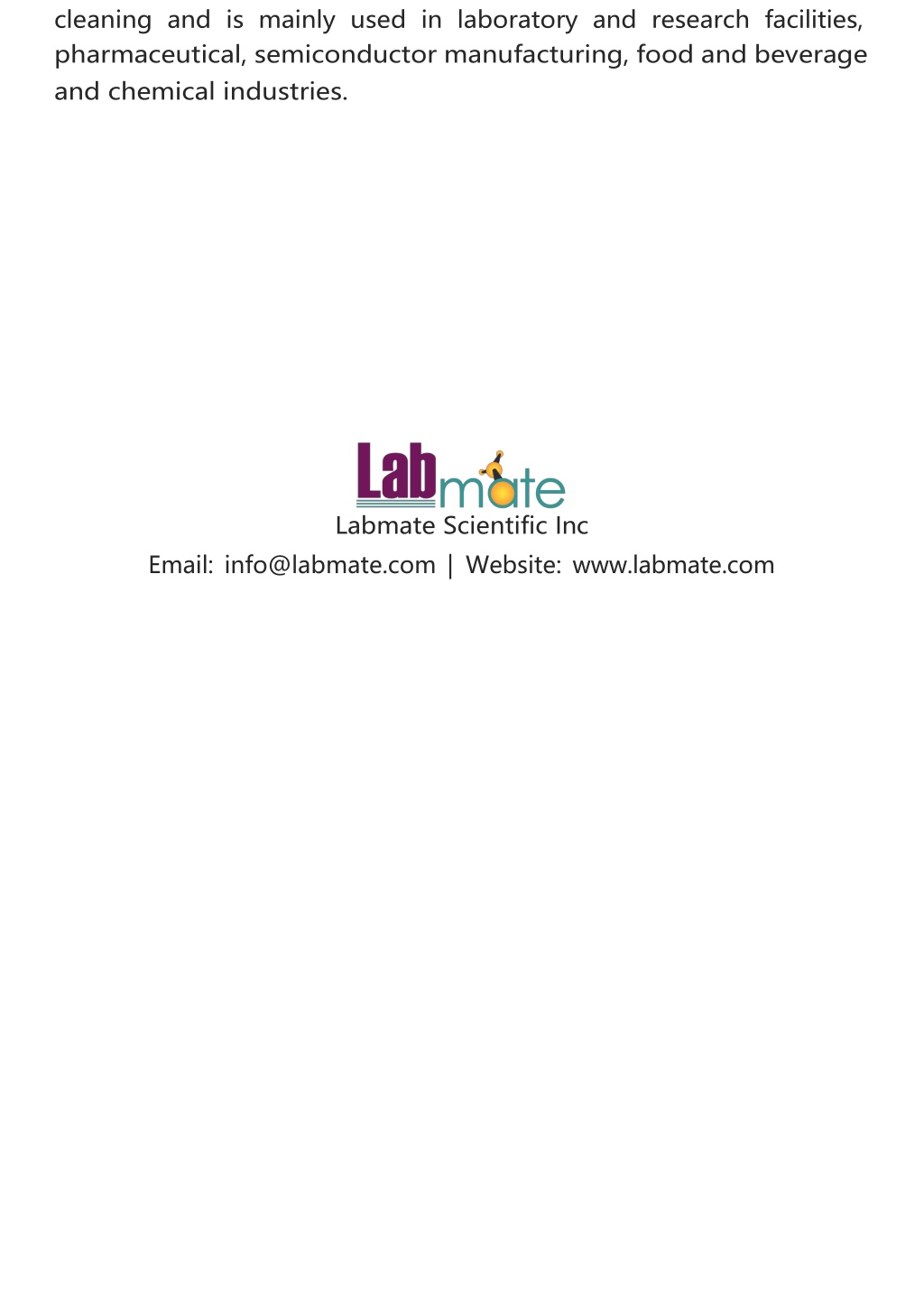

  5. cleaningandismainlyusedinlaboratoryandresearchfacilities, pharmaceutical, semiconductor manufacturing, food and beverage and chemical industries. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
