Presentation Transcript

Introduction what is singularity theory l.jpg
Introduction: What is Singularity Theory?

Differential

geometry

Singularity Theory

Topology


Singularity theory l.jpg
Singularity Theory

  • The study of critical points on manifolds (or of mappings) – points where the “derivative” is zero.

  • Developed from ‘Catastrophe Theory’ (1970’s).

  • Rigorous body of mathematics which enables us to study phenomena which re-occur in many situations


Singularity theory4 l.jpg

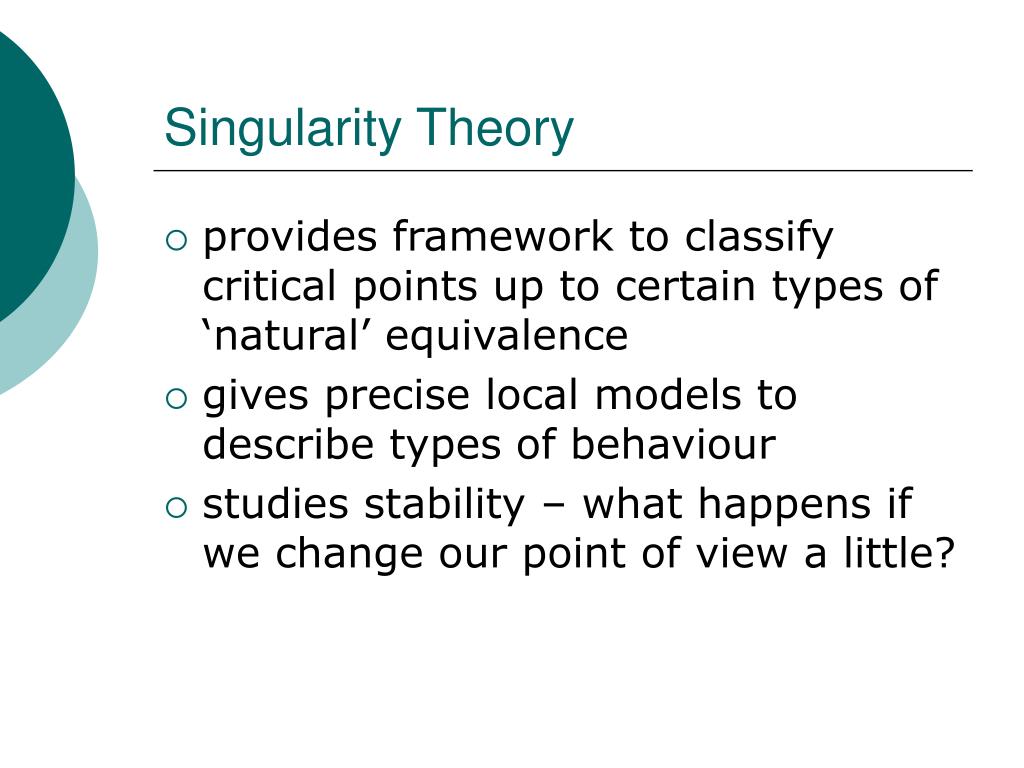

Singularity Theory

  • provides framework to classify critical points up to certain types of ‘natural’ equivalence

  • gives precise local models to describe types of behaviour

  • studies stability – what happens if we change our point of view a little?


Analogous example quadratic forms l.jpg

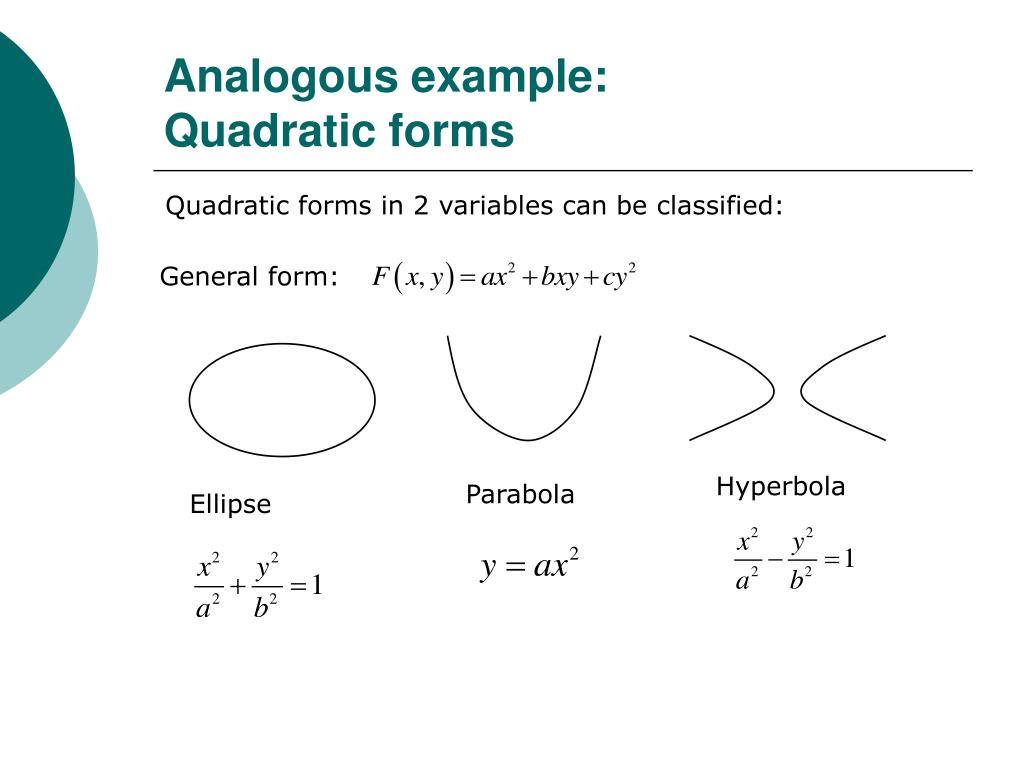

Analogous example: Quadratic forms

Quadratic forms in 2 variables can be classified:

General form:

Hyperbola

Parabola

Ellipse


Morse theory of functions l.jpg
Morse Theory of Functions

  • Consider a smooth function .

  • If all partial derivatives are zero for a particular value x0 we say that y has a critical point at x0.

  • If the second differential at this point is a nondegenerate quadratic form then we call the point a non-degenerate critical point.


Morse lemma l.jpg
Morse Lemma

In a neighbourhood of a non-degenerate critical point a function may be reduced to its quadratic part, for a suitable choice of local co-ordinate system whose origin is at the critical point.

i.e. the function can be written as


Morse lemma8 l.jpg
Morse Lemma

  • Local theory – only valid in a neighbourhood of the point.

  • Explains ubiquity of quadratic forms.

  • Non-degenerate critical points are stable – all nearby functions have non-deg critical points of same type.


Splitting lemma l.jpg
Splitting Lemma

Let be a smooth function with a degenerate critical point at the origin, whose Hessian matrix of second derivatives has rank r.

Then f is equivalent, around 0, to a function of the form

Essential variables

Inessential variables


Thom s classification l.jpg
Thom’s Classification

Fold

Cusp

Swallowtail

Butterfly

Elliptic umbilic

Hyperbolic umbilic

Parabolic umbilic


Singularities of mappings l.jpg
Singularities of Mappings

In many applications it is mappings that interest us, rather than functions.

For example, projecting a surface to a plane is a mapping from 3-d to 2-d.


Singularities of mappings12 l.jpg
Singularities of Mappings

  • Can classify mappings from n-dim space to p-dim space for many (n,p) pairs (eg. n+p < 6).

  • Appropriate equivalence relations used eg diffeomorphisms.

  • Can list stable phenomena.

  • Can investigate how unstable phenomena break up as we perturb parameters.


Example whitney classification l.jpg
Example: Whitney classification

  • Whitney classified stable mappings R2 to R3 (1955).

Cusp

Fold

Immersion


Applications robotics l.jpg

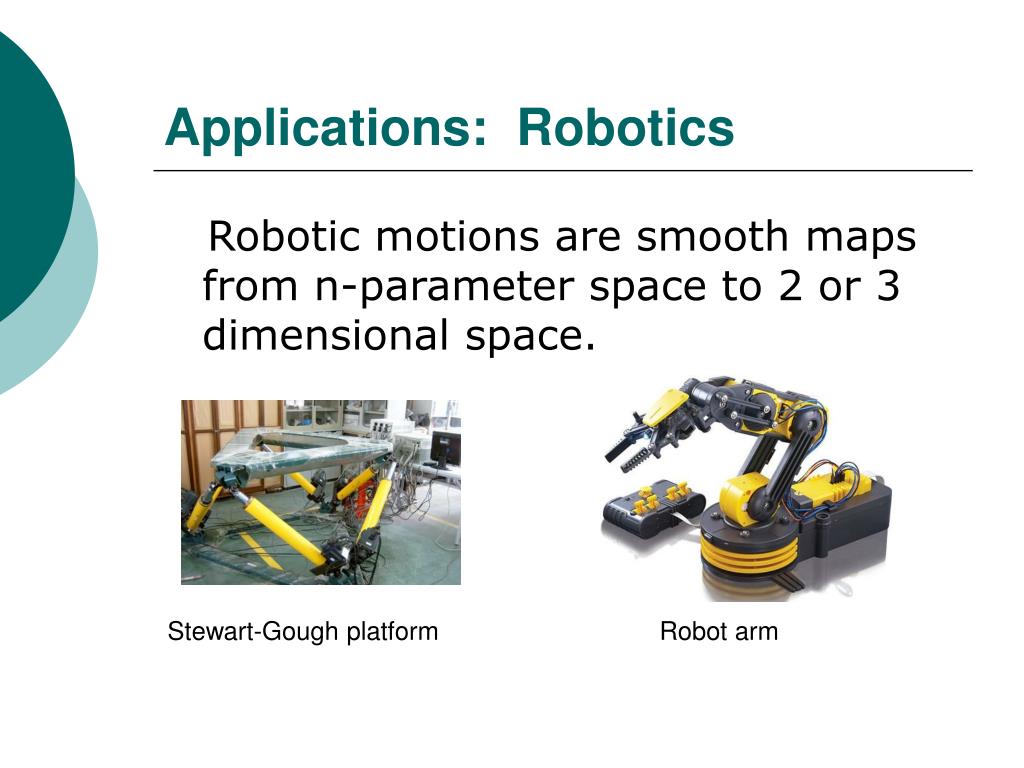

Applications: Robotics

Robotic motions are smooth maps from n-parameter space to 2 or 3 dimensional space.

Stewart-Gough platform

Robot arm


Questions we might tackle l.jpg

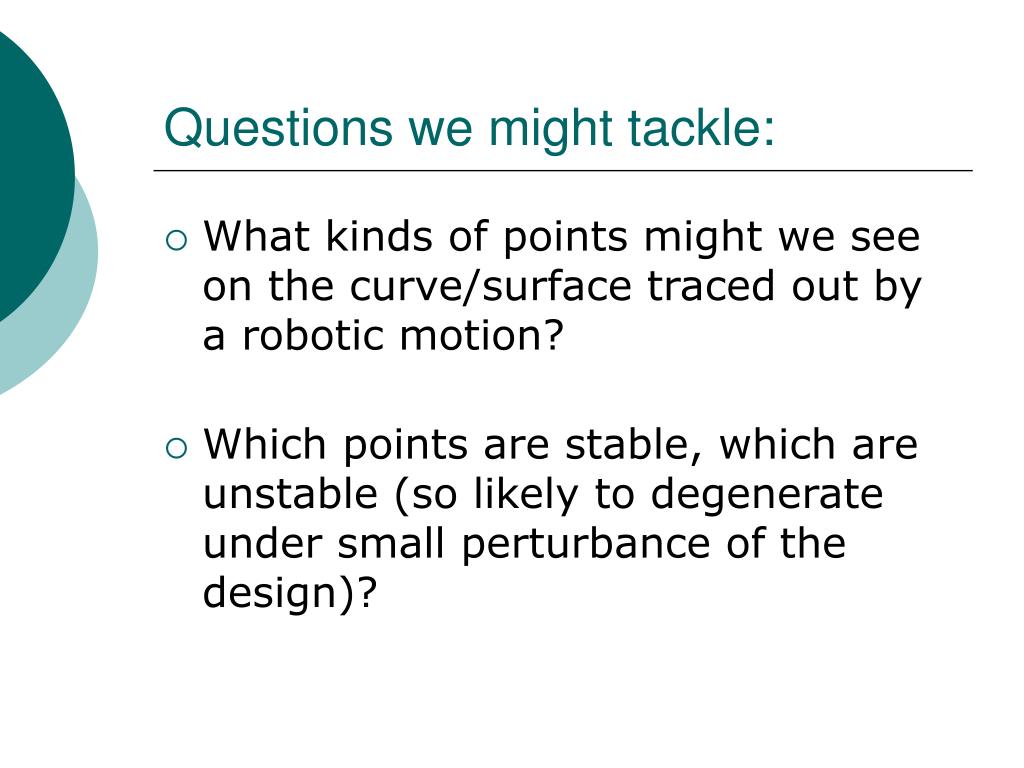

Questions we might tackle:

  • What kinds of points might we see on the curve/surface traced out by a robotic motion?

  • Which points are stable, which are unstable (so likely to degenerate under small perturbance of the design)?


Eg 4 bar mechanism l.jpg
Eg. 4-bar mechanism

  • Used in many engineering applications.

  • Generally planar.


Eg 4 bar mechanism17 l.jpg
Eg. 4-bar mechanism

  • One parameter generates the motion.

  • There is a 2-parameter choice of coupler point.

  • Singularities from R to R2 have been classified.

  • The 2-dim choice of coupler point gives a codimension restriction to < 3.


Slide18 l.jpg

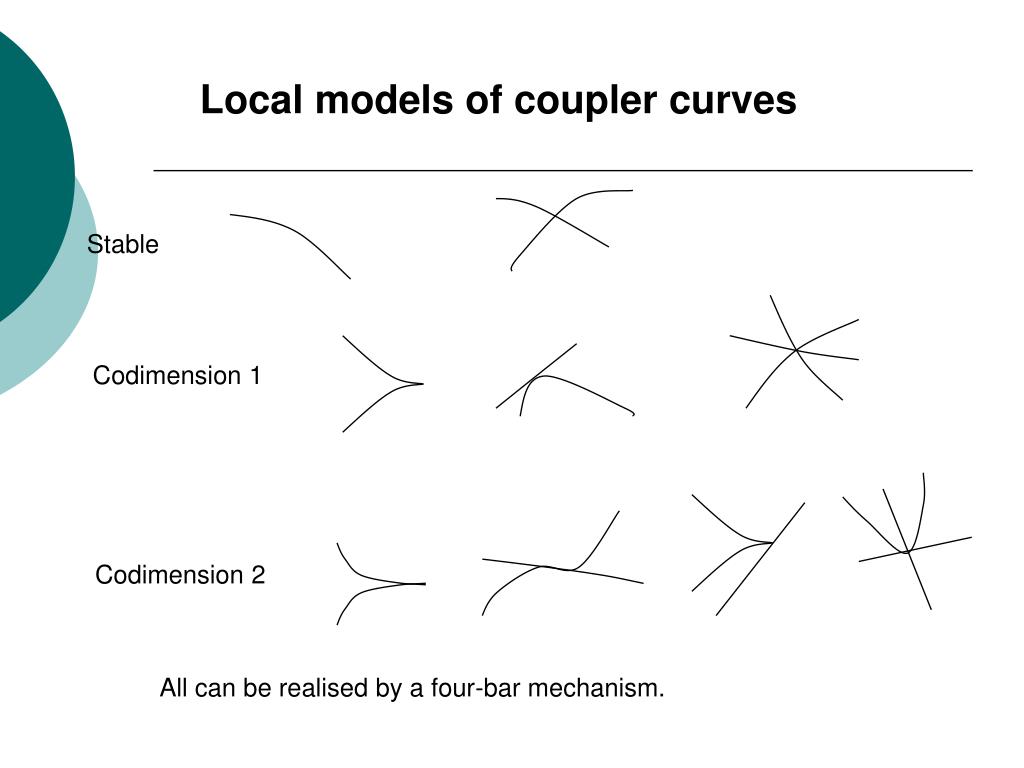

Local models of coupler curves

Stable

Codimension 1

Codimension 2

All can be realised by a four-bar mechanism.


Other types of mechanism l.jpg
Other types of mechanism

  • Two-parameter planar motions – eg 5 bar planar linkage.

  • One-parameter spatial motions- eg 4 bar spatial linkage.

  • Two-parameter spatial motions

  • After this, classification gets complicated.


Applications vision l.jpg
Applications: Vision

  • Think of viewing an object as a smooth mapping from a 3-d object to 2-d viewing plane.

  • Concentrate only on the outline of the object –points on surface where light rays coming from the eye graze it.


Examples of singularities on outlines l.jpg
Examples of singularities on outlines

© Henry Moore

© Barbara Hepworth


Questions we might tackle22 l.jpg
Questions we might tackle:

  • What do smooth 3-d objects ‘look like’? i.e. what do their outlines look like locally?

  • What about non-smooth 3-d objects, eg those with corners, edges?

  • What are the effects of lighting on views, eg shadows, specular highlights?

  • What happens when motion occurs?


Some maths l.jpg
Some maths!

  • Think of a surface as the inverse image of a regular value of some smooth function.

  • Any smooth surface can be so described, and we can approximate actual expression with nice, smooth polynomial functions.


Expressing surface algebraically l.jpg

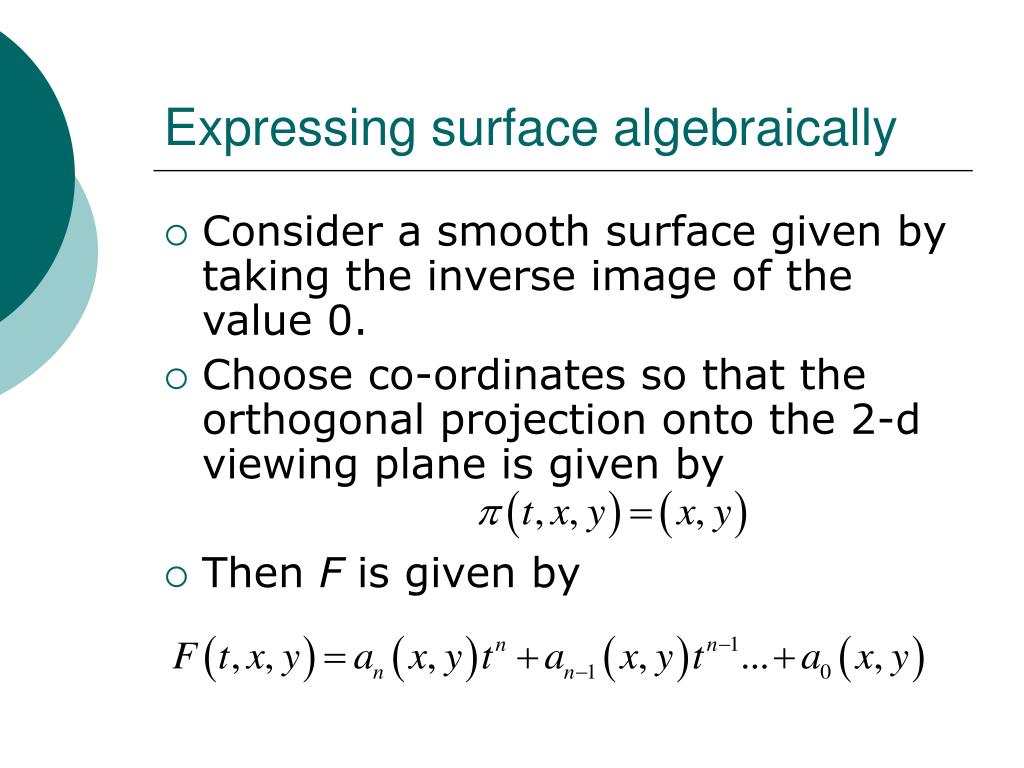

Expressing surface algebraically

  • Consider a smooth surface given by taking the inverse image of the value 0.

  • Choose co-ordinates so that the orthogonal projection onto the 2-d viewing plane is given by

  • Then F is given by


Conditions for outline l.jpg
Conditions for outline

  • Surface M is given by

  • Suppose M goes through the origin, i.e.

  • Origin yields a point on the outline exactly when and


Conditions for singularities on outline l.jpg

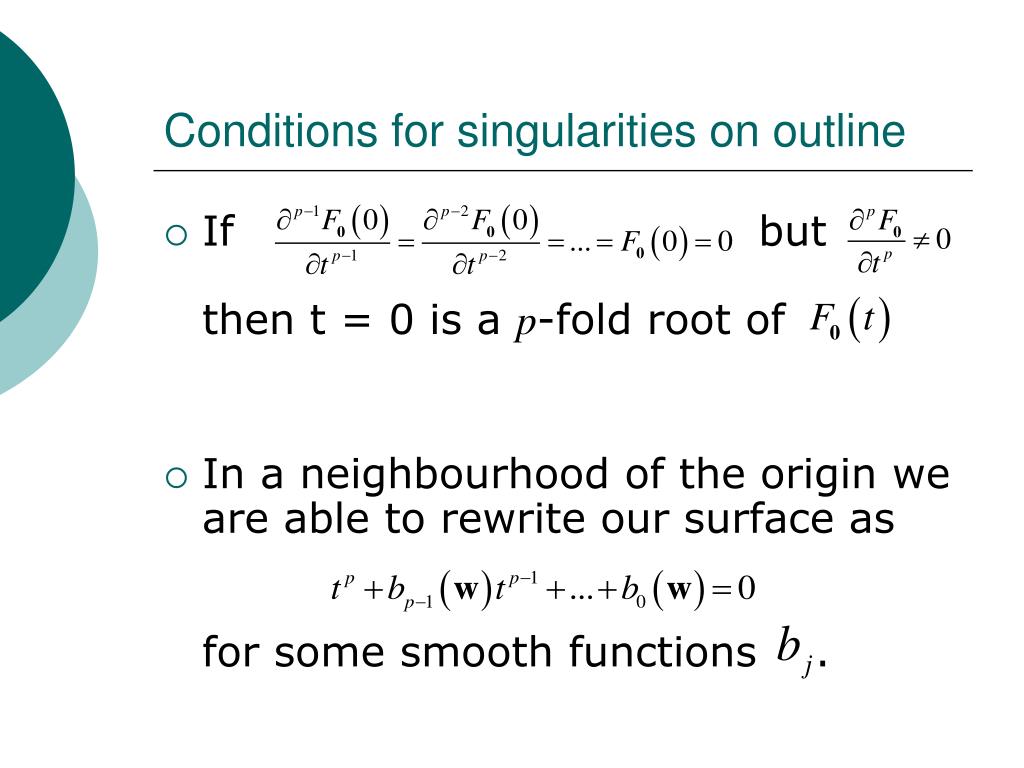

Conditions for singularities on outline

  • If but then t = 0 is a p-fold root of

  • In a neighbourhood of the origin we are able to rewrite our surface asfor some smooth functions .


Simplified local expression l.jpg
Simplified local expression

  • Simplify by applying the Tschirnhaus transformation

  • Geometrically consists of sliding the surface up/down vertically – no change to outline.

  • Now local expression is


How large is p for a general surface l.jpg

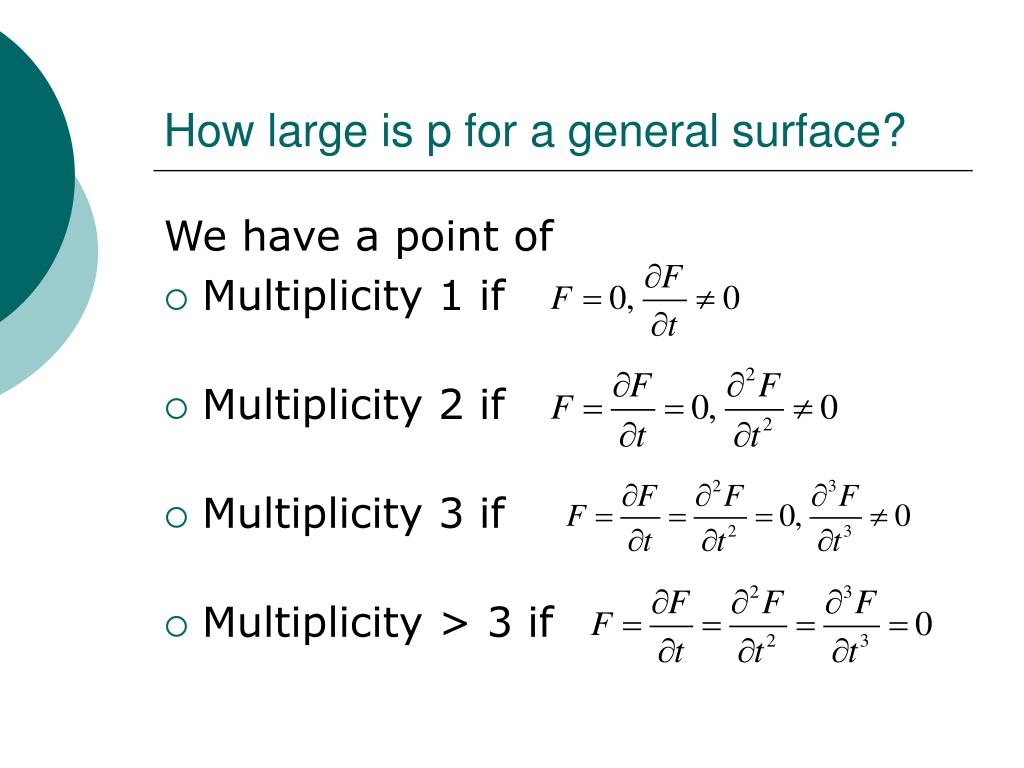

How large is p for a general surface?

We have a point of

  • Multiplicity 1 if

  • Multiplicity 2 if

  • Multiplicity 3 if

  • Multiplicity > 3 if


What does this look like l.jpg
What does this look like?

  • Multiplicity 1: Diffeomorphism


What does this look like30 l.jpg
What does this look like?

  • Multiplicity 2: Fold.Write surface locally as

  • Outline is given by solvingi.e. x = 0


What does this look like31 l.jpg
What does this look like?

  • Multiplicity 3: cuspCan write the surface locally as

  • Eliminating t fromgives


Double points l.jpg
Double points

  • Fourth possibility: outline could have a double point.

  • Stable (and generic) – arises from two separated parts of the surface projecting to the same neighbourhood.

  • Can consider such multiple mappings. In this case, it is a mapping .

  • Only stable cases are overlapping sheets or transverse crossings.

  • Codimension 3 – will only occur at isolated points along the outline.


Motion l.jpg
Motion

  • Can allow for motion, either of the object or camera.

  • Introduces further parameters so projection becomes a mapping from 4 or 5 variables into 2.

  • This allows the codimension to be higher and so we observe more types of singular behaviour.


Conclusions l.jpg

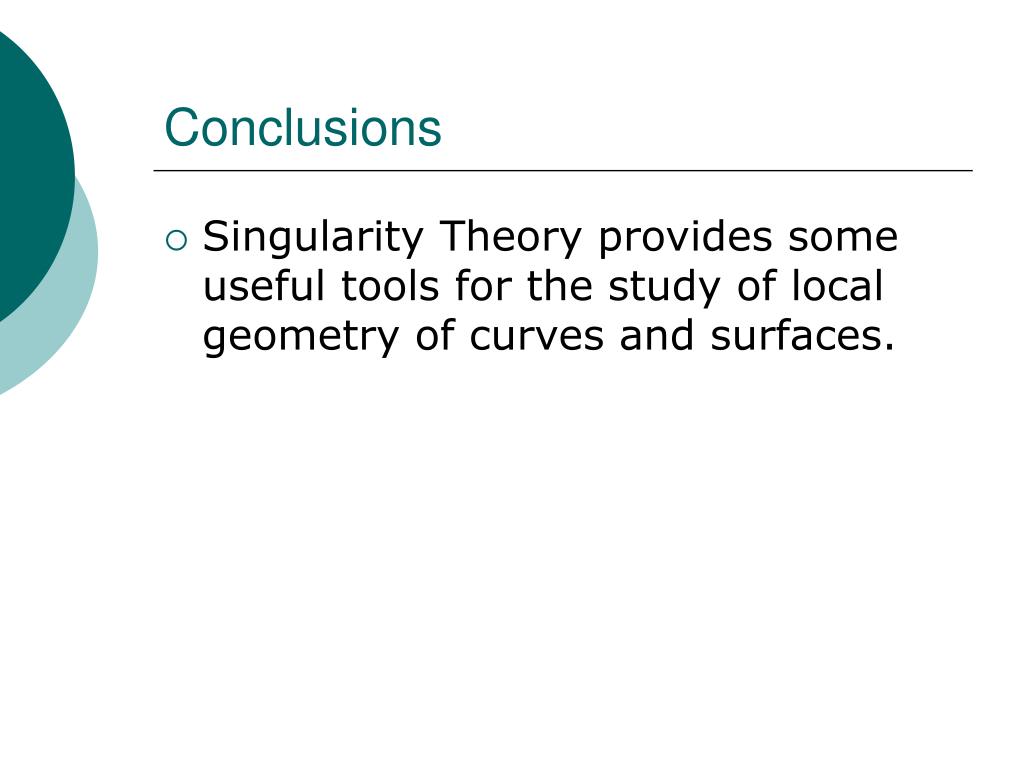

Conclusions

  • Singularity Theory provides some useful tools for the study of local geometry of curves and surfaces.


References l.jpg
References

  • Catastrophe Theory and its applications, Poston & Stewart.

  • Solid Shape, Koenderink

  • Visual Motion of Curves and Surfaces, Cipolla & Giblin

  • Seeing – the mathematical viewpoint, Bruce, Mathematical Intelligencer 1984 6 (4), 18-25.
