a file system for system programming in ubiquitous computing

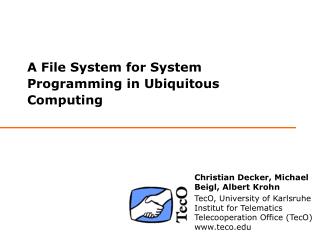

A File System for System Programming in Ubiquitous Computing

Christian Decker, Michael Beigl, Albert Krohn

TecO, University of Karlsruhe

Institut for Telematics

Telecooperation Office (TecO)

www.teco.edu

outline
Outline
  • Ubiquitous Computing and Devices
  • Development on Ubicomp Devices
  • File System Approach
  • Applications
  • Related Work
  • Conclusion
ubiquitous computing ubicomp
Ubiquitous Computing - Ubicomp
  • … building aware environments

Other areas

  • Safety applications
  • Military applications

AwareHome (GATech)

AwareOffice (TecO)

embedded sensor devices in ubicomp
Embedded Sensor Devices in Ubicomp
  • Limited computing power, 8-bit microcontroller
  • Few kilobytes … 512 kilobytes of Flash memory
  • Customized radio protocols
  • Battery powered
  • Extensible by various sensors

Particles

Motes

Telos

ubicomp development state of the art
Ubicomp Development – State-of-the-Art

Manage a variety of resources, esp. sensors

  • Lightweight OS (e.g. TinyOS)
    • OS shields resources, e.g. sensors
    • No direct access
    • Communication through events -> event dispatching
  • Library based access models
    • Abstract access functions
    • Direct access, virtually no overhead
  • But… shielding/abstraction causes still confusion
ubicomp development case study
Ubicomp Development – Case Study
  • Study comprising of various students, practical courses and projects

Findings

  • Experience lack
    • Huge number of various sensor interfaces
    • Developers are stuck to the well-known
  • Application complexity
    • Developer focus on distributed application logic
    • Rich sensor interfaces, poorly used
  • Interface breach
    • Sensor interfaces similar, only slight difference
    • Hard to realize -> debugging
file system approach
File System Approach

Design principles

  • Developer in the center
  • Support developer to follow the simplest way
  • Easy-to-understand interfaces -> generic

Support in two ways

  • Uniform representation of all resources
  • Uniform access model
name space
Name Space
  • File = entity identifying a resource
  • Directory = special file identifying collections of files
  • Uniform, hierarchical namespace
    • /dev/- direct resources, e.g. sensors, memory, power supply, communication interface
    • /context/ - mediated resources, access direct resources, application functions, algorithms
    • /usr/ - data files
access model
Access Model

Fundamental operations

  • read(..) and write(..) – data transfer operations
  • Resources are coupled with specific r/w methods

Example: read(1, buf, 1)

Additional operations

  • open(..)
  • mount(..)/umount(..)
  • getType(..)

Type System

  • Type of resource, developer decides
  • Compatibility in resource combinations

VoltageSensorGet(int &v)

{

...

}

NOP()

{

;

}

particle file system
Particle File System
  • File system for Particle platform(Ubicomp device, sensor network)
  • 18f6720 PIC microcontroller
  • 128KB FlashROM, 4KB RAM, 512KB external Flash

Resources

  • Memory – 512KB Flash
  • Power supply – AAA battery
  • Wireless communication
  • Sensors – acceleration, light, force, temperature, audio, ball switch
  • Actuators – LEDs, speaker
application telnet
Application: Telnet

“/context/telnet/less /usr/file1“

PC

Particle

application telnet cont
Application: Telnet cont.
  • Telnet application combines resources
  • “context/telnet/less“ is a resource
  • Application function represented in the file system
  • “less” checks for type of argument
  • “less” denies access to /dev/accl, but grants access to /usr/file1
application over the air programming
Application: Over-the-Air-Programming
  • Programming is file copy!

FTP Proxy

CompiledProgram

Network

Bridge

Particle

performance
Performance

File system

  • ~1900 bytes RAM
  • ~2100 bytes ROM

File library

  • ~10 kilobytes ROM

Access overhead

  • *buf = f()
    • Call + store result
    • 26 instruction cycles
  • read(fd,buf,1)
    • lookup for function pointers + call + store result
    • More parameters
    • 100 instruction cycles
related work
Related Work

Plan9

  • All resources are files and accessed like files
  • Client/server concept

Dynamo, Context-aware file system (CFS)

  • Middleware and infrastructure solutions
  • Context-based sharing and visibility of data
  • PDA like devices

MatchBox, Micro-ROM

  • File systems for small embedded sensor devices
  • Only for data storage in files
conclusion and outlook
Conclusion and Outlook

File system

  • Uniform resource representation (direct/mediated)
  • Uniform access on resources (read/write)
  • Combining resources (compatibility by type system)
  • Implementation on embedded sensor system (ParticleFS)
  • Applications: Telnet + Over-the-Air-Programming

Future work

  • Unblocking resource access
  • Represent remote resources
  • Shell/Macroprogramming
