  1. Designing & Developing Web-Based Solutions in ASP.NET Week 6 JavaScript & AJAX

  2. Today’s Agenda • JavaScript • Language Overview • What, Why, Where, When, How • AJAX & ASP.NET AJAX • Callbacks • Comparison • AJAX Web Services • AJAX Controls • Lab: • Play with JavaScript • Build AJAX Web Services in different ways Designing & Developing Web-Based Solutions in ASP.NET

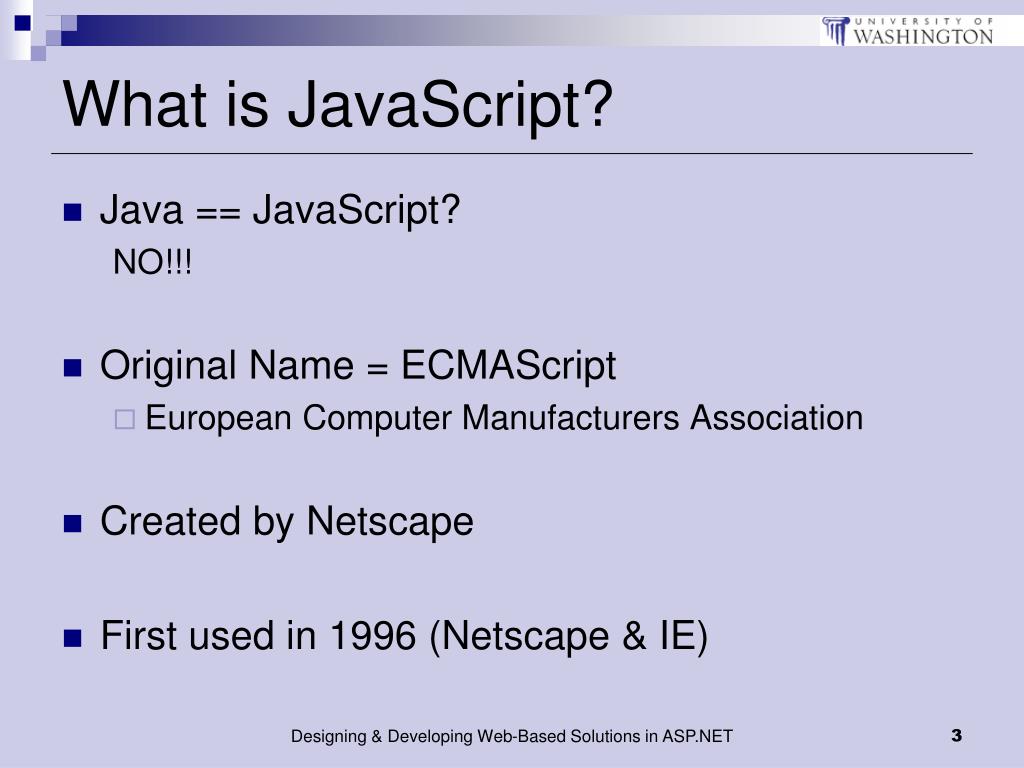

  3. What is JavaScript? • Java == JavaScript? NO!!! • Original Name = ECMAScript • European Computer Manufacturers Association • Created by Netscape • First used in 1996 (Netscape & IE) Designing & Developing Web-Based Solutions in ASP.NET

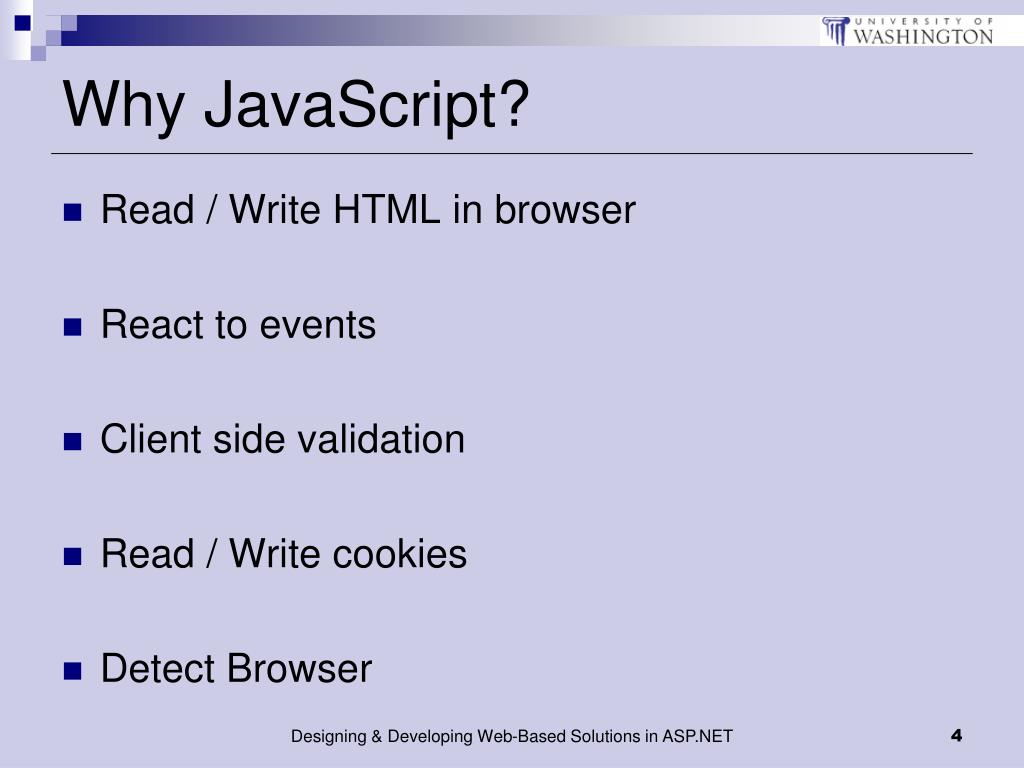

  4. Why JavaScript? Read / Write HTML in browser React to events Client side validation Read / Write cookies Detect Browser Designing & Developing Web-Based Solutions in ASP.NET

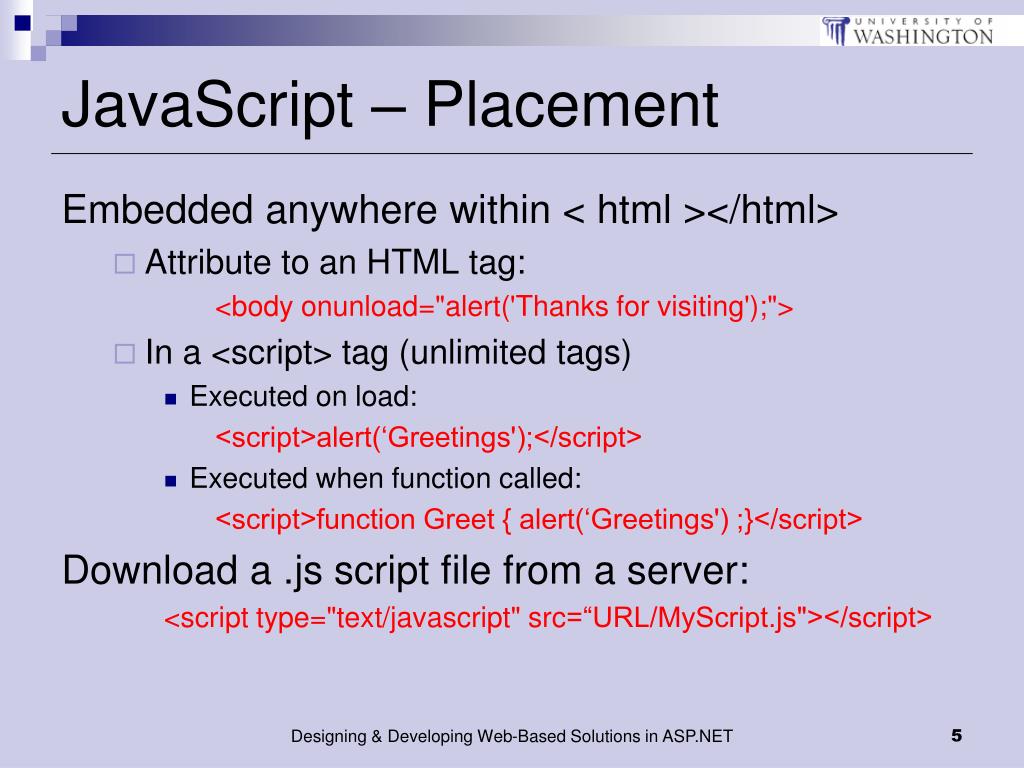

  5. JavaScript – Placement Embedded anywhere within < html ></html> • Attribute to an HTML tag: <body onunload="alert('Thanks for visiting');"> • In a <script> tag (unlimited tags) • Executed on load: <script>alert(‘Greetings');</script> • Executed when function called: <script>function Greet { alert(‘Greetings') ;}</script> Download a .js script file from a server: <script type="text/javascript" src=“URL/MyScript.js"></script> Designing & Developing Web-Based Solutions in ASP.NET

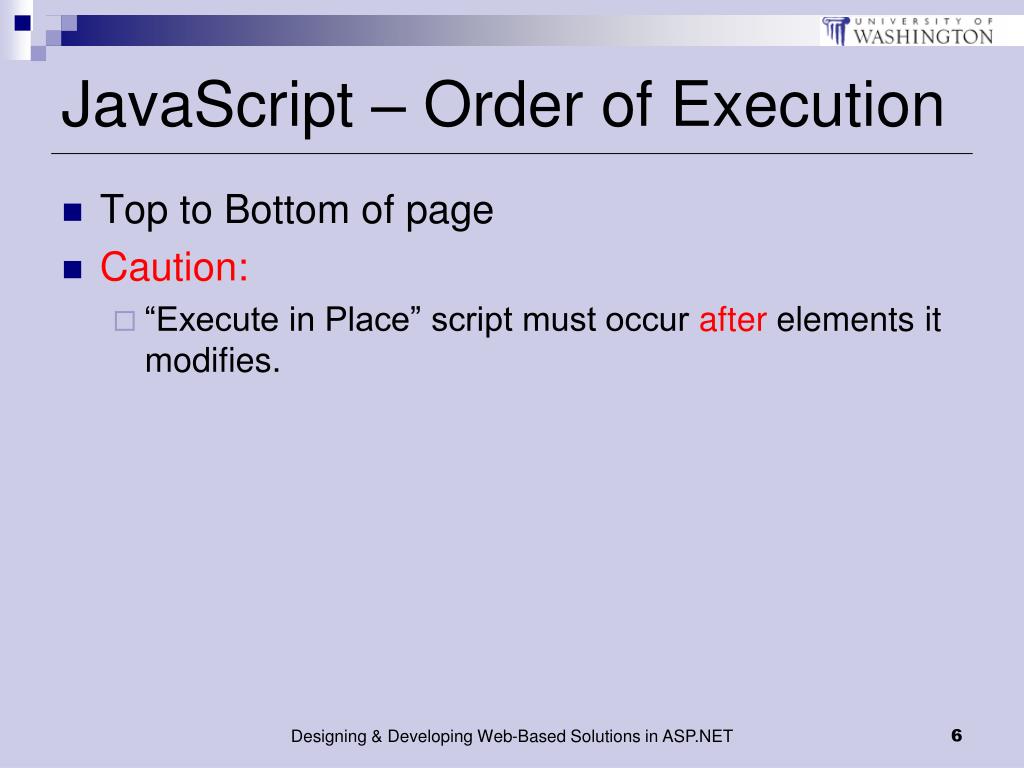

  6. JavaScript – Order of Execution • Top to Bottom of page • Caution: • “Execute in Place” script must occur after elements it modifies. Designing & Developing Web-Based Solutions in ASP.NET

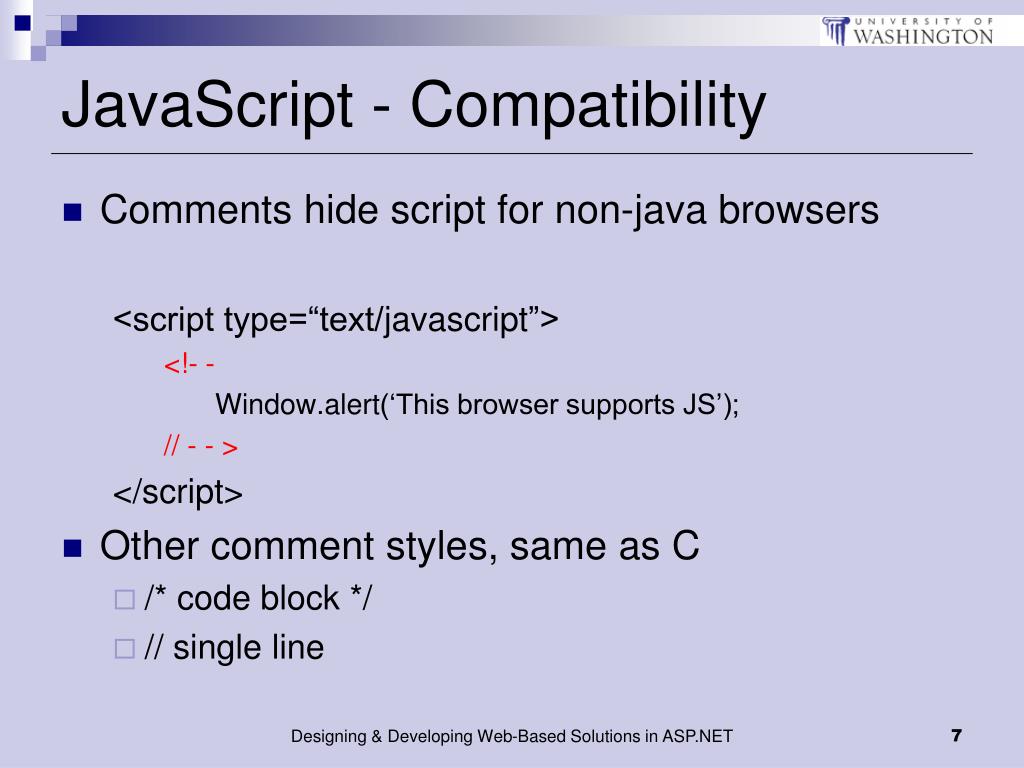

  7. JavaScript - Compatibility • Comments hide script for non-java browsers <script type=“text/javascript”> <!- - Window.alert(‘This browser supports JS’); // - - > </script> • Other comment styles, same as C • /* code block */ • // single line Designing & Developing Web-Based Solutions in ASP.NET

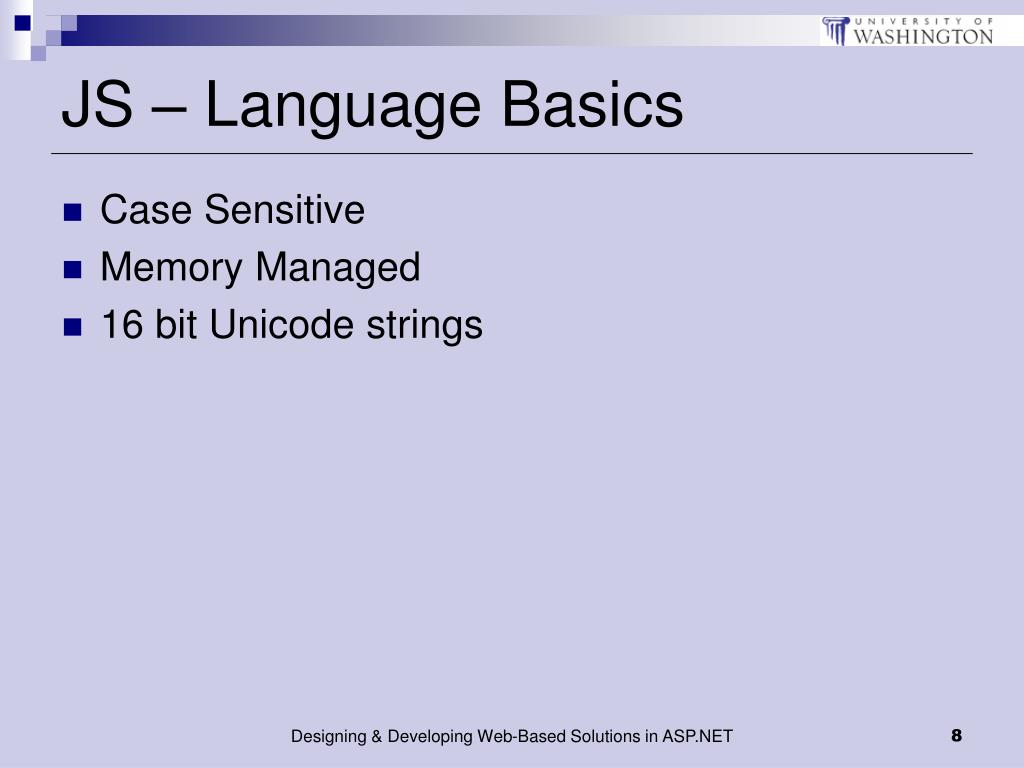

  8. JS – Language Basics Case Sensitive Memory Managed 16 bit Unicode strings Designing & Developing Web-Based Solutions in ASP.NET

  9. JS - Variables • Generic Type “var” • varmytext = ‘some text’; • var x = 5; • varmyObj = new XmlHttpRequest(); • Specific Types • int, float, byte, double, char, short, boolean • More… • Auto Declaration if not previous defined • y = 10; • Redefinition does not clear • var x; // still equals 5 Designing & Developing Web-Based Solutions in ASP.NET

  10. JS – Variable Scope • Global to page (page shares all script space) <script id=“block1”> var a=1; </script> <script id=“block2”>varb=2; </script> <script id=“block3”>varc=a+b; </script> • Local to function function First() {var x=1; } function Second() { var y=2; } function Third() {var z= x+y; } // SCOPE ERROR • No Block Scope • { {varinSecondBlock = 1;} Designing & Developing Web-Based Solutions in ASP.NET

  11. JS - Arrays • Yes, but not really. More like a Vector ADT • Automatically increases in size • Mixed type elements • varmyArray = [ ‘mystring’, 5, null, 1.8, true ] • Single dimension, but can have arrays of arrays • vartwo_d = [ [ 1, 2, 3], [4, 5, 6] ]; • two_d[1][1] // === 5 Designing & Developing Web-Based Solutions in ASP.NET

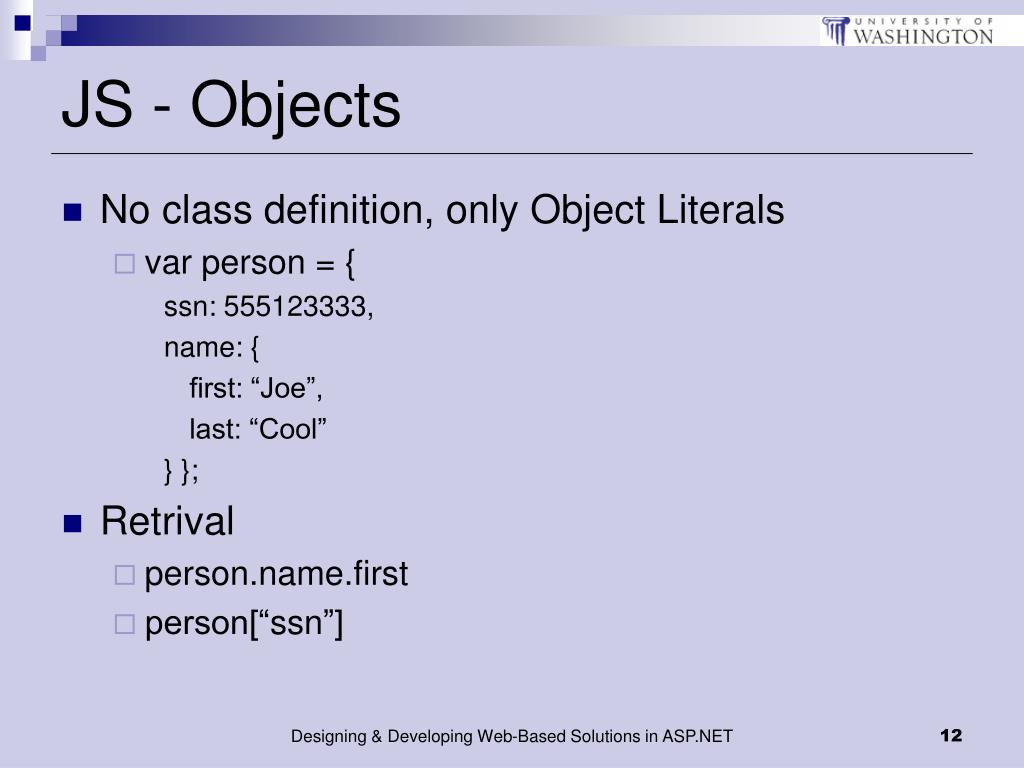

  12. JS - Objects • No class definition, only Object Literals • var person = { ssn: 555123333, name: { first: “Joe”, last: “Cool” } }; • Retrival • person.name.first • person[“ssn”] Designing & Developing Web-Based Solutions in ASP.NET

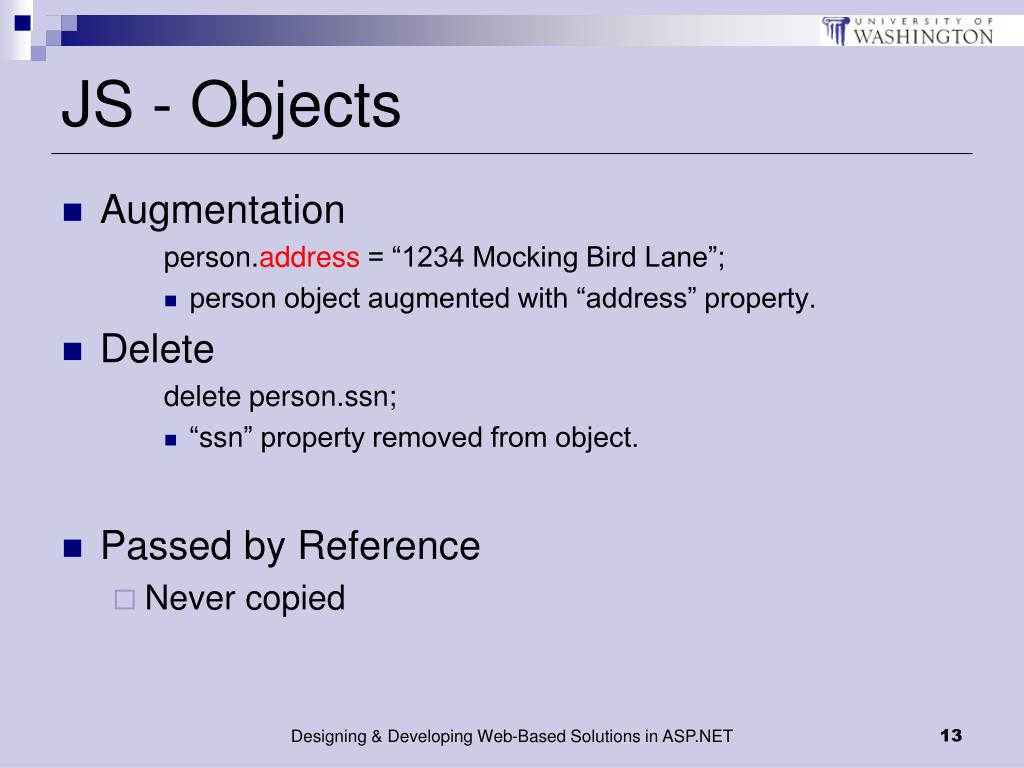

  13. JS - Objects • Augmentation person.address = “1234 Mocking Bird Lane”; • person object augmented with “address” property. • Delete delete person.ssn; • “ssn” property removed from object. • Passed by Reference • Never copied Designing & Developing Web-Based Solutions in ASP.NET

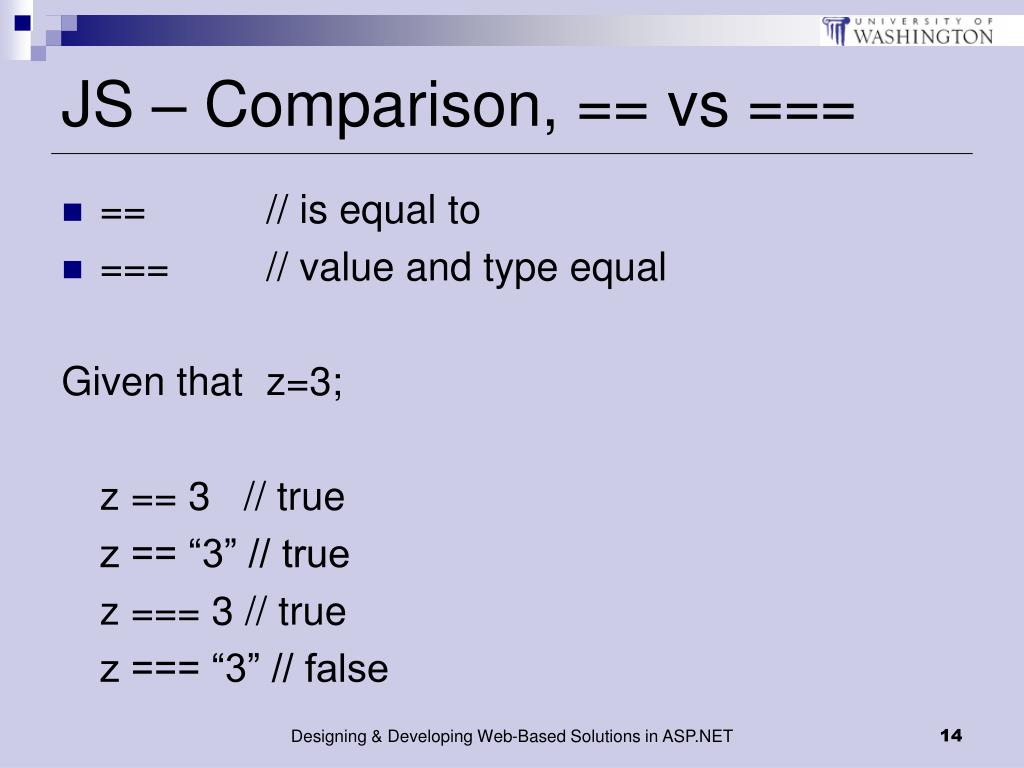

  14. JS – Comparison, == vs === == // is equal to === // value and type equal Given that z=3; z == 3 // true z == “3” // true z === 3 // true z === “3” // false Designing & Developing Web-Based Solutions in ASP.NET

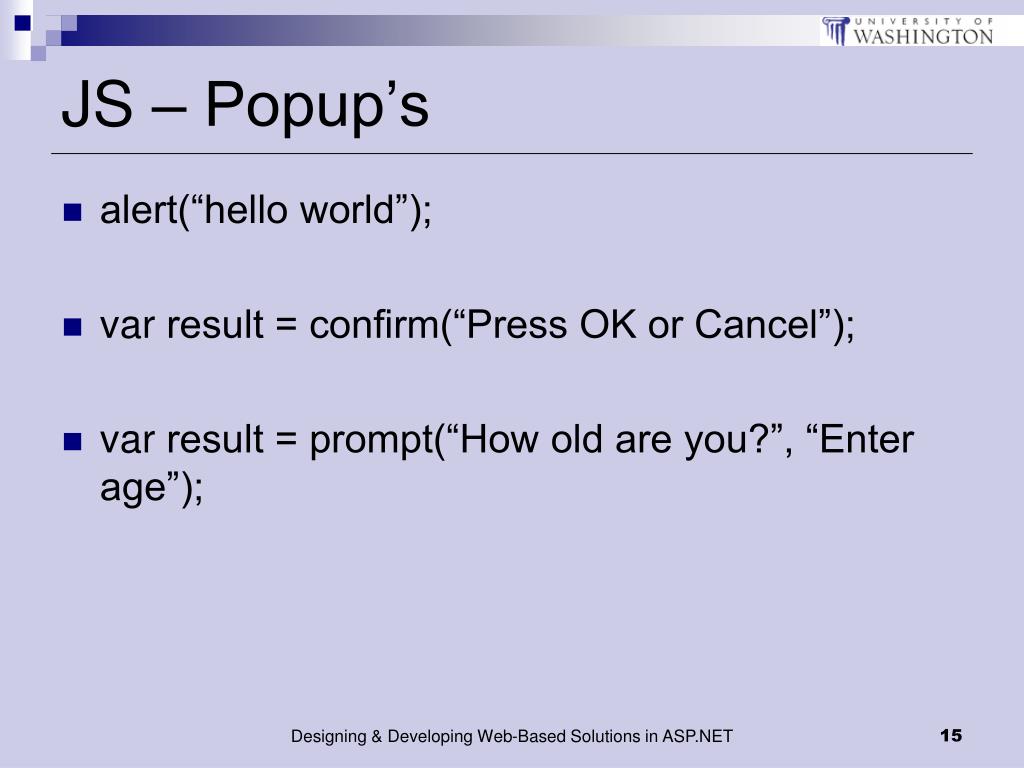

  15. JS – Popup’s alert(“hello world”); var result = confirm(“Press OK or Cancel”); var result = prompt(“How old are you?”, “Enter age”); Designing & Developing Web-Based Solutions in ASP.NET

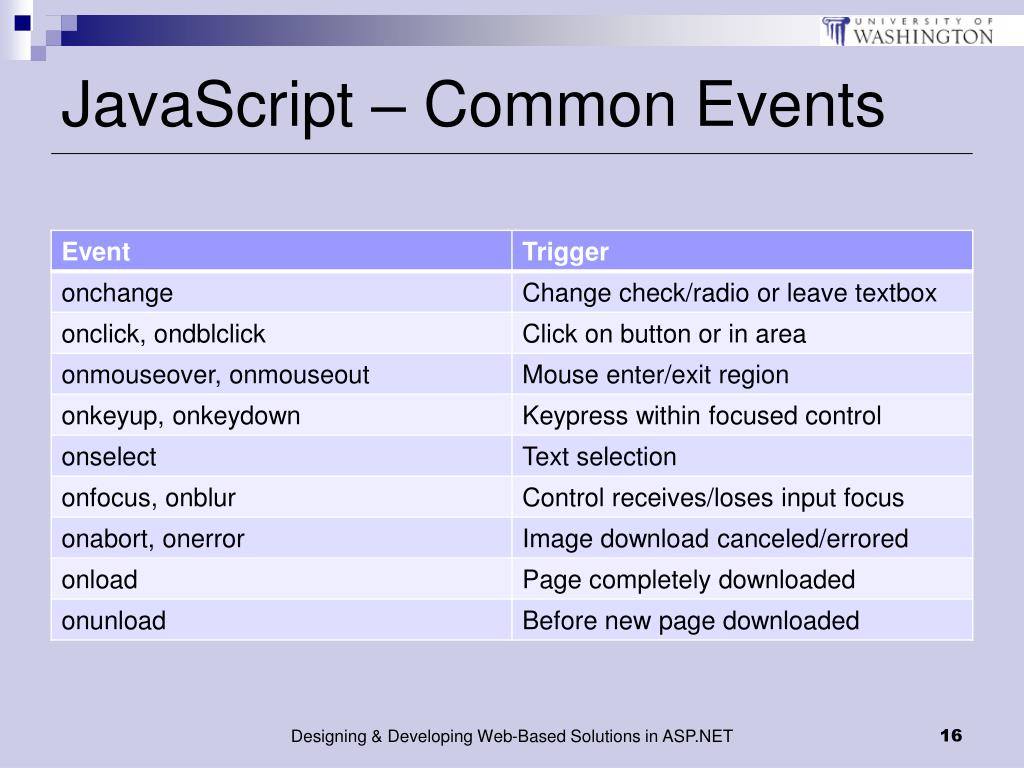

  16. JavaScript – Common Events Designing & Developing Web-Based Solutions in ASP.NET

  17. DOM and DHTML • Interact with web page as tree of xml objects • DHTML = “Dynamic HTML” JavaScript + DOM • The Document Object var label = document.getElementById(“LabelOne”); label.innerText = “text changed in script”; Designing & Developing Web-Based Solutions in ASP.NET

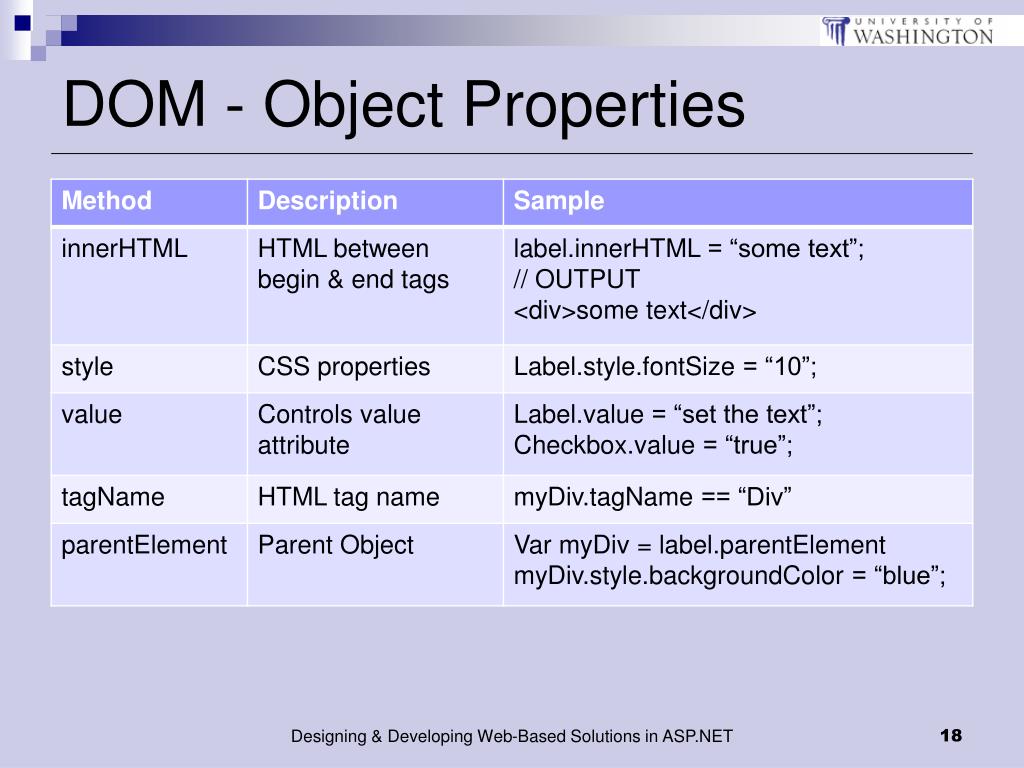

  18. DOM - Object Properties Designing & Developing Web-Based Solutions in ASP.NET

  19. document.*Collections document.anchors[] document.images[] document.links[] Designing & Developing Web-Based Solutions in ASP.NET

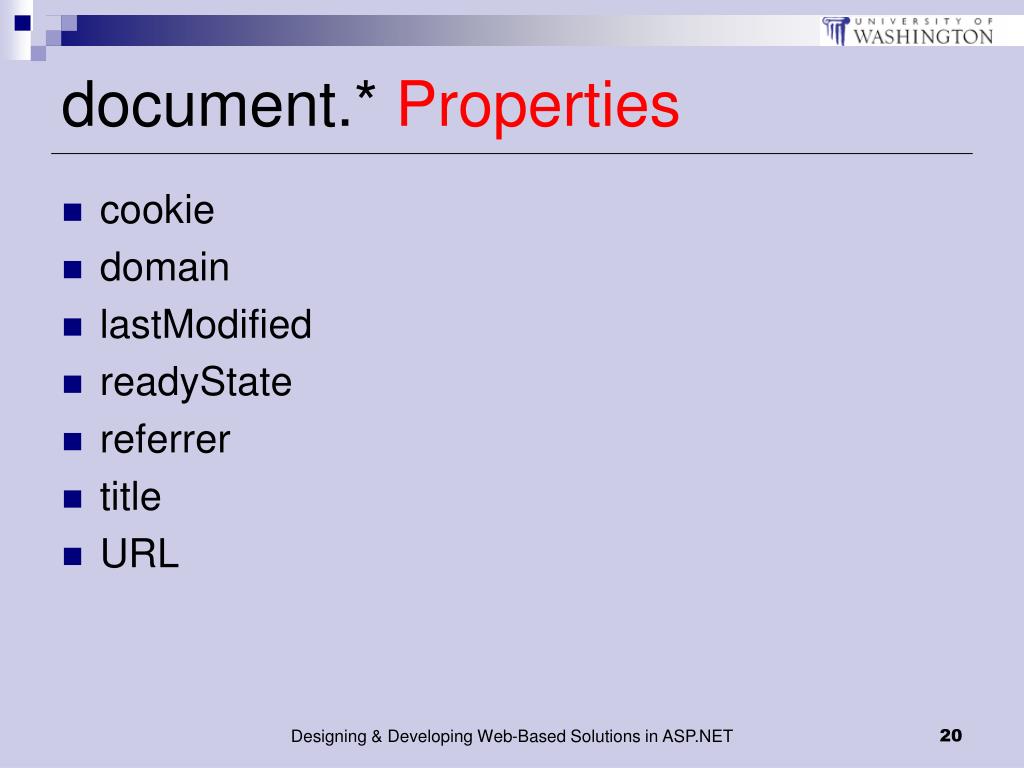

  20. document.* Properties cookie domain lastModified readyState referrer title URL Designing & Developing Web-Based Solutions in ASP.NET

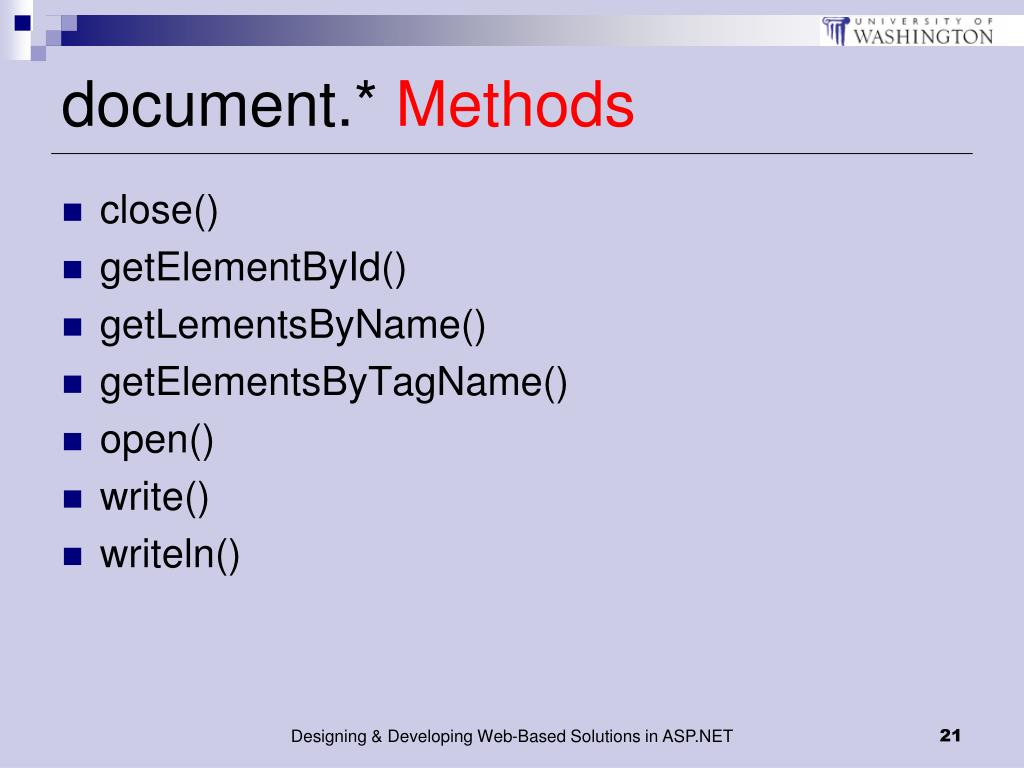

  21. document.* Methods close() getElementById() getLementsByName() getElementsByTagName() open() write() writeln() Designing & Developing Web-Based Solutions in ASP.NET

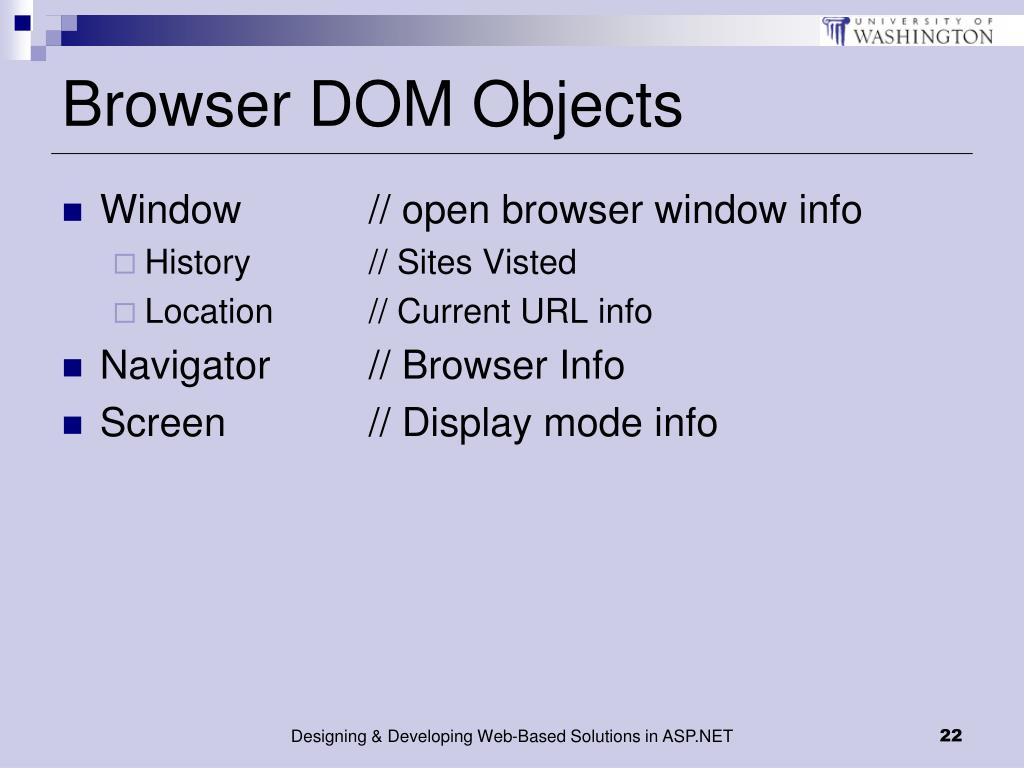

  22. Browser DOM Objects • Window // open browser window info • History // Sites Visted • Location // Current URL info • Navigator // Browser Info • Screen // Display mode info Designing & Developing Web-Based Solutions in ASP.NET

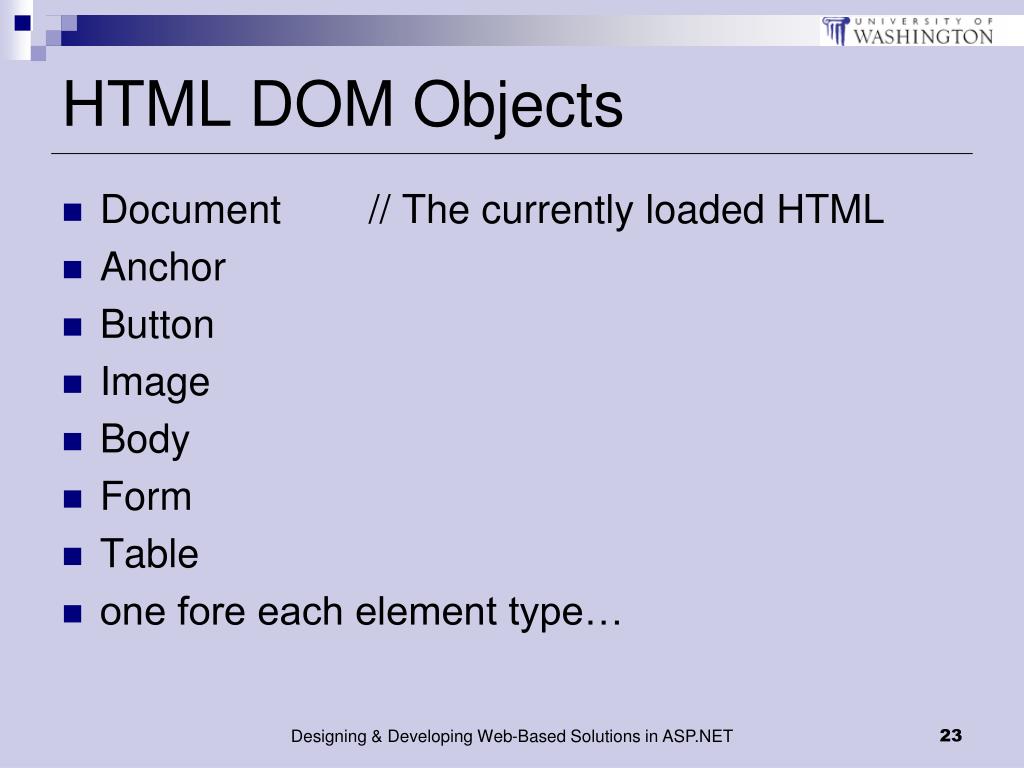

  23. HTML DOM Objects Document // The currently loaded HTML Anchor Button Image Body Form Table one fore each element type… Designing & Developing Web-Based Solutions in ASP.NET

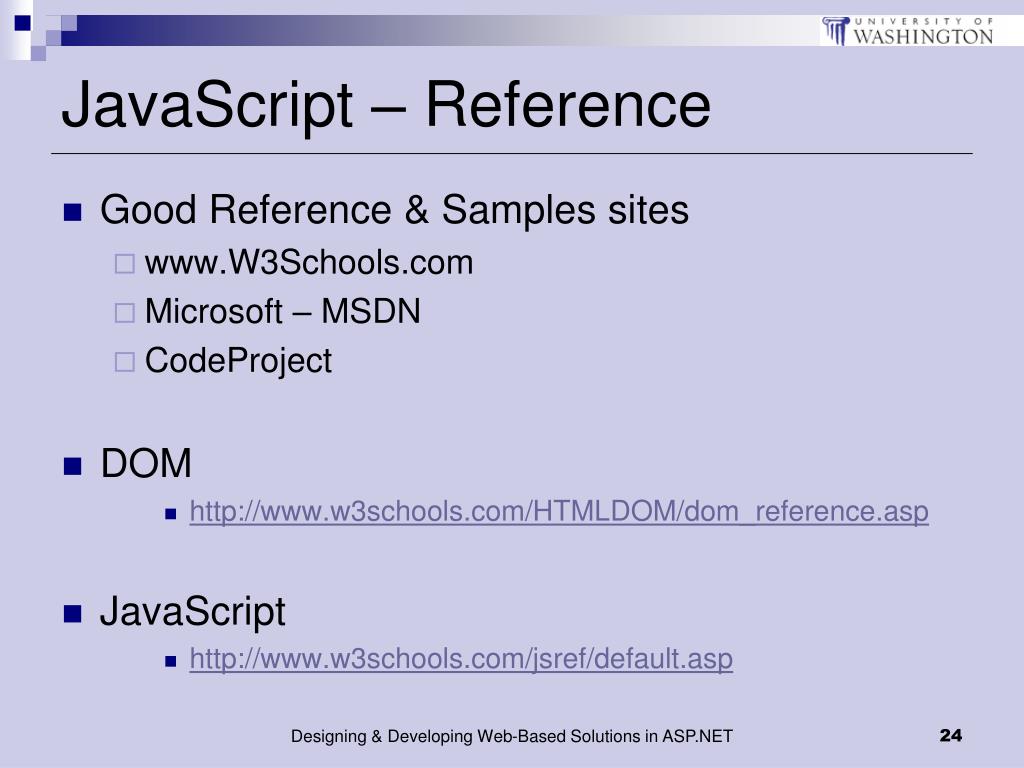

  24. JavaScript – Reference • Good Reference & Samples sites • www.W3Schools.com • Microsoft – MSDN • CodeProject • DOM • http://www.w3schools.com/HTMLDOM/dom_reference.asp • JavaScript • http://www.w3schools.com/jsref/default.asp Designing & Developing Web-Based Solutions in ASP.NET

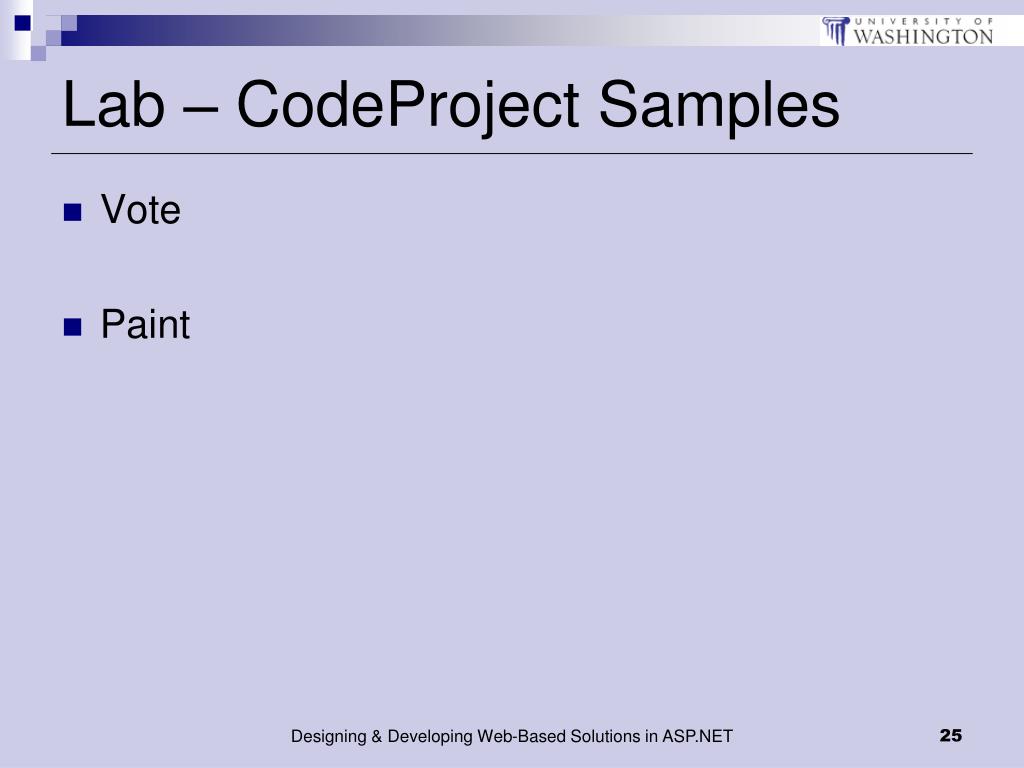

  25. Lab – CodeProject Samples • Vote • Paint Designing & Developing Web-Based Solutions in ASP.NET

  26. Designing & Developing Web-Based Solutions in ASP.NET AJAX

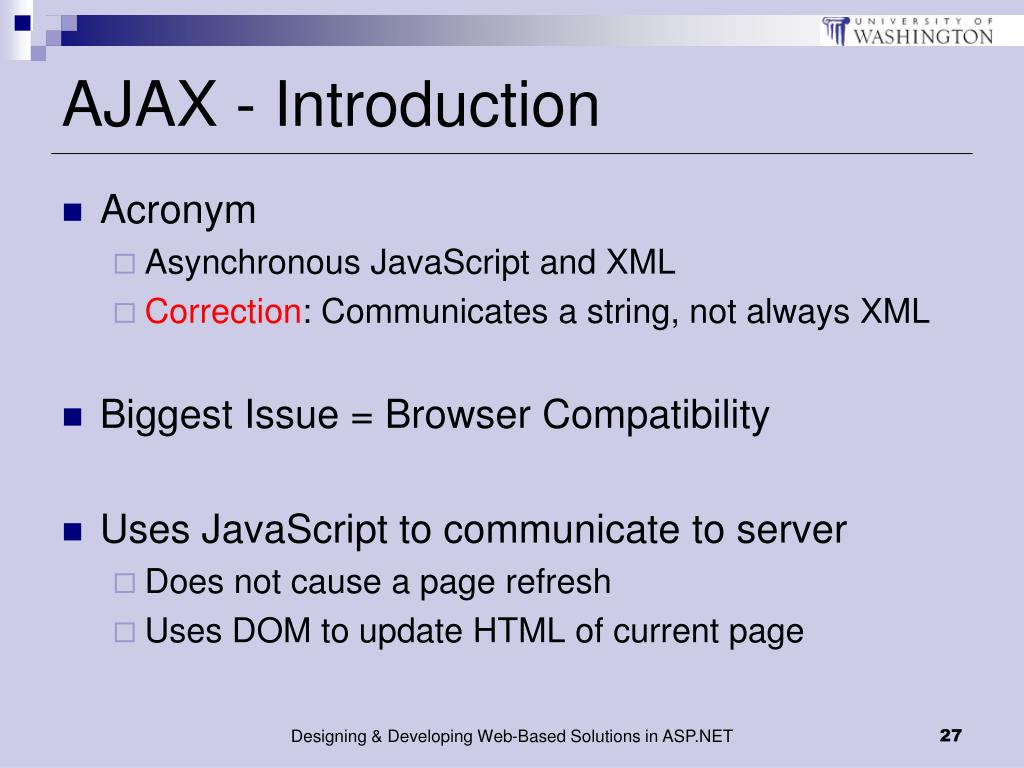

  27. AJAX - Introduction • Acronym • Asynchronous JavaScript and XML • Correction: Communicates a string, not always XML • Biggest Issue = Browser Compatibility • Uses JavaScript to communicate to server • Does not cause a page refresh • Uses DOM to update HTML of current page Designing & Developing Web-Based Solutions in ASP.NET

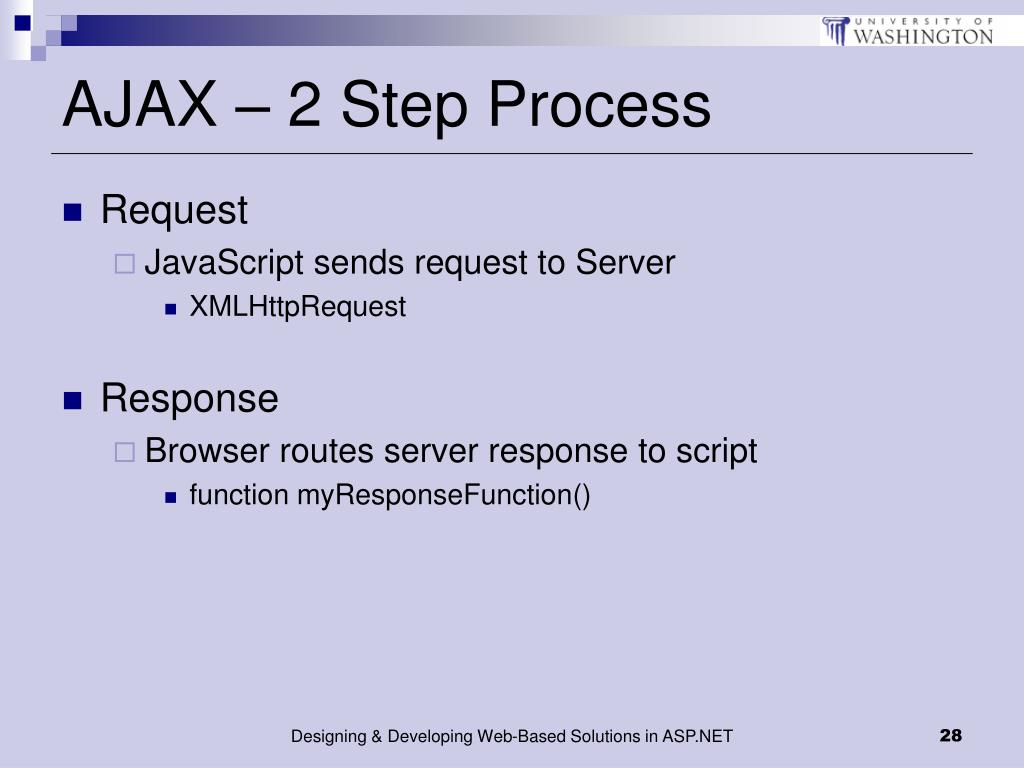

  28. AJAX – 2 Step Process • Request • JavaScript sends request to Server • XMLHttpRequest • Response • Browser routes server response to script • function myResponseFunction() Designing & Developing Web-Based Solutions in ASP.NET

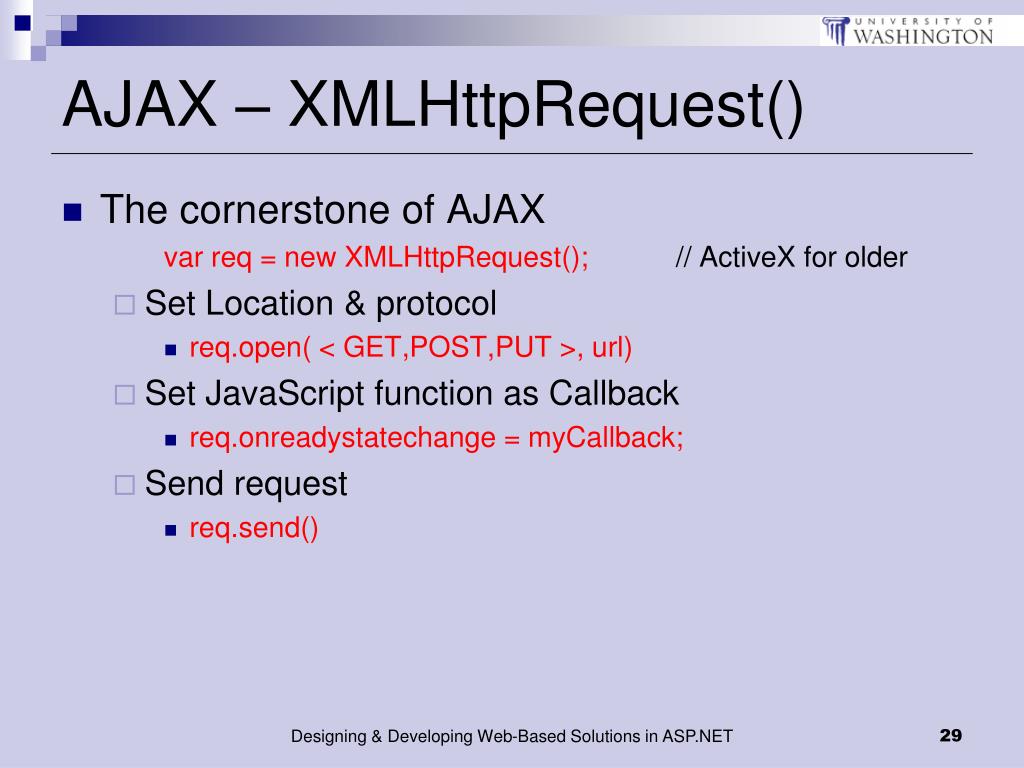

  29. AJAX – XMLHttpRequest() • The cornerstone of AJAX varreq= new XMLHttpRequest(); // ActiveX for older • Set Location & protocol • req.open( < GET,POST,PUT >, url) • Set JavaScript function as Callback • req.onreadystatechange = myCallback; • Send request • req.send() Designing & Developing Web-Based Solutions in ASP.NET

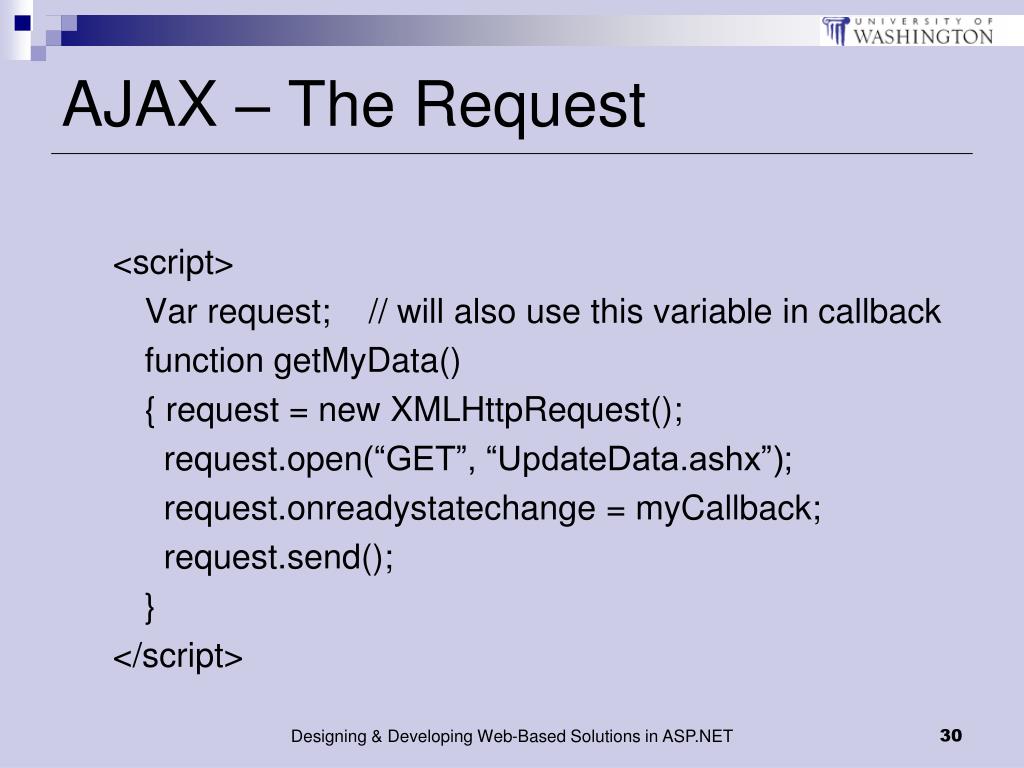

  30. AJAX – The Request <script> Var request; // will also use this variable in callback function getMyData() { request = new XMLHttpRequest(); request.open(“GET”, “UpdateData.ashx”); request.onreadystatechange = myCallback; request.send(); } </script> Designing & Developing Web-Based Solutions in ASP.NET

  31. AJAX – Server’s HTTP Handler • File APP_Code/ UpdateData.ashx • public class UpdateData : IHttpHandler • { • public void ProcessRequest( HttpContext context) • { • context.Response.Write(“Hi from the server”); • } • public boolIsReusable // keep handler loaded or discard • {get{ return true;}} • } Designing & Developing Web-Based Solutions in ASP.NET

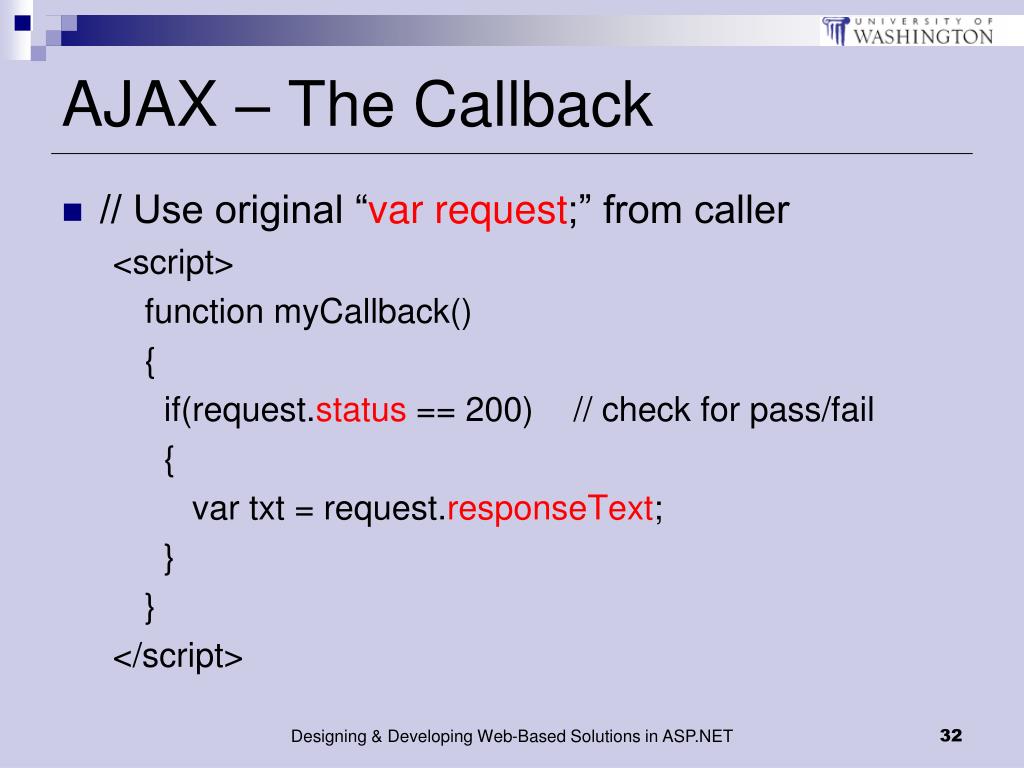

  32. AJAX – The Callback • // Use original “var request;” from caller <script> function myCallback() { if(request.status == 200) // check for pass/fail { var txt = request.responseText; } } </script> Designing & Developing Web-Based Solutions in ASP.NET

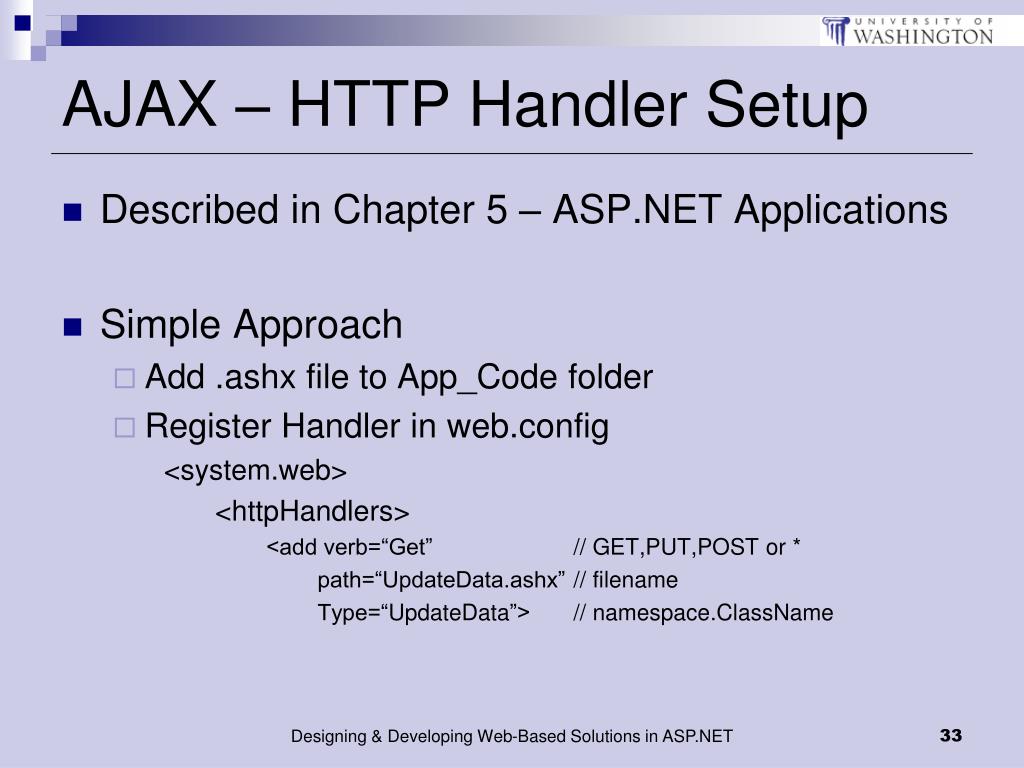

  33. AJAX – HTTP Handler Setup • Described in Chapter 5 – ASP.NET Applications • Simple Approach • Add .ashx file to App_Code folder • Register Handler in web.config <system.web> <httpHandlers> <add verb=“Get” // GET,PUT,POST or * path=“UpdateData.ashx” // filename Type=“UpdateData”> // namespace.ClassName Designing & Developing Web-Based Solutions in ASP.NET

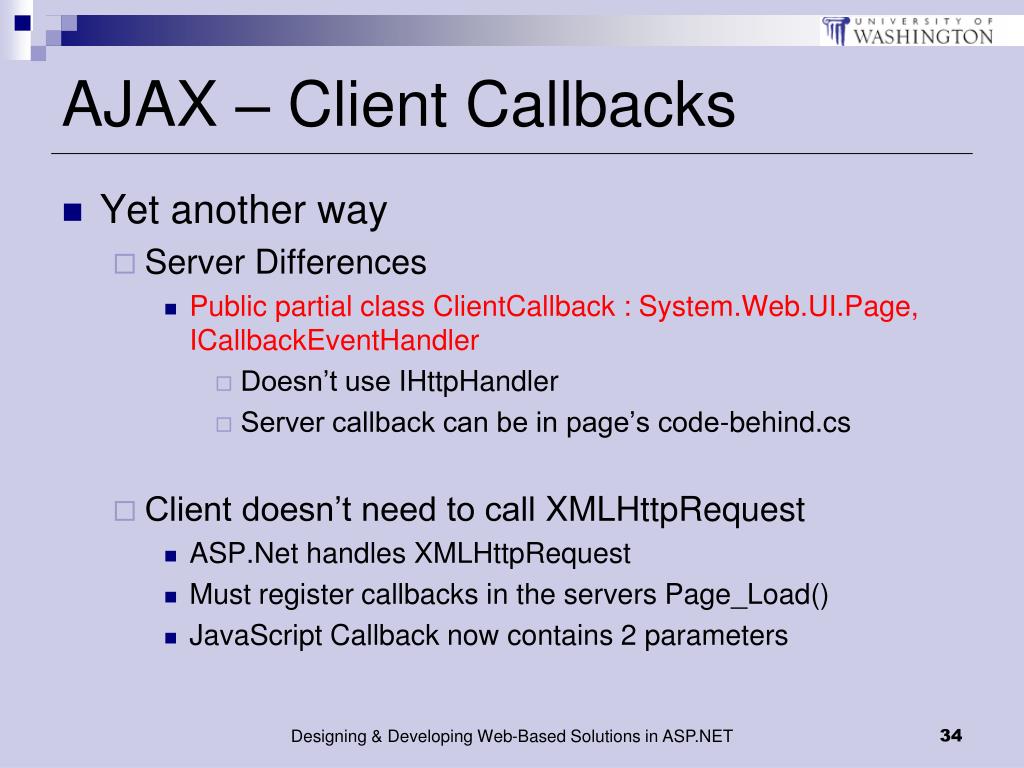

  34. AJAX – Client Callbacks • Yet another way • Server Differences • Public partial class ClientCallback : System.Web.UI.Page, ICallbackEventHandler • Doesn’t use IHttpHandler • Server callback can be in page’s code-behind.cs • Client doesn’t need to call XMLHttpRequest • ASP.Net handles XMLHttpRequest • Must register callbacks in the servers Page_Load() • JavaScript Callback now contains 2 parameters Designing & Developing Web-Based Solutions in ASP.NET

  35. AJAX –Server Callback • Server Modifications Public partial class ClientCallback : System.Web.UI.Page, ICallbackEventHandler { Public void Page_Load(…) { String myScriptcallback = Page.ClientScript.GetCallbackEventReference( This, “document.getElementById(‘myLable’).value, clientUpdateDataCB, “null”, true); myLabel.Attributes[“onchange”] = myScriptcallback; } } Designing & Developing Web-Based Solutions in ASP.NET

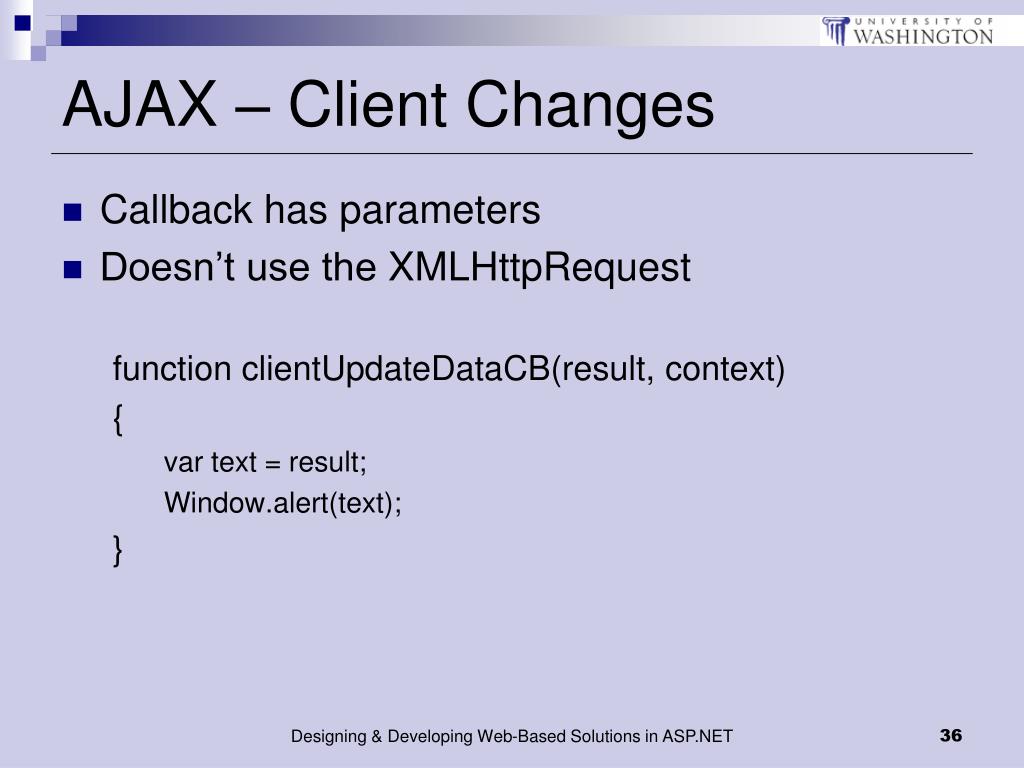

  36. AJAX – Client Changes • Callback has parameters • Doesn’t use the XMLHttpRequest function clientUpdateDataCB(result, context) { var text = result; Window.alert(text); } Designing & Developing Web-Based Solutions in ASP.NET

  37. Designing & Developing Web-Based Solutions in ASP.NET ASP.NET AJAX (Formerly Known as “Atlas”)

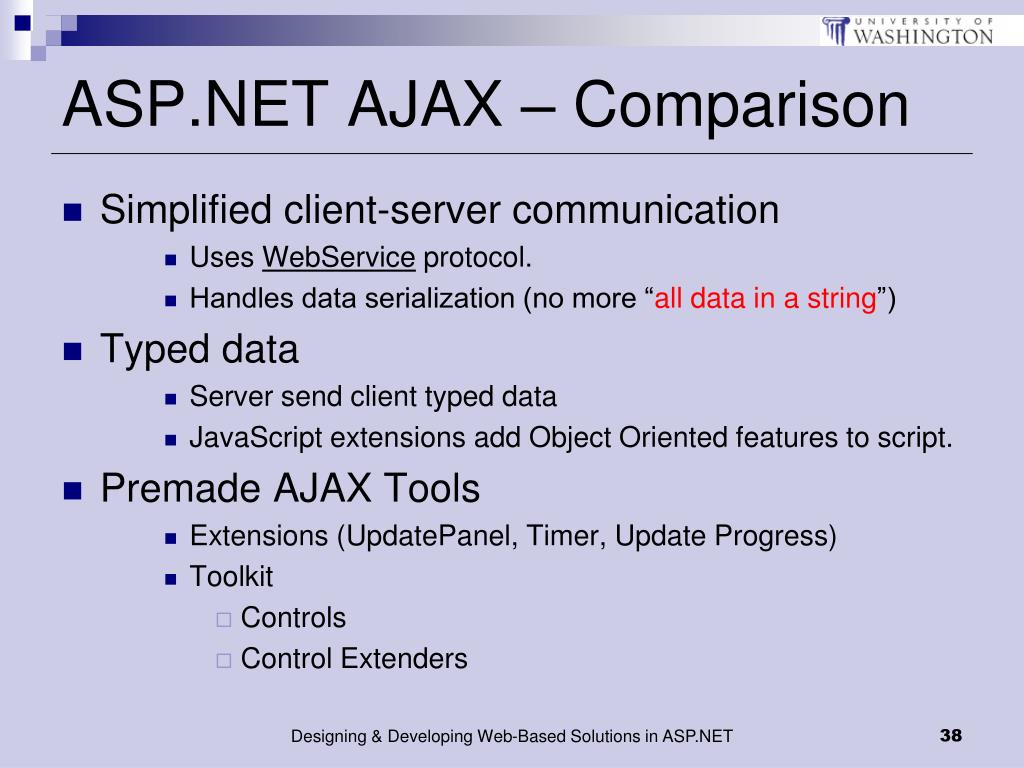

  38. ASP.NET AJAX – Comparison • Simplified client-server communication • Uses WebService protocol. • Handles data serialization (no more “all data in a string”) • Typed data • Server send client typed data • JavaScript extensions add Object Oriented features to script. • Premade AJAX Tools • Extensions (UpdatePanel, Timer, Update Progress) • Toolkit • Controls • Control Extenders Designing & Developing Web-Based Solutions in ASP.NET

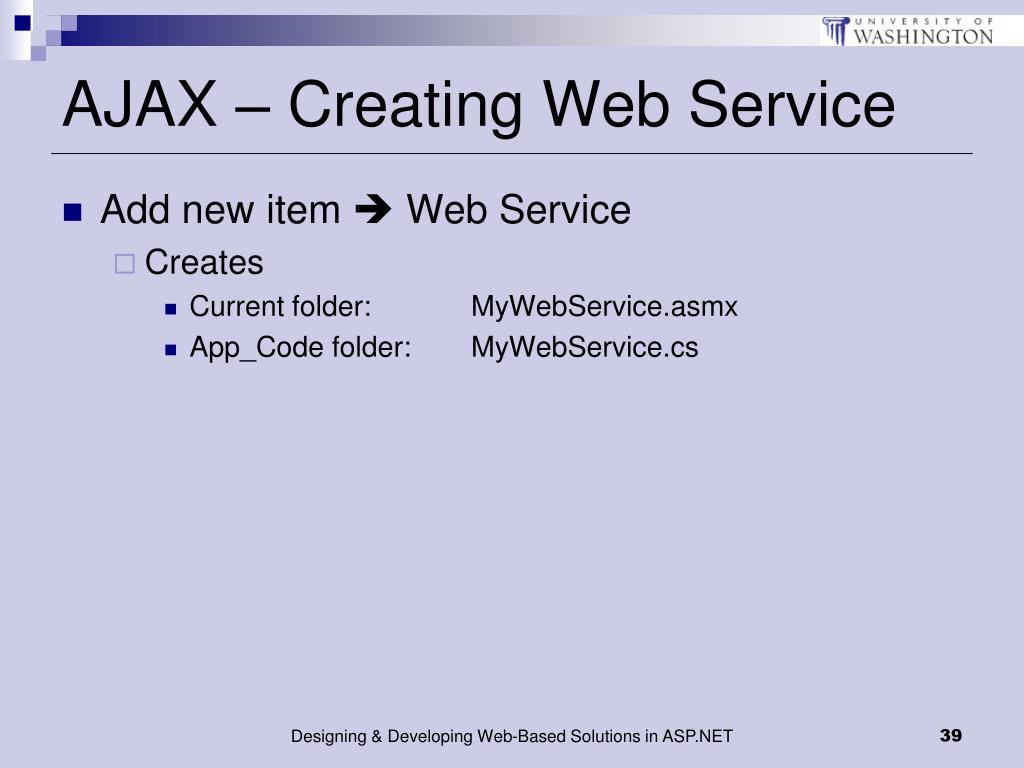

  39. AJAX – Creating Web Service • Add new item  Web Service • Creates • Current folder: MyWebService.asmx • App_Code folder: MyWebService.cs Designing & Developing Web-Based Solutions in ASP.NET

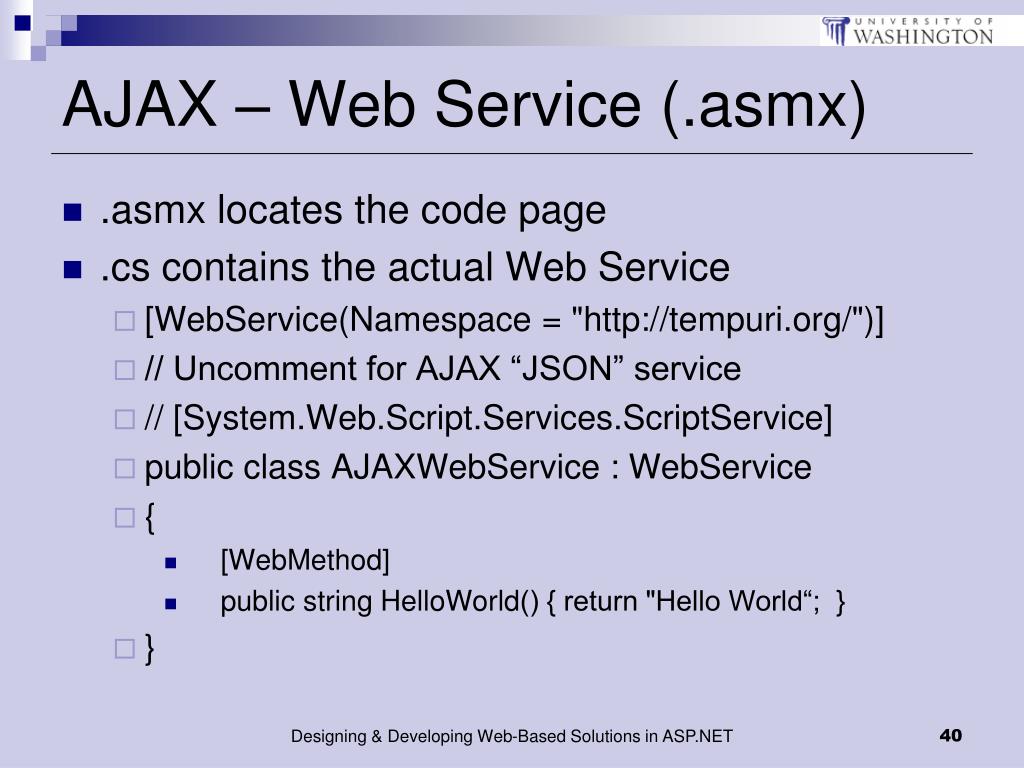

  40. AJAX – Web Service (.asmx) • .asmx locates the code page • .cs contains the actual Web Service • [WebService(Namespace = "http://tempuri.org/")] • // Uncomment for AJAX “JSON” service • // [System.Web.Script.Services.ScriptService] • public class AJAXWebService : WebService • { • [WebMethod] • public string HelloWorld() { return "Hello World“; } • } Designing & Developing Web-Based Solutions in ASP.NET

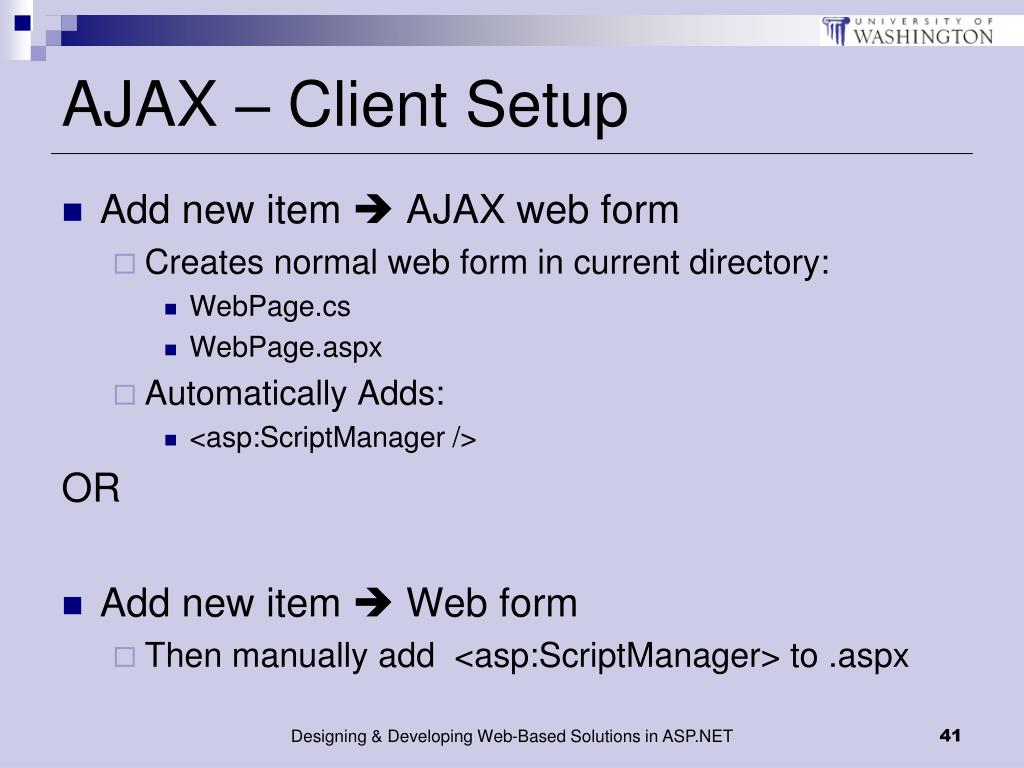

  41. AJAX – Client Setup • Add new item  AJAX web form • Creates normal web form in current directory: • WebPage.cs • WebPage.aspx • Automatically Adds: • <asp:ScriptManager /> OR • Add new item  Web form • Then manually add <asp:ScriptManager> to .aspx Designing & Developing Web-Based Solutions in ASP.NET

  42. AJAX – ScriptManager • Add web service reference • Must live inside <form> • <form> <asp:ScriptManager ID=“ScriptMgr" runat="server“> <Services> <asp:ServiceReference Path="~/Projects/Samples/…/AJAXWebService.asmx" /> </Services> </asp:ScriptManager> • </form> Designing & Developing Web-Based Solutions in ASP.NET

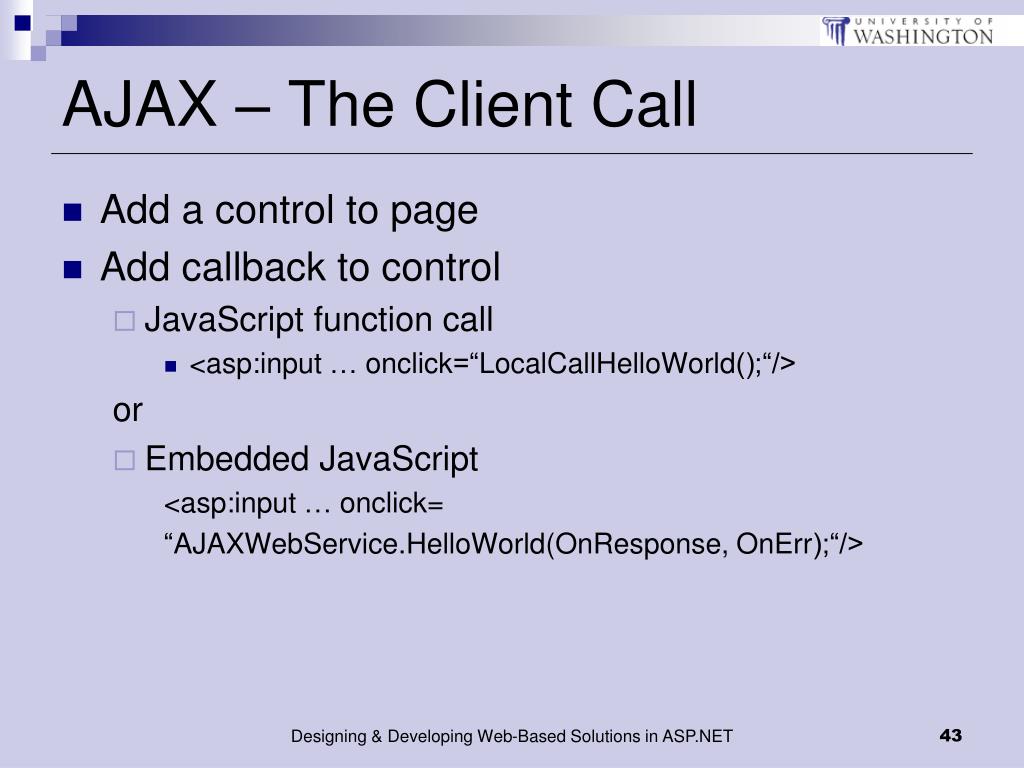

  43. AJAX – The Client Call • Add a control to page • Add callback to control • JavaScript function call • <asp:input … onclick=“LocalCallHelloWorld();“/> or • Embedded JavaScript <asp:input … onclick= “AJAXWebService.HelloWorld(OnResponse, OnErr);“/> Designing & Developing Web-Based Solutions in ASP.NET

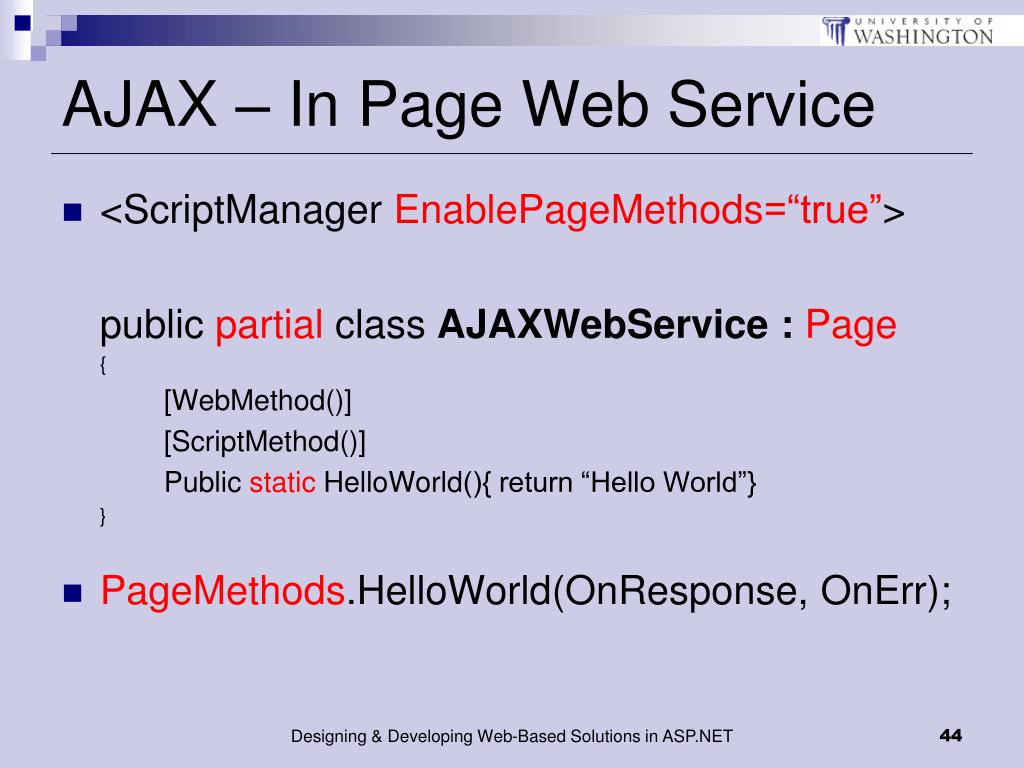

  44. AJAX – In Page Web Service • <ScriptManagerEnablePageMethods=“true”> public partial class AJAXWebService : Page { [WebMethod()] [ScriptMethod()] Public staticHelloWorld(){ return “Hello World”} } • PageMethods.HelloWorld(OnResponse, OnErr); Designing & Developing Web-Based Solutions in ASP.NET

  45. <asp:Button> - Special Case • <asp:Buttononclick=“ServerOnlyMethod"> • onclick attribute defined by <asp:Button> • Normally JavaScript Events pass-through (onblur, onclick,…) • Alternative • OnClientClick=“SomeJavaScript()” • Also does postback • Work Around <asp:ButtonOnClientClick=“returnMyFunc();” /> function MyFunc{ … return false;} Designing & Developing Web-Based Solutions in ASP.NET

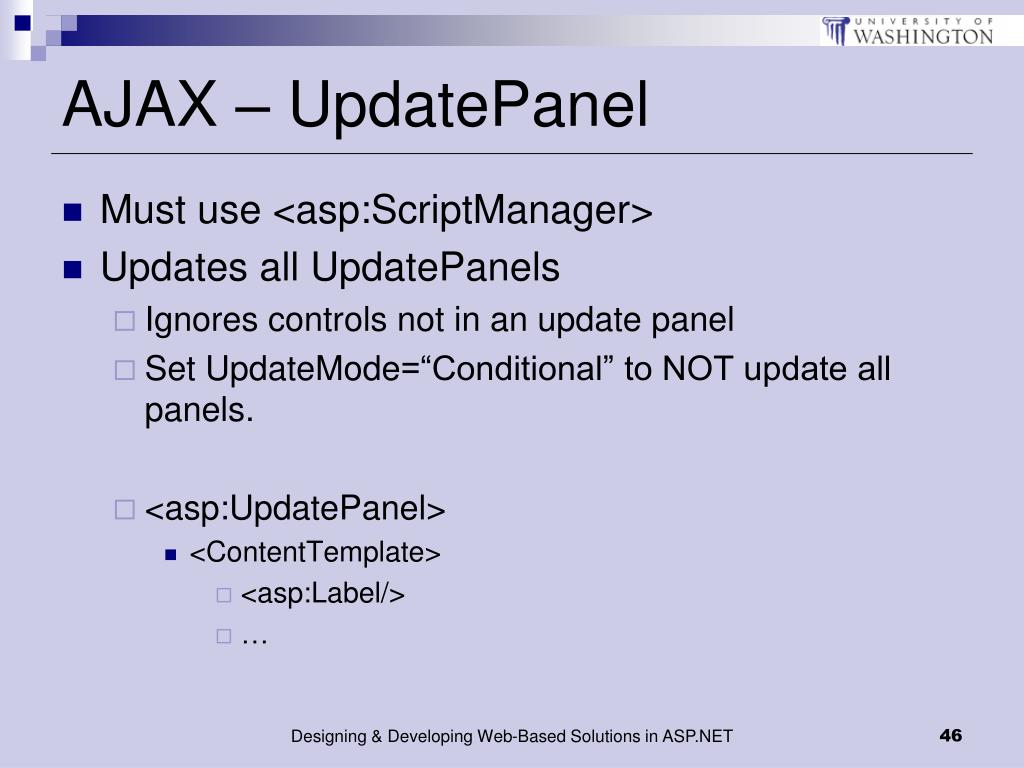

  46. AJAX – UpdatePanel • Must use <asp:ScriptManager> • Updates all UpdatePanels • Ignores controls not in an update panel • Set UpdateMode=“Conditional” to NOT update all panels. • <asp:UpdatePanel> • <ContentTemplate> • <asp:Label/> • … Designing & Developing Web-Based Solutions in ASP.NET

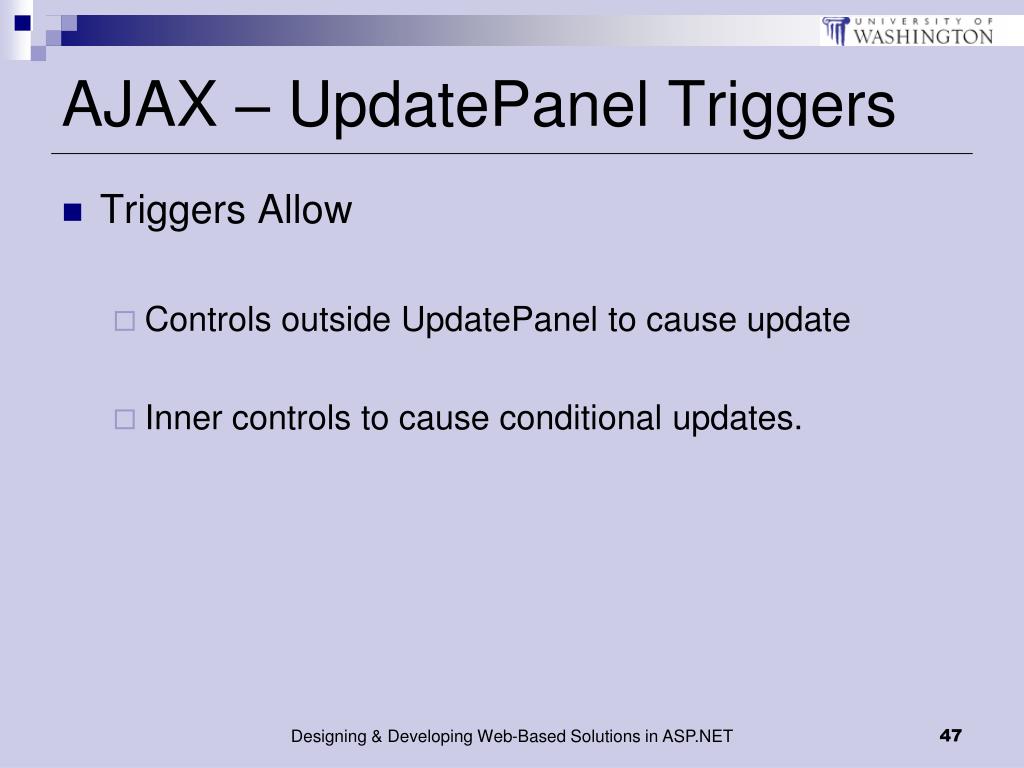

  47. AJAX – UpdatePanel Triggers • Triggers Allow • Controls outside UpdatePanel to cause update • Inner controls to cause conditional updates. Designing & Developing Web-Based Solutions in ASP.NET

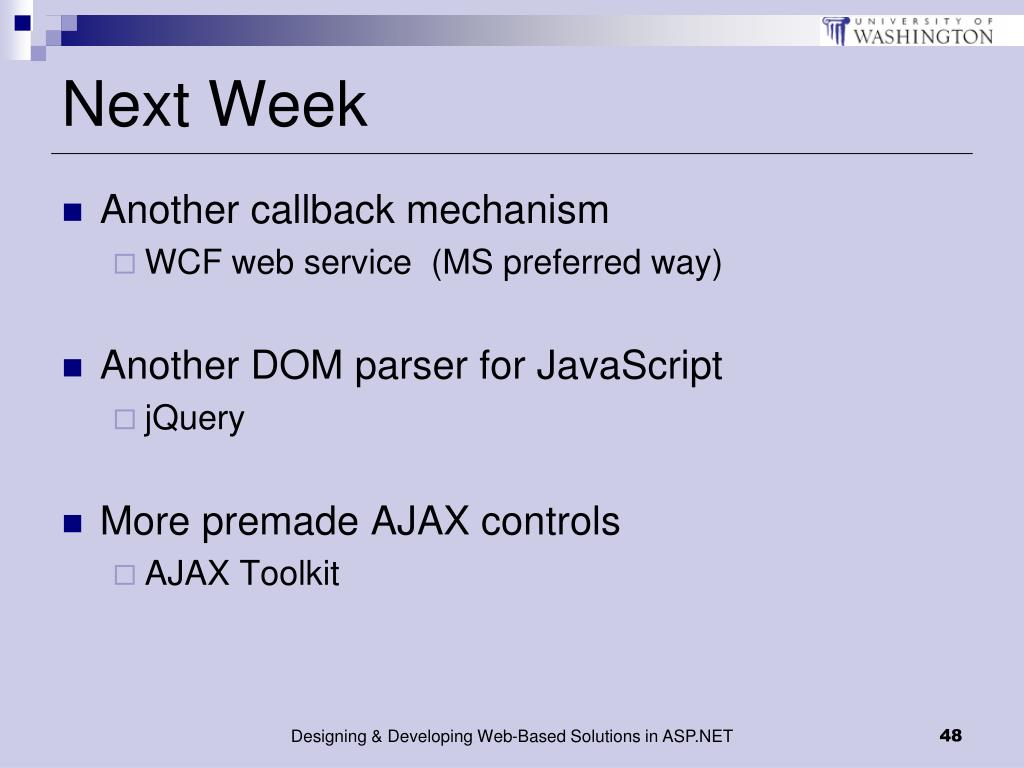

  48. Next Week • Another callback mechanism • WCF web service (MS preferred way) • Another DOM parser for JavaScript • jQuery • More premade AJAX controls • AJAX Toolkit Designing & Developing Web-Based Solutions in ASP.NET

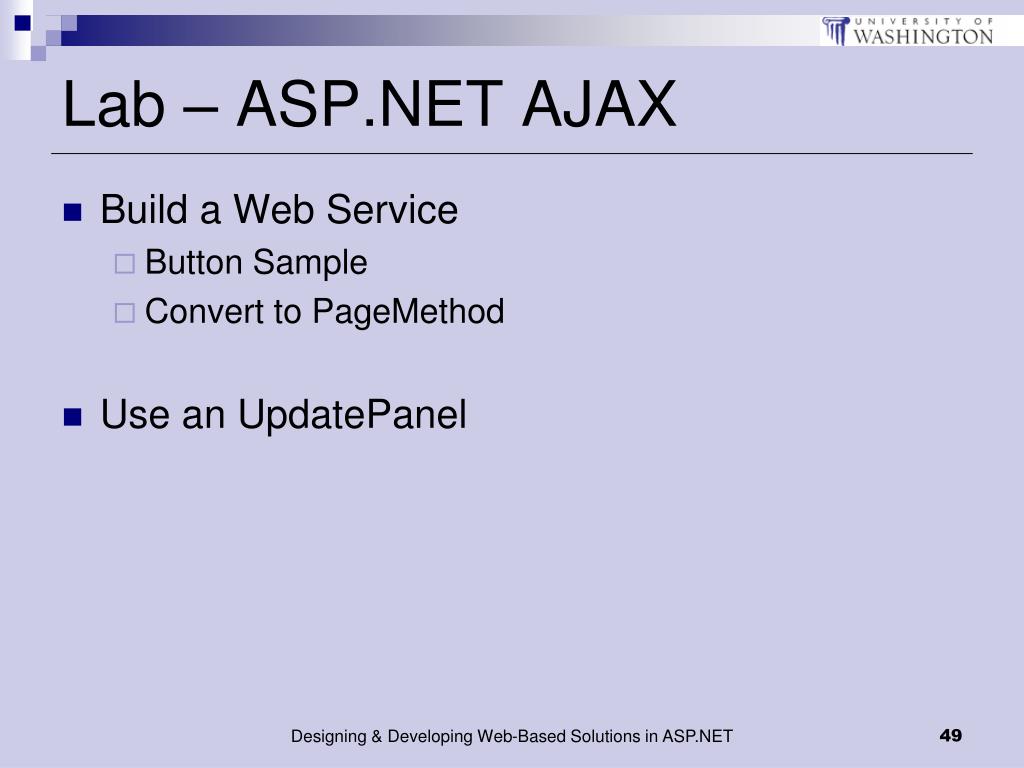

  49. Lab – ASP.NET AJAX • Build a Web Service • Button Sample • Convert to PageMethod • Use an UpdatePanel Designing & Developing Web-Based Solutions in ASP.NET
