  1. Discoveries Surrounding the Chemical Nature of the GenePart 2

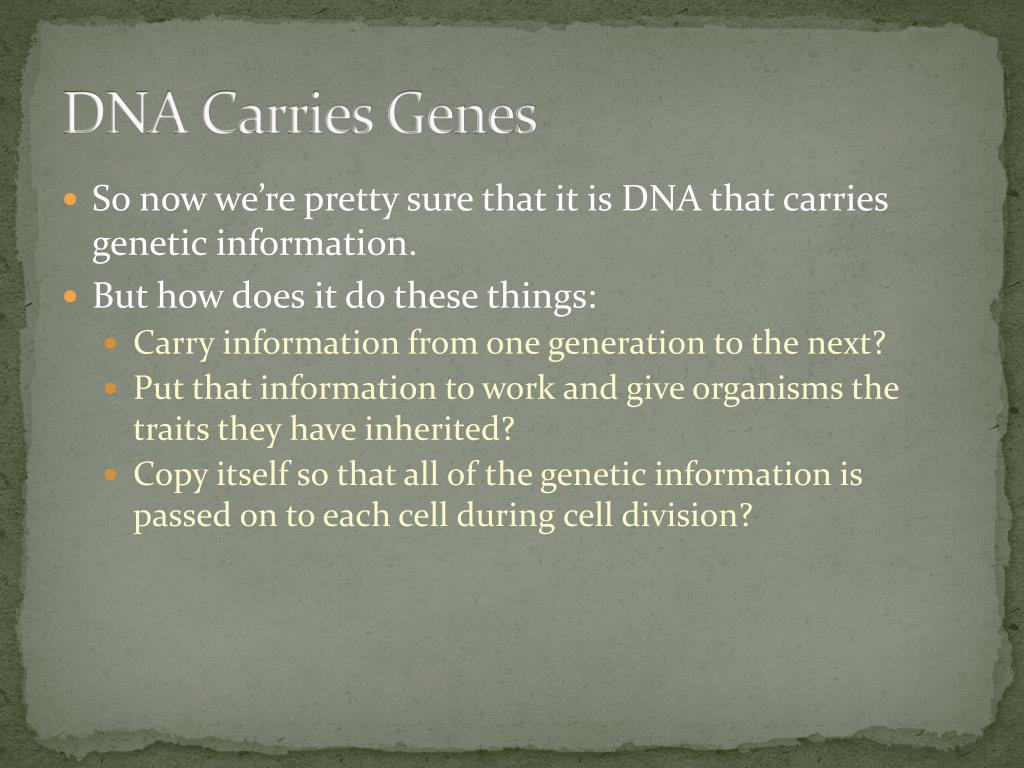

  2. DNA Carries Genes • So now we’re pretty sure that it is DNA that carries genetic information. • But how does it do these things: • Carry information from one generation to the next? • Put that information to work and give organisms the traits they have inherited? • Copy itself so that all of the genetic information is passed on to each cell during cell division?

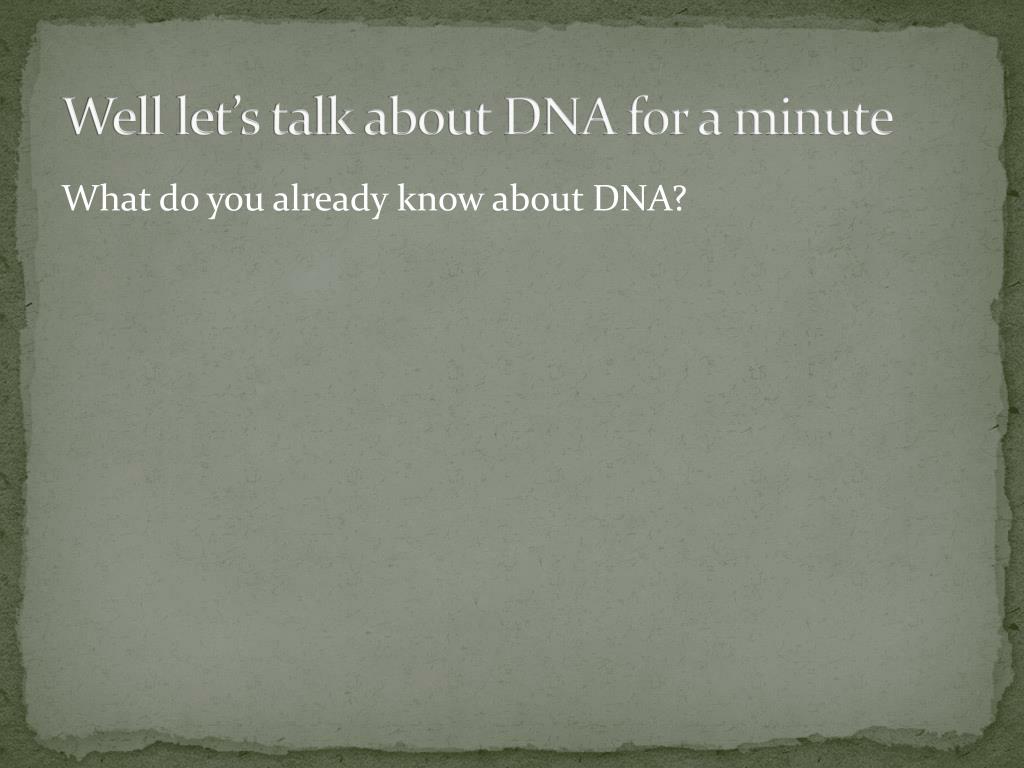

  3. Well let’s talk about DNA for a minute What do you already know about DNA?

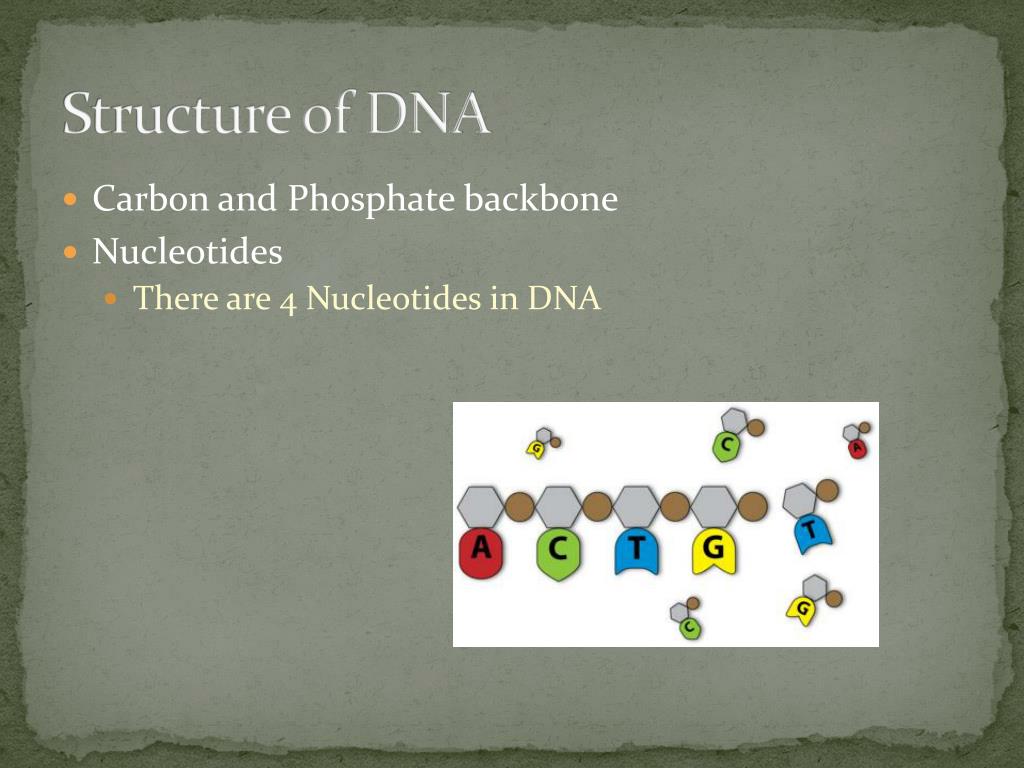

  4. Structure of DNA • Carbon and Phosphate backbone • Nucleotides • There are 4 Nucleotides in DNA

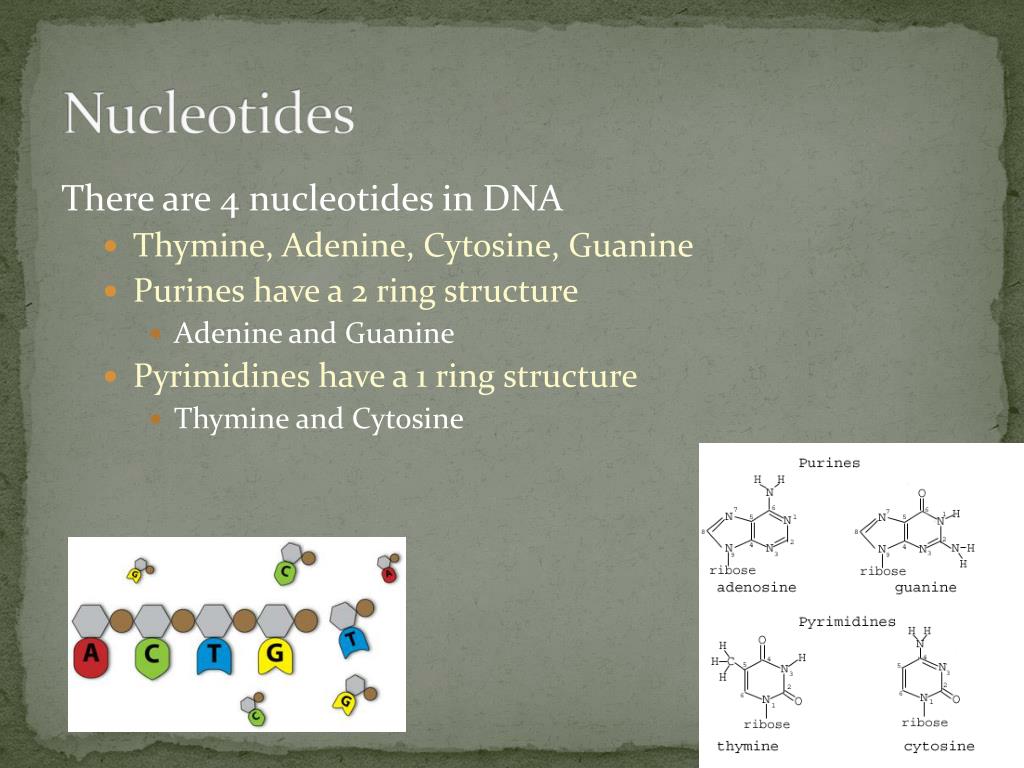

  5. Nucleotides There are 4 nucleotides in DNA • Thymine, Adenine, Cytosine, Guanine • Purines have a 2 ring structure • Adenine and Guanine • Pyrimidines have a 1 ring structure • Thymine and Cytosine

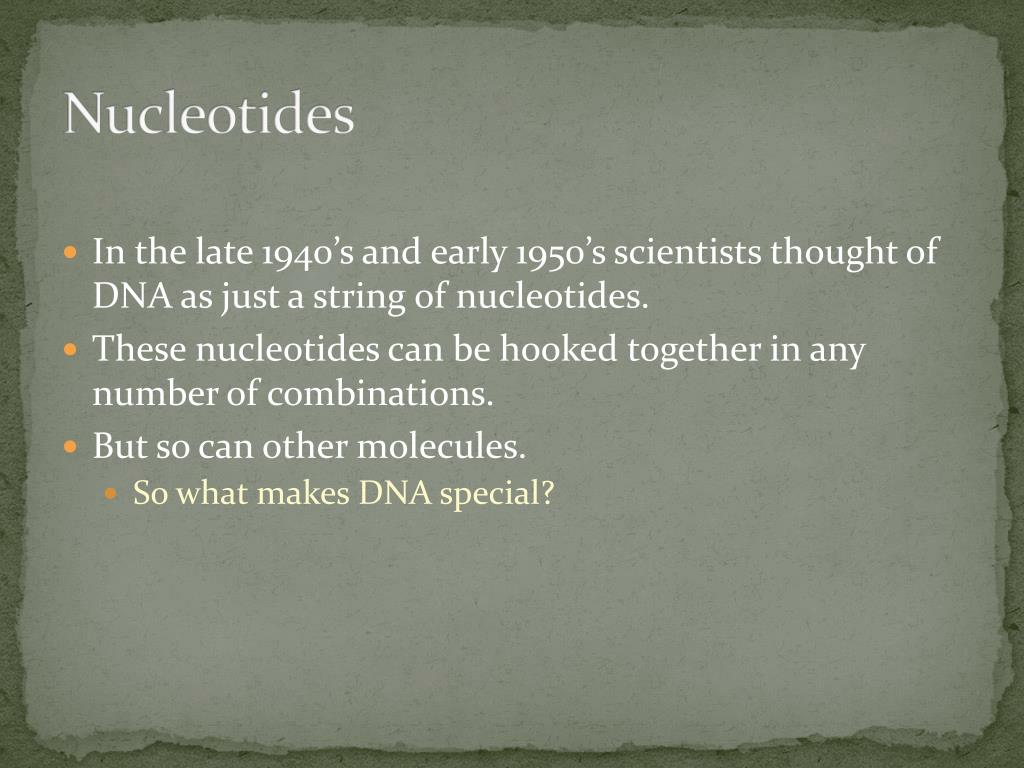

  6. Nucleotides • In the late 1940’s and early 1950’s scientists thought of DNA as just a string of nucleotides. • These nucleotides can be hooked together in any number of combinations. • But so can other molecules. • So what makes DNA special?

  7. Erwin Chargaff 1950 • Discovered that in the percentages of guanine [G] and cytosine [C] are almost equal in any sample of DNA • The same thing is true for adenine [A] and thymine [T].

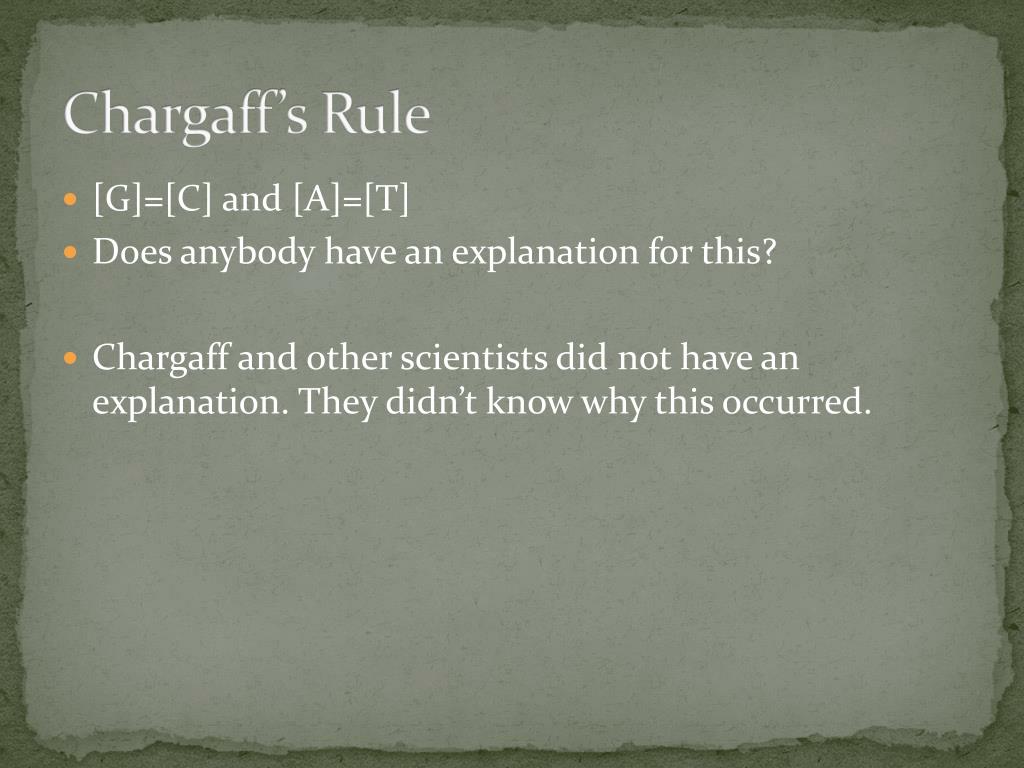

  8. Chargaff’s Rule • [G]=[C] and [A]=[T] • Does anybody have an explanation for this? • Chargaff and other scientists did not have an explanation. They didn’t know why this occurred.

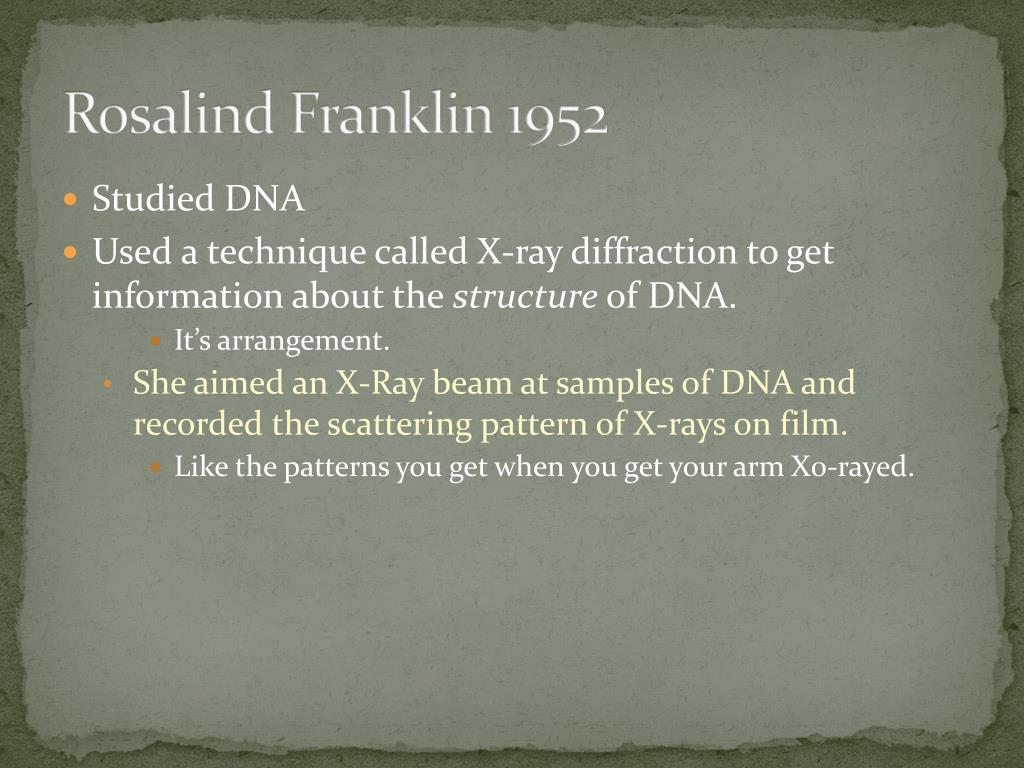

  9. Rosalind Franklin 1952 • Studied DNA • Used a technique called X-ray diffraction to get information about the structure of DNA. • It’s arrangement. • She aimed an X-Ray beam at samples of DNA and recorded the scattering pattern of X-rays on film. • Like the patterns you get when you get your arm X0-rayed.

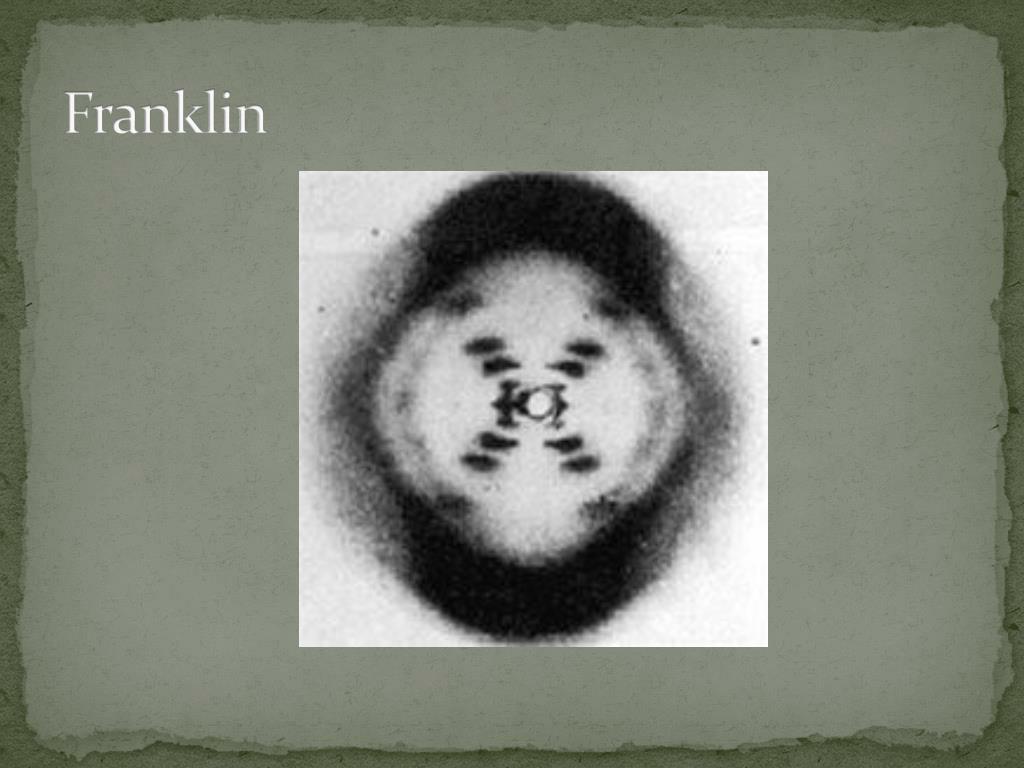

  10. Franklin

  11. Franklin • Does this really give you a lot of information about the structure of DNA? • But it did provide some important clues. • It suggests that there are two strands to the structure • And those strands are twisted around each other.

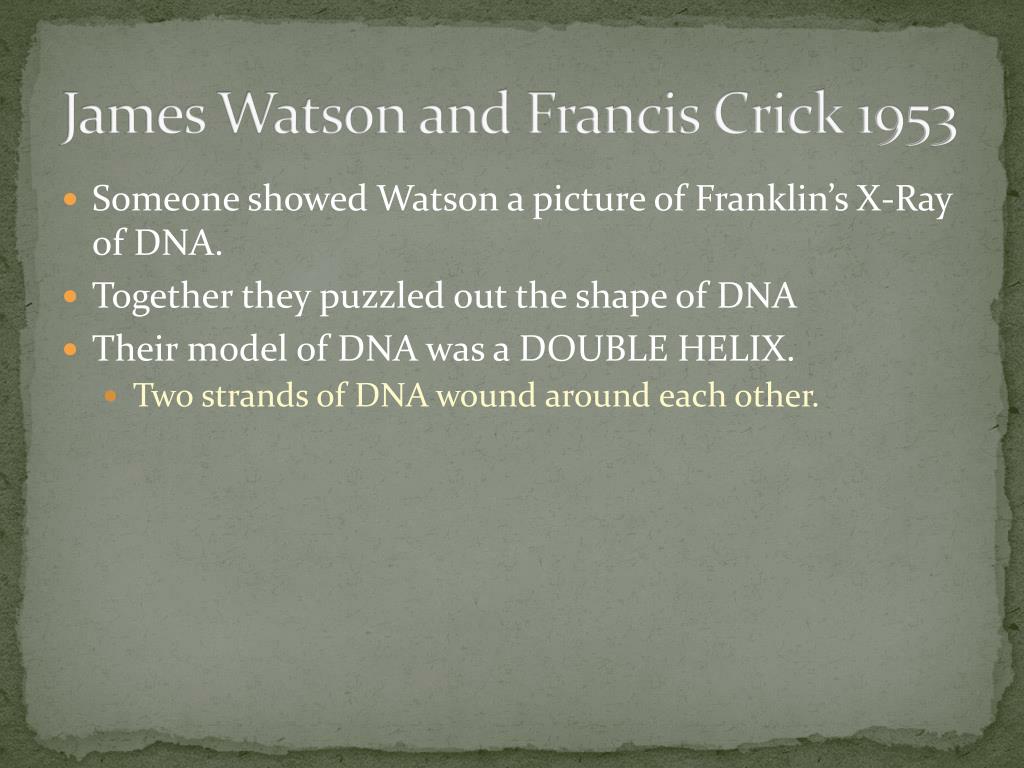

  12. James Watson and Francis Crick 1953 • Someone showed Watson a picture of Franklin’s X-Ray of DNA. • Together they puzzled out the shape of DNA • Their model of DNA was a DOUBLE HELIX. • Two strands of DNA wound around each other.

  13. DNA Double Helix

  14. So let’s Summarize • Who was Erwin Chargaff? • What was his rule? • What did Rosalind Franklin do with X-Rays? • What did her picture look like? • What did Watson and Crick figure out when they Saw Franklin’s Picture?
