  1. All Particle Simulation of a Cathodic Arc Plasma • J. Cooper • D. R. McKenzie Tim Ruppin and Andrew Rigby

  2. Traces left by an arc on tungsten cathode

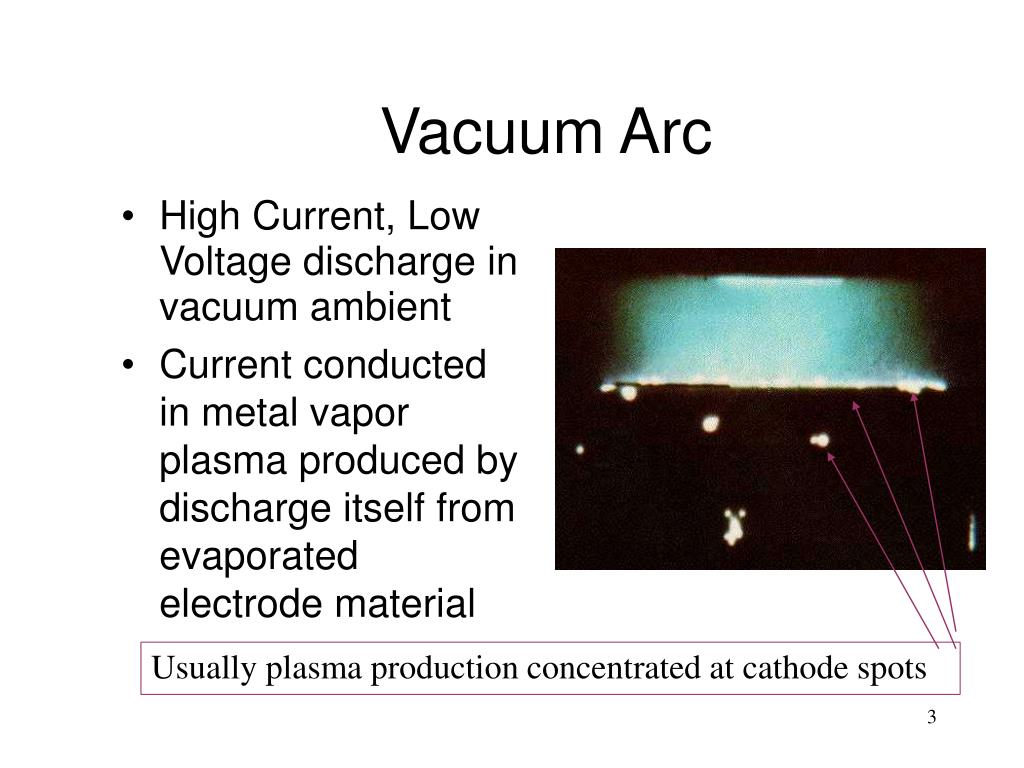

  3. Usually plasma production concentrated at cathode spots Vacuum Arc • High Current, Low Voltage discharge in vacuum ambient • Current conducted in metal vapor plasma produced by discharge itself from evaporated electrode material 3

  4. Time Evolution of Cathode Spot Cell Ion flow  rapid heating of micro-protrusion  shock wave traveling to base  explosion of micro-protrusion Liquid drops, energetic electrons, ions and atoms ejected from cathode leaving a micro-crater Expanding hot dense plasma cell in non-thermal equilibrium layer Atoms ionized by electron impact or if density sufficient, self ionization Ion flow to anode New ion flow to cathode Micro-protrusions on cathode surface

  5. Cathodic arc plasma  Subspots (fragments)  Cells  Initial confinement of plasma L = 1×10-8 m V = 1×10-24 m3 Number of ions 10 to 100 Densitymax ~ 1026 ions.m3 Hot e-Te =3x104 K Cold ions

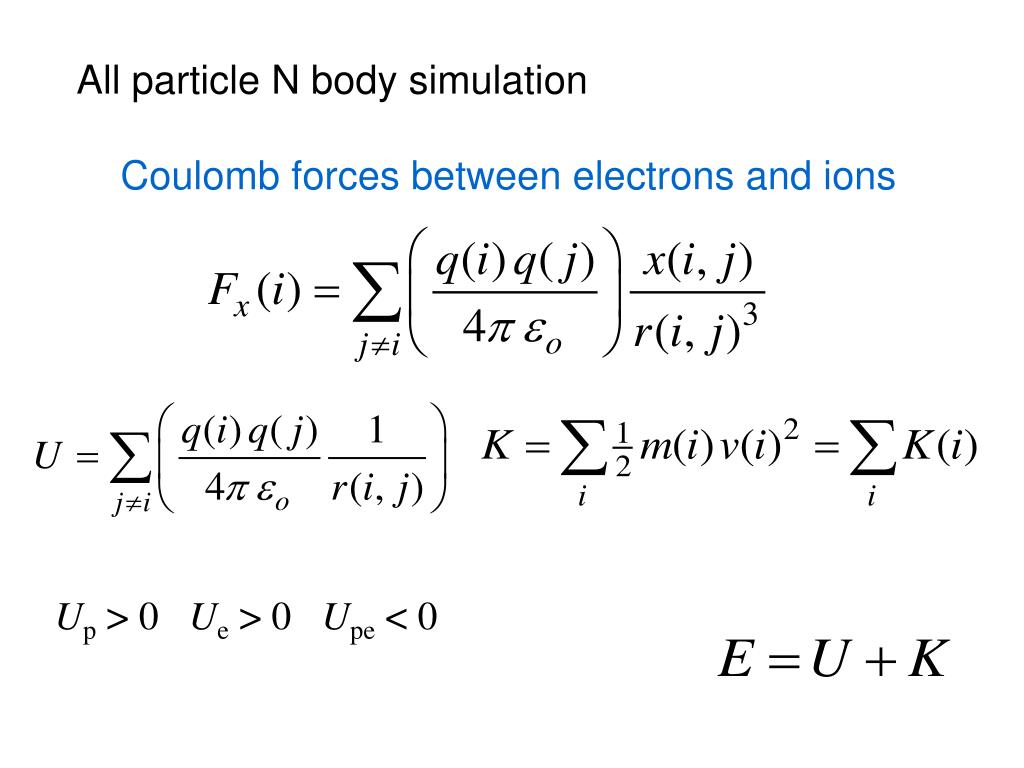

  6. All particle N body simulation Coulomb forces between electrons and ions Up > 0 Ue > 0 Upe < 0

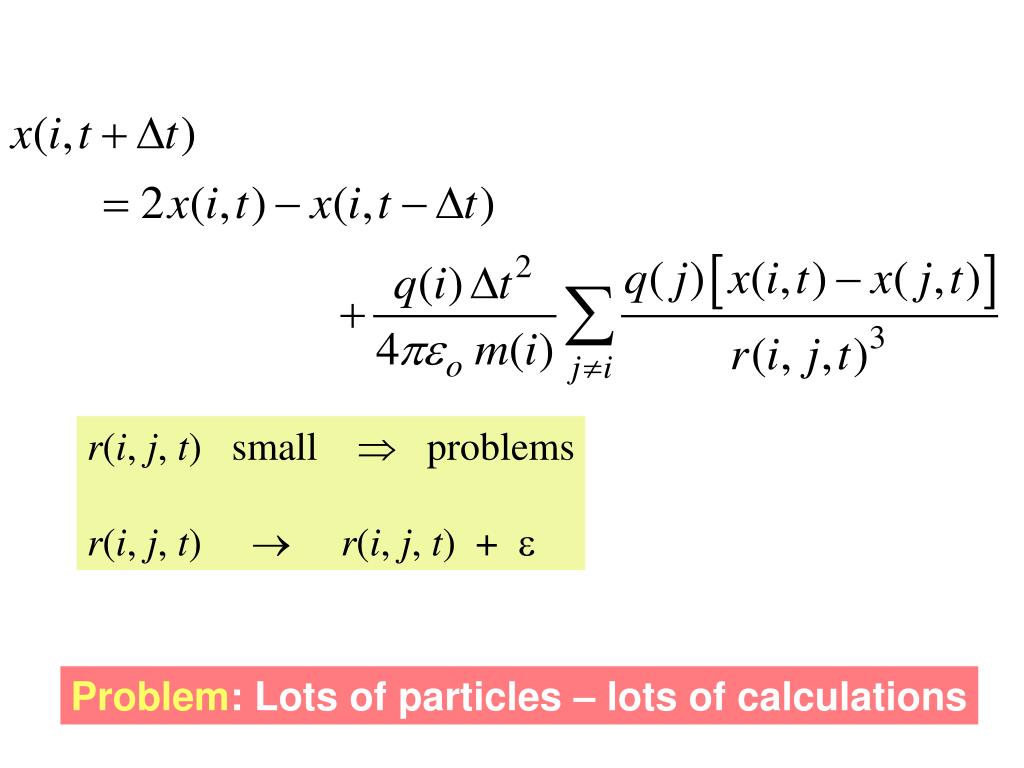

  7. r(i, j, t) small  problems r(i, j, t)  r(i, j, t) +  Problem: Lots of particles – lots of calculations

  8. Can modify equations to include external electric and magnetic fields xj(t+1): qjExt2 FB = q vxB Bx =0, By = 0, Bz vz = 0 x(t+1): G2[2x(t) + (G12-1)x(t-1) + 2G1y(t) – 2G1y(t-1)] G1 = t Bz /2mG2 = 1 / (1+G12)

  9. Software MATLAB slow need to remove loops by using array operations For each time step t ~ 1x10-18 s Nsteps ~ 107: xx = meshgrid(x_1,x_1); yy = meshgrid(y_1,y_1); zz = meshgrid(z_1,z_1); xd = xx - xx'; yd = yy - yy'; zd = zz - zz'; rd = sqrt(xd.^2 + yd.^2 + zd.^2); rd = rd + rdMin; rd3 = rd.^3; Sx = (qq.*xd) ./rd3; Sy = (qq.*yd) ./rd3; Sz = (qq.*zd) ./rd3; SSx = -A2 .* sum(Sx'); SSy = -A2 .* sum(Sy'); SSz = -A2 .* sum(Sz'); xfp = 2.*x_1 - x_2 + SSx; yfp = 2.*y_1 - y_2 + SSy; zfp = 2.*z_1 - z_2 + SSz; qq = meshgrid(q,q)

  10. SIMULATIONS single, multiple and mixed charged states H C Ti 10 ps 50 Ti+ 50 e-

  11. 10 ps 100 Ti+ 100 e-

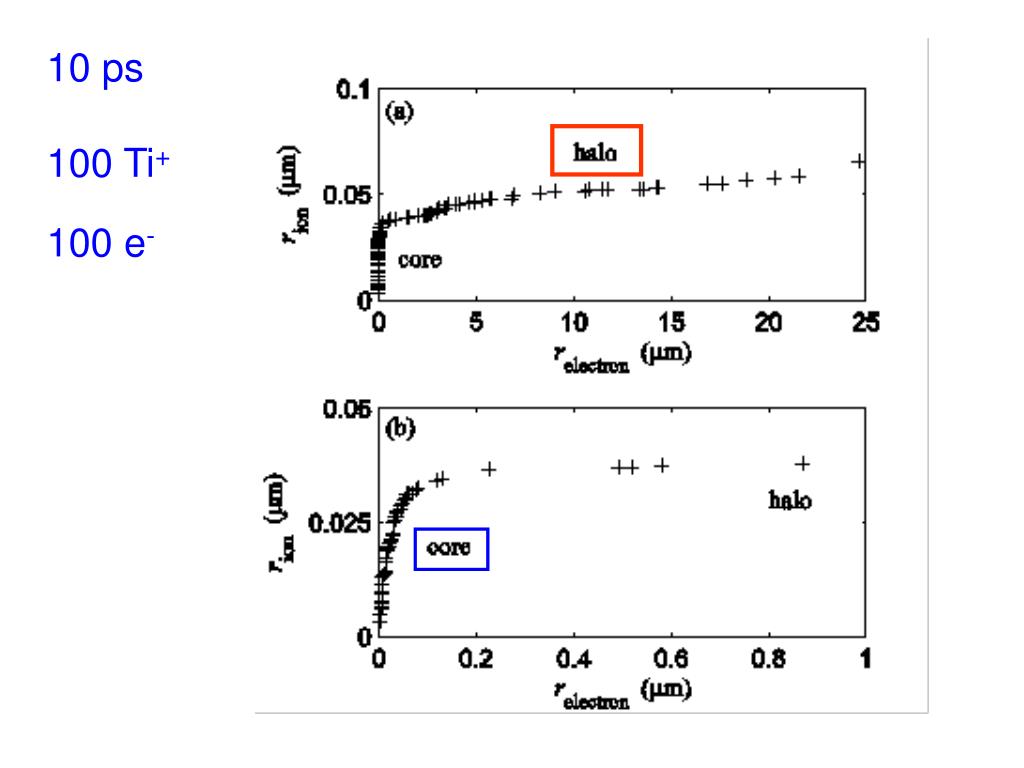

  12. 10 ps 100 Ti+ 100 e-

  13. 0.10 ps 50 Ti+ 50 e-

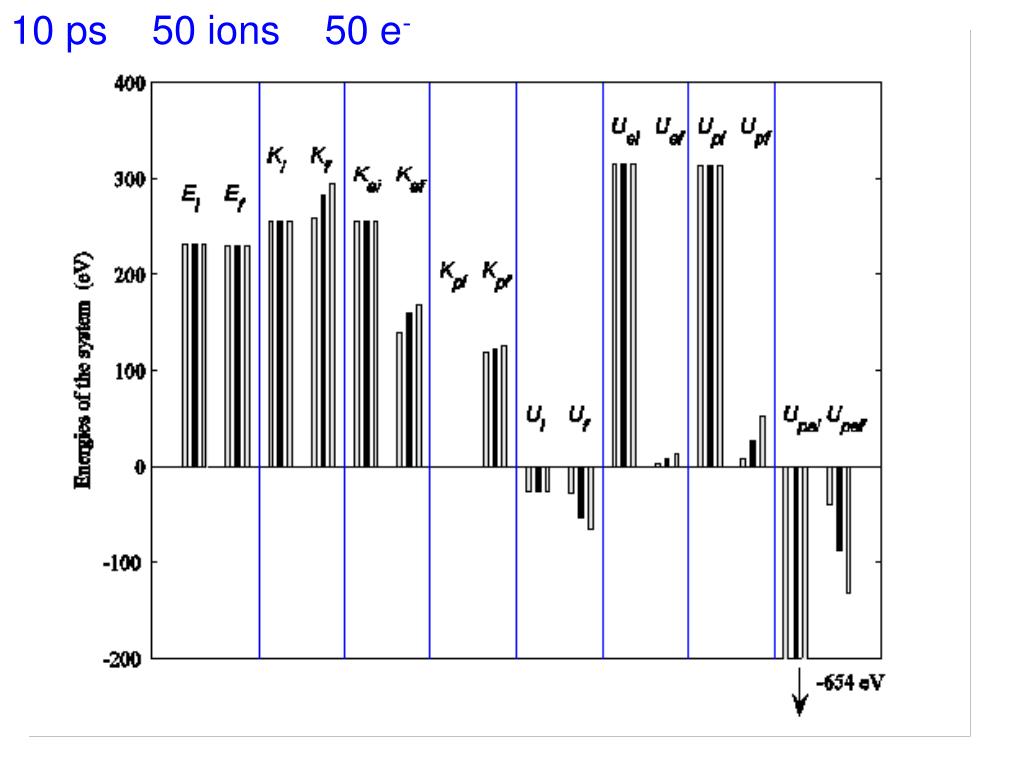

  14. 10 ps 50 ions 50 e-

  15. 10 ps 100 Ti+ 100 e-

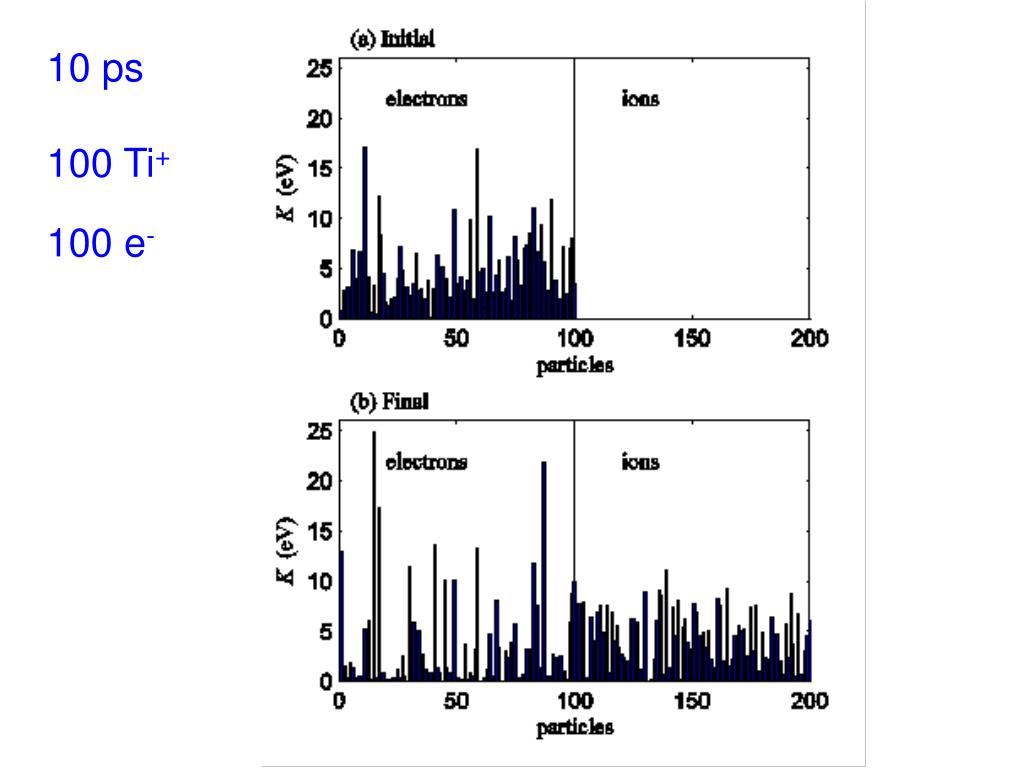

  16. 10 ps 100 Ti+ 100 e-

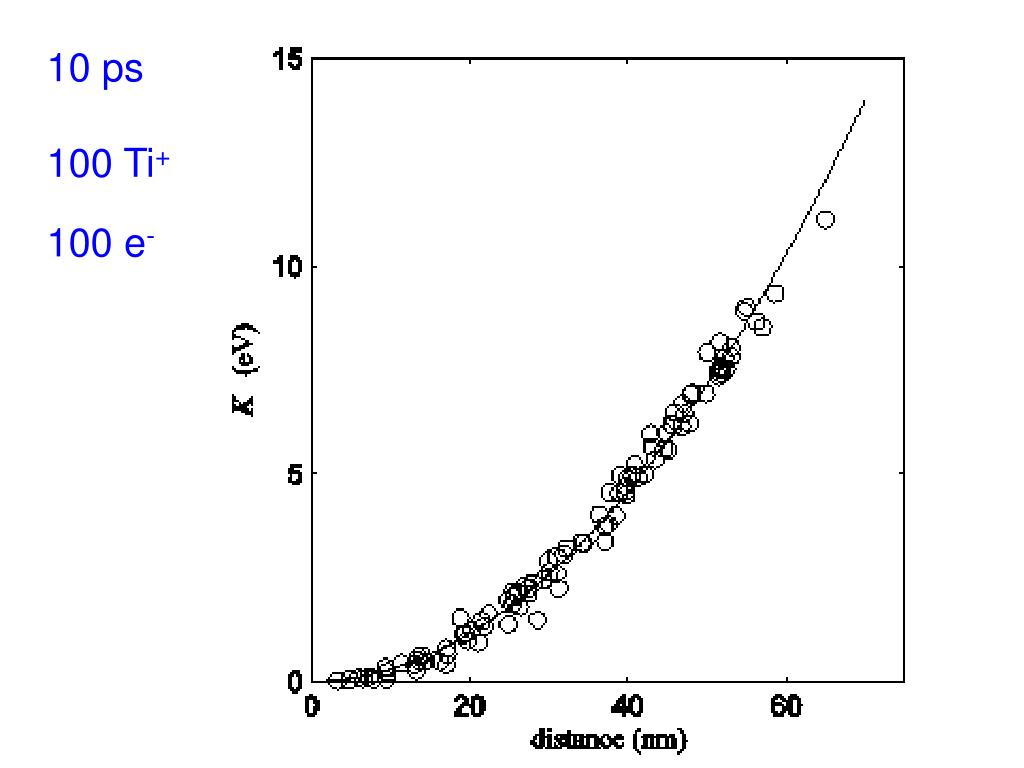

  17. 10 ps 100 Ti+ 100 e-

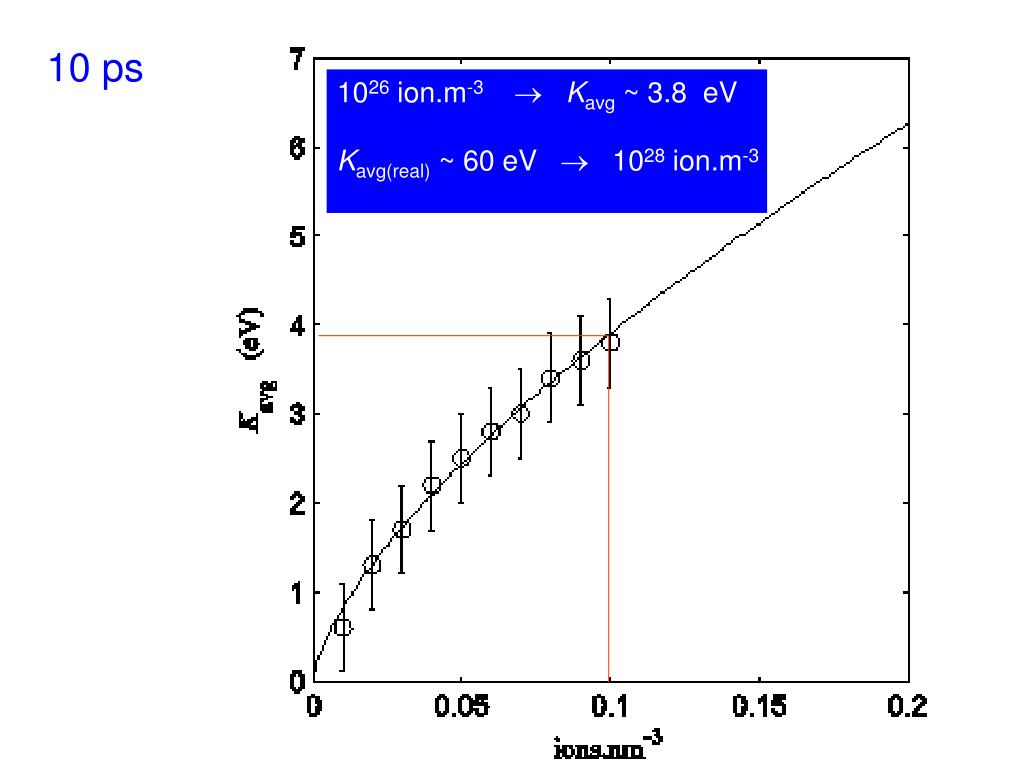

  18. 10 ps 1026 ion.m-3 Kavg ~ 3.8 eV Kavg(real) ~ 60 eV  1028 ion.m-3

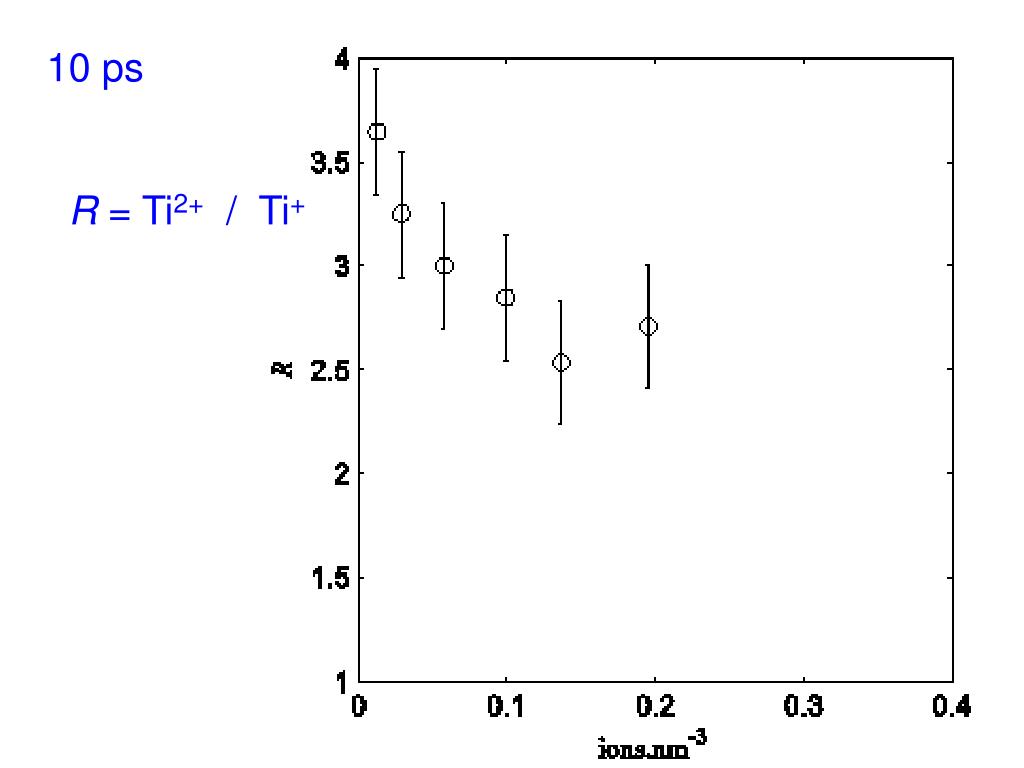

  19. 10 ps R = Ti2+ / Ti+
