Drum Filling

These drum filling systems are available in either top fill only or bottom up fill (subsurface) configurations. Top drum filling configurations are less expensive but limited to non foaming bulk products. Bottom up drum filling configurations are very flexible systems capable of filling almost any bulk product within a wide range of foamy characteristics and viscosities.<br><br>"SlimLine" FillerttType 9t<br>Simple "Plug and Fill" SolutiontType 19t<br>Drum FillertttType 29t<br>Automatic Drum Filling MachinetType 31 - Type 33t<br>Automatic Drum FillerttType 81t<br>Automatic Drum FillerttType 86<br>

jasonnjasonn
Download Presentation

Drum Filling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Leading manufacturer of filling machines for liquid and pasty products combined with storage system, conveyors or palletizing system.

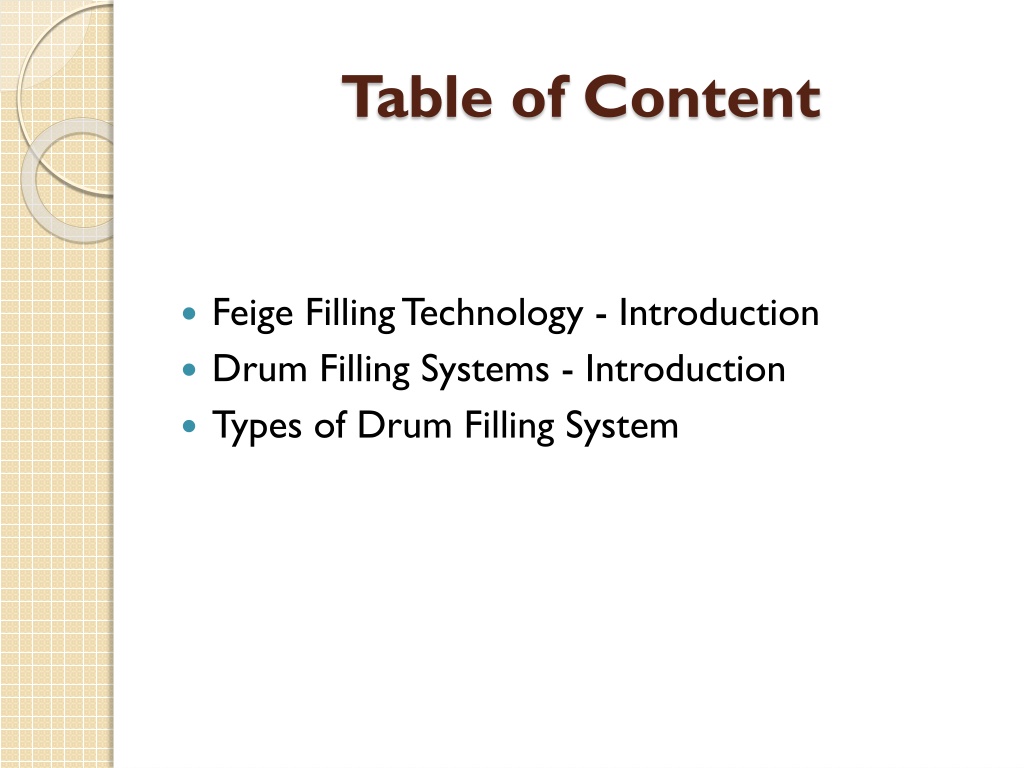

  2. Table of Content • Feige Filling Technology - Introduction • Drum Filling Systems - Introduction • Types of Drum Filling System

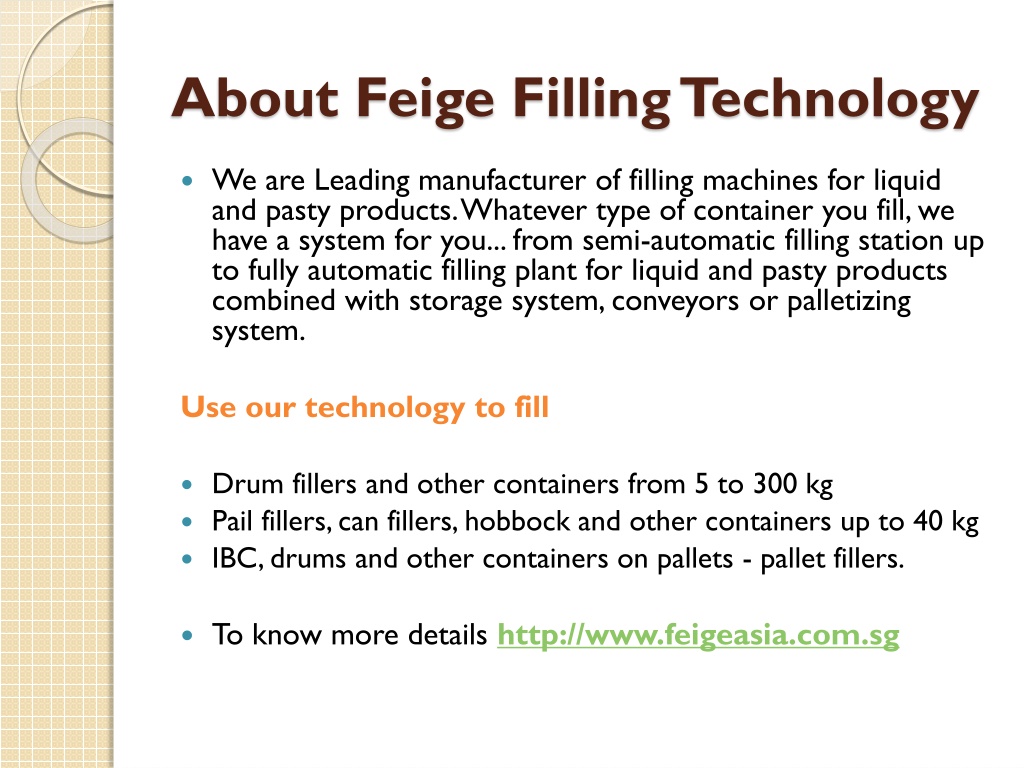

  3. About Feige Filling Technology • We are Leading manufacturer of filling machines for liquid and pasty products. Whatever type of container you fill, we have a system for you... from semi-automatic filling station up to fully automatic filling plant for liquid and pasty products combined with storage system, conveyors or palletizing system. Use our technology to fill • Drum fillers and other containers from 5 to 300 kg • Pail fillers, can fillers, hobbock and other containers up to 40 kg • IBC, drums and other containers on pallets - pallet fillers. • To know more details http://www.feigeasia.com.sg

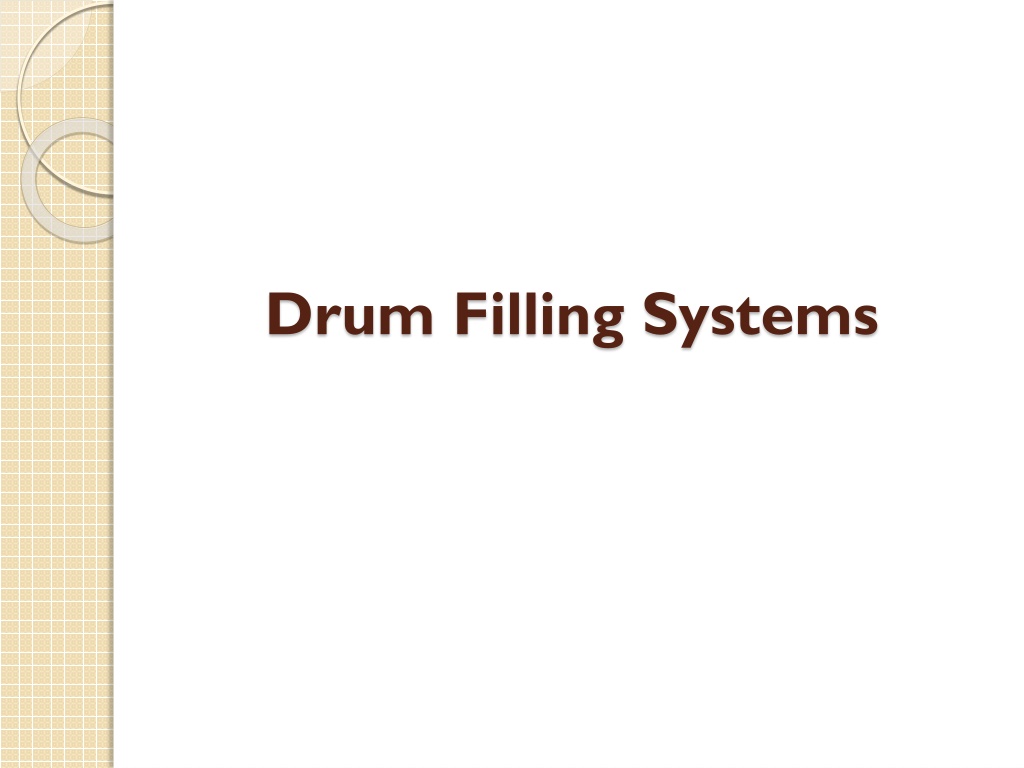

  4. Drum Filling Systems

  5. Drum Filling Systems • These drum filling systems are available in either top fill only or bottom up fill (subsurface) configurations. Top drum filling configurations are less expensive but limited to non foaming bulk products. Bottom up drum filling configurations are very flexible systems capable of filling almost any bulk product within a wide range of foamy characteristics and viscosities.

  6. Drum Filling Systems - Types • "SlimLine" Filler Type 9 • Simple "Plug and Fill" Solution Type 19 • Drum Filler Type 29 • Automatic Drum Filling Machine Type 31 - Type 33 • Automatic Drum Filler Type 81 • Automatic Drum Filler Type 86

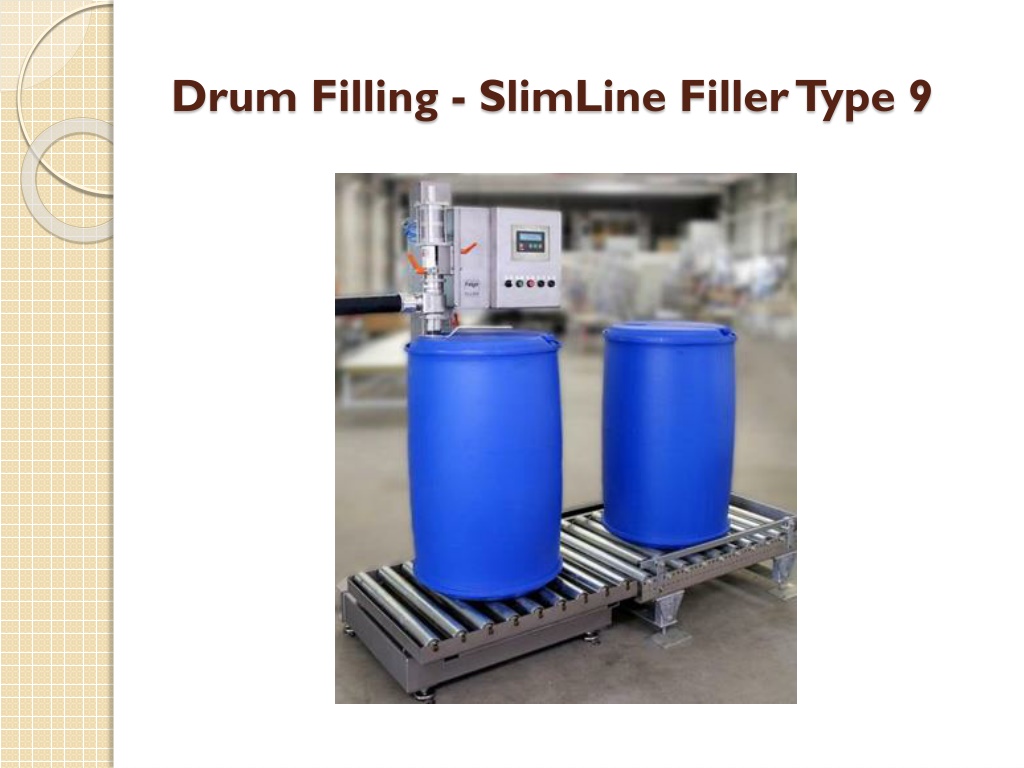

  7. Drum Filling - SlimLine Filler Type 9

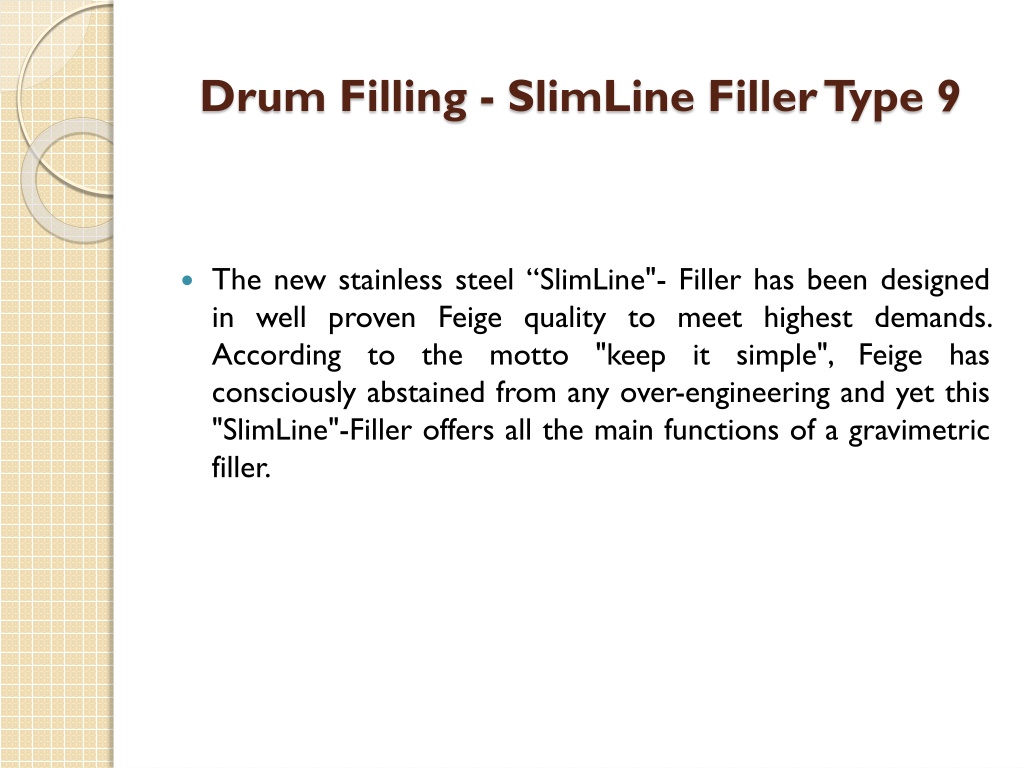

  8. Drum Filling - SlimLine Filler Type 9 • The new stainless steel “SlimLine"- Filler has been designed in well proven Feige quality to meet highest demands. According to the motto "keep it simple", Feige has consciously abstained from any over-engineering and yet this "SlimLine"-Filler offers all the main functions of a gravimetric filler.

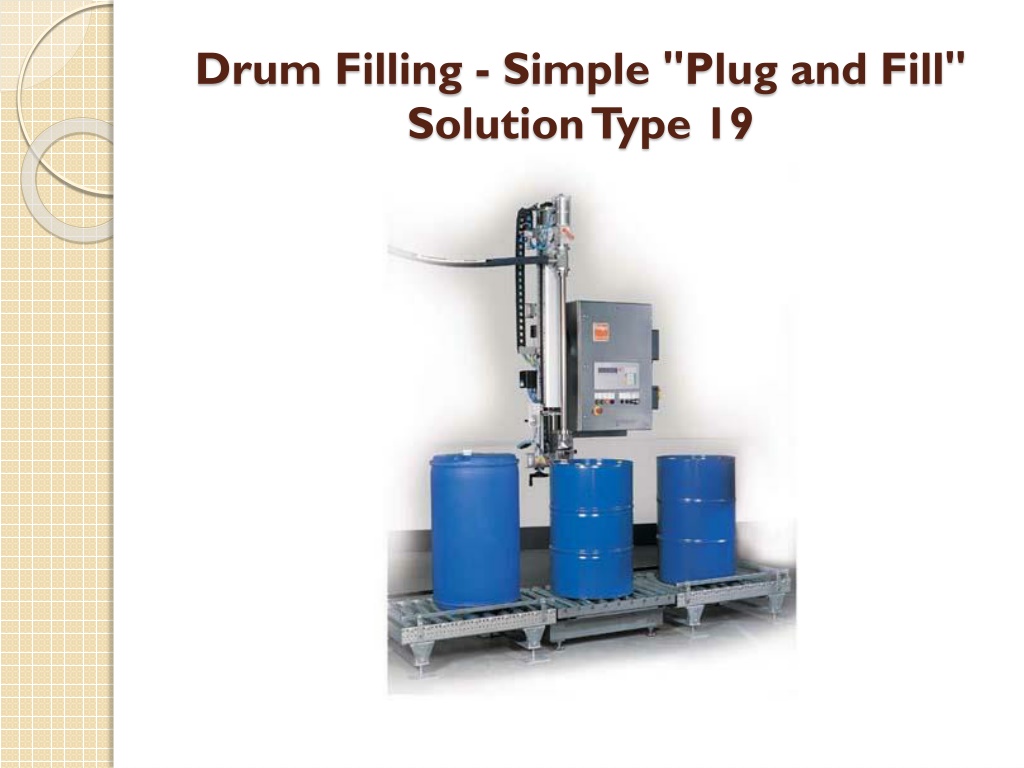

  9. Drum Filling - Simple "Plug and Fill" Solution Type 19

  10. Drum Filling - Simple "Plug and Fill" Solution Type 19 • Either used for the filling of uncritical liquid or pasty products or for hazardous area application in zone 1, a mobile filling station can help to save a lot of money within the internal production process. • Complex piping and hosing can be spared as these mobile "Plug & Fill" machines are directly brought to the tank, either supplied with rollers or via floor conveyors. No foundation is necessary. Compressed air supply is simply connected via connectors and power supply is put on. Thus, the same machine can be used at many different fill places to fill different products into drums, pails, cans or IBC.

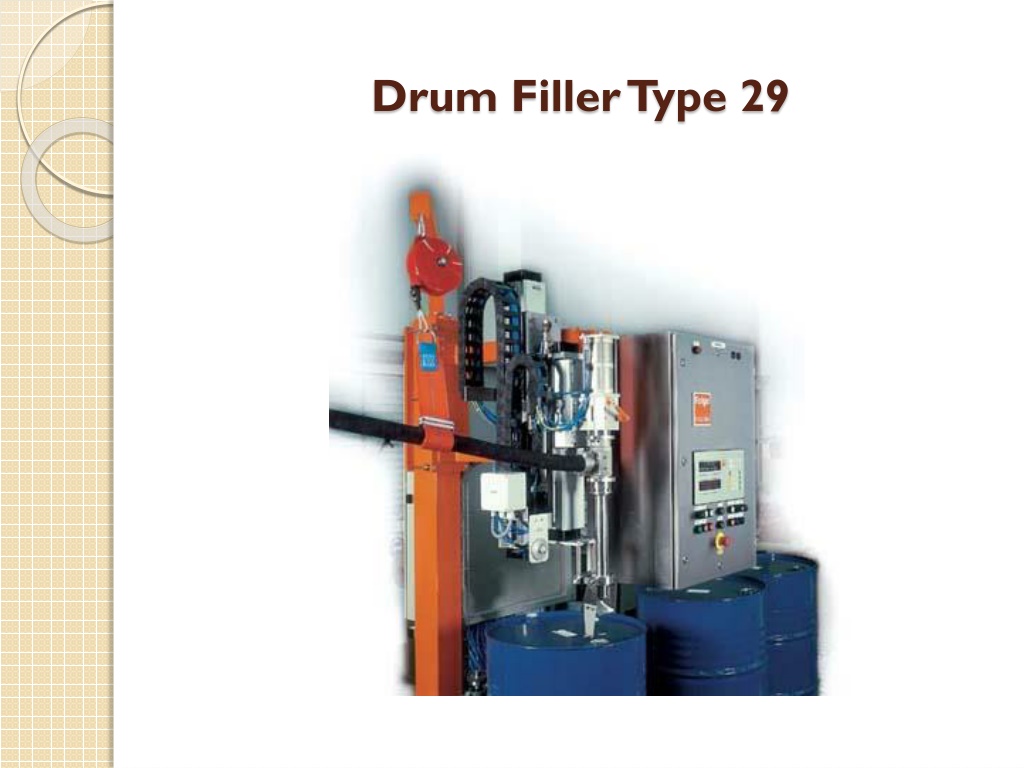

  11. Drum Filler Type 29

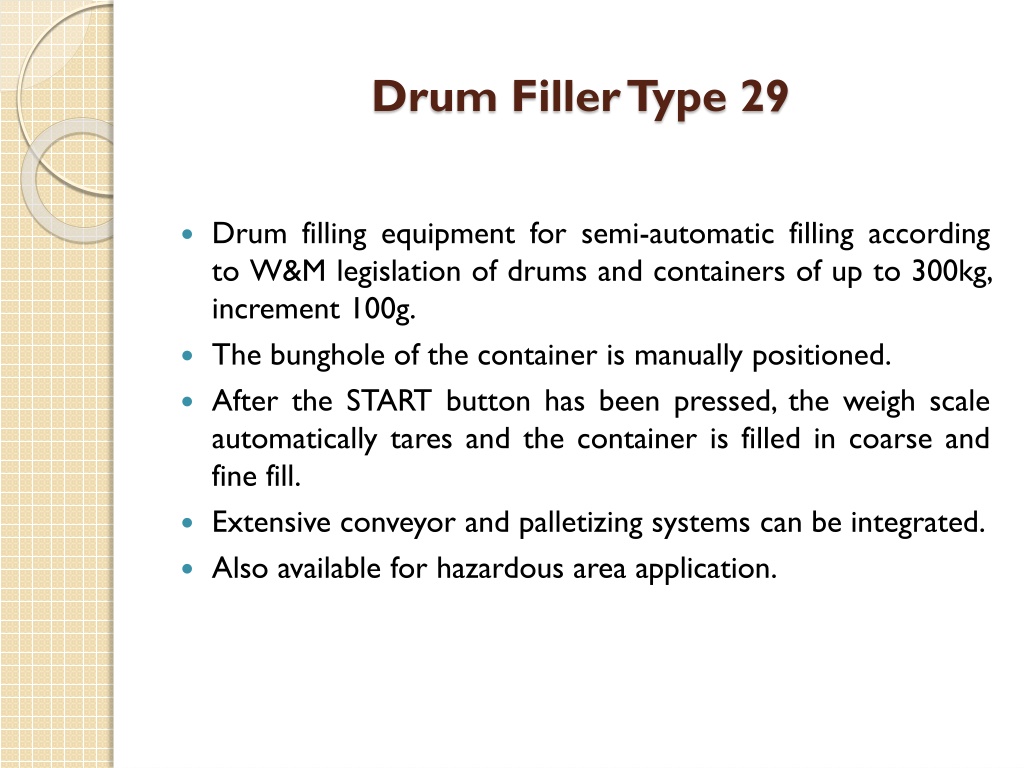

  12. Drum Filler Type 29 • Drum filling equipment for semi-automatic filling according to W&M legislation of drums and containers of up to 300kg, increment 100g. • The bunghole of the container is manually positioned. • After the START button has been pressed, the weigh scale automatically tares and the container is filled in coarse and fine fill. • Extensive conveyor and palletizing systems can be integrated. • Also available for hazardous area application.

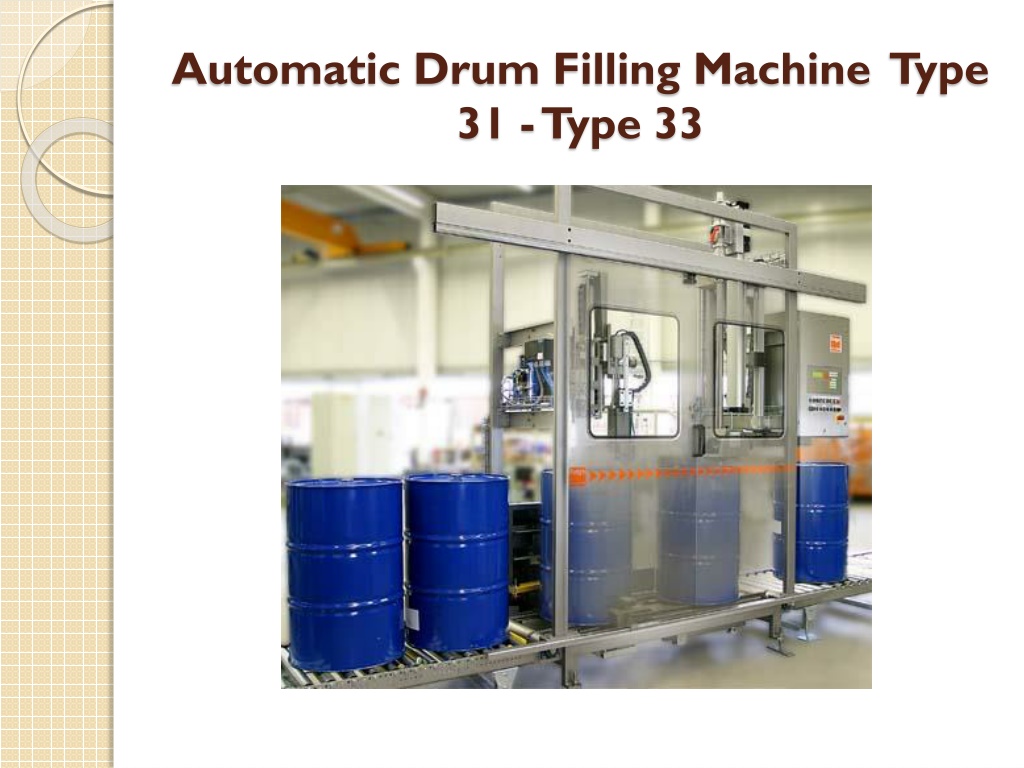

  13. Automatic Drum Filling Machine Type 31 - Type 33

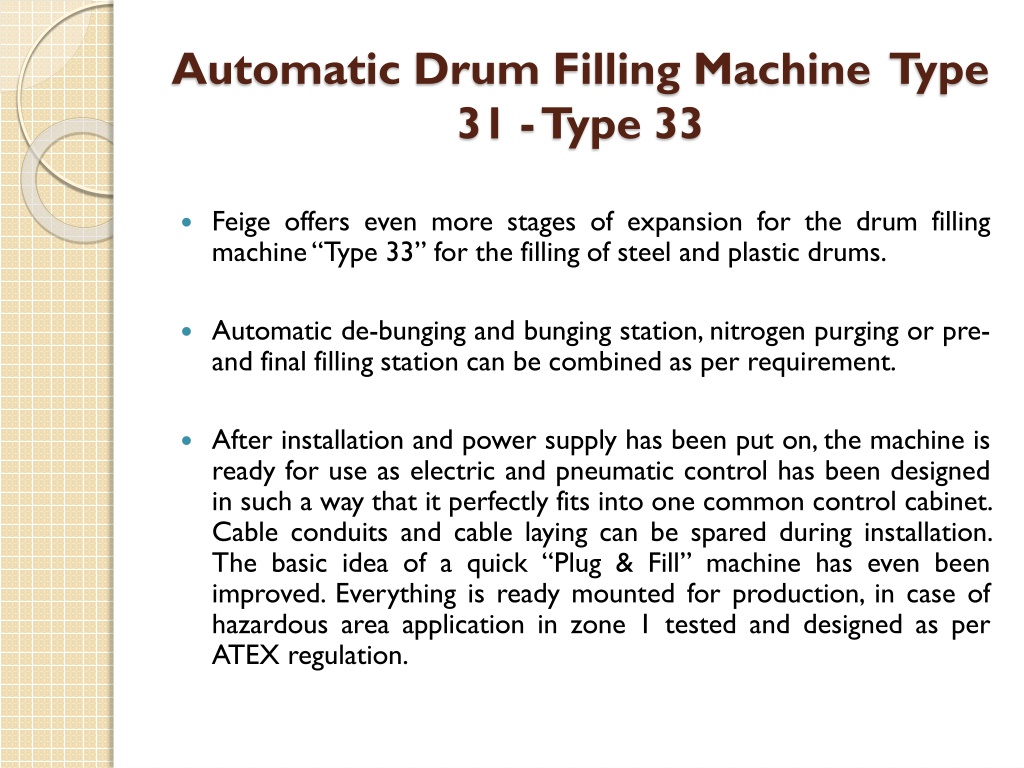

  14. Automatic Drum Filling Machine Type 31 - Type 33 • Feige offers even more stages of expansion for the drum filling machine “Type 33” for the filling of steel and plastic drums. • Automatic de-bunging and bunging station, nitrogen purging or pre- and final filling station can be combined as per requirement. • After installation and power supply has been put on, the machine is ready for use as electric and pneumatic control has been designed in such a way that it perfectly fits into one common control cabinet. Cable conduits and cable laying can be spared during installation. The basic idea of a quick “Plug & Fill” machine has even been improved. Everything is ready mounted for production, in case of hazardous area application in zone 1 tested and designed as per ATEX regulation.

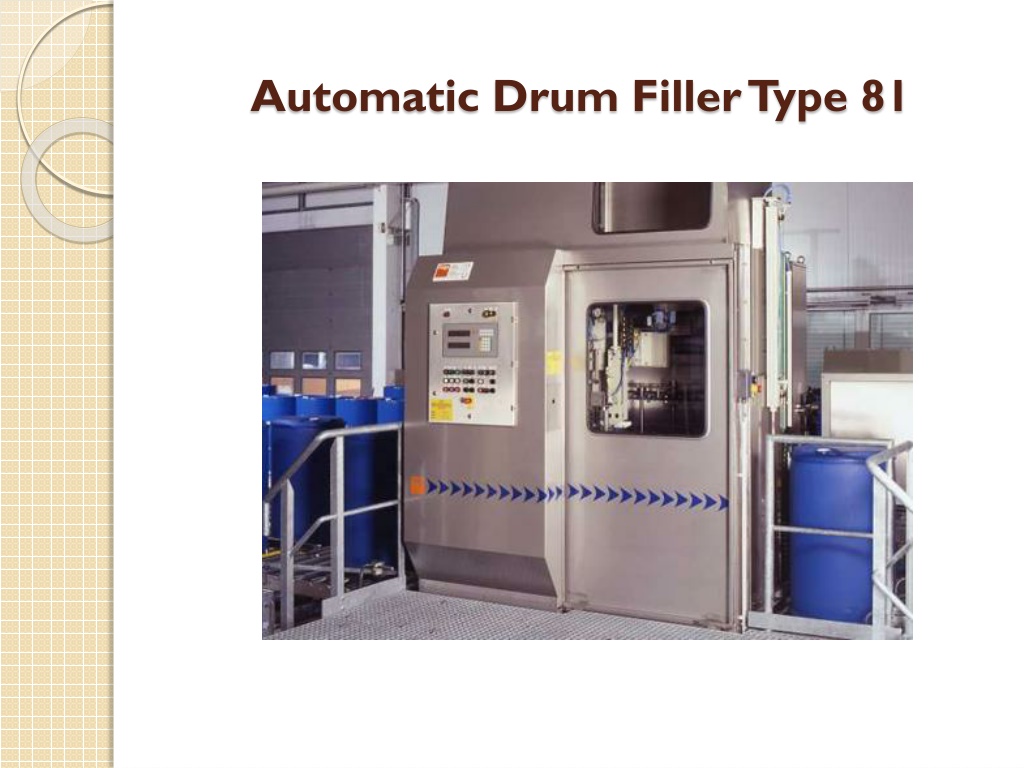

  15. Automatic Drum Filler Type 81

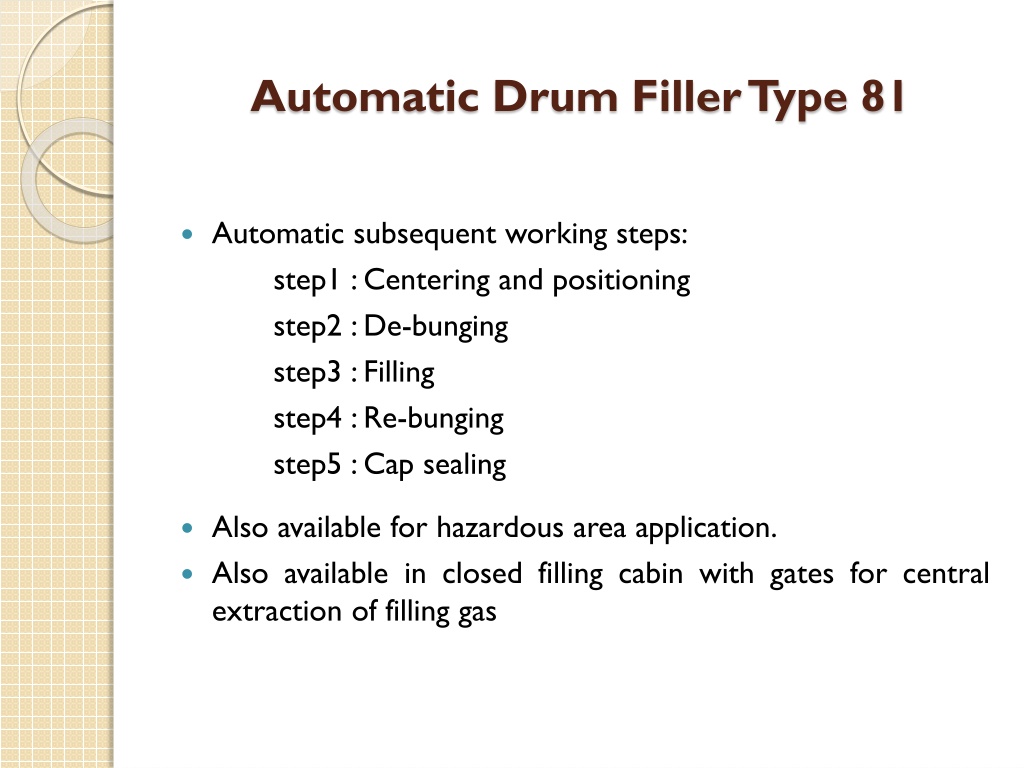

  16. Automatic Drum Filler Type 81 • Automatic subsequent working steps: step1 : Centering and positioning step2 : De-bunging step3 : Filling step4 : Re-bunging step5 : Cap sealing • Also available for hazardous area application. • Also available in closed filling cabin with gates for central extraction of filling gas

  17. Automatic Drum Filler Type 86

  18. Automatic Drum Filler Type 86 • Automatic simultaneous working steps type 86: step 1: Centering, positioning and de-bunging step 2: Vacant step 3: Filling step 4: Filling step 5: Vacant step 6: Re-bunging and cap sealing (Tri-Sure) • Nominal ouput approx. 120 drums/h • Also available for hazardous area application.

  19. Thank You
